Hoffmann MU3-P Operating instructions
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 2
1 Table of contents
2WARNING AND SAFETY SYMBOLS USED IN THIS MANUAL...........................................................3
3INTENDED USE AND OPERATION....................................................................................................... 5
3.1 Transportation and Installation ..........................................................................................................5
3.2 Technical Changes and Maintenance ...............................................................................................6
3.3 Operator and Maintenance Personnel...............................................................................................6
3.4 Equipment Owner’s Responsibilities .................................................................................................6
3.5 Change of Ownership........................................................................................................................6
4MACHINE DESCRIPTION.......................................................................................................................7
4.1 Terminology used in this manual...................................................................................................7
4.2 Machine Description......................................................................................................................7
5 TECHNICAL DATA AND SPECIFICATIONS......................................................................................... 8
5.1 Operator Environment........................................................................................................................8
6.2 Mechanical Dangers ..........................................................................................................................9
6.3 Defective equipment..........................................................................................................................9
6.4 Electrical Dangers..............................................................................................................................9
6.5 Cleaning agents and chemicals.......................................................................................................10
6.6 Remaining Risks..............................................................................................................................10
7 Noise Emissions .................................................................................................................................10
8WARRANTY AND LIABILITY...............................................................................................................11
9ELECTRICAL AND DUST COLLECTION CONNECTIONS ................................................................ 12
10 CHANGING ROUTER BITS.................................................................................................................. 13
10 CHANGING ROUTER BITS - CONTINUED .........................................................................................14
11 ROUTER BIT ADJUSTMENTS............................................................................................................. 15
12 SELECTING KEY LENGTH AND SETTING ROUTING STROKE.......................................................16
13 CALIBRATING AND USING DIGITAL DISPLAYS (MU3-PD).............................................................17
14 CALIBRATING TOP DISPLAY TO SET THE ROUTING STROKE.....................................................18
15 OVERVIEW - CENTER FENCE PLATE AND SQUARE STOP ...........................................................22
16 EXAMPLES OF JOINING ANGLES OTHER THAN 45 DEGREES.....................................................23
17 STEP-BY-STEP INSTRUCTIONS FOR 45 DEGREE MITER JOINTS ................................................24
18-A ACCESSORIES FOR MU3-SERIES DOVETAIL ROUTING MACHINES............................................25
18-B ACCESSORIES FOR MU3-SERIES DOVETAIL ROUTING MACHINES............................................26
19 ROUTER BITS FOR MU3-SERIES DOVETAIL ROUTING MACHINES.............................................. 27
20 HOFFMANN DOVETAIL KEYS ............................................................................................................28
21 HOFFMANN DOVETAIL KEYS ............................................................................................................29
22 HOFFMANN DOVETAIL KEY SAMPLE CASES................................................................................. 30
23 TROUBLESHOOTING ..........................................................................................................................31
24-A MACHINE DRAWINGS AND PARTS LISTS........................................................................................32
24-B MACHINE DRAWINGS AND PARTS LISTS........................................................................................33
24-C MACHINE DRAWINGS AND PARTS LISTS........................................................................................34
25 PNEUMATIC CIRCUIT DIAGRAM........................................................................................................35
26 TERMS AND CONDITIONS OF SALE AND WARRANTY ..................................................................36
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 3
2 Warning and Safety Symbols used in this manual
Operator must read, understand and follow all safety rules, symbols and operating instructions at all times.
The following symbols are used in this operating manual:
Safety Warning Symbol
This symbol warns of a possible danger.
Ignoring the safety instructions can lead to serious bodily harm
and/or damage to the equipment and/or material being processed.
Important Instructions
Instructions listed with this symbol must be strictly adhered to.
This symbol does not include a warning.
It is used to denote helpful hints and tips to improve the operation
and performance of the equipment.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 4
2.1 Warning and Safety Labels attached to machine
A number of important warning labels have been attached to this MU3-series dovetail routing machine for your
information and protection.
For your own safety, please take a moment to locate and read all warning labels before operating this machine.
If a label has been removed, defaced or is illegible, please contact Hoffmann Machine Company, Inc. to request
a free replacement.
Please note that not every label shown may be attached to the machine and labels are subject to change.
NEVER REMOVE ANY SAFETY OR WARNING LABEL!
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 5
3 Intended Use and Operation
The HOFFMANN MU3-series dovetail routing machines are designed solely for manually routing dovetail keyways for
Hoffmann Dovetail Keys into solid hard and soft wood, wood-related materials such as MDF, plywood, particleboard and
certain plastic materials.
Dovetail Keyways in sizes W-0, W-1, W-2 and W-3 can be routed with the standard router motor, a larger 1,000 watt router
motor is recommended for use with W-4 router bits.
All work pieces must fall within the following dimensional parameters:
Dimension
MIN (mm)
MAX (mm)
Width
10
Unlimited
(with optional accessories)
Thickness
10
125
Length
100
unlimited
Using HOFFMANN MU3-series dovetail routing machines for any other operation or material
can result in unforeseen dangers and is expressly forbidden!
The manufacturer is not liable for any damages resulting from unapproved use or operation of the equipment. The operator
is solely responsible for any such risks and dangers.
The equipment may not be copied or dismantled for the purpose of duplication of all or part of the design or operation.
Technical changes to this equipment require the prior written consent of the manufacturer.
Any changes, additions, removal of components, etc. not expressly permitted in writing by the manufacturer will immediately
void the warranty. Any risks, dangers or damages resulting from unauthorized modifications are solely the responsibility of
the user/operator.
Adjustments on moveable components of HOFFMANN MU3-series dovetail routing machines during the operating process
are only permitted if such adjustments are required for the proper operation of the equipment and if such adjustment
procedures are outlined in this manual. All pertinent safety rules and regulations are to be strictly adhered to.
3.1 Transportation and Installation
Hoffmann MU3-series dovetail routing machines are shipped in sturdy cardboard boxes which are strapped to shipping
pallets for transport.
Carefully check outer carton for any shipping damage before accepting delivery and compare packing list with included items
and accessories. Inform shipping company and Hoffmann Machine Company, Inc. immediately of any shipping damage,
take photographs and note damage on Bill of Lading.
Remove all strapping and packaging and carefully lift machine out of its carton. To avoid possibility of injury, we strongly
recommend two people work together to lift machine and place it on a suitable table or workbench.
Clean off oil film from machine table, fences (also underside of fences and square stop) with paper towels and non-corrosive
cleaner (e.g. SIMPLE GREEN, Citrus Cleaner, etc.) before connecting electrical power and compressed air supply.
Connect machine power cord to 120 volt outlet or suitable extension cord. Always use shortest extension cord possible.
Use a suitable compressed air line and connect machine to compressed air supply. Customer is to supply male fitting with
1/4” NPT thread for pressure regulator.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 6
3.2 Technical Changes and Maintenance
Technical changes or alterations of any kind are only permitted if the prior written authorization from Hoffmann Machine
Company, Inc. has been secured.
Never remove safety guards and shields, remove or by-pass safety devices, switches, sensors, use or install tooling other
than originally supplied.
The manufacturer is not liable for any injuries or damages caused by unauthorized changes, removal or add-ons to this
equipment.
Only trained, qualified personnel may perform installation, set-up and maintenance procedures as well as replacement of
parts or components of any kind.
3.3 Operator and Maintenance Personnel
Machine operator and maintenance personnel may only perform activities described in this manual.
Persons working on or with this machine must be at least 18 years old, they must be thoroughly familiar with this operating
manual and they must adhere to all local safety rules and regulations. All OSHA specified rules must be followed if
applicable.
Persons working on or with this machine must wear suitable clothing designed to avoid entrapment in rotating machine
components.
No loose fitting clothes e.g. ties or shawls, or bracelets, wristwatches, necklaces, etc. may be worn when operating this
machine.
Persons with long hair must tie their hair securely and wear an appropriate hair covering to avoid entanglement.
3.4 Equipment Owner’s Responsibilities
The owner of the equipment must make this operator manual available to all machine operators and maintenance personnel.
The equipment owner must assure that all operators and maintenance personnel are qualified to work on this equipment and
that they have read and fully understand this operator manual, especially all sections pertaining to possible dangers and
safety rules.
The owner must assure that all areas of responsibility, including set-up, operation, maintenance, etc. –are clearly defined
and explained.
All responsibilities must be assigned to and understood by all involved persons to avoid the risk of injury and /or damage to
material.
The owner is responsible for the adherence to all applicable safety rules and regulations.
The owner is responsible for the proper and safe condition of the machine; he is further responsible for the proper installation
and set-up and he must provide a safe and secure work environment.
The owner must be familiar with and is responsible for the adherence to any and all local and national safety rules and
regulations pertaining to this equipment.
The manufacturer is not liable for any injuries or damages as a result of non-compliance with, or adherence to, applicable
safety rules and regulations.
If the operator and/or maintenance personnel do not understand English, the owner must provide a properly translated
operator manual to assure the safety of all personnel.
3.5 Change of Ownership
In case of sale of this equipment all components, tools, manuals, safety instructions, accessories as well as any electronic or
software updates you have originally received with the machine must be included.
This includes any and all operator manuals, maintenance instructions, equipment or components replacement parts, etc.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 7
4 Machine Description
4.1 Terminology used in this manual
MU3-series = HOFFMANN MU3-P or MU3-PD Dovetail Routing Machine
Bit = Hoffmann dovetail router bits in sizes W-0, W-1 / W-2 / W3
Workpiece = User supplied moulding profiles made of wood or wood related materials
Dovetail Key = HOFFMANN Dovetail Keys
4.2 Machine Description
HOFFMANN MU3-series dovetail routing machine consists of:
HOFFMANN MU3-series dovetail routing machine
45 degree center fence plate with locking lever
90 degree square stop with locking lever
One Hoffmann router bit installed
Toolkit
Operating manual
Hoffmann MU3-P pneumatic dovetail routing machine Hoffmann MU3-PD pneumatic dovetail routing machine
(shown with optional accessories) (shown with optional accessories)
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 8
5 Technical Data and Specifications
Electrical Power Supply
Supply voltage
Frequency
Input Amperage
Motor Speed
Collet Size
Router motors
Router bits
120 volt, single phase
50-60 Hz
8 A
34,000 rpm
1/4” (6.35mm)
Hoffmann router motor Type UAD-33 885 watt –120 volt
Hoffmann Dovetail Router Bits, size W0 / W1 / W2 / W3
Compressed Air Supply:
Compressed Air Requirements
90 psi (6bar) clean and dry air
Approx. volume 1liter/cycle = 0.04 cubic feet / cycle
Other Specifications
Work piece material
Machine performance
Weight
Dim. Length x depth x height
Noise emissions:
Sound Pressure Level (SPL):
Wood and wood related materials and certain plastics
Up to 40 cycles/hour (depending on operator, material flow,
material quality, etc.)
approx. 71 lbs.
approx. 29 1/4” x 25 1/2” x 32 7/8”
75.3 dB (A)
Machine Environment
Temperature range for operation
Temperature for storage / transport
Temperature change during operation
Temperature change during storage / transport
Relative humidity according to DIN 40040
Air pressure during operation
Air pressure during storage / transport
59.... + 104 F
32.... + 140 F
max. 20 F
max. 40 F
15... 80 % without condensation at 95 F
860-1060 hPA (bar)
860-1060 hPA (bar)
5.1 Operator Environment
The work areas for the operator have been designed with ergonomic principles in mind.
The machine owner is responsible for ease of access, adequate lighting, fresh air supply, etc.
Rules for safe work areas:
The work area must be free from clutter and must be kept neat and unobstructed. Local and national safety rules,
including but not limited to all applicable OSHA Rules must be adhered to.
Access space of no less than 24” shall be available on all sides of the machine for set-up and maintenance
procedures.
All electrical supply lines must be securely fastened in accordance with all local and national safety codes. Secure
all wires, hoses and lines and do not allow lines to lie on the floor as they may present a trip hazard to the operator. Supply
lines, wires and hoses must be inspected periodically and replaced if any damage is observed.
The environmental conditions must meet the guide lines given under section 5 “Technical Date and Specifications”
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 9
6 Potential Sources of Danger
6.1 Unapproved Use
Unapproved procedures are:
Processing work pieces made of material other than solid wood or wood related material such as
MDF, particle board, plywood, etc.
Operating of the machine by more than one operator at the same time.
Unapproved use and/or misuse of the machine can result in the following:
Minor to severe injuries to the machine operator and/or bystanders.
Damage to the machine and/or work pieces.
6.2 Mechanical Dangers
During operation of this machine sharp router bits rotate at high speeds.
These components can cause severe injury if hair or clothing or extremities become entangled.
Never reach into the machine during operation!!
Only make adjustments during operation if these adjustments are absolutely necessary and if the
procedure is fully outlined and approved in this operator manual.
6.3 Defective equipment
If the machine does not function properly and if the fault cannot be rectified immediately, the equipment must be
shut down by the person responsible for the operation.
Signs of defective are:
The machine shows signs of mechanical damage.
Electrical wires or cables are damaged.
The machine was stored or has not been in use for an extended period of time in an unsuitable
environment, for example in high relative humidity or too high or too low temperature.
6.4 Electrical Dangers
Dangerous electrical current is present in different locations inside of the machine’s limit switch
when the power cord is plugged in, even if the machine is not being operated and the motor is switched off. Do
not remove any switch cover or motor end cap.
Never use damaged or worn cables, wires, supply lines or electrical components or parts on this
machine.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 10
6.5 Cleaning agents and chemicals
Review and observe all safety rules provided by the chemicals manufacturer while working with
cleaning agents and other chemicals. Read and understand the Material Safety Data Sheets (MSDS)
provided by the manufacturer and follow all safety precautions described therein.
Always wear proper protective gear, including safety glasses and gloves, when using cleaning
agents, degreaser, etc.
Do not eat, drink or smoke when using chemicals.
Dispose of used cleaning agents and other chemicals in accordance with all State and local laws.
6.6 Remaining Risks
If the operator does not pay attention, it is possible to squeeze ones’ fingers when loading and
manually clamping a work piece. Never place your fingers under the clamp pads of the material
clamp pad or in the path of the router bit.
7 Noise Emissions
The machine generates a work place Sound Pressure Level (SPL) of approx. 75.3 dB(A)
when processing a work piece.
Local conditions could increase the SPL, which could cause hearing damage or loss.
The machine owner must provide suitable protective gear to protect employees from
hearing damage, as required by local and state laws and OSHA regulations.
Notes:
All listed values are measured noise emission levels –they are not necessarily safe working environment levels.
Local conditions, the proximity of walls and ceilings, the type of wall, ceiling and floor material as well other
equipment in close proximity could affect the total noise emissions at the work place.
The SPL values are provided as information only and it is recommended that the machine owner measure the
actual local noise levels after installation.
Machine is owner is responsible for providing suitable protective gear depending on total noise emissions and
local and state laws and regulations.
All OSHA regulations pertaining to noise protection are to be adhered to.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 11
8 Warranty and Liability
The „Hoffmann Machine Company, Inc. Terms and Conditions of Sale“are the basis for all dealings between
the manufacturer and the customer. These Terms have been made available to the customer during the
proposal and order processing stage.
In addition to the complete Terms and Conditions of Sale, any of the following conditions immediately voids the
warranty and releases the manufacturer from any and all liability.
Unapproved use of the machine.
Improper installation, start-up, maintenance or operation of the machine.
Operation of machine with defective, missing or by-passed safety devices of any kind.
Non adherence to any rule or regulation in this operator manual.
Unauthorized changes to the machine or any of its components
Insufficient supervision and maintenance of parts subject to normal wear and tear.
Damage due to unforeseen circumstances, acts of God, etc.
Improper or unauthorized repairs or use of tooling (router bits not supplied by Hoffmann, Inc.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 12
9 Electrical and Dust Collection Connections
Hoffmann MU3-series dovetail routing machine are equipped with power cords for 120 volt US household
current.
Connect the power cord to a suitable outlet or, if using an extension cord, use the shortest extension cord
possible. Check to make sure extension is undamaged in safe working order.
Dust Collection
The machines are equipped with a 50mm (2”) diameter dust
collection port, located underneath the router bit. The port is
accessed by carefully tilting the machine forward.
Connect a properly sized suction hose from shop vacuum or
connect the dust collection hose to central dust collection
system.
Proper dust collection should always be used for best results
and to keep the machine and work area as clean as possible.
A minimum suction value of 150 cubic feet per minute is
required.
When using a shop vacuum, we recommend using a model
with build-in “tool trigger outlet” to cycle the vacuum on and off
with the routing machine. This reduces strain on the vacuum,
it greatly reduces noise levels and it extends the life of your
vacuum.
If your vacuum is not equipped with a tool-trigger outlet,
aftermarket accessories are available online from retailers like
Amazon.com, etc.
This is an example of an add-on tool trigger outlet available online.
It is shown as an example only, other models and sizes may be available.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 13
10 Changing Router Bits
ALWAYS DISCONNECT THE ELECTRICAL POWER AND COMPRESSED AIR SUPPLY BEFORE
ATTEMPTING ANY SERVICE, MAINTENANCE OR REPAIR WORK!
Follow proper “Lock-Out / Tag-Out” procedures as specified by the Occupational Safety and Health
Administration “OSHA” if applicable.

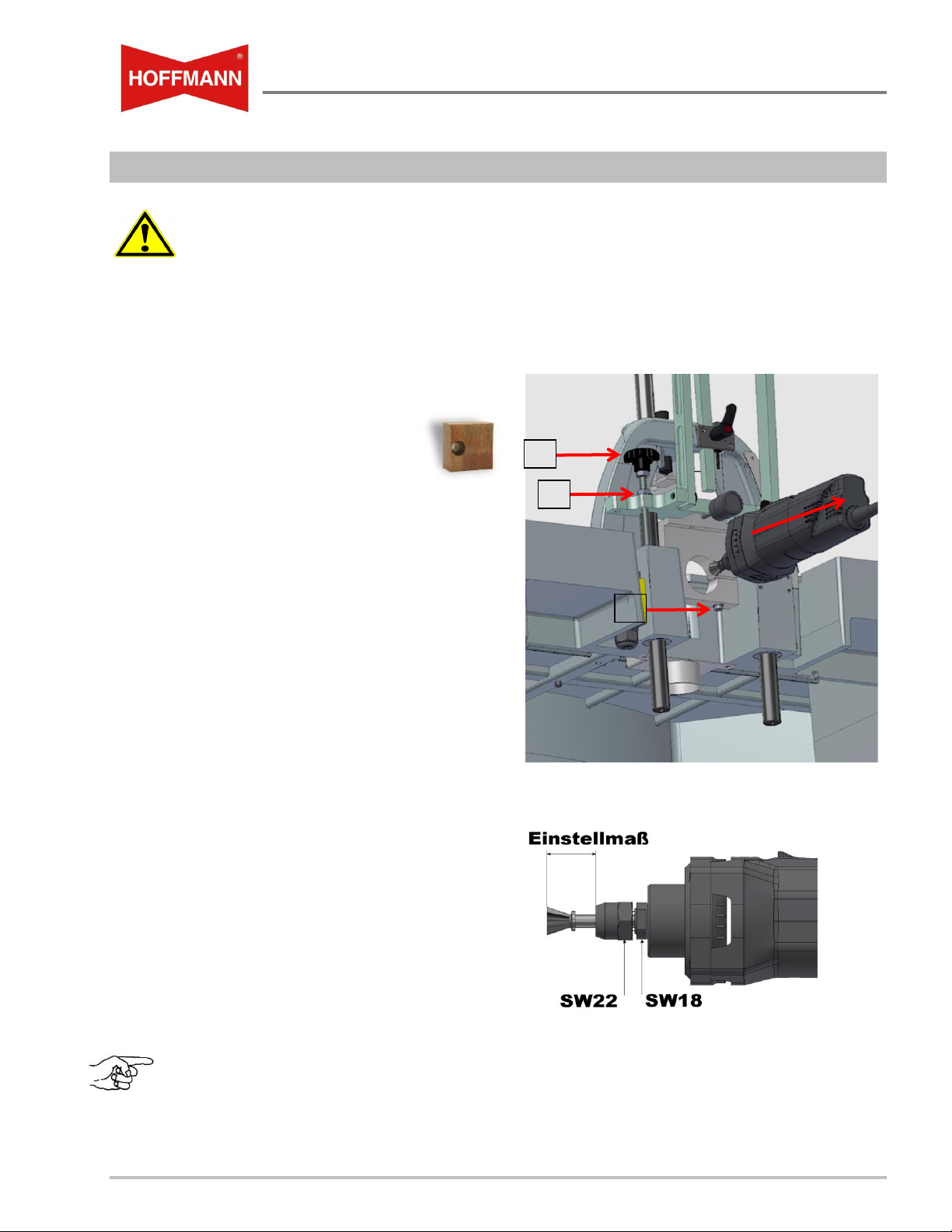

1. Verify that electrical power and compressed air
line have been disconnected –keep power cord
and air line in your line of sight.
2. Remove the old chip breaker from
the table recess and discard.
3. Loosen the lock-nut (1) and raise the motor
carriage manually by turning the black star knob
(2) on the right side of the motor carriage. Raise
the carriage until the router bit is approx. 1/4”-3/8”
above the machine table.
4. Loosen the Allen head screw (3) on the underside
of the motor bracket to release the motor.
Carefully slide the motor out toward the back.
5. Use the included open-end wrenches (SW18mm
and SW22mm) to open the ¼” collet nut and
remove the old router bit.
6. Install new bit and tighten collet securely.
7. Distance (German: Einstellmaβ) between tip of router bit and top of collet should be (approximately):
For W-0 router bit: 14.3 mm = 0.563”
For W-1 router bit: 15.5 mm = 0.610”
For W-2 router bit: 17.0 mm = 0.669”
For W-3 router bit: 19.0 mm = 0.749”
For W-4 router bit: 24.2 mm = 0.953”
When installing a new bit try to get close to the listed dimensions but don’t spend too much time trying
to get a “perfect” setting. The final adjustment will be made by moving the whole motor in and out – see
next page!
1
2
3
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 14
10 Changing Router Bits - continued
8. Slide the motor all the way into the motor
bracket and tighten the Allen head screw (3 on
previous page) by hand.
9. Loosen the Lock-Screw or Locking Lever (4) on
top of the motor bracket and adjust the motor in or
out by moving the motor fine adjustment knob (5)
10. Use the square stop (6) to set the proper distance.
The stop has three steps in one side (W1, W2,
W3) and one large step machined in the opposite
for W4 router bits.
11. Slide the square stop out of the fence rail and
remove the locking lever, washer and square nut.
Place the stop upside down on the table and push
it tightly against the back fence. Turn the motor
fine adjustment knob (5) until the tip of the router
bit (7) touches the corresponding step.
Use the smallest step for W-1, the middle step for
W-2 and the deepest step for W-3.
12. Tighten the Lock-Screw or Locking Lever (4) on
top of the motor bracket and lower the carriage to
its home position.
13. Connect air and electrical power and make a test
cut and verify proper settings by inserting a
Hoffmann key –adjust setting if necessary
14. Disconnect air and switch OFF router motor, then
raise the carriage and install a new chip breaker
insert. Place a piece of scrap wood over the insert,
switch ON motor and slowly lower the running
router bit down through the wood. The scrap wood
eliminates tear out on the surface of the chip
breaker.
15. Hold the scrap wood securely in place and be
aware of the turning bit at all times. Lower the
router carriage by turning the black star knob
slowly. When the motor has shut off, secure the
threaded stem with the locknut.
Important Tip!
Due to its weight, the rear of the motor will tilt downward
when the Lock-Screw or Locking-Lever (4) is loosened. Before using the motor fine adjustment knob (5), lightly
re-tighten the Lock-Screw or Locking-Lever just enough to bring the rear of the motor back up. If the motor is left
too loose while turning the adjustment knob, subsequent tightening of the Lock-Screw or Locking-Lever will
bring the motor back to its proper horizontal position and cause the router bit projection to be off.
Always wear safety glasses when operating this machine!
4
5
6
7
5
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 15
11 Router Bit Adjustments
Hoffmann Dovetail Keys are designed to create permanent and reliable joints in a wide range of wood
products.
For optimum strength and reliability, it is important to adjust the router bits properly.

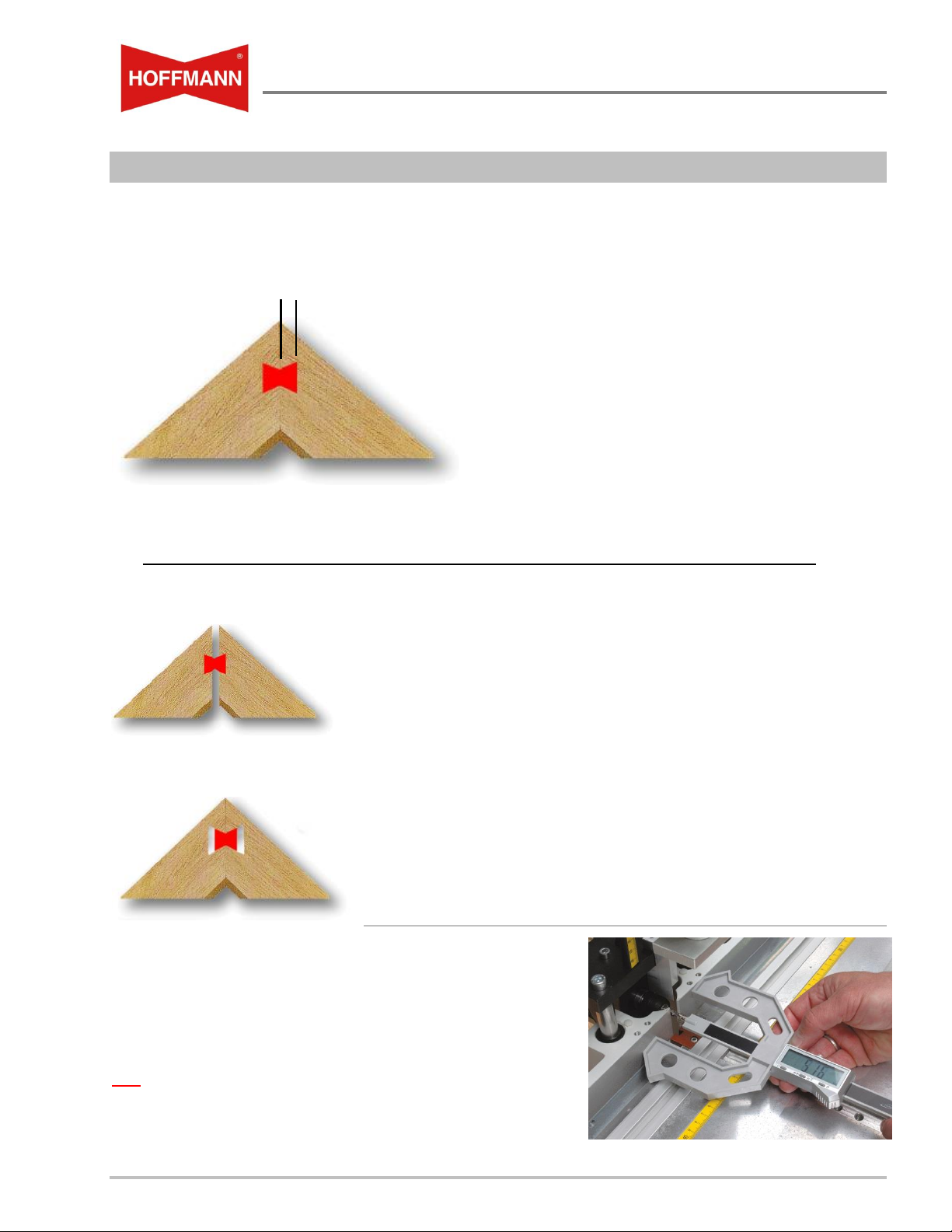

X The medium or factory settings for the router bit
projection (measurement “X”) are:
Size W0 2.3 mm 0.0906”
Size W1 3.5 mm 0.1378”
Size W2 5.1 mm 0.2008”
Size W3 6.9 mm 0.2717”
Size W4 12.1 mm 0.4764”
These are the minimum setting at which the Keys will still create a tight joint.
If the material allows, a deeper setting will increase the “draw” or “pull” of the Key.
Incorrect:
If the router bit projection is set too shallow, the Key is not able to pull the
miter faces together. An open joint is the result.
Incorrect:
If the router bit projection is set too far, the Key and/or the material can split
resulting in damage to the material.
Final router bit adjustments are always made by moving the router
motor in or out as needed.
A small movement will make a noticeable difference!
We recommend the use of our Digital Multi Gauge (W20001300)
for precise adjustments.
Tip:
Do not try to fine tune the router bit projection by moving the bit in
or out of the collet –it is much easier, more precise and faster to
move the whole motor instead of only the bit.
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 16
12 Selecting Key Length and Setting Routing Stroke

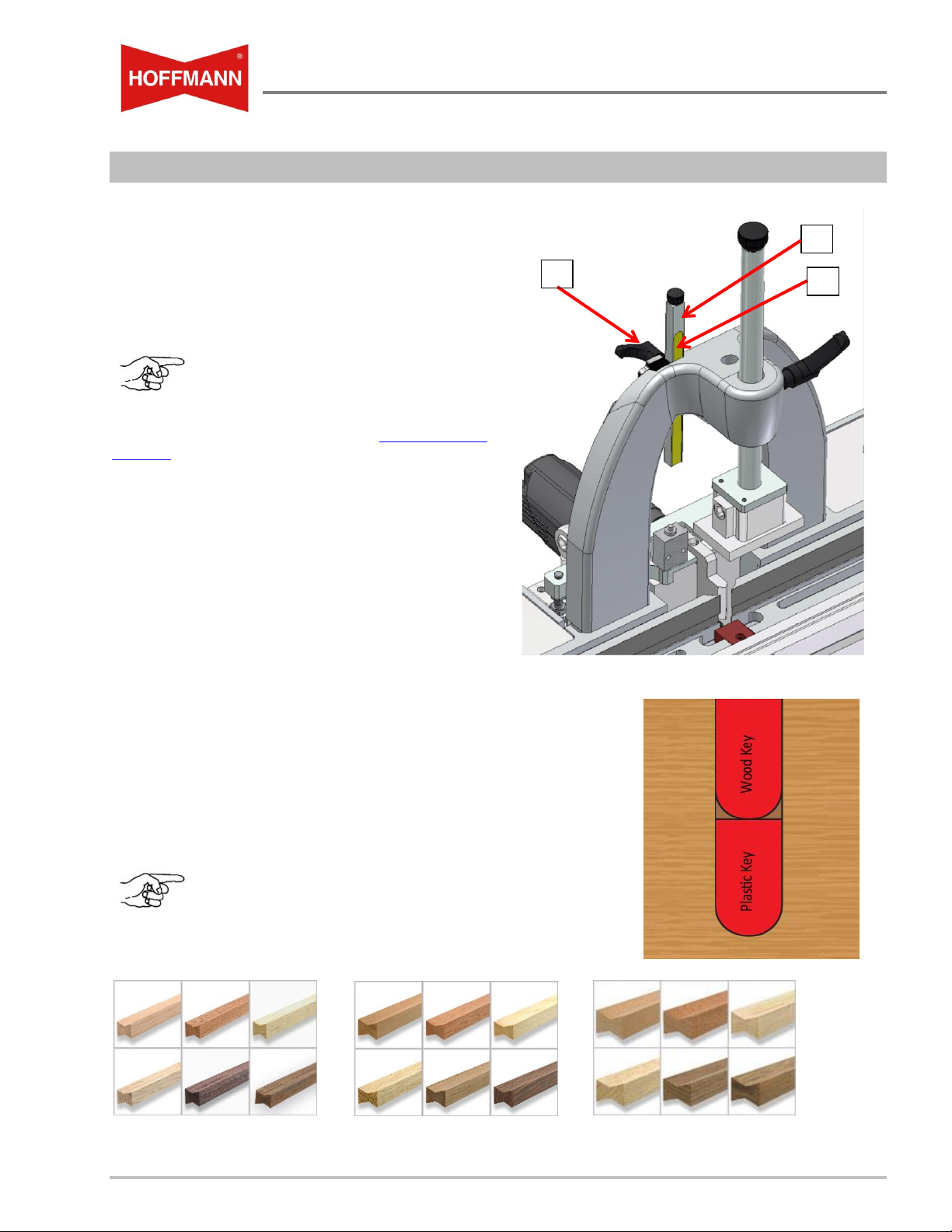

The machine is equipped with a routing height tape scale
(1) which is attached to the routing height adjustment bar
(2). The scale indicates the height the router bit will travel
into the material.
To adjust the height, simply loosen the locking lever (3),
move the bar to the desired height and tighten the locking
lever,
Always use the longest Key possible to
achieve a tight joint on the face side of the
workpiece!
All Dovetail Keys listed on our website www.hoffmann-
usa.com have the recommended material thickness
listed.
For example, W2 –5/8” Keys are listed as:
W2 –5/8” Keys for 3/4” and thicker stock
Do not use Keys which are too short as the resulting
joints will not be as strong or tight as they could be.
If correct length Keys are not available, stacking two
Keys is advised.
When using Solid Wood Dovetail Keys it is important to
remember that wood Keys are only intended to be a
decorative item. They should not be used alone as a fastener.
Due to the grain direction and possible dimensional variations
with changes in humidity the inherent strength of wood Keys
is less than that of our plastic Keys.
We strongly recommend to use a plastic Key for strength and
“cap” it with a wood Keys for looks.
Wood Keys are available in 12” lengths and are easily cut
to any length.
A fine toothed handsaw (Japanese Style) is a safe way to cut
wood Keys to length.
For larger quantities we found using a bandsaw with a fine
toothed blade is safer than any type of miter of chop saw.
Always read and follow all safety instructions that came with your
power tools!
W-2 W-3 W-4
1
2
3
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 17

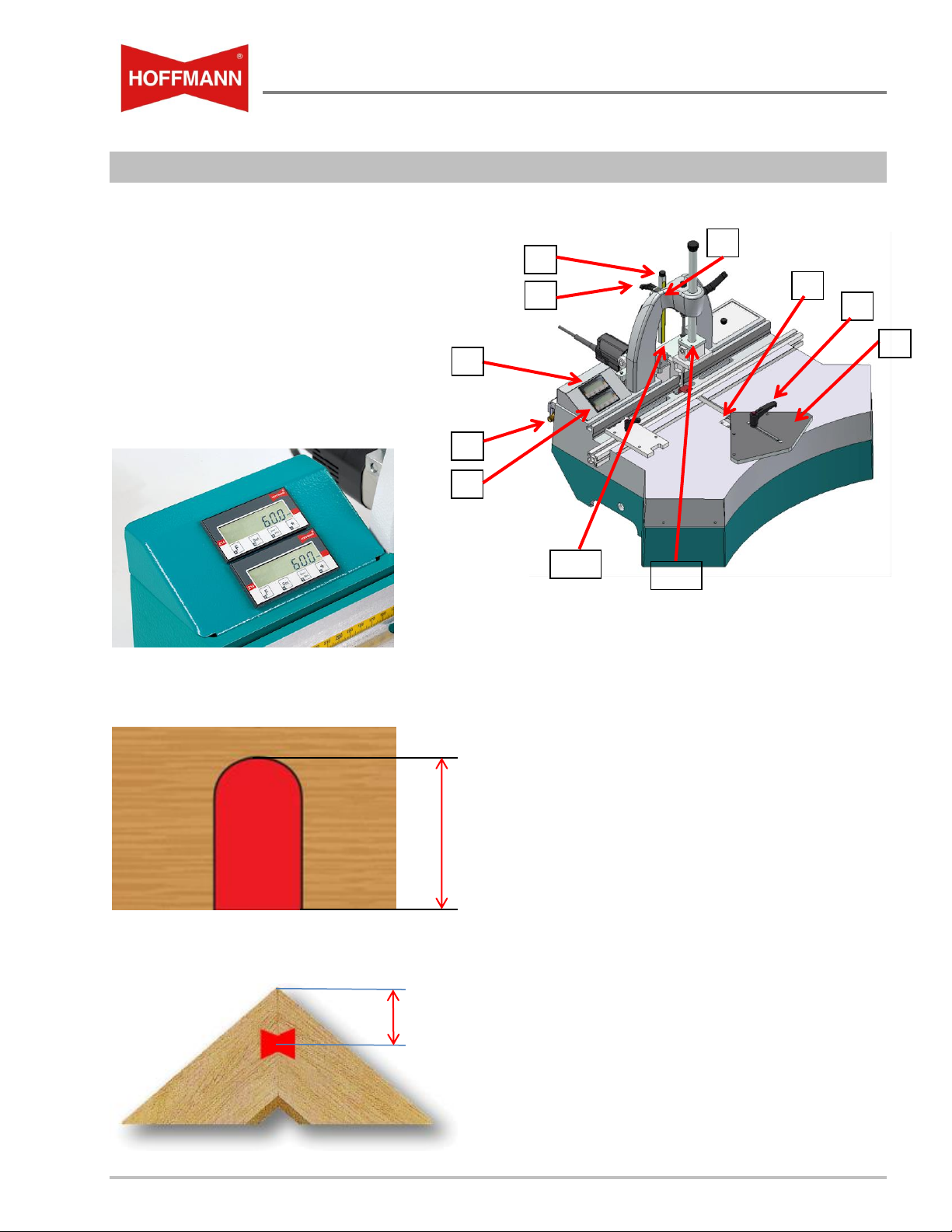

13 Calibrating and Using Digital Displays (MU3-PD)
Hoffmann MU3-PD dovetail routing machines are equipped with a dual LCD (liquid crystal display).
1 Display for routing height
2 Display for keyway location
3 Compressed air connection
4 Height adjustment bar with magnetic tape
5 Locking lever for height adjustment bar
6 Sensor for routing height bar
7 Sensor for keyway location
8 Locking Lever for fence plate
9 Fence plate with magnetic tape
10 Pneumatic valve with pin plunger
11 Workpiece Hold-Down Clamp
The Top Display is used to set the routing stroke or dovetail keyway length.
The Bottom Display is used to indicate the distance from the tip of the miter to the center of the keyway.
1
4
7
3
2
5
7
8
6
9
10
11
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 18
14 Calibrating Top Display to set the routing stroke
1. To calibrate the routing stroke display, the exact
“switching point” of the pneumatic valve (10) must be
determined.
2. Set routing height adjustment bar (4) to “0” and place
a scrap piece of wood in the machine.
3. Lower the hold down clamp (11) to approx. 1/16” –
1/8” above the material and make a test cut
4. Multiple test cuts with the routing height adjustment
bar moved slightly up or down may be necessary to
find the exact spot where the router bit just barely
touches or “scratches” the test piece.
5. Press buttons “F” and “SET” on upper digital display
to reset display to “0” (zero)
6. Display is now calibrated to show “0” when tip of
router bit is flush or level with table surface.
14.1 Calibrating Bottom Display to set keyway position.
The minimum distance from the miter tip to the center of the dovetail
keyway on MU-3 series machines is 3.2mm or 0.125”.
(In other words, when the Center Fence Plate is moved all the way forward,
the keyway will be routed 3.2mm or 0.125” from the miter tip.)
Calibrating the keyway location display is slightly different from the routing height display in that the “starting
point” or “reference position” is not “0” (zero) but it must read 3.2mm or 0.125”.
1. Remove locking lever for fence plate (8) and slide fence plate (9) all the way forward (toward motor).
2. Press for 3 seconds to enter Parameter Mode
3. Press repeatedly until Parameter 9 (P9) is reached
4. Press again to display numeric values
5. Press to select digit you wish to change
6. Press to increase value of digit in one step increments
7. Press again for 3 seconds to return to normal operating mode.
8. Press and simultaneously to calibrate display to newly stored reference number 3.2mm
0.125”
11
4
11
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 19
1. Loosen or remove locking lever for fence plate (8) and
slide fence plate (9) all the way forward (toward motor).
2. Press for 3 seconds to enter Parameter Mode
3. Press repeatedly until Parameter 9 (P9) is reached
4. Press again to display numeric values
5. Press to select digit you wish to change
Operating and Maintenance Manual
©HOFFMANN MU3-P & MU3-PD • Version 7.205.00 • 01-2018 20
6. Press to increase value of digit in one step
increments
7. Press again for 3 seconds to return to normal
operating mode.
8. Press and simultaneously to calibrate display
to newly stored reference number 3.2mm 0.125”

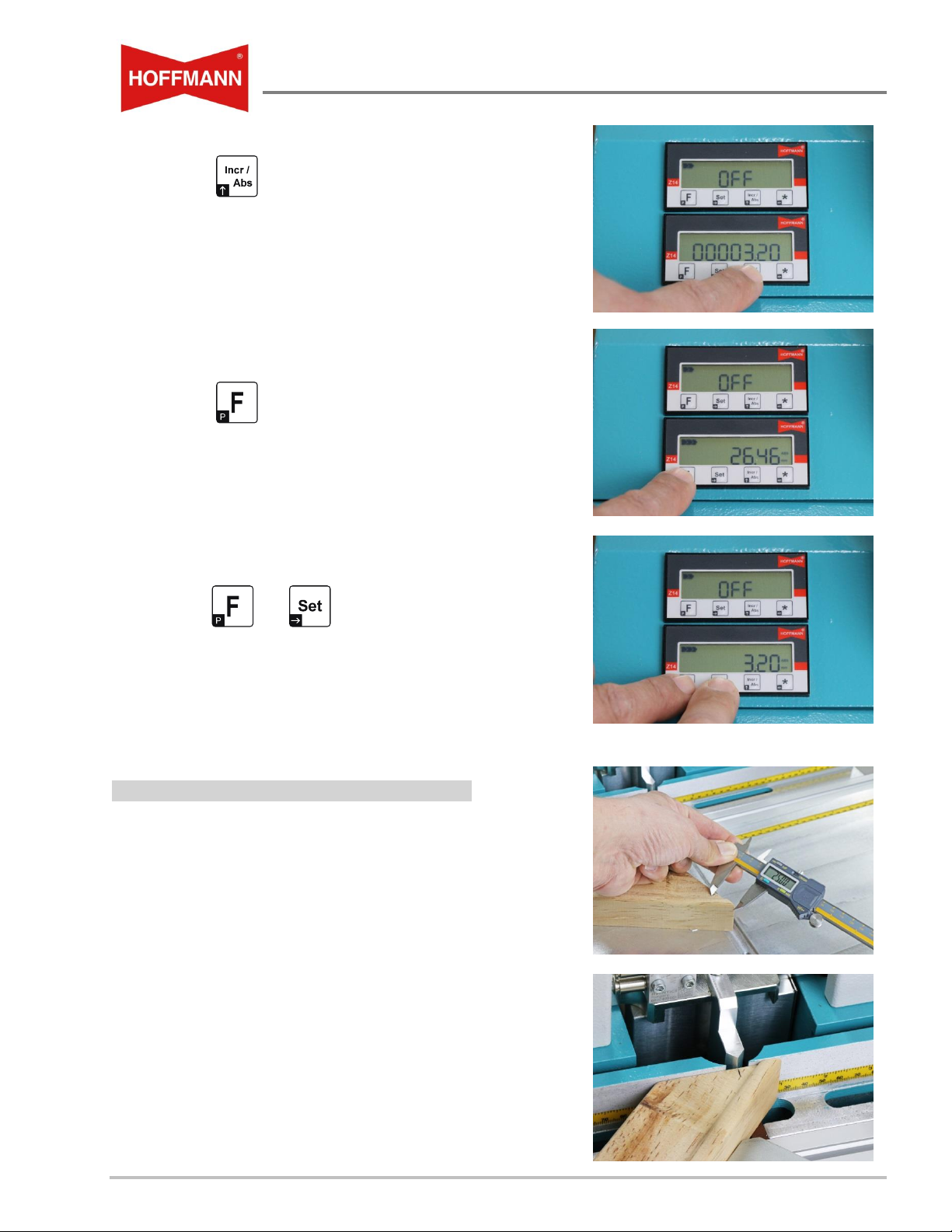

14.2 Checking display after calibration.
1. Use a ruler or digital caliper and mark a random distance from
miter tip to keyway center with a pencil (we used 25.00mm as
example)
2. Place workpiece on machine and adjust center fence plate until
pencil mark is aligned with Center Line Locator
Display should read the same or very similar to measurement on
caliper (slight variation may be due to reading errors, width of pencil
line, etc.)
If distance shown on display varies by more than 0.5mm, adjust
reference value in Parameter 9 up or down as needed.
This manual suits for next models
1
Table of contents
Other Hoffmann Wood Router manuals
