Hollywood Racks HR4000 User guide

Hollywood Racks
Desnon 4 Hitch Rack
Assembly and Instrucon Manual
Model No. HR4000 2” hitches only - 4 bike capacity - Maximum weight 35 lbs/16kg per bike

For use on 2” hitches only. Do not use 1 ¼” -2” hitch adapters
Maximum weight 35lbs/16kg per bicycle. Do not use with Electric
bicycles, motorized bicycles, mopeds or motorcycles
This product is not intended for use on any trailer, h wheel or
vehicle being towed by another vehicle.
For video & installaon instrucons, please visit Hollywoodracks.com
1
94-2610-224-20-V1/20180921
M6x65 mm

Install knob into bracket per Fig. 2 Insert Clip Lthrough hole in knob
Place the “inside” wheel holder A1 on top of the main frame Bper Fig. 4.
Align the holes (There are four bolt/washer/nuts per wheel holder). Assemble
washer Cthrough bolt D, then insert the bolt/washer through the aligned
holes of the wheel holder and frame. Install washer Eand tighten nut F
onto bolt. Repeat for the other three bolts. After all four bolts and nuts
have been installed, use the provided tools to tighten all four nuts and
bolts securely per Fig. 5. Insert tube connectors Ginto the wheel holder
A1 into the openings per Figs. 6 & 7. Insert the openings of the “outside”
wheel holder A2 into connector G.
Fig. 7
Assemble A2 to the main frame using
above instructions per Fig. 5
Step 1: Assembly of
bike rack
2

Insert the bike rack’s hitch tube into the vehicle’s trailer hitch receiver. Align the
holes of the hitch tube with the receiver. Place split washer Kthen the flat washer J
onto hitch pin Mper Fig. 8. Thread the hitch pin through the receiver and into the
hitch tube using the tool provided. Alternatively, use a 3/4” or 19mm socket.
Tighten securely. Place the lock onto the hitch pin’s end, then lock it by turning the
key per Fig. 9. Alternatively, the R shaped clip Lcan be installed through the hole in
the hitch pin per Fig. 10.
Step 2: Installing
rack into 2” trailer
hitch
Step 3: Setting up the rack
Install the rack into your vehicle’s trailer
hitch per the above section. Rotate the
mast to the vertical position per Fig. 11.
Attach the slotted hinge to the bolt on
the mast per Fig. 12. Be sure the slot is
firmly engaged on the bolt and tighten
the knob securely. If the knob and bolt
are missing or misplaced, do not use this
product until an equivalent replacement
has been installed on the rack.
The Destination 4 rack features ratcheting wheel straps. If
your bike’s wheelbase is over 44”, you will need to remove the
ratchet straps and relocate them to the outer hole positions
per Fig. 13 and 14 on page 4. The ratcheting straps may also
need to be relocated depending on the mix of bikes,
type of handlebars and height of seat.
3
Fig. 12
Fig. 9
Fig. 10
Fig. 8

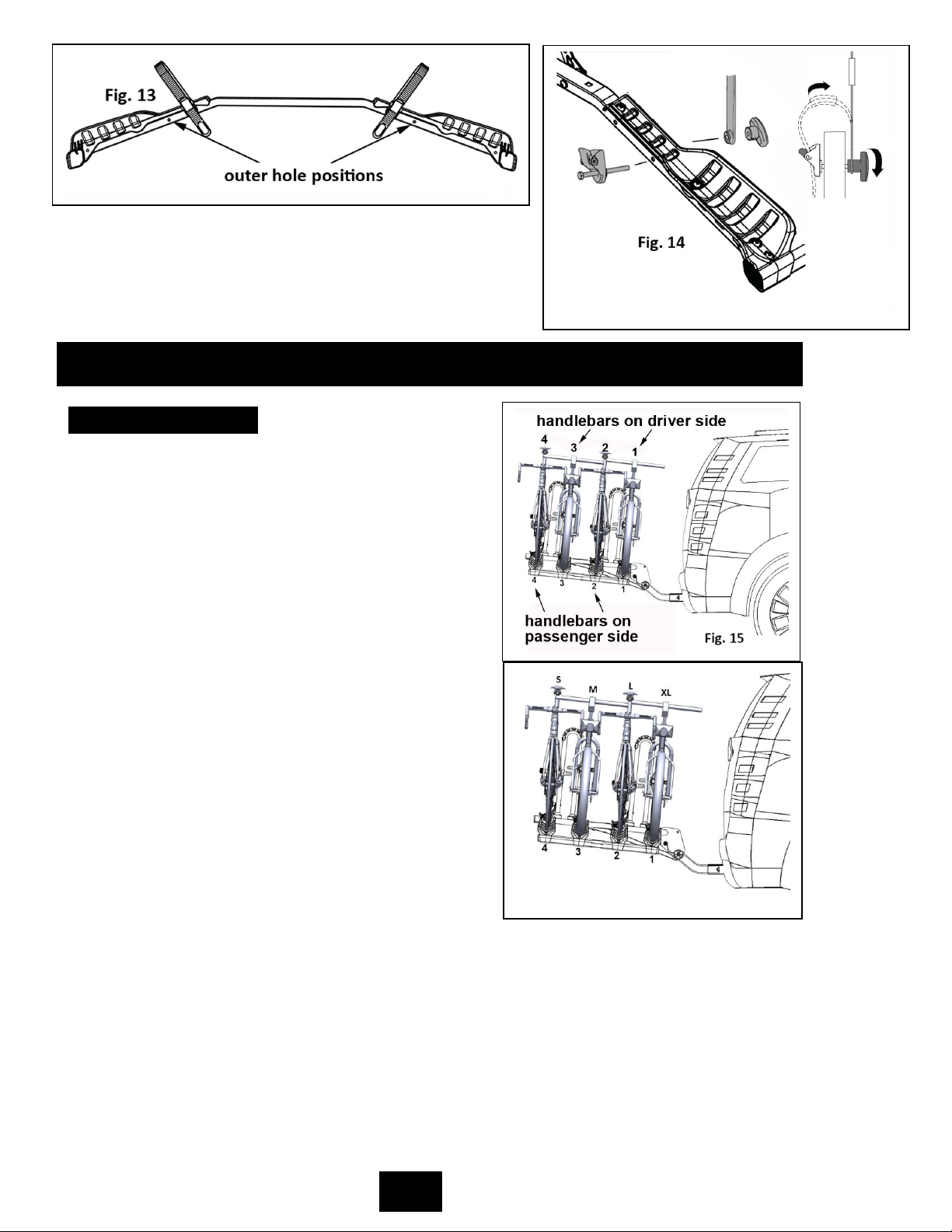

To remove strap and buckle, unscrew the knob and relocate
the bolt with buckle to outer hole position. Re-install strap
onto bolt and install knob. Buckle opening must be on top
when inserting strap. Tighten knob securely
Step 4: Mounting and securing bikes
Please read this first:Mounting four bikes to
the Destination 4 hitch rack is simple, but
please follow these basic tips and guidelines:
1. Always mount the largest bikes first.
2. The first and third bikes should have their
handlebars on the driver side. The second and
fourth or outside bike should have their
handlebars on the passenger side. This is so
the bike’s chain rings will not be in contact with
the vertical mast.
3. Location of the pedals make the bike’s
loading easier so there is little interference.
We’ve supplied some tips, but all bikes have
different geometry so look for what works best
for your bikes.
4. You may have to raise or lower your seat
posts for fitting the bikes on the rack.
5. If your bike’s wheelbase is 44” to 48”,
relocate the wheel ratchet straps to the outside hole. You may have to relocate a
wheel ratchet strap for shorter wheelbase bikes depending on the geometry of
the adjacent bikes.
6. It’s easier to load the second and third bikes with the outside mast down or in
a folded position. That means that when mounting the third bike, it will
temporarily rest against the second bike until the mast is rotated upward and
secured. Be sure the pedal of the third bike does not prevent the outside mast
from rotating up. If any questions or comments, please contact us at
[e-mail]
4
Fig. 16

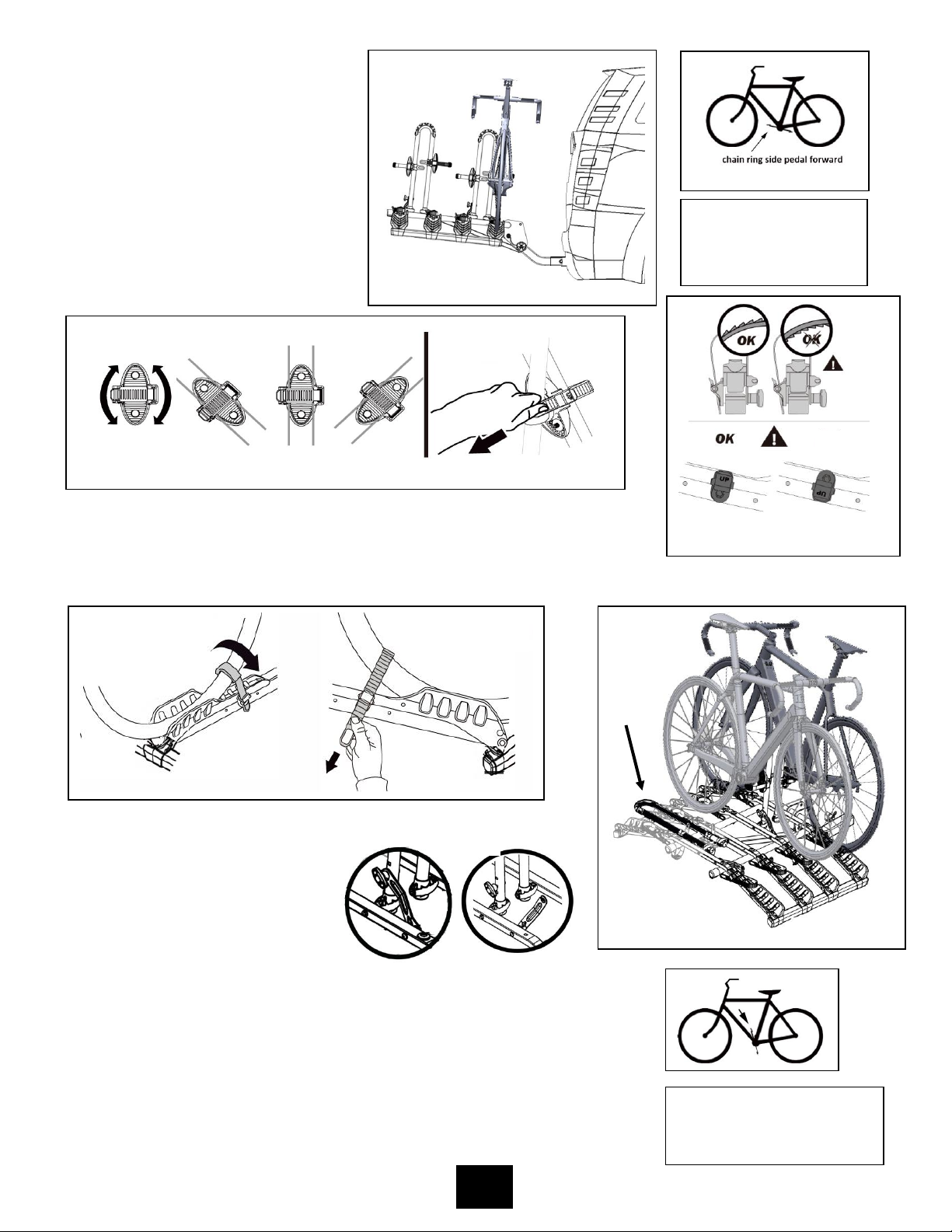

First Bike Installation
Tip: rotate pedals so that
right (or chain ring side)
is forward.
Mounting and securing the first
bike: Place the bike (handlebars on
driver side) onto the inner most
wheel tray per Fig. 17. Rotate the
frame ratchet strap (Fig. 18) so that
it aligns with the bike’s frame.
Insert the strap into the top of the
buckle and pull the strap tight per
Fig. 19.
Attach the wheel ratchet straps to the bike’s wheels per Fig. 20. Note
position of strap and wheel. If you need to relocate the wheel strap to the
outer hole position, please refer to Fig. 14 on page 4. Note Fig. 21 for
correct position of buckle and ratchet teeth.
5
Fig. 21
Mounting and securing the second
bike: Fold the outer mast down.
Place the bike onto the wheel trays
(handlebars on passenger side) per
Fig, 23.
Rotate the frame ratchet strap (Fig. 18) so that it aligns with the
bike’s frame. Insert the strap into the top of the buckle and pull
the strap tight per Fig. 19.
Attach the wheel ratchet straps to the bike’s wheels per Fig. 20.
Note position of strap and wheel. If you need to relocate the wheel
strap to the outer hole position, please refer to Fig. 13 and 14.
Note Fig. 21 for correct position of buckle and ratchet teeth.
Second Bike Installation tip:
Rotate pedals so that the
right pedal is up.
Fig. 17
Fig. 18
Fig. 19
Fig. 20
Fig. 23
Fig. 22
NOT OK

Fig. 24
Fig. 25

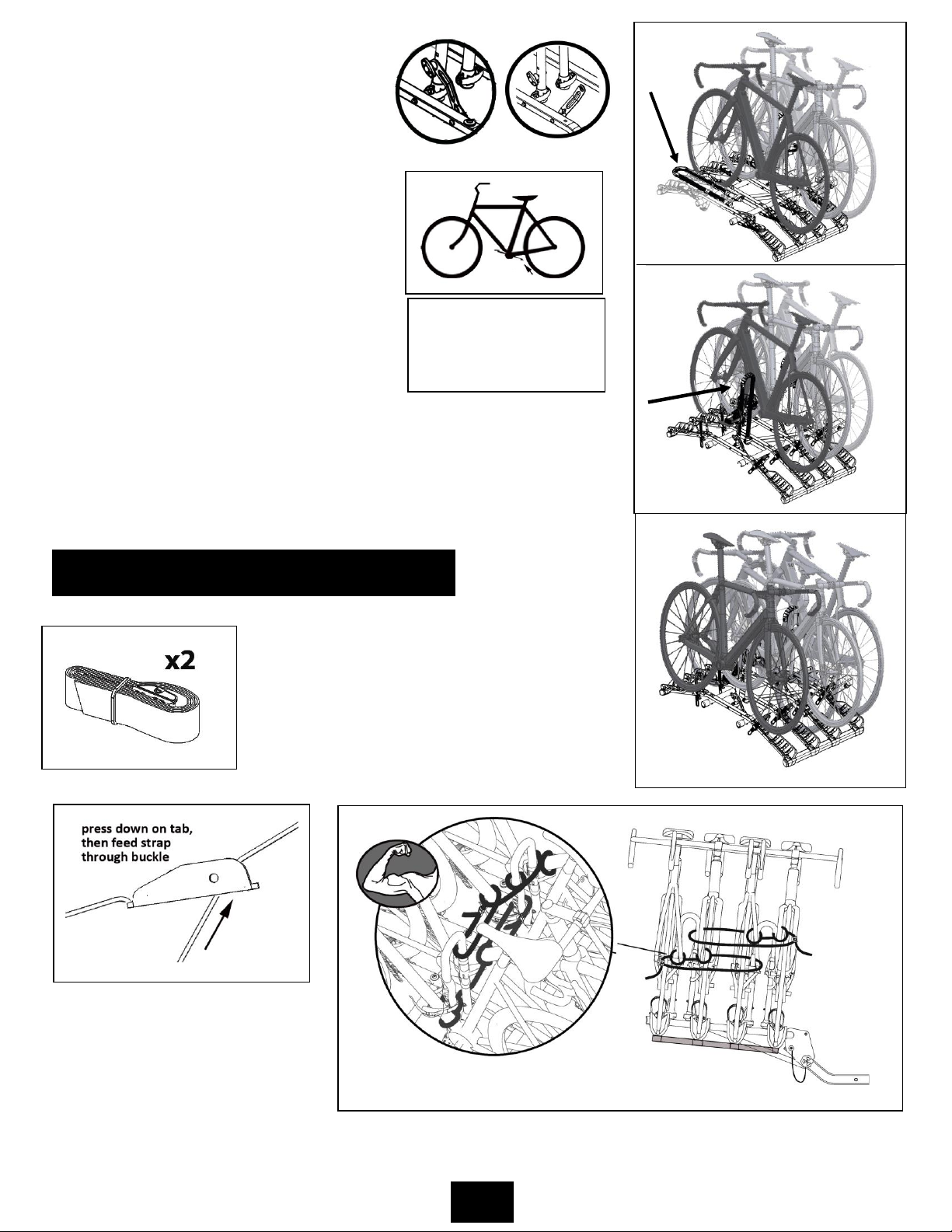

Mounting and securing the third bike:
With the outer mast in the folded
position, place the third bike (handlebars
on driver side) into the wheel trays per
Fig. 24. Gently lean the bike against the
second bike (consider using some towels
or padding between them to prevent any
frame contact). Be sure the left pedal is
positioned back near the rear wheel so
there is no interference when rotating the
mast to its vertical position. Rotate the
mast per Fig. 25. Attach the slotted hinge
to the mast per Fig. 26.
Attach the frame ratchet strap and wheel
ratchet straps in the same manner as with
the first and second bikes.
Fig. 26
Third Bike Installation tip:
Rotate pedals so that the
left pedal is back near the
rear wheel.
Fig. 27
Mounting and securing the fourth bike: Place the bike onto the
wheel trays (handlebars on passenger side). Attach the frame ratchet
strap and wheel ratchet straps in the same manner as with the first,
second and third bikes. See Fig. 27.
Step 5: Attaching Safety Tie Down Straps
Included with the Destination 4 rack are
two tie down straps (item O). Per Fig. 27,
attach the straps to the bike frames and
masts. Insert the end of the strap into the
buckle and pull securely (Fig. 29). Straps
should have no slack after installation.
6
Fig. 28
Fig. 29

Fold Up Function
Fig. 30
Fig. 31
Fig. 32
Fig. 33
Fig. 35
Rear Hatch/Door Access
To fold the Destination 4 rack against the back of the car:
Fold down the masts >> Fasten one of the wheel ratchet straps around
the mast to prevent it from moving when the rack is folded against the
vehicle >> Remove clip from knob >> Unscrew knob >> Remove knob
(Fig. 30)
Rotate the rack upwards >> insert and tighten knob >> Insert clip into
hole in knob (Fig. 31, 32, 33)
To gain access to rear cargo area, fold
down the masts per Figs. 34 and 35.
7
Fig. 34

8
Limited Lifetime Warranty (effective January 1, 2008):
Hollywood Racks will warrant its car racks and accessories during the time that an original retail purchaser owns the product subject
to the exclusions and limitations of this warranty. Hollywood Racks will remedy defects in materials and workmanship by repairing or
replacing (at its option) a defective part without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund
equal to the purchase price paid for the product. This warranty does not cover problems caused by normal wear and tear including
(but not limited to) weather, scratches, dents, rust, accidents, unlawful vehicle operation, misuse, abuse, neglect, theft, unauthorized
modifications, or unauthorized repair. No warranty is given for defects resulting in incorrect assembly, incorrect installation onto the
vehicle, installation on a “no fit” vehicle, incorrect attachment of bicycles onto the rack, or overloading of the rack’s weight
restrictions. This warranty terminates if the original retail purchaser transfers the product to any other person. If a product is
believed to be defective, the original retail purchaser should contact either the original retailer or Hollywood Racks directly at 800-
747-4085 or at in[email protected] Disclaimer of Liability: Repair or replacement of a defective product or the issuance of a
refund or credit (as determined by Hollywood Racks) is a purchaser’s exclusive remedy under this warranty. Damage to a
purchaser’s vehicle, cargo, bicycles and or to any other person is excluded. This warranty is expressly made in lieu of any and all
other express warranties, whether oral or written. Hollywood Racks shall not be liable for any direct, indirect, consequential,
incidental, special, punitive or any other damages in connection with the purchase, use or handling of this product. Some states do
not allow the exclusion or limitation of consequential or incidental damages and the above limitation may not apply to you. This
warranty gives you specific legal rights and you have other rights, which vary from state to state.
Hollywood Racks
12812 South Spring Street Los Angeles, CA 90061 [phone] [phone] Fax [phone]
Customer Service Hours: 8:00 AM- 3:00 PM PST www.hollywoodracks.com [e-mail]
Made in Taiwan HR4000 0918 V1.9
CAUTION: DO NOT EXCEED BIKE WEIGHT CAPACITY. THIS PRODUCT WILL NOT SUPPORT E-BIKES.
Double check before driving:
1. Slotted hinges are fully engaged & knobs are securely fastened
2. Frame and wheel ratchet straps are tight and securely fastened
3. Safety tie-down straps are securely fastened around bikes and masts
4. Hitch pin & lock head are installed and secure
Drive slowly on bumpy or dirt roads.
This product not to be used on any trailer, fifth wheel or towed vehicle
Optional 8’
security cable sold
separately.
Cable locks
wheels and
frames to locking
hitch pin
