Introduction
Your Aspect Wi-Fi Solar Pro gathers and
uploads accurate and detailed weather data to
Weather Underground. It offers professional weather
observers or serious weather enthusiasts robust
performance. You will get your own local forecast,
high/lows, totals and averages for virtually all weather
variables without using a desktop computer.
Your Solar Pro Outdoor Sensor measures
outdoor temperature, humidity, wind, rain, UV and
light, continually transmitting weather data to the
Main Console. Both your Outdoor Sensor and
your Wireless Hygro-Thermo Indoor Sensor are
fully assembled and calibrated for easy installation.
They send data via a low power RF signal to the
Main Console from up to 150m away (line of sight).
Within your Main Console, high-speed processors
are embedded to analyse your weather data at real-
time, and publish it to Weather Underground via
your home Wi-Fi network and internet connection
Your Main Console can also synchronise with
internet time servers to show high precision time and
weather data date/time stamp. The colour LCD display
shows informative weather readings with advanced
features, such as high/low alert alarm, different
weather index, and max/min records. With calibration,
sunrise/sunset and moon phase features, this system
is a great weather station for your backyard.
This instruction manual contains useful information
on the proper use and care of this product. Please
read through to fully understand and enjoy its
features, and keep it handy for future use.
Contents
Introduction 2
Precautions 3
Overview 4
Main Console 4
LCD Display 4
Hygro-Thermo Indoor Sensor 5
Solar Pro Outdoor Sensor 5
Installation and Setup 6
Main Console 6
Hygro-Thermo Indoor Sensor 7
Solar Pro Outdoor Sensor 8
Wi-Fi Connection Setup 9
Operation and Settings 12
Reading your Data in Weather Underground 12
Manual Clock Setting 12
Moon Phase 12
Sunrise and Sunset Time 12
Setting Alarm Time 13
Temperature Alarm Functions 13
Temperature/Humidity Functions 13
Comfort Indication 13
Wireless Sensor Signal 13
View Additional Indoor Channels 14
Trend Indicator 14
Wind Speed and Direction 14
Weather Index 14
Weather Forecast 15
Barometric Pressure 15
Rainfall 15
Sun Data 16
Max/Min Data Record 16
Past 24 Hours History Data 17
Weather Alert Setting 17
Backlight 18
Display Contrast 18
Maintenance 19
Battery Replacement 19
Solar Pro Outdoor Sensor 19
Specifications 20
Troubleshooting 22
Warranty 23

3 of 24
Precautions
Do not subject the unit to excessive force, shock, dust, temperature or humidity
Do not cover the ventilation holes with any items such as newspapers, curtains etc.
Do not immerse the indoor components in water. If you spill liquid over
them, dry immediately with a soft, lint-free cloth
Do not clean the unit with abrasive or corrosive materials
Do not tamper with the unit’s internal components to avoid invalidating your warranty
Placement of this product on certain types of wood may result in
damage to its finishing for which Holman Industries will not be responsible
Only use fresh batteries. Do not mix new and old batteries
Only use genuine HOLMAN attachments or accessories available at www.holmanindustries.com.au
Images shown in this User Guide may differ from the actual display
When disposing of this product, ensure it is collected separately for special treatment
Dispose of used batteries according your local recycling regulations
Ensure your Main Console is installed near your power outlet and is easily accessible
The contents of this manual may not be reproduced without the permission of Holman Industries
Technical specifications and user manual contents for this product are subject to change without
notice. We advise checking www.holmanindustries.com.au for the latest information
This product is not a toy. Keep out of the reach of children
The Main Console is intended to be used only indoors
Only use the supplied power adaptor to power your Main Console
Risk of explosion if battery is replaced by an incorrect type
The manufacturer and supplier cannot accept any responsibility for any incorrect readings, export data lost and any consequences that occur should an inaccurate
reading take place. This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or
for public information. Weather Underground is a registered trademark of The Weather Channel, LLC. both in the United States and internationally. The Weather
Underground Logo is a trademark of Weather Underground, LLC. iOS is a trademark of Apple Inc. Android is a trademark of Google LLC. The Android robot is
reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

4 of 24
Overview
Main Console
LCD Display
1. BAROMETER
2. WIND
3. ALARM/SNOOZE
4. SUN
5. RAIN
6. LCD display
7.   Display
brightness adjuster
8.  INDEX
9. HISTORY
10. MAX/MIN
11. CHANNEL
12. CLOCK SET
13. Wall mount
14. REFRESH
15. SENSOR/Wi-Fi
16. RESET
17. °C/°F
18. ALARM
19. ALERT
20. OFF/HI/LO slider
21. Battery
compartment
22. Table stand
23. Power jack
1. Outdoor temperature
and humidity
2. Wind direction
and speed
3. Indoor temperature
and humidity
4. Weather index
5. UV index and
light intensity
6. Weather forecast
7. Calendar and
moon phase
8. Time/alarm
9. Barometer
10. Sunrise and
sunset time
11. Rainfall and rain rate
1
4
7
2
5
8
3
6
9
10 11
WI-FI
SENSOR REFRESH ALERTALARMCLOCK
SET
RESET OFF LO HI
DC 5V 1A
ALARM / SNOOZEBARO WIND SUN RAIN
1
6
5
11
20
12
713
18
22
23
14
15
8
9
10
19
2 3 4
16
17
21

5 of 24

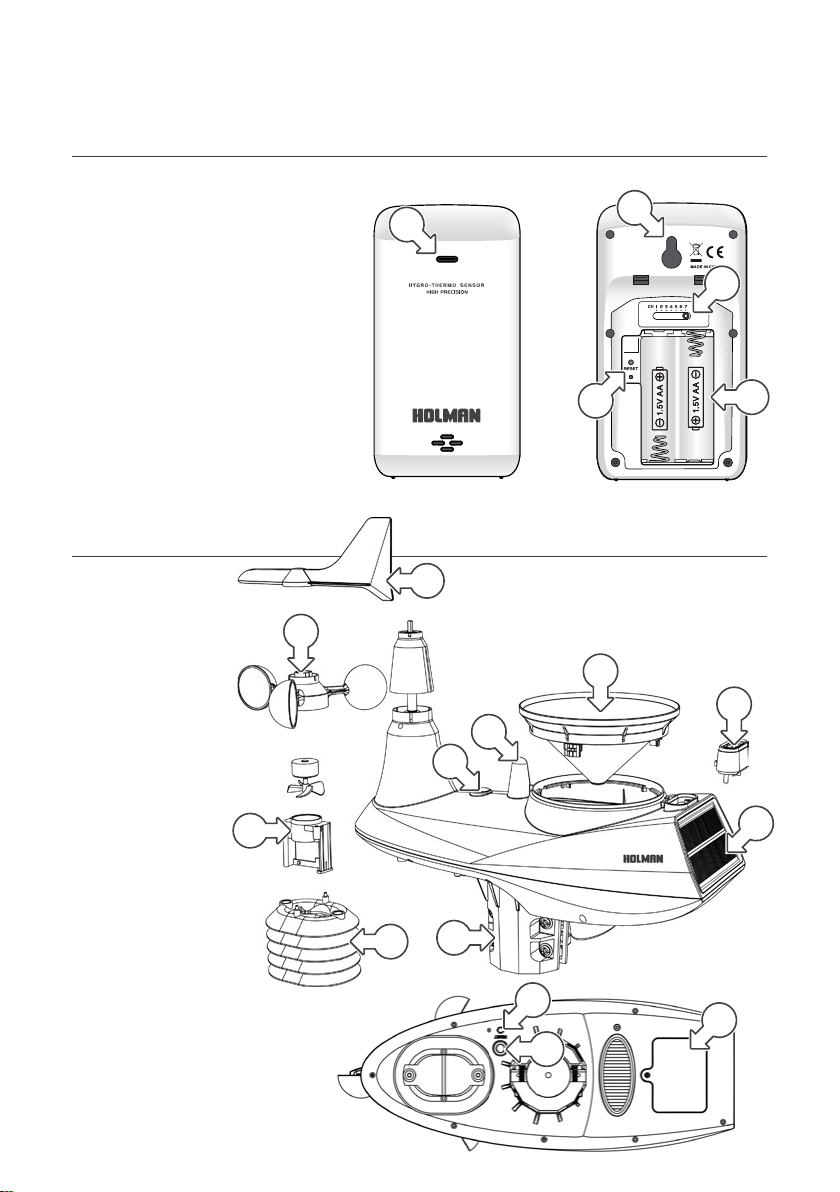

Solar Pro Outdoor Sensor
1. Wind vane
2. Wind cups
3. Antenna
4. Radiation shield
5. Thermo-hygro
sensor
6. Mounting parts
(to fit 35-40mm
diameter pole)
7. Battery door
8. RESET
9. Transmission
status LED
10. Bubble level
11. Rain collector
12. UV/light sensor
13. Solar panel
Hygro-Thermo Indoor Sensor
1. Transmission status LED
2. Wall mount
3. Channel slider
4. RESET
5. Battery compartment
917MHz
Overview (continued)
1
4
5
6
13
7
8
9
11
2
12
3
10
1
2
5
3
4

6 of 24
Main Console
Console Setup:
1. Power up the Main Console by plugging the
adaptor provided to the power jack at the back
2. Once it is powered on, all the segments of the
LCD Display will be shown momentarily
3. The Main Console will automatically enter
SENSORSYNCHRONISATIONMODE
and APMODE
If no data appears on the LCD Display
after you plug the adaptor,
press RESET using a pointed object
Synchronising Your Sensors:
1. While still in SENSORSYNCHRONISATIONMODE,
the Solar Pro Outdoor Sensor and
Hygro-Thermo Indoor Sensor can be
paired to the Main Console automatically
2. Once your sensors are paired, their signal
strength and weather readings will appear
on your LCD Display
Backup Battery:
Backup batteries are used to keep time-sensitive
information on the Main Console memory during
a power failure, including time, date, alarm time,
max/min, past-24-hour records, alert setting
values, sensor channel history, and units
1. Remove the battery door of the console
2. Insert three new AAA batteries
with polarity as indicated
3. Replace the battery door
Built-in Memory:
The console has built-in flash memory that holds
the vital settings including time zone, timesync
status, Wi-Fi and weather server settings,
latitude/longitude, hemisphere, calibration
values, and sensor ID of paired sensors
Reset and Factory Hard Reset:
1. To reset the Main Console and start
again, press RESET once
2. To perform hard reset and restore the
Main Console to factory settings,
press and hold RESET for 6 seconds
Resynchronise Sensors:
Press SENSOR/Wi-Fi once to enter
SENSOR SYNCHRONISATION MODE,
to re-register all the sensors that have
already been registered to it before
The Main Console will not lose the connection
of the sensors that you have paired previously
Changing Sensor Batteries:
Whenever Outdoor or Indoor Sensor batteries are
changed, resynchronisation must be done manually
1. Replace all the batteries in the desired Sensor
2. Press SENSOR/Wi-Fi on the Main Console to
enter SENSOR SYNCHRONISATION MODE
3. Press RESET on the desired Sensor
Installation and Setup

7 of 24
Hygro-Thermo Indoor Sensor
Pairing with the Main Console:
1. Remove the battery door of the sensor
2. Insert 2 × AA size batteries into the battery
compartment. Make sure you insert them the
right way according to the polarity information
marked on the battery compartment
3. Close the battery door. The transmission
status LED will begin to flash every minute
If you need to re-assign the sensor channel,
firstly slide the channel slide switch to
the new channel, press SENSOR on the
Main Console, and then press RESET on the
Hygro-Thermo Indoor Sensor to pair them again
Avoid placing the sensors in direct
sunlight, rain or snow
To avoid the sensors and Main Console pairing
failure, please power up the sensors first, and then
press RESET on the Main Console
(no need on sensors)
Placing the sensor:
Place a screw on the wall that you wish to
hang the sensor on. Hang the sensor onto the
screw by the wall mounting holder. You can
also place the sensor on a table by itself
Synchronising Additional Indoor
Sensors (Optional):
The console can support up to seven additional
Hygro-Thermo Indoor Sensors
1. Press SENSOR/Wi-Fi once on the Main Console
to enter SENSOR SYNCHRONISATION MODE
2. Press RESET on the new sensor, and
wait a few minutes for the new sensor
to pair with the Main Console
Channel number of the indoor sensor must
not be duplicated among Indoor Sensors
Installation and Setup (continued)

8 of 24
Installation and Setup (continued)
Solar Pro Outdoor Sensor
Your outdoor sensor measures windspeed, wind
direction, rainfall, UVindex, temperature and humidity.
Southern Hemisphere Setup:
The Solar Pro Outdoor Sensor is calibrated
to point north. However, for users in the
Southern Hemisphere, it is necessary to use the
sensor with the wind vane pointing south
1. Install the Outdoor Sensor with the
windmeter end pointing south
2. Select Sfor Hemisphere when setting
up the Weather Server connection
(refer to Weather Server Connection
on page 10 for more details)
Changing the hemisphere setting will
automatically switch the direction of the
moon phase on the LCD Display
Pairing the Outdoor Sensor with the Main Console:
1. Unscrew the battery door at the bottom of the unit
and insert the batteries according to the polarity
information marked on the battery compartment
2. Screw on tightly
3. Once the batteries are installed, the
transmission status LED will begin to flash
Ensure the battery door screw locked well
Ensure the transmission status LED
is flashing every 12 seconds

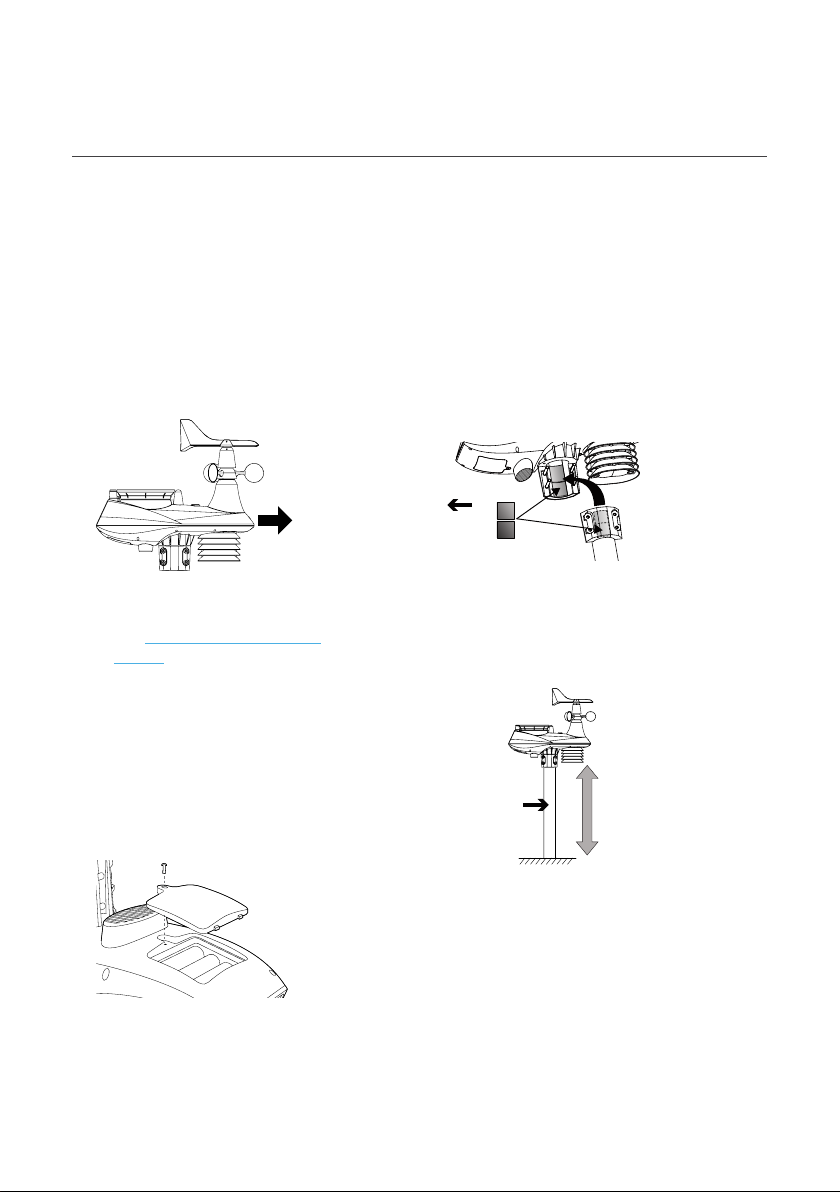

Installing the Solar Pro Outdoor Sensor:
Install in an open location with no obstructions
above and around the sensor for accurate
rain and wind measurement
To insure a tight grip, apply the rubber pads provided
before fastening to the pole (not included)
Mounting guideline:
1. Install the sensor at least 1.5m off the ground for
better and more accurate wind measurements
2. Choose an open area within 150m
from the Main Console
3. Install as level as possible to achieve accurate
rain and wind measurements. Use the level
indicator on the top to ensure a level installation
4. Mount with the solar panel end pointing to North
to correctly orient the direction of the wind vane
ADD RUBBER PADS BEFORE
MOUNTING ON POLE OR POST
N
MOUNTING POLE
AND STAND
NOT INCLUDED MIN 1.5m
SOUTH

9 of 24
Installation and Setup (continued)
Wi-Fi Connection Setup
Your Main Console can upload weather data to
Weather Underground through a Wi-Fi router
To connect your Main Console to Wi-Fi, it must
be registered with Weather Underground
These setup instructions are
correct as of June2020; Refer to
https://www.wunderground.com/ for details as
their website is subject to change without notice
Register your Aspect Wi-Fi Solar Pro
with Weather Underground:
1. Visit https://www.wunderground.com/
and click JOIN in the top right corner, and
follow the prompts to create an account
Your email address must be validated by
Weather Underground before proceeding.
If you already have an account with
Weather Underground you can simply LOG IN
2. After logging in to your account, click MYPROFILE
and select MY DEVICES in the menu
3. On the following page, click ADD NEW DEVICE
4. Under PERSONAL WEATHER STATION,
use the drop-down menu to select OTHER
at the bottom of the list and click NEXT
On the following page, you will be
prompted to enter your address
5. When you start entering your address, it
should appear in full in a drop-down menu
below–select your address accordingly
6. After selecting your address,
Weather Underground will confirm "your
location has been verified and added" with
your LONGITUDE and LATITUDE listed
below: note these down for later
This information is required as part
of the setup process later on. Be sure
to note down this data accurately
7. Click NEXT
8. Fill out the following prompts and click NEXT to
complete registration of your weather station
9. After registering, Weather Underground will
confirm "Congratulations! Your personal
weather station is now registered with Weather
Underground" with your STATION ID and
STATIONKEY list below: note these down for later
This information is required as part
of the setup process later on. Be sure
to note down this data accurately
Set the Main Console to transmit weather
data to Weather Underground:
1. Plug the adaptor into the DC jack to power up
your Main Console for the initial start-up
You can also access AP MODE by holding
SENSOR/Wi-Fi for six seconds in NORMAL MODE
2. Using your Wi-Fi enabled device (computer, tablet or
smartphone) connect to the Wi-Fi network generated
by your Main Console (SSID: PWS-XXXXXX)
This may temporarily disconnect your computer
or smartphone from the internet, and will
reconnect at the end of the setup process
3. Once connected, open the web browser on
your device, type http://192.168.1.1 into
the address bar and press ENTER to access
the Main Console setup interface
Some browsers will treat 192.168.1.1 as a search,
so be sure to include http:// at the start
We recommended using the latest
versions of the following web browsers:
Chrome, Safari, Edge, or Firefox
4. Fill in the connection information for the setup
interface. Your Main Console will use this
information to connect your Wi-Fi router

10 of 24
Installation and Setup (continued)
Wi-Fi Connection Setup (continued)
Wi-Fi Connection Status:
Main Console is in connection with Wi-Fi router
Main Console is trying to connect
Main Console is in AP MODE
Weather Server Connection:
Enter the following information into the below SETUP page to connect the Main Console to the weather server. If
you do not want to use Weather Underground, please empty the STATION ID and KEY to ignore the data upload
nist.time.gov
Server URL:
0.0000 North
*Latitude:
0.0000
Enter 0 to 90, no negative numbers
Enter 0 to 180, no negative numbers
East
*Longitude:
Time server setup
Location for sunrise / sunset
WiFi Router setup
ADVANCED
Wunderground
Station ID: WDw124
******
******
Weather server setup
Station key:
Router:
Add Router
Search
Security type:
Router Password:
WAP2
ROUTER_A
Language: English
Weathercloud
Station ID:
Station key:
******
IDCR21w1
http://W
Station ID:
URL:
Station key:
Mac address 00:0E:C6:00:07:10
Hemisphere
* Depends on the model
SETUP
Apply
Firmware version: 1.00
0:00
Time Zone:
N
Press "ADVANCED" icon
to Advanced page
Press to search router
Press to allow add
router manually
Enter the Latitude value
Enter the Longitude
value
Select setup UI display language
Press to complete the setting
Select router (SSID) for connection
Enter new Station ID and Station key
that assigned by Wundergriund
Leave blank
Manually enter the SSID if not on list
Select time server
Select time zone of your location
Select the direction (e.g. EU
countries Longitude is East and US
is West)
Select the sensor located hemisphere
(e.g. US and EU countries are also "N",
Australia is "S")
Select router's security type (usually
WAP2)
Router's password (leave blank if the
Security type is "Open")
SETTINGS
After the dialogue confirms the setup
process is complete, you can log back
in to your home Wi-Fi network
During AP MODE, you can press and hold
SENSOR/Wi-Fi for six seconds to stop AP MODE
and the console will restore your previous setting
