HOMCOM B71-056 Installation guide

ASSEMBLY & INSTRUCTION MANUAL
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
INac013_ES
INac013_FR_B71-056_B71-056V01

1
Owner's Manual Index
Introduction
lThe Owner's Responsibility
lWarning and Safety Information
lReflectors
lTrailer Warnings
lPre-Ride Safety Check
Assembly
lIntroduction to Assembly
lInstalling the Wheels
lAttaching the Trailer to Bike
Product usage
lSecuring and removing the cargo

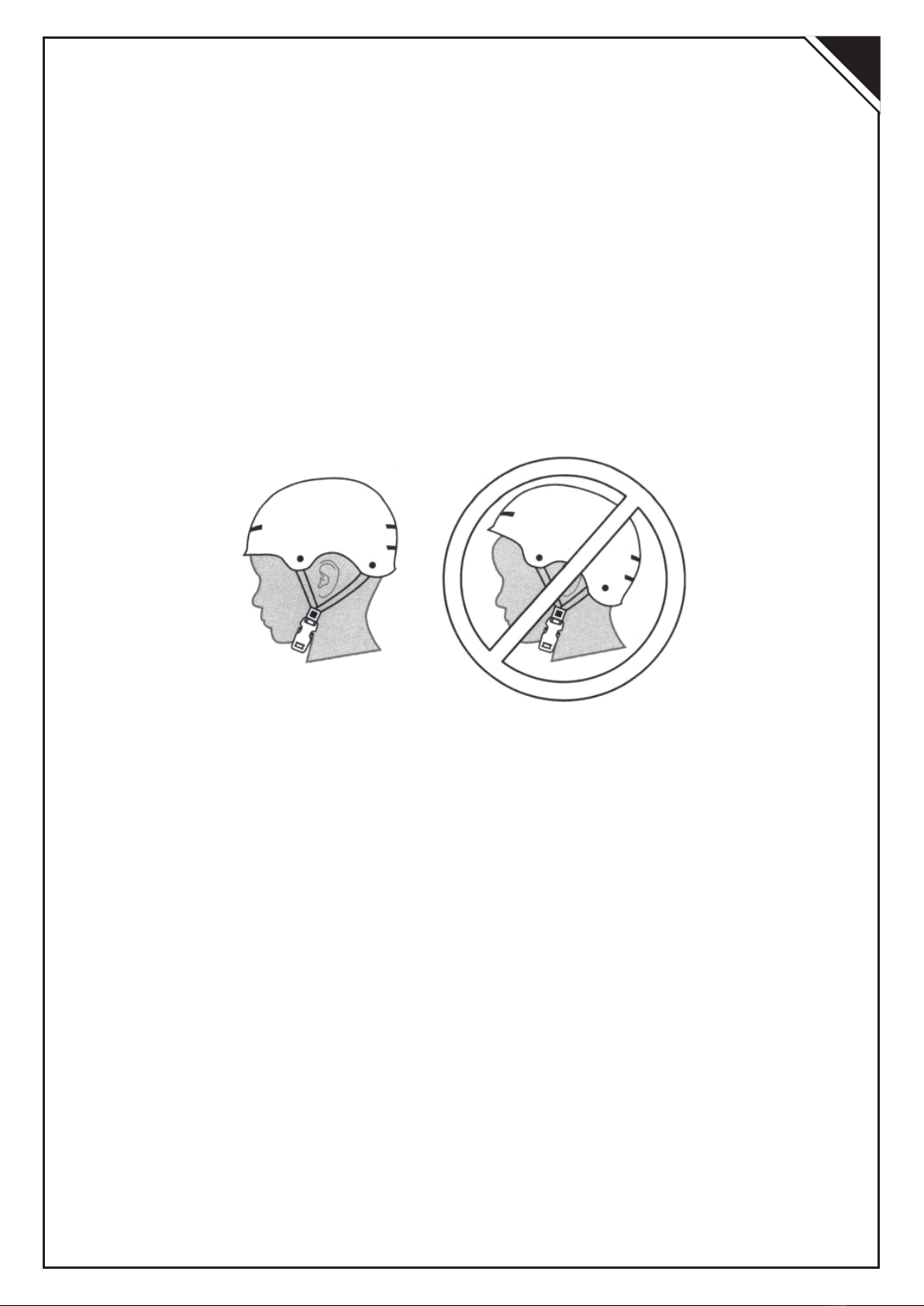

WARNING: ALWAYS WARE YOUR HELMET WHEN RIDING THIS PRODUCT!
EN
CORRECT INCORRECT
The Owner’s Responsibility
WARNING: The trailer is designed and constructed to provide a portable,
comfortable and sturdy addition to your outdoor ventures. Please read these
instructions and all warnings carefully before using and keep the instructions for
future reference.
If the Trailer was purchased unassembled, it is the owner’s responsibility to follow
all assembly and adjustment instructions exactly as written in this manual, and any
“special instruction” supplied to ensure complete and proper assembly. Make sure
all fasteners and components are securely tightened during installation.
NOTE:
● Periodically check that all fasteners and components are securely tightened.
● Check the working conditions of both bike and trailer before each use. If you
discover broken components, misalignment or missing parts, correct the
problem prior to use.
If the Trailer was purchased assembled, it is the owner’s responsibility before using
the Trailer for the first time, to make sure the Trailer has been assembled and
adjusted exactly as written in this manual, and any “Special Instructions” supplied
and to make sure all fasteners and components are securely tightened.
Thank you for your purchase. If you have problems, do not return to store. Call
customer service. Please refer to model/date code label on product or cover of
manual.

2
Warning and Safety Information
Meanings of warnings:
This symbol is important. See the word “CAUTION” or “WARNING” which follows
it.
The word “CAUTION” is before mechanical instructions. If you do not obey these
instructions, mechanical damage or failure of a part of the Trailer can occur.
The word “WARNING” is before personal safety instructions. If you do not obey
these instructions, injury to the rider or to others can occur.
Reflectors
WARNING: For your safety, do not use the Trailer if the reflectors are incorrectly
installed, damaged, or missing. Make sure the rear reflectors are vertical and
pointing straight back. Do not allow the visibility of the reflectors to be blocked by
clothing or other articles. Dirty reflectors do not work well. Clean the reflectors, as
necessary, with soap and a damp cloth.
Trailer warnings
WARNING: Failure to comply with the manufacture's instructions can lead to
serious injury or death of the passenger/rider.
ŸAdult assembly required.
ŸThis trailer is only for cargo use and shopping, not for use as a child carrier.
ŸNever exceed a safe speed. Recommended maximum speed is 8 MPH(13KMH)
and slowing to no more than 3 MPH(5KMH) when turning.
ŸNot for cargo(such as but not limited to bricks, debris, logs,etc.).
ŸAlloy frame:
ŸMaximum weight is 66lb (30KG). Maximum load weight is 53.5lb(24.3KG).
The product wight is 12.5lb (5.7KG).
ŸSteel frame:
ŸMaximum weight is 66lb (30KG). Maximum load weight is 48.4lb(22.0KG).
The product wight is 17.6lb (8.0KG).
ŸRiders must wear an approved bicycle helmet when riding in this product.
ŸThe trailer is not suitable for running or skating. Do not use trailer in snow or icy
conditions.
ŸDo not install a car seat or any other seating device not approved by the
manufacturer inside the trailer.
Ÿ
ŸDo not use on rocky or uneven road surfaces.
ŸDo not park near inclines or uneven roads that may cause the trailer to tip.
ŸMake no modification to the trailer.
ŸBefore each ride, ensure the attached trailer and trailer components do not
interfere with braking, pedaling, or steering of the bicycle.
ŸNever use a trailer at night or times of limited visibility.
ŸObey all local laws and regulations for bicycles and trailers.
ŸCheck all fasteners before each ride.
ŸEnsure lock pins are fully inserted/engaged before each ride.
ŸAlways use the safety flag when pulling this trailer.
ŸThe bicycle to which the trailer is attached should undergo a safety check by a
qualified bicycle mechanic before attaching the trailer to it.
ŸCheck tires before rider. Inflate tires to recommended pressure shown on tire
sidewall.
ŸEnsure brakes on your bicycle work properly before each ride. Braking distance
is increased when pulling a trailer.
ŸDo not use cleaning solvents. Clean only with soap and water.
EN

3
Pre- Ride Safety check
Before each ride:
1. Ensure Bike and Trailer are in top working condition.
2. Check TIRE AIR PRESSURE of both Bike and Trailer.
3. Check to ensure Hitch Connector and Safety Strap are secured.
4. Secure all cargo and fasten fag end .
5. HELMETS ON! Ensure rider is on and secure.
This Owner's Manual is made for several different Trailers:
lSome illustrations may vary slightly from the actual product.
lFollow instruction completely.
lIf the trailer has any parts that are not described in this manual, look for
separate “Special Instructions” that are supplied with the Trailer.
lModels may have different accessory items such as bags, baskets, reflectors,
cup holder, rack, etc.
lAll features, components and accessories are not included no all models.
lUse the index page to locate specific sections of this manual.
lPlease read through this entire manual before beginning assembly or
maintenance.
lIf you are not confident with assembling this unit, refer to local bike shop.
WARNING: Keep small parts away from children during assembly.
NOTE: All of the directions (right, left, front, rear,etc.) in this manual are as seen by
the rider.
Do not dispose of the carton and packaging until you complete the assembly of the
Trailer. This can prevent accidentally discarding parts of the Trailer.
EN

4

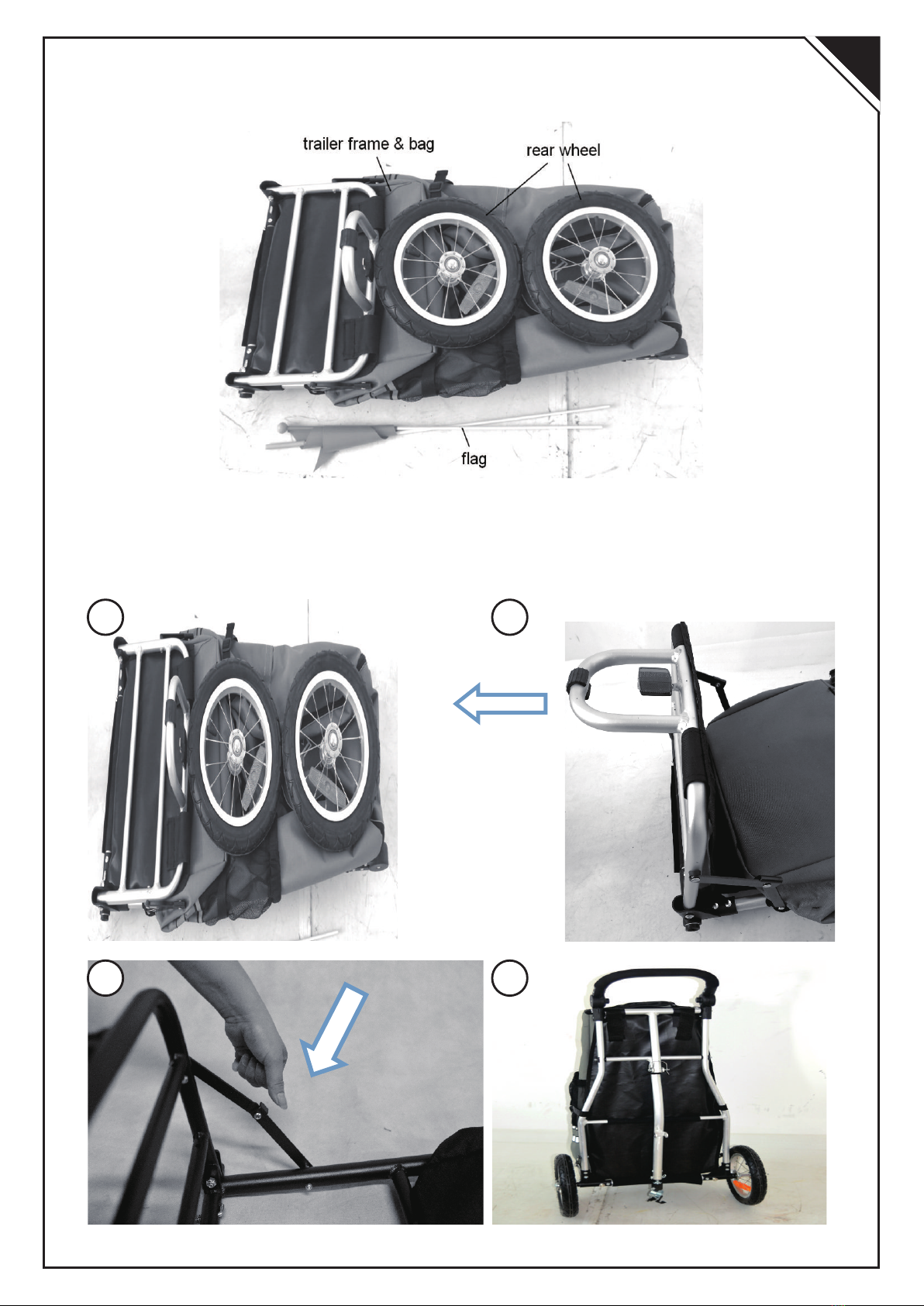

Steps:
1. Place the cargo trailer frame on a flat surface.
2. Unfurling bottom support tube.
3. Press the two sides of the limit iron sheet, so that the bottom support tube fixed.
4.Bond the ribbons in the sequence shown.
EN
4
3
21
Assembling the Frame
Remove trailer and all components from carton and sort all contents.

5
EN
C
B
A

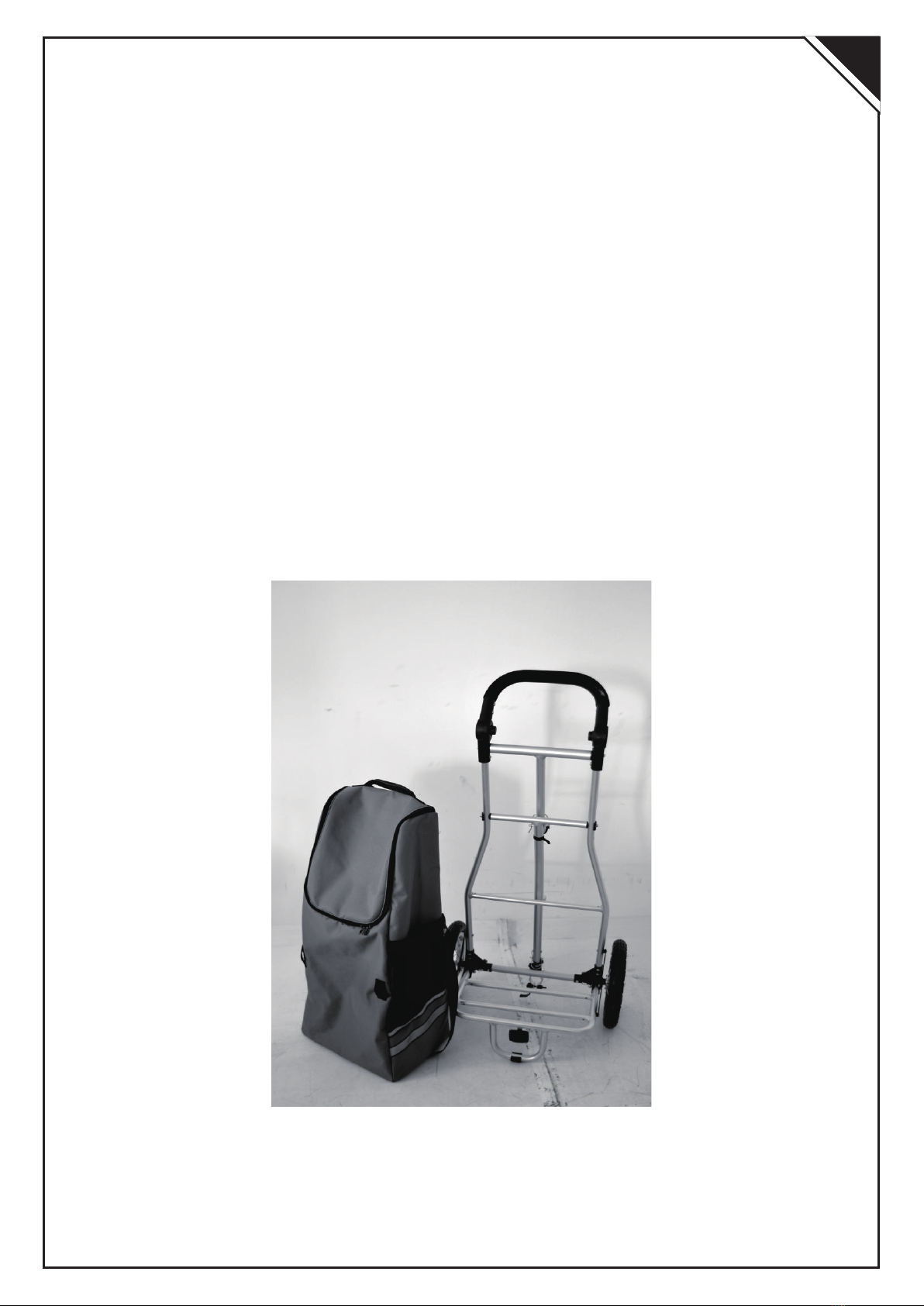

As shopping car
WARNING:
lFor easy towing and safe handling, check tires often for proper inflation and
wear. Check tire pressure regularly and inflate tires to within the range shown
on the tire sidewall.
lFailure to properly install wheels could allow them to come off during use. This
could lead to serious injury.
Attaching the Trailer to Bike
Steps:
(Hitch Connector may be pre-install from the factory)

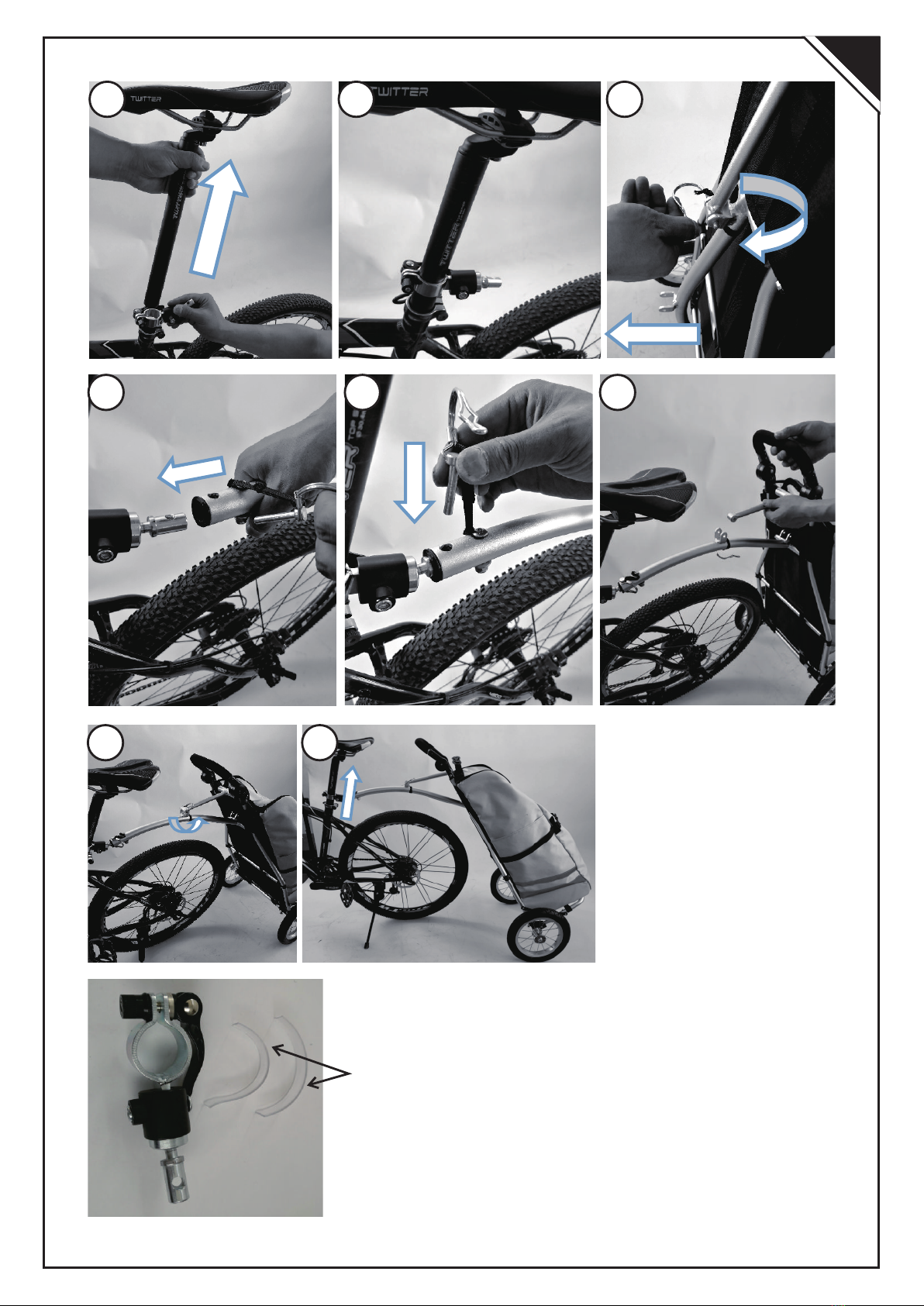

1. Pull out the bicycle seat tube,Quick removal tube bundle ring socket pipe.
2. Fix the seat pipe in place.
3. Open the fixed towing rod pin and pull out the towing rod.
4. Connect the towing rod to the connector.Install fixed pin.
5. Pull out the support pipe and install it as shown.
6. Fasten the connector to the appropriate height of the seat pipe and lock it.
Installing the Wheels
Steps:
1. Turn the unit on it's back.

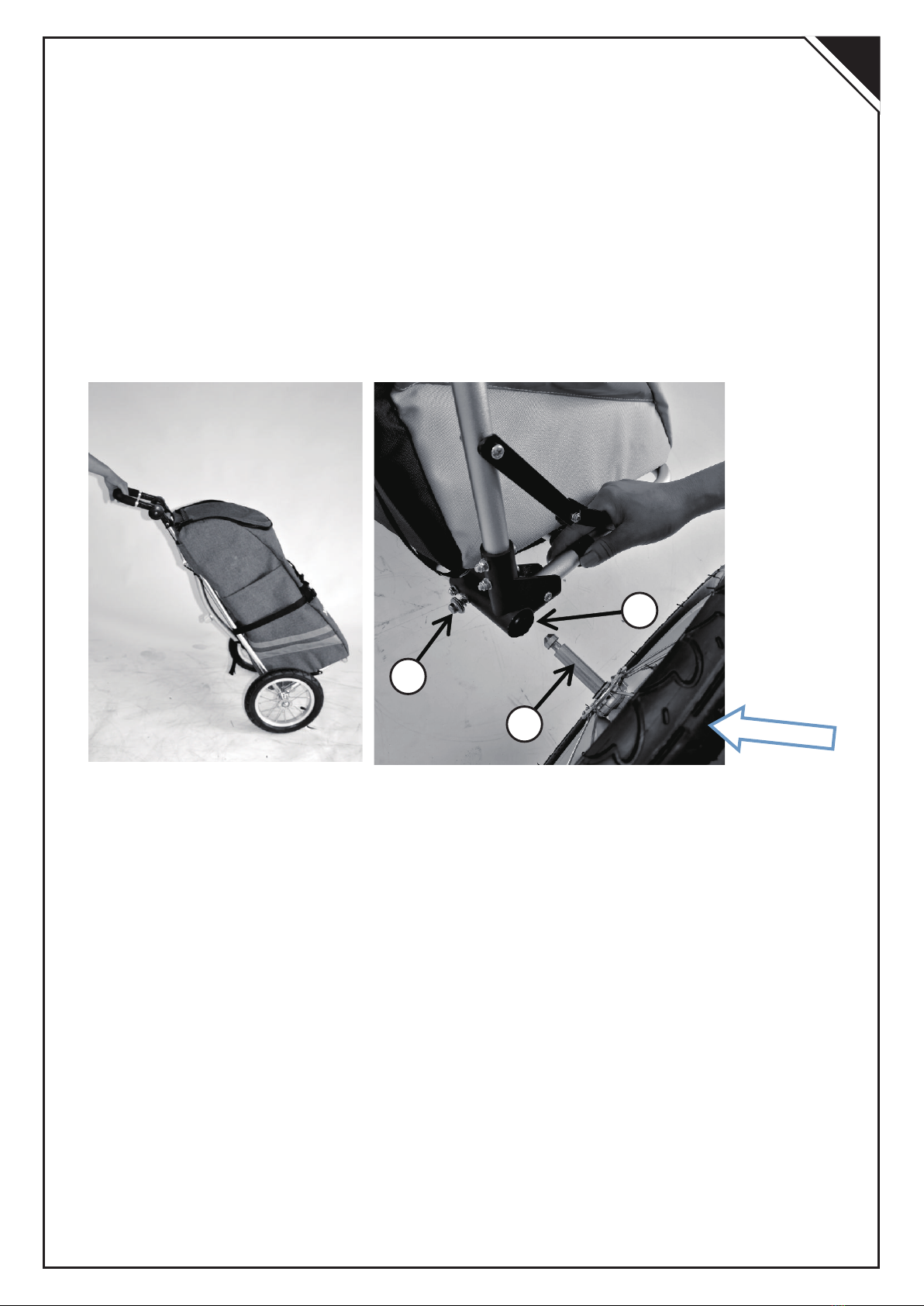

2. Slide each Wheel Shaft (A) into the Trailer Axle (B).
3. Press the Lock Button (C) until the Wheel locks into position and cannot be
pulled out. .
4. Repeat for opposite side.
NOTE: To remove the Wheel, push in the Lock Button and pull the Wheel out of the
Axle.

6
EN
Select washers according to the size of the seat pipe
87
6
5
4
3
21

7
EN
WARNING: Ensure there is fully thread engagement and threads are visible past
the end of the nut.
If there are not threads visible past the end of the nut, contact a local bicycle shop
for proper installation.
WARNING: If the Hitch interferes with your bike or other bike attachments, or if it
does tighten securely, do not use the Trailer. Contact a local bicycle shop for help
with proper installation.
WARNING: If the Safety Strap interferes with your bike or other bike attachments,
or if it does not tighten securely, do not use the Trailer. Contact your a local bicycle
shop for proper installation.
NOTE: To remove the Trailer from the bike, reverse these installations steps.
Ensure wheel is properly aligned and chain properly tightened as described in
bicycle owner's manual. Install and tighten Axle Nut as described in bicycle owner's
manual.
Product Usage
Securing and removing the cargo
When you secure/remove the cargo in/from the trailer, always check if the trailer is
stably connected with the bike.
As a backpack and a bag.

8
ENES
Manual del usuario Índice
Introducción
ŸLa responsabilidad del propietario
ŸAdvertencia e información de seguridad
ŸReflectores
ŸAdvertencias sobre el remolque
ŸComprobación de seguridad previa a la conducción
Montaje
ŸIntroducción al montaje
ŸInstalación de las ruedas
ŸFijación del remolque a la bicicleta
Uso del producto
ŸAsegurar y retirar la carga
ADVERTENCIA: ¡LLEVE SIEMPRE EL CASCO CUANDO CONDUZCA ESTE
PRODUCTO!
CORRECTO INCORRECTO
Responsabilidad del propietario
ADVERTENCIA: El remolque está diseñado y construido para proporcionar un
complemento portátil, cómodo y resistente a sus aventuras al aire libre. Por favor,
lea atentamente estas instrucciones y todas las advertencias antes de utilizarlo y
conserve las instrucciones para futuras consultas.
Si el remolque se compró sin montar, es responsabilidad del propietario seguir
todas las instrucciones de montaje y ajuste exactamente como están escritas en
este manual, y cualquier "instrucción especial" suministrada para asegurar un
montaje completo y correcto. Asegúrese de que todos los sujetadores y
componentes estén bien apretados durante la instalación.
NOTA:
● Compruebe periódicamente que todas las fijaciones y componentes están bien
apretados.
● Compruebe las condiciones de funcionamiento tanto de la bicicleta como del
remolque antes de cada uso. Si descubre componentes rotos, desalineación o
piezas faltantes, corrija el problema antes del uso.
Si el remolque se compró montado, es responsabilidad del propietario, antes de
utilizar el remolque por primera vez, asegurarse de que el remolque se ha montado
y ajustado exactamente como se indica en este manual y en las "Instrucciones
especiales" suministradas, y asegurarse de que todas las fijaciones y
componentes están bien apretados.

9
ENFRES
Gracias por su compra. Si tiene problemas, no regrese a la tienda. Llame al
servicio de atención al cliente. Por favor, consulte la etiqueta del modelo/código de
fecha en el producto o en la cubierta del manual.
Advertencia e información de seguridad
Significado de las advertencias:
Este símbolo es importante. Consulte la palabra "PRECAUCIÓN" o
"ADVERTENCIA" que le sigue.
La palabra "PRECAUCIÓN" está antes de las instrucciones mecánicas. Si no
obedece estas instrucciones, pueden producirse daños mecánicos o fallos en
alguna pieza del remolque.
La palabra "ADVERTENCIA" está antes de las instrucciones de seguridad
personal. Si no obedece estas instrucciones, pueden producirse lesiones al
conductor o a otras personas.
Reflectores
ADVERTENCIA: Por su seguridad, no utilice el remolque si los reflectores están
mal instalados, dañados o faltan. Asegúrese de que los reflectores traseros están
en posición vertical y apuntando hacia atrás. No permita que la visibilidad de los
reflectores sea bloqueada por la ropa u otros artículos. Los reflectores sucios no
funcionan bien. Limpie los reflectores, si es necesario, con jabón y un paño
húmedo.
Advertencias sobre el remolque
ADVERTENCIA: El incumplimiento de las instrucciones del fabricante puede
provocar lesiones graves o la muerte del pasajero/conductor.
ŸSe requiere el montaje por parte de un adulto.
ŸEste remolque es sólo para uso de carga y compras, no para usarlo como
portabebés.
ŸNo exceda nunca la velocidad de seguridad. La velocidad máxima recomendada
es de 8 MPH (13KMH) y reducir la velocidad a no más de 3 MPH (5KMH) al girar.
ŸNo es para carga (como, por ejemplo, ladrillos, escombros, troncos, etc.).
ŸBastidor de aleación:
ŸEl peso máximo es de 66lb (30KG). El peso máximo de la carga es de
53.5lb(24.3KG). El peso del producto es de 12.5lb (5.7KG).
ŸMarco de acero:
ŸEl peso máximo es de 30KG (66lb). El peso máximo de la carga es de 48,4 lb
(22,0KG). El peso del producto es de 17,6 lb (8,0KG).
ŸLos ciclistas deben llevar un casco de bicicleta aprobado cuando viajen en este
producto.
ŸEl remolque no es adecuado para correr o patinar. No utilice el remolque en
condiciones de nieve o hielo.
ŸNo instale en el interior del remolque un asiento de coche o cualquier otro
dispositivo de asiento no aprobado por el fabricante.
Ÿ
ŸNo lo utilice en superficies rocosas o irregulares.
ŸNo estacione cerca de pendientes o caminos irregulares que puedan hacer que
el remolque se vuelque.
ŸNo realice ninguna modificación en el remolque.
ŸAntes de cada viaje, asegúrese de que el remolque acoplado y sus componentes
no interfieren con el frenado, el pedaleo o la dirección de la bicicleta.
ŸNo utilice nunca un remolque por la noche o en momentos de visibilidad limitada.
