Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit . . . . . . . . . . . . 14
Operating Your Fan . . . . . . . . . . . . . 15
Care of Your Fan . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . 16
Specifications . . . . . . . . . . . . . . . . . . 17
141 643 (YG726-NI)
548810
840059600574

1
Safety Rules - Read and Save These Instructions
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
A all-pole disconnection that provide full disconnection under
overvoltage category III from the supply mains incorporated in the fixed
wiring is to be provided during installed.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
After installed, need a set of supply leads accommodated in a suitable
compartment.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less. Use
only NOM-listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7,55 ft. (2,3m) clearance
from the trailing edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE BLADE
ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING THE
BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.
WARNING
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
The appliance is not to be used by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Instructions for the use of the apparatus according with NOM-024-SCFI, are
provided with the apparatus.

2
Unpacking Your Fan
Set of blades (5)
Canopy assembly
Ball/downrod assembly
Coupling cover
Fan motor assembly
Blade arms (5)
1.
2.
3.
4.
5.
6.
Switch housing
Light kit
Decorative cage
7.5 Watt LED bulbs (2)
Pull chains and fobs (2)
7.
8.
9.
10.
11.

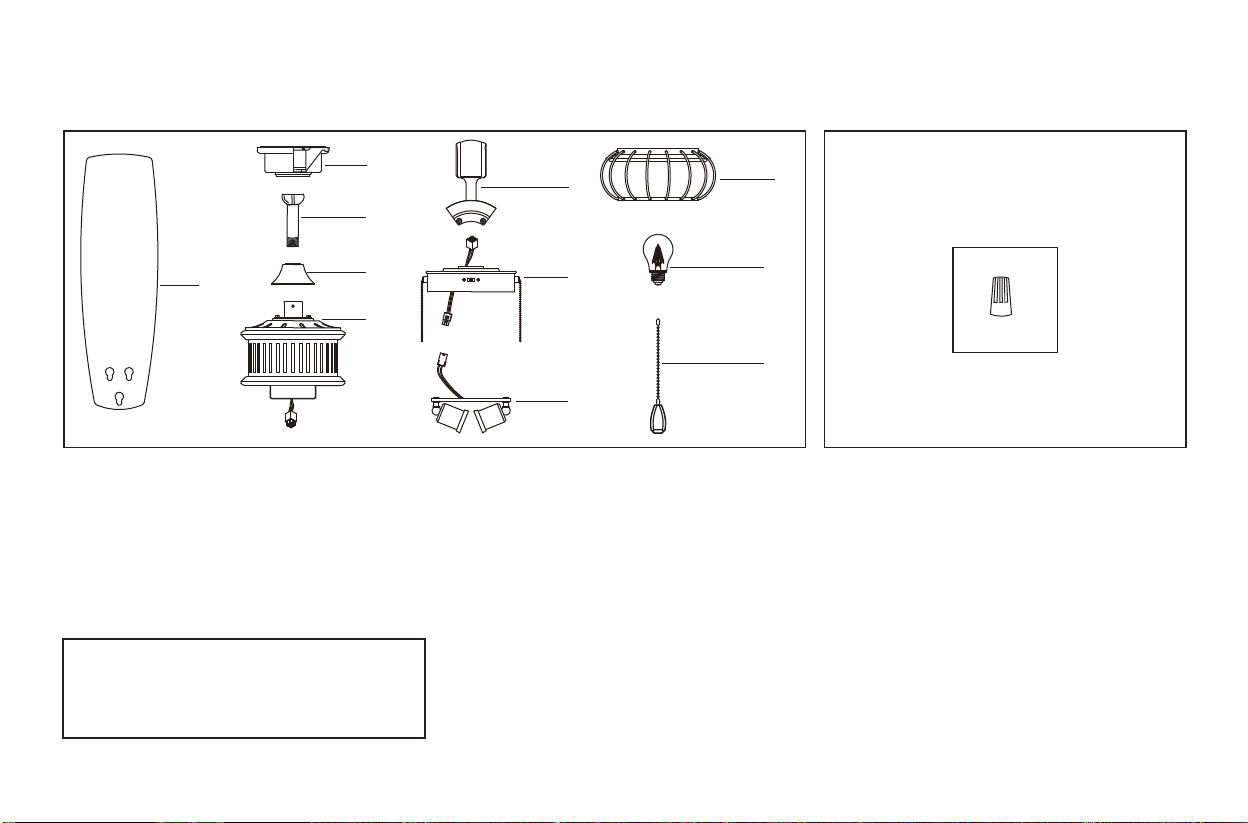

Unpack your fan and check the contents. You should have the following items:
Electrical Hardware
(3 Plastic Wire Nuts)
A.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 01-800-004-6633.
A
1
3
4
5
2
6
8
7
11
10
9

3
Installing Your Fan

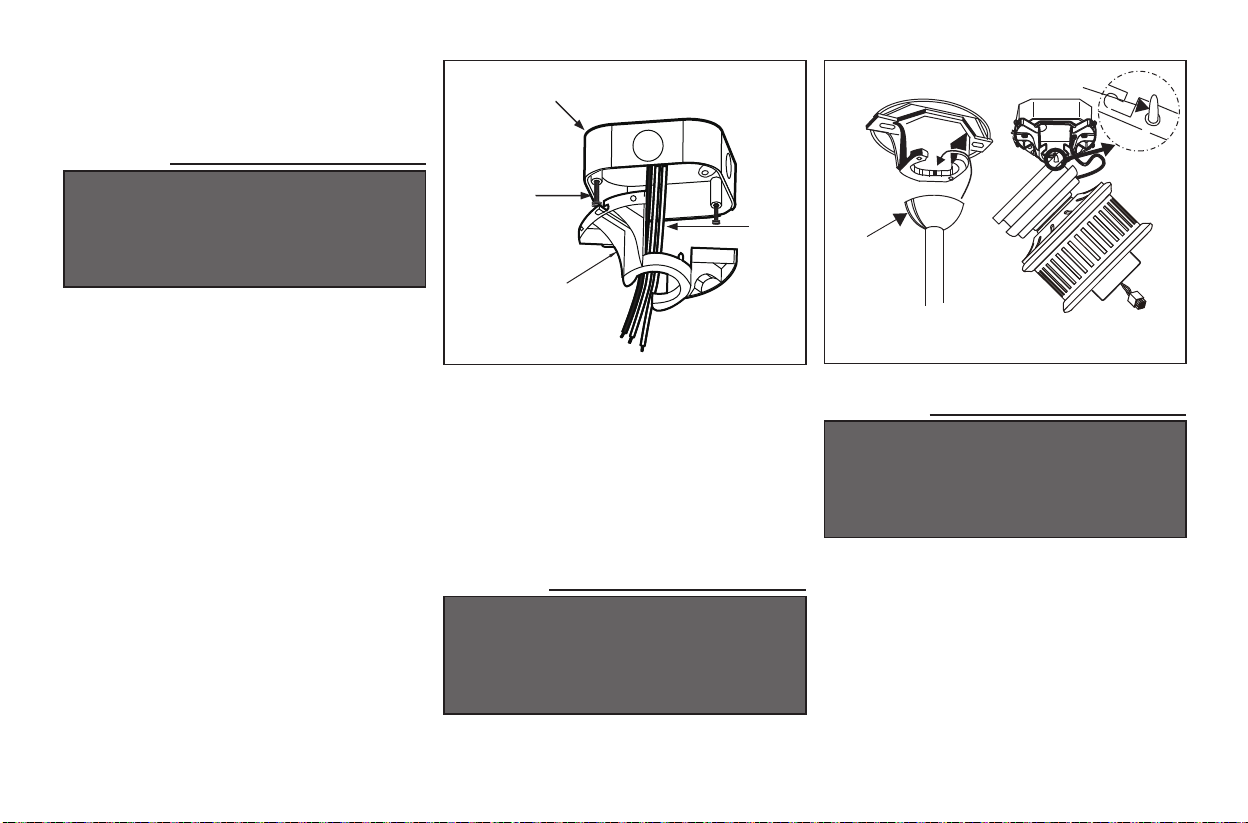

Figures 1~3 are examples of different ways to
mount the outlet box.
If there isn't an existing NOM listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 18°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
Remove the
Canopy Ring
Figure 5
Remove the mounting bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. (Figure 6)
2.
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure 7)
Take out the setscrew located in the hanger
ball, lower the hanger ball and remove the
cross pin. Remove the hanger ball from the
hanger ball/downrod assembly. (Figure 7)
3.
4.
Remove the ground lead from the downrod
assembly. (Figure 7)
5.
NOTE: If a longer downrod is needed, take out
the screw located in the hanger ball, lower the
hanger ball and remove the pin, remove all 3
pieces from the downrod and assemble them
onto the new longer downrod before
proceeding step 6. (The longer downrod is
available at any Home Depot store)
Loosen but
do not Remove Remove
Figure 6
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two types
of hanging assemblies; the standard ceiling
installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting.
The "close-to-ceiling" mounting is recommended
in rooms with less than 8-foot ceilings or in areas
where additional space is desired from the floor to
the fan blades.
When using the standard downrod installation, the
distance from the ceiling to the bottom of the fan
blades will be approximately 12 inches. The
"close-to-ceiling" installation reduces the distance
from the ceiling to the bottom of the fan blades to
approximately 9 inches.
Once you have decided which ceiling installation
you will use, proceed with the following
instructions. Where necessary, each section of the
instructions will note the different procedures to
follow for the two types of installation.
Hanging the Fan
Remove the canopy ring from the canopy.
(Figure 5)
1.
Option 1:
Standard Ceiling Mounting
Figure 7
Motor Collar
Cotter Pin
Clevis Pin
Downrod
Set Screws
Cross Pin
Hanger
Ball Set Screw Ground
Lead

5
WARNING
FAILURE TO PROPERLY INSTALL CLEVIS PIN
AS NOTED IN STEP 5 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Figure 8
Motor Wires
Ceiling Canopy
Pin in Locked
Positioon
Motor Collar
Coupling Cover
Tighten Screw
Firmly
Cotter Pin
Clevis Pin
Downrod
Cross pin
Hanger
Ball
Set Screw
Ground Lead
Carefully feed the motor wires up through the
downrod. Thread the downrod into the collar.
Align the holes and replace the clevis pin and
cotter pin. Tighten the two collar setscrews.
(Figure 8)
Slip coupling cover, canopy ring, and canopy
onto the downrod. Carefully reinstall the
hanger ball onto the downrod and reinstall the
ground lead onto the downrod, being sure that
the cross pin is in the correct position, the
setscrew is tightened and wires are not twisted.
(Figure 8)
6.
7.

6

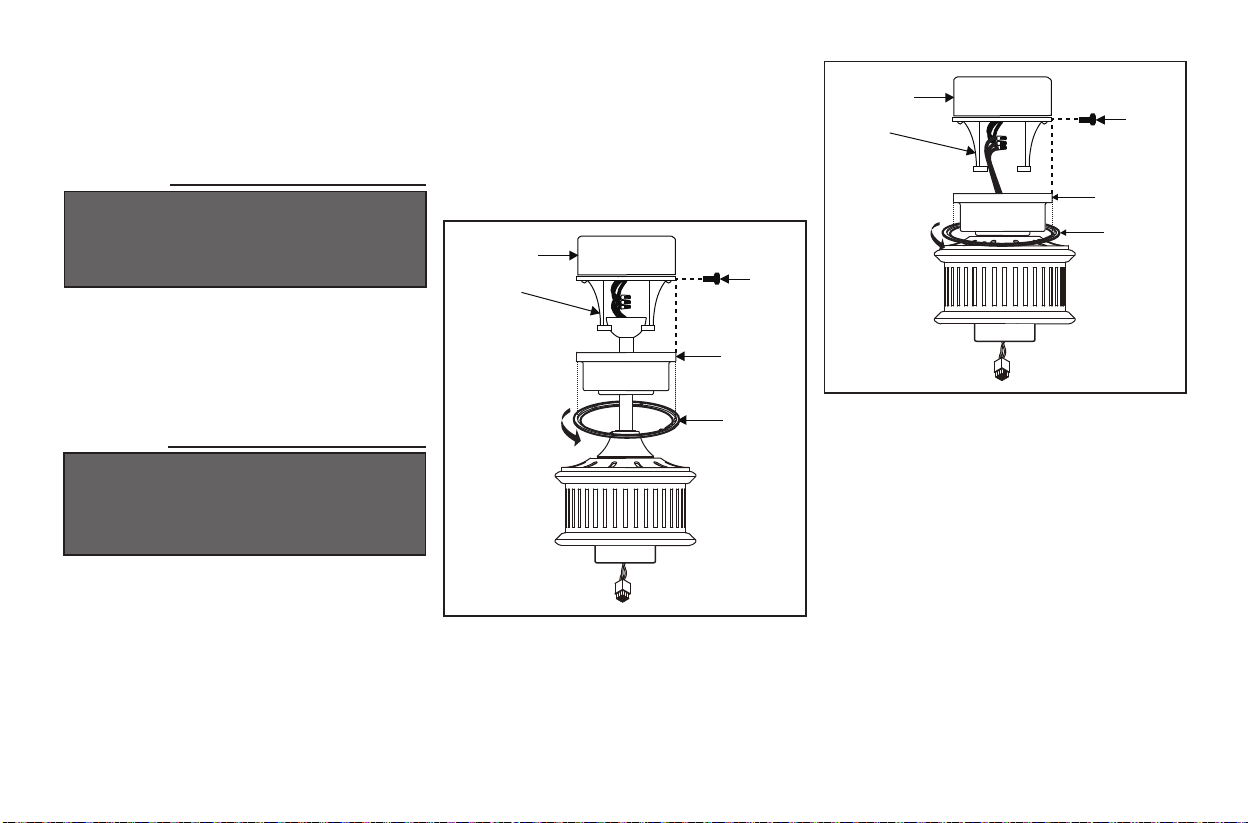

Remove the decorative canopy bottom cover
from the canopy. (Figure 9)
Remove three of the six screws and lock
washers (every other one) from the collar of
top motor. (Figure 10)
3.
4.
Route the wires exiting the top of the fan motor
through the canopy ring (make sure the slot
openings are on top), then proceed to place the
canopy ring and ceiling canopy over the collar
at the top of the motor. (Figure 11)
Align the mounting holes with the holes in the
motor and fasten using the screws and lock
washers removed in step 4. (Figure 11)
Tighten the mounting screws securely.
5.
6.
7.
WARNING
FAILURE TO COMPLETELY TIGHTEN THE
THREE SCREWS IN STEP 7 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
Motor
Collar Screw and Lock Washer
(3 of 6 Places)
Figure 10
Option 2:
Close-to-Ceiling Mounting
Remove the canopy ring from the canopy.
(Figure 5)
Remove the mounting bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. (Figure 6)
1.
2.
Canopy
Bottom
Cover
Remove
Figure 9
Figure 11
Collar
Ceiling
Canopy
Screw and
Lock Washer
(3 Places)
Canopy Ring

7
Installing Fan to
the Electrical Box
WARNING
THE TAB AS SHOWN IN FIGURE 13 IS ONLY TO
BALANCE THE FAN WHILE ATTACHING
WIRING. FAILURE TO HANG AS SHOWN IN
FIGURE 12 MAY RESULT IN TAB BREAKING
CAUSING THE FAN TO FALL. TAB MUST PASS
FROM INSIDE TO OUTSIDE OF CANOPY.
WARNING
WHEN USING THE STANDARD BALL/ DOWN-
ROD MOUNTING. THE TAB IN THE RING MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN
THE GROOVE COULD CAUSE DAMAGE TO
WIRING.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
Figure 12
Carefully lift the fan assembly up to the ceiling
mounting bracket and hang the fan on the tab
provided by utilizing one of the holes at the outer
rim of the ceiling canopy. (Figure 13) If use
standard mounting, seat the hanger ball in the
mounting bracket socket. Make sure the tab on
the mounting bracket socket is properly seated in
the groove in the hanger ball. (Figure 13)
4.
Pass the 120-volt supply wires through the
center hole in the mounting bracket. (Figure 12)
Attach the mounting bracket on the outlet box
by sliding the mounting bracket over the screws
provided with the outlet box. (Figure 12) When
using “close-to-ceiling” mounting, it is
important that the mounting bracket be level. If
necessary, use leveling washers (not included)
between the mounting bracket and the outlet
box. Note that the flat side of the mounting
bracket is toward the outlet box. (Figure 12)
Securely tighten the two mounting screws.
1.
2.
3.
Figure 13
Groove
Standard Mounting Close-to-Ceiling Mounting
Tab
NOM Listed
Outlet Box
Ceiling Mounting
Bracket
Mounting
Screws (Supplied
with Outlet Box) 120V
Wires

8
Making the Electrical
Connections
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS.
EXCEPT FOR THE GROUND WIRE.
WARNING
ELECTRICAL DIAGRAMS ARE FOR
REFERENCE ONLY. OPTIONAL USE OF ANY
LIGHT KIT SHALL BE NOM LISTED AND
MARKED SUITABLE FOR USE WITH THIS FAN.
Connect the fan motor black wire to the supply
black (hot) wire using a wire nut. (Figure 14)
Connect the blue wire for light kit to the black
household supply wire.
Turn wire nut connections upward, spreading
them apart so the green (ground) and white will
be on one side of the outlet box, and the black
and blue wires will be on the other side, and
push carefully up into the outlet box.
3.
4.
5.
Connect the ground conductor of the 120V
supply (this may be a bare wire or a wire with
green colored insulation) to the green ground
lead(s) of the fan. (Figure 14) When using
standard ceiling mounting, there are two green
grounding leads; one from the ceiling mount-
ing bracket and one from the ball/downrod
assembly. When using “Flushmount Installa-
tion” mounting, there is only one green ground
lead from the ceiling mounting bracket since
the ball/downrod assembly is not used.
Connect the fan motor white wire to the supply
white (neutral) wire using a wire nut. (Figure
14)
1.
2.
REMEMBER to disconnect the power.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the wire nuts supplied with
your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or
connections.
SUPPLY CIRCUIT
Figure 14
BLACK
WHITE
BLACK
WHITE
BLUE
GREEN
Outlet Box
Ground
Conductor
Green
Ground
Lead
Ground to
Downrod
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT USE THIS FAN WITH ANY
SOLID-STATE SPEED CONTROL DEVICE.

9
Finishing the Fan
Installation
Standard Ceiling Mounting
WARNING
MAKE SURE THE TAB ON THE MOUNTING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
WARNING
LOCKING SLOTS OF CEILING CANOPY ARE
PROVIDED ONLY AS AN AID TO MOUNTING.
DO NOT LEAVE FAN ASSEMBLY UNATTENDED
UNTIL ALL FOUR CANOPY SCREWS ARE
ENGAGED AND FIRMLY TIGHTENED.
Slide canopy up to the ceiling as shown in Figure
15. Make sure you place the wires safely into the
outlet box. Secure the canopy to the mounting
bracket with the four screws with your fan. Slide
the canopy ring over the canopy and tighten by
turning the canopy ring.
Remove the fan from the hook on the mounting
bracket. Secure the canopy to the mounting
bracket with four screws included with your fan.
(Fig. 16) Slide the canopy ring over the canopy
and tighten by turning the canopy ring.
Close-to-Ceiling Mounting
Figure 15
Outlet Box
Ceiling
Mounting
Bracket
Canopy
Canopy
Ring
Screws
Figure 16
Outlet Box
Ceiling
Mounting
Bracket
Screws
Canopy
Canopy
Ring

10
Attaching the Fan Blades
Hold the blade with hands close to the blade
arm, align the key-slot holes with the blade arm
posts and press the blade down firmly. Ensure
the key-slot holes are properly seated on the
blade arm posts.
Firmly slide the blade away from the blade arm
until the blade engages in the spring locking
mechanism. Make sure the spring of the spring
locking mechanism is upward and the butt of
the spring locking mechanism is against the
edge of the blade.
1.
2.
To install the blade to the blade arm:
Press down the spring locking mechanism to release the blade from the blade arm. Slide the blade
toward the blade arm until the blade disengages from the spring locking mechanism. Carefully push the
blade up to detach from the blade arm.
1.
To detach the blade from the blade arm:
WARNING
FAILURE TO PROPERLY SEAT THE BLADES
ON THE BLADE ARMS AND ENGAGE IN THE
SPRING LOCKING MECHANISM COULD
RESULT IN THE FAN BLADES LOOSENING
AND POSSIBLY FALLING.
NOTE
YOUR FAN BLADES ARE REVERSIBLE. SELECT
THE BLADE SIDE FINISH WHICH BEST ACCEN-
TUATES YOUR DECOR.

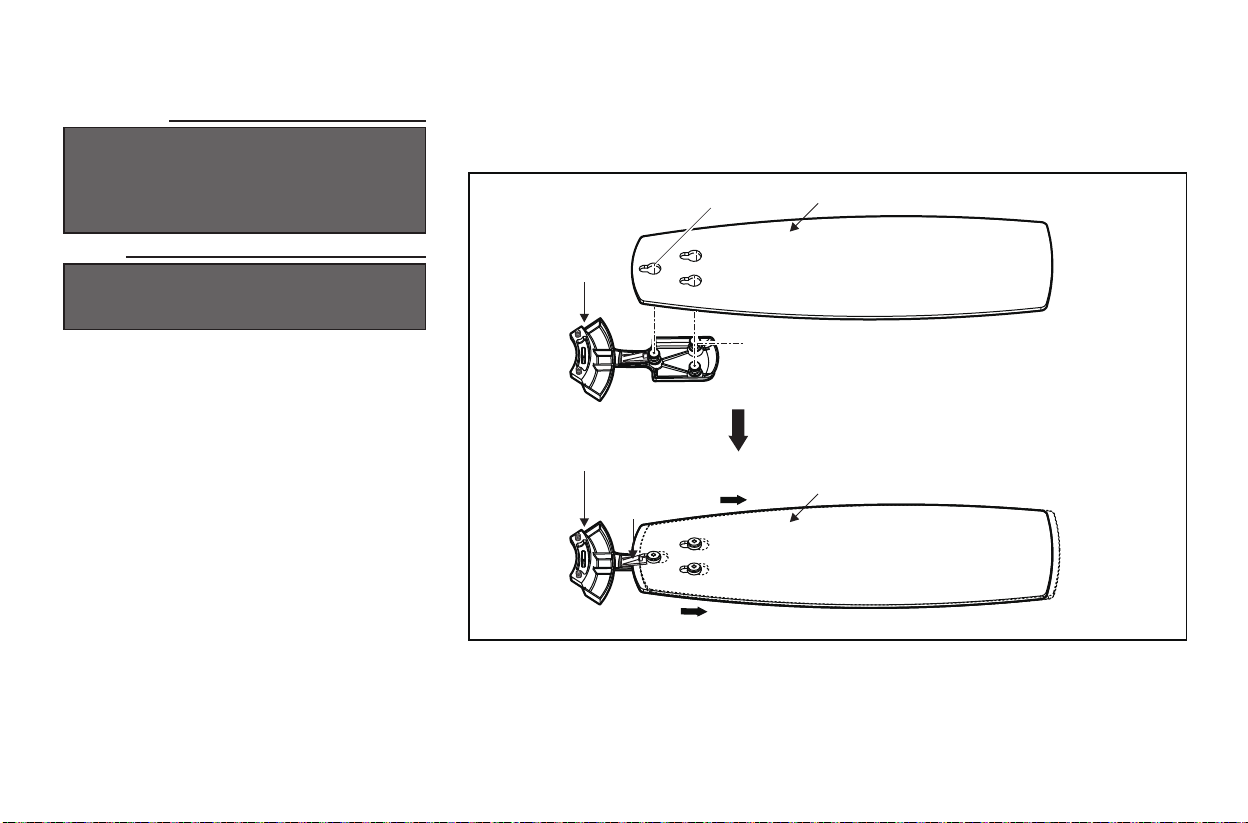

Figure 17
Blade Arm
Blade Arm
Blade Arm
Posts
Blade
Blade
Key-slot Holes
Spring Locking
Mechanism

11
Attaching the Blade Assembly
The fan motor assembly is shipped with motor support plate to
prevent movement during transportation. Remove the motor
support plate.
Fasten the blade assemblies to the fan motor assembly by lining up
the slots of the motor with the tabs on the blade arms.
Align the holes from the blade arm to the holes from the motor, and
secure the blade arm in place with screws and washers provided.
Repeat this process to attach the other blades assemblies.
1.
2.
3.
4.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.

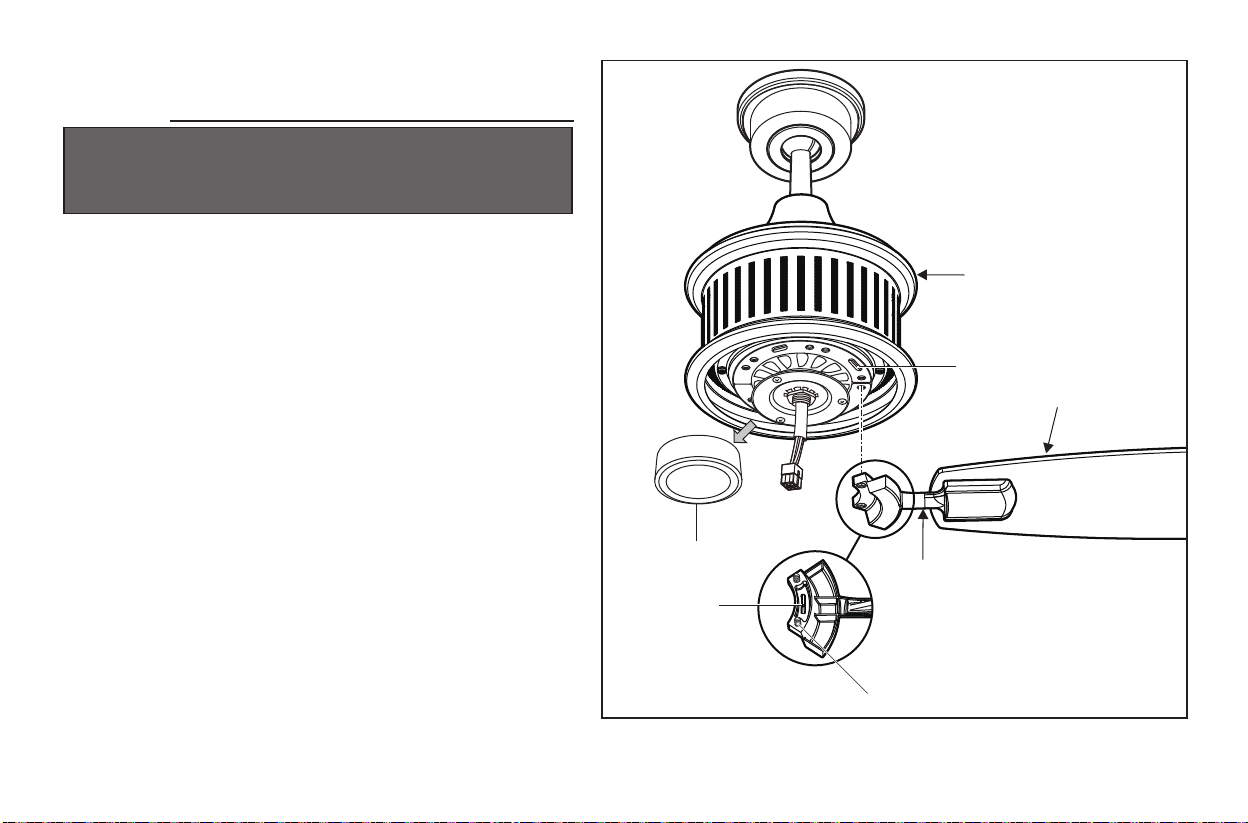

Figure 18
Slot
Motor
Assembly
Blade Arm
Blade
Screws
Tab
Motor Support Plate

12
Figure 19
Touching Ceiling
Blade Balancing
Verify that all blades and blade bracket screws are secure (most fan
wobble problems are caused by loose parts). Once the fan is properly
installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level
using the following process:
Select a point on the ceiling above the tip of one of the blades, then select
any fan blade and measure from the center of the selected blade to the
point on the ceiling (as shown in Figure 19). Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from
the ceiling for every blade. Measurement deviations should be within
1/8”.
If all deviations are less than 1/8” and the fan continues to wobble, please
call Customer Service (01-800-004-6633) to order a complimentary Blade
Balancing Kit.
If deviation is greater than 1/8”, please call Customer Service
(01-800-004-6633) to order complimentary replacements of your brackets.
1.
2.
-
-
-
All blades are grouped by weight during assembly. The following procedure
should correct most fan wobble. Check after each step.

WARNING
BEFORE STARTING INSTALLATION, DISCONNECT
THE POWER BY TURNING OFF THE CIRCUIT
BREAKER OR REMOVING THE FUSE AT FUSE BOX.
TURNING POWER OFF USING THE FAN SWITCH IS
NOT SUFFICIENT TO PREVENT ELECTRIC SHOCK.
Attaching the switch housing
to the mounting ring
1.
2.
3.
4.
Figure 20
13
Screws
Switch Housing
Mounting Ring
Wire
Connector
Remove one of the three switch housing mounting
screws from the mounting ring and loosen the other
two screws. (Do not remove.)
While holding the switch housing under the fan
motor assembly, snap together the wire connection
plugs.
Place the key holes in the switch housing over the
two screws previously loosened from the mounting
ring. Turn the switch housing until the switch
housing locks in place at the narrow section of the
key holes.
Securely tighten the two switch housing mounting
screws previously loosened and the one previously
removed.

14
Installing the Light Kit
Remove the three light kit mounting screws
from the switch housing and keep these screws.
(Fig. 21)
While holding the light kit under your fan
motor assembly, locate two single white and
blue wires in the switch housing labeled "FOR
LIGHT". Make the polarized plug connections:
(Fig. 21)
- White to white - Blue to black
Carefully push all wires back into the switch
housing. Install the light kit onto the switch
housing with the three light kit mounting
screws provided. Be sure to tighten all screws.
(Fig. 21)
Raise the decorative cage up against the light
kit and secure by tightening with the four
decorative cage screws. (Fig. 22)
Install the 2 x 7.5W LED bulbs (included).
1.
2.
3.
4.
5.

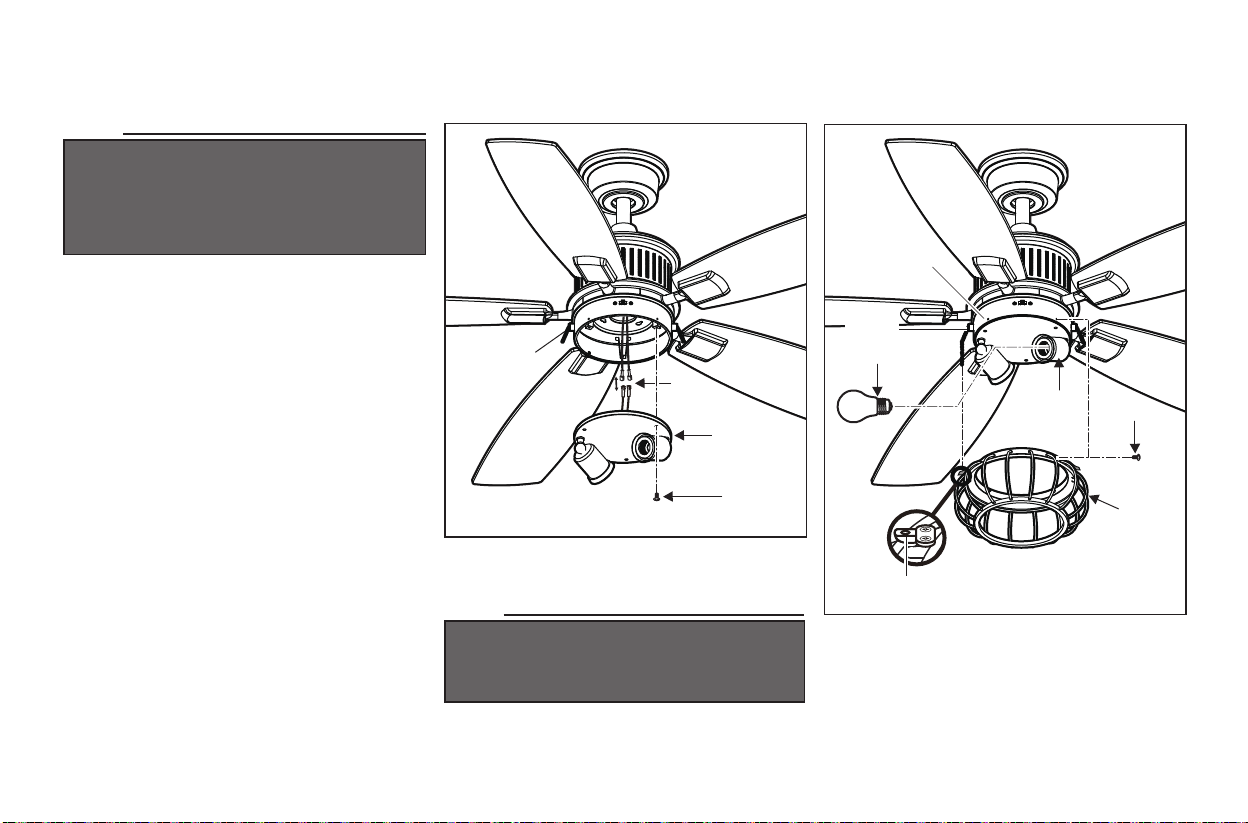

Figure 21
Light Kit
Screws
Wire
Connector
Switch
Housing
Figure 22
Screws
Decorative
Cage
Pull Chain Guide
Light Kit
LED Bulbs
Switch
Housing
Switch
NOTE
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.

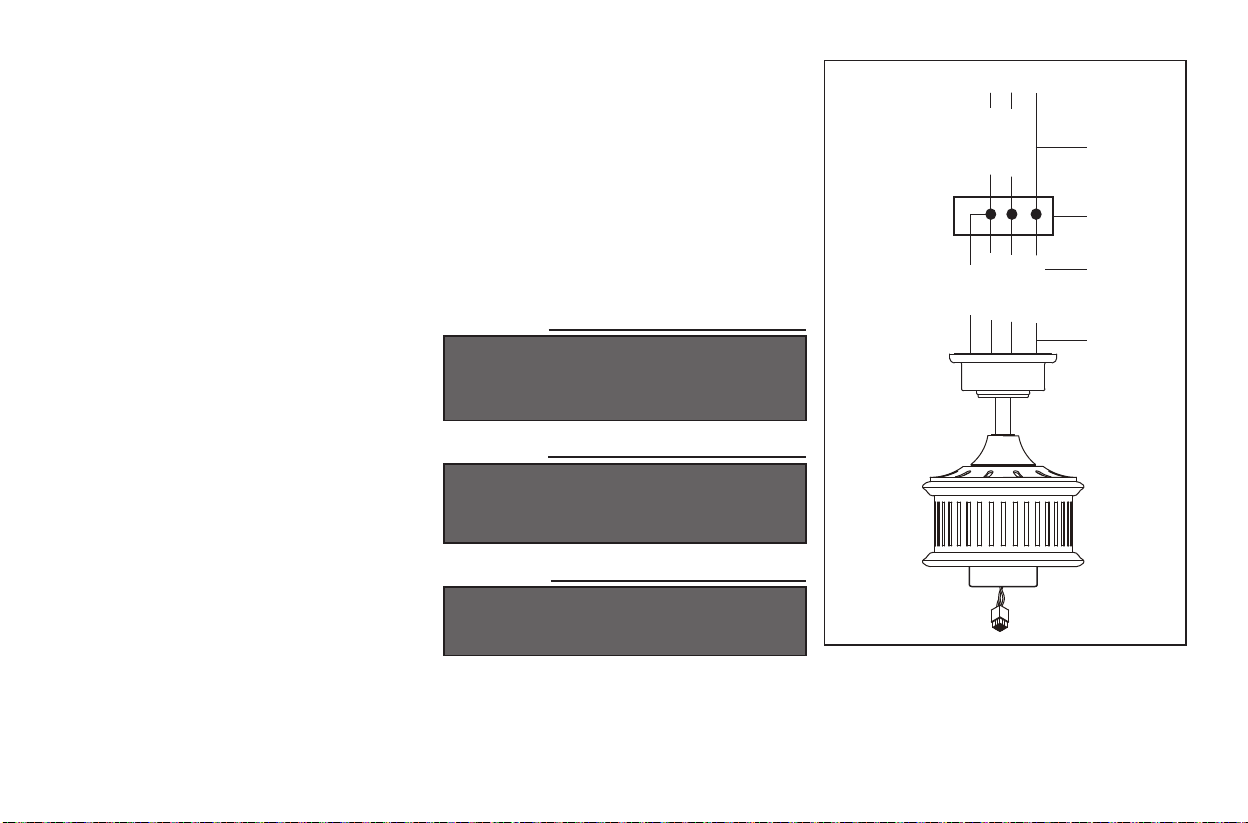

NOTE
THE PULL CHAIN GUIDE ON THE DECORA-
TIVE CAGE MUST ALIGN WITH THE SWITCH
ON THE SWITCH HOUSING FOR THE PROPER
FIT. (FIG. 22)

Operating Your Fan

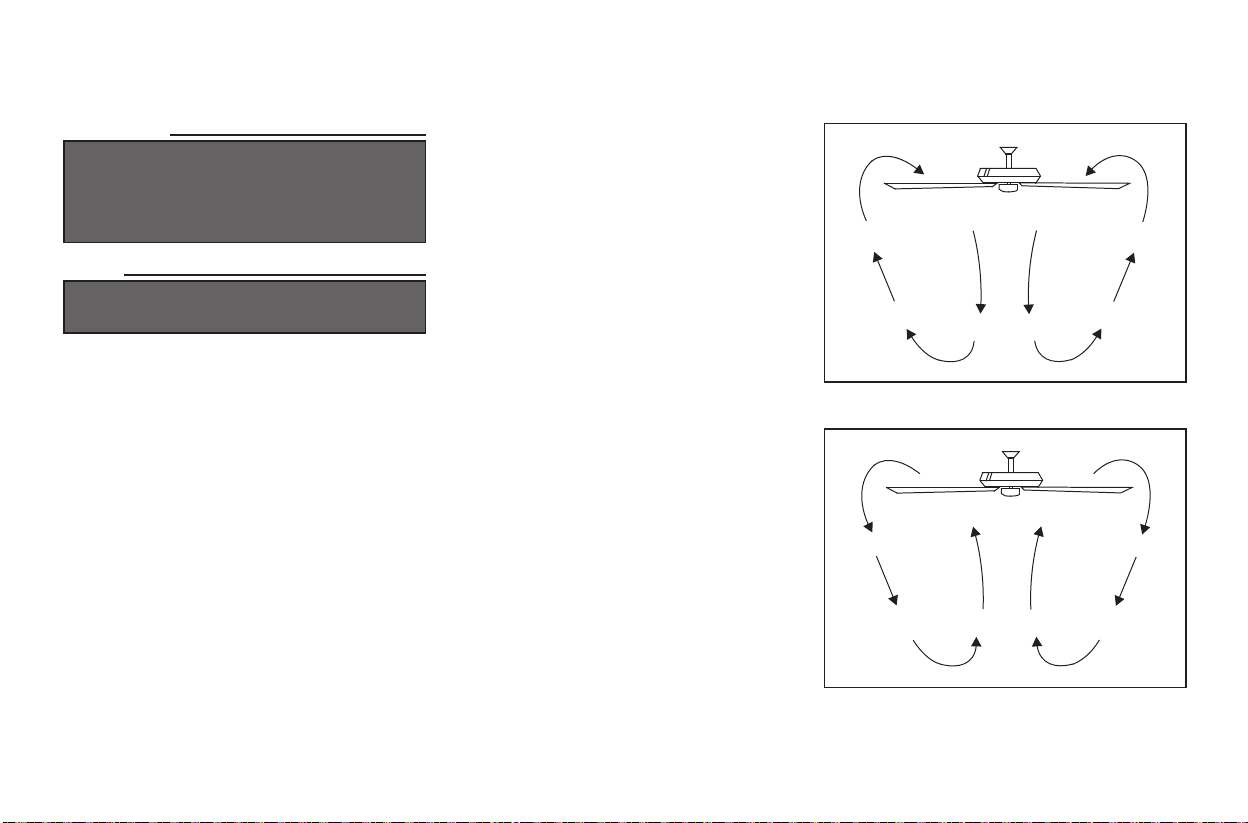

Warm weather - (Counter Clockwise Direction)
A downward air flow creates a cooling effect as
shown in Figure 23. This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise Direction) An upward
air flow moves warm air off the ceiling are as
shown in Figure 24. This allows you to set your
heating unit on a lower setting without affecting
your comfort.
Install two pull chains and fobs onto the pull
chains located in the switch housing. Turn on the
power and check the operation of the fan.
The pull chain controls the fan speed as follows: 1
pull - High, 2 pulls - Medium, 3 pulls - Low and 4
pulls - Off.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, and so on.
Light kit pull chain- it controls the light kit in
"ON" or "OFF".
The slide switch controls directions: forward
(switch left) or reverse (switch right).
WARNING
LOCKING SLOTS OF CEILING CANOPY ARE
PRVIDED ONLY AS AN AID TO MOUNTING. DO
NOT LEAVE FAN ASSEMBLY UNATTENDED
UNTIL ALL FOUR CANOPY SCREWS ARE
ENGAGED AND FIRMLY TIGHTENED.
NOTE
WAIT FOR FAN TO STOP BEFORE REVERSING
THE DIRECTION OF THE BLADE ROTATION.
Figure 23
Figure 24
15

WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in
the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
is tight.
Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
If using an optional light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
1.
2.
1.
2.
3.
4.
5.
6.
7.
Fan will not start
Fan sounds noisy
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
16
