Home Decorators Collection MAKENNA 56235 User manual

THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1008 271 600
Model #56235
UL Model #52-MAKN
USE AND CARE GUIDE
MAKENNA 52-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
Questions, problems, missing parts? Before returning to the store,
call Hubspace Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE

2
Table of Contents ................................................................ 2
Safety Information...............................................................2
Warranty ...............................................................................3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................13
Care and Cleaning.............................................................17
Troubleshooting.................................................................17
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation should
be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lb (15.9 kg). Use
only UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lb (15.9 kg) or less.”
4. Do not place objects in the path of the blades.
5. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
6. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
7. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL Listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. MR225A, manufactured by Chungear
Industrial Co., Ltd.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall
control will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state
speed control device.
CAUTION: The fan must be mounted with a minimum
of 7 ft. (2.1 m) of clearance from the trailing edge of
the blades to the oor.

3HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Pre-Installation
Warranty

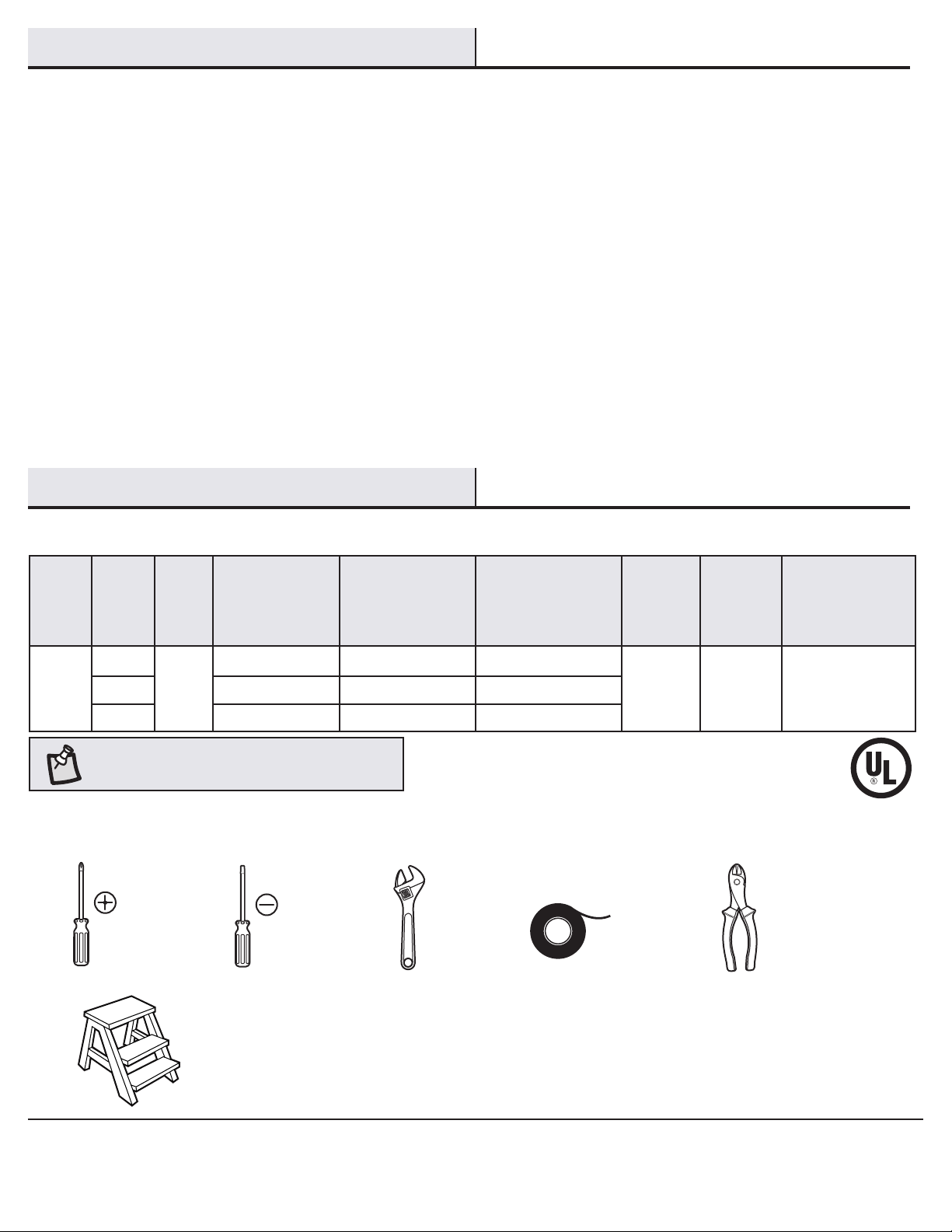

SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
52 in.
Low
120
9 1431 159
20.28 lb
(9.2 kg)
26.39 lb
(11.97 kg) 2.0 cu. ft.
Medium 30 2887 96
High 61 4521 74
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter/
stripper
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.
The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the
time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by
accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Interline hereby disclaims any
and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not
allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.
Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.This warranty supersedes all prior warranties.
Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-877-592-5233 or visit www.HomeDepot.com/hubspace.

4
Part Description Quantity
AA Blade attachment screws 19
BB Plastic wire connecting nut 3
CC Blade arm screws 13
DD Decorative frame screws 13
EE Frame brace screws 7
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB
EE
DD
CC

5HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Part Description Quantity
A Mounting plate 1
B Trim ring 1
C Fan motor assembly 1
D Blade arm 6
E Blade 6
F Blade arm bracket 6
Part Description Quantity
G Decorative frame piece 6
H Light kit pan 1
I Light kit assembly 1
J Light shade 1
K Receiver 1
L Remote control 1
M Battery 2
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416; 6,210,117 and other patents pending.
Pre-Installation (continued)

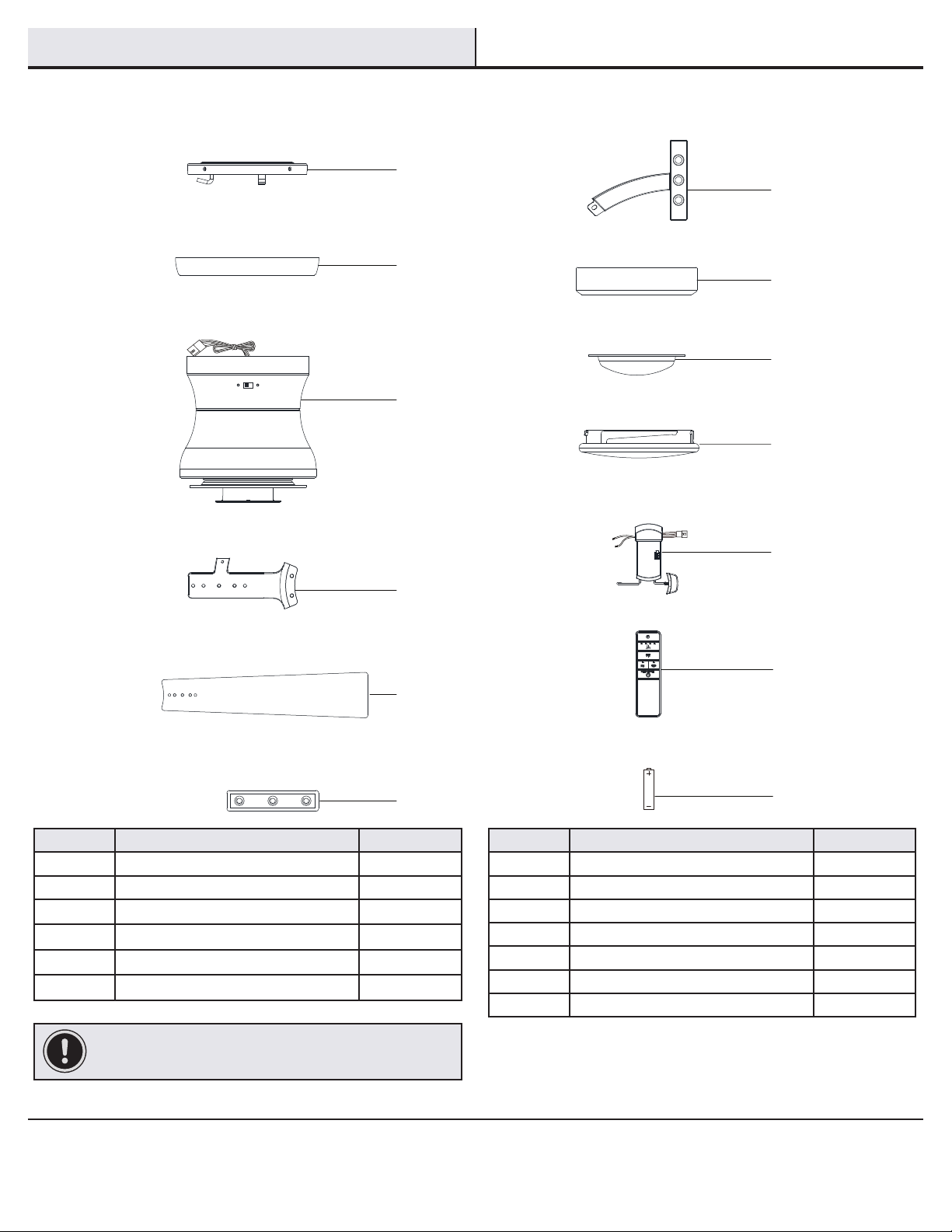

PACKAGE CONTENTS
A
B
C
E
G
F
D
H
J
K
L
M
I
1 2 34
ONDIP

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lb (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lb (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for fan support of
35 lb (15.9 kg) or less.” Do not use a plastic outlet box.

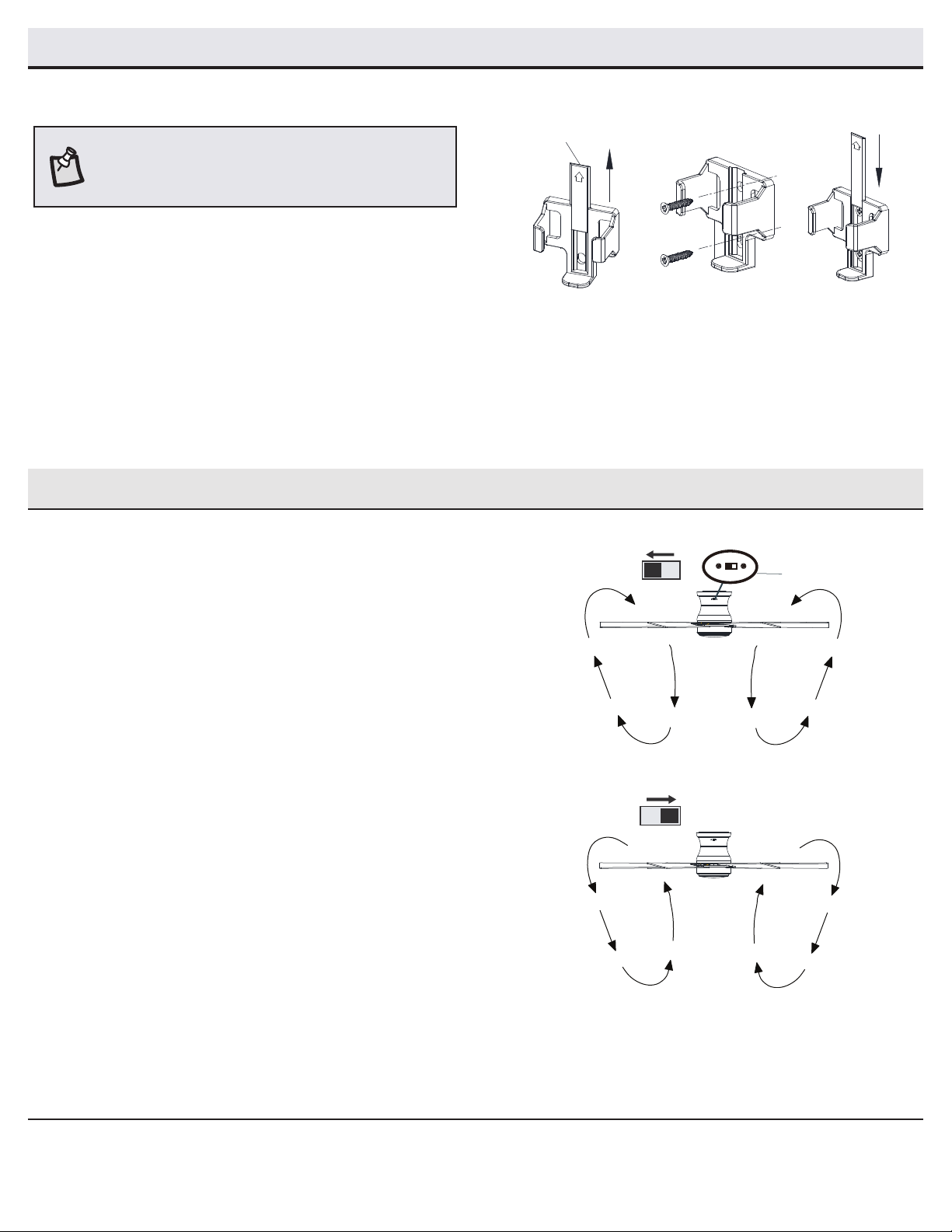

The illustrations below show three different ways to mount the
outlet box.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above (available at
any Home Depot store).
Outlet Box
Outlet Box
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Hanging the Fan
Attaching the fan to the electrical box

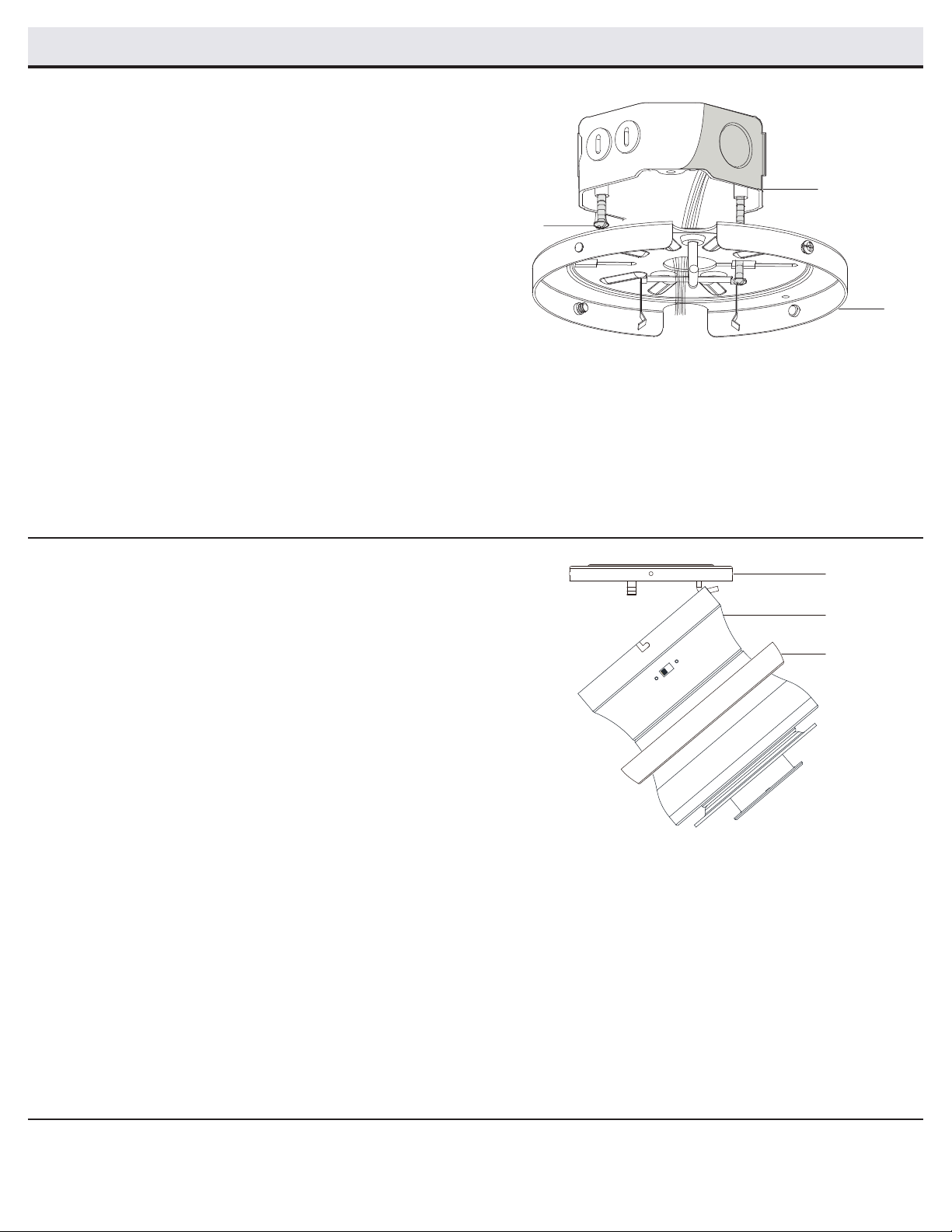

1□Turn the power off.
□Loosen the two mounting screws (GG) supplied with the outlet
box, but do not remove the screws.
□Securely attach the mounting plate (A) to the outlet box by
sliding the mounting plate (A) over the two mounting screws
(GG) supplied with the outlet box.
□Pull the 120-volt supply wires (the black, white and ground
wires) out of the outlet box (FF) and through the hole in the
mounting plate (A) and lay them to the side.
Hanging the fan motor assembly

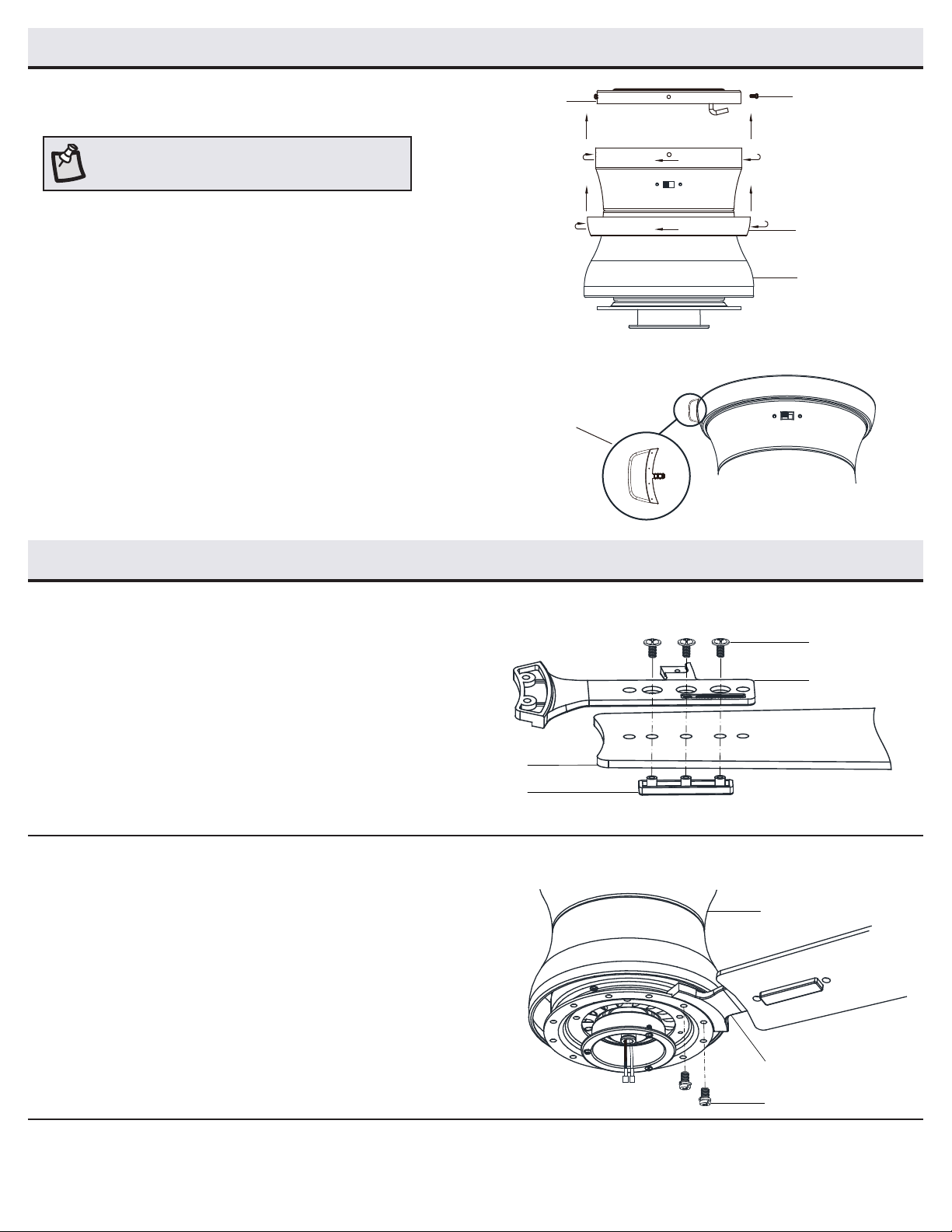

2□Attach the trim ring (B) to the fan motor assembly (C) at the
opening of the motor housing. Make sure the slots of trim ring
(B) are on top.
□Carefully lift the fan motor assembly (C) and hang the fan motor
assembly (C) on the hook of the mounting plate (A) by utilizing
one of the holes at the outer rim of the motor housing so that it
is securely suspended.
□Connect the wiring to your fan according to step 3 “Making the
Electrical Connections”.
GG
FF
A
A
C
B

8
Assembly - Hanging the Fan (continued)
Installing the receiver
Making the electrical connections

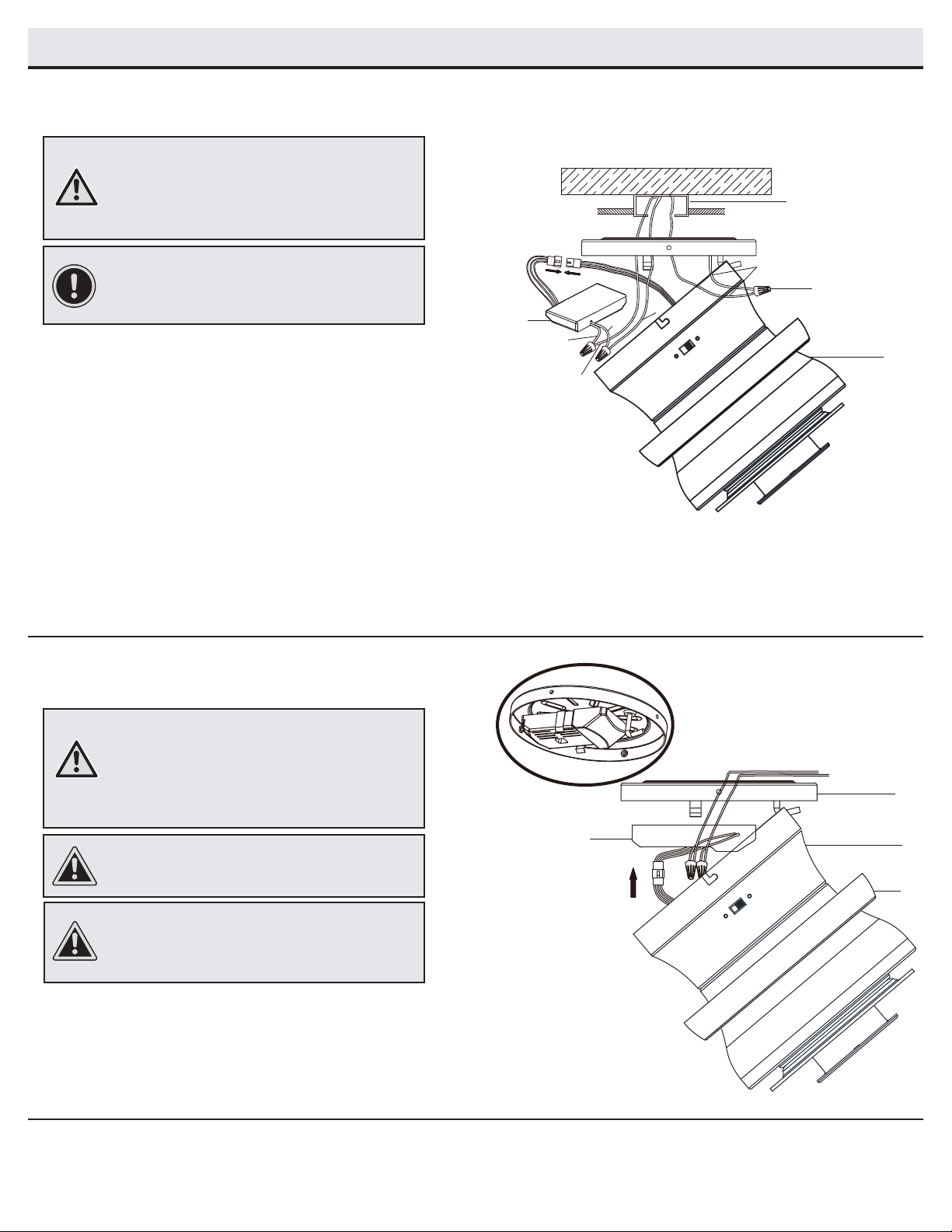

□Spread the wires apart so that the green and whites are one
side of the outlet box and the black wire is on the other side.
□Connect the green fan wires to the household ground wire (this
may be a green or bare wire) using a wire connecting nut (BB).
□Connect the receiver (K) red or black wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (K) white wire to the household white
(neutral) wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Wire the receiver (K) to the fan wires by connecting the molded
adaptor plug from receiver (K) with molded adaptor of the fan
motor assembly (C) together.
□Push the receiver (K) into the bracket on the mounting plate (A)
as shown, at side towards the ceiling.
4
3
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire
to connect to the fan wiring, consult an electrician for
the proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (BB)
supplied with your fan. Secure the connectors with
electrical tape and ensure there are no loose strands or
connections.
WARNING: To reduce the risk of re or electrical
shock, remember to disconnect power. The electrical
wiring must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volt, 60HZ. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver (K) in a damp
location or immerse in water. For indoor use only. Do
not pull on or cut the receiver leads shorter. Do not
drop or bump the unit.
Outlet box
Green or bare wire
K
C
Red or
Black
Black
White
White
BB
A
C
K
B

9HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Hanging the Fan (continued)
Installing the motor assembly
□Remove two of the four screws (located diagonally from each
other) (NN) from the top of the mounting plate (A) and loosen
the other two screws (NN).
□Align the two key slots in the top of the fan motor assembly (C)
with the two loosened screws (NN) on the mounting plate (A).
Push the fan motor assembly (C) up and turn it clockwise to
lock in the mounting plate (A). Tighten the two screws.
□Install the two screws that were removed at the beginning
of this step into the remaining two holes and tighten the four
screws rmly.
□Install the trim ring (B) by aligning the ring’s slots with the
screws on the mounting plate (A). Rotate the ring clockwise to
lock in place.
5
NOTE: For better performance with the WiFi system, the
WiFi antenna must be mounted to the ceiling outside of
the fan’s ceiling housing.
Assembly - Attaching the Blades
Attaching the blades to
the blade arm
□Attach a blade (E) to the blade arm (D) by aligning the holes
on the blade arm bracket (F) with the holes on blades (E) and
blade arms (D), inserting the screws (AA) into the holes in the
blade arm (D) and through the blade (E), blade arm (D) and
blade arm bracket (F).
□Tighten each screw to secure the blade (E).
□Repeat this step for each blade (E), blade arm (D) and blade
arm bracket (F).
1
Attaching the blade assemblies
to the motor
□Attach the blade assembly to the motor assembly (C) by aligning
the screw holes on the blade arm (D) with the screw holes on the
bottom of the fan motor assembly (C).
□Insert the screws (CC) into the holes on the blade arm (D) and
through the holes on the bottom of the fan motor assembly (C).
Do not completely tighten these screws. The blade arms should
be slightly loose when attaching the decorative frames.
□Repeat this process for remaining blade assemblies.
2
F
AA
D
E
C
D
CC
A
C
B
NN
WiFi antenna mount
outside of the housing
View after installation

10
Assembly - Attaching the Blades (continued)
Assembling the decorative frame
□Attach the decorative frame (G) to the blade assembly by
aligning the two posts of the decorative frame with the two
holes in the blade. Secure the decorative frame to the blade
using the decorative frame screws (DD). Insert the decorative
frame screws (DD) through the two holes in the blade arm (D)
and screw them into the posts of the decorative frame (G).
Align the hole in the tab at the end of the decorative frame (G)
with the frame brace on the side edge of the blade arm (D) and
secure using a frame brace screw (EE). Make sure all screws
are completely tightened.
□Repeat this process for the remaining decorative frame
pieces (G).
□Once all of the decorative frame pieces are installed,
completely tighten all of the blade arm screws (CC) to secure
the blade assemblies to the fan.
3
Assembly - Attaching the Light Kit
Installing the light kit pan
□Remove one screw (HH) from the black bracket below the fan
motor assembly (C), and loosen but do not remove the other
two screws.
□Push the light kit pan (H) up to the fan motor assembly (C) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (H) clockwise.
□Re-install the screw (HH) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
1
DD
DD
EE
D
G
HHH
C

11 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Installing the light shade
3
□Place the light shade (J) into the light kit pan (H), aligning the
three at areas on the top of the ange of the light shade (J)
with the three raised dimples in the light kit pan (H). Turn the
light shade (J) clockwise until it stops.
Assembly - Attaching the Light Kit (continued)
Attaching the light kit tter assembly
□Remove one screw (TT) from the light kit pan (H) and loosen,
but do not remove, the other two screws.
□Connect the wires from the light kit tter assembly (I) to the
wires from the fan motor assembly (C) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
□Push the light kit tter assembly (I) up to the light kit pan (H)
so that the two loosened screw heads t into the keyhole slots.
Turn the light kit tter assembly (I) clockwise to secure.
□Re-install the screw that was removed in the rst step.
□Make sure all the screws are rmly tightened.
2
WARNING: Do not overtighten when installing the light
shade into the light kit. Allow the light shade to cool
completely before removing.
H
I
TT
C
H
J

12
Preparing the remote control
NOTE: The remote control has already been paired to the ceiling
fan for your convenience. If you have two of the same model fans
in your home, please follow the steps below to control each fan
independently.
NOTE: The remote control battery will weaken with age and
should be replaced before leaking takes place, as this will damage
the remote control. Dispose of used battery properly and keep the
battery out of the reach of children.
Preparing the Remote Control
□Conrm that the power to the fan is off at either the wall switch or
breaker box.
□Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
□Install two 1.5V AAA batteries (M).
□Return power to the fan at the wall switch or breaker box.
□If the remote control doesn’t work as normal, press then release
the “Learn” button for 1-2 seconds (located in the remote’s battery
compartment) within 30 seconds of turning on the power.
□If pairing is successful, the fan’s light kit will ash and the blades
will begin to spin.
□Replace the battery cover on the remote control.
1 to 3 mode
□ To use more than one remote control for your fan, press the “Learn”
button for 10 seconds and release within 30 seconds of turning on the
power. Once pairing is successful, the fan’s light kit will ash and the
blades will begin to spin.
□ Repeat the above process for the remote controls you want to work
with this fan.
□ The fan can be only controlled by 3 remote controls maximum at the
same time after “Learning”. If you use a fourth remote control to handle
the fan, the rst remote control will be replaced.
1 to 1 mode
□ To use only one remote control for your fan, press and release the
“Learn” button for 1-2 seconds within 30 seconds of turning on the
power. The “1 to 3” mode will be cleared and returned back to “1 to
1” mode.
NOTE: The switch marked “D/O” controls the dimming function
of the lights. If you wish to use the dimming function or
Hubspace app, keep the switch in the “D” position. To disable the
dimming function, set the switch to the “O” position.
LEARN
K7
M

13 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Attaching the Accessories
Mounting the remote control holder
□Slide the screw cover plate up to remove it from the wall
cradle.
□Position the wall cradle in the desired position and attach it to
the wall using the included wall cradle screws.
□Slide the screw cover plate back onto the wall cradle to
conceal the screws.
Screw cover plate
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
Operating - Your Fan and Remote Control
□Remote Control - Your fan is equipped with a remote control to
operate the speed and lights of your new ceiling fan.
□Speed setting for warm or cool weather depends on factors such
as the room size, ceiling height, number of fans and so on.
□The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located on the fan motor
assembly (C)) to the opposite position, and turn the fan on again.
The fan blades will turn in the opposite direction and reverse
airow.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of
the ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
Warm weather
Cool weather
YY

14

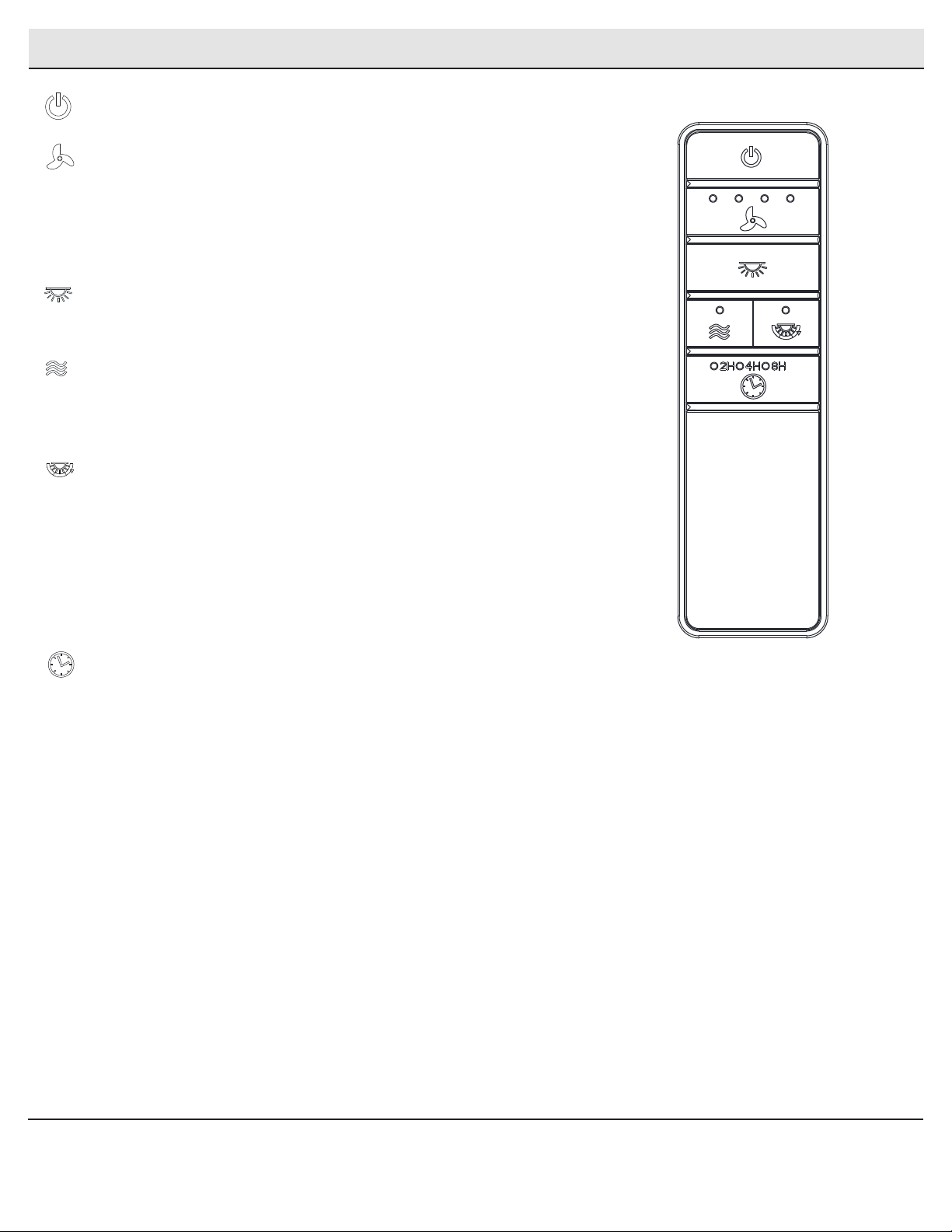

Power ON/OFF: Press and release the power button to turn the fan and light on or off.
Fan speed: LEDs on the fan speed button will illuminate to the corresponding speed.
Press and release 1 time: turns the fan speed to 4.
Press and release 2 times: turns the fan speed to 3.
Press and release 3 times: turns the fan speed to 2.
Press and release 4 times: turns the fan speed to 1.
Press and release 5 times: turns the fan off.
Light ON/OFF:
Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
Comfort Breeze:
Press the button to enable Comfort Breeze; this will change your fan randomly,
simulating a relaxing breeze.
To cancel this feature press fan speed button or power button.
Correlated Color Temperature (CCT) changing: Push and release the button to cycle
through the six color temperature options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000K (Bright White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Daylight Deluxe).
Timer:
While the fan is on, press 1 time: turns on a 2-hour run timer.
While the fan is on, press 2 times: turns on a 4-hour run timer.
While the fan is on, press 3 times: turns on a 8-hour run timer.
Operating - Your Fan and Remote Control (continued)

15 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Application Set-Up
NOTE: For more information on smart remote set up, please refer
to the quick start guide located in the remote pack.
NOTE: To use Alexa to change the color temperature of the light,
please make sure the light is turned on rst. Questions, problems missing parts?
Please call Hubspace Customer service
8 a.m. - 7 p.m. EST, Monday - Friday;
9 a.m. - 6 p.m., EST, Saturday
[phone]
□Download the Hubspace™ app from the App Store or the Google Play Store to your mobile device.
□Launch the app.
□To register, enter your email address and a password. Or, login if you already have an account.
□Bluetooth access is required for device setup.
Getting started
1
□Hubspace only shows WiFi networks that your device can use. Check your network only if an option does not appear during set up.
□This Hubspace device requires a 2.4GHz Wi-Fi channel.
□Most routers provide a 2.4 GHz WiFi channel.
□If you do not see your Wi-Fi network name when you attempt to connect your device, please check your router settings.
Verify your network
2
□In the Hubspace app, tap the plus sign in the upper right corner.
□Scan your product’s QR code. You can nd the QR code on the remote receiver, inside the battery
compartment cover of the remote, and on the Quick Start Guide paper included with the fan.
Add a device
3
If you are unable to access the QR code for your light, you can put it into discovery mode with the following sequence:
□Switch the device off and on 5 times. The light will pulse to show that it can now be discovered.
□In the Hubspace app, tap the plus sign in the upper right corner and follow the instructions to discover devices. More than one device can be
added at a time using this method.
Set up your voice assistant
4□In the Hubspace app, tap the Hubspace button.
□Select the Integrations tab, choose your voice assistant and follow the instructions.
For problems connecting to Hubspace device, see the Troubleshooting section on page 17.
Scan problem?
□If the QR code cannot be scanned for some reason, you can enter the code manually. Tap Enter Code and follow the instructions.
□Connect your device to power and follow the instructions on screen.
(For lighting and fan products only)
D O

16
Voice Commands
When you want to... Ask Alexa to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light power.
Turn off the light only. … turn off <device name> light power.
Change the brightness. ... Set <device name> brightness to 75%.
… Set <device name> light to 25%.
… Make <device name> dimmer.
… Make <device name> brighter.
… Dim <device name>.
… Brighten <device name>.
… Dim <group name>.
… Brighten <group name>.
Change the color temperature. … Change <device name> to Cool White.
… Change <device name> to Warm White.
… Change <device name> to Daylight White.
… Change <device name> to White.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>.
Alexa
When you want to... Ask Google to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light power.
Turn off the light only. … turn off <device name> light power.
Change the brightness. ... Set <device name> brightness to 75%.
… Set <device name> light to 25%.
… Brighten <device name>.
… Dim <device name>.
… Brighten <room name>.
… Dim <room name>.
Change the color temperature. … Change <device name> to Ivory.
… Change <device name> to Daylight.
… Change <device name> to Cool White.
… Change <device name> to Warm White.
... Change <device name> to Incandescent.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>.
Google
The Makenna 52 in. ceiling fan works with Alexa and Google Assistant.
This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/.

17 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check to make sure the wall switch is in the on position if applicable.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Ensure the dip switch settings are the same on the remote control and receiver.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip
of one of the blades. Measure from a point on the center of each blade to the point on the ceiling. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. Any measurement deviation should be within 1/8”. Run the fan for ten minutes. If
the fan continues to wobble please contact Customer Service and a balancing kit will be sent to you at no charge.
HubspaceTM Troubleshooting
My hubspace device is not
connecting to Wi-Fi.
□Make sure your device is connected to a power source.
□Your Internet connection or Wi-Fi network may be down.
My device cannot nd any Wi-Fi
networks.
□Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add.
My device is in a location that does
not have Wi-Fi. Can I still use it with
the Hubspace app?
Yes:
□Use the app on a phone with an Internet connection like LTE.
□The phone must be within Bluetooth range of your Hubspace device.
I cannot nd the QR code. □Look for it where other stickers are on the product. A copy of the QR code is also included in your device’s documentation.
The QR code has become damaged.
How do I add the device?
□Under the QR code are numbers. You can enter those in manually instead of scanning the code.
How do I reset the device? □Remove the device from your account, then add it back. Devices also reset when they transfer to a new account.
A device is on another account.
How do I transfer it?
□Scan the QR code and it will transfer to your account.
My device is ofine for long periods
of time.
□Make sure your Wi-Fi signal strength is sufcient. You may need to move your router, use mesh Wi-Fi, or Wi-Fi extenders.
The device is on and I scanned
the QR code, but the app cannot
connect to it.
□Turn off Bluetooth on your phone and turn it back on. Then, scan the QR code.
Can I scan the same QR code to add
multiple products?
□No. Each product has a unique QR code.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Hubspace Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Responsible Party - U.S. Contact Information: King of Fans, Inc 1951 NW 22nd Street, Fort Lauderdale, FL 33311, [phone]

GRACIAS
Apreciamos la plena conanza depositada en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos en crear
continuamente productos de calidad diseñados para mejoras del hogar. Visítanos por Internet para ver nuestra línea completa de productos
disponibles a n de satisfacer la necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo Núm. 1008 271 600
Modelo Núm. 56235
Modelo aprobado por
UL núm. 52-MAKN
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO MAKENNA, DE 1.32 M (52 PLG)
Para ver un video instructivo sobre cómo instalar este producto:
1.
Visita www.homedepot.com e ingresa en el campo de búsqueda el número del modelo o artículo,
que aparece en la esquina superior derecha de la portada de este manual de instrucciones.
2. Haz clic sobre tu producto en la lista de resultados de la búsqueda y sobre el enlace de video
en la sección “Product Overview” [Información general del producto].
¿Preguntas, problemas, piezas faltantes? Antes de regresar a la tienda,
llama al Servicio de Atención al Cliente de Hubspace de 8:00 a. m. a 7:00 p. m.,
Hora Estándar del Este, de lunes a viernes, de 9:00 a. m. a 6:00 p. m.
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE

2
Tabla de contenido.............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................13
Mantenimiento y limpieza.................................................17
Solución de problemas ..................................................... 17
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
interrumpir la electricidad en el cortacircuitos o en la caja de
fusibles antes de comenzar.
2. Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70 y con los códigos eléctricos locales. La
instalación eléctrica debe hacerse por un electricista calicado con
licencia.
3. La caja eléctrica y la estructura de soporte tienen que montarse de
forma segura para poder sostener con conanza y como mínimo 35
lb (15.9 kg). Usa solo cajas eléctricas aprobadas por UL y marcadas
como “Apropiada para sostener ventiladores de 35 lb (15.9 kg) o
menos”.
4. No coloques objetos en la trayectoria de las aspas.
5. Para evitar lesiones físicas o daños al ventilador y otros artículos,
ten cuidado al limpiarlo o al trabajar cerca de él.
6. Después de concluir las conexiones eléctricas, debes voltear los
conductores empalmados hacia arriba y meterlos con cuidado en
la caja eléctrica. Los cables deben estar separados con el cable
a tierra y el conductor a tierra del equipo a un lado de la caja
eléctrica.
7. Antes de la instalación, todos los tornillos de fijación tienen
que comprobarse y reajustarse donde sea necesario.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas
(también llamados “bridas”) durante o después de
la instalación. No colocar objetos en la trayectoria
de las aspas.
ADVERTENCIA: Los diagramas eléctricos son sólo
para referencia. Si usas un kit de luces, consulta
el manual de instrucciones del kit de luces para
hacer las conexiones eléctricas. El uso opcional de
cualquier kit de luces debe estar aprobado por UL y
estar marcado como adecuado para ser usado con
este ventilador.
ADVERTENCIA: Para evitar posible descarga eléctrica,
desconecta la electricidad en la caja principal de
fusibles antes de cablear. En caso de no tener
suciente conocimiento o experiencia sobre cableado
eléctrico, contactar a un electricista certicado.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones
personales hay que usar sólo los tornillos incluidos
con la caja eléctrica.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala
solo en una caja eléctrica clasicada como
“apropiada para sostener ventiladores de 35 lb (15.9
kg) o menos” y usa los tornillos que vienen con ella.
LEE Y GUARDA ESTAS INSTRUCCIONES.
ADVERTENCIA: Para reducir el riesgo de incendio o
descarga eléctrica este ventilador sólo debe usar
la pieza núm. MR225A de control de velocidad
fabricada por Chungear Industrial Co., Ltd.
PRECAUCIÓN: NO usar este ventilador con control
de pared ni con interruptor provisto de regulador de
intensidad luminosa. Usar un control de pared o un
interruptor con regulador de intensidad luminosa
dañará este ventilador.
PRECAUCIÓN: Los cambios o modicaciones sin
previa aprobación expresa de la parte responsable
de su cumplimiento podrían anular el derecho del
usuario a operar el equipo.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con
ningún dispositivo de control de velocidad de estado
sólido.
PRECAUCIÓN: El ventilador debe ir montado a un
mínimo de 7 pies (2.1 m) de separación entre el borde
trasero de las aspas y el piso.
