USE AND CARE GUIDE
CANTERIDGE ELECTRIC FIREPLACE MEDIA MANTEL
1004151439/308824347/23MM33685-TPB01
1004151326/308824427/23MM33685-TPG03
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2
MAXIMUM LOAD 45 lb. (20.4 kg)
MAXIMUM LOAD 20 lb. (9.1 kg)
MAXIMUM LOAD 45 lb. (20.4 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning ...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................19
FCC/IC Information......................................................... 21
Care & Cleaning.......................................................21
Troubleshooting.......................................................22
Replacement Parts.................................................. 24
Maximum Load Warning
Table of Contents

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or plug
in the power cord until the missing or damaged part is correctly
replaced.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information (continued)

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6
HARDWARE INCLUDED
II JJ KK LL MM OONN PP
Part Description Part Number Quantity
AA Wood Dowel PH-DWLNTL001 52
BB Cam Lock Screw PH-KDBZNC001 46
CC Cam Lock Connector PH-KDCZNC001 46
DD Shelf Pin PH-SPNPCSPLB2 8
EE Screw 3.5 x 15 mm PH-SCRNKL008 8
FF Euro Hinge PH-HNG2H35AR95 4
GG Screw 3 x 12 mm PH-SCRBLK007 36
HH Screw 4 x 50 mm PH-SCRBLK006 8
II Plastic Cover PH-KDPWHT001 / PH-KDPBLK001 18
JJ Door Bumper PH-BMPCLR001 4
KK Handle with Screw K576 2
LL Screw 4 x 15 mm PH-SCRBLK009 2
MM Metal Bracket PH-BKTBLK007 2
NN Tipping Restraint Hardware PH-BKTWHT003 1
OO Metal Plate (pre-attached) PH-PLTBLK001 2
PP Floor Glide (pre-attached) PH-GLDBRW001 4
Phillips Screwdriver
NOTE:
Hardware not shown to actual size.
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED
Pre-Assembly
DDCC EE FF GG HH
AA BB

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Bottom Shelf 1
B Left Partition 1
C Right Partition 1
D Left Surround Rail 1
E Right Surround Rail 1
F Top Surround Rail 1
G Top Panel 1
H Left Side Panel 1
I Right Side Panel 1
J Base Back Rail 1
K Base Left Side Rail 1
L Base Right Side Rail 1
M Base Front Rail 1
N Fixed Shelf 1
O Left Upper Side Panel 1
P Upper Partition 1
Q Upper Back Panel 1
R Back Panel 2
S Left Door 1
T Right Door 1
U Adjustable Shelf 2
V Left Upper Surround Rail 1
W Right upper Surround Rail 1
X Right Upper Side Panel 1
Y Fireplace Insert 1

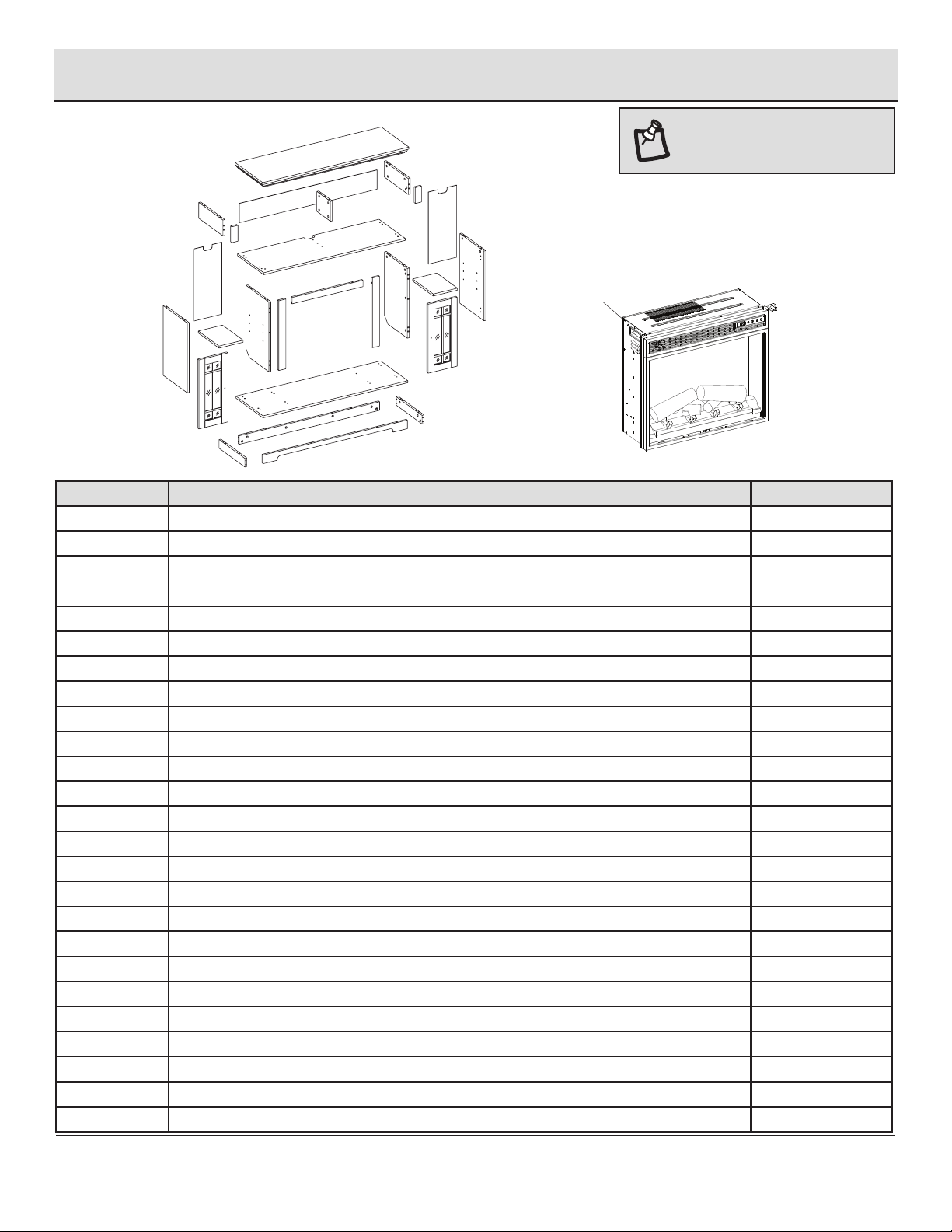

PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
Pre-Assembly (continued)
Y
B
C
A
K
J
M
L
D
F
HU
U
I
O
X
G
E
P
V
W
Q
R
R
S
T
N

8
3 4
Locate the Left Surround Rail (D) and Right Surround
Rail (E) from step 1.
Using the Left Surround Rail (D) and the Left
Partition (B), align the pre-installed dowels and cam
lock screws into the holes.
Secure by inserting Cam Lock Connectors (CC) into
the pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all the Cam Lock
Connectors (CC).
Repeat until all have been secured.

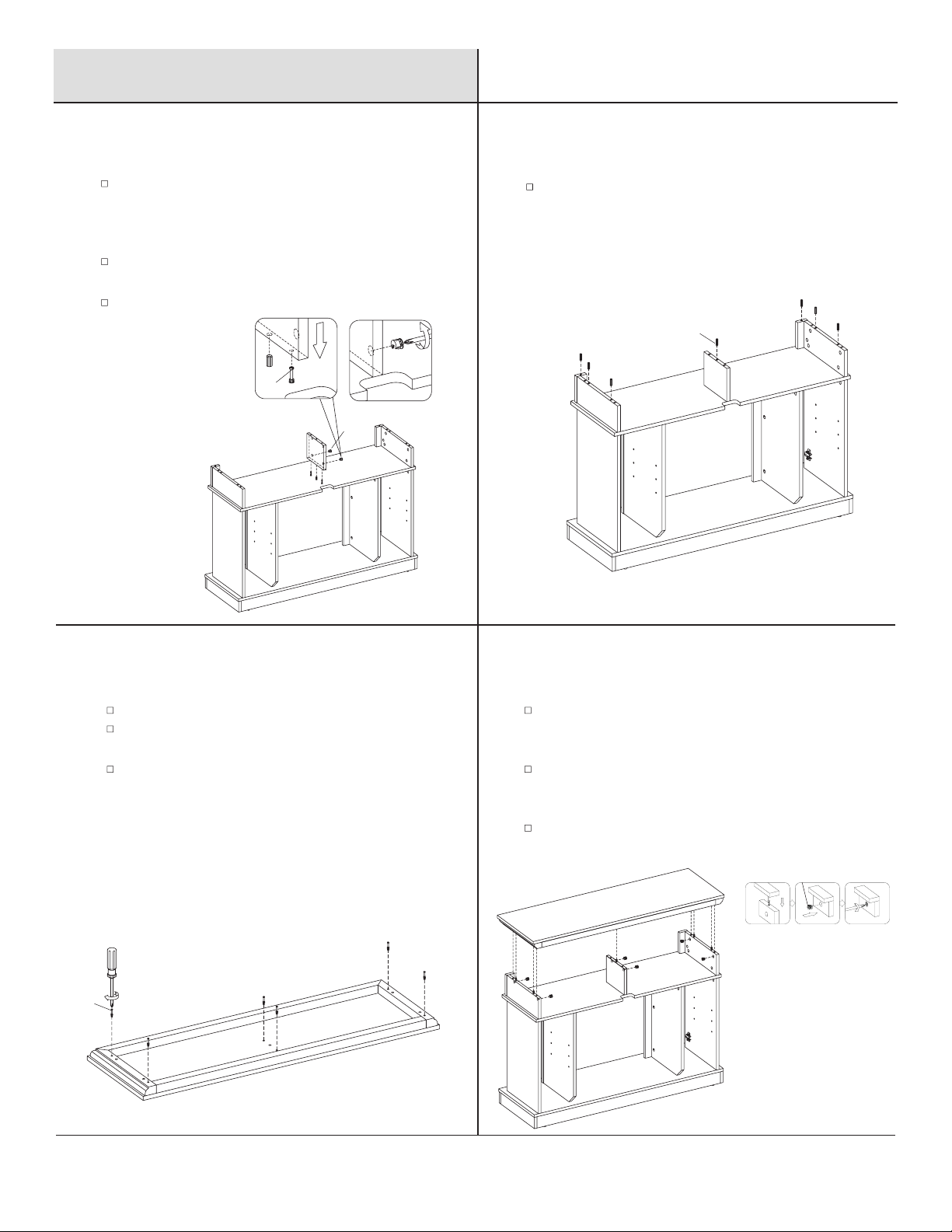

Attaching the decorative front panels
Insert Wood Dowels (AA) into the pre-drilled
holes in the Left Partition (B).
Repeat for the Right Partition (C).
Preparing the center panels
Place the Left Surround Rail (D) and
Right Surround Rail (E) on a at surface.
Insert Cam Lock Screws (BB) into the pre-drilled holes
in the Left Surround Rail (D).
Continue until all Cam Lock Screws (BB) are secured
on the Left Surround Rail (D) and Right Surround Rail
(E) as shown.
Place the Left Partition (B) and Right Partition (C) on a
at surface.
Insert Wood Dowels (AA) into the pre-drilled holes along
the edges as shown.
1Preparing the decorative
front panels 2Preparing the center panels
Assembly
DE
BB
AA
B
C
AA
B
C
C
CC
B
D
E

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
7 8
Locate the Top Surround Rail (F).
Insert Wood Dowels (AA) into each end of the Top
Surround Rail (F) as indicated.
Preparing the center assembly
Locate the Top Surround Rail (F).
Align the pre-installed dowels on the Top
Surround Rail (F) with the predrilled holes on
the Left Partition (B) and Right Partition (C) from
step 1.
Assembling the center panels
Place the Bottom Shelf (A) on a at surface.
Insert Cam Lock Screws (BB) into the pre-drilled holes
in the Bottom Shelf (A).
Align the Wood Dowels (AA) that were inserted into the
Left Partition (B) and Right Partition (C) with the
pre-drilled holes in the Bottom Shelf (A) as indicated.
5Preparing the base 6Attaching the base to center panels
Assembly (continued)
A
BB
B
A
AA
C
AA
F
F
C
B

10
11 12
Flip over the Right and Left Side Panel (H,I) assem-
blies from step 10.
Locate the Euro Hinge (FF) and secure it using the
pre-attached screws to the Left Side Panel (H) as
indicated. Repeat for both the upper and lower hinge.
Repeat step to attach the Euro Hinge (FF) to the Right
Side Panel (I).
Attaching the Euro Hinges
Locate the base/center assembly from step 9.
Align the Left Side Panel (H) to the base/center
assembly and secure together using Screws
(HH) and a Phillips screwdriver.
Repeat to attach the Right Side Panel (I).
Securing the side panels
Insert Screws (HH) through the Bottom Shelf (A) and
securely tighten using a Phillips screwdriver.
Insert Wood Dowels (AA) into the pre-drilled holes in the
Left Side Panel (H).
Repeat for the Right Side Panel (I).
9Securing the base panel 10 Preparing the side panels
Assembly (continued)
A
B
C
HH
AA
H
I
FF
H
I
A
H
HH
I

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
15 16

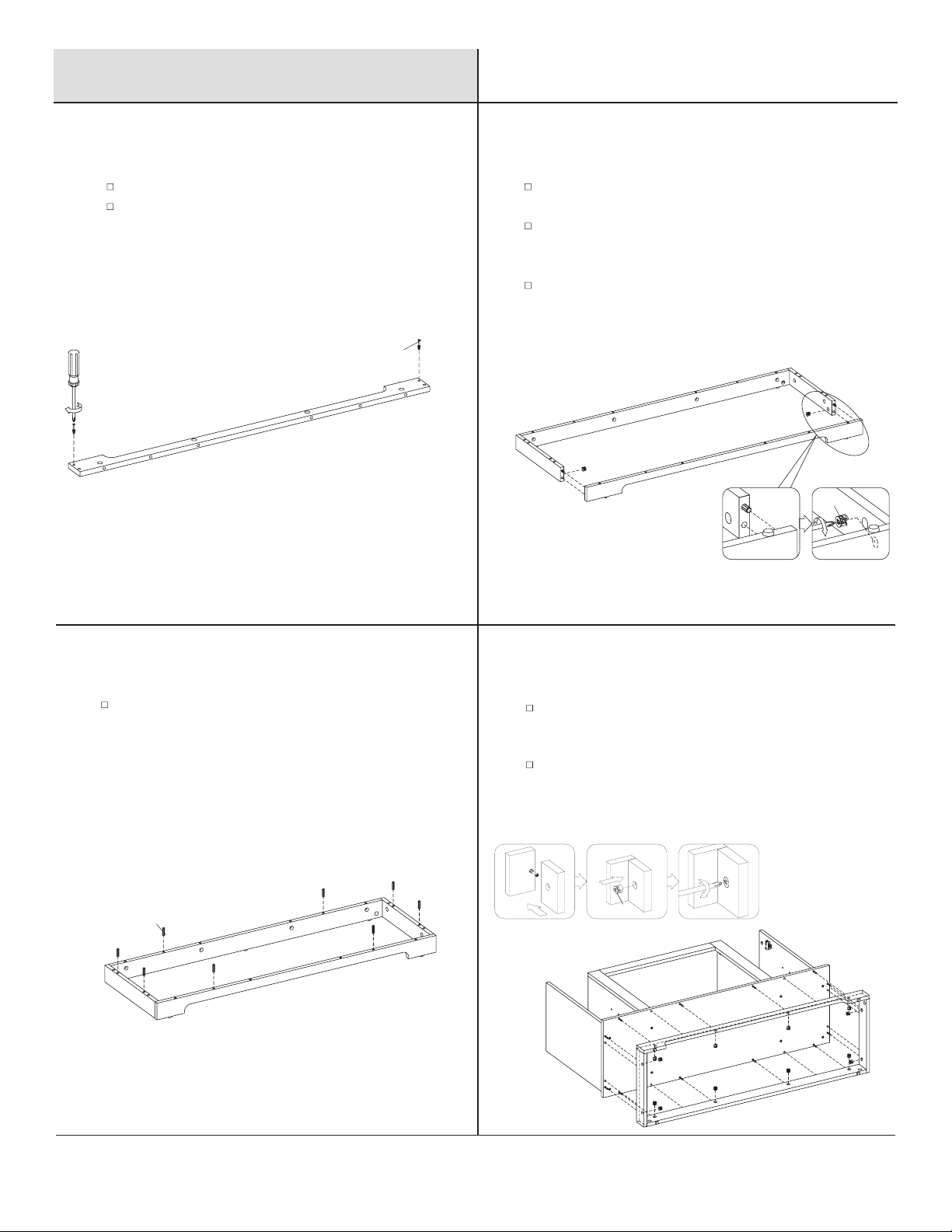

Align the Right Base Side Rail (L) with the Base Back
Rail (J). Push together, ensuring the cam lock screws
installed in the previous step are inserted into the
pre-drilled holes.
Secure the connection with the Cam Lock Connectors
(CC) where indicated using a Phillips screwdriver.
Repeat to attach the Base Left Side Rail (K).
Attaching the base side rails
Insert a Wood Dowel (AA) into the Base Left Side
Rail (K).
Repeat for the Base Right Side Rail (L).
Preparing the base side rails
Locate the Base Back Rail (J).
Insert Wood Dowels (AA) into the pre-drilled holes on
the edges of the Base Back Rail (J) as indicated.
Locate the Base Left Side Rail (K) and Base Right Side
Rail (L).
Insert Cam Lock Screws (BB) into the pre-drilled holes
of each Base Side Rail as indicated.
13 Preparing the base back rail 14Preparing the base side rails
Assembly (continued)
J
AA BB
KL
CC
J
K
L
L
K
AA

12
19 20
Insert Wood Dowels (AA) into the pre-drilled holes
along the edges of the previously assembled Rails
(J,K,L,M).
Preparing the base for assembly
Align the assembled Rails (J,K,L,M) with the
pre-drilled holes on the bottom of the Bottom
Shelf (A).
Secure the Rails onto the previously installed
cam lock screws from step 5 using the Cam
Lock Connectors (CC). Tighten with a Phillips
screwdriver.
Assembling the base
Locate the Base Front Rail (M).
Insert Cam Lock Screws (BB) into the pre-drilled holes
of the Base Front Rail (M) where indicated.
Align the Base Front Rail (M) with the previously
assembled base rails (J,K,L).
Insert the previously installed Cam Lock Screws (BB) on
the Base Front Rail (M) into the pre-drilled holes of each
side rail (K,L).
Secure the screws with Cam Lock Connectors (CC) us-
ing a Phillips screwdriver.
17 Preparing the base front rail 18Attaching the base front rail
Assembly (continued)
BB
M
L
L
J
J
K
K
AA
M
M
A
CC
CC

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
23 24
Locate the xed Shelf (N) and place it on a at
surface.
Insert Cam Lock Screws (BB) into the pre-drilled holes
on the Fixed Shelf (N) as shown.
Tighten using a Phillips Screwdriver.
Preparing the xed shelf
Flip the Fixed Shelf (N) over and align the cam
lock screws with the pre-drilled holes on the
Base/Center assembly.
From underneath, insert Cam Lock Connectors
(CC) into the pre-drilled holes.
Tighten using a Phillips Screwdriver.
Attaching the xed shelf
Find the Metal Plate (OO) on the back of the Top
Surround Rail (F).
Rotate the Metal Plate (OO) to span the joint and secure
with a Screw (GG) on the Left Surround Rail (D).
Repeat for the Right Surround Rail (E) to secure on the
other side.
Insert Wood Dowels (AA) into the pre-drilled holes in the
top edge of the Base/Center assembly as shown.
21 Attaching the surround bracket 22Preparing the top assembly
Assembly (continued)
F
D
E
OO
AA
GG
N
N
CC
BB

14
27
Align the cam lock screws previously installed on the
Upper Surround Rail (V, W) in step 26 with the pre-drilled
holes of the Upper Side Panels (O, X).
Secure by inserting Cam Lock Connectors (CC) into the
pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all the Cam Lock
Connectors (CC).
Attaching the Upper Surround Rail
Insert Cam Lock Screws (BB) into the Fixed Shelf (N)
as indicated in the diagram. Tighten using a Phillips
Screwdriver.
Next, insert Wood Dowels (AA) into the pre-drilled holes
of the Fixed Shelf (N) as shown.
Insert Cam Lock Screws (BB) into the Upper Surround
Rail (V, W) as indicated in the diagram. Tighten using a
Phillips Screwdriver.
Next, insert Wood Dowels (AA) into the pre-drilled holes
of the Upper Surround Rail (V, W) as shown.
25 Preparing the top panel 26Preparing the Upper Surround Rail
Assembly (continued)
N
W
OX
CC
VW
BB
AA
V
BB
AA
Align the cam lock screws previously installed on the
Fixed Shelf (N) in step 25 with the pre-drilled holes of
the Upper Side Panels (O, X).
Secure by inserting Cam Lock Connectors (CC) into the
pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all the Cam Lock
Connectors (CC).
28Assembling xed shelf
N
O
X
CC

15
29 30
Align the Upper Partition (P) with the previously
installed wooden dowel and cam lock screws on the
Center Shelf (N). Using the Cam Lock Connectors (CC).
Tighten with a Phillips screwdriver.
From underneath, insert the Screws (HH) through the
Fixed Shelf (N) and into the Upper Partition (P).
Use a Phillips screwdriver to tighten until
screws are secure.
Attaching the upper partition
Insert Wood Dowels (AA) into the pre-drilled
holes in the top edges of the main assembly
(O, X, P).
Preparing the top of the assembly
Assembly (continued)
N
AA
CC
AA
P
P
O
X
Place the Top Panel (G) onto a at surface.
Insert the Cam Lock Screws (BB) into the pre-drilled
holes in the bottom of the Top Panel (G).
Tighten the Cam Lock Screws (BB) using a Phillips
Screwdriver.
Place the Top Panel (G) onto the main assembly by
aligning the previously installed cam lock screws and
wood dowels with the pre-drilled holes.
From underneath, secure the cam lock screws by
inserting Cam Lock Connectors (CC) into the pre-drilled
holes.
Tighten using a Phillips Screwdriver.
31 Preparing the top panel 32Attaching the top panel
G
G
CC
BB

16
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
33 34
Push Plastic Covers (II) into the screw hole openings
of areas that have already been assembled.
Cover screws
Attach the Upper Back Panel (Q) and Back Pan-
els (R) to the assembly by inserting the Screws
(GG) through the pre-drilled holes in the Upper
Back Panel (Q) and the Back Panels (R) and into
the assembly.
Tighten using a Phillips Screwdriver.
Installing the back panels
Assembly (continued)
II
Q
GG
R
R
Locate the Euro Hinge (FF) and secure it using the
Screws (EE) to the Left Door (S) as indicated. Repeat for
both the upper and lower hinge.
Repeat above for the Right Door (T).
Place a Door Bumper (JJ) on the upper and lower corner
of each door, opposite from the Euro Hinge as shown.
35 Preparing the doors
Locate the Door Handle (KK) and use the pre-attached
screw to secure on the Left Door (S) as shown.
Repeat for the Right Door (T).
36Attaching the handles
S
T
EE
JJ
KK
ST
FF

17
37
Assembly (continued)
Slide the installed Euro Hinge on the Left Door (S)
into the left side of the main assembly on the Left
Side Panel as shown. Secure the hinge with the pre-
attached screw.
Repeat for the Right Door (T) on the right side of the
main assembly on the Right Side Panel.
Attaching the doors
S
T
Insert the Shelf Pins (DD) into the pre-drilled holes
on the inside of the Left Side Panel (H) and the Left
Partition (B).
Rest the Adjustable Shelf (U) on top of the Shelf Pins
(DD).
Repeat for the right side.
38 Attaching the adjustable shelves
U
B
H
DD
U

18
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
40
Assembly (continued)

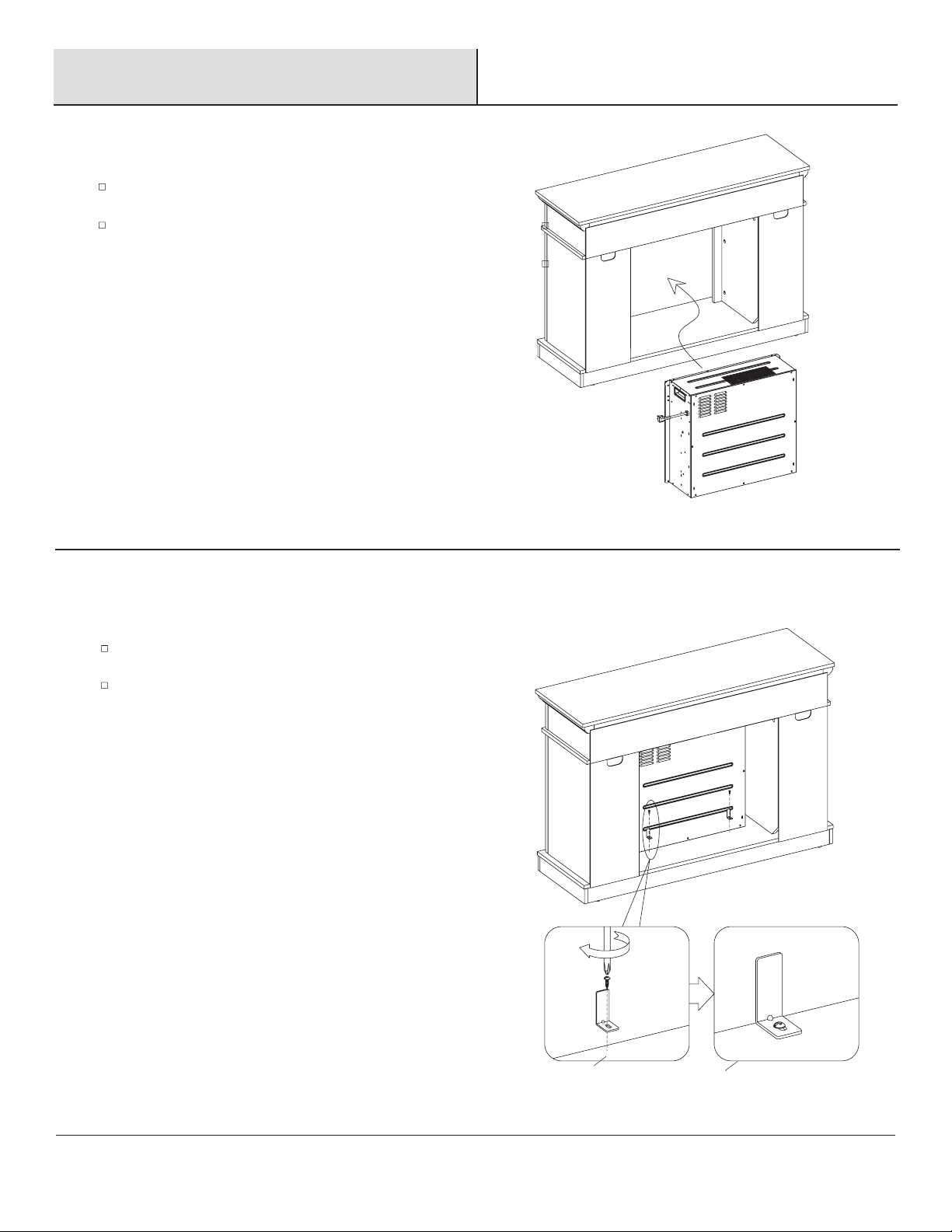

Align the Metal Brackets (MM) behind the Fireplace
Insert (V) and above the pre-drilled holes.
Secure with the Mounting Screws (LL) on both sides.
Securing the replace insert
Lift the Fireplace Insert (V) carefully into the back of the
unit and center in the replace insert opening.
Do not drag the replace insert across the Bottom Shelf
(A), as it may scratch your unit.
39Installing the replace insert
V
A
V
MM
LL

19
41
NN
G
When the Tipping Restraint Hardware (NN) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps
or climbing.
Your Unit comes with two Tipping Restraint Hardware
(NN). Each Tipping Restraint Hardware (NN) includes
one Unit Anchor, one Wall Anchor, one Anchor Tether,
and four Anchor Screws. Use these to complete the
following steps for a proper installation.
Locate a secure wall stud behind the unit closest to the
left side.
Align the Unit Anchor with a wall stud and attach with
two Anchor Screws using a Philips Screwdriver. The
Anchor Screws must pass through the Top Panel (G) for
proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips Screwdriver.
On the Anchor Tether, detach the cable from the
connector and loop the loose cable through the eyelets
on the Wall Anchor and Unit Anchor. Reattach the loose
cable to the connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side, and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable
the through connector.
Wall
Installing the tipping restraint hardware
WARNING:
Installing the Tipping Restraint
Hardware will help prevent accidents or damage to the
unit.
NOTE:
Installation of the Tipping Restraint Hardware
(NN) will provide a small space between the wall and the
unit. This will allow you to run power cords and connector
cables to your television or other devices placed on top of
the Unit.
Assembly (continued)

20
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation
Operation
3 4
Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains three infrared quartz heating elements.
The thermostat setting range is 62°F - 82°F or 17°C - 27°C
or always ON.
The thermostat is adjustable by 2°F or 1°C increments.
The up and down buttons“ ”on the remote will
increase / decrease temperature setting.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 6 brightness levels that can be selected:
Settings F6 - F4 decrease in Amber brightness.
Settings F3 - F1 decrease in Spectrare brightness.
Pressing the Timer button will cycle through the timer
settings; 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
/
