USE AND CARE GUIDE
RYDEN ELECTRIC FIREPLACE MEDIA MANTEL
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
MONDAY - FRIDAY 8 A.M. - 7 P.M. EST, AND SATURDAY 9 A.M. - 6 P.M. EST.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
1006152672/316091923/23MMP549-PP05
1006152676/316091920/23MMP549-PT01

2

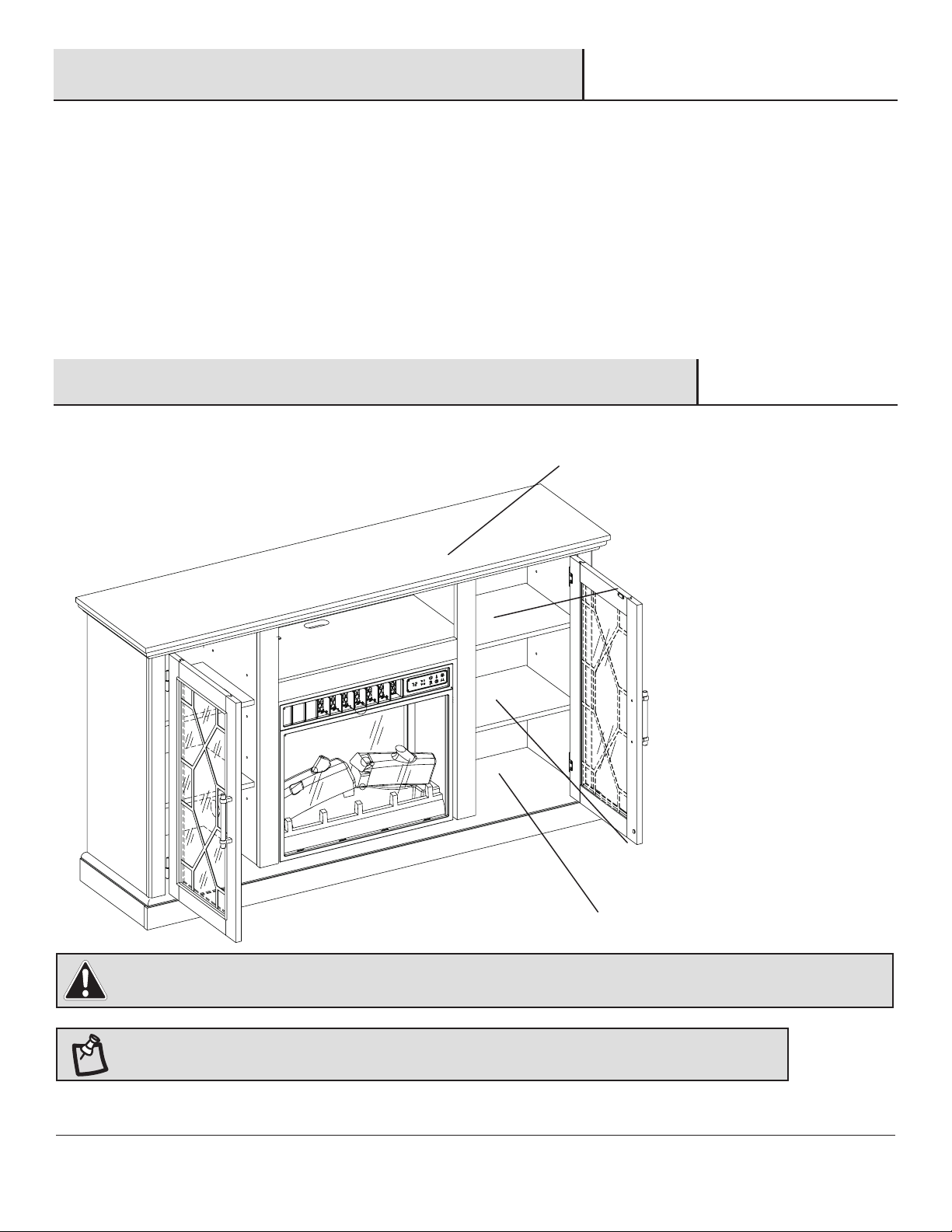

MAXIMUM LOAD 60 lb. (27.2 kg)
MAXIMUM LOAD 20 lb. (9.1 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents................................................................... 7
Assembly....................................................................8
Operation .................................................................17
FCC/IC Information......................................................... 20
Care & Cleaning....................................................... 20
Troubleshooting.......................................................21
Replacement Parts.................................................. 23
Maximum Load Warning
Table of Contents

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at
1-800-986-3460, Monday-Friday 8 A.M. - 7 P.M. EST,
and Saturday 9 A.M. - 6 P.M. EST.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
WARNING: Under no circumstances should this replace be
modied. Parts that must be removed for servicing must be
replaced prior to operating this replace again.
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or plug
in the power cord until the missing or damaged part is correctly
replaced.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information (continued)

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6
HARDWARE INCLUDED
GG
CC DD
Part Description Part Number Quantity
AA Screw 4 x 50 mm PH-SCRBLK006 8
BB Screw 3 x 12 mm PH-SCRBLK004 2
CC USB output P23MMP549-CC 1
DD Screw 3 x 15 mm PH-SCRBLK010 4
EE Magnetic Catch PH-MCHBRW001 2
FF Back Panel Bracket PH-BKTBLK017 16
GG Screw 3 x 15 mm P23MMP549-GG 16
HH Screw 3 x 12 mm PH-SCRBLK007 2
II Handle with Screw VAN10419L 2
JJ Door Bumper PH-BMPCLR001 2
KK Shelf Pin PH-SPNPCSPLB2 16
LL Screw 4 x 15 mm PH-BKTBLK009 2
MM Metal Bracket PH-BKTBLK007 2
NN Tipping Restraint Hardware PH-BKTWHT003 2
OO Threaded Insert (pre-installed) PH-THRZNC001 4
PP Leveler (pre-installed) PH-LVRBLK001 4
QQ Metal Plate (pre-installed) PH-PLTBRZ001 4
RR Hinge (pre-installed) PH-HNGBRZ019 4
Phillips Screwdriver
NOTE:
Hardware not shown to actual size.
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
FAN 30 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 40 Minutes
TOOLS REQUIRED
Pre-Assembly
EE FF HH JJ
II
KK LL MM NN OO PP QQ RR
AA BB

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

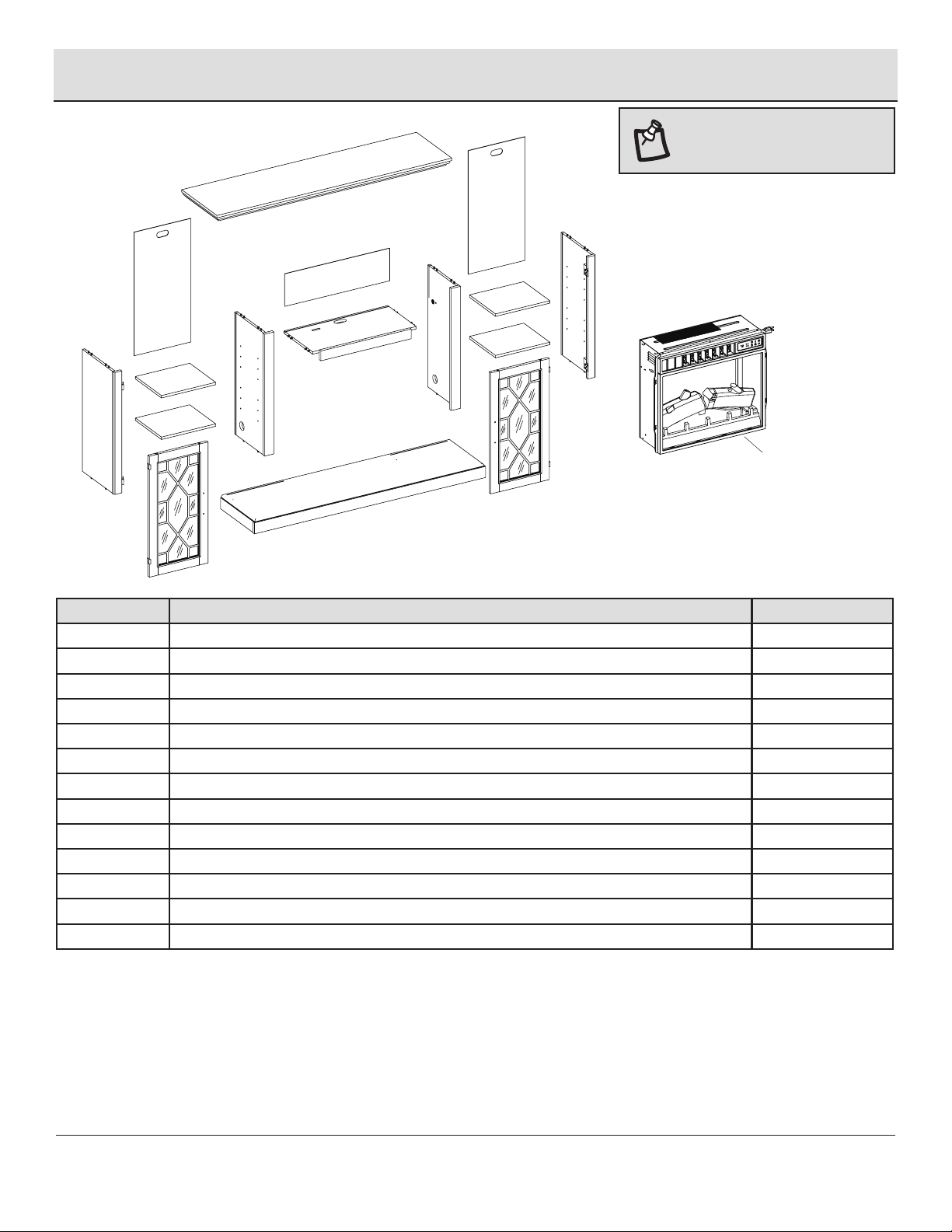

Part Description Quantity
A Bottom Shelf 1
B Left Partition 1
C Right Partition 1
D Center Shelf 1
E Left Side Panel 1
F Right Side Panel 1
G Top Panel 1
H Back Panels 2
I Upper Back Panel 1
J Cabinet Door 1
K Cabinet Door 1
L Adjustable Shelf 4
M Electric Fireplace Insert 1
PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
Pre-Assembly (continued)
M
B
C
A
K
J
L
L
L
L
D
F
H
HI
G
E

8
1Attaching the center assembly
2Attaching the base
FRONT
Assembly
Locate the Center Shelf (D) and the Left and Right Partitions (B and C).
Align the Center Shelf (D) between the Left and Right Partitions (B and C). Push together, inserting the pre-installed screws
on the Center Shelf (D) into the holes on the Left and Right Partitions (B and D) as shown.
Tighten the fasteners on the Left and Right Partitions (B and C) using a Phillips Screwdriver.
Locate the Bottom Shelf (A).
Align the Bottom Shelf (A) with of the
center assembly from step 1.
Insert Screws (AA) through the Bottom
Shelf (A) and into the pre-drilled holes
on the edges of the center assembly as
shown.
Securely tighten all screws using a
Phillips screwdriver.
C
D
A
AA
B

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
3
4
Attaching the side panels
Installing the USB port
Locate the Left and Right Side Panels (E and F).
Align the Left and Right Side Panels (E and F) with the Bottom Shelf (A).
Insert Screws (AA) through the Bottom Shelf (A) and into the pre-drilled
holes on the edges of the Left and Right Side Panels (E and F) as shown.
Slide the USB output (CC) through the opening in the
center shelf.
Carefully secure the USB output (CC) in place using
Screws (BB) and a Phillips screwdriver.
F
E
A
AA
CC
BB

10
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
5Attaching the back panels
Assembly (continued)
H
H
I
Locate the Back Panels (H) and the Upper
Back Panel (I).
Slide the Back Panels (H) into the grooves
between the center partitions and the outer
side panels as shown. Slide all the way
down until the Back Panels (H) meet the
bottom shelf.
Slide the Upper Back Panel (I) into the
grooves between the center partitions. Slide
all the way down until the Upper Back Panel
(I) meets the bottom of the center shelf.
Locate the Cabinet Doors (J and K).
Each Door Handle (II) has pre-attached screws. Remove
these screws and place handles over the pre-drilled holes
in each Cabinet Door (J and K).
Place the pre-attached screws on the other side of
the Cabinet Doors (J and K) and tighten with a Phillips
screwdriver through the door and into the Handle (II) .
6Attaching the door handles
JK
II
II

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
8Attaching the door catch
G
Locate the Top Panel (G) and place on a at surface.
Attach the Magnetic Door Catches (EE) on each side of the Top
Panel (G) using Screws (DD) as indicated by the diagram.
DD
EE
7Attaching the cabinet doors
Assembly (continued)
K
J

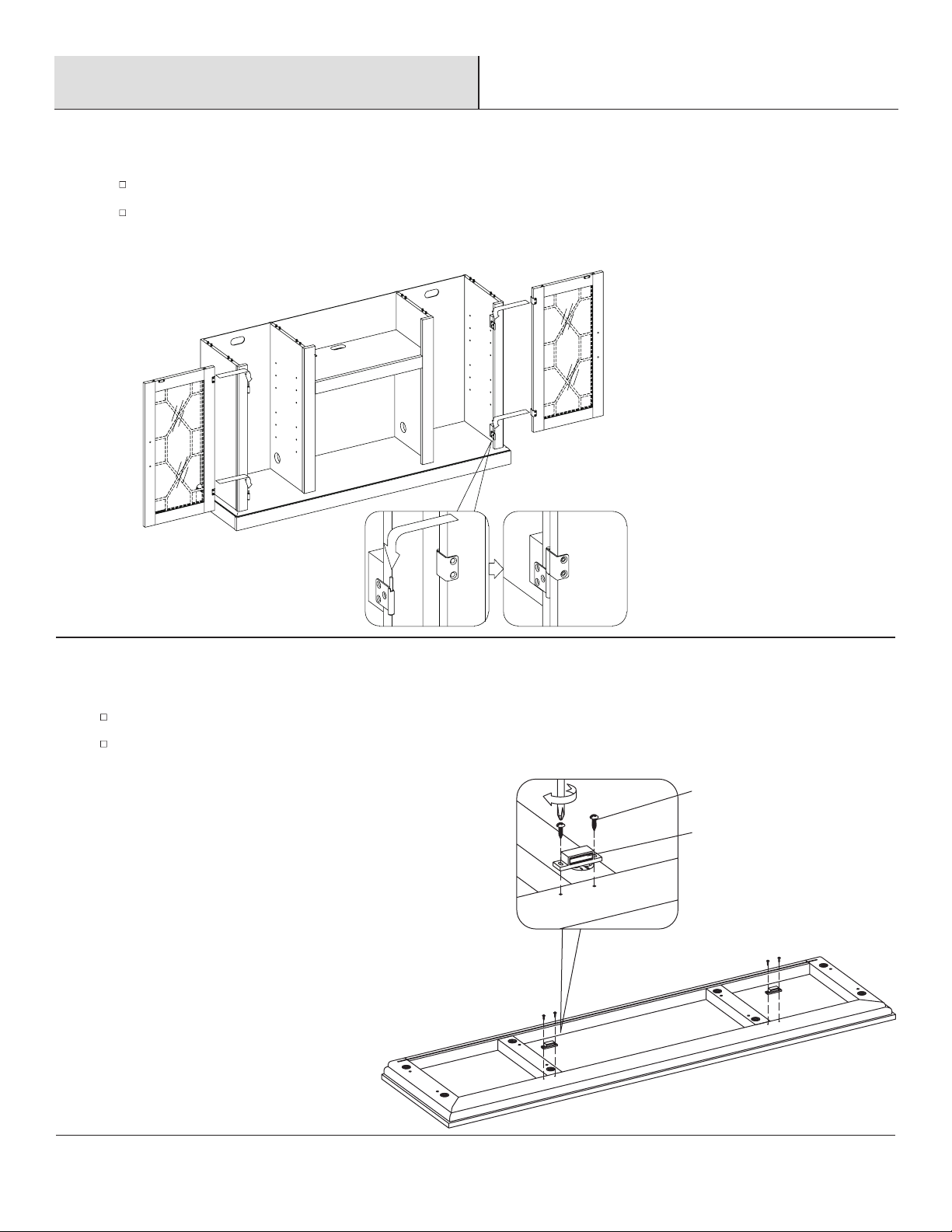

Lift the Cabinet Door (J) and align the hinges with the pre-attached hardware on the main assembly as shown.
Slide the barrel of the hinge on the door downward onto the pin of the hardware on the main assembly. Repeat steps with
Cabinet Door (K).

12
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)

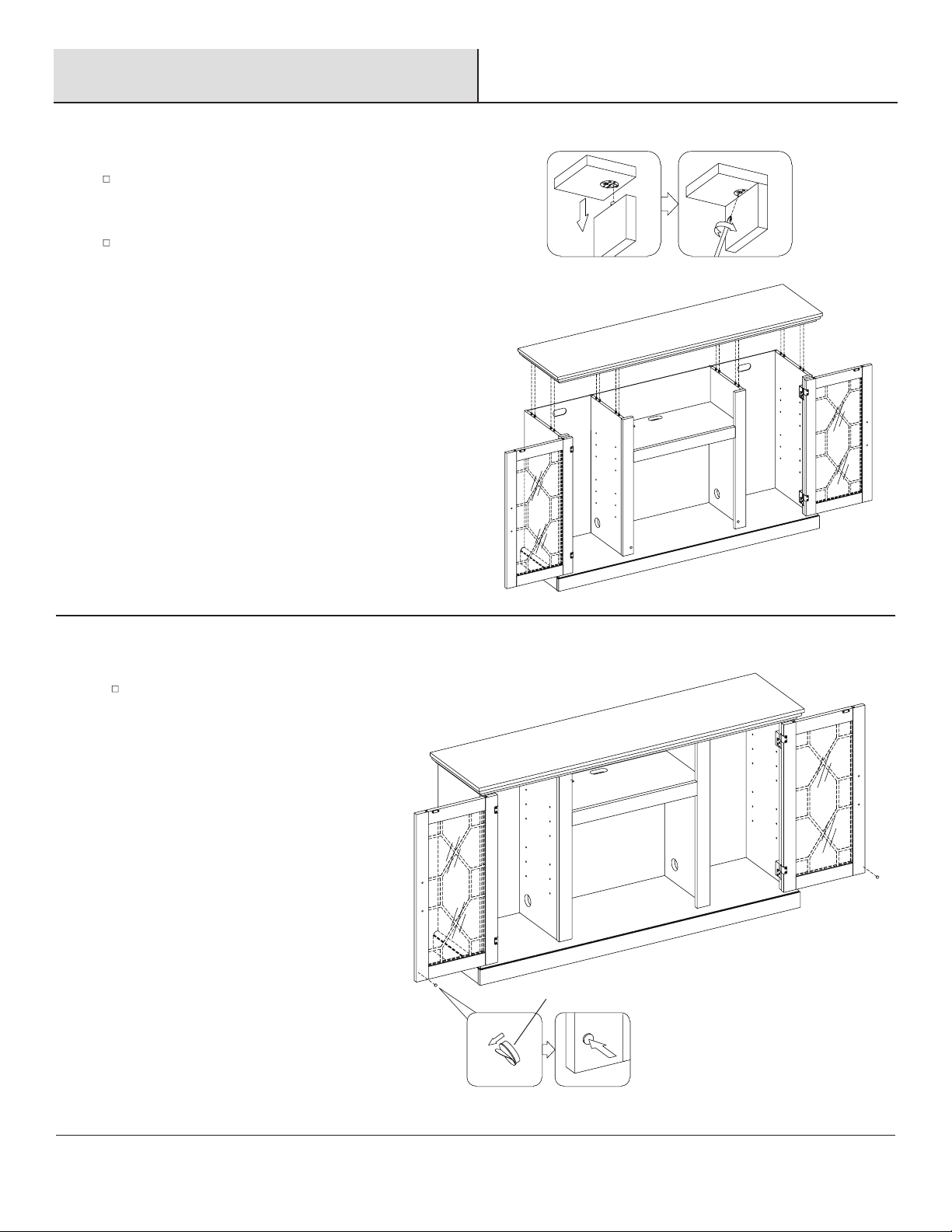

Place the Top Panel (G) on top of the main assembly
while aligning the pre-installed screws with the screw
holes on the edges of the main assembly.
After inserting the screws into the holes, tighten the
fasteners from underneath the Top Panel (G) using a
Phillips Screwdriver as shown.
9Attaching the top panel
G
JJ
Place a Door Bumper (JJ) on the lower corner
of each door, opposite from the hinges as
shown. Simply peel off the adhesive and press
the Door Bumper (JJ) rmly against the door.
10 Attach door bumpers

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
Find the pre-attached metal plate bracket behind the top
surround rail. Rotate the bracket to span the joint of the
top surround rail and side surround rail.
Secure the surround bracket with a Screw (HH).
Repeat to secure both sides.
11Securing the surround brackets
HH
Place the Back Panel Brackets (FF) between the back
panels and the grooves of the assembly as shown.
Fasten each Back Panel Bracket (FF) using Screws
(GG). Repeat until all brackets are in place as
indicated by the diagram.
12Securing the back panels
GG
FF

14
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
13 Inserting the adjustable shelves
Assembly (continued)
Locate the four Adjustable Shelves (L).
Insert the Shelf Pins (KK) into the pre-drilled holes
on the inside of each cabinet side panel at your
desired height. Align all Shelf Pins (KK) to the same
height to ensure your shelf is level.
Rest the Adjustable Shelves (L) on the Shelf Pins
(KK) as shown.
Lift the Fireplace Insert (M) carefully into the back of
the unit and center in the replace insert opening.
Do not drag the Fireplace Insert (M) across the base as
it may scratch your unit.
14 Installing the replace insert
L
L
L
L
L
KK
M

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
15
16
Securing the replace insert
Adjusting the levelers
Assembly (continued)

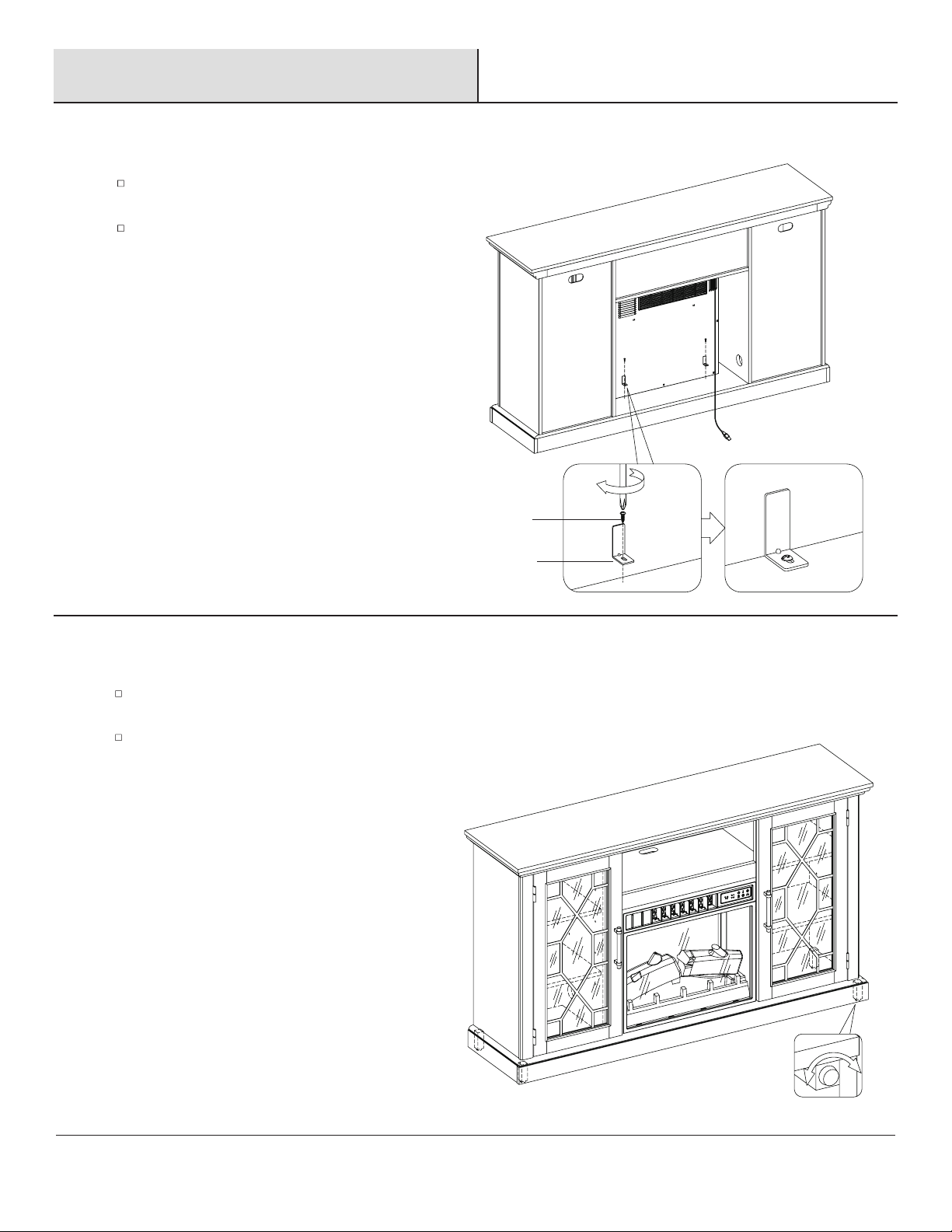

Align the Metal Brackets (MM) behind the Fireplace
Insert (M) and above the pre-drilled holes.
Secure with the Mounting Screws (LL) on both sides.
In order for the doors on your unit to work properly, your unit must be level.
Pre-attached levelers are located under the bottom panel of the unit.
To level your assembled unit, turn the levelers as needed.
LL
MM

16
17 Installing the tip restraint hardware
WARNING:
Installing the Tipping Restraint Hardware will
help prevent accidents or damage to the unit.
NOTE:
Installation of the Tipping Restraint Hardware (NN)
will provide a small space between the wall and the unit. This
will allow you to run power cords and connector cables to your
television or other devices placed on top of the Unit.
Assembly (continued)
When the Tipping Restraint Hardware (NN) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps or
climbing.
Each Tipping Restraint Hardware (NN) includes one Unit
Anchor, one Wall Anchor, one Anchor Tether, and four
Anchor Screws. Use these to complete the following steps
for a proper installation.
Locate a secure wall stud behind the unit closest to the
left side.
Align the Unit Anchor with a wall stud and attach to the
Unit with two Anchor Screws using a Philips Screwdriver.
The Anchor Screws must pass through the Top Assembly
for proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips Screwdriver.
On the Anchor Tether, detach the cable from the connector
and loop the loose cable through the eyelets on the Wall
Anchor and Unit Anchor. Reattach the loose cable to the
connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable through
the connector.
Wall
NN

17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation
Operation
3 4
Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains two infrared quartz heating elements.
The thermostat setting range is 82°F - 62°F or 27°C - 17°C
or always ON.
The thermostat is adjustable by 2°F or 1°C increments.
NOTE: To change between °F and °C press and hold the
Heater button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
Pressing the Timer button will cycle through the timer
settings; 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
There are 5 unique 3D ame colors that can be selected.
1: Spectrare®
2: Sapphire
3: Amethyst
4: Campre
5: Midnight Fire
AU: Auto Cycle will seamlessly cycle through the above
ame colors.
00: Off

18
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation (continued)

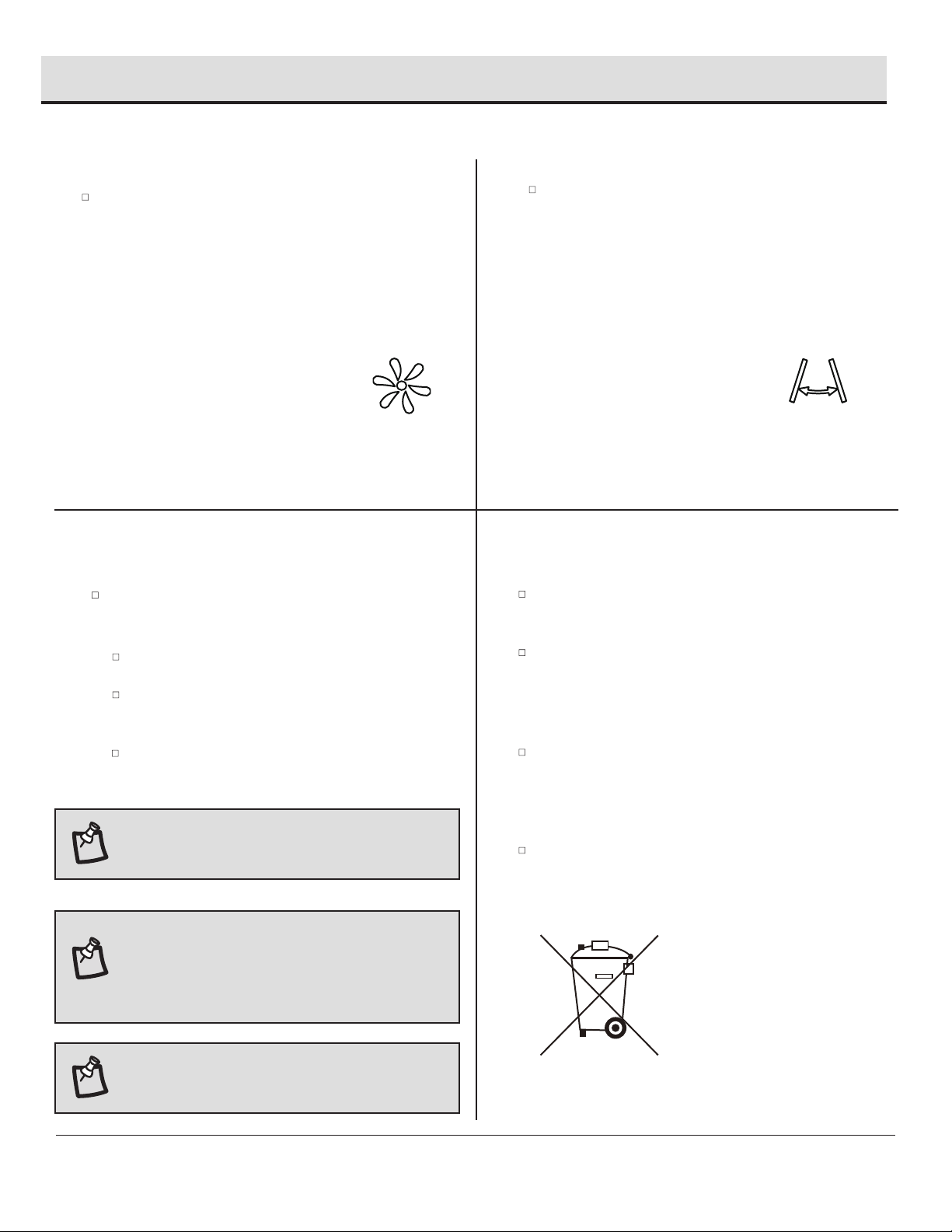

Press the Fan button in succession to cycle through
the speed settings; 1 (lowest speed) 2 (middle speed)
3 (highest speed.) and 0 (OFF).
Pressing this button will turn on or off the oscillation
feature. When on, the louvers will oscillate back and
forth to distribute the air ow to a wider area.
5 6
Adjust the fan speed Fan oscillation
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries. Do not ingest batteries.
When the remote control stops operating or its range
seems reduced, it is time to replace the battery with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert two AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
7Replacing the remote control battery
NOTE: Batteries should be removed if the product is
to be left unused for a long time.
The battery may contain hazardous substances that
could endanger the environment and human health.
This symbol marked on the battery and/or packaging
indicates that used batteries shall not be treated as
municipal waste. Instead, they should be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
8Disposing of used batteries

19
Operation (continued)

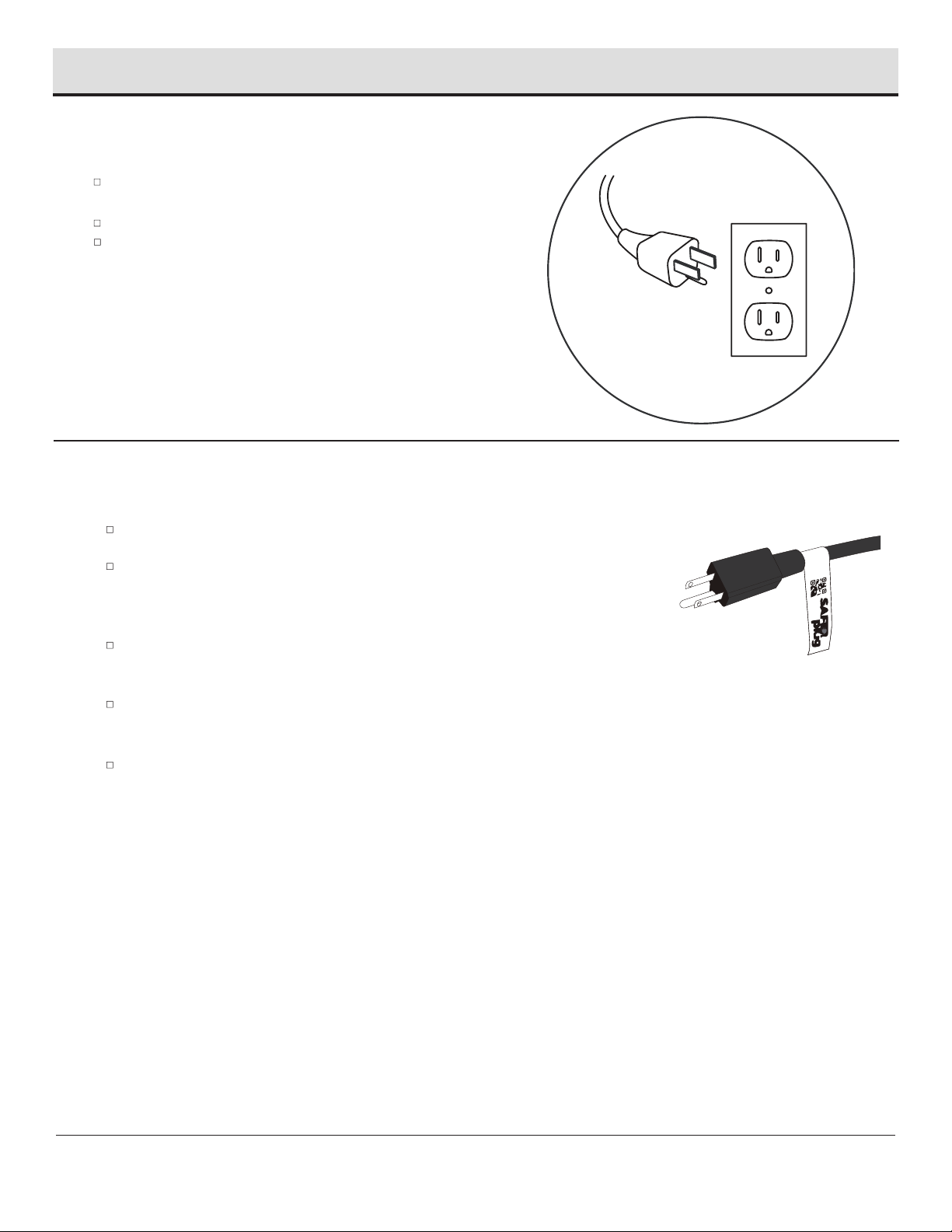

9Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a two-prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
10 Patented Safer Plug®information
This product is equipped with a Safer Plug®, which is an advanced safety
device that helps detect electrical res caused from faulty outlets.
Overloading of outlets, adapters and surge protectors may cause
overheating, damage, and increased risk of res. The Safer Plug
continuously monitors the temperature in the plug and outlet and will turn
off the heater to prevent unsafe outlet overheating.
If the Safer Plug cuts the power due to unsafe conditions it will show an
“ Er ” message on the screen. If this occurs the Safer Plug has prevented
a potentially unsafe condition.
To reset the device if this occurs, rst allow the plug to cool down. Once
the plug has cooled down, unplug the device and wait 5 seconds, then
plug back in and continue to use normally.
If the Safer Plug continues to activate, your outlet may be faulty. Check
your heater cord and plug connections. Faulty wall outlet connections or
loose plugs can cause the outlet or plug to overheat. Be sure the plug ts
tight in the outlet. Heaters draw more current than small appliances.
Overheating of the outlet may occur even if it has not occurred with the
use of other appliances. During use check frequently to determine if your
plug outlet or faceplate is HOT! If so, discontinue use of the heater and
have a qualied electrician check and/or replace the faulty outlet(s).
SAFER PLUG

20
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Care and Cleaning
Dust your replace regularly with a soft non-lint-producing cloth or household dusting product.
Clean your replace with a gentle non-abrasive household cleaner. Dry your replace immediately with a soft cloth or towel.
The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and require no further
lubrication. However, we recommend periodic cleaning/vacuuming of the fan/heater.
Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or replace.
FCC/IC Information
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
Disconnect power before attempting any maintenance or cleaning to reduce the risk of re, electrical shock or personal injury.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the
replace and replace any part of the electrical system.
WARNING:
Changes or modications to this unit not expressly approved by the party responsible for compliance could
void user’s authority to operate the equipment.
