USE AND CARE GUIDE
WILDERCLIFF ELECTRIC FIREPLACE WALL MANTEL
1004151452/308824337/23WM33749-PD34
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2
MAXIMUM LOAD 45 lb. (20.4 kg)
Maximum Load Warning...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................16
FCC/IC Information......................................................... 18
Care & Cleaning.......................................................18
Troubleshooting....................................................... 19
Replacement Parts.................................................. 21
Maximum Load Warning
Table of Contents
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Safety Information
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
WARNING: Under no circumstances should this replace be
modied. Parts that must be removed for servicing must be
replaced prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
Safety Information (continued)
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
• It is recommended to work on a soft surface like a rug or to
lay out a blanket to protect the furniture from getting scratched
during the assembly process
NOTE:
SAVE THESE
INSTRUCTIONS

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. There is any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6
HARDWARE INCLUDED
FF GG HH II JJ
CC
Part Description Part Number Quantity
AA Cam Lock Screw PH-KDBZNC001 33
BB Cam Lock Connector PH-KDCZNC001 33
CC Metal Plate (pre-attached) CAM LOCK SCREW 4
DD Screw 4 x 50 mm PH-SCRBLK006 8
EE Wood Dowel PH-DWLNTL001 40
FF Screw 4 x 25 mm SCREW 4 X 25MM 4
GG Screw 3 x 12 mm PH-SCRBLK007 4
HH Tipping Restraint Hardware PH-BKTWHT003 2
II Bracket (pre-attached) PH-BKTZNC001 2
JJ Floor Glide (pre-attached) PH-GLDBRW001 6
Phillips Screwdriver
NOTE:
Hardware not shown to actual size.
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED
Pre-Assembly
DD EE
AA BB

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Bottom Shelf 1
B Left Surround Panel 1
C Right Surround Panel 1
D Top Surround Panel 1
E Left Side Panel 1
F Right Side Panel 1
G Top Panel 1
H Base Surround Rail 1
I Insert Base Rail 2
J Base Back Rail 1
K Base Left Side Rail 1
L Base Right Side Rail 1
M Base Front Rail 1
N Fireplace Insert 1
PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
Pre-Assembly (continued)
N
G
E
F
C
I
I
B
D
M
L
K
J
A
H

8
4
Insert Cam Lock Screws (AA) into the pre-drilled holes
along the edges of the surround as shown. Tighten
using a Phillips screwdriver.
Insert the Wood Dowels (EE) into the pre-drilled holes
where indicated.
Preparing the surround for assembly
Locate the Top Surround Panel (D).
Insert the Wood Dowels (EE) into the pre-drilled holes
on the edge of the each panel (B, C) where indicated as
shown.
Locate the Left Surround Panel (B), Right Surround Panel
(C) and Top Surround Panel (D).
Tighten the Screws (FF) using a Phillips
Screwdriver as shown.
2Preparing the Top Surround Panel
1Assembling the front surround
Assembly
D
AA EE
C
BD
FF
EE
Flip the Pre-attached Metal Plates (CC) up, as shown
below.
Rotate the metal plate (CC) to span the joint and secure
with a Screw (GG).
Repeat to secure both sides.
3Attaching the surround bracket
CC
D
B
C
GG

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Insert Wood Dowels (EE) into the bottom edges of the
main assembly as indicated.
6Preparing for the bottom assembly
Assembly (continued)
5

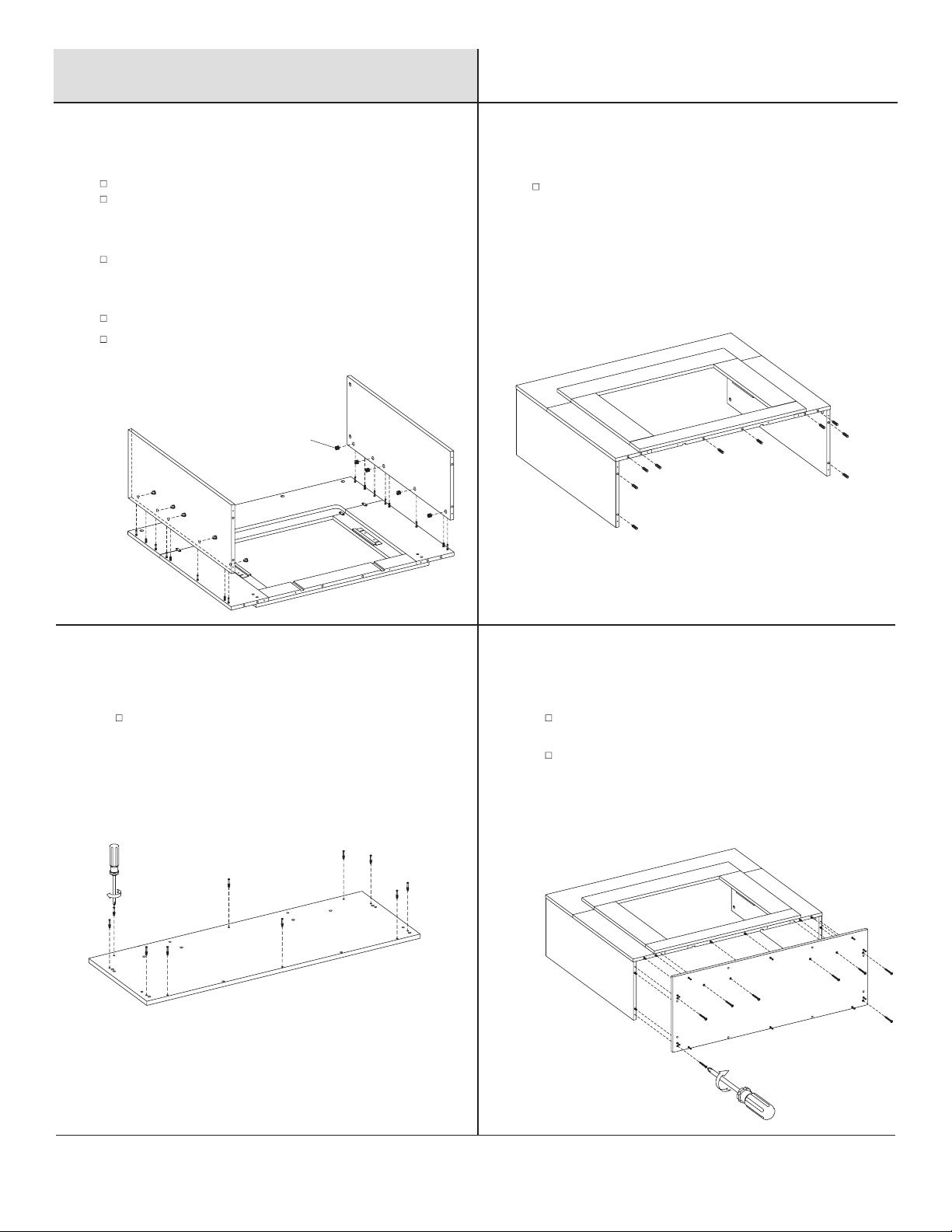

Locate the Left Side Panel (E) and the Right Side Panel (F).
Align pre-drilled holes on the edges of each side panel
(E, F) with the previously installed cam lock screws and
wood dowels from step 3.
Secure the cam lock screws in the Left Side Panel (E) by
inserting the Cam Lock Connectors (BB) into the
pre-drilled holes as shown.
Tighten with a Phillips screwdriver.
Repeat for the Right Side Panel (F).
Attaching the side panels
E
BB
F
EE
7 8
Turn the Bottom Shelf (A) over and insert Cam Lock
Screws (AA) into the pre-drilled holes of the
assembly. Tighten with a Phillips screwdriver.
Preparing the bottom shelf
Align the bottom shelf assembly together with the
center surround assembly as shown.
Insert Screws (DD) through the Bottom Shelf (A) and
securely tighten using a Phillips screwdriver.
Attaching the bottom shelf
A
A
DD
AA

10
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
11 12
Align the Base Left Side Rail (K) with the Base Back
Rail (J). Push together, ensuring the cam lock screws
and wood dowels installed in previous steps are
inserted into the pre-drilled holes.
Secure the connection with the Cam Lock Connectors
(BB) where indicated using a Phillips screwdriver.
Repeat to attach the Base Right Side Rail (L).
Connecting the base rails
Insert Wood Dowels (EE) into the Base Left
Side Rail (K) and the Base Right Side Rail (L) as
shown.
Preparing the base rails
Locate the Base Back Rail (J).
Insert Wood Dowels (EE) into the pre-drilled holes of
the Base Back Rail (J) as indicated.
Locate the Base Left Side Rail (K) and the Base Right
Side Rail (L) and place on a at surface.
Insert Cam Lock Screws (AA) into the pre-drilled holes
of the Base Left Side Rail (K). Tighten with a Phillips
screwdriver.
Repeat on the Base Right Side Rail (L).
9Preparing the base back rail 10Preparing the base side rails
Assembly (continued)
J
K
AA
L
EE
L
K
J
BB
K
EE
L

11
15 16
Insert Wood Dowels (EE) into the pre-drilled holes
along the edges of the base rails (J, K, L, M).
Preparing the base for assembly
Align the assembled base with the bottom of
the Bottom Shelf (A).
Secure all previously installed cam lock screws
using the Cam Lock Connectors (BB). Tighten
with a Phillips screwdriver.
Attaching the base
Locate the Base Front Rail (M).
Insert Cam Lock Screws (AA) into the pre-drilled holes
of the Base Front Rail (M) where indicated.
Tighten with a Phillips screwdriver.
Align the Base Front Rail (M) with the previously
assembled base rails (K,L).
Insert the Cam Lock Screws (AA) on the Base Front Rail
(M) into the pre-drilled holes of each side apron.
Secure the screws with Cam Lock Connectors (BB) us-
ing a Phillips screwdriver.
13 Preparing the base front rail 14Attaching the base front rail
Assembly (continued)
L
M
BB
K
M
AA
LJ
A
BB
EE
K
M

12
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
19 20
Insert Wood Dowels (EE) into the pre-drilled holes in
the top edge of the Base/Center assembly as shown.
Preparing the top panel
Locate the Top Panel (G) and place onto a at
surface.
Insert the Cam Lock Screws (AA) into the
pre-drilled holes in the bottom of the Top Panel (G).
Tighten the Cam Lock Screws (AA) using a Phillips
Screwdriver.
Preparing the top panel
Insert the Cam Lock Screws (AA) and Wood Dowels
(EE) into the pre-drilled holes of the Bottom Shelf (A) as
shown. Tighten using a Phillips screwdriver.
17 Preparing the Insert Base Rail 18Attaching the Insert Base Rail
Assembly (continued)
AA EE BB
II
EE
G
AA
Align the wood dowels and pre-drilled holes on the
edges of the Insert Base Rails (I, I) with the holes
and cam lock screws of the Bottom Shelf (A) from
step 17.
Secure the cam lock screws into place by inserting
the Cam Lock Connectors (BB) into the pre-drilled
holes as shown. Tighten with a Phillips screwdriver.

13
23 24
Lift the Fireplace Insert (N) carefully into the back of
the unit and center in the replace insert opening.
Do not drag the replace insert across the base as it
may scratch your unit.
Installing the replace insert
Reattach the Brackets (II) and screws from step
26 over the lip of the electric insert and into
the surround panels. Ensure that all screws are
securely fastened.
Reinforcing the insert assembly
Place the Top Panel (G) onto the main assembly by
aligning the previously installed cam lock screws and
wood dowels with the pre-drilled holes.
From underneath, secure the cam lock screws by
inserting Cam Lock Connectors (BB) into the
pre-drilled holes. Tighten using a Phillips Screwdriver.
Remove the pre-attached Brackets (II) found on the side
surround panels using a Phillips screwdriver. Keep these
Brackets (II) and screws handy as you still need them.
21 Attaching the top panel 22Preparing the surround for electric
replace insert
Assembly (continued)
GII
II
BB
N

14
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
25
HH
G

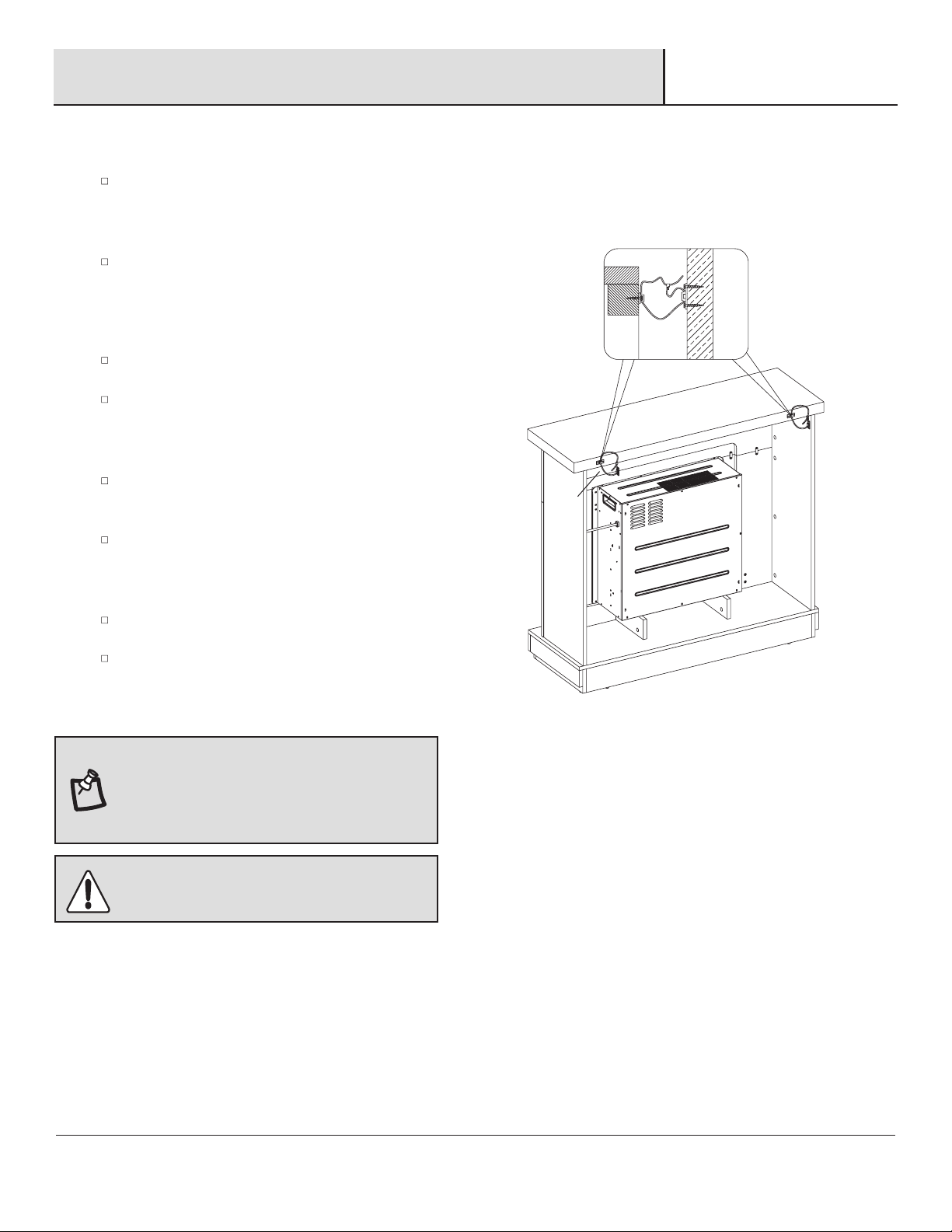

When the Tipping Restraint Hardware (HH) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps
or climbing.
Your Unit comes with two Tipping Restraint Hardware
(HH). Each Tipping Restraint Hardware (HH) includes
one Unit Anchor, one Wall Anchor, one Anchor Tether,
and four Anchor Screws. Use these to complete the
following steps for a proper installation.
Locate a secure wall stud behind the unit closest to
left side.
Align the Unit Anchor with a wall stud and attach with
two Anchor Screws using a Philips Screwdriver. The
Anchor Screws must pass through the Top Panel (G) for
proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips Screwdriver.
On the Anchor Tether, detach the cable from the
connector and loop the loose cable through the eyelets
on the Wall Anchor and Unit Anchor. Reattach the loose
cable to the connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side, and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable
the through connector.
Installing the tipping restraint hardware
WARNING:
Installing the Tipping Restraint
Hardware will help prevent accidents or damage to the
unit.
NOTE:
Installation of the Tipping Restraint Hardware
(HH) will provide a small space between the wall and the
unit. This will allow you to run power cords and connector
cables to your television or other devices placed on top of
the Unit.
Assembly (continued)
Wall

15
Operation
Operation
3 4
Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains three infrared quartz heating elements.
The thermostat setting range is 62°F - 82°F or 17°C - 27°C
or always ON.
The thermostat is adjustable by 2°F or 1°C increments.
The up and down buttons“ ”on the remote will
increase / decrease temperature setting.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 6 brightness levels that can be selected:
Settings F6 - F4 decrease in Amber brightness.
Settings F3 - F1 decrease in Spectrare brightness.
Pressing the Timer button will cycle through the timer
settings: 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
/

16
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries. Do not ingest batteries.
Operation (continued)
When the remote control stops operating or its range
seems reduced, it is time to replace the batteries with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert 2 AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the environment and human health.
This symbol marked on the battery and/or packaging
indicates that used batteries shall not be treated as
municipal waste. Instead they should be left at the
appropriate collection point for recycling.
By correctly disposing of used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
5 6
Replacing the remote control battery Disposing of used batteries
7Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is
to be left unused for a long time.

17
Care and Cleaning
Dust your replace regularly with a soft non-lint-producing cloth or household dusting product.
Clean your replace with a gentle non-abrasive household cleaner. Dry your replace immediately with a soft cloth or towel.
The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and require no further
lubrication. However, we recommend periodic cleaning/vacuuming of the fan/heater.
Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or replace.
FCC/IC Information
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
Disconnect power before attempting any maintenance or cleaning to reduce the risk of re, electrical shock or personal injury.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the
replace and replace any part of the electrical system.
WARNING:
Changes or modications to this unit not expressly approved by the party responsible for compliance could
void user’s authority to operate the equipment.

18
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Display shows " " The thermostat sensor is
broken or disconnected.
Unplug the replace, remove the back panel
of the replace and check that the
thermostat is plugged into the main circuit
board. If this does not solve the problem
contact customer service for a replacement
thermostat sensor.
Display shows " " The thermostat sensor is broken. Contact customer service for a replacement
thermostat sensor.
Display shows " " Manual Reset overheat
protection has triggered.
Inspect the heater and check that the air
inlets and outlets are not blocked as this may
cause overheating. Unplug the heater for 30
minutes and allow it to cool down. Replug
and operate. Monitor the heater for signs of
overheating. If the problem persists,
discontinue use of the heater and contact
customer service.
Display shows " " This is normal operation.
Check your heater cord and plug
connections. Faulty wall outlet connections
or loose plugs can cause the outlet or plug
to overheat. Be sure the plug ts tight in the
outlet. Heaters draw more current than small
appliances. Overheating of the outlet may
occur even if it has not occurred with the
use of other appliances. During use check
frequently to determine if your plug outlet or
faceplate is HOT! If so, discontinue use of the
heater and have a qualied electrician check
and/or replace the faulty outlet(s).
Heater does not blow warm air. The heater is in a cool down cycle.
Normal operation will continue to run for
several minutes before shutting down. Times
will vary based on temperatures. During this
time cool air will blow.
There is no power and the logs do not
glow. There is no power to the unit.
Check that the unit is plugged into a
standard 120V outlet. Press the Power button
several times and make sure power is set to
the “ON”position.
The logs glow, but there is no ame
effect. The ame effect turned off. Press the Flame button several times.
The heater does not blow warm air.
Thermostat setting is
preventing the heater from
turning on.
Adjust the temperature settings to ensure
that the thermostat is set higher than the
current room temperature.
Troubleshooting

19
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Flame effect works but heater
function does not and the emberbed
ashes when the Heater button is
pressed.
The heater is disabled.
With the power on press and hold the POWER
button on the control panel for 10 seconds.
Once re-enabled the emberbed lights will
ash multiple times.
The remote control is not working.
There are no batteries. Change the remote batteries.
The signal is poor.
Operate remote transmitter at a slow
measured pace.
Press the remote control buttons with an
even motion and gentle pressure. Repeat-
edly pressing buttons in rapid succession
may cause the transmitter to malfunction.
The remote is too far from the heater.
Operate the remote at a distance less than
20 ft from the front of the appliance; point
the remote at the control panel.
Troubleshooting (continued)

20
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
Replacement Parts
Part Description Qty.
1 Remote Control 1
2 Flame Circuit Board 1
3 Blue LED Circuit Board 1
4Flame Generator Drive Motor 1
5 Thermostat Sensor 1
6Blower/ Heater Assembly 1
7 Control Panel Circuit Board 1
8 Front Panel with Frame 1
9 Emberbed with Logset 1
10 Emberbed Circuit Board 1
11 Main Circuit Board 1
1
2
3
4
5
6
7
8
9
10
11
