USE AND CARE GUIDE
GRANTLEY ELECTRIC FIREPLACE
305048557/112319/22WM90383-PT01
305048556/112326/22WM90383-PC72
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
imporvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2
Table of Contents
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Assembly....................................................................7
Operation .................................................................15
FCC/IC Information......................................................... 17
Care & Cleaning.......................................................17
Troubleshooting.......................................................18

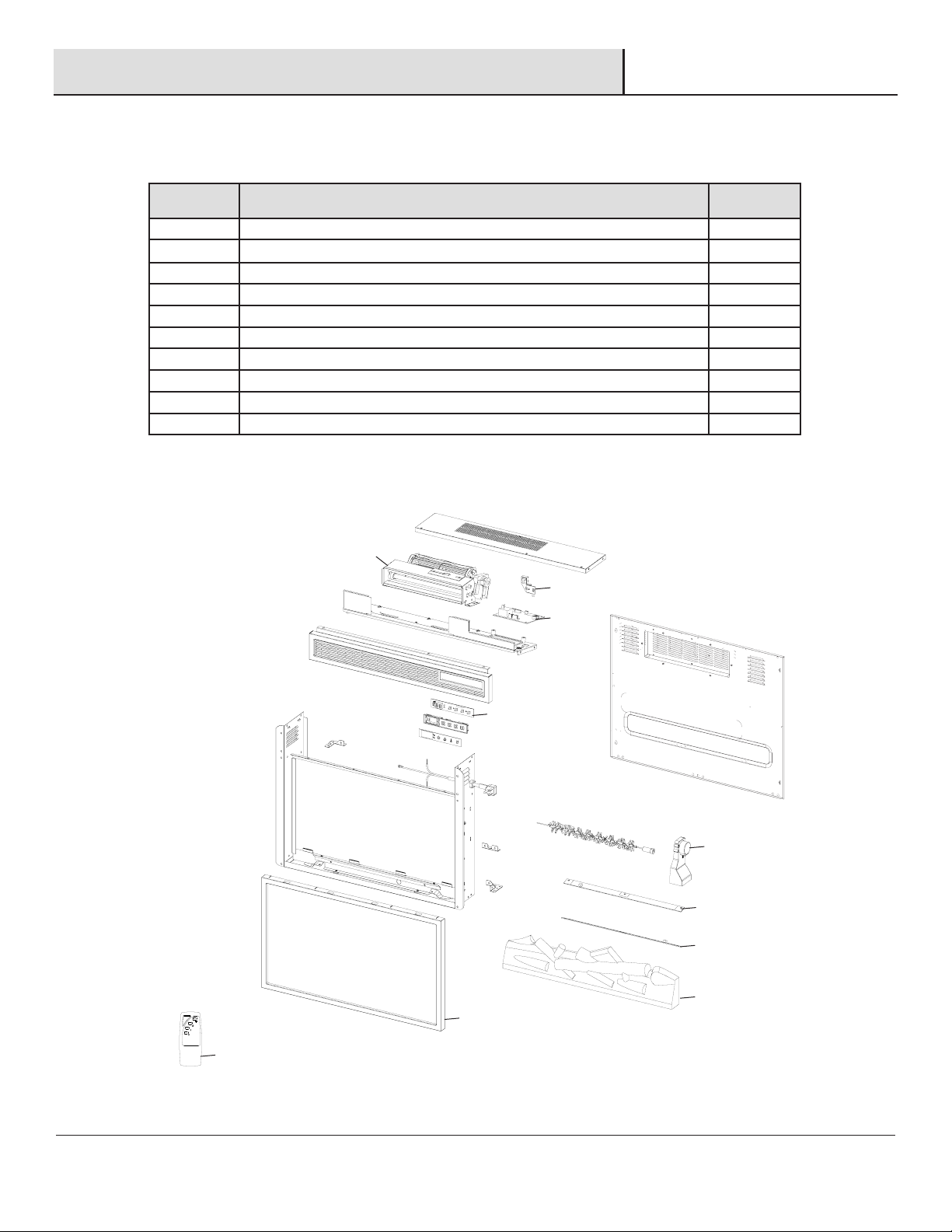

Replacement Parts.................................................. 19
Maximum Load Warning
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
MAXIMUM LOAD 45 lb. (20.4 kg)

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information (continued)

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6
Pre-Assembly

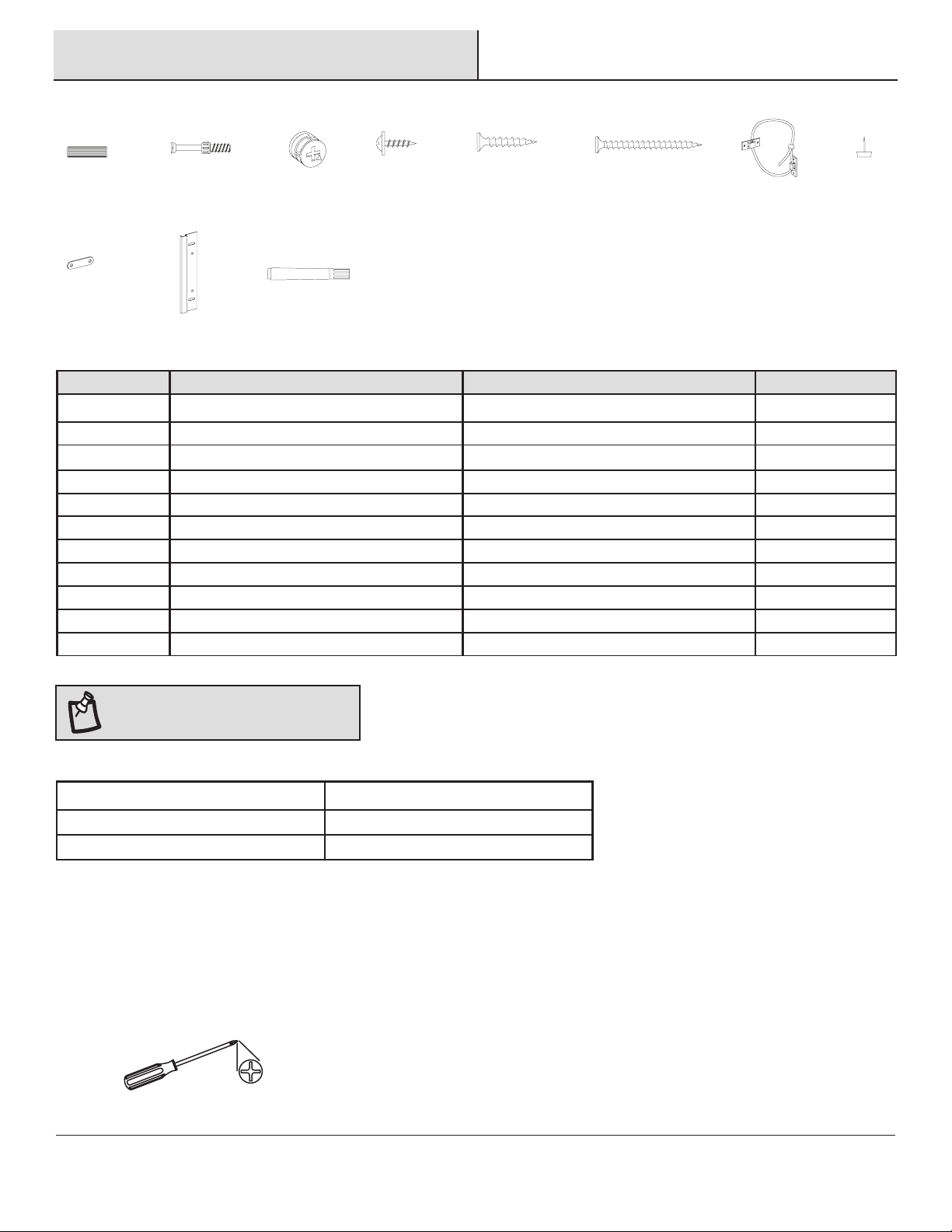

HARDWARE INCLUDED
NOTE:
Hardware not shown to actual size.
Phillips Screwdriver
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 10 Minutes
TOOLS REQUIRED
ZZJJII
DD
CC EE FF GG HH
AA BB
Part Description Part Number Quantity
AA Wood Dowel PH-DWLNTL001 32
BB Cam Lock Screw PH-KDBBLK001 24
CC Cam Lock PH-KDCBLK001 24
DD Screw 3 x 12 mm PH-SCRBLK007 6
EE Screw 4 x 25 mm PH-SCRBLK018 11
FF Screw 4 x 50 mm PH-SCRBLK006 6
GG Tipping Restraint Hardware PH-BKTWHT003 2
HH Floor Glide (Pre-attached) PH-GLDBRW001 4
II Metal Plate (Pre-attached) PH-PLTBLK001 4
JJ Bracket (Pre-attached) PH-BKTZNC001 2
ZZ Touch up Pen N/A 1

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Bottom Base 1
B Left Decorative Front Panel 1
C Right Decorative Front Panel 1
D Left Side Panel 1
E Right Side Panel 1
FDecorative Top Panel 1
G Top Panel 1
H Bottom Surround 1
I Side Surround 2
J Top Surround 1
K Insert Support 2
L Fireplace Insert 1
PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
Pre-Assembly (continued)
L
A
I
I
E
F
B
H
C
D
G
J
K
K

8

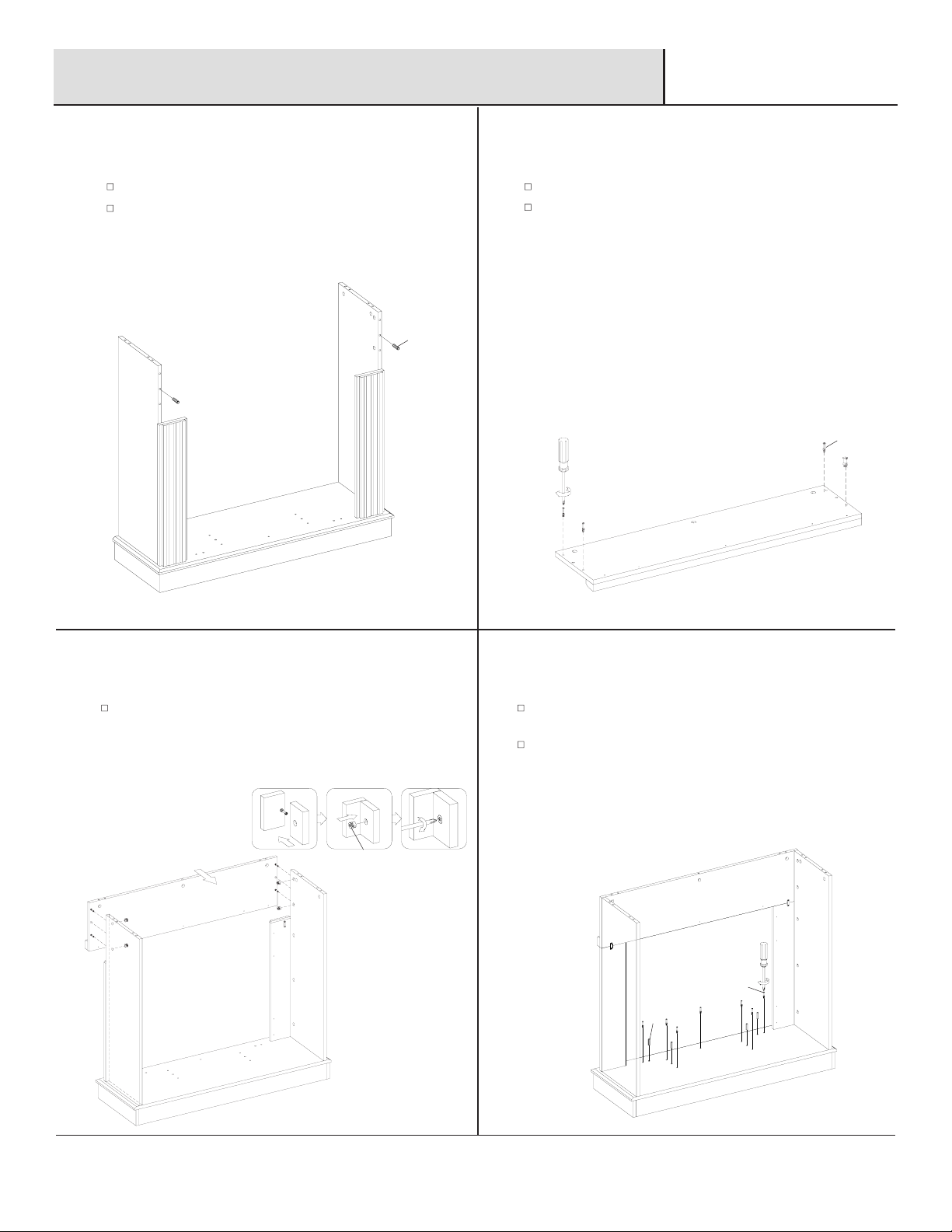

3 4
Insert Wood Dowels (AA) into the pre-drilled holes
located in the Panels (B,C,D,E).
Preparing the panels
Align the Bottom Base (A) with previously
assembled Panels (B,C,D,E).
Secure together using the Screws (FF) and the
Phillips screwdriver.
Attaching the base
Place the Left Decorative Front Panel (B) on a at
surface.
Insert Wood Dowels (AA) into pre-drilled holes.
Using a Phillips screwdriver, insert Cam Lock Screws
into pre-drilled holes.
Repeat to prepare the Right Decorative Front Panel.
Align the Left Side Panel (D) with the Left Decorative
Front Panel (B) and push together.
To secure into place, insert the Cam Lock (CC) into the
pre-drilled holes and tighten with the
Phillips screwdriver.
Repeat for the Right Decorative Front Panel (C) and
Right Side Panel (E).
1Preparing the front panels 2Attaching the side panels
Assembly
BB AA
CC
BCB
E
D
C
E
C
C
D
B
B
FF
AA
E
D
A

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
F
D
A
E
CC
BB
AA
78
6
Place previously assembled unit upright.
Insert Wood Dowels (AA) into the pre-drilled holes in
the Side Panels (D,E).
5Preparing the side panels
E
AA
D
F
Place the Decorative Top Panel (F) on a at surface.
Using the Phillips screwdriver, insert the Cam Lock
Screws (BB) into the pre-drilled holes.
Preparing the decorative top panel
BB
Align the Decorative Top Panel (F) with the
Side Panels (D,E), push together.
To secure, insert Cam Locks (CC) into the pre-drilled
holes to tighten.
Attaching the decorative top panel
Insert Wood Dowels (AA) into the pre-drilled
holes in the Bottom Base (A).
Using the Phillips screwdriver, insert Cam Lock
Screws (BB) into the pre-drilled holes.
Preparing the base

10
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
H
A
H
EE
H
CC
I
I
I
I
11 12
910
Align the Bottom Surround (H) with the Bottom Base (A)
and push together.
To secure, insert Cam Locks (CC) into the pre-drilled
holes.
Tighten with the Phillips screwdriver.
Attaching the bottom surround
Insert Wood Dowels (AA) into the pre-drilled holes on the
top of the Bottom Surround (H).
Preparing the decorative top panel
AA
Align the Side Surrounds (I) with the
Bottom Surround (B) and push down.
Insert the Screws (EE) into the pre-drilled holes.
Tighten with the Phillips screwdriver.
Attaching the side surrounds
Insert Wood Dowels (AA) into the pre-drilled
holes in the Side Surrounds (I).
Preparing the side surrounds
AA

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
15 16
13 14
K
K
A
AA
AA
CC
BB
E
F
D
J
EE DD
II
AA
I
I
Align the Top Surround (J) with the Side Surrounds (I)
and push down onto the previously installed
Wood Dowels (AA).
To secure, insert the Screws (EE) into the
pre-drilled holes. Tighten with the Phillips screwdriver.
Attaching top surround
Flip the Pre-attached Metal Plates (II) up, as shown
below.
Insert Screws (DD) into the pre-drilled holes.
Tighten with the Phillips screwdriver.
Securing the panels
Align the Insert Supports (K) with the Bottom Base
(A) and push down on the previously installed Wood
Dowels (AA) and Cam Lock Screws (BB).
Insert the Cam Locks (CC) into the pre-drilled holes.
Tighten with the Phillips screwdriver.
Attaching the insert supports
Insert Wood Dowels (AA) into the pre-drilled
holes in the Panels (D,E,F).
Preparing the panels

12
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
19
17 18
CC
Place the Top Panel (G) onto a at surface.
Insert Cam Lock Screws (BB) into the pre-drilled holes.
Tighten with a Phillips screwdriver.
Preparing the top panel
Push the Top Panel (G) down on the previously
assembled unit, as shown below.
To secure, insert Cam Locks (CC) into the
pre-drilled holes.
Tighten with a Phillips screwdriver.
Attaching the top panel
Remove the pre-attached Brackets (JJ) as shown
below, using a Phillips screwdriver.
Preparing to install replace insert
G
BB
G
CC

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
21
20
Lift the Fireplace Insert (L) carefully into the back of the
unit and center in the replace insert opening.
Do not drag the replace insert across the Base
as it may scratch your unit.
Installing the replace insert into
the mantel assembly
Re-attach the Brackets (JJ)
using a Phillips screwdriver.
Tighten to secure.
Securing the replace insert
L
JJ

14
22
G
GG
When the Tipping Restraint Hardware (GG) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps
or climbing.
Your Unit comes with two Tipping Restraint Hardware
(GG). Each Tipping Restraint Hardware (GG) includes
one Unit Anchor, one Wall Anchor, one Anchor Tether,
and four Anchor Screws. Use these to complete the
following steps for a proper installation.
Locate a secure wall stud behind the unit closest to
the left side.
Align the Unit Anchor with a wall stud and attach with
two Anchor Screws using a Philips Head Screwdriver.
The Anchor Screws must pass through the Top
Assembly (G) for proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips Head Screwdriver.
On the Anchor Tether, detach the cable from the
connector and loop the loose cable through the eyelets
on the Wall Anchor and Unit Anchor. Reattach the loose
cable to the connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side, and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable
the through connector.
Installing the tipping restraint hardware
WARNING:
Installing the Tipping Restraint
Hardware will help prevent accidents or damage to the
unit.
NOTE:
Installation of the Tipping Restraint Hardware
(GG) will provide a small space between the wall and the
unit. This will allow you to run power cords and connector
cables to your television or other devices placed on top of
the Unit.
Assembly (continued)
Wall

15
Operation
Operation
3 4
Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains three infrared quartz heating elements.
The thermostat setting range is 62°F - 82°F (17°C - 27°C) or
continuously ON. To set ame effect so that it works without
heat, press the heater button until the display shows “00”.
The thermostat is adjustable by 2°F or 1°C increments.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 5 brightness levels that can be selected:
Settings F5 - F1 decrease in brightness
Pressing the Timer button will cycle through the timer
settings; 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.

16
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries. Do not ingest batteries.
Operation (continued)
When the remote control stops operating or its range
seems reduced, it is time to replace the battery with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert 2 AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the enviroment and human health.
This symbol marked on the battery and/or packaging
indicates that used battery shall not be treated
as municipal waste. Instead it shall be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
5 6
Replacing the remote control battery Disposing of used batteries
7Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is
to be left unused for a long time.

17
Care and Cleaning
Dust your replace regularly with a soft non-lint-producing cloth or household dusting product.
Clean your replace with a gentle non-abrasive household cleaner. Dry your replace immediately with a soft cloth or towel.
Tips for using touch-up pen (ZZ): For scratches, stroke in direction of scratch. For worn areas, stroke in direction of wood grain. Rub
excess colorant promptly with a soft cloth.
The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and require no further
lubrication. However, we recommend periodic cleaning/vacuuming of the fan/heater.
Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or replace.
FCC/IC Information
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
Disconnect power before attempting any maintenance or cleaning to reduce the risk of re, electrical shock or personal injury.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the
replace and replace any part of the electrical system.
WARNING:
Changes or modications to this unit not expressly approved by the party responsible for compliance could
void user’s authority to operate the equipment.

18
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Display shows “ ” The thermostat sensor is
broken or disconnected.
Unplug the replace, remove the back panel of the replace and check that
the thermostat is plugged into the main circuit board. If this does not solve the
problem contact customer service for a replacement thermostat sensor.
Display shows “ ” The thermostat sensor is
broken. Contact customer service for a replacement thermostat sensor.
Display shows “ ” Manual Reset overheat
protection has triggered.
Inspect the heater and check that the air inlets and outlets are not blocked as
this may cause overheating. Unplug the heater for 30 minutes and allow it to
cool down. Replug and operate, monitor the heater for signs of
overheating, if the problem persist discontinue use of the heater and
contact customer service.
Display shows “ ” Normal operation.
Check your heater cord and plug connections. Faulty wall outlet
connections or loose plugs can cause the outlet or plug to overheat. Be sure the
plug ts tight in the outlet. Heaters draw more current than small appliances,
overheating of the outlet may occur even if it has not occurred with the use of
other appliances. During use check frequently to determine if your plug outlet
or faceplate is HOT! If so, discontinue use of the heater and have a qualied
electrician check and/or replace the faulty outlet(s).
Heater does not blow
warm air. Cool down cycle.
Normal operation, will continue to run for several minutes before shutting
down. Times will vary based on temperatures. During this time cool air will
blow.
No power, logs do not
glow. No power to the unit Check that unit is plugged into a standard 120V outlet. Press power button several times, make sure power is set at “ON”position.
Logs glow, but no
ame effect. Flame effect turned off Press ame button several times.
Heater does not blow
warm air.
Thermostat setting is
preventing heater from
turning on.
Adjust the temperature settings to ensure that the thermostat is set higher than
the current room temperature.
Flame effect works but
heater function does
not and the ember bed
ashes when the heater
button is pressed.
The heater is disabled. With the power on press and hold the POWER button on the control panel for 10
seconds. Once re-enabled the ember bed lights will ash multiple times.
Remote Control is not
working.
No batteries Change the remote batteries.
Poor Signal
Operate remote transmitter at a slow measured pace.
Press the remote control buttons with an even motion and gentle pressure.
Repeatedly pressing buttons in rapid succession may cause the transmitter to
malfunction.
Distance Operate the remote at a distance less than 20 feet from the front of the
appliance; point the remote at the control panel.

19
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
Replacement Parts
Part Description Qty.
1 Front Glass with Frame 1
2 Ember bed with Logset 1
3 Ember bed Circuit Board 1
4Flame Circuit Board 1
5 Flame Generator Drive Motor 1
6 Control Panel Circuit Board 1
7 Main Circuit Board 1
8 Thermostat Sensor 1
9Heater/Blower Assembly 1
10 Remote Control 1
9
8
7
6
5
4
3
2
1
10

Questions, problems, missing parts? Before returning to the store call
Home Decorators Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
RETAIN THIS MANUAL FOR FUTURE USE.
