USE AND CARE GUIDE
TOLLESON ELECTRIC FIREPLACE
729 082/95575/23MM90142-PW13
729 086/94004/23MM90142-PC78
729 084/95582/23MM90142-PG03
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2
MAXIMUM LOAD 75 lb. (34.0 kg)
MAXIMUM LOAD 20 lb. (9.1 kg)
MAXIMUM LOAD 45 lb. (20.4 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning ...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................18
FCC/IC Information......................................................... 20
Care & Cleaning.......................................................20
Troubleshooting.......................................................21
Replacement Parts.................................................. 23
Maximum Load Warning
Table of Contents

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include an visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information (continued)

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6
HARDWARE INCLUDED
JJ7
KK7
LL7 MM7 NN7 OO7 PP7 ZZ7
Part Description Part Number Quantity
AA Wood Dowel PH-DWLNTL001 34
BB7 Shelf Pin PH-SPNPCSPLB2 8
CC7 Knob (with Screw) N/A 2
DD7 Screw 3 x 12 mm PH-SCRBLK007 OR PH-SCRZNC007 41
EE7 Door Hinge PH-HNGDQB003 OR PH-HNGQSV003 4
FF7 Screw 4 x 50 mm PH-SCRBLK006 5
GG7 Screw 4 x 15 mm PH-SCRBLK009 OR PH-SCRZNC009 18
HH7 Angle Bracket PH-BKTBLK007 2
II7 Magnetic Catch PH-MCHBRW001 2
JJ7 Screw 3 x 15 mm PH-SCRBLK010 4
KK7 Tipping Restraint Hardware PH-BKTWHT003 2
LL7 Cam Lock Screw PH-KDBZNC001 23
MM7 Cam Lock PH-KDCZNC001 or PH-KDCBLK001 23
NN7 Metal Plate (Pre-attached) PH-PHTBLK001 or PH-PLTZNC001 2
OO7 Plastic Connector Block (Pre-attached) PH-BKTBLK010 6
PP7 Floor Glide (Pre-attached) PH-GLDBRW001 or PH-GLDWHT001 6
ZZ7 Touch up Pen N/A 1
Phillips Screwdriver
NOTE:
Hardware not shown to actual size.
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED
Pre-Assembly
II7
DD7
CC7 EE7 FF7 GG7 HH7
AA BB7

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A7 Bottom Base Panel 1
B7 Left Center Panel 1
C7 Right Center Panel 1
D7 Upper Front Panel 1
E7 Left Side Panel 1
F7 Right Side Panel 1
G7 Top Assembly 1
H7 Center Shelf 1
I7 Left Decorative Side Panel 1
J7 Right Decorative Side Panel 1
K7 Divider 1
L Left Door 1
M Right Door 1
N Upper Back Panel 1
O Back Panel 2
P Adjustable Shelves 2
Q Fireplace Insert 1
PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
A7
I7
C7
B7
G7
P
P
O
O
Q
N
K7
L
M
D7
E7
J7
F7
H7
Pre-Assembly (continued)

8
3 4
Place the Upper Front Panel (D7) onto a at surface.
Insert the Wood Dowels (AA) into the pre-drilled holes
as shown.
Preparing the upper front panel
Align the Upper Front Panel (D7) dowels into the
pre-drilled holes in the Left Center Panel (B7)
and Right Center Panel (C7) and push together.
Attaching the upper front panel
Place the Left Center Panel (B7) and the Right Center
Panel (C7) onto a at surface.
Insert the Wood Dowels (AA) into the pre-drilled holes as
shown.
Repeat steps for the Right Center Panel (C7).
Slide the Left Center Panel (B7) and Bottom Base Panel
(A7) together by aligning the dowels into the pre-drilled
holes.
Repeat this step for the Right Center Panel (C7).
1Preparing the center panels 2Aligning the center panels
Assembly
B7
B7
B7
A7
C7
C7
C7
D7
D7
AA
AA

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

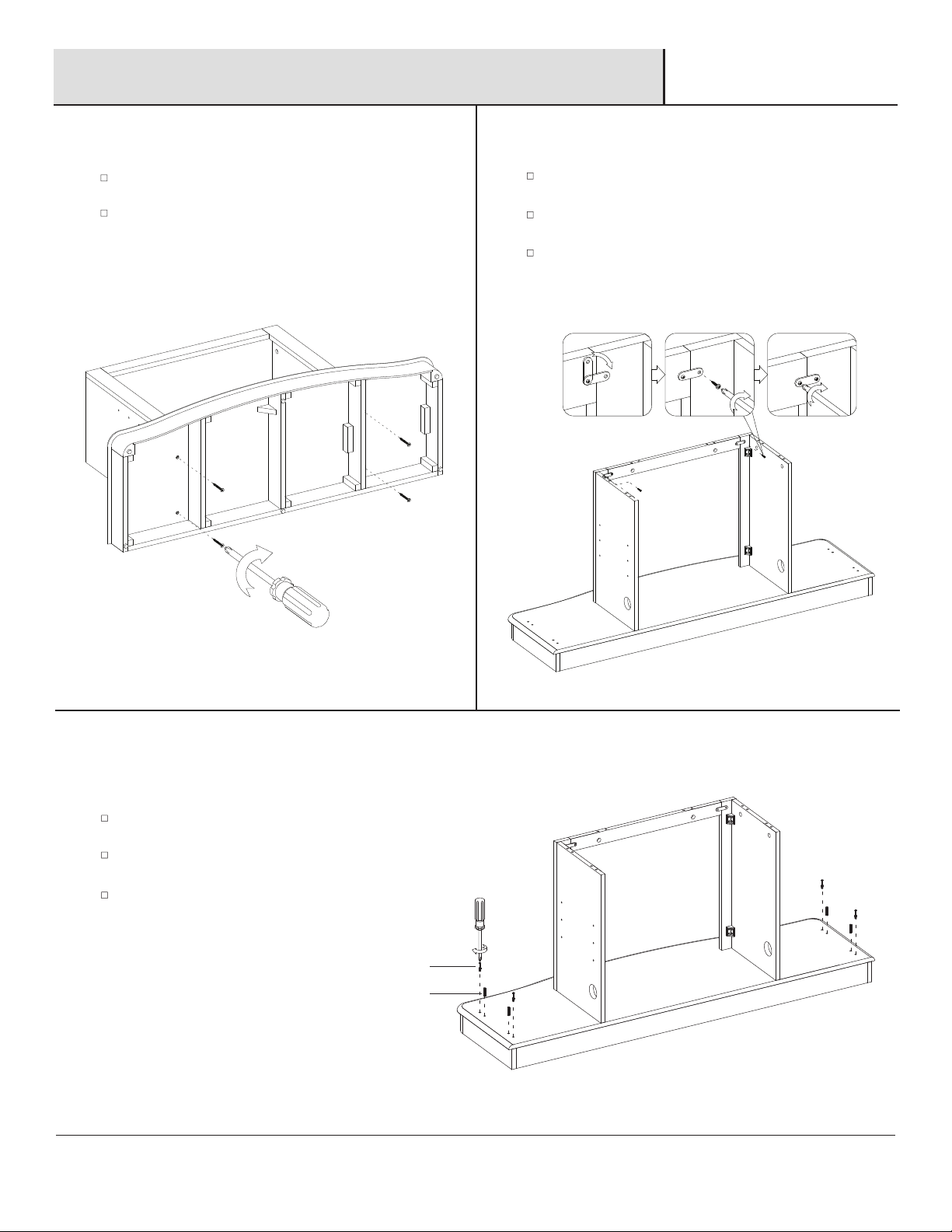

Insert Screws (FF7) into the pre-drilled holes in the
Bottom Base Panel (A7).
Secure using a Phillips screwdriver.
5Securing the bottom base panel
Flip-up the base assembly and locate the Metal Plate
(NN7) pre-attached in Upper Front Panel (D7).
Rotate the Metal Plate (NN7) to span the joint and se-
cure with a Screw (DD7).
Repeat to secure the other side.
6Attaching the upper front panel
Assembly (continued)
Insert Dowels (AA) into the pre-drilled holes in the top
of the Bottom Base Panel (A7).
Insert Cam Lock Screws (LL7) into the pre-drilled
holes in the top of the Bottom Base Panel (A7).
Secure using a Phillips screwdriver.
7Preparing for the side panels
A7
A7
D7 B7
C7
NN7
FF7
DD7
LL7
AA

10
Align the Right Side Panel (F7) to the Bottom Base Panel
(A7), as shown.
Insert Cam Locks (MM7) into the pre-drilled holes and
secure using a Phillips screwdriver.
Repeat for the Left Side Panel (E7).
Place the Center Panel (H7) on a at surface.
Align the Magnetic Catches (II7) with the pre-drilled
holes in the bottom of the Center Panel (H7).
Insert the Screws (JJ7) through the slots in the Mag-
netic Catch (II7) and secure using a Phillips screwdriver.
8
10
9
Securing the side panels Preparing the center panel
Insert Cam Lock Screws (LL7) into the pre-drilled
holes in the bottom of the Center Panel (H7).
Secure using a Phillips screwdriver.
Preparing the center panel
Assembly (continued)
A7
F7
E7
H7
H7
MM7
II7
JJ7
LL7

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
11
13
Preparing for the center panel
Preparing the top assembly
Insert Wood Dowels (AA) into the pre-drilled holes, as shown.
Insert Cam Lock Screws (LL7) into the pre-drilled holes and
secure using a Phillips screwdriver.
Assembly (continued)
Align the Center Panel (H) to the base assembly, as
shown.
Insert Cam Locks (MM7) into the pre-drilled holes and
secure using a Phillips screwdriver.
12 Attaching the center panel
Insert Wood Dowels (AA) into the pre-drilled holes, as
shown.
AA
MM7
AA
H7
LL7
H7

12
Align the Right Decorative Side Panel (J7) to the base
assembly, as shown.
Insert Cam Locks (MM7) into the pre-drilled holes and
secure using a Phillips screwdriver.
Repeat for the Left Decorative Side Panel (I7).
Insert Wood Dowels (AA) into the pre-drilled holes in the
top edges of the base assembly.
Align the Divider (K7) to the base assembly, as shown.
Insert the Screw (FF7) into the pre-drilled hole in the
bottom of the Center Shelf (H7) and secure using a Phil-
lips screwdriver.
14
16
15
Installing decorative side panels
Preparing for the top assembly
Installing the divider
Assembly (continued)
I7
J7
H7
K7
MM7
AA
FF7

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Place the Top Assembly (G7) onto a at surface.
Insert Cam Lock Screws (LL7) into the pre-drilled
holes in the Top Assembly (G7) and secure with a
Phillips screwdriver.
17 Preparing the top assembly
19 Preparing the doors
Place the Left Door (L), upside down, on a at surface.
Align the Door Hinges (EE7) with the pre-drilled holes
in the Left Door (L).
Insert the Screws (GG7) through the Door Hinges
(EE7) to secure to the Left Door (L).
Repeat for the Right Door (M).
18 Preparing the doors
Align the Top Assembly (G7) onto the base
assembly as shown.
Insert Cam Locks (MM7) into the pre-drilled holes
and secure with a Philips screwdriver.
Assembly (continued)
LL7
MM7
G7
G7
M
EE7
GG7
L

14
Wall
20 Attaching the handles
Remove the preassembled screws from the Knob with
Screw (CC7), then attach the Knob with Screw (CC7) to the
Left Door (L) and Right Door (M) with the screws.
Assembly (continued)
Align the Right Door (M) with the Right Side Panel
(F7).
Insert Screws (GG7) through the previously attached
Door Hinges (EE7).
Repeat to attach the Left Door (L).
21 Attaching the doors
L
L
F7
EE7 GG7
M
M
CC7

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Wall
Wall
DD7
N
Insert the Screws (DD7) through the pre-drilled holes in
the Upper Back Panel (N) and the Side Back Panels (O).
22
23
Installing the back panels
Attaching the adjustable shelves
Insert the Shelf Pins (BB7) into the pre-drilled holes on
the inside of the Left Side Panel (E7) and the Left Center
Panel (B7).
Rest the Adjustable Shelf (P) on the Shelf Pins (BB7).
Repeat for the right side.
O
P
E7
B7
BB7
P
O
Assembly (continued)

16
Wall
Wall
Lift the Fireplace Insert (Q) carefully into the back of the
unit and center in the replace insert opening.
Do not drag the replace insert across the Base
as it may scratch your unit.
Insert the Screw (GG7) through the Angle Bracket (HH7)
into the pre-drilled hole in the Bottom Base Panel (A7).
Repeat for the other side.
24
25
Installing the replace insert into
the mantel assembly
Securing the replace insert
Q
Assembly (continued)
HH7
GG7
A7

17
Wall
26
G7
KK7
When the Tipping Restraint Hardware (KK7) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps
or climbing.
Your Unit comes with two Tipping Restraint Hardware
(KK7). Each Tipping Restraint Hardware (KK7) includes
one Unit Anchor, one Wall Anchor, one Anchor Tether,
and four Anchor Screws. Use these to complete the
following steps for a proper installation.
Locate a secure wall stud behind the unit closest to
left side.
Align the Unit Anchor with a wall stud and attach with
two Anchor Screws using a Philips Head Screwdriver.
The Anchor Screws must pass through the Top
Assembly (G7) for proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips Head Screwdriver.
On the Anchor Tether, detach the cable from the
connector and loop the loose cable through the eyelets
on the Wall Anchor and Unit Anchor. Reattach the loose
cable to the connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side, and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable
the through connector.
Installing the tipping restraint hardware
WARNING:
Installing the Tipping Restraint
Hardware will help prevent accidents or damage to the
unit.
NOTE:
Installation of the Tipping Restraint Hardware
(KK7) will provide a small space between the wall and the
unit. This will allow you to run power cords and connector
cables to your television or other devices placed on top of
the Unit.
Assembly (continued)

18
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation
Operation
3 4
Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains three infrared quartz heating elements.
The thermostat setting range is 62°F - 82°F or 17°C - 27°C
or always ON.
The thermostat is adjustable by 2°F or 1°C increments.
The up and down buttons“ ”on the remote will
increase / decrease temperature setting.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 6 brightness levels that can be selected:
Settings F6 - F4 decrease in Amber brightness
Settings F3 - F1 decrease in Spectrare brightness
Pressing the Timer button will cycle through the timer
settings; 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
/

19
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries. Do not ingest batteries.
Operation (continued)

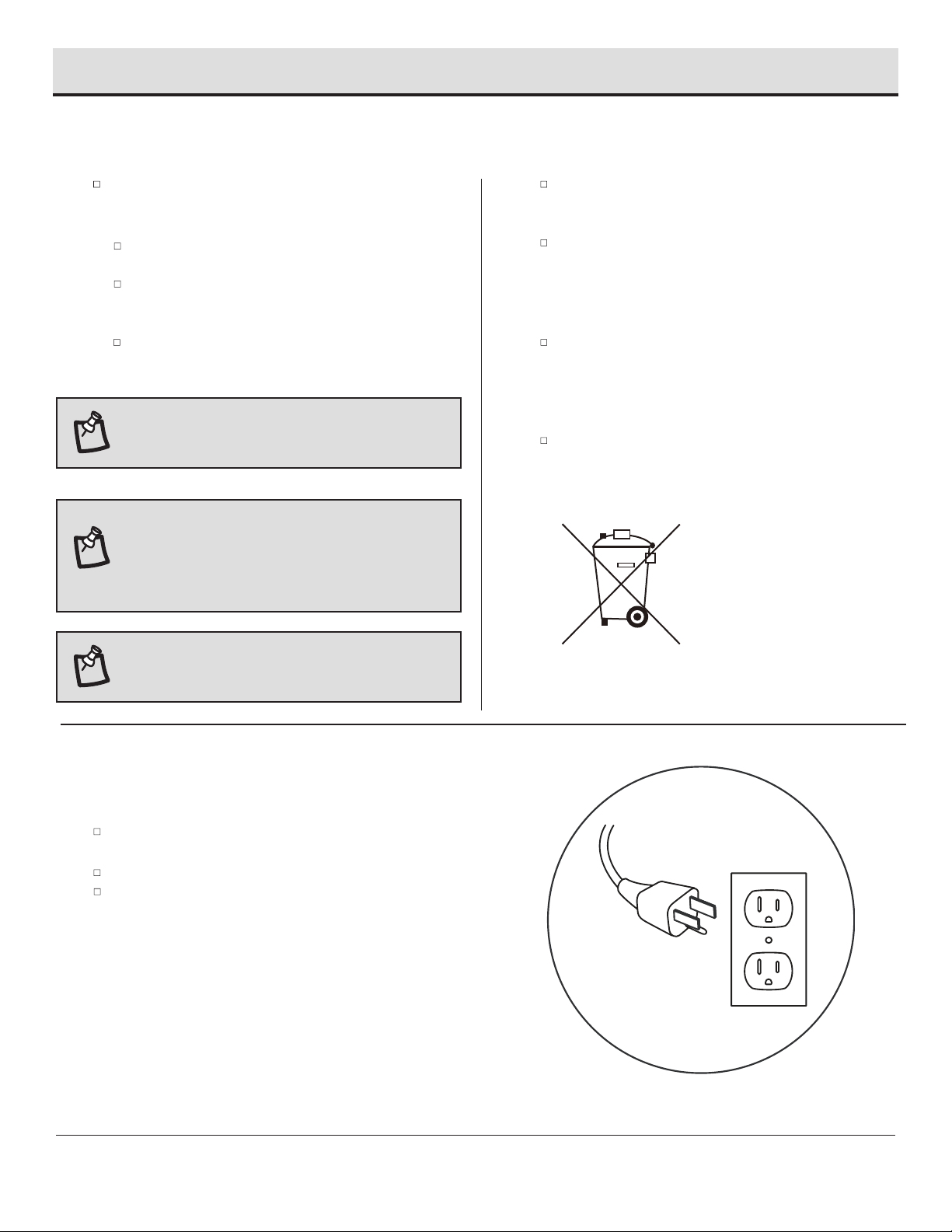

When the remote control stops operating or its range
seems reduced, it is time to replace the battery with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert 2 AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the environment and human health.
This symbol marked on the battery and/or packaging
indicates that used battery shall not be treated
as municipal waste. Instead it shall be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
5 6
Replacing the remote control battery Disposing of used batteries
7Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is
to be left unused for a long time.

20
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Care and Cleaning
Dust your replace regularly with a soft non-lint-producing cloth or household dusting product.
Clean your replace with a gentle non-abrasive household cleaner. Dry your replace immediately with a soft cloth or towel.
Tips for using touch-up pen (ZZ): For scratches, stroke in direction of scratch. For worn areas, stroke in direction of wood grain. Rub
excess colorant promptly with a soft cloth.
The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and require no further
lubrication. However, we recommend periodic cleaning/vacuuming of the fan/heater.
Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or replace.
FCC/IC Information
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
Disconnect power before attempting any maintenance or cleaning to reduce the risk of re, electrical shock or personal injury.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the
replace and replace any part of the electrical system.
WARNING:
Changes or modications to this unit not expressly approved by the party responsible for compliance could
void user’s authority to operate the equipment.
