Honeywell CS10XE Series User manual

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
EN
Refroidisseur d'air par évaporation portatif
Mode d'emploi
Lire ces instructions avant l'utilisation et les conserver
FR
Enfriador de Aire Evaporativo Portátil
Manual de Instrucciones
Lea y guarde estas instrucciones antes de usar la unidad
ES
H L
M
S
0.5
1
2
4
Model / Modèle / Modelo:
CS10XE Series / Série / Serie
Customer Support:
Assistance Au Client:
Servicio de atencion a clientes:
USA/ EE.UU: 1-800-474-2147
CANADA/ CANADÁ^ : 1-888-209-0999
www.jmatek.com
Email: [email protected]
^ Canada Customer Support service available for models sold in Canada only.
^ Le Service Client Canadien est disponible uniquement pour les modèles vendus sur le territoire Canadien.
^ Servicio de Atención A Clientes en Canadá disponible solo para modelos vendidos en Canadá.

1

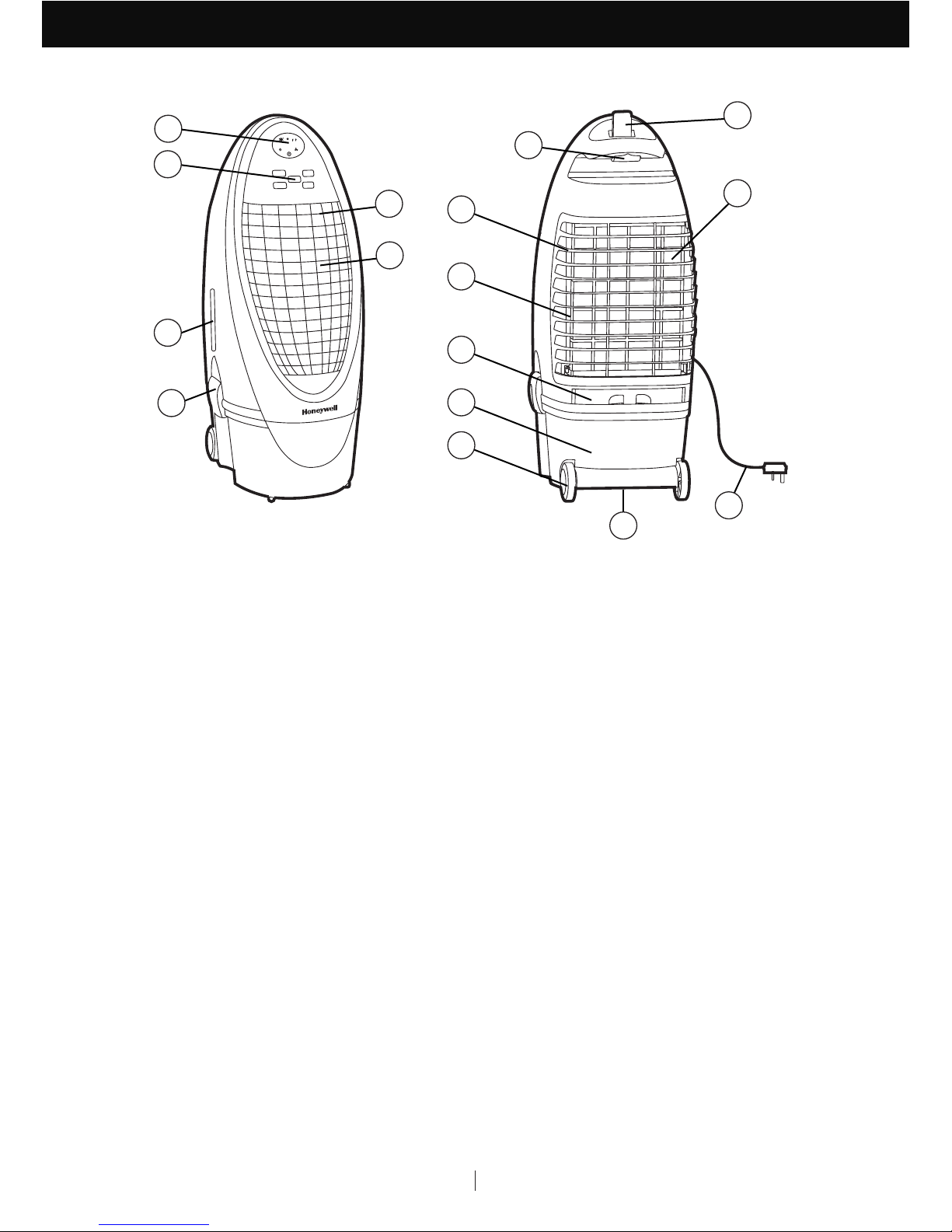

PARTS DESCRIPTION
EN
1) Display Screen 9) Rear Grill
2) Control Panel 10) Water Fill Tray
3) Water Level Indicator 11) Water Tank
4) Detachable Water Tank Latch 12) Castors
5) Louvers 13) Remote Control
6) Front Grill 14) Carbon Dust Filter
7) Handle 15) Power Cord & Plug
8) Honeycomb Cooling Media 16) Drain Plug
H L
M
S
0.5
1
2
4
16 15
9
10
11
12
4
5
6
3
14
13
2
1
8
7
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.

2
USE & OPERATION
EN

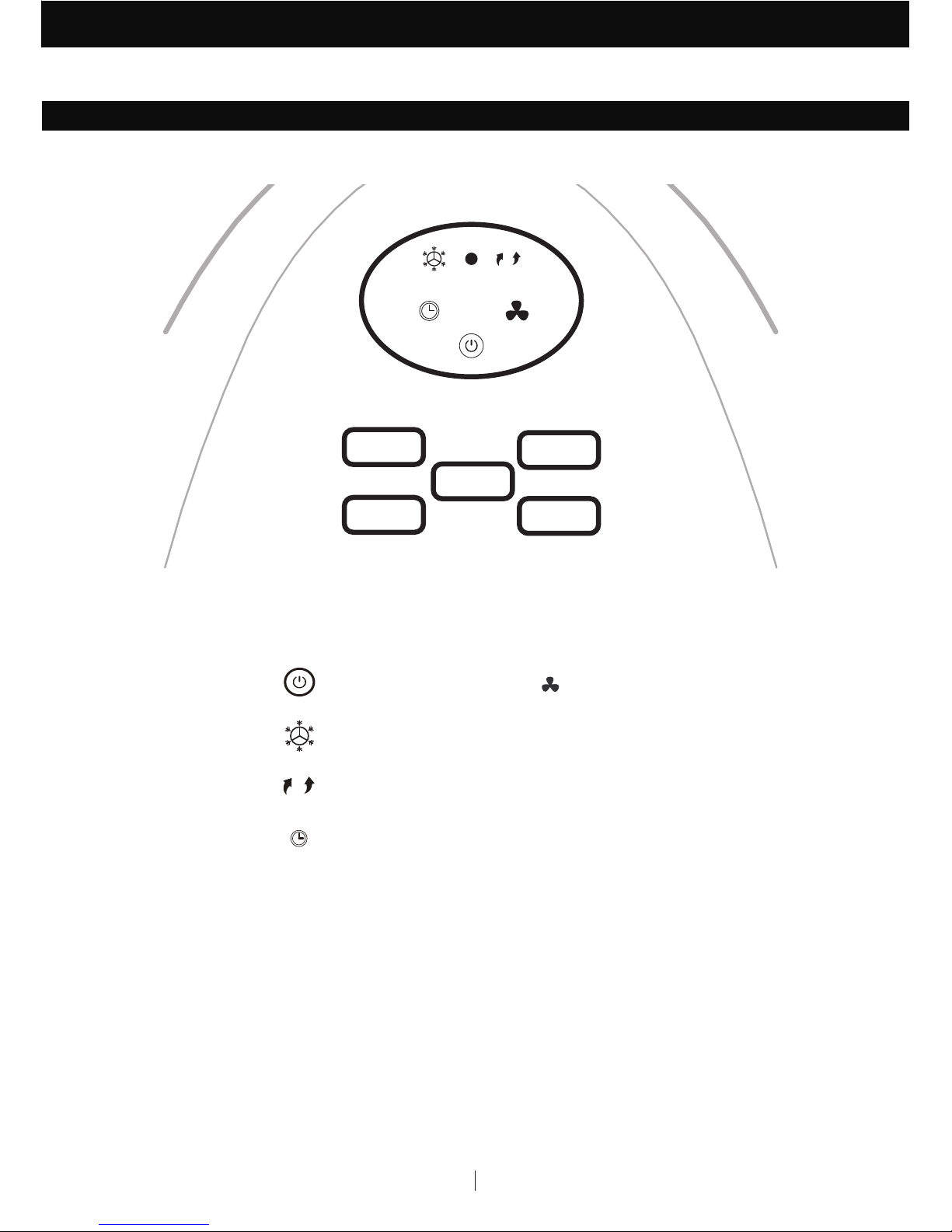

CONTROL PANEL
H
M
S
SWING
POWER
COOL
SPEED
TIMER
L
1
2
4
0.5
Icons on Display Screen
Cool
Swing
Power ON/OFF
1
2
4
0.5
Timer Setting
*Applicable for models with Sleep feature only.
HL
M
S
Fan speed:
L - Low
M - Medium
H - High
S - Sleep*

3
USE & OPERATION (CONTINUED)
EN

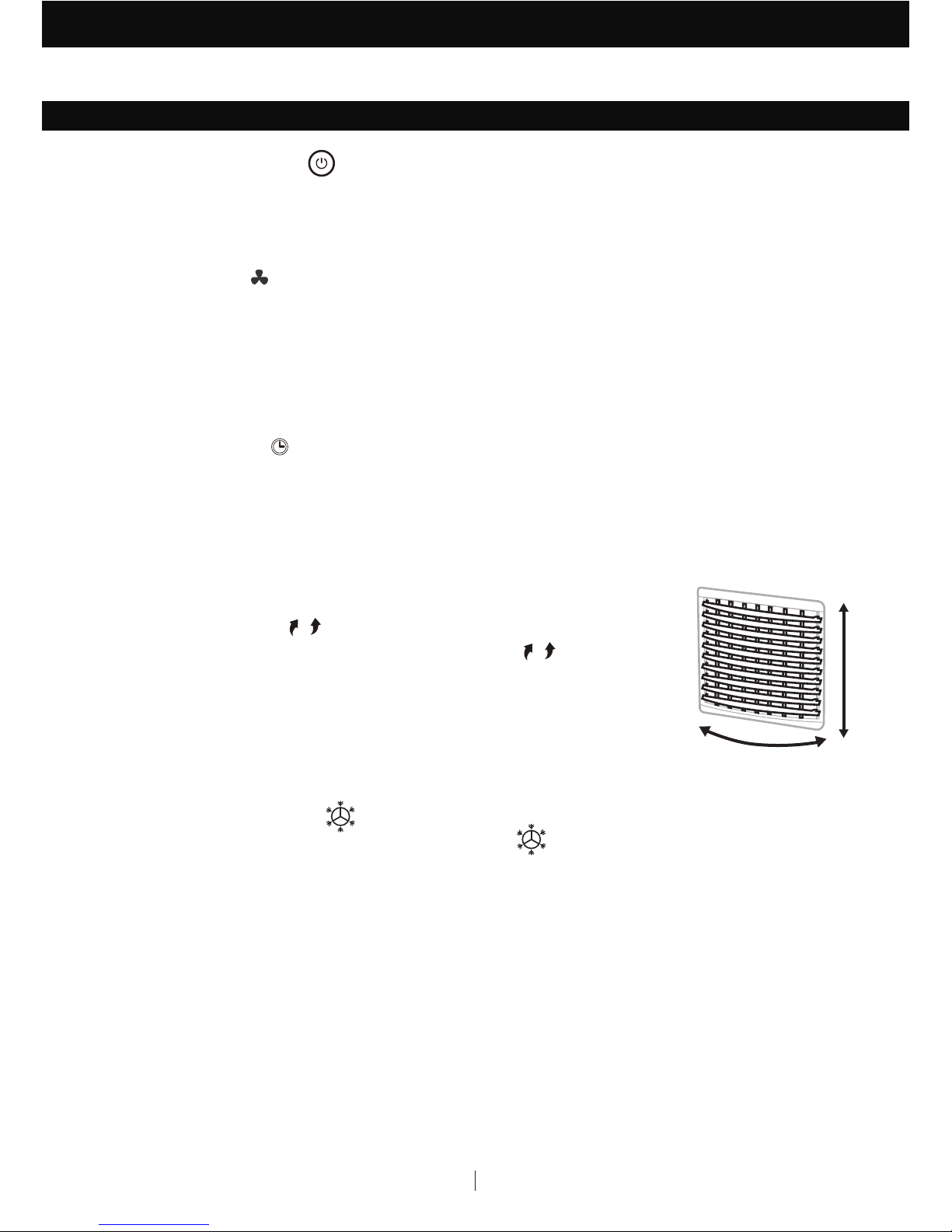

FUNCTION BUTTONS
POWER
Press the POWER button to turn the unit on. The cooler will start automatically at medium speed.
After a few seconds the speed will switch to low. To turn the unit off, press the button again.
SPEED
Press the SPEED button repeatedly to change the speed between H - M - L - S*.
When the SLEEP mode is selected, the fan will run on High for one hour, then Medium for the second
hour and on Low speed from the third hour onwards until you switch off the unit.
TIMER
Press the TIMER button until the desired time duration setting is selected. When the set time
has passed, the unit will automatically turn off (unit remains in Standby mode until power cord is
unplugged from electrical socket). The TIMER function allows you to program the unit for up to 7.5
hours of use.
COOL
Press the COOL button until is illuminated on the display screen. This activates evaporative
cooling. The water pump will operate and you will feel the cooler air after the Honeycomb Cooling
Media is completely wet.
WARNING: Please ensure sufficient water is in the water tank otherwise you may hear a Low Water
Alarm and the cooler will start in a Fan only mode without evaporative cooling.
*Applicable for models with Sleep feature only.
1
2
4
0.5
HL
M
S
SWING
Press the SWING button until is illuminated on the display.
The louvers will begin to move left to right automatically.
Vertical Air Flow - You can manually adjust the louvers to change
vertical air flow.
Louver
Movement

4
USE & OPERATION (CONTINUED)
EN

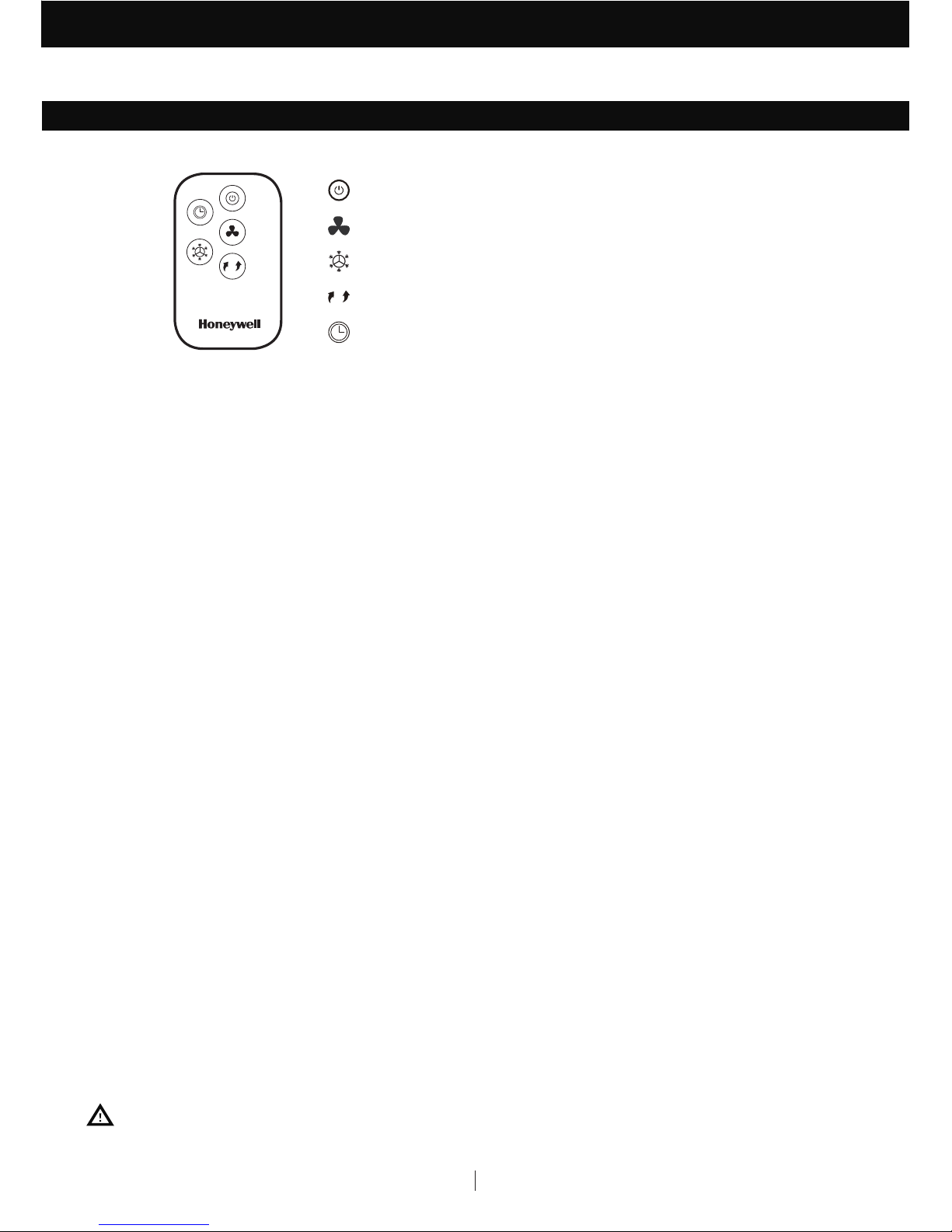

REMOTE CONTROL
NOTE:
•
•
•
•
•
•
•
•
•
•
•
•
•
The remote control requires a CR2032 (1 x 3V) coin type or equivalent battery for replacement.
Open the battery compartment at the back of the remote control and insert the battery inside.
Care must be taken to insert the batteries according to the correct polarity (+ / –) markings
shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating. Make sure
that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Do not recharge the battery.
Exhausted batteries are to be removed from the product and safely disposed of as per local
regulations.
Do not dispose of batteries in fire. Batteries may explode or leak.
This product contains a lithium button/coin cell battery. If a new or used lithium button/ coin
cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to
death in as little as 2 hours. Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product, remove the batteries, and keep it
away from children. If you think batteries might have been swallowed or placed inside any part of
the body, seek immediate medical attention.
The batteries shall be disposed of properly, including keeping them away from children.
Even used batteries may cause injury.
WARNING: Chemical Burn Hazard. Keep batteries away from children.
POWER :
:
:
:
:
ON / OFF
Low / Medium / High / Sleep*
Evaporative Cooling ON / OFF
Controls the motion of the louvers
Controls the Timer function for automatic off
SPEED
COOL
TIMER
SWING
*Applicable for models with Sleep feature only.

5
USE & OPERATION (CONTINUED)
EN
CAUTION:
Unplug the unit from the electrical power outlet before emptying or refilling the water tank.
Open the Water Fill Tray located at the back of the unit. The Water Level Indicator is located at the
side of the unit. Refill the water tank when water level is low. Do not fill water above the "Max." water
level mark to avoid water droplets collecting on the louvers. Check the water level in the tank before
running the COOL function. Make sure that the water in the tank is above the minimum water
level mark. Running the unit in COOL mode with inadequate water may cause pump failure.
Note: The water capacity refers to the total volume of water that can be contained within the air
cooler water tank and water distribution system. The water capacity in the tank at the “Max.” indicator
level may be lower than the actual water capacity of the air cooler.
WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and
Honeycomb media.
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the
minimum level, you will hear a beeping sound and the will flash continuously. The unit will
automatically pause evaporative cooling.
Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug
from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and
switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch
the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low
Water Alarm will sound again if the COOL function is activated while the water tank is still empty.
FILLING WITH WATER
LOW WATER ALARM*
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION
*Applicable for models with Low Water Alarm feature only.

6
USE & OPERATION (CONTINUED)
EN
Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for
a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the
separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.
CLEANING & DRAINING THE WATER TANK
Move the unit to a location where the water can be drained. Remove the cap from the Drain plug
located at the bottom of the unit. Allow the tank to empty.
Detach the water tank by unlocking the Detachable Water Tank Latches on both sides of the unit.
Lift the cooler upwards away from the base and place it carefully and vertically on the floor. Be
careful not to bend the water pump tubes and other parts that will hang from the bottom of the
unit when the body is removed from the tank.
Refill the water tank with clean water and drain it completely. Clean the water tank with dish
detergent or a damp cloth and rinse it thoroughly.
Refill the water tank with clean water, up to the maximum level.
Replace the top of the air cooler carefully back onto the tank and lock the side latches. The air
cooler is now ready to be used.
Use a damp cloth to remove dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
•
•
•
•
•
•
•

7
USE & OPERATION (CONTINUED)
EN
WARNING:
DO NOT operate the Air Cooler when the Rear Grill
is removed from the Air Cooler, or if there is a loose-
fitting Rear Grill. Doing so can cause serious injury or
dangerous electrical shock.
*Applicable for models with Carbon Dust Filter only.
CLEANING THE CARBON DUST FILTER* AND HONEYCOMB COOLING MEDIA
The appliance is supplied with a Carbon Dust Filter* and Honeycomb Cooling Media.
The Carbon Dust Filter* and Honeycomb Cooling Media are located inside the Rear Grill. See
Figure 1 for instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on the
Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•
Remove all the screws from the Rear Grill of the Air
Cooler.
Carefully pull out the rear grill from the cooler.
Slide out the Carbon Dust Filter* and clean with
water.
To release the Honeycomb Media, remove the
Honeycomb Frame screws and pull the Honeycomb
Frame out of the unit.
Remove the screws on the base of the Honeycomb
Frame and slide out the Honeycomb Cooling
media. Replace or clean media with water and a
damp cloth as needed.
1.
2.
3.
4.
5.
Removing the Carbon Dust Filter*/ Honeycomb Cooling Media:
Figure 1:
Honeycomb
Frame
Screws
Honeycomb
Cooling Media Carbon
Dust
Filter
Rear Grill

1
DESCRIPTION DES PIÈCES
FR
1) Écran d’affichage 9) Grille arrière
2) Panneau de commande 10) Bac d’alimentation en eau
3) Indicateur de niveau d’eau 11) Réservoir d’eau
4) Verrou du réservoir d’eau
démontable 12) Roulettes
5) Grille d’aération 13) Télécommande
6) Poignée 14) Filtre dépoussiéreur à charbon
7) Poignée 15) Cordon électrique et prise
8) Système de refroidissement
en nid d’abeilles 16) Bouchon de vidange
H L
M
S
0.5
1
2
4
16 15
9
10
11
12
4
5
6
3
14
13
2
1
8
7
AVERTISSEMENT -- LIRE ET CONSERVER LE GUIDE DE SÉCURITÉ ET D’ENTRETIEN ET LE
MANUEL DE L’UTILISATEUR DU REFROIDISSEUR D’AIR AVANT D’UTILISER LE PRODUIT. NE
PAS SUIVRE CES CONSIGNES POURRAIT ENDOMMAGER ET/OU PERTURBER SON
FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT
ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE
MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.

2
UTILISATION ET FONCTIONNEMENT
FR
PANNEAU DE COMMANDE
H
M
S
SWING
POWER
COOL
SPEED
TIMER
L
1
2
4
0.5
Icônes sur l’écran d’affichage
Refroidissement
Oscillation
Interrupteur
1
2
4
0.5
Réglage de la
minuterie
*Applicable uniquement pour les modèles avec la fonction Sommeil.
HL
M
S
Vitesse du ventilateur:
L - Faible
M - Moyenne
H - Élevée
S - Sommeil*
