Honeywell CL30XC User manual

Portable Evaporative Air Cooler
Enfriador de Aire Portátil Por Evaporación
OWNER’S MANUAL
MANUAL DEL USUARIO
Read and save these instructions before use
Lea y guarde estas instrucciones antes de usar
Model: CL30XC
Modelo: CL30XC
Power rating: 288 Watts
Potencia: 288W
Voltage rating: 120 Volt AC, 60Hz
Tensión: 120V~60Hz
Made in China
Fabricado en China
Customer Support : 1-800-474-2147
Centro de servicios al cliente: 1-800-474-2147
For product inquiries or support, visit www.honeywellaircoolers.com
Para consultas sobre productos o soporte técnico visite: www.honeywellaircoolers.com

Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3
QUICK START GUIDE
1
2
3

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY INSTRUCTIONS ...................................................................................................
4. PARTS DESCRIPTION ........................................................................................
5. USE & OPERATION .............................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
7
8
15
17
19
19
10. SERVICE AND WARRANTY ................................................................................ 20
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.
Fill Water ......................................................... .................... ...............
Function Buttons .................................................................................................
Low water alarm and cooler location ...................................................................
Remote Control ...................................................................................................
.... ............ 14
Control Panel..................................................................................................... 8
9
11
Room Cooling and Humidifying ........................................................................... 12
13

2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level and load ice inside
the ice compartment before you turn on your air cooler.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guideline will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or
refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

USER TIPS
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air
Energy Efficient, No Compressor
3
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low.
Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the
Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media.
As the warm air passes through the media, the water absorbs the heat, naturally cooling and
humidifying the air. A fan propels the cooled air out into the room. This no-compressor system
cools naturally, efficiently and inexpensively.

4
USER TIPS
NOTE
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a few hours or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.

READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:

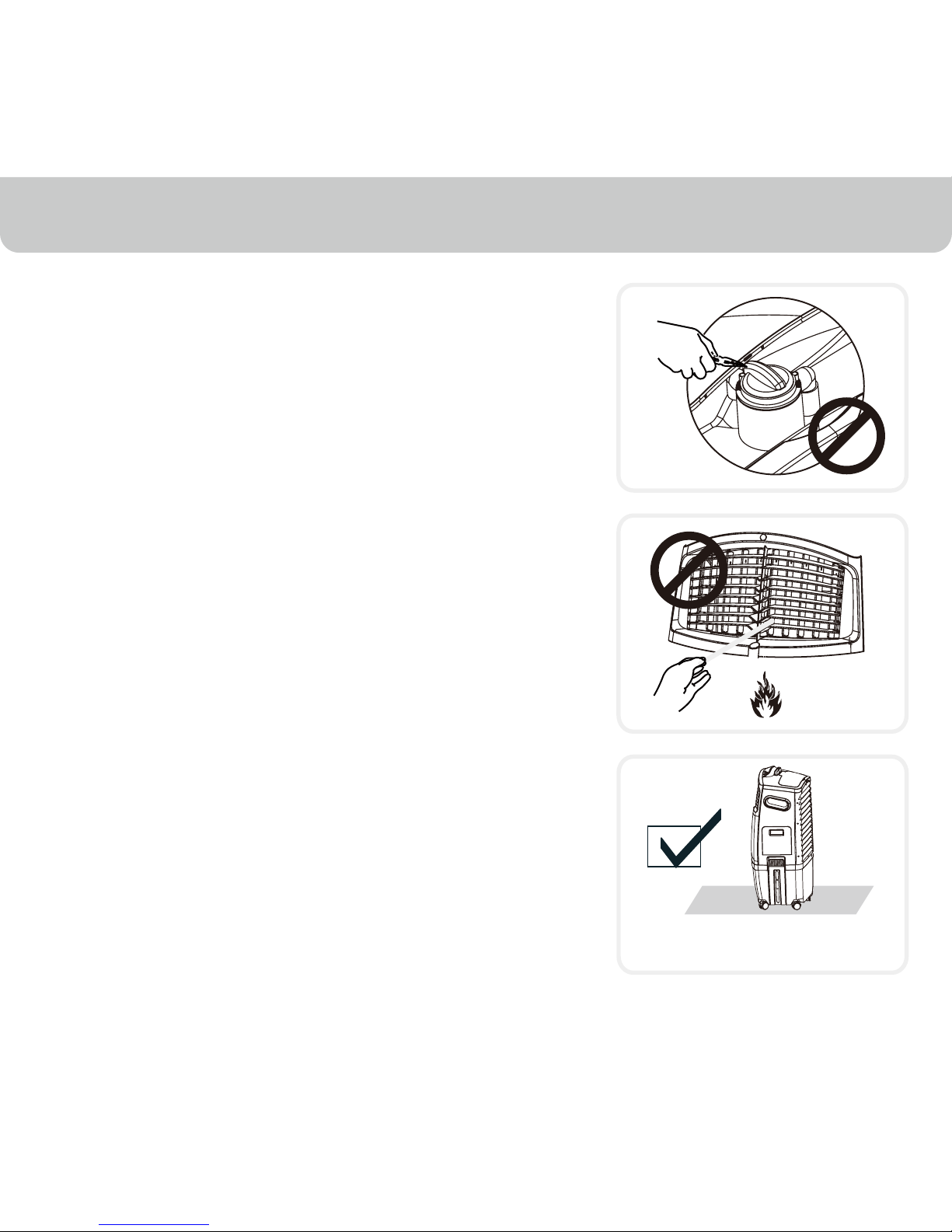

SAFETY RULES
120 Volt AC, 60 Hz
SHOCK HAZARD
Always unplug the product before refilling the water tank.
•
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
•
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
•
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
•
WATER LEVEL INDICATOR
When using the ''COOL'' setting, please check the water tank
to ensure it is full. Operation of this unit on the ''COOL'' setting
with an empty tank may result in damage tothe water pump.
•
5
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
•
•Your unit runs on 120 Volt AC, 60 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
•Before operating the product remove it from its packaging
and check it is in good condition.
•DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.

may cause motor damage.
SAFETY RULES
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
When the unit is not in use always store in a dry area.
•
This product is not intended for use in wet or damp locations.
•
DO NOT let children play with this appliance, packaging or
plastic bags.
•
DO NOT leave the appliance operating unattended for any
extended period of time.
•
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
•
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
•
DO NOT attempt to repair or adjust any electrical or mechanical
functions of the cooler, as this may void the warranty.
•
DO NOT cover the air inlet or outlet on the appliance as this
•
FLOOR LEVEL
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and /or please
seek professional advice.
•
Place the unit on a level floor.
•
DO NOT use in bathrooms or outdoors. Never locate the
product where it may fall into a bathtub or other water
container.
•
6
Always grip the side handles to move the unit.
•

7
6
Control Panel
Handle
Louvers
Left Side Panel
Water Tank
Power Cord
Power Plug
Casters
Back Grill
Front Panel
Water Level Indicator
Remote Control
Latch
Right Side Panel
Water Fill Door
1
2
3
4
5
6
7
8
Ice Compartment Lid
9
10
11
12
13
14
15
16
17
Water Regulator (under part 9)
18
PARTS DESCRIPTION
1
11
12 17
14
15
16
13
2
4
3
5
8
9
18
10
ACCESSORIES:
Remote Control (2 AAA Batteries not included)
7
Drain Plug

8

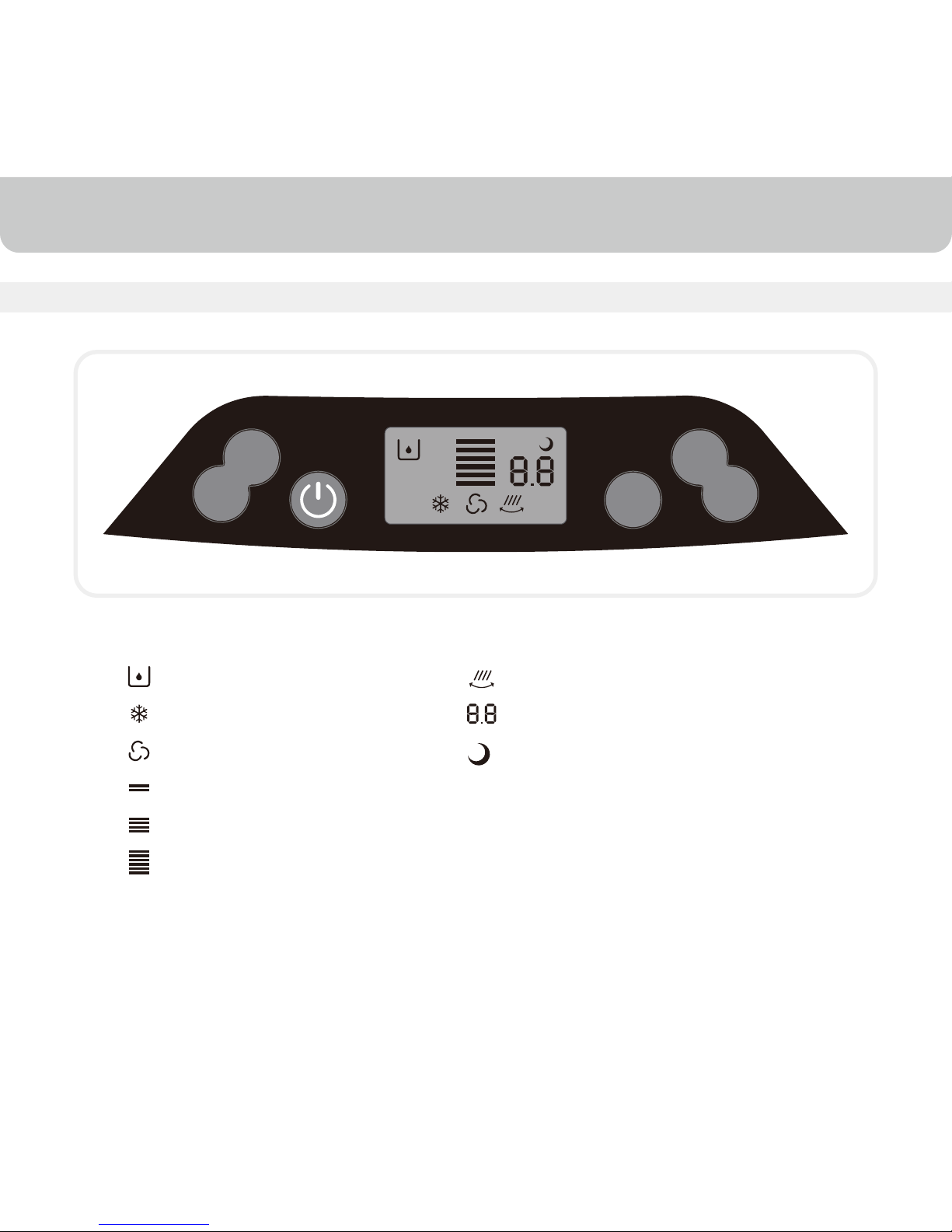

CONTROL PANEL
USE & OPERATION
Icons on LCD
Low water level in tank
Cool
Fan operating Sleep
Low speed
Medium speed
High speed
Swing
Time delay set
COOL
SPEED
SLEEP
TIMER
SWING

USE & OPERATION
9
FUNCTION BUTTONS
POWER
Press the 'POWER' button to turn the unit on. To turn the unit
off, press the button again. The cooler will start automatically at
medium speed. After a few seconds the speed will switch to low.
FAN / SPEED
Press the 'FAN OR SPEED' button repeatedly and the speed
will change. The indicator light will show the selected speed.
COOL
To begin cooling the desired area press the ''COOL’'
button. The indicator light will come on and the water
pump will operate. You will feel the cooler air after the
Honeycomb media is completely wet.
High Medium Low
COOL
SPEED

USE & OPERATION
10
SLEEP
When the SLEEP button is pressed, the cooler will run on
HIGH speed for 1 hour, subsequently changing to MEDIUM
speed for 1 hour followed by LOW speed for the remaining
time.
TIMER
Press the ''TIMER'' button until the indicator light comes on to
your desired timer. Once the set time has passed, the unit will
automatically shut off. The Timer function allows you to program
the unit for up to 8 hours of use.
TIMER
SWING
Press the ''SWING'' button. The indicator light will come on
and the louvers will begin to move from right to left automatically.
Manually adjust the horizontal louvers to change vertical airflow.
LOUVERS MOVEMENT
SLEEP
SWING

USE & OPERATION
LOW WATER ALARM FUNCTION
The unit is equipped with a low water sensor. When water in the tank is below the
minimum level, you will hear 10 beeps and the COOL LCD indicator will flash
continuously. At the same time the power to the pump inside the unit will be cut off
to protect the life of the pump.
To disengage the alarm function, turn off and unplug the unit from the power
outlet, and fill the tank with water above the minimum level.
To turn off the alarm function and continue to use it in FAN mode, turn off the unit
and turn the unit on. If COOL button is pressed again without filling the tank with
water, low water alarm will activate again.
COOLER LOCATION
Place the cooler in front of an open door or window. Ensure that there is adequate
cross - ventilation in the room by leaving a door or window open opposite from the
cooler.
Following these rules will ensure your cooler will work as effectively as possible.
11

USE & OPERATION
ROOM COOLING AND HUMIDIFYING
When the Water Regulator(Part 18) is set to ''MIN'', the
water pump distributes minimal amount of water to the
Honeycomb media. This results in less water evaporation
and reduces cooling effect.
When the Water Regulator is set to ''MAX'', the water pump
distributes the maximum amount of water to the Honeycomb
media. This results in maximum water evaporation and the
cooling performance improves. Water Regulator
12

USE & OPERATION
REMOTE CONTROL
Power: On /Off
Speed: Low / Medium / High
Cool/Fan: Controls cooling or fan option
Swing: Controls the motion of the louvers
Timer:
Turns on the sleep mode(Cooler runs on high
speed for 1 hr followed by medium speed for
1 hr and then remains in low speed)
Sleep :
Remote Control (2 AAA Batteries not included)
Controls timer function for automatic shut off
NOTE
Open the battery compartment at the back of the remote control and insert two new
AAA dry cell batteries. Care must be taken to insert the batteries according to the
correct polarity (+ / –) markings shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating.
Make sure that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Exhausted batteries are to be removed from the product.
•
•
•
•
•
•
•
•
SLEEP
TIMER
SPEED
POWER
COOL
SWING
13

USE & OPERATION
14
Filling With Water
Unplug from power when refilling.
Unplug the air cooler from power supply.
Check water level indicator located on the front of the unit to
determine the level of water inside the water tank. The water
tank of this cooler holds up to 8 gallons of water. Be sure
water in the tank is always above the minimum water level
mark.
To refill the water tank, open the Water Fill Door located below
the left side panel and fill water to the Max Level, as indicated
on the Water Level Indicator. Do not fill water above the Max
water level mark.
For better cooling performance, it is recommended to put ice
cubes inside the ice compartment located on the top of the
cooler.
After refilling the water tank and loading ice, close the water fill
door, connect the power supply and turn on.
Note :
Running the unit with inadequate water may cause pump
failure.
CAUTION
Water Fill Door
Top Ice Loading Compartment

WARNING
CLEANING & MAINTENANCE
Before cleaning the unit, switch it to the ''off'' position and remove the plug from the
power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals toclean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.

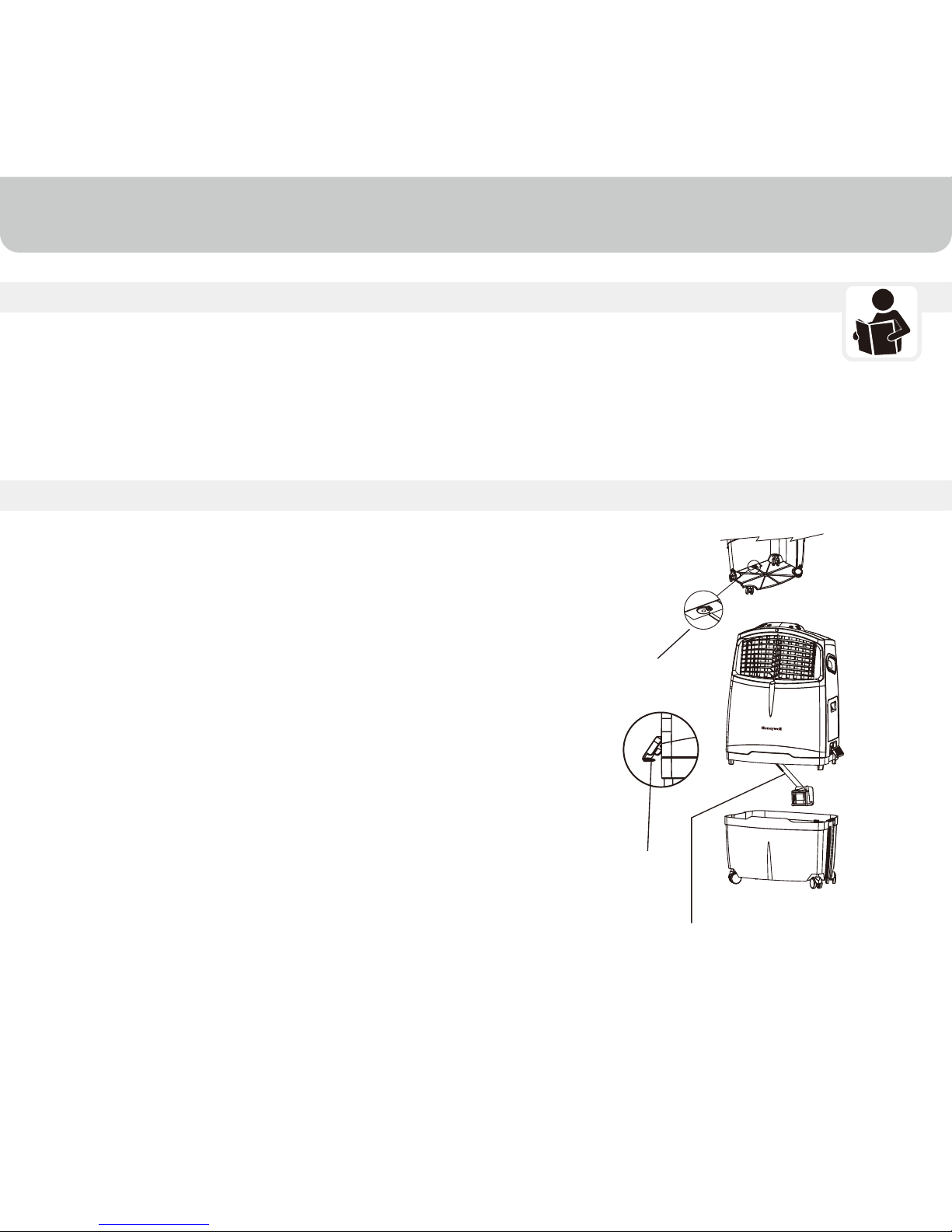

DRAINING AND CLEANING THE WATER TANK
•
•
•
•
•
•
•
•
•
•
•
•
Latch
Water Pick Up Tube
Turn the power “off” and disconnect the air cooler from the
power supply.
Move the unit to a location where it can be drained. Remove
the drain plug (Part 17) and allow the tank to empty
Once the tank is empty, unlock the latches on both sides
and lift off the cooler top section as shown in the figure and
place it vertically on the floor. Be careful not to bend the
water pickup tube that hangs below the unit.
Refill the water tank with clean water and drain it completely.
Clean the water tank with detergent or a damp cloth and
rinse it thoroughly.
Place the unit top carefully on the tank and lock the latches.
Refill the water tank with clean water, up tothe maximum level.
The air cooler is now ready to be used. This cleaning
process should be repeated weekly to maintain the integrity
of the unit and to remove particles filtered from the air.
15
Drain Plug

CLEANING & MAINTENANCE

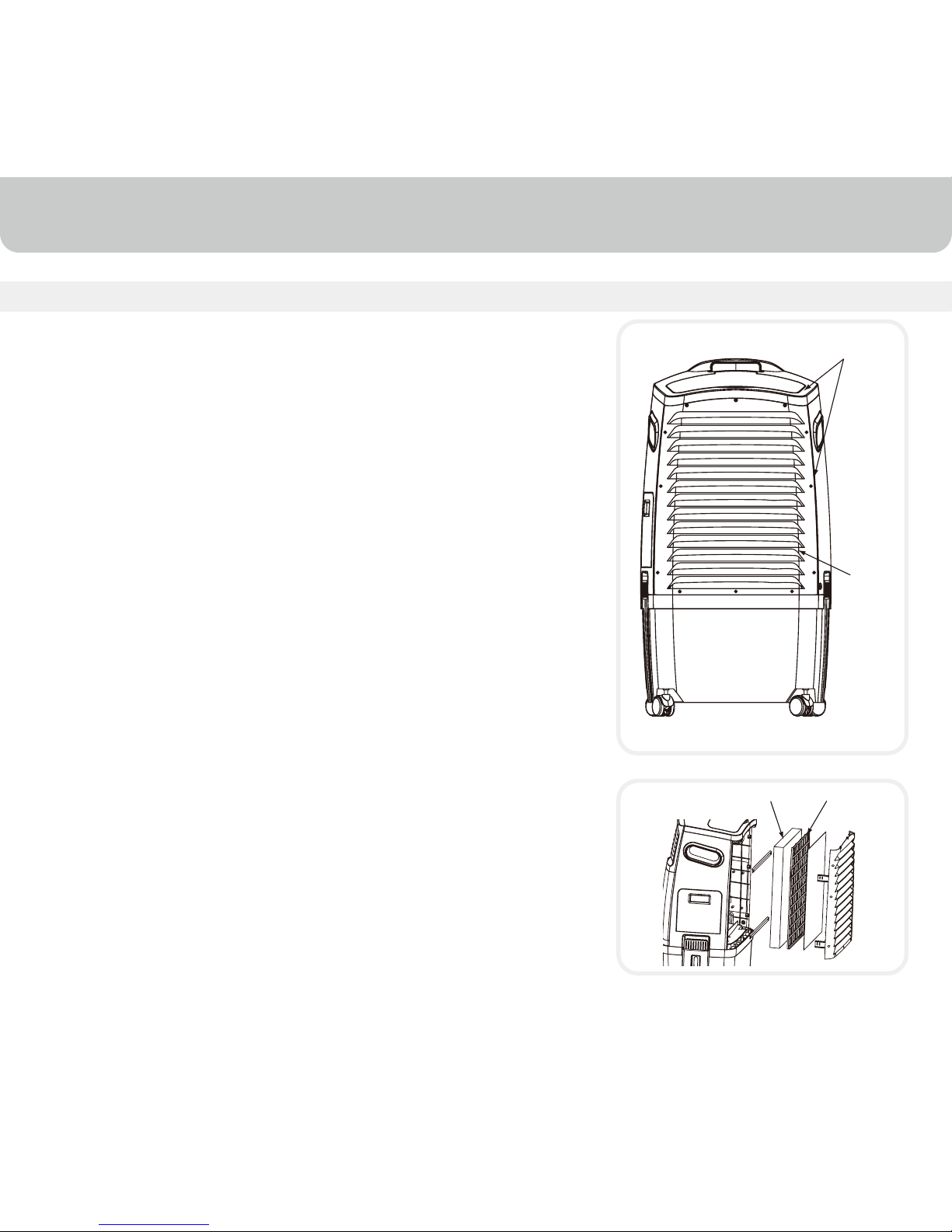

CLEANING THE FILTER AND HONEYCOMB
The appliance is supplied with carbon filter & honeycomb
cooling media.
•
Always keep the Carbon filter clean. You can wash the
Carbon filter at least twice a year or whenever you feel
necessary.
•
The carbon filter and honeycomb media are located inside the
back panel. Open the back panel by using a star screw driver
to clean or replace the carbon filter or honeycomb media. It is
recommended that the carbon filter and honeycomb media be
replaced every year, depending on use and environment.
•
Draining the water reservoir and refilling with fresh water at
least once a week will greatly reduce mineral deposits in the
pads and help to extend the life of Honeycomb cooling media.
•
Do not run the unit in COOL mode with stale water in the tank.
You must empty the water tank and refill with fresh water,
especially if the tank has not been cleaned in a long time.
•
The cleaning frequency for the Honeycomb media depends
on local air and water conditions. In areas where the mineral
content of water is high, mineral deposits may build up on the
honeycomb cooling media and restrict air flow. Draining the
water reservoir and refilling with fresh water at least once a
week will help reduce mineral deposits. If mineral deposits
remain on the Honeycomb media, the media should be
removed and washed under fresh water. The media should be
cleaned every two months or sooner, depending on your needs.
•
For best results allow the honeycomb cooling media to dry
after each use by turning off the cool function 15 minutes
before turning the unit off.
•
Open Screws
Back Panel
Honeycomb Carbon Filter
16

TROUBLESHOOTING GUIDE
17
No discharge of air Cord is not plugged in. Make sure power cord is
plugged in and the supply
switch is on.
Power is not on. Turn the unit ON by pressing
button on the control panel.
Not Cooling / Unit is
making noise
Pump is not turned ON. On Control Panel, turn COOL
FUNCTION to “ON”.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odors When the Cooler is new. When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a few hours of initial use.
If the Cooler has been used. There may be an algae issue.
Replace the Honeycomb Cooling
Media.
Damaged Pump or Calcium
deposits on blower.
Contact service center.
PROBLEM POSSIBLE CAUSE SOLUTION
Customer Support: 1-800-474-2147

TROUBLESHOOTING GUIDE
18
The unit does not respond Remote control batteries. Check batteries. Replace if
needed. Try to operate using
the control panel.
Damaged PCB. Try with remote control. If the
unit responds, PCB board
fasteners may be loose.
Contact service center.
If neither remote control nor
control panel works, PCB
board may be damaged.
Contact service center.
PROBLEM POSSIBLE CAUSE SOLUTION
Customer Support: 1-800-474-2147
