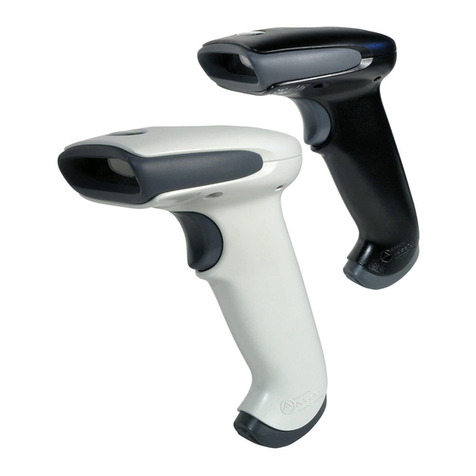

Honeywell 3800 Linear Series User manual

3800 Linear Series
Quick Start Guide

1
Note: Refer to your user’s guide for information
about cleaning your device.
For localized language versions of this document,
go to www.honeywell.com/aidc.
Getting Started
Turn off computer’s power before connecting the
scanner, then power up the computer once the
scanner is fully connected.
USB Connection

2
Keyboard Wedge Connection
Serial (RS-232) Connection

3
Reading Techniques
The view finder
projects a red
aiming beam that
should be
centered over the
bar code.
Hold the scanner
over the bar code,
pull the trigger,
and center the
aiming beam on
the bar code.
The aiming beam is smaller when the scanner is
closer to the code and larger when it is farther from
the code. Hold the scanner close to smaller bar
codes, and farther away from large bar codes to get
a proper read.
If the bar code is highly reflective (e.g., laminated),
you may need to tilt the scanner at an angle so the
bar code can be scanned.

4
To read PDF417 bar codes with a PDF-enabled
3800, hold the trigger down and move the scanner
up and down so the aiming line sweeps from the top
of the bar code to the bottom, and back up.
This ensures that the entire code is scanned.
Note: This only applies to a PDF enabled 3800/
3800g.
Standard Product Defaults
The following bar code resets all standard product
default settings.
Standard Product Defaults

5
Interface
Scan the bar code that describes the PC or
interface you are using.
AT/PS2 Keyboard Wedge
(Default)
RS-232
USB Keyboard (PC)
Emulate External Keyboard
Japan DOS/V

6
Keyboard Country
Scan the Program Keyboard Country bar code
below, then scan the numeric bar code(s) from
page 10, then the Save bar code to program the
keyboard for your country. As a general rule, the
following characters are not supported by the
scanner for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~.
Note: For a complete list of country codes, see the
User’s Guide for your product at our website,
www.honeywell.com/aidc.
Country Code Scan Country Code Scan
Belgium 1 Italy 5
Denmark 8 Norway 9
Finland 2 Spain 10
France 3 Switzerland 6
Germany/Austria 4 USA (Default) 0
Great Britain 7
Program Keyboard Country
Save

7
Trigger
The following bar codes will allow you to use the
reader in Manual Trigger mode (need to press the
trigger to read), Automatic Trigger mode (the beam
is always on), or Presentation mode (the reader is
activated when it “sees” a bar code).
Reread Delay
This sets the time period before the scanner can
read the
same bar code a second time. Setting a
reread delay protects against accidental rereads of
the same bar code.
Manual Trigger
(Default)
Automatic Trigger
Presentation Mode
Medium Reread Delay
for 3800 only
Medium Reread Delay
for 3800g, 3800r and 3800i

8
Suffix
If you want a carriage return after the bar code,
scan the Add CR Suffix bar code. To add a tab
after the bar code, scan the Add Tab Suffix bar
code. Otherwise, scan the Remove Suffix bar
code to remove the suffixes.
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a
Code ID prefix to all symbologies at once.
Note: For a complete list of Code IDs, see the
User’s Guide for your product at our website,
www.honeywell.com/aidc.
Add CR Suffix
Remove Suffix
Add Tab Suffix
Add Code ID Prefix To All Symbologies
(Temporary)

9
Data Format Editor Instructions
The following are abbreviated instructions for
entering a data format. For complete instructions
refer to your User’s Guide, available at our website,
www.honeywell.com/aidc.
1. Scan the Enter Data Format symbol.
2. Primary/Alternate Format: scan 0for Primary
Format.
3. Terminal Type: scan 099 for any terminal type.
4. Code I.D.: scan 99 for any bar code type.
5. Length: scan 9999 for any length bar code.
6. Editor commands: use the Programming Chart
that follows.
7. Scan Save to save your entries.
Enter Data Format
Clear All Data Formats
Save

10
Programming Chart
0
2
1
4
3
5
6
7

11
A
B
C
D
E
F
9
8
Save

12
Visual Menu
To obtain access to additional features for the 3800,
use Visual Menu, available from our website at
www.honeywell.com/aidc. For complete download
instructions and descriptions of Visual Menu’s
features, refer to your User’s Guide.
Visual Xpress™
To obtain access to additional features for the
3800g, 3800gHD, 3800gPDF, 3800i, or 3800r, use
Visual Xpress, available from our website at
www.honeywell.com/aidc. For complete download
instructions and descriptions of Visual Xpress
features, refer to your User’s Guide.
Technical Assistance
If you need assistance installing or troubleshooting
your device, please call your distributor or the
nearest technical support office:
North America/Canada
Telephone: [phone]
(8 a.m. to 6 p.m. EST)
Fax number: [phone]
E-mail: [email protected]
Visual Menu

13
Latin America
Telephone: [phone]
Telephone: [phone]
E-mail: [email protected]
Brazil
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Mexico
Telephone: [phone]
E-mail: [email protected]
Europe, Middle East, and Africa
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Asia Pacific
Telephone - Hong Kong: [phone] or 2511-3050
Telephone - China: [phone]
E-mail: [email protected]
Japan
Telephone: [phone]
E-mail: [email protected]
Malaysia
Telephone: [phone]
E-mail: [email protected]
Online Technical Assistance
You can also access technical assistance online at
www.honeywell.com/aidc.

14
For Further Information
To download the full User’s Guide for these
products, visit our website at www.honeywell.com/
aidc.
Product Service and Repair
Honeywell provides service for all its products
through service centers throughout the world. To
obtain warranty or non-warranty service, contact
the appropriate location below to obtain a Return
Material Authorization number (RMA #) before
returning the product.
North America
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Latin America
Telephone: [phone]
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Brazil
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Mexico
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]

15
Europe, Middle East, and Africa
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Asia Pacific
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Japan
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Online Product Service and Repair
Assistance
You can also access product service and repair
assistance online at www.honeywell.com/aidc.

16
Limited Warranty
Honeywell International Inc. ("Honeywell") warrants its
products to be free from defects in materials and
workmanship and to conform to Honeywell’s published
specifications applicable to the products purchased at the
time of shipment. This warranty does not cover any
Honeywell product which is (i) improperly installed or
used; (ii) damaged by accident or negligence, including
failure to follow the proper maintenance, service, and
cleaning schedule; or (iii) damaged as a result of (A)
modification or alteration by the purchaser or other party,
(B) excessive voltage or current supplied to or drawn from
the interface connections, (C) static electricity or electro-
static discharge, (D) operation under conditions beyond
the specified operating parameters, or (E) repair or
service of the product by anyone other than Honeywell or
its authorized representatives.
This warranty shall extend from the time of shipment for
the duration published by Honeywell for the product at the
time of purchase ("Warranty Period"). Any defective
product must be returned (at purchaser’s expense) during
the Warranty Period to Honeywell factory or authorized
service center for inspection. No product will be accepted
by Honeywell without a Return Materials Authorization,
which may be obtained by contacting Honeywell. In the
event that the product is returned to Honeywell or its
authorized service center within the Warranty Period and
Honeywell determines to its satisfaction that the product is
defective due to defects in materials or workmanship,
Honeywell, at its sole option, will either repair or replace
the product without charge, except for return shipping to
Honeywell.

17
EXCEPT AS MAY BE OTHERWISE PROVIDED BY
APPLICABLE LAW, THE FOREGOING WARRANTY IS
IN LIEU OF ALL OTHER COVENANTS OR
WARRANTIES, EITHER EXPRESSED OR IMPLIED,
ORAL OR WRITTEN, INCLUDING, WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
HONEYWELL’S RESPONSIBILITY AND PURCHASER’S
EXCLUSIVE REMEDY UNDER THIS WARRANTY IS
LIMITED TO THE REPAIR OR REPLACEMENT OF THE
DEFECTIVE PRODUCT WITH NEW OR REFURBISHED
PARTS. IN NO EVENT SHALL HONEYWELL BE LIABLE
FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, AND, IN NO EVENT, SHALL ANY LIABILITY
OF HONEYWELL ARISING IN CONNECTION WITH
ANY PRODUCT SOLD HEREUNDER (WHETHER SUCH
LIABILITY ARISES FROM A CLAIM BASED ON
CONTRACT, WARRANTY, TORT, OR OTHERWISE)
EXCEED THE ACTUAL AMOUNT PAID TO
HONEYWELL FOR THE PRODUCT. THESE
LIMITATIONS ON LIABILITY SHALL REMAIN IN FULL
FORCE AND EFFECT EVEN WHEN HONEYWELL MAY
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
INJURIES, LOSSES, OR DAMAGES. SOME STATES,
PROVINCES, OR COUNTRIES DO NOT ALLOW THE
EXCLUSION OR LIMITATIONS OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU.
All provisions of this Limited Warranty are separate and
severable, which means that if any provision is held invalid
and unenforceable, such determination shall not affect the
validity of enforceability of the other provisions hereof.
Use of any peripherals not manufactured/sold by
Honeywell may result in damage not covered by this

18
warranty. This includes but is not limited to: cables, power
supplies, cradles, and docking stations. Honeywell
International Inc. extends these warranties only to the first
end-users of the products. These warranties are non-
transferable.
The duration of the limited warranty for the 3800, 3800g,
3800gHD, 3800gPDF is five (5) years.
The duration of the limited warranty for the 3800i is three
(3) years.
Disclaimer
Honeywell International Inc. (“Honeywell”) reserves the
right to make changes in specifications and other
information contained in this document without prior
notice, and the reader should in all cases consult
Honeywell to determine whether any such changes have
been made. The information in this publication does not
represent a commitment on the part of Honeywell.
Honeywell shall not be liable for technical or editorial
errors or omissions contained herein; nor for incidental or
consequential damages resulting from the furnishing,
performance, or use of this material.
This document contains proprietary information that is
protected by copyright. All rights are reserved. No part of
this document may be photocopied, reproduced, or
translated into another language without the prior written
consent of Honeywell.
©2006-2008 Honeywell International Inc. All rights
reserved.
Web Address: www.honeywell.com/aidc

Honeywell
700 Visions Drive
P.O. Box 208
Skaneateles Falls, NY 13153-0208
Linear-02-QS Rev B
6/08
