Honeywell TrueFRESH VNT5150H1000 User manual

Tools required to install ERV/HRV
 Aluminumfoiltape(UL181B)
 Standardscrewdriver
 Crescentwrench
 Hexdriver(1/4in.)
Accessories (not included)
 6in.diameterinsulatedduct
 6in.diameterduct
 Two6in.diameterweatherhoods
E F
D
OPTIONALCONTROLSSOLDSEPARATELY
G1G2G3
G6
A1A2B C
E
F
D
ERV/HRVVNT5150H1000orVNT5150E1000or
ERV/HRVVNT5200H1000orVNT5200E1000
Heat/EnergyRecoveryCore(1)
Filter(2)
ProfessionalInstallationGuide
DuctCollars(4)
InstallationKit
OptionalControls:1-VisionProIAQ,2-TrueIAQ,
3-DehumidistatH8908D,4-PrestigeIAQ,
5-20/40/60MinuteBoostControl,and
6-W8150VentilationControl
A1
A2
B
C
G
G5G4
Tools required to install ERV/HRV
Aluminum foil tape (UL181B)
Standard screwdriver
Crescent wrench
Hex driver (1/4 in.)
Accessories (not included)
6 in. diameter insulated duct
6 in. diameter duct
Two 6 in. diameter weather hoods
E F
D
OPTIONAL CONTROLS SOLD SEPARATELY
G1G2G3
G6
A1A2B C
E
F
D
ERV/HRV VNT5150H1000 or VNT5150E1000 or
ERV/HRV VNT5200H1000 or VNT5200E1000
Heat/Energy Recovery Core (1)
Filter (2)
Professional Installation Guide
Duct Collars (4)
Installation Kit
Optional Controls: 1- Vision Pro IAQ, 2 - True IAQ,
3 - Dehumidistat H8908D, 4 - Prestige IAQ,
5 - 20/40/60 Minute Boost Control, and
6 - W8150 Ventilation Control
A1
A2
B
C
G
G5G4
Tools required to install ERV/HRV
Aluminum foil tape (UL181B)
Standard screwdriver
Crescent wrench
Hex driver (1/4 in.)
Accessories (not included)
6 in. diameter insulated duct
6 in. diameter duct
Two 6 in. diameter weather hoods
E F
D
OPTIONAL CONTROLS SOLD SEPARATELY
G1G2G3
G6
A1A2B C
E
F
D
ERV/HRV VNT5150H1000 or VNT5150E1000 or
ERV/HRV VNT5200H1000 or VNT5200E1000
Heat/Energy Recovery Core (1)
Filter (2)
Professional Installation Guide
Duct Collars (4)
Installation Kit
Optional Controls: 1- Vision Pro IAQ, 2 - True IAQ,
3 - Dehumidistat H8908D, 4 - Prestige IAQ,
5 - 20/40/60 Minute Boost Control, and
6 - W8150 Ventilation Control
A1
A2
B
C
G
G5 G4

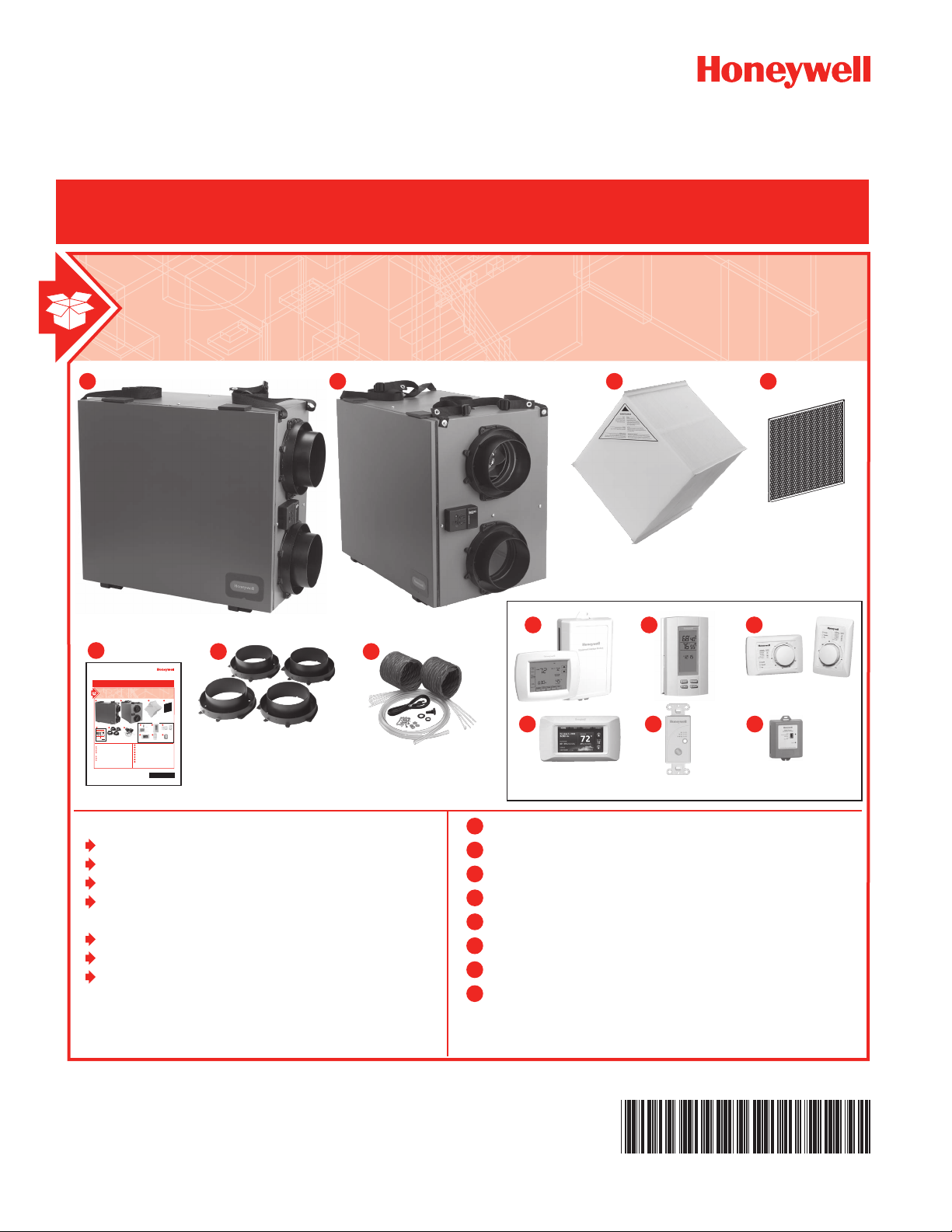

PROFESSIONAL INSTALLATION GUIDE.
GUIDE D’INSTALLATION PROFESSIONNELLE.
ERV/HRV Ventilation Systems
INCLUDED IN THIS BOX
69-2480EF-01
PROFESSIONAL INSTALLATION GUIDE.
GUIDE D’INSTALLATION PROFESSIONNELLE.
ERV/HRV Ventilation Systems
INCLUDED IN THIS BOX
69-2480EF-01
PROFESSIONAL INSTALLATION GUIDE.
GUIDE D’INSTALLATION PROFESSIONNELLE.
ERV/HRV Ventilation Systems
INCLUDED IN THIS BOX
69-2480EF-01

Liste de vérication pour
l’installation
Contenu
A1VRÉ/VRCVNT5150H1000ouVNT5150E1000ou
A2VRÉ/VRCVNT5200H1000ouVNT5200E1000
B Noyauderécupérationdechaleuretd’énergie
C Filtre(2)
D Guided’installation
E Raccordsdeconduit(4)
F Troussedequincaillerie
Commandes en option (vendues séparément)
G1-VisionProIAQ
G2-TrueIAQ
G3-DéshumidistatH8908D
G4-PrestigeIAQ
G5-Minuteurdeventilationàhautevitesse
 (20,40ou60minutes)
G6-RégulateurdeventilationW8150
Outils nécessaires (non fournis)
• Ruband’aluminium(UL1818)
• Tournevisstandard
• Cléàmolette
• Tournevisàtêtehexagonale(1/4po)
Accessoires (non inclus)
• Conduitisoléde6podediamètre
• Conduitde6podediamètre
• Deuxhottesanti-intempériesde6po
Avertissement :L’installationdoitêtreeffectuée
paruntechnicienqualiéetêtreconformeaux
règlementslocaux.
Débranchezl’appareilavantdel’installerou
d’eneffectuerl’entretien.
Unbranchementdel’appareilnonconforme
auxprésentesinstructionspourraitentraîner
desdommagesàl’appareillui-mêmeouaux
commandes.
INSTRUCTIONS POUR L’INSTALLATION COMMEN-
CENT À LA PAGE 33
Installation Checklist
Included in This Box
A1ERV/HRVVNT5150H1000orVNT5150E1000or
A2ERV/HRVVNT5200H1000orVNT5200E1000
B Heat/EnergyRecoveryCore
C Filter(2)
D InstallationGuide
E DuctCollars(4)
F InstallationKit
Control Options (Sold separately)
G1-VisionProIAQ
G2-TrueIAQ
G3-DehumidistatH8908D
G4-PrestigeIAQ
G5-20/40/60MinuteBoostControl
G6-W8150VentilationControl
Tools Required (Not Supplied)
• Aluminumfoiltape(UL1818)
• Standardscrewdriver
• Crescentwrench
• Hexdriver(1/4in.)
Accessories (not included)
• 6in.diameterinsulatedduct
• 6in.diameterduct
• Two6in.diameterweatherhoods
Warning: Installationmustbeperformedbya
qualiedservicetechnicianandmustcomply
withlocalcodes.
Removepowertothedevicebeforeinstallingor
servicingthedevice.
Failuretoconnectthedeviceaccordingto
theseinstructionsmayresultindamagetothe
deviceorthecontrols.
INSTALLATION INSTRUCTIONS
BEGIN ON PAGE 1

ERV/HRVVentilationSystem
 NEEDHELP?Forassistancewiththisproductpleasevisithttp://yourhome.honeywell.com
 orcallHoneywellCustomerCaretoll-freeat1-800-468-1502.
Readandsavetheseinstructions.
® U.S. Registered Trademark. Patents pending. Copyright © 2010 Honeywell International Inc. All rights reserved.
?
ERV/HRV Ventilation Systems 69-2480EF—01
ABOUTYOURNEWVENTILATIONSYSTEM
Benets.......................................................................2
DeterminingYourVentilationNeeds..........................3
Specications.............................................................4
ExternalControlOptions............................................9
INSTALLATION
InstalltoFitYourApplication...................................10
InstallationSteps......................................................13
AutomaticDefrost....................................................18
Wiring........................................................................18
Prestige™2-wireIAQandRFEIMWiring.........19
Prestige™ThermostatWiring............................20
VisionPROIAQWiring.........................................20
GeneralVentilatorWiring...................................21
StandardFurnaceInterlockWiringwith
ForcedAirSystem...............................................21
AlternateInterlockWiringwith
ForcedAirSystem...............................................22
TrueIAQ(DG115EZIQ)Wiring..............................22
INSTALLATION (continued)
DehumidistatWiring............................................23
W8150VentilationControlWiring.......................23
Honeywell20/40/60MinuteBoostControl
Timer....................................................................23
ControlPanel............................................................24
BalancingSteps.......................................................25
BalancingReset..................................................26
Checkout...................................................................26
MAINTENANCE
PeriodicMaintenance..............................................27
Cleaning....................................................................28
Troubleshooting........................................................29
PartsList...................................................................30
WARRANTY
5-YearLimitedWarranty...........................................32
• Priortoinstalling,seriousconsiderationmustbetakentoensurethisventilationsystem
willoperateproperlyifintegratedtoanyothertypeofmechanicalsystem,i.e.aforced
airsystem,oranairhandlingunit.Toensureproperoperationandcompatibilityof
bothsystems,itisrequiredthattheunit’sairflows(intakeandexhaust)bebalanced,by
followingtheproceduresfoundinthismanual
• Installtheunitwithspacetoaccessthefrontpanelcontrolsandthesideaccesspanel
formaintenanceandservice.
• Toensurequietoperation,donotplacethedevicedirectlyonthestructuralsupportsof
thehome.
• Theproductisforresidentialapplicationsonly.Mustbeinstalledinaccordancewithall
nationalandlocalregulations,buildingandsafetycodes

AbouttheERV/HRVVentilationSystem
The Honeywell ERV/HRV Ventilation System provides
improved indoor air quality through its high performance
andefficiency.
Benets
• Ventilationwithsensibleheatrecovery(ERVandHRV)
• Ventilationwithlatentheatrecovery(ERVonly)
• Simplifiedmounting(hanging)
• Removableductcollarsforeasyductingtotheunit
• Intuitivebalancingviatwovariablespeedmotorsanda
speedcontrol
CAUTION: Electrical shock and re hazard. Can cause personal and equipment damage.
• Before servicing or cleaning the system, always remove the power cord from the AC wall
outlet.
• Wear protective clothing and safety glasses when installing ventilator and working with
sheet metal.
• To reduce the hazards of electric shock or re, do not perform any service to the system
other than those stated in the operating manual instructions.
• To reduce the risk of electric shock, this ventilation system comes equipped with a
3-prong plug-in. This plug will t in a polarized outlet only one way.
• Do not use ventilation system for outdoor application.
• Do not pull or twist power cord when disconnecting it from the ventilation system. Grasp
the plug rmly, not the cord.
• Do not modify the power plug in any way; if modied, risk of electric shock, re, or even
damage to the unit may occur.
• Do not use the ventilation system for removal of ammable fumes, gases or connect
directly to any appliances.
• Use a 120 VAC outlet only.
• Do not use an extension cord.
• Do not obstruct or cover the air intake or air outlet of the ventilation system.
• Do not modify, repair or disassemble this system. These tasks are to be performed by
authorized serviced personnel only. Fire, electrical shock and/or bodily injury may occur
if these warnings are not followed.
• To prevent injuries, do not operate the ventilation system, while servicing or maintaining.
There are impeller wheels turning at a very high speed that must fully stop rotating prior
to accessing the inside of the unit.
• Always assess how the operation of the ventilation system may interact with vented
combustion equipment (i.e. Gas Furnace, Oil Furnace, Combustion, Appliances, etc.)
• Ensure unit is properly installed and suspended to prevent falling or dropping injuries.
ERV/HRVVentilationSystems69-2480EF—01
2

DeterminingYourVentilationNeeds
Howmuchfreshairdoyouneed?
Goodairqualityisbasedinpartonthecapacityofthehome’sventilationsystem.Usually,theunit’s
capacityismeasuredinCFM(CubicFeetperMinute)orL/s(Literspersecond)offreshairbeingdistributed
inthelivingspace.UsetheASHRAE62.2VentilationStandard,theRoomCountCalculationMethod,orthe
AirChangePerHour(ACH)Methodtodetermineyourventilationneeds.
ASHRAE62.2VentilationStandard
ASHRAE 62.2 CFM Sizing Chart
Floor Area (ft2)Number of Bedrooms / CFM
0-1 2-3 4-5 6-7 >7
<1500 30 45 60 75 90
1501-3000 45 60 75 90 105
3001-4500 60 75 90 105 120
4501-6000 75 90 105 120 135
6001-7500 90 105 120 135 150
>7500 105 120 135 150 165
ANSI/ASHRAESTANDARD62.2-2007-VentilationAirRequirements;valuesincfm
Theabovechartoutlinestheminimumrequirementsforcontinuousventilation.
RoomCountCalculationMethod
Living Space Number of Rooms x CFM (or L/s) = CFM Required
MasterBedroom x20cfm(or10L/s) =
Basement x20cfm(or10L/s) =
Singlebedroom x10cfm(or5L/s) =
LivingRoom x10cfm(or5L/s) =
DiningRoom x10cfm(or5L/s) =
FamilyRoom x10cfm(or5L/s) =
RecreationRoom x10cfm(or5L/s) =
Other x10cfm(or5L/s) =
Kitchen x10cfm(or5L/s) =
Bathroom x10cfm(or5L/s) =
LaundryRoom x10cfm(or5L/s) =
UtilityRoom x10cfm(or5L/s) =
Total Ventilation Requirement =
AirChangePerHour(ACH)Method
TOTALcubicfeetX0.35perhour=totalcubicfeetperhour
Taketotalanddivideby60togetcubicfeetperminute(CFM)
Example:A25ft.x40ft.(1,000sq.ft.)housewithbasement
1,000sq.ft.x8ft.highx2(1stfloor+basement)=16,000cu.ft.
16,000cu.ft.x0.35ACH=5,600cubicfeetperhour
5,600cu.ft./60Minutes=93cubicfeetperminute(CFM)
93CFMisyourventilationneed
ERV/HRVVentilationSystems69-2480EF—01 3

Specications

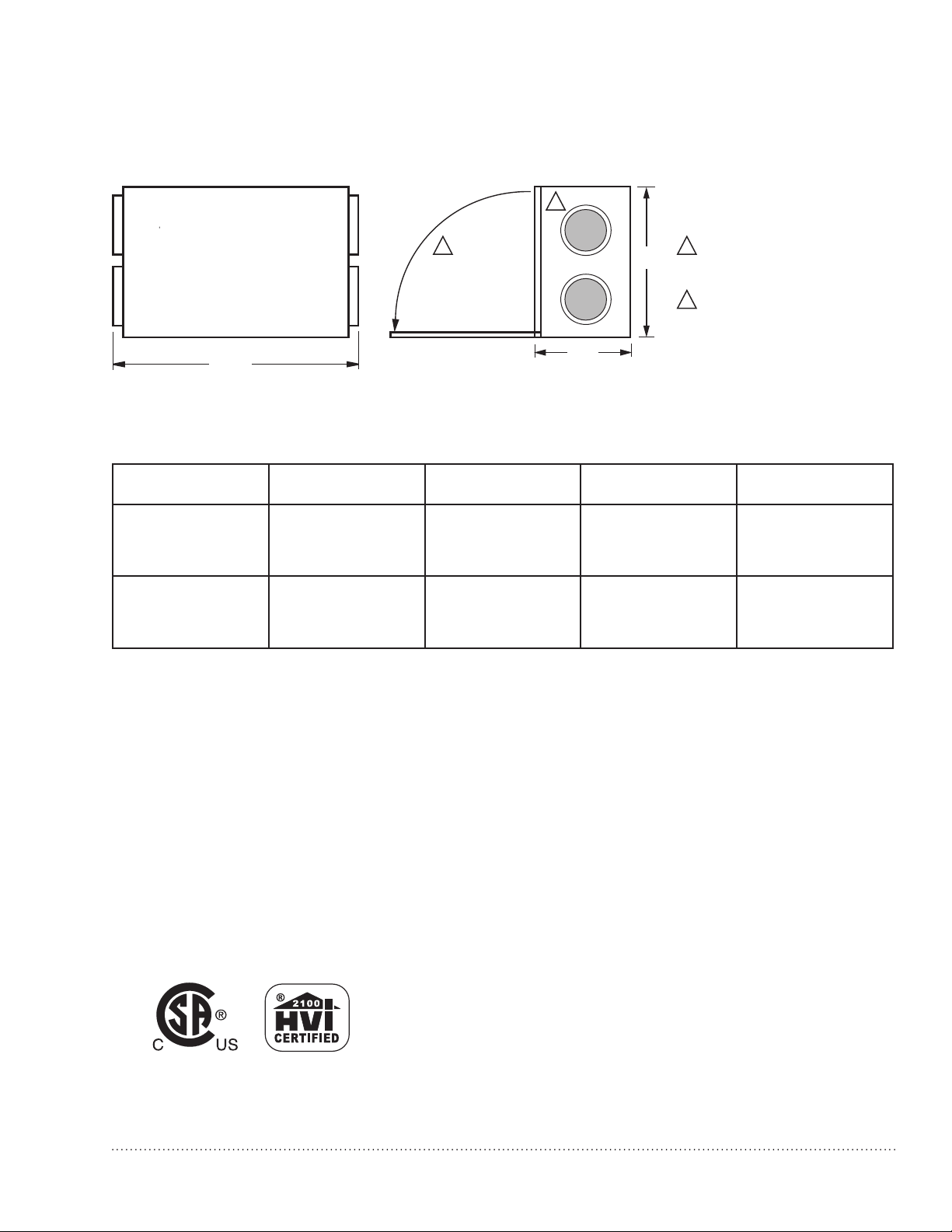

Dimensionsininches(mm):
InstalltheERV/HRVVentilationSystemaccordingtonationalandlocalregulations,building,andsafety
codes.
StandardsandCertications:
Model Product Weight Shipping Weight Heat/Energy Core
Dimensions
Filter Dimensions
VNT5150H1000

VNT5150E1000 42lbs.(19kg) 47.5lbs.(21.55kg)
H=12in.(305mm)
W=10in.(254mm)
L=12in.(305mm)
H=12in.(305mm)
W=10in.(254mm)
VNT5200H1000

VNT5200E1000 50lbs.(22.68kg) 57.5lbs.(26.08kg)
H=12in.(305mm)
W=15in.(381mm)
L=12in.(305mm)
H=12in.(305mm)
W=15in.(381mm)
PhysicalSpecications:
VNT5150H1000 or VNT5150E1000: H = 22 1/2 in. (572 mm), W = 11 1/2 in. (295 mm), L = 29 1/2 in. (749 mm)
VNT5200H1000 or VNT5200E1000: H = 22 1/2 in. (572 mm), W = 16 1/2 in. (422 mm), L = 29 1/2 in. (749 mm)
FRONT CLEARANCE OF 25 INCHES
(635 MM) IS REQUIRED FOR
SERVICING UNIT.
ALL DUCT CONNECTIONS ARE
6 IN. (150 MM).
2
1
H
W
L
1
2
M28919
ERV/HRVVentilationSystems69-2480EF—01
4
• Drain tubing diameter: 1/2in.(12.7mm)
• Flexible Duct (2):6in.roundforinletandoutlet.Flexiblevinyl,compatibleforconnectiontorigidor
flexibleductingwithsheetmetalscrewsand/ortape.
• Cabinet:20gaugegalvanizedsteel
Operating Ranges:
AmbientTemperature:34to135ºF(1to57ºC)
Humidity:0-99%RH
Electrical Ratings:
InputVoltage:120VAC,60Hz
InputCurrent:1.5A
OutputPowertoTerminals:5VDC,1.0A
 maximum

Specications(continued)

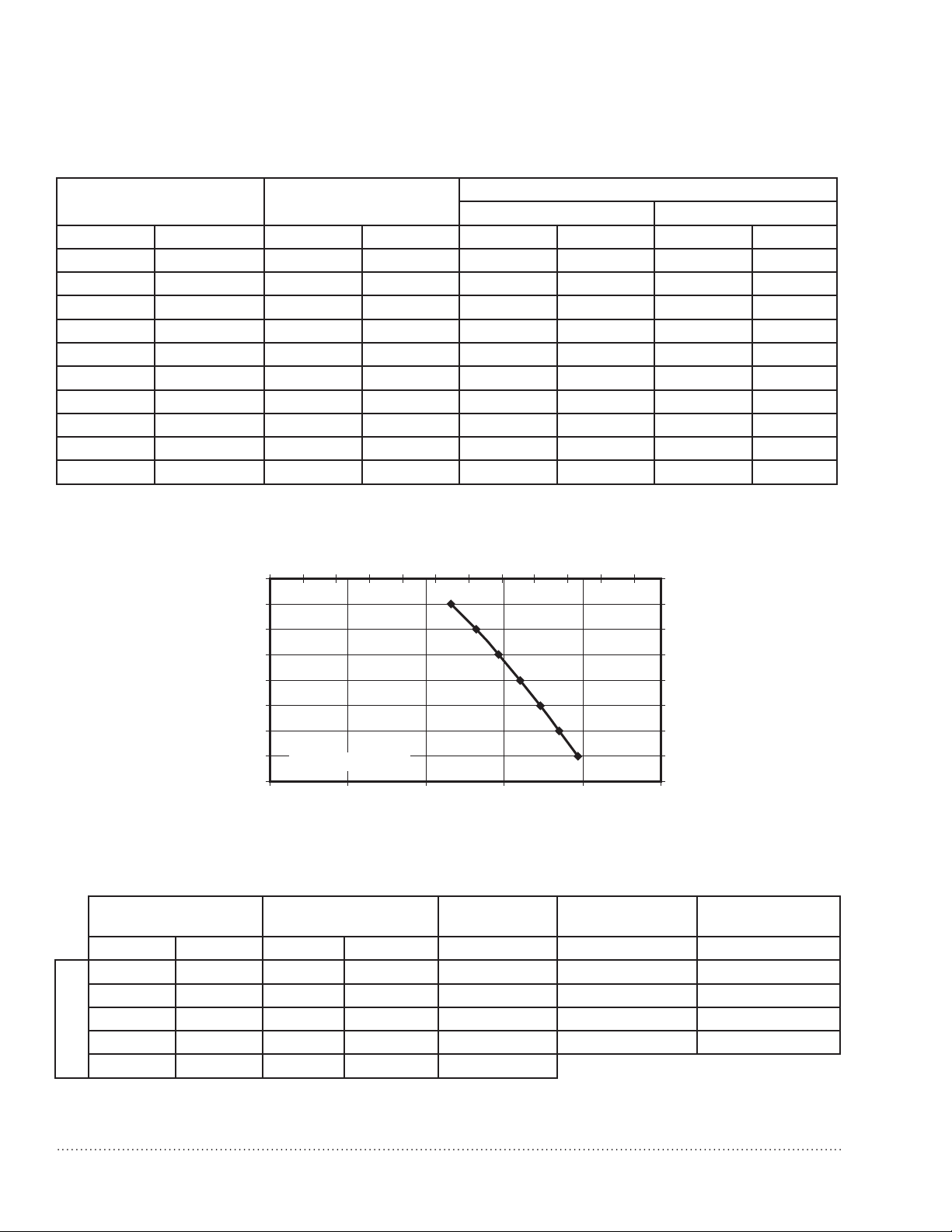

External Static Pressure Net Supply Air Flow Gross Air Flow
Supply Exhaust
Pa in. W.C. L/s CFM L/s CFM L/s CFM
25 0.1 92 195 92 196 113 241
50 0.2 85 182 86 183 105 223
75 0.3 80 171 81 172 91 193
100 0.4 73 156 74 157 84 178
125 0.5 65 139 66 140 75 159
150 0.6 59 126 60 127 65 137
175 0.7 56 120 57 120 57 120
200 0.8 50 107 50 107 48 103
225 0.9 45 95 45 96 40 86
250 1.0 37 79 38 80 34 73
Supply Temperature Net Supply Air Flow Average
Power
Sensible
Recovery
Apparent
Sensible
°C °F L/s CFM Watts Efficiency % Effectiveness %
Heating
0 32 31 66 88 66 78
0 32 42 89 104 64 76
0 32 56 119 114 63 72
-25 -13 32 67 86 59 77
VNT5150H1000VentilationPerformance
VNT5150H1000EnergyPerformance
ERV/HRVVentilationSystems69-2480EF—01 5
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0 50 100 150 200 250
0
25
50
75
100
125
150
175
200
0 10 20 30 40 50 60 70 80 90 100 110
AIR FLOW (CFM)
VNT5150H1000
AIR FLOW (L/S)
EXTERNAL
STATIC
PRESSURE
(PA)
EXTERNAL
STATIC
PRESSURE
(IN. W. C)
M32358
NET SUPPLY AIR FLOW

Specications(continued)
External Static
Pressure Net Supply Air Flow Gross Air Flow
Supply Exhaust
Pa in. W.C. L/s CFM L/s CFM L/s CFM
25 0.1 117 248 118 250 130 277
50 0.2 108 229 109 231 119 253
75 0.3 102 218 103 220 110 234
100 0.4 94 200 95 202 101 216
125 0.5 85 181 86 183 92 197
150 0.6 77 163 78 165 82 175
175 0.7 69 146 70 148 71 151
200 0.8 61 129 61 131 60 128
225 0.9 52 110 52 111 49 104
250 1.0 45 96 46 97 40 86
Supply Temperature Net Supply Air Flow Average
Power
Sensible
Recovery
Apparent
Sensible
°C °F L/s CFM Watts Efficiency % Effectiveness %
Heating
0 32 55 118 106 61 71
0 32 75 160 132 58 65
0 32 87 185 150 55 62
-25 -13 57 120 105 58 72
VNT5200H1000VentilationPerformance
VNT5200H1000EnergyPerformance
ERV/HRVVentilationSystems69-2480EF—01
6
VNT5200H1000
AIR FLOW (L/S)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0 50 100 150 200 250 300
0
25
50
75
100
125
150
175
200
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
EXTERNAL
STATIC
PRESSURE
(IN. W. C)
NET SUPPLY AIR FLOW
AIR FLOW (CFM)
EXTERNAL
STATIC
PRESSURE
(PA)
M32354

Specications(continued)
External Static Pressure Net Supply Air Flow Gross Air Flow
Supply Exhaust
Pa in. W.C. L/s CFM L/s CFM L/s CFM
25 0.1 92 197 96 204 93 199
50 0.2 87 185 93 199 88 186
75 0.3 82 173 88 186 82 175
100 0.4 75 160 83 176 76 162
125 0.5 69 146 76 162 70 148
150 0.6 62 132 72 152 63 134
175 0.7 55 116 67 143 55 117
200 0.8 48 102 60 127 48 103
225 0.9 41 88 54 114 42 89
250 1.0 38 81 42 89 39 82
Supply Temperature Net Supply Air Flow Average
Power
Sensible
Recovery
Apparent
Sensible
°C °F L/s CFM Watts Efficiency % Effectiveness %
Heating
0 32 30 64 75 52 67
0 32 45 96 100 44 64
0 32 55 117 126 40 62
-15 5 30 64 80 52 67
35 95 30 64 75
VNT5150E1000VentilationPerformance
VNT5150E1000EnergyPerformance
Total Recovery Efficiency = 49%
ERV/HRVVentilationSystems69-2480EF—01 7
VNT5150E1000
AIR FLOW (L/S)
AIR FLOW (CFM)
EXTERNAL
STATIC
PRESSURE
(IN. W. C)
EXTERNAL
STATIC
PRESSURE
(PA)
M32370
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0 50 100 150 200 2500
25
50
75
100
125
150
175
200
0 10 20 30 40 50 60 70 80 90 100 110
NET SUPPLY AIR FLOW

Specications(continued)
External Static
Pressure Net Supply Air Flow Gross Air Flow
Supply Exhaust
Pa in. W.C. L/s CFM L/s CFM L/s CFM
25 0.1 98 208 102 218 99 210
50 0.2 94 200 99 210 95 202
75 0.3 87 186 93 199 88 188
100 0.4 82 175 88 188 83 176
125 0.5 74 157 78 167 75 159
150 0.6 65 138 72 152 65 139
175 0.7 60 127 64 135 60 128
200 0.8 53 112 60 127 53 113
225 0.9 44 94 54 114 45 95
250 1 38 81 41 86 39 82
VNT5200E1000VentilationPerformance
VNT5200E1000EnergyPerformance
Supply Temperature Net Supply Air Flow Average
Power
Sensible
Recovery
Apparent
Sensible
°C °F L/s CFM Watts Efficiency % Effectiveness %
Heating
0 32 35 74 75 58 69
0 32 50 106 100 51 66
0 32 70 149 126 44 64
-15 5 35 74 80 58 69
35 95 35 74 75
Total Recovery Efficiency = 53%
ERV/HRVVentilationSystems69-2480EF—01
8
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0 50 100 150 200 250
0
25
50
75
100
125
150
175
200
0 10 20 30 40 50 60 70 80 90 100 110
VNT5200E1000
AIR FLOW (L/S)
NET SUPPLY AIR FLOW
AIR FLOW (CFM)
EXTERNAL
STATIC
PRESSURE
(IN. W. C)
EXTERNAL
STATIC
PRESSURE
(PA)
M32369

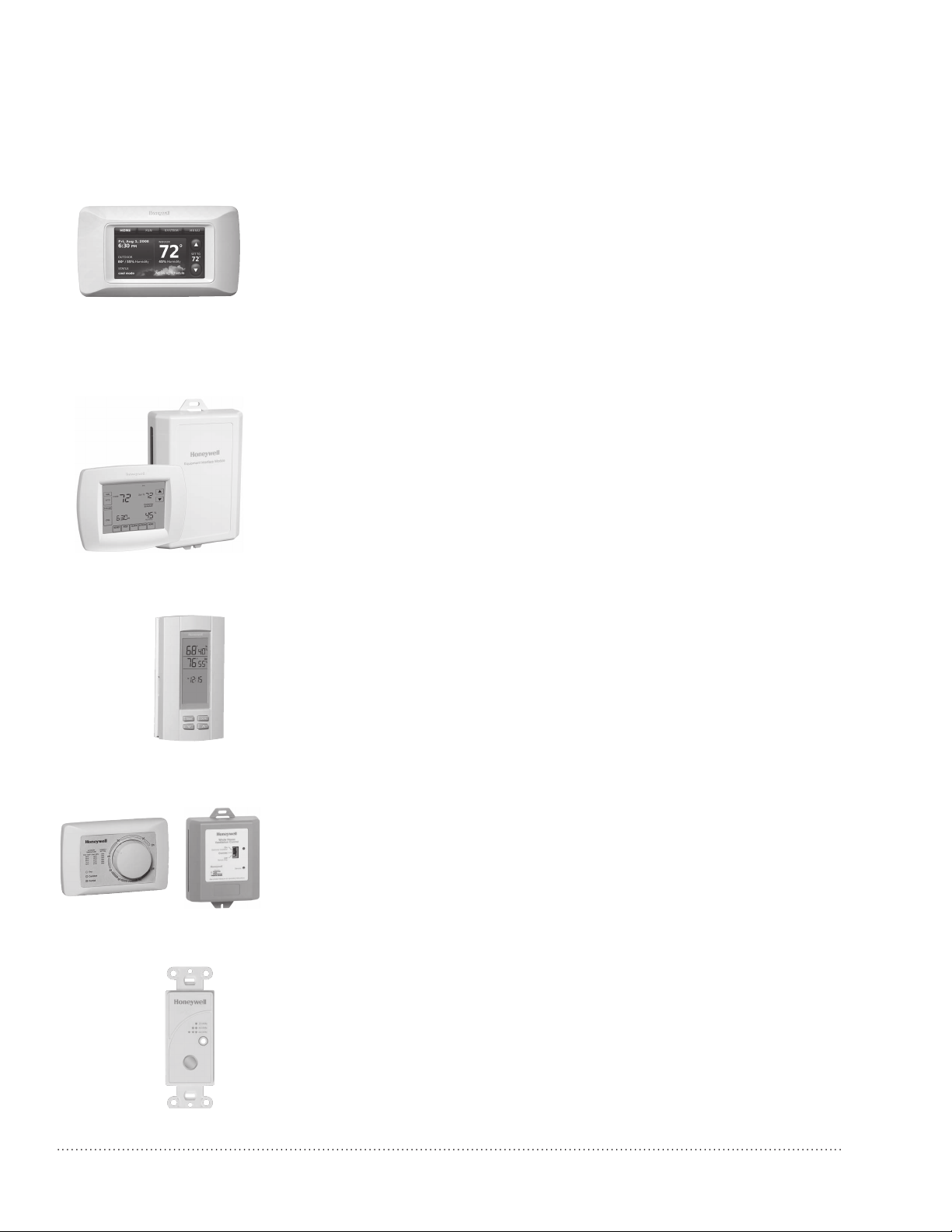

ExternalControlOptions
VisionPRO (TH8321U1097)and VisionPRO IAQ Total Comfort
System (YTH9421C1010)
•Controlsbothheating/coolingandventilation.
•Sensorincludedfordisplayingoutdoortemperature.
•Intuitiveuserinterfaceforeasy7-daytemperatureprogramming.
•Easy-to-readbacklitdigitaldisplay.
•Maintenanceandservicereminders.
•Controlsotherindoorairqualityequipment.
TrueIAQ Digital Control (DG115EZIAQ)
•Automaticadjustmentsmaintainfreshairinhome.
•Sensorfordisplayingoutdoortemperatureandhumidity.
•Advancedventilationprogrammingincludeseconomizingandextreme
conditionshutdown.
•Maintenanceandservicereminders.
•Controlsotherindoorairqualityequipment.
Manual Dehumidistat (H8908DSPST) and Automatic
Ventilation Controls (W8150A1000)
•Manualhumiditycontrolwithintuitivecomfortsettings.
•AutomaticW8150ventilationcontroltoASHRAEstandard,orfor
continuousoperation.
TheERV/HRVunitmaybeusedwithoneofthefollowingexternalcontrols:
Prestige™ (YTHX9321R5012) and Prestige™ IAQ Comfort
System (YTHX9421R5028)
•Controlsbothheating/coolingandventilation.
•Wirelesssensorfordisplayingoutdoortemperatureandhumidity.
•Advancedventilationprogrammingincludeseconomizingandextreme
conditionshutdown.
•Maintenanceandservicereminders.
•Highdefinitioncolordisplay.
Boost Control Digital Timer (50053952-020)
•Ventilationboostcontrolfor20/40/60minutes.
ERV/HRVVentilationSystems69-2480EF—01 9

InstalltoFitYourApplication
NOTE: Priortoinstalling,seriousconsiderationmustbetakentoinsurethisventilationsystemwill
operateproperlyifintegratedwithanyothertypeofmechanicalsystem,i.e.aforcedairsystem,
oranairhandlingunit.Toinsureproperoperation&compatibilitiesofbothsystem,itisrequired
thattheairflowsofventilationsystemsbebalanced,byfollowingtheproceduresfoundinthis
manual.
Limitations:Theproductisforresidentialapplicationsonly.Mustbeinstalledinaccordancewithall
nationalandlocalregulations,buildingandsafetycodes.Flexductisrecommendedforconnectingto
theERV/HRVcollarstoreducevibrationnoise.
M24745
Electrical Requirements:
120VACoutlet.Groundfault
interrupter(GFI)anddedicated
circuitrecommended.
AIndependent System
Thisapplicationusesadevotedductsystemforthesupplyandtheexhaustingofstaleair
accumulatedinthehome.
Honeywellrecommendsinstallingfreshairgrillesinallbedroomsandlivingareasandtoexhaustthe
staleairfromthebathroom,kitchen,andlaundryroom.
M28983
ERV/HRVVentilationSystems69-2480EF—01
10

InstalltoFitYourApplication(continued)
BExhaust at the Source and Supply in the Return
Thisapplicationusesadevotedductsystemfortheexhaustingofstaleairaccumulatedinthehome.
Thefreshairisintroducedintothereturnairductandisdistributedthroughthehomebytheexisting
supplyairductworkoftheforcedairsystem.
Makesurewhenusingthisapplicationthatyourfreshairductconnectiontotheforcedairsystemreturn
airductisatleast3feetfromtheforcedairsystem.Youshouldcheckwithyourlocalcodeortheforced
airsystem’smanufacturer.
Theforcedairsystem’sblowerdoesnothavetorunwhentheunitisoperating,butisrecommendedfor
maximumeffectiveness.
NOTE: Fortheminimumdistancebetweenthefreshairconnectionandtheforcedairsystem,check
withyourlocalbuildingcodesandforcedairsystemmanufacturer.
NOTE: Fordwellingswithmultipleforcedairsystems,HoneywellrecommendsoneERV/HRVunitper
system.
NOTE: RefertotheWiringsection(beginningonpage18)forinstructionstoconnecttheunittooperate
theforcedairsystemwiththeERV/HRVunit.
TO LIVING
SPACE
HRV / ERV
STALE AIR FROM LIVING SPACE,
SUCH AS FROM BATHROOM
OR KITCHEN
FORCED AIR
SYSTEM
3 FEET
6 FEET
18 INCHES
M28984
ERV/HRVVentilationSystems69-2480EF—01 11

InstalltoFitYourApplication(continued)
CExhaust and Supply in the Return
Whenusingthisapplicationmakesurethatthereisaminimumof6feetbetweenthefreshairand
exhaustairconnectionsoftheERV/HRVunitinthereturnairduct.SupplyairfromtheERV/HRVunit
mustbeatleast3feetfromtheforcedairsystem.Thesedistancescanbedifferentfromoneregionto
another;youshouldcheckwithyourlocalcodeortheforcedairsystem’smanufacturer.
NOTE: Forminimumdistancebetweenreturnandforcedairsystem,checkwithyourlocalbuilding
codesandforcedairsystemmanufacturer.
NOTE: Freshairmustalwaysbedown-streamfromtheexhaustairinthereturnairductoftheforced
airsystem.
NOTE: Furnaceblowerisrequiredtooperatewhenventilationisrequired.Setthefurnaceblowertorun
continuously,orinterlockelectrically(lowvoltage).
TO LIVING SPACE
HRV / ERV
FORCED AIR
SYSTEM
3 FEET
6 FEET
6 FEET
18 INCHES
M28985
ERV/HRVVentilationSystems69-2480EF—01
12

ERV/HRVVentilationSystems69-2480EF—01 13
Ensurethatyouhaveallofthefollowinginstallationitems:
InstallationSteps
2Installation Area
1Installation Kit
TheERV/HRVunitshouldbeinstalledinamechanicalroomorasclosetoanoutsidewallaspossible.
TheERV/HRVunitmustalwaysbeinstalledinanareawheretheairisconditionedtoavoidfreezingthe
condensateline.
Thecontractorshouldinstalltheunitinanareathatallowsthehomeownereasyaccessformaintenance.
Itisveryimportanttoinstallanelectricreceptacle(120Vac)neartheunit,aseparatecircuitbreaker
isalsorecommended.ItisbesttohaveaccesstoacondensatedrainneartheERV/HRVunittoavoid
havingtouseacondensatepump.
NOTE: Installationisnotrecommendedinunconditionedareassuchasanatticorcrawlspacewhere
thetemperaturecanfallbelow32ºF(0ºC).
NOTE: Ductinginunconditionedareasmustbefullysealedandinsulated.
InstallationKit:
•2Flexible6in.VinylDucts
•1CondensationDrainLine(10in.)
•1DrainAdapterwithNut
•4TieWraps(30in.)
•16Hex-headscrews(1/4x5/8in.)
•4Hex-headscrews(1/4x1in.)
•4Washers
•1Draincap(VNT5250E100andVNT5200E1000only)
•1powercord,120Vac(notshown)
4DuctCollars

ERV/HRVVentilationSystems69-2480EF—01
14
InstallationSteps(continued)
3Hanging the ERV/HRV
1.Attachstrapstojoistusingthesupplied
 washersandfour1in.hex-headhanging
 screws.
TheERV/HRVunitenablesyoutosavetimeandeffortbyofferingasimplifiedhangingsystem.
NOTE: Iftheunitisnotlevel,improperdrainagewilloccurandcouldleadtomoistureandleakage
problems.
2.Pullonmiddleofstrapwhilegentlyliftingunit
 upwardtoraisetheunit.
3.MakenaladjustmentstoensurethattheHRV/ERVislevel.
TIP: Removingthecoreunitmakesinstallationeasiersincetheunitweighsless
withoutthecoreinside.

InstallationSteps(continued)
ERV/HRVVentilationSystems69-2480EF—01 15
4Installing the flex duct to the ERV/HRV
TIP: Honeywellrecommendsusingapproximately16inchesofflexibleduct(suppliedinkit)betweenthe
unitandtherigidductfornoisedampening.Theflexductismountedtotheunitthesamewayasthe
insulatedflex.
1.Insertthevinylductoverthehooksonthe
 ductcollarandsealwithasupplied30inch
 tiewrap.
2.Insertinsulationinsidetheouterringoftheduct
 collar.
3.Finishbytapingtheductonthecollar. 4.Slidecollarontounit.
TIP: Attachtheflexducttothecollarfirst,andthen
attachthecollartotheunit.
5.Securecollarwiththesupplied5/8in.
 hex-headscrews.
IMPORTANT: Alwaysfixandsecureeachcollarusing
fourofthe5/8in.screwssupplied.
Thisstepiscriticalinordertoprevent
condensationaccumulation.

ERV/HRVVentilationSystems69-2480EF—01
16
InstallationSteps(continued)
5Installing the condensation drain line
Insertthethreadeddrainadapterthroughthebottomof
theunitandhandtightentheplasticnutsuppliedwith
thedrainkit.
Useawrenchtotightenthenutanotherhalfturnto
ensureacompleteseal.
Installthecondensatetubingbypushingtheclear
plastictubingoverthedrainadapter.
Makeacondensatetrapbyloopingtheclearplastic
tubing.Thisloopwillpreventfoulodorsfromentering
theunit.
Useacondensatepumpifyoudon’thaveaccessto
thefloordrain.
Drainless Application
NOTE:IfinstallinganERVunit(VNT5150E1000orVNT5200E1000)inaregionwheretheoutdoor
temperaturedoesnotdropbelowfreezing,thecondensatedrainlinedoesnotneedtobe
installedandtheunitmaybeinstalledasadrainlessapplication.
1.Insertthethreadeddrainadapterthroughthebottom
 oftheERVwiththedrainconnectioninsideoftheunit
 asshowninthegure.
2.Fittherubberwasheroverthedrainadapterandthen
 attachtheplasticnut.
3.Handtightentheplasticnutsuppliedwiththedrainkit.
4.Useawrenchtotightenthenutanotherhalfturnto
 ensureacompleteseal.
5.Attachthedraincaptothedrainadapterinsidethe
 unit.

InstallationSteps(continued)
ERV/HRVVentilationSystems69-2480EF—01 17

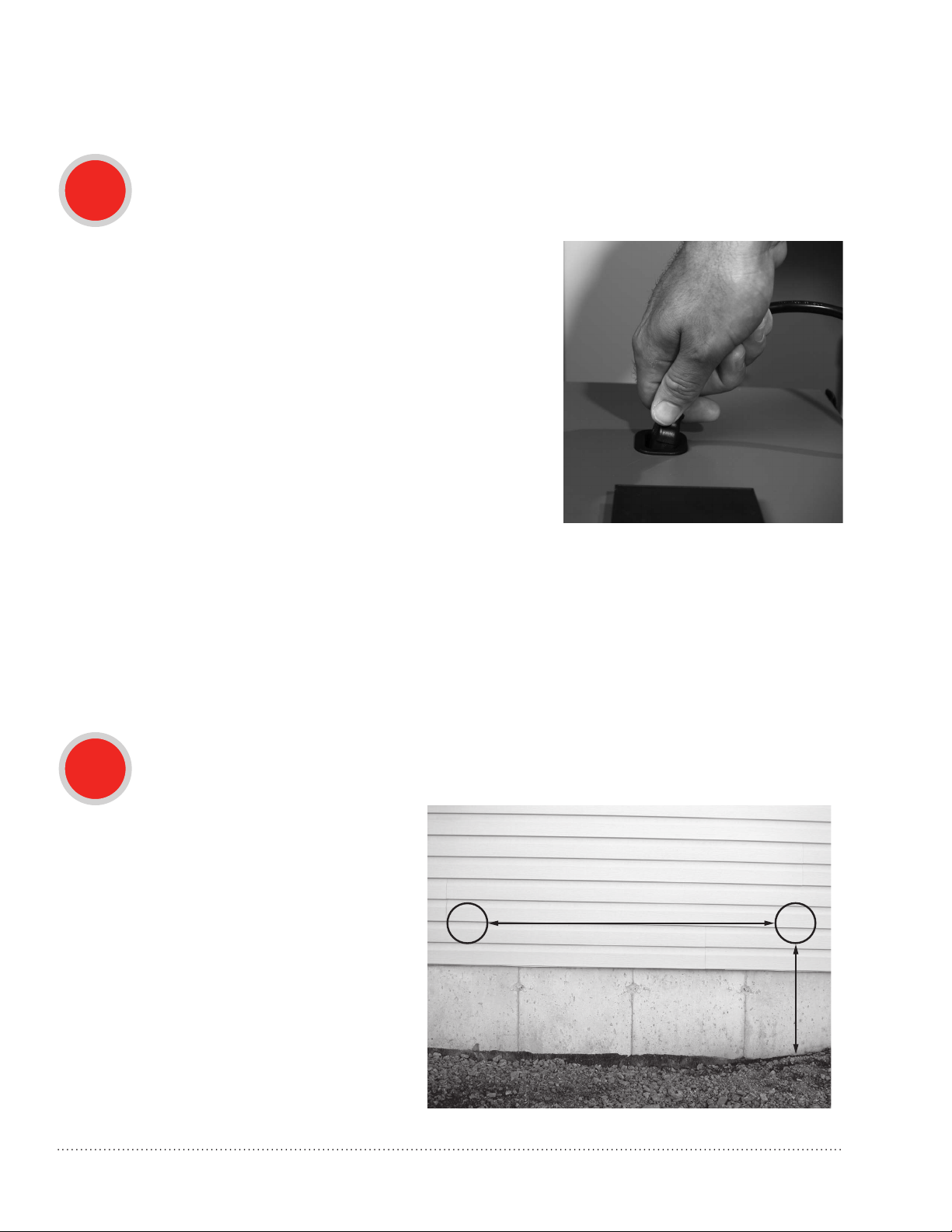

6Connecting the power cord
ERV/HRV Power Cord
Insertthepowercordontopoftheunit.Pressfirmly
tomakesurethepowercordissecure.
IMPORTANT: Donotplugthepowercordintothe
wallreceptacleatthistime.
Electric Wall Outlet
Honeywellrecommendsthattheunithasadedicatedreceptacle
with120VAC.
Avoidconnectingtheunittothewallreceptaclewithan
extensioncord.
Honeywelldoesnotrecommendtheuseofanextensioncord.
Ensurethatthereceptacle’spolarizationiscorrect.
NOTE: IftheLEDlightontheERV/HRVcontrolpanelremainsgreen,themotorsdonotenergize,and
thecontrolsdonotoperate;thiscanindicatethatthepolarizationinthemainACoutletis
inverted.
IMPORTANT: Alwaysconsultaqualifiedtechniciantoensureproperinstallationofmainpower.
Installing outside hoods for the fresh air and the exhaust
7
Locatetheoutsidehoodsatleast18inches
(0.46m)abovegradeandatleast72inches
(1.83m)apart.
NOTE: Donotlocatethefreshairvent
hoodclosetoknownsourcesof
pollutantssuchasdryervents.
IMPORTANT: Alwaysconsultyour
localcodeforspacing
requirementsinyourarea.
72 (1,829)
18 (457)
M32372

TheERVandHRVunitsareequippedwithanautomaticdefrostfeaturetoeliminateanyicebuildupon
thecore.
• Automaticdefrostisinitiatedonceeveryhourwhenthefreshairsupplytemperaturedropsto23°F
(-5°C)orcolder.
• Thedefrostcycleoperatesbyturningoffthesupplyfanwhilecontinuingtooperatetheexhaustfan.
• Theexhaustfanspeedisadjustedproportionallybasedontheoutdoortemperature,initiallyoperating
atlowspeed.
• Astheoutdoortemperaturecontinuestodrop,theexhaustfanspeedwillincrease,andwilloperateat
maximumspeedwhentheoutdoortemperatureis-4°F(-20°C)orless.
• Defrostcyclerunsfor4minuteswiththesupplyfanoff,followedby40minutesofcontinuousnormal
operation.
• Defrostcycleswillcontinuetorepeataslongasthetemperatureis23°F(-5°C)orless.
ERV/HRVVentilationSystems69-2480EF—01
18
M28986
Thewiringterminalblockislocatedbehindthecontrolmoduledooronthesideoftheunit.
Toaccesstheterminalblock,openthecontrolpaneldoorbyswingingitopenandtotherightasshown
above.
CAUTION: Voltage hazard.
Can cause equipment damage.
Disconnect power from the unit before beginning installation.
TerminalDescription
AutomatedDefrost
Wiring
