CLOUDLINK 4G M1 MODEM Quick Start
Overview:
The Honeywell CloudLink 4G M1 Modem is a cellular device intended to process serial data originating
from any source, including a Honeywell Electronic Volume Corrector or Data Logger. It connects to remote
host over Cellular 4G Cat M1 network.
Features:
This modem can be configured using the same MasterLink software that is used to configure other Honeywell
Mercury electronic volume correctors and data loggers. No additional software is required. In addition, MasterLink
is now available as an application that can be installed on iOS and Android devices.
This handout is meant to be a quick reference on getting started with the Cloud Link 4G M1 Modem device.
Regulation Standards:
Figure: Cloud Link 4G M1 Modem
• Easy to configure and retrofit
• Simple to use through BLE/serial interfaces
• Designed for low power applications and outdoor operations
• Troubleshooting
• Requires less operating power
•Consumes less power in sleep mode
• Operates in battery and external powered applications
CSA, Class I Div 1 & Div 2, IECEx Zone 0

CLR110 Device

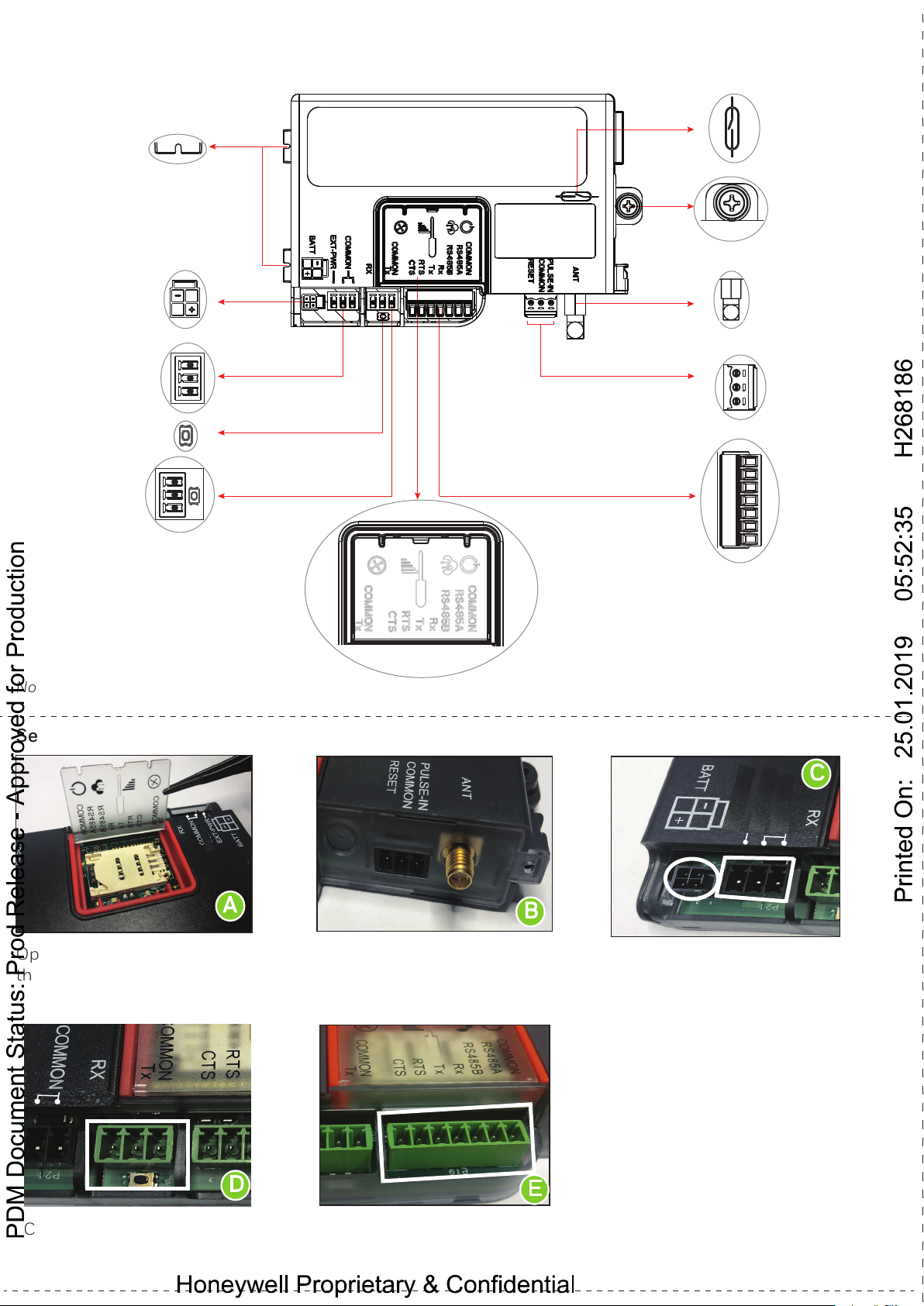

Setting up the CloudLink 4G M1 Modem device
Note : Default serial connection (RX, TX) will be RS232
Captive
screw
Antenna
Pulse Input
port
Serial Port
(RS232/
RS485)
SIM Cover
Magnetic
Reed Switch
Battery
Connector
Configuration
Port
External
Power Input
Mounting
tabs
Default
Switch
AB
C
DE
EXT-PWR
COMMON
Open the SIM cover and insert
the SIM card into SIM card holder
Connect the antenna Connect to battery power or
external power supply
Fold along the dashed line
Configure port with 9600
Baud Rate (RS232) for serial
connection
Connect the serial port cables

4 5
6 7

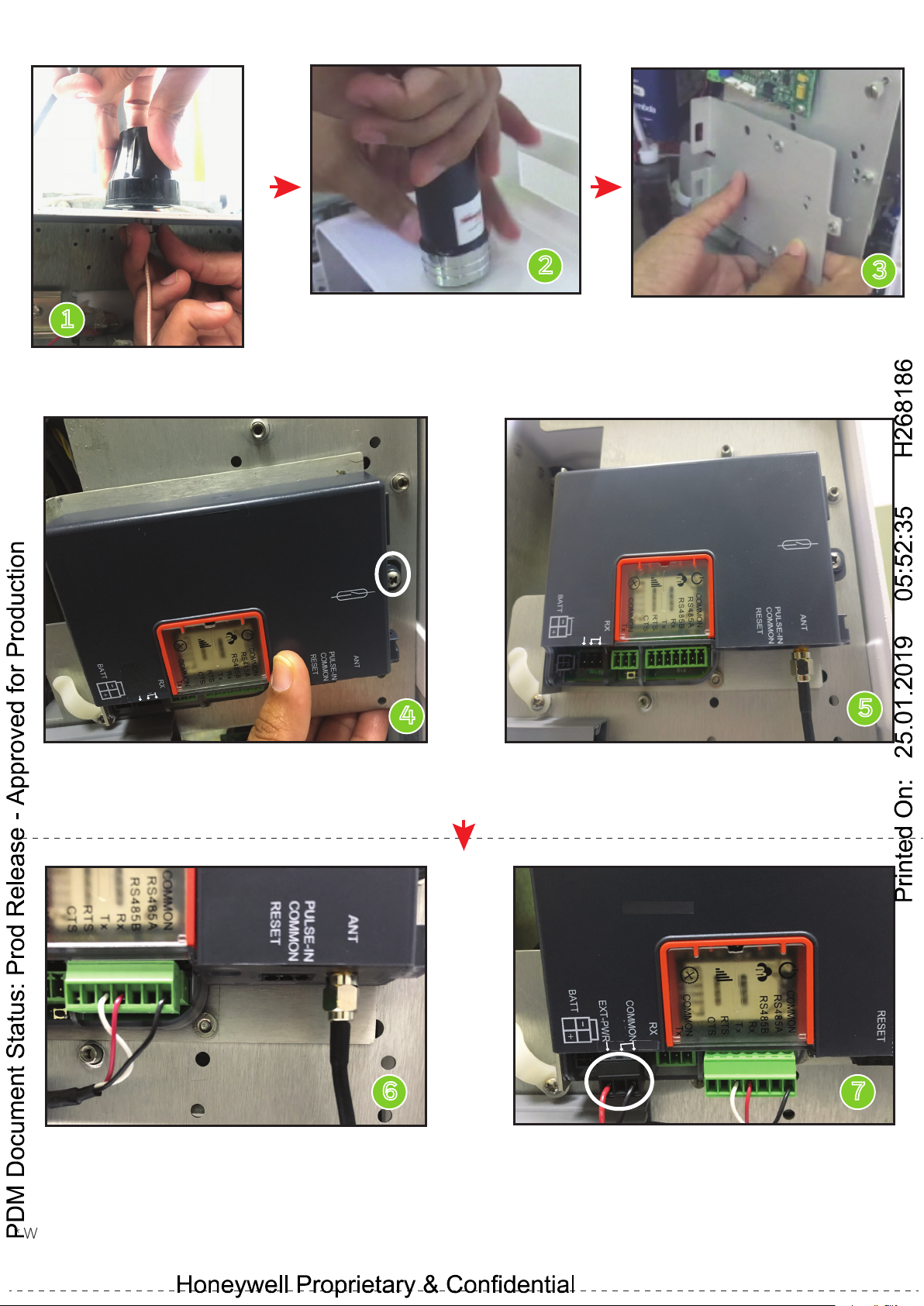

Installing CloudLink 4G M1 Modem in MiWireless as example (pivot panel)
1
23
EXT-PWR
COMMON
EXT-PWR
COMMON
4
Position the mounting tabs onto the slots of the
bracket and torque the captive screw
Connect the CloudLink 4G M1Modem antenna using
a wrench with torque 4-6 IN-LB
Connect the serial cable (RS232) from the CloudLink
Modem to terminal block of MiWwireless* (Do not
connect into RS485 slot)
Connect the power supply cables from the terminal
block as shown in the figure. Red wire to EXT-PWR
pin and Common to any one of the pins
* When there is a Protocol Translator board connect the serial cable (RS232) from the PT board to the CloudLink Modem.
Note : For information on retrofit kit details, please refer the document# 22-3015 & 22-3170.
Install the 4G antenna on the MiWireless
device by tightening the nut
Screw the mounting bracket onto the
Pivot/Sub panel to hold the Modem
Remove the existing 3G antenna

LED COLOR
CODES SYMBOL DESCRIPTION STATE DETAIL
DESCRIPTION
1
2
3
4
Green
Green
Tricolor*
(Red, Yellow
and Green)
Tricolor
(Red, Yellow
and Green)
POWER INDICATION
&
NETWORK
CONNECTIVITY STATUS
DATA
CONNECTION
NETWORK
CONNECTIVITY
& SIGNAL
STRENGTH
DIAGNOSTICS
Sleep or power off
Trying to connect (cellular)
Connected to network (cellular)
OFF
BLINK
ON
No data flow to cellular host
Data flow between host and device
over cellular interface, no fixed blink
rate
OFF
BLINK
Not connected to network
Connected to network
Trying to connect to network
OFF
BLINK*
SOLID
YELLOW
Red and yellow denote the error
codes with Red being the first digit
and Yellow as the second digit.
Green will be a delimiter between
the error codes.
Example: Low Battery Voltage -
Error Code 13
1 Red followed by 3 Yellow with
Delimiter Green.
* Denotes RED - Poor RSSI
YELLOW - Fair RSSI
GREEN - Good RSSI
When ML signed in over BLE/Serial.
No diagnostic codes shown
when MasterLink signs in.
SOLID
GREEN
FD-608 | Revision A | September 2018
©2018 Honeywell International Inc.
For more information:
To learn more aboutHoneywell’s Smart Gas
Metering Solutions, visit
www.honeywellprocess.com or contact your
Honeywell Process Solutions representative.
Honeywell Process Solutions
1280 Kemper Meadow Drive Cincinnati,
OH 45240
www.honeywellprocess.com
Phone: [phone]
[e-mail]
Configuring CloudLink 4G M1 Modem using MasterLink desktop App
•Connect the Modem with USB-to-serial cable and login to the app with registered credentials
• Navigate to the Settings menu, select the Connector and Baud Rate (9600) from the drop-down list
• Click OK > Settings will be saved
• Go to Device Properties tab, provide the User ID and Access code
• Click Save > Settings will be saved
• Click Connect on the Menu bar to connect the Modem
• Wait for the dashboard to load
• Navigate to View/Edit > Configure by Group > Search 3142 item number
•Enable the value > click Write Item button
• Search for 3137 item number > Modem Reset value > click Write Item button
• Menu > Disconect to disconnect the modem.
• After disconnecting successfully, modem will reset automatcially
For more detailed information on the configuration of ML application please refer to MasterLink Mobile App User Guide.
LED Diagnostics
Make sure to keep the MiWireless device door open to configure the Cloud Link 4G Modem through Serial.
Configuration of CloudLink 4G M1 modem for Continuous Server mode operation (external supply only).
