Honeywell Fire-Lite 2UD User manual

2UD Modem Card
Mounting Instructions
The mIP-2 and the IPDACT-2 products can be converted to a mIP-2UD or to an
IPDACT-2UD (respectively) by installing the 2UD Modem Card. This will provide full
Alarm Panel Upload/Download support over the IP network.

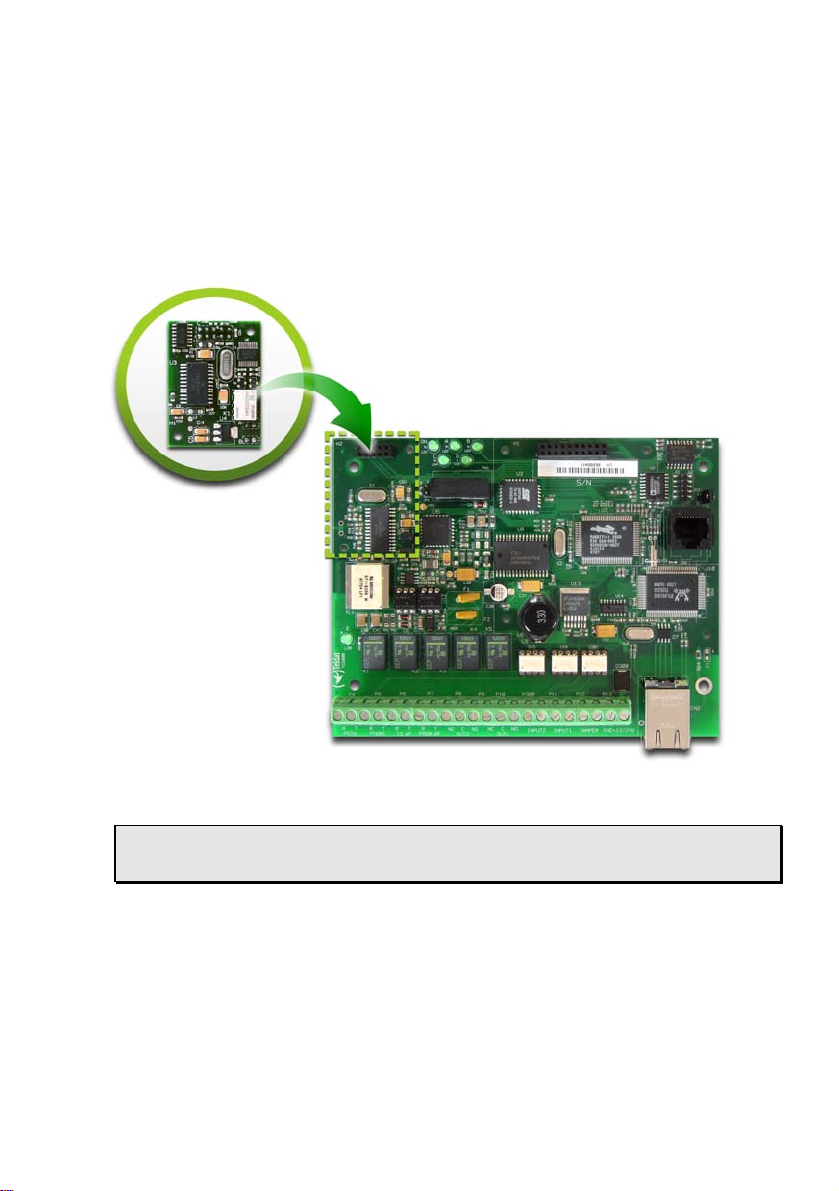

Figure 1. Adding the 2UD modem card to a mIP-2 or an IPDACT-2 module
WARNING! Before proceeding with the installation, make sure all power
(AC and DC) has been removed.
The installer should follow the steps described below:
1. Remove the plastic label/cover from the IPDACT-2 Module. If the module is a mIP-2
this step may not be required.
2. Remove the jumpers from A and B pins located in the upper left portion of the mIP-2
or the IPDACT-2 module.
Dm395-Iv1 1

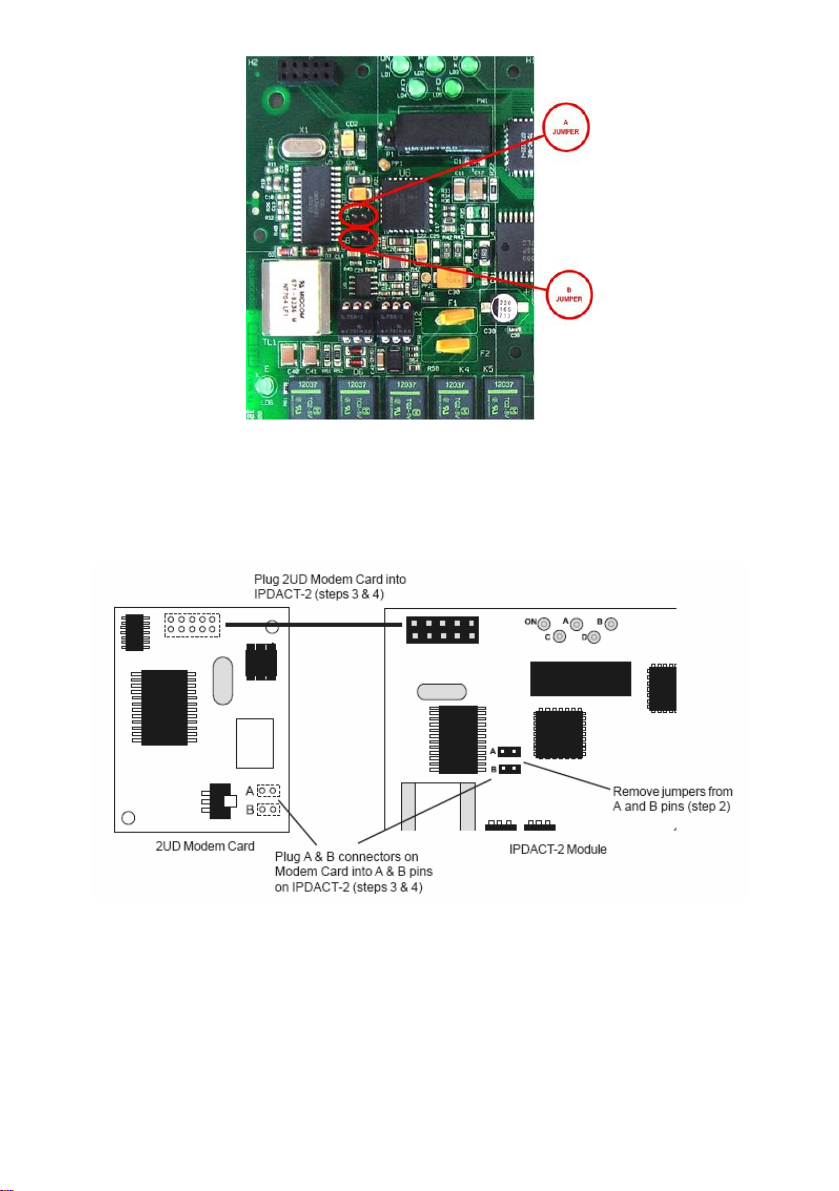

Figure 2. Close-up of pins A and B in mIP-2 and IPDACT-2 modules
3. Carefully align the connector on the 2UD Modem Card with the connector located in
the top left of the mIP-2 or the IPDACT-2 module and align the A and B connectors
on the 2UD Modem Card with the A and B pins on the mIP-2 or IPDACT-2 module
(jumpers removed in step 2).
Figure 3. Aligning the 2UD card with the mIP-2 or IPDACT-2 module
4. Carefully press the 2UD Modem Card onto the mIP-2 or IPDACT-2 module
connectors. Ensure that the 2UD Modem Card is securely seated, being careful not
to bend or break any pins on the connectors.
5. Reinstall the plastic label/cover on the IPDACT-2UD Module. If the module is a mIP-
2, this step may not be necessary.
Dm395-Iv1 2
6. Reapply all power (AC and DC) and test the system for proper operation.
