Honeywell’s IH21 UHF Reader provides Ultra High Frequency (UHF) Radio Fre-
quency Identification (RFID). The reader can be used stand alone or paired with a
Honeywell Mobility Computer. It can be used with UHF transponders including the
EPC Global Class 1 Generation 2 transponders.

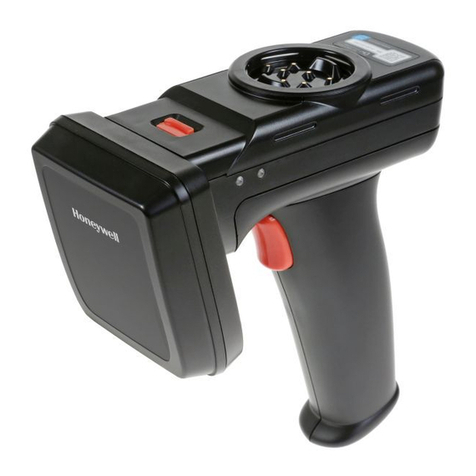

IH21 Features
Antenna Release Latch
Main Body
Docking Connector
UHF Antenna
Status LEDs
Trigger Handle
ePop-Loq® socket
Trigger Button

2 IH21 Bluetooth UHF RFID Reader
Battery Installation or Removal
The battery is charged using a docking station and therefore is unlikely to need to
be changed once installed.
1. Push release latch up on the reader’s trigger handle.
2. Slide handle back.
Trigger Handle
Release Latch

IH21 Bluetooth UHF RFID Reader 3
3. Remove battery cover. Push battery cover toward the UHF Antenna, and then
lift battery cover up.
4. Insert the top end of the battery into the reader, and press battery down.
5. Attach the battery cover. Make sure that the cover clicks into place.
6. Attach the handle. Make sure that the handle clicks into place.
Charging
To comply with international shipping regulations, the battery is discharged to less
than 30% of their maximum capacity. It is therefore recommended that you fully
charge the battery before using the reader for the first time.

4 IH21 Bluetooth UHF RFID Reader
The reader can be charged using the dedicated IH21 docking station. The docking
station has inputs for power and mini USB.
UHF Antenna Installation or Removal
The UHF antenna can be detached from the main body of the reader.
1. Remove the Honeywell mobility device from the reader.
2. Turn off power to the reader.
3. At the same time, press the antenna release latch back and pull the antenna
downward.
USB Port
DC Power Jack

IH21 Bluetooth UHF RFID Reader 5
Locking the Antenna
The antenna can be locked into position.
1. Remove the reader’s trigger handle.
2. Insert a M2.5x5mm Torx pan head screw into the handle and antenna.
3. Attach the handle.
ePop-Loq®
Components
Insert Screw Here
ePop-Loq case
ePop-Loq stud ePop-Loq socket

6 IH21 Bluetooth UHF RFID Reader
Installation
1. Ensure the mobility computer is fitted into the ePop-Loq case.
2. Check the socket and stud are clean and free from dirt or debris.
3. Align the stud with the socket, ensuring that it is parallel, and press the two
parts together firmly until they click into place.
Removal
Pull the case parallel away from the reader. Do not twist devices when separating.

IH21 Bluetooth UHF RFID Reader 7
Button Operation
The default configuration of the reader scans for UHF transponders as the primary
function. The reader will continue to scan for UHF transponders while the button is
pressed. It will stop scanning once the button is released (and the current opera-
tion completes.)
• To initiate, press and hold the trigger button.
• To terminate, release the trigger button.
Reading Transponders
RFID transponders can be read when they are in range of the antenna. The antenna
is located on the front of the reader. The range at which a transponder can be read
depends on the transponder type and size and the number of transponders in the
field.

8 IH21 Bluetooth UHF RFID Reader
LED Status
LED Status
Blue slow flash (50% on, 50% off) The reader is awake, but there is no
connection.
Blue constant The reader is awake and connected to a host.
Short green flash The reader has successfully read a tag,
barcode, or executed the alert command.
Green slow flash (50% on, 50% off) Antenna error.
Orange slow flash (50% on, 50% off) Battery low warning (<10% capacity
remaining.) Recharge immediately.
Orange short single slow flash Battery charging with battery level less than
33%.
Orange short double flash Battery charging with battery level less than or
equal to 66%.
Orange short triple flash Battery charging with battery level greater than
or equal to 66%.
Orange rapid flash There is a charge error/battery fault.
Orange constant The reader is fully charged.
All off The reader is off and not charging.
Charge Status
Charge Status
Bluetooth Status Read Indicator

IH21 Bluetooth UHF RFID Reader 9
MicroSD Card
A microSD card can be installed in the reader. The card should be SD/SDHC com-
patible, FAT16 or FAT32, and up to 32 GB.
Install a MircoSD Card
1. Remove the trigger handle.
2. Remove the battery cover and battery.
3. Slide the microSD card into the marked slot, and then push and release the
microSD card to lock it into place.
4. Install the battery.
5. Attach the handle.

10 IH21 Bluetooth UHF RFID Reader
Remove a MicroSD Card
1. Remove the trigger handle.
2. Remove the battery cover and battery.
3. Push and release the microSD card. The card will eject and can be removed.
Auto Run File (AUTO.TXT)
Once a SD card is installed, an Auto Run file can be created on the SD card. The
Auto Run file contains a list of ASCII commands that are executed as the reader
powers up. The file should be located at the root of the card and called “AUTO.TXT.”
Although the file can contain any valid ASCII 2 commands, one per line, it is
intended that these have the take no action ‘-x’ flag specified to allow the default
parameters for any command to be changed from the firmware defaults as the unit
boots without actually executing the command.
Example: To change the carrier power of the inventory command from 29dBm to 20dm
‘.iv -o20 -x’ would be appended to the Auto Run file. As the behavior with command
parameters this will set the output power for the inventory command until a new
value is send with this command. Therefore, the inventories executed by the trigger,
which executes ‘.iv’ will use the modified output power.
The Auto Run file can be manually created on the card before it is inserted into the
reader or the ASCII 2 command Write Command to Auto Run File ‘.wa’ can be used.
The Read Auto Run File ‘.ra’ can be used to read back the contents of the Auto Run
file or delete the file from the card.

IH21 Bluetooth UHF RFID Reader 11
Log File (LOG.TXT)
Once a SD card is installed and logging is enabled a log file is created on the SD
card. The file is located at the root of the card and called “LOG.TXT.” All the lines
from every response to every command that is executed by the reader (including
those performed from trigger actions) are appended to the end of the file. Events
such as Power Up are also appended to the file.
The ASCII 2 Read Log File command (‘.rl’) is provided to enable or disable logging,
to read the log file from the card or to delete the log file from the card.
Note: The log file can quickly become large relative to the speed at which it can be
downloaded using the Read Log File Command.
Start of a sample log output:
DT: 2013-11-15t16:46:58
EV: Log File created
CS: .ws -sa4 -sbepc -ds300833B2DDD9014000000000 -s106 -so0002 -
sts2 -dbepc -da330DE29525C0210005F5F88A -d106 -do002
WW: 0
ME: No Transponder Found
ER: 005
DT: 2013-11-15T17:58:28
EV: Disconnected
DT: 2013-11-15T17:59:28
EV: Sleep
DT: 2013-11-18T09:18:21
EV: Wake up
CS: .al -dlon
OK:
DT: 2013-11-18T09:19:22
EV: Sleep
DT: 2013-11-18T10:07:42
EV: Wake up
DT: 2013-11-18T10:07:42
EV: Connected USB
CS: .al -dlon
OK:
CS: .iv LCMD 000000-qss0 -qta
EP: 330DE29525C0210005F5F8F2
EP: 221001500000000000000027
OK:
Software Development
To make full use of the functionality of the reader, a customized software applica-
tion will be required.

12 IH21 Bluetooth UHF RFID Reader
The reader incorporates TSL’s unique ASCII protocol for faster and easier applica-
tion development. This sophisticated parameterized ASCII protocol provides the
developer a powerful set of commands that carry out multiple actions locally within
the Bluetooth reader. This approach enables multiple tag operation executed using
simple pre-configured ASCII commands while not only speeds integration of the
reader into applications, but also abstracts the developer from some of the com-
plexities of the underlying Native API. Simple, text based commands are sent to the
reader and responses are returned as text. This allows straightforward access to
RFID tag functions such as inventory, read, and write.

CHAPTER
2
IH21 Bluetooth UHF RFID Reader 13
CONNECTIONS
Connecting with USB
Overview
The IH21 UHF Reader has an ePop-Loq® mount which allows compatible devices
with custom applications to communicate with the reader via USB instead of Blue-
tooth®.
• USB connection will be passed through ePop-Loq to the attached device (via the
ePop-Loq case.)
• USB connection to the reader requires a custom application that supports the
ASCII protocol over USB.
• If the reader is placed into the charge cradle with an attached ePop-Loq mobility
device, the USB will be disconnected, and both the IH21 and the device will
charge.
USB Operating Modes
The ePop-Loq on the reader may operate in two modes. Charge-Only or Charge-
and-Data:
• Charge-Only: The mobility device mounted will charge when the reader is placed
in the charging cradle, but will never use the USB data connection
• Charge-and-Data: The mobility device will use the USB data connection when
not in the charging cradle.
Note: The USB connector on the charging cradle is always available when the reader is
docked.
Changing the USB Operating Mode
The factory default mode is Charge-Only.

14 IH21 Bluetooth UHF RFID Reader
The USB operating mode maybe changed by adding commands to an AUTO.TXT
file placed in the root directory of the microSD card in the reader.
Note: The ePop-Loq USB mode is non-volatile and the command may be safely removed
from the AUTO.TXT file after it has been run once.
Set USB mode to Charge-Only
1. Create a blank AUTO.TXT file.
2. Add the following command (without quotations): “.fd -ep co”.
3. Place the file within the root directory of the microSD card in the reader.
4. Restart the reader.
Set USB mode to Charge-and-Data
1. Create a blank AUTO.TXT file.
2. Add the following command (without quotations): “.fd -ep cd”.
3. Place the file within the root directory of the microSD card in the reader.
4. Restart the reader.
Connecting with Bluetooth® Wireless Technology
Comparison of Bluetooth Operating Modes
The reader supports two modes of operation over Bluetooth. When connected via
USB the reader always supports the ASCII 2 protocol, but when connected over
Bluetooth the reader can either be set to use the ASCII 2 protocol (Bluetooth SPP
Mode) or it can appear as a Bluetooth keyboard (Bluetooth HID Mode.)
Bluetooth® SPP Mode Bluetooth® HID Mode
Apps need to be written with specific support
for the reader.
Apps can use the reader without modification.
The reader can be discovered and paired in the
Bluetooth Settings or from within the App, but
when the App controls the connection:
• Connects when instructed by the App.
• Disconnects when instructed by the App.
• The reader powers off when no longer
connected and idle.
• The App needs to connect to restore.
Reader is discovered and paired in the Host
Bluetooth Settings (often appears as a
Keyboard):
• After pairing the reader connects
automatically.
• If idle, the reader sleeps and the
connection is dropped.
• The reader, when woken, automatically
reconnects to the host device.
Apps receive and interpret ASCII 2 Protocol
responses when the user triggers a UHF or
barcode scan.
Apps receive input as key strokes from the
reader, including tab and return/enter keys.
