Hoover OPH714DF-80 User manual

W.MACHINE/WASHER-DRYER
31003610 OPH714DF-80
Service Manual

31003610 OPH714DF-80 1018 (30/04/2010)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
10 Timer/select. knob 41027519
10b Timer Shaft extension 41028256

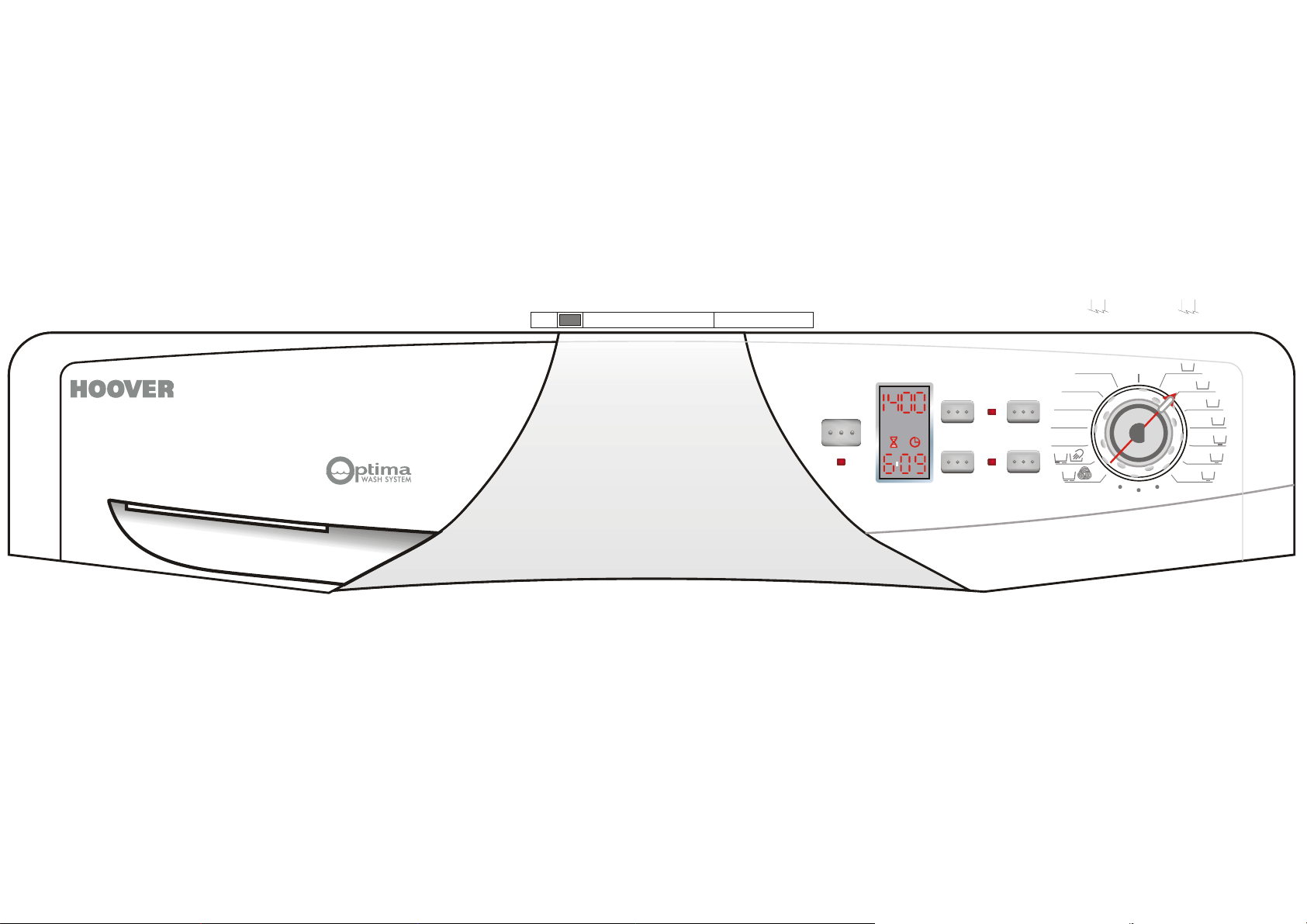

31 Control panel 43800843
32 Dispenser drawer front 41027521
32 Dispenser drawer front 41028009
48 R/H side frame 41019258
48a L/H side frame 41019259
49 Top rear frame 41018437
51 Work top 41019725
60 Hinge 41018447
62 Door surround 41027534
63 Door glass 41018077
65a Door catch with spring service pack 49007928
67 Glass door with frame 41027533
67d Counter ring 41027535
76 Cabinet assy 41024809
77 Rear panel 41024833
80b Foot 41018398
94d Filter w/knob without screw 41021232
97d Filt hous w/filter cartridge 49007894
101 Dispenser drawer 41018422
109b Dispenser bottom section 41018413
110 Dispenser top section 41018414
114a Hose clip 92470061
132 Hose 41019721
133 Hose clip 92470012
134 Solenoid valve 41018989
138 Drain hose 92693373
138a Drain house elbow 92689587
138b Hose clamp 92895051
142 Fill hose 92250869

31003610 OPH714DF-80 1018 (30/04/2010)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
153 Pressure switch 41030745
157 Wiring harness 41027634
161d Drain/recycle pump complete 41019104
162 Door safety device 41016879
164 Anti jamming filter radio 91200098
203a Tub complete 43000507
221 Nut 41021881
225a Gasket 92445626
230 Tub gasket clip 41028754
230a Tub gasket clip 41018408
242 Support spring. 41015990
244 Washer 92430206
244a Counter weight washer 92430214
245 Asbestos washer 92438720
246 Bolt 41021829
247 Upper balance weight 41022015
248 Lower balance weight 41022170
251a Telescopic shock absorber 41017170
251e Shoch absorber pin 41017173
251f Antinoise bush 41017169
259 Support 92673961
271 Door gasket 41021401
272 Discharge pipe 41021741
273 Fill pipe 41021848
275 5x8 hose 41021976
276 Steam hose 41021975
277 Hose spring 90386137
278 Hose clip 41021255
278a Hose clip d44 92470137
280 Hose clip 92470202
286 Heater 41021737

31003610 OPH714DF-80 1018 (30/04/2010)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
287m NTC probe 41022107
290 Drum pulley 41017885
292 Drive belt 41021973
292b Bottom panel 43000121
328a Electronic module container 41030626
328f Pcb protection 41030336
473 Commutator motor 41015501
479t Electronic control INVENSYS not program. 41033492
479u Coreboard INVENSYS programmed 49020286
487 Special bolt 92419548
491c Mains cable x UK 91200201
558 Support bracket 41018405
571 Top sleeve 90467903
602 Shock-absorb.conn.bracket 41017172
604 Filter door 41018423
606 Spring for filter door 41019704
643 Door handle assembly 43000463
749 Adhesive plaque 92473529
780 Siphon for water softner 41018421
832 Discharge pipe circlip 91408004
834 Lower counterweight supp. 92898923
840 Drum paddle 41021914
856 Upper front crosspiece 41027368

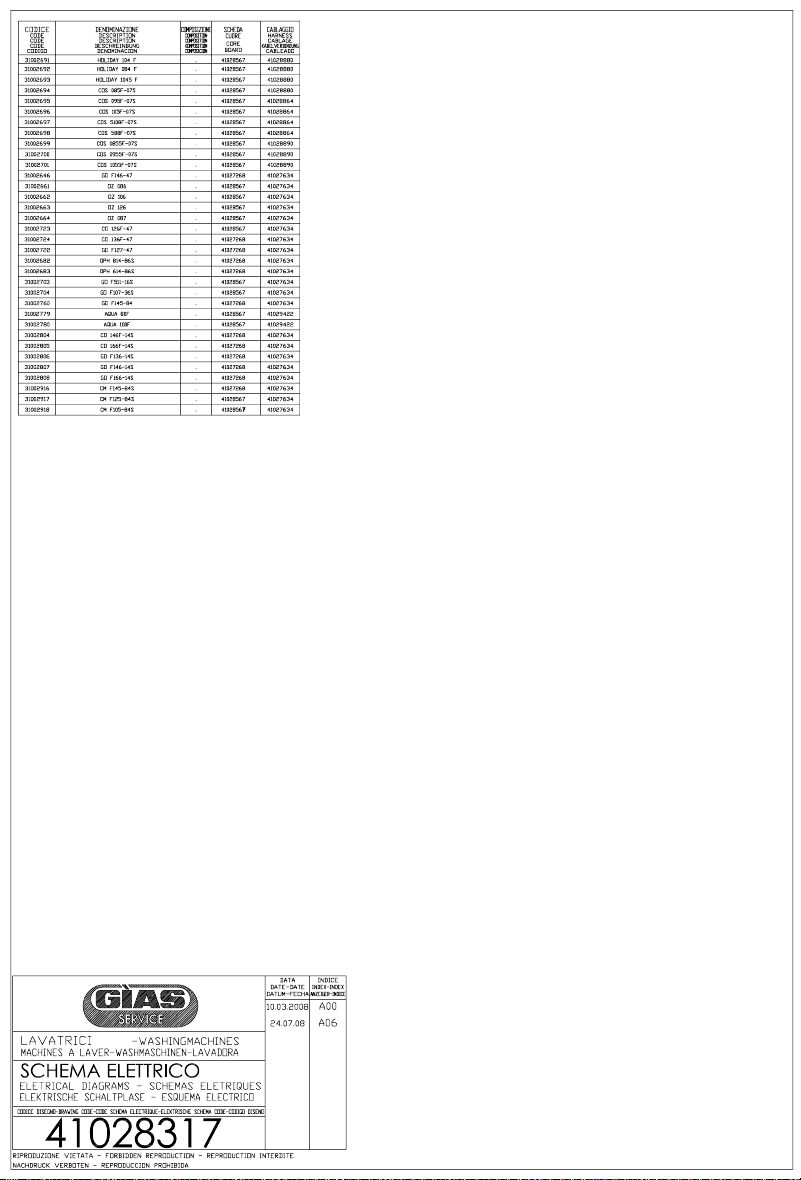

999 Wiring diagram 41028317

Valid for production Pub.Date: 17 ott 2008 17.10

Valid for production Pub.Date: 17 ott 2008 17.10

1
2005
Legenda componenti lavaggio - Washing components list
Liste composantes lavage - Waschung komponenten liste
Leyenda componentes lavado – Yıkayıcılar parça listesi
Versione 22/04/2009
4Centrifuga lenta - Slow speed spin - Essorage lent - Langsame Zentrifuge - Centrifugado
bajo – Düúük hızda sıkma
8Centrifuga veloce - Fast speed spin - Essorage vite - Schnelle Zentrifuge - Centrifugado
rapido – Yüksek hızda sıkma
AN Antitrabocco - Anti-overflow - Dispositif anti debordement - Antiuberlaufener -
Antidesbordamento – Taúma önleyici
AT Timer asciugatura - Dryer timer - Programmateur sechage - Trochner timer -
Programador secado – Kurutucu zamanlayıcı
BL Basetta di linea - Terminal box - Boite a liesons - Klemmbrett - Placa de linea – Terminal
kutusu
BR Ritardatore apertura amperometrico - Amperometric opening delayer - Retardateur
ouverture amperemetrique - Stromverzögerungsrelais - Placa retardadora amperimetrica
– Akımsal kapı kilit mekanizması
BV Ritardatore apertura voltmetrico - Voltmetric opening delayer - Retardateur ouverture
voltmetrique - Voltmeter-Verzögerungsrelais - Placa retardadora voltmetrica – Gerilimsel
kapı kilit mekanizması
CCarico acqua calda - Hot water filling - Chargement eau chaude - Warmtwasserfuel lung -
Entrada agua caliente – Sıcak su giriú
CA Condensatore - Capacitor - Condensateur - Kondensator - Condensador - Kondansatör
CB Condensatore aggiunto - Additional capacitor - Condensateur supplementaire -
Beifuegende Kondensator - Condensador suplementario – ølave kapasitör
CC Condensatore centrifuga - Spin capacitor - Condensateur centrifuge - Zentrifuge
Kondensator - Condensador centrifugado – Sıkma kapasitörü
CL Condensatore lavaggio - Washing capacitor - Condensateur lavage - Waschen -
Kondensator - Condensador lavado – Yıkama kapasitörü
DLavaggio delicato - Soft tumble - Mouvement delicat - Delikate Washung - Lavado
delicado – Hassas kurutma

2
2005
DT Dinamo tachimetrica - Tachometric dynamo - Bobine tachymetrique - Regel Dynamo -
Dinamo taquimetrica – Takometrik dinamo
EA Elettrovalvola asciugatura - Drying solenoid valve - Electrovanne sechage - Trochen -
Elektroventil - Electrovalvula secado – Kurutucu solenoid valfi
EC Elettrovalvola acqua calda - Solenoid valve for hot water - Electrovanne eau chaude -
Warmes Wasser Elektroventil - Electrovalvula agua caliente – Sıcak su solenoid valfi
EF Elettrovalvola acqua fredda - Solenoid valve for cold water - Electrovanne eau froid -
Kaltes Wasser Elektroventil - Electrovalvula agua fria – So÷uk su solenoid valfi
FLavaggio forte - Strong tumble - Mouvement intensif - Stark Washung - Lavado energico
FA Centrifuga alta velocità - High speed spin - Centrifuge haute vitesse - Hochgesch
windigkeit Schleuderung - Centrifugado alta velocidad – Yüksek hızda sıkma
FB Centrifuga bassa velocità - Low speed spin - Centrifuge basse vitesse - Geschwi ndigkeit
Schleuderung - Centrifugado baja velocidad – Düúük hızda sıkma
FD Funzione 4° risciacquo - 4th rinse function - Fonction 4eme rincage - 4 Spülung Funktion
- Funcion cuarto enjuague – 4’üncü durulama fonksiyonu
FG Funzione lavaggio 35 giri - 35 rpm washing function - Fonction 35 tours lavage - 35
Abwashung Funktion - Foncion lavado 35 giros – 35 dev/dak yıkama fonksiyonu
FN Variante stock nord - Northern Europe market variation - Variation pour l'Europe du Nord
- Anderung Nord Europa - Variante stock nortico – Kuzey Avrupa pazarı farklılı÷ı
FP Protezione termostato di consenso - Protection for N.O. thermostat - Protection pour
thermostat N.O. - Schutz fuer N.O. Thermostat - Protecciòn termostato de paso 30°C –
N.A. termostat koruma
FR Rigenero - Regenerating rinse - Rincage avec regeneration - Ausspuelung - Aclarado –
Rejeneratif durulama
FS Funzione salto "stop con acqua in vasca" - Function for "jumping" over the "stop with
water in tub" - Fonction pour "sauter" le "stop avec l'eau dans la cuve" - Funktion für
"springen" die "stop mit wasser in wanne" - Foncion salto de "parada con agua en cuba"
– “Suda bekletme” fonksiyonu için durdurma fonksiyonu
FT Termofusibile - Thermal fuse - Fusible thermique - Thermosicherung - Termofusible –
Termal sigorta
GRigenero - Water exchange - Regénération d'eau - Wasser-Austausch – Regeneracion
de agua – Su çevrimi

3
2005
GT Morsetto generale di terra - Earth connection - Serre cable de sol - Erdklemme - Toma
general tierra – Topraklama ba÷lantısı
GV Morsetto messa a terra vasca - Tub earth connection - Serre cable de sol cuve -
Waschbottich Erdklemme - Toma tierra cuba L1 Lampada spia alimentazione elettrica -
Net pilot lamp - Lampe temoin - Kontrollampe - Piloto alimentacion electrica – Tambur
topraklama ba÷lantısı
HCarico acqua fredda - Cold water filling - Chargement eau froid - Kaltwasserfuellung -
Entrada agua fria – So÷uk su alma
LAlto livello - High water level - Haut niveau d'eau - Hoch Wasser Pegel - Nivel alto –
Yüksek su seviye
L2 Lampada spia fine asciugatura - End of drying pilot lamp - Lampe temoin du fin sechage
- Ende-Trochnen -Kontrollampe - Piloto fin ciclo secado – Kurutma bitti lambası
L3 Lampada spia raffreddamento - Cool down pilot lamp - Lampe temoin refroidisseme nt -
Abkuehlung-Kontrollampe - Piloto enfriamiento – So÷uma pilot lambası
L4 Lampada spia cassetto acqua pieno - Pilot lamp for full water container - Lampe tem oin
boite eau plein - Wasser Behaelter Voll Kontrollampe - Piloto nivel maximo agua – Su
haznesi dolu lambası
L5 Lampada spia filtro intasato - Clogged filter pilot lamp - Lampe filtre engorgè - Versto
pfter Filter Kontrollampe - Piloto filtro sucio – Filte tıkalı lambası
LA Spia asciugatura - Drying cycle pilot lamp - Lampe temoin sechage - Trochen-
Kontrollampe Piloto secado – Kurutma pilot lambası
LD Spia LED - LED pilot lamp - Lampe temoin LED - LED Kontrollampe - Piloto LED – LED
lamba
LF Spia asciugatura forte - Intensive drying pilot lamp - Lampe temoin sechage inten sif -
Starktrochen Lampe – Hassas kurutma lambası
LS Spia generale - Pilot lamp - Lampe temoin - Kontrollampe – Pilot lambası
MCarico acqua miscelata - Mixed water filling-up - Chargement eau mélangé – Gemischte
Wasserfüll. -Entrada agua mezclada – Karıúım suyu alma
MA Timer asciugatura - Drying timer - Timer sechage - Trochen Timer - Timer secado –
Kurutma zamanlayıcı
MC Motore a collettore - Brushes and collector motor - Moteur collecteur - Kollektor Motor -
Motor a collector – Kömürlü (fırçalı) motor

4
2005
MD Motore centrifuga - Spin motor - Moteur essorage - Schleuderung Motor - Motor secado –
sıkma motoru
ML Motore lavaggio - Washing motor - Moteur lavage - Waschung motor - Motor lavado –
Yıkama motoru
MP Elettropompa di scarico - Discharge electric pump - Pompe de vidange - Auslauf pumpe -
Electrobomba vaciado – Tahliye pompası
MR Elettropompa di ricircolo - Electric pump for water recycling- Pompe de reciclage -
Rezirkulation Pumpe - Electrobomba de recirculo – Su çevrim pompası
MT Motorino timer - Timer motor - Moteur timer - Timer motor - Motor programador –
Zamanlayıcı motoru
MV Motoventilatore asciugatura - Drying motor ventilator - Helice sechage - Trochen Fluegel
- Motoventilador secado – Kurutma fanı
PSpull stop - Stop with water in tub - Arret avec eau dans la cuve - Spüllstop - Stop cuba
llena(flot) – Suda bekletme
PA Pressostato alto livello - High level pressure switch - Pressostat du haut niveau - Hoch
Pegel Druckwaechter - Presostato nivel alto – Yüksek seviye basınç úalteri
PB Pressostato basso livello - Low level pressure switch - Pressostat du bas niveau - Niedrig
Pegel Druckwaechter - Presostato nivel bajo – Düúük seviye basınç úalteri
PD Potenziometro tempo lavaggio - Potenziometer adj length of cycle - Potenziometre temps
de lavage - Washzeit potentiometer - Potenciometro tiempo lavado – Yıkama süresi
potansiyometresi
PH Potenziometro temperatura - Potenziometer adj temperature - Potenziometre
temperature - Temperatur potentiometer - Potenciometro temperatura – Sıcaklık
potansiyometresi
PN Pressostato - Pressure switch - Interrupteur niveau - Druckwaechter - Presostato –
Basınç úalteri
PR Pressostato sicurezza resistenza- Heating element security pressure switch - Interrupteur
niveau protection resistance - Heizwiderstand Sicherheit Druckwaechter - Presostato
seguridad resistencia lavado – Isıtıcı emniyet basınç úalteri
PS Pressostato sicurezza - Security pressure switch - Interrupteur niveau de securitè -
Sicherheit Druckwaechter - Presostato seguridad – Emniyet basınç úalteri

5
2005
PT Potenziometro velocità centrifuga - Potentiometer adj spin speed - Potentiometre vitesse
essorage - Schleuderung geschwindigkeit potentiometer - Potenciometro velocidad
centrifugado – Sıkma hızı ayar potansiyometresi
PV Pressostato variabile - Adjustable pressure switch - Pressostat variable - Varierbarer
pressostat - Presostato variable – Ayarlanabilir basınç úalteri
RA Resistenza asciugatura - Drying heating element - Resistance sechage - Trockenheizung
- Resistencia secado – Kurutma rezistansı
RF Resistenza asciugatura forte - Intensive drying heating element - Resistance sechage
fort - Starktrocken Heizwiderstand - Resistencia secado energico. – Hassas kurutma
rezistansı
RL Resistenza lavaggio - Washing heating element - Resistance lavage - Waschung
Heizwiderstand - Resistencia lavado – Yıkama rezistansı
RT Regolatore di temperatura a tempo - Timer for temperature regulation - Reglage
temperature au temps - Zeit-Temperatur-Regler - Regulacion temperatura por tiempo –
Isı ayarı için zamanlayıcı
SScarico - Discharge - Vidange - Ablauf – Vaciado - Tahliye
SC Modulo motore a collettore - Collector motor electronic module - Platine electroni que
moteur collecteur - Modulo motor a colector – Motor sürücü elektronik kart
SD Ritardatore di partenza - Start delay - Retardateur de depart - Start-Verspaeter - Placa
retardadora – Baúlama geciktirme
SF Modulo funzioni – Function module – Module fonctions – Funktions modul - Modulo
funciones – Fonksiyon modülü
SM Selettore motorizzato – Motorised selector – Selecteur motorise – Programmselektor -
Selector motorizado – Motorlu seçici
ST Sonda termostato regolabile - Adjustable thermostat probe - Sonde pour thermostat
reglable -Einstellbar Thermostat Sonde - Sonda termostato regulable – Ayarlanabilir
termostat probu
ST3 Presa di campo – Tapped field coil – Modulation de champ - Conexion velocidad
maxima – Kollu sargı
SV Velocità regolabile (potenziometro) - Adjustable speed (potentiometer) - Vitesse reglable
(potentio-metre) - Einstellbar Geschwindigkeit (potentiometer) - Velocidad regulable
(potenciometro) – Hız ayarlama (potansiyometre)

6
2005
TResistenza con consenso termostato - Heater with thermostatic consent - Resistan ce
avec consentement thermostatique - Heizung mit Thermostat Erlaubnis - Resistencia con
paso termostato – Termostatlı ısıtıcı
TA Termostato di sicurezza asciugatura - Drying cycle safety thermostat - Thermostat de
securitè sechage - Sicherheits-Thermostat Trocknung - Termostato seguridad secado –
Kurutma emniyet termostatı
TB Termostato bassa temperatura - Low temperature thermostat - Thermostat pour basse
temperature - Niedrige temperatur thermostat - Termostato baja temperatura – Düúük
sıcaklık termostatı
TC Termostato di consenso N.A. - Timer feed through N.O. thermostat - Alimentation timer
par thermostat N.O. - N.O. thermostat timer speisung - Termostato de paso – N.A. kontak
üzerinden zamanlayıcı beslemesi
TF Termostato sicurezza asciugatura forte - Strong drying safety thermostat - Thermos tat
securitè essorage fort - Starke Abtrocknen Sicherheit Thermostat - Termostato seguridad
secado energico – Güçlü kurutma emniyet termostatı
TM Termostato di massima (84°C+/-2°) - Limit thermostat (84°C+/-2°) - Thermostat de
securitè (84°C+/-2°) - Sicherhelts-Thermostat (84°C+/-2°) - Termostato de maxima
(84°C+/-2°) – Emniyet termostatı (84°C+/-2°)
TN Termostato NTC - NTC termostat - Thermostat NTC - NTC thermostat - Termostato NTC
– Termostat NTC
TP Termostato di sicurezza ricircolo - Water recycling safety thermostat - Thermostat de
securitè recirculation eau sechage - Sicherheits-Thermostat für Rezirkulation -
Termostato de seguridad recirculo – Su çevrim emniyet termostatı
TR Termostato regolabile - Adjustable thermostat - Thermostat reglable - Regulierbarer-
Thermostat - Termostato regulable – Ayarlı termostat
TS Termostato di sicurezza - Safety thermostat - Thermostat de securitè - Sicherhei ts
Thermostat Termostato de seguridad – Emniyet Termostatı
VRaffreddamento - Cool down - Refroidissements - Abkühlung – Enfriamiento - So÷utma
V6 Tasto 6 Kg – 6 Kg push button – Poussoir 6 Kg – 6 Kg taste – Tecla 6 Kg – 6kg butonu
VA Tasto ammollo - Soak button - Poussoir trempage Einweicken Taste - Tecla remoio –
Suda bırakma butonu

7
2005
VB Tasto bassa temperatura (60°C) - Low temperature (60°C) button - Touche basse
temperature (60°C) - Niedrige Temperatur (60°C) Taste - Tecla baja temperatura (60°C)
– Düúük sıcaklık (60°C) butonu
VC Tasto ciclo freddo - Cold washing button - Bouton lavage froid - Taste Kaltes Wasche -
Tecla lavado frio – So÷uk yıkama butonu
VD Tasto extrarisciacquo - Super rinse pushbutton - Touche extra rincage - Extra spuelung
taste - Tecla de superaclarado – Ekstra durulama butonu
VE Tasto esclusione centrifuga - Spin cut-out button - Touche exclusion centrifuge -
Schleuderans Taste - Tecla exclusion centrifugado - Sıkma kesme butonu
VF Tasto asciugatura forte – Intensive drying pilot lamp - Touche sechage fort - Starke
Trocknungstatste - Tecla secado energico – Hassas kurutma lambası
VG Tasto lavaggio 35 giri - 35 rpm washing pushbutton - Touche 35 tours lavage - 35
Abwashung Drehzahl - Tecla 35 r.p.m. lavado VH Tasto start delay-Star delay
pushbutton-Touche start delay-Start delay taste - Tecla start delay – 35 dev/dak yıkama
butonu
VI Tasto centrifuga istantanea - Sudden spin button -Touche essorage istantanè - Taste
Augenblick-licher-Schleuderung - Tecla centrifugado istantaneo – Sıkma butonu
VK Tasto 90° - 90° pushbutton - Touche 90° - 90° taste - Tecla 90° - 90° butonu
VL Tasto "Plus" - "Plus" pushbutton - Poussoir "Plus" - "Plus" taste - Tecla "Plus" – “Plus”
butonu
VM Tasto mezzo carico elettrico - Switch for electric half load - Touche demi chargeme nt
electrique - Elektrische Halb-Einladen Taste - Tecla media carga electrico – Elektrikli yarı
yük butonu
VN Tasto mezzo carico meccanico - Switch for mechanical half load - Touche demi
chargement mecanique - Mechanische Halb-Einladen Taste - Tecla media carga
mecanico – Mekanik yarı yük butonu
VO Tasto prelavaggio - Prewash pushbutton - Touche prelavage - Vorwashung taste - Tecla
prelavado – Ön yıkama butonu
VP Tasto marcia/arresto - On/Off button - Touche marche/arret - Ein/Aus Schalter - Tecla
marcha / parada - On/Off butonu
VQ Tasto unidirezionale cesto – Unidirectional tumbling pushbutton - Touche rotation
tambour unidirectionel - Taste für einseitige Trommeldrehung -Tecla unidireccional del
tambor – øki yöne sıkma butonu

8
2005
VR Tasto economia - Economic washing pushbutton - Poussoir lavage economique -
Billigwasche Taste - Tecla economico – Ekonomik yıkama fonksiyonu
VS Tasto fermo con acqua in vasca (spull stop) - Stop with water in tub button (spull stop) -
Poussoir arret avec eau dans la cuve (spull stop) - Spull stop taste - Tecla flot – “Suda
bekletme” tuúu (sıkma durdurma)
VT Tasto 4° risciacquo - 4th rinse pushbutton - Touche de rincage - Spueltaste - Tecla
asclarado – 4’üncü durulama butonu
VU Tasto super rapido - Rapid program button - Touche super rapide - Super schnelltaste -
Tecla super rapido – Hızlı program butonu
VV Tasto cambio velocità - Speed change button - Poussoir changement de vitesse. -
Geschwindigkeitsaenderung Taste - Tecla cambio velocidad – Hız de÷iútirme butonu
VW Tasto "Softwasher" - "Softwasher" pushbutton - Poussoir "Softwasher" - "Softwasher"
Taste -Tecla "Softwasher" – “Softwasher” butonu
ZR Relè - Relay - Relais - Relais - Rele - Röle
ZT Trasformatore - Transformer - Transformateur - Transformator - Transformador - Trafo
ZW Filtro antidisturbi radio - Radio interference suppressor - Filtre anti-bruit radio -
Entstoerungsfilter - Filtro antiparasitario – Antiparazit filtre

9
2005
TABELLA CORRISPONDENZA CONTATTI PRESSOSTATO E BLOCCAPORTA
REFERENCE LIST FOR CONNECTIONS TO PRESSURE SWITCH AND DOOR
INTERLOCK
TABLEAU DE CORRESPONDENCE POUR LES CONTACTS DU PRESSOSTAT ET
RETARDATEUR OVERTURE
REFERENZEN LISTE FÜR DIE DRUCHWÄCHTER KONTAKTS UND OEFFNUNGS
VERSPATER
TABLA DE CORRESPONDENCIA DE LOS CONTACTOS DEL PRESOSTATO Y
BLOCAPUERTA
BASINÇ ùALTERøVE KAPI EMNøYET ùALTERøNE BAöLANTI øÇøN REFERANS
LøSTESø
CContatto comune - Common lead - Contatct comun - Gemeinkontakt - Contacto comun –
Ortak uç
VVuoto - Tub without water - Sans eau dans la cuve - Ohne wasser in dem Waschbottich -
Sin agua en la cuba – Tamburda su yok
PPieno - Tub full of water - Avec eau dans la cuve - Mit wasser in dem Washbottich - Con
agua en la cuba – Tambur su dolu
AAntitrabocco - Anti-overflow device - Antidebordage - Antiuberlaufener -
Antidesbordamiento – Taúma önleyici úalter
A B
C11 11
V12 12
P14 13
A16 /
C21 21
V22 22
P24 23
A / 24
Il contatto 16 della versione "A" corrisponde al
contatto 24 della versione "B".
Contact 16 of "A" version corresponds to contact
24 of "B" version.
Le contact 16 de la version "A" correspond au
contact 24 de la version "B".
Der Kontakt 16 von "A" Version bezhalt der
Kontakt 24 von "B" Version.
El contacto 16 de la version "A" corre-sponde al
contacto 24 de la version "B".
16 kontaklı A versiyonu 24 kontaklı B
versiyonuna karúılık gelmektedir.

10
2005

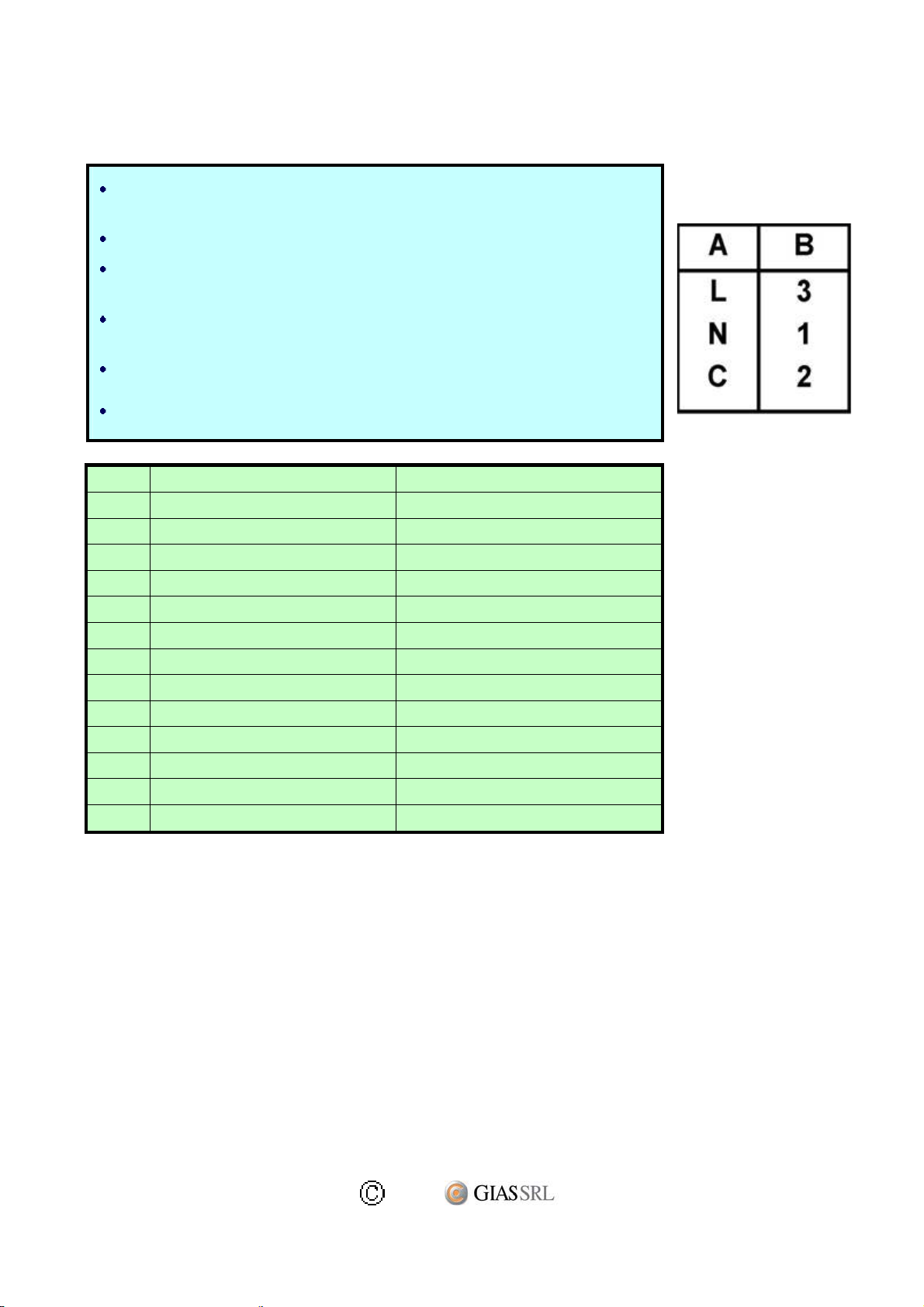

ll contatto L della versione "A" corrisponde al contatto 3 della
versione "B".
Contact L of "A" version corresponds to contact 3 of "B" version.
Le contact L de la version "A" corre- spond au contact 3 de la
version "B".
El contacto L de la version "A" corresponde al contacto 3 de la
version "B".
Der Kontakt L von "A" Version bezhalt der Kontakt 3 von "B"
Version.
“A” versiyonunun L konta÷ı “B” versiyonunun 3 konta÷ına karúılık
gelmektedir.
AAZZURRO AÇIK MAVĀ
BBLU MAVĀ
CCREMA KREM
F ROSA PEMBE
GGRIGIO GRĀ
KPONTE KÖPRÜ
MMARRONE KAHVERENGĀ
NNERO SĀYAH
OARANCIO TURUNCU
PVERDE YEāĀL
RROSSO KIRMIZI
VVIOLA MOR
YGIALLO SARI
WBIANCO BEYAZ

31003609
POSIZIONARE AL 2° PASSO
1GRIGIO METALLO EXTRA
SCURO 930.00 REMAINING GRAPHICS
START/
PAUSE
Sensitive
Care
Cold
Wash
Delay
Start
Spin
Speed
Door
Security
RinseDrain Spin
29 min
44 min
Sports
A59 min
AA 40
OFF
60
40
30
90
50
40
3040
30
Pre
Pre
RA
OPH 714 DF
+
A AA
1400
7kg
