ELLIPTICAL OWNER’S MANUAL
Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL.
ANDES 6ANDES 8

23
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to
the elliptical, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your elliptical’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER:
MODEL NAME: HORIZON ELLIPTICAL
WARNING

4 5
PULSE GRIPS
UPPE R HANDLE BAR
POWER CORD SOCKE T
ROLLER WHEEL COVERS
GUID E RA IL SET
FOOTPAD
RE AR COVER
CONSOLE
TOUCH PAD PAN EL AND DISPL AY W INDOWS
LOWER HANDLE BAR
UPPE R HANDLEBAR COVER
CR ANK COVE R
PE DAL ARM
LOWER LIN K ARM
FRONT / REAR CONSOLE M AST COVER
ANDES 6
ANDES 8
ANDES 6
ANDES 8
UNPACKING
Unpack the product where you will be using it. Place the elliptical carton on a level flat
surface. It is recommended that you place a protective covering on your floor. Never
open box when it is on its side.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
If you have questions or if
there are any missing parts,
contact Customer Tech
Support.
NEED HELP?
PRE ASSEMBLY
PARTS INCLUDED:
1 Main Frame
2 Upper Handlebars Set
1 Console Mast Set
1 Console Box
1 Parts Box
PARTS BOX INCLUDED:
1 Hexagon L-Wrench #5 (W/Screwer)
1 Front Console Mast Cover
( DWG NO.EP247-Q10)
1 Rear Console Mast Cover
( DWG NO.EP247-Q09)
1 Power Cord
1 Owners Manual

6 7
ASSEMBLY STEP 1 ASSEMBLY STEP 2
ANDES 6
ANDES 8
ANDES 6
ANDES 8
A Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd WASHERS (A) & SCREWS (A)
from frame.
B Attach the CONSOLE CABLES to the pre-
attached routing wire. Pull CONSOLE WIRES
through CONSOLE MASt. Discard wire when
finished.
C Set CONSOLE MASt on the frame.
D Use HEXAGON L WRENCH #5 to attach
CONSOLE MASt to frame with PRE-AttACHEd
WASHERS (A) & SCREWS (A).
E Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd SCREWS (B) from frame.
F Then use HEXAGON L WRENCH #5 to
attach CONSOLE MASt COVERS with
PRE-AttACHEd SCREWS (B).
SCREW (A)
M8 x 1.25P x 16 L
Qty: 4
WASHER (A)
φ8.4 xφ17.0 x 1.0T
Qty: 4
SCREW (B)
M4 x 0.75P x 12L
Qty: 2
HEXAGON L
WRENCH #5
(W/SCREW DRIVE R)
PRE-ATTACHED HARDWARE PARTS:
CONSOLE WIRES
REAR CONSOLE
MAST COVER
SCREW(B)
FRONT CONSOLE
MAST COVER
SCREW(A)
CONSOLE MAST
WASHERS (A)
CONSOLE WIRES
CONSOLE MAST
SCREW(C)
CONSOLE
A Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd SCREW (C) from CONSOLE.
B Attach CONSOLE WIRES to CONSOLE.
C Use HEXAGON L WRENCH #5 to attach
CONSOLE to CONSOLE MASt with PRE-
AttACHEd SCREW (C).
SCREW (C)
M5 x 0.8P x 12L
Qty: 4
HEXAGON L
WRENCH #5
(W/SCREW DRIVE R)
PRE-ATTACHED HARDWARE PARTS:
REAR CONSOLE
MAST COVER
EP247-Q09
FRONT CONSOLE
MAST COVER
EP247-Q10

8 9
ASSEMBLY STEP 3
ANDES 6
ANDES 8
A Use HEXAGON L WRENCH #5 to remove
PRE-AttACHEd SCREWS (d) from UPPER
HANdLEBARS.
B Attach UPPER HANdLEBARS to LOWER
HANdLEBARS with PRE-AttACHEd SCREWS (d).
SCREW (D)
M10 x1.25P x 10L
Qty: 4
HEXAGON L
WRENCH #5
(W/SCREW DRIVER)
PRE-ATTACHED HARDWARE PARTS:
ANDES 6
ANDES 8
SCREW(D)
LOWER HANDLEBARS
UPPER HANDLEBARS
ANDES 6
ECB Magnetic Brake System
Max. User Weight: 136 kg / 300 lbs
Product Weight: 82 kg / 181 lbs
Overall Dimension: 155 x 67.5 x 175 cm / 61” x 26.5” x 69”
ANDES 8
Induction Brake System
Max. User Weight: 136 kg / 300 lbs
Product Weight: 82 kg / 181 lbs
Overall Dimension: 155 x 67.5 x 175 cm / 61” x 26.5” x 69”
ASSEMBLY COMPLETE!

10 11

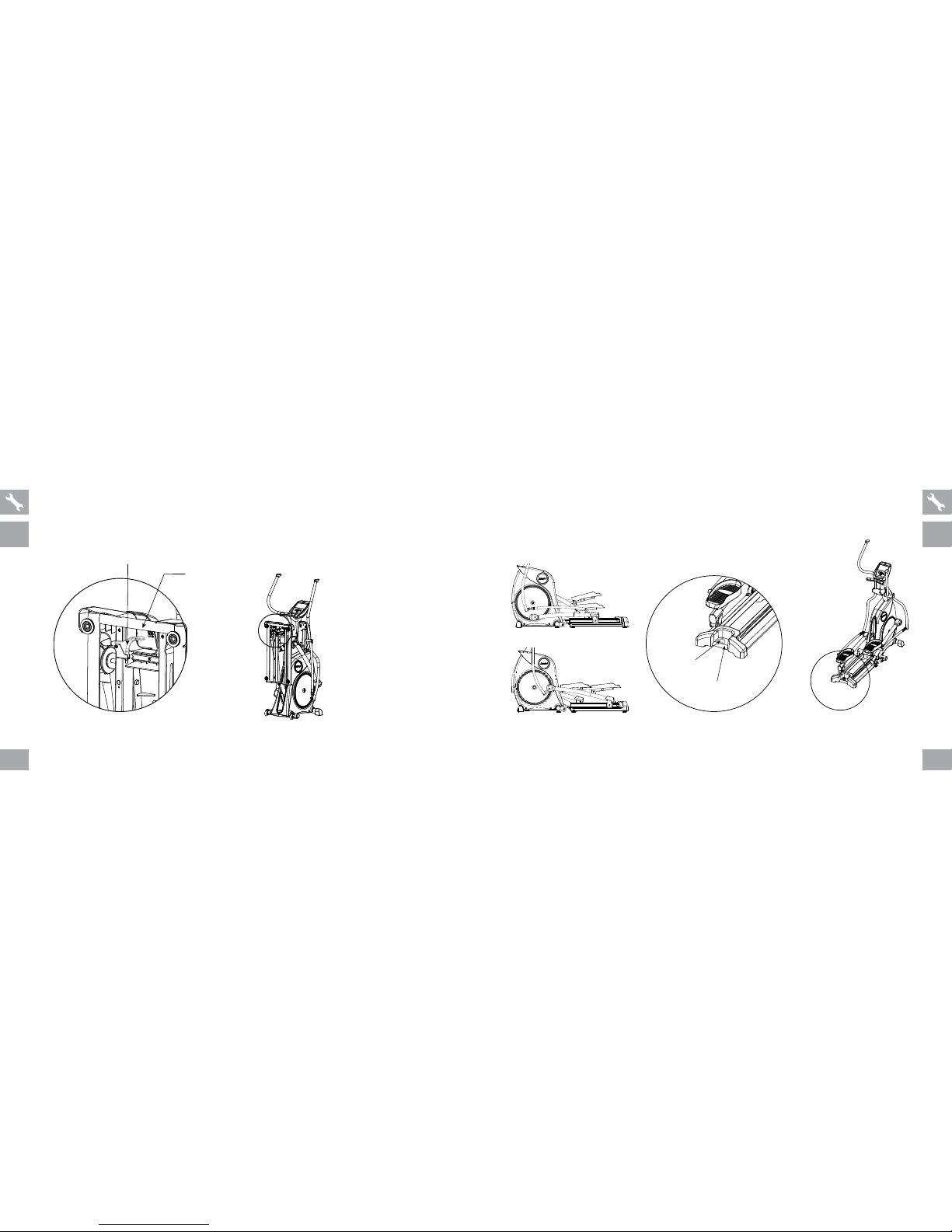

FOLDING INSTRUCTION
FOLD UP INSTRUCTION
Use right hand to grip the handle.
Pull up until guide rail set locks into place.
FOLDING INSTRUCTION
FOLD DOWN INSTRUCTION
Use right hand to grip the handle, push forward gently.
Pull up on the handle to release.
Pull back to fold down.
NOTE: The guide rails have a soft drop shock system. Let the rails unfold, do not push down on the rails.
Doing so may cause the front of the elliptical to tip over.
NOTE: For ease of folding, position footpads so they are parallel or the front footpad is higher than the rear.
ANDES 6
ANDES 8
ANDES 6
ANDES 8
SUPPORT TUBE
HANDLE
SUPPORT TUB E
HANDLE
SUPP OR T TUBE
HAND LE
SUPP OR T TUBE
HAND LE

12 13
ELLIPTICAL OPERATION
This section explains how to use your elliptical’s console and programming.
The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:
• LOCATION OF THE ELLIPTICAL
• POWER/GROUNDING INSTRUCTIONS
• FOOT POSITIONING
• MOVING THE ELLIPTICAL
• LEVELING THE ELLIPTICAL
• POWER/MANUAL INCLINE OPERATION
• USING THE HEART RATE FUNCTION
MOVING THE ELLIPTICAL
WARNING!
Our ellipticals are heavy, use care and additional help if necessary when moving.
Failure to follow instructions could result in injury.
ANDES 6
ANDES 8

14 15
ANDES 6 & 8 CONSOLE OPERATION
QUICK START
1) Make sure the power is on.
2) Simply press the “START” key and begin exercising.
SETUP YOUR PERSONAL DATA
This console is able to store your personal data which includes name, gender, age and weight. This allows you to start your workout
more quickly and monitor your exercise information more accurately. Please setup your personal data before you use the machine for
the first time. To set up your data, please follow the procedure as below,
1) Select user 1, 2 or 3
2) Select your gender
3) Select your age
4) Select your weight
5) Input your name
6) Hold the “START” key for 3 seconds to finish your setup
The console is able to store up to 3 users’ data. If you would like to modify your personal data, please select “USERS SETTING” for
modification.
START YOUR WORKOUT
1) Select the user. (If your personal data has been entered, just select and then you can start your workout).
2) Select your gender.
3) Select your age.
4) Select your weight.
5) Select the program you preferred.
6) Start your workout.
EnergySaver
ENERGIESPARMODUS
STOP
CLEAR
LÖSCHEN
START
SELECT
AUSWAHL
ANDES 6
ANDES 8
ANDES 6
ANDES 8
CONTROLS
Click 3 seconds hold 5 seconds hold
• Increase
• Next item
• Decrease
• Previous item
• Quick start
• Select item
• Start the workout
• Enter to the next
step
• Finish inputting
user ’s name

• Stop the workout
• Back to the
previous step
• Reset • Language selection
• Metric /British
selection
NOTE
These two display at left shows your performance and achieving
rate of your fitness goals. (refer to program file for more
information.)
EnergySaver
ENERGIESPARMODUS
STOP
CLEAR
LÖSCHEN
START
SELECT
AUSWAHL
EnergySaver
ENERGIESPARMODUS
STOP
CLEAR
LÖSCHEN
START
SELECT
AUSWAHL

16 17
• GAME 1: This warm up game simulates a Car Racing
Game. To control the car up and down, you pedal faster
or slower. Try to avoid those barriers and keep on track.
You only have 11 chances to complete the circuit, so be
careful .
• GAME 2: This warm up game simulates a Fishing Game.
To control the fishhook to go deeper or shallower, you
pedal faster or slower. After the fish has been caught by
you fishhook, then pedal faster until the fishhook is off
of the screen. Some of the fish are harder to catch than
others, but you will get more points from catching these
fish.
• HRC 1: Benefits weight loss by maintaining an optimum
exercise level to burn fat, while adjusting the resistance to
keep you in your target heart rate zone.
NOTE: When using HRC program, the percentage meter at
right will show your current HR and your achieving rate. You
must get 100% to reach your target set.
• MOUNTAIN: Improves performance and stamina by
raising the resistance level to high peaks to simulate the
most difficult outdoor terrains.
• FIT-TEST: Test your current level of physical fitness.
At completion of the program,it will provide feedback
regarding your fitness level for you to monitor your
progress.
• STEP TEST: Test your current level of physical fitness.
At completion of the program,it will provide feedback
regarding your fitness level for you to monitor your
progress.
• WEIGHT LOSS: Promotes weight loss by raising and
lowering the resistance level, while keeping you in your
fat burning zone.
• AFTER BURNER: Recover your heart and muscles by
gradually cooling down after intensive workout.
• WATTS CONTROL: Exercise at a set work level. As
you increase your pedal rate(RPM), your resistance will
decrease; if you decrease your pedal rate (RPM), your
resistance will increase.
NOTE: When using WATTS control program, the bar at the
bottom shows your current watt and percentage meter at
left shows your achieving rate. You must get 100% to reach
your target set.

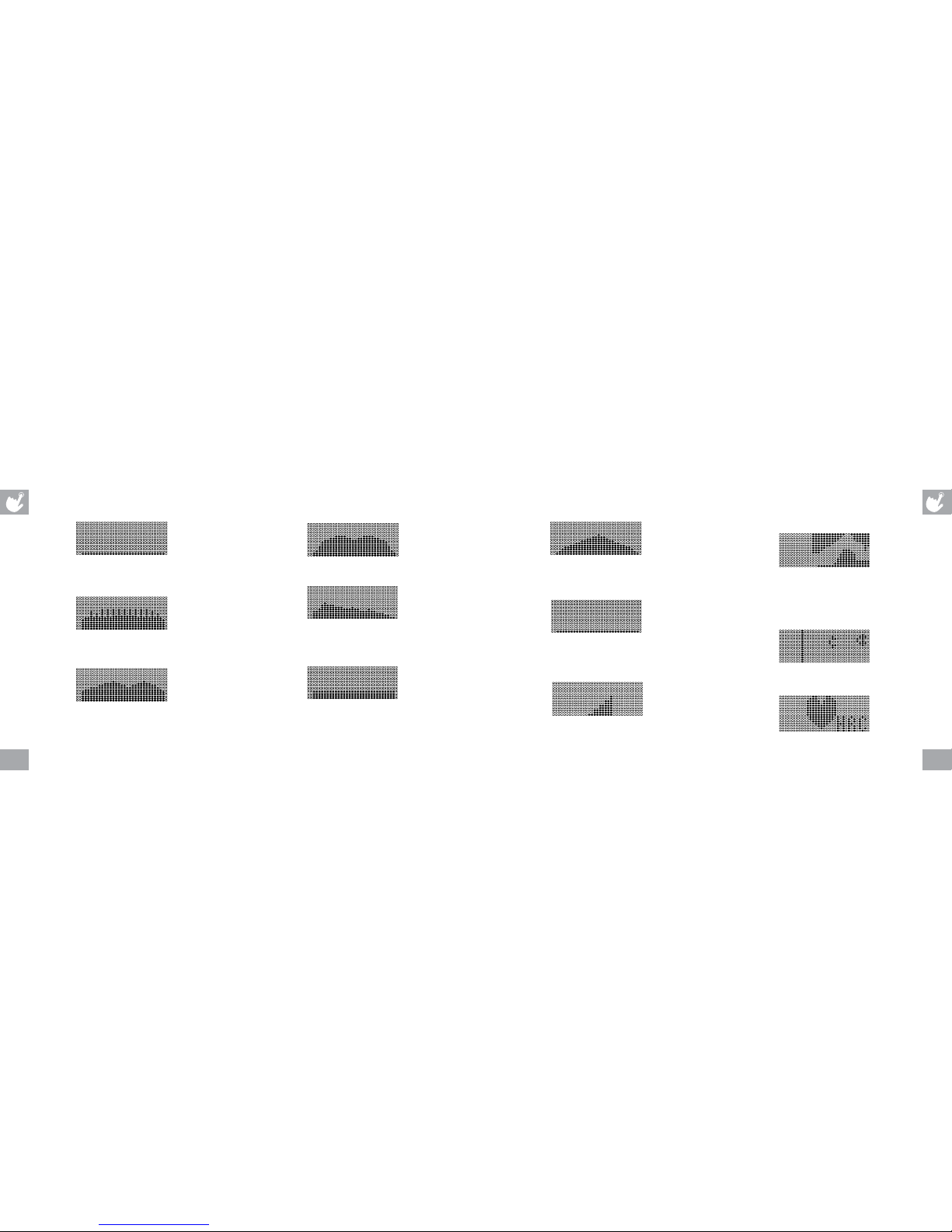

PROGRAM PROFILES
• MANUAL: Allows you to adjust the resistance level to
your preference, without a preset program.
• INTERVALS: Improves your strength, speed, and
endurance by raising and lowering the resistance
levels throughout your workout to involve both your
heart and muscles.
• ROLLING: Maintains weight by gradually raising and
lowering the resistance level to gradually raise and
lower your heart rate.
PROGRAM PROFILES

18 19
PROGRAM PROFILES
• HRC 2: Benefits weight loss by maintaining an optimum
exercise level to burn fat, while adjusting the resistance to
keep you in your target heart rate zone.
• CUSTOM 1: Customized workout, time defaults to 15
minutes.
• CUSTOM 2.3: Customized workout, time defaults to 15
minutes.
SYNCING ELLIPTICAL WITH PASSPORT
1) Using the arrow key on the passport remote control to scroll to the setup icon and
press the Select.
2) Follow the on-screen prompt to press and hold the RESISTANCE UP and STOP
buttons on the equipment’s console.
3) Once your sync is success, your elliptical message bar will change from RF Sync to
Passport Ready.
4) Besides point 3, the message displayed on-screen will notify you if the sync was
completed or failed.
RESISTANCE UP STOP
ACCESSING MEDIA THROUGH ON-SCREEN MENU
1) You can access the Virtual Active content or your personal movies are stored on the
USB drive. Select either the Virtual Active icon or the Media icon using the remote
control.
2) Follow the on-screen prompts to select a video and begin your workout.
3) You will have to Press START on your equipment’s console to begin playing a video.
Note: See Passport Owner’s Manual for more information.
RESISTANCE UP STOP
