SELF-CONTAINED CRESCENT CUBER
INSTRUCTION MANUAL
No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126 China
KM-40C-HC
KM-60C-HC
KM-80C-HC
KM-140-HC
KM-40C-HC-W
KM-60C-HC-W
KM-80C-HC-W
KM-140C-HC-W
KM-80C-HC

IMPORTANT SAFETY INFORMATION ..........................................................................................................................................1
I. INSTALLATION INSTRUCTIONS..............................................................................................................................................3
1. CONSTRUCTION ................................................................................................................................................................3
2. ACCESSORIES ...................................................................................................................................................................3
3. UNPACKING........................................................................................................................................................................3
4. LOCATION...........................................................................................................................................................................4
5. INSTALLATION....................................................................................................................................................................5
6. ELECTRICAL CONNECTIONS............................................................................................................................................5
7. WATER SUPPLY AND DRAIN CONNECTIONS.................................................................................................................5
II. OPERATING INSTRUCTIONS ..................................................................................................................................................6
1. START UP............................................................................................................................................................................7
2. USER SETTINGS ................................................................................................................................................................7
3. PREPARING THE ICEMAKER FOR LONG STORAGE......................................................................................................8
III. MAINTENANCE .........................................................................................................................................................................9
1. CLEANING...........................................................................................................................................................................9
2. BEFORE CALLING FOR SERVICE...................................................................................................................................11
3. DISPOSAL .........................................................................................................................................................................11
4. WARRANTY.......................................................................................................................................................................11
SPECIFICATIONS.........................................................................................................................................................................12

1
ENGLISH
IMPORTANT SAFETY INFORMATION
Throughout this manual, notices appear to bring your attention to situations which could result in
death, serious injury, or damage to the unit.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE Indicates a hazardous situation which, if not avoided, could result in damage to
the unit.
HYGIENE Indicates important precautions for hygiene and food safety.
IMPORTANT Indicates important information about the use and care of the unit.
This icemaker uses HFC-free refrigerant (propane) that is a non-ozone-depleting and
environmentally sustainable material having very low global warming potential.
WARNING
This icemaker contains ammable refrigerant in its cooling unit; installation, handling, servicing
and disposal must therefore only be carried out by authorized technicians.
The refrigerant contained in this icemaker is ammable and sealed in the refrigeration system.
Although the refrigerant does not leak out under normal usage, take utmost care when
handling this icemaker so as not to cause any damages to the system.
In the case of accidental damage to the refrigeration system causing refrigerant leak:
* Do not create a source of ignition in the area.
* Do not operate electrical switches or plugs in the area.
* Do not use naked ame.
* Immediately ventilate the area by opening doors and/or windows.
* Call service engineer.
IMPORTANT
This booklet is an integral and essential part of the product and should be kept and preserved
by the user.
Please read carefully the guidelines and warnings contained herein as they are intended to
provide the installer/user with essential information for the proper installation and the continued
safe use and maintenance of the product.
Please preserve this booklet for any further consultation that may be necessary.

2
ENGLISH
WARNING
This is a commercial icemaker, and should be destined only to be used for the purpose for
which it has been expressly designed.
Any other use should be considered improper and therefore dangerous. The manufacturer
will not be held liable or responsible for any damage caused by improper, incorrect and
unreasonable use.
The installation, and relocation if necessary, must be carried out by qualied personnel,
in accordance with current regulations, according to the manufacturer’s instructions.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
The use of any electrical appliance involves the observance of some fundamental rules. In
particular:
*Instances of high humidity and moisture increase the risk of electrical short circuits and
potential electrical shocks. If in doubt, disconnect the icemaker.
*Do not damage the power cord or pull it in order to disconnect the icemaker from the
electrical supply network.
*If the supply cord and/or the plug should need to be replaced, it should only be done by a
qualied service engineer.
*Do not touch the electrical parts or operate the switches with damp hands.
*This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, it can however be used
by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge providing they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
*Children shall not play with the appliance.
*Cleaning and user maintenance shall not be made by children without supervision.
* Do not attempt to modify the icemaker. Only qualied personnel may disassemble or repair
the appliance.
When positioning the appliance, ensure the supply cord is not trapped or damaged.
Do not locate multiple portable socket-outlets or portable power supplies at the rear of the
appliance.

3
ENGLISH
I. INSTALLATION INSTRUCTIONS

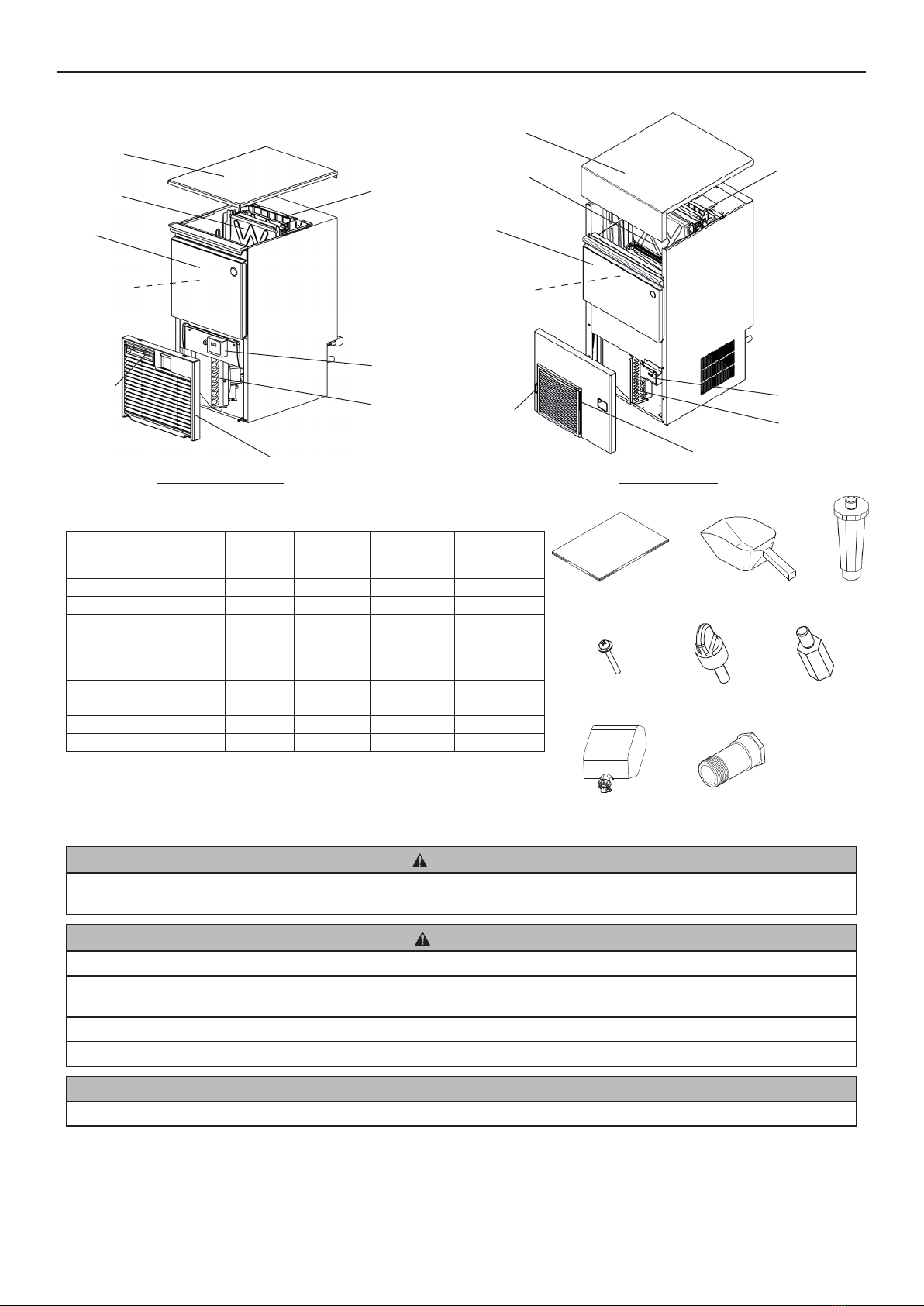

1. CONSTRUCTION
2. ACCESSORIES
KM-40C-HC
KM-60C-HC
KM-80C-HC
KM-140C-HC
KM-40C-HC-W
KM-60C-HC-W
KM-80C-HC-W
KM-140C-HC-W
Instruction Manual 1 1 1 1
Scoop 1 1 1 1
Leg 4 4 4 4
Pan Head Screw with
Washer (M4 x 30) (louver
xing)
2 - - -
Thumbscrew (louver xing) - - 2 1
Spacer (M4) (louver xing) - - 2 -
Cleaning Pack Assy - - 1 1
Dual Check Valve 1 1 1 1
3. UNPACKING

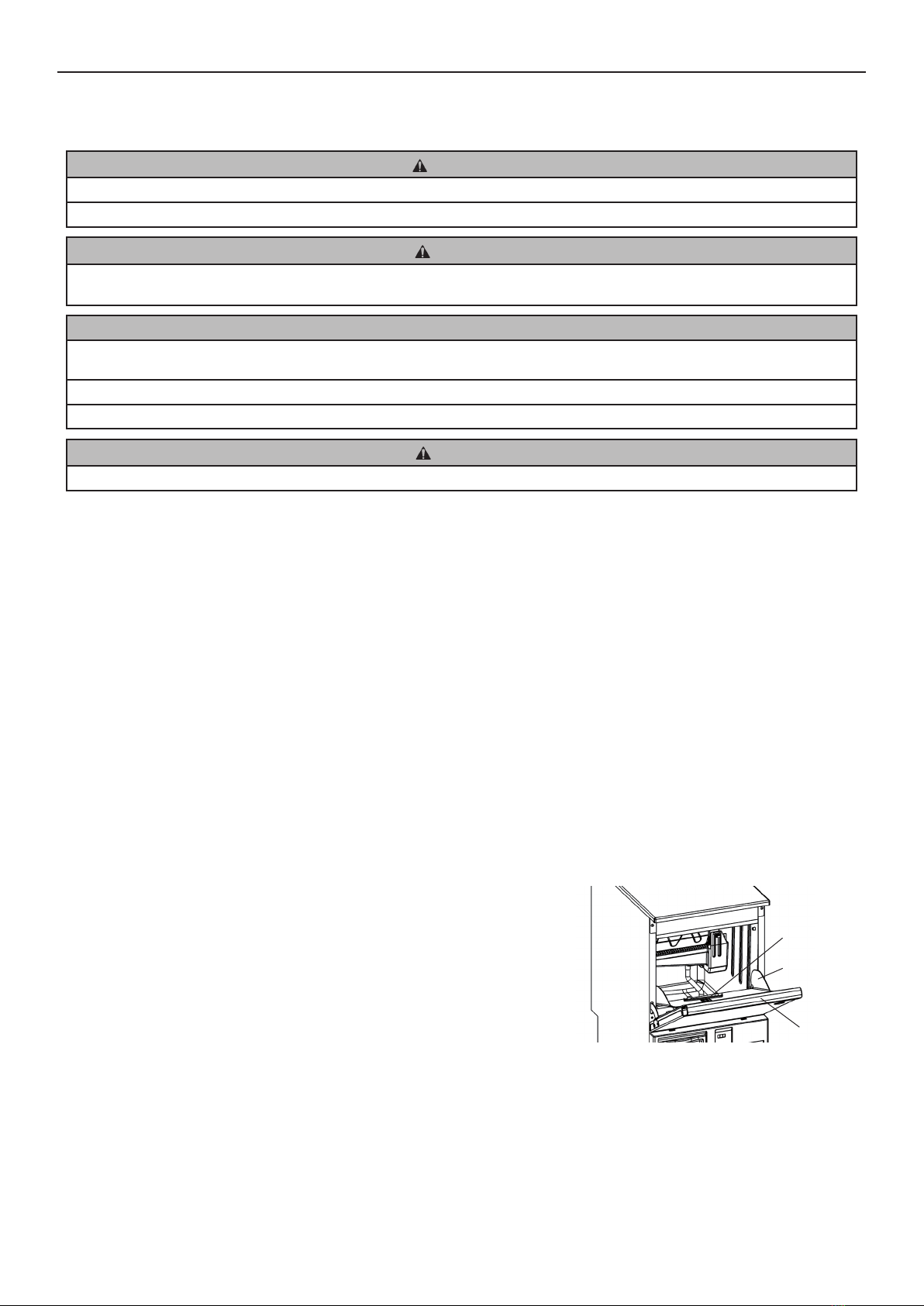

WARNING
Children should not be allowed in reach of the packaging elements (plastic bags and expanded polystyrene) as they are
potential sources of danger.
CAUTION
Do not lift or manoeuvre the carton by using the shipping bands.
When moving the unit by hand, remove the louver and hold the unit bottom. Do not hold the top panel or door. It may come o󰀨
and cause injury.
Always wear protective gloves when carrying the unit.
When handling the carton or the unpacked unit, work in pairs to prevent injury.
NOTICE
Remove shipping carton, tape(s) and packing. If packing material is left in the icemaker, it will not work properly.
Top Panel
Separator Water Circuit
Door
Storage Bin
Louver
Control Box
Air Filter
Refrigeration
Circuit
Instruction Manual Scoop
Pan Head Screw
with Washer
Dual Check Valve
Leg
Thumbscrew Spacer
Cleaning Pack Assy
KM-140C-HC(-W)
Top Panel
Separator Water Circuit
Door
Storage Bin
Louver
Control Box
Air Filter Refrigeration
Circuit
KM-40/60/80C-HC(-W)

4
ENGLISH
1) After removing the packaging, make sure that the icemaker is in good condition. If in doubt, please do not use the icemaker
but apply to professionally qualied personnel.
2) Remove the shipping tape holding the door and separator.
3) Remove the protective plastic lm from the exterior. If the icemaker is exposed to the sun or to heat, remove the lm after the
icemaker cools.
4) Remove the package of accessories. Check the contents according to “2. ACCESSORIES”.
4. LOCATION
WARNING
This icemaker is not intended for outdoor use.
The icemaker should not be located next to ovens, grills or other high heat producing equipment.
This appliance is not suitable for installation in an area where a water jet could be used.
CAUTION
The location should provide a rm and level foundation for the icemaker.
NOTICE
Do not place anything on top of the icemaker or in front of the louver.
IMPORTANT
Normal operating ambient temperature should be within 7°C to 38°C. Normal operating water temperature should be within
7°C to 32°C. Operation of the icemaker, for extended periods, outside of these normal temperature ranges may affect
production capacity.

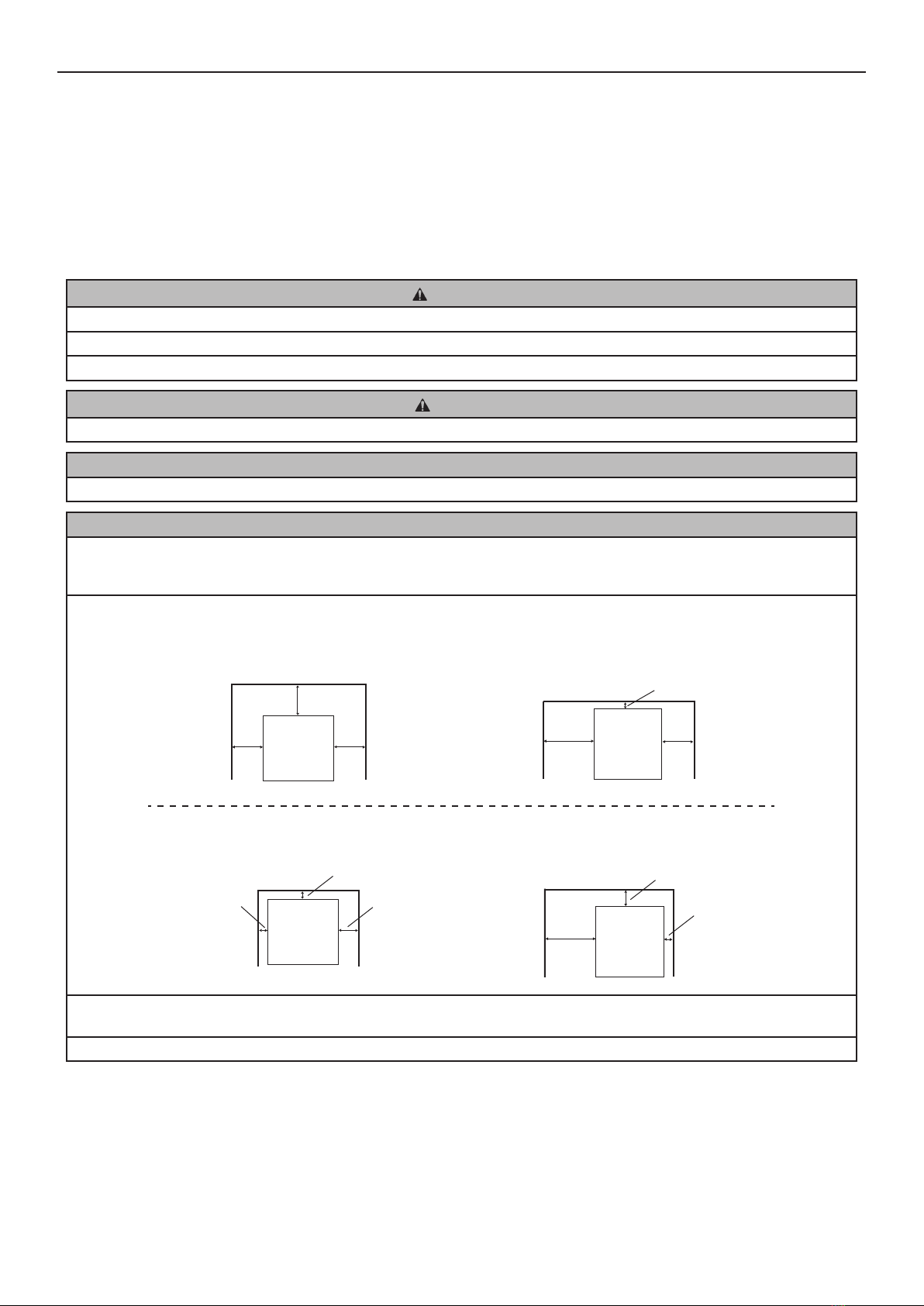

Allow the clearance specied below for proper air circulation and ease of maintenance and/or service should they be required.
Top View
Rear
ICEMAKER
Front
Left Right
5 cm
15 mm
15 mm
[KM-140C-HC(-W)]
Top View
Rear
ICEMAKER
Front
Left Right
15 cm
15 cm
15 cm
[KM-40/60/80C-HC(-W)]
Side View
Rear
Front
Top 15 mm
40 cm 15 cm
ICEMAKER
Rear
Front
Top 5 cm
40 cm ICEMAKER
15 mm
Side View
In some high humidity environments, condensation may form inside the machine and drip onto the oor. Do not install where
the oor can be a󰀨ected by water.
Avoid prolonged exposure of the appliance to direct sunlight.

5
ENGLISH
5. INSTALLATION
CAUTION
Incorrect installation can cause harm to people, animals or other items, for which the manufacturer cannot be held
responsible.
* Place the icemaker in the selected permanent site.
* The appliance must be positioned so that the plug is accessible.
* Level the icemaker in both the left-to-right and front-to-rear directions by adjusting the legs.
6. ELECTRICAL CONNECTIONS
WARNING
THIS APPLIANCE MUST BE EARTHED
This icemaker requires an earth that meets the national and local electrical code requirements.
To prevent possible severe electrical shock to individuals or extensive damage to the unit, install a proper earth wire to the icemaker.
Disconnect the main power supply before any maintenance, repairs or cleaning is undertaken.
* This appliance requires a separate 220 - 240VAC, 10A supply. The electrical supply must be protected by a suitable circuit
breaker.
* The main control box fuse is rated at 5A and should only be replaced by a qualied service engineer.
* Usually an electrical permit and services of a licensed electrician are required.
7. WATER SUPPLY AND DRAIN CONNECTIONS
WARNING
Connect to potable cold water supply only.
* The service of a licensed plumber may be required to ensure the installation is in accordance with the local codes and
regulations.
[Connection to the water supply]
* The connections to the mains water supply must be made in accordance with the Plumbing Code of Australia and in
accordance with AS / NZS 3500.1 and AS / NZS 3500.2. The dual check valve (backow prevention) supplied with this unit
must be connected between the main supply outlet and water inlet of icemaker.
* Icemaking water must be potable water. Where scaling can be caused by water quality, installation of an external lter or
softener is recommended. Contact your local water treatment professional or Hoshizaki service agent.
* Water supply pressure should be minimum 0.07 MPa (0.7 bar) and maximum 0.8 MPa (8 bar). If the pressure exceeds 0.8
MPa (8 bar), use a proper pressure reducing valve. Do NOT throttle back the supply tap.
* The dual check valve must be connected in the icemaker water supply between the main water supply outlet and the straight
connection of the inlet hose as shown.
* Ensure rubber tap washers are correctly positioned. Hand tighten the dual check valve and inlet hose su󰀩ciently to provide a
leak free joint.

6
ENGLISH

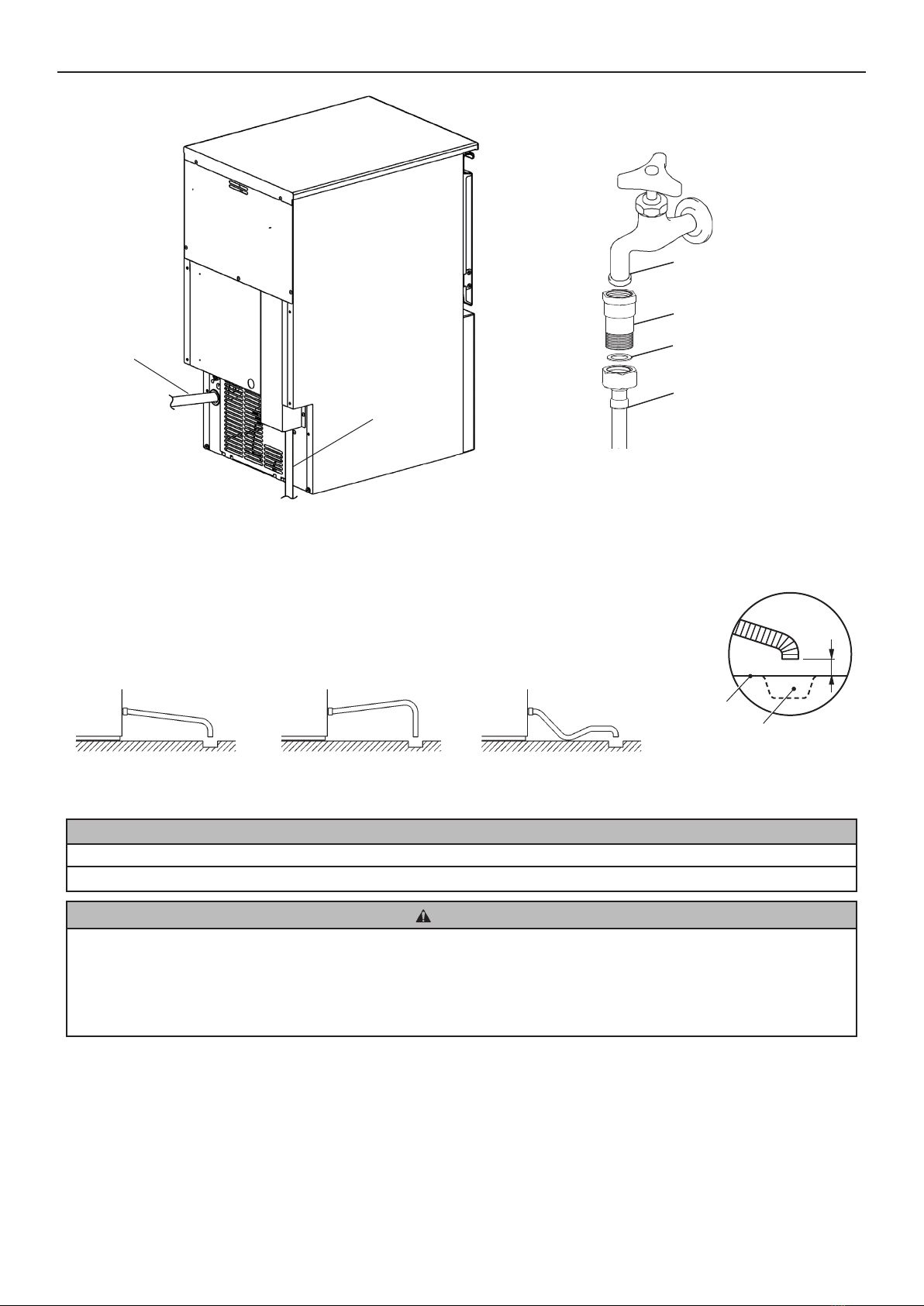

Inlet Hose
Outlet Hose
[Connection to the drain]
* Hand tighten grey exible outlet hose (accessory) onto the tting on the rear of the icemaker as indicated, ensuring rubber
washer is correctly positioned to obtain a leak free joint. The pipe can be cut to length as necessary to suit position of main
drain.
* Drain lines should not be installed directly to the sewer system. A vertical air gap of a minimum of
5 cm should be between the end of the drain hoses from the icemaker and the oor drain.
* To prevent a backow into the storage bin, the outlet hose must be laid as shown.
Downgrade
GOOD BAD
Upgrade
BAD
II. OPERATING INSTRUCTIONS
NOTICE
All parts are factory-adjusted. Improper adjustments may result in failure.
If the unit is turned o󰀨, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor.
HYGIENE
This icemaker is designed to produce edible ice. To keep the icemaker hygienic:
* Wash your hands before removing ice. Use the plastic scoop provided (accessory).
* The storage bin is for ice use only. Do not store anything else in the bin nor use other electrical appliances in the bin.
* Clean the storage bin before use (see “III. 1. CLEANING”).
* Keep the scoop clean. Clean it by using a neutral cleaner and rinse thoroughly.
* Close the door after removing ice to prevent entrance of dirt, dust or insects into the storage bin.
Water Supply Tap
Dual Check Valve
Tap Washer
Inlet Hose
5cm air gap
Drain
Floor

7
ENGLISH

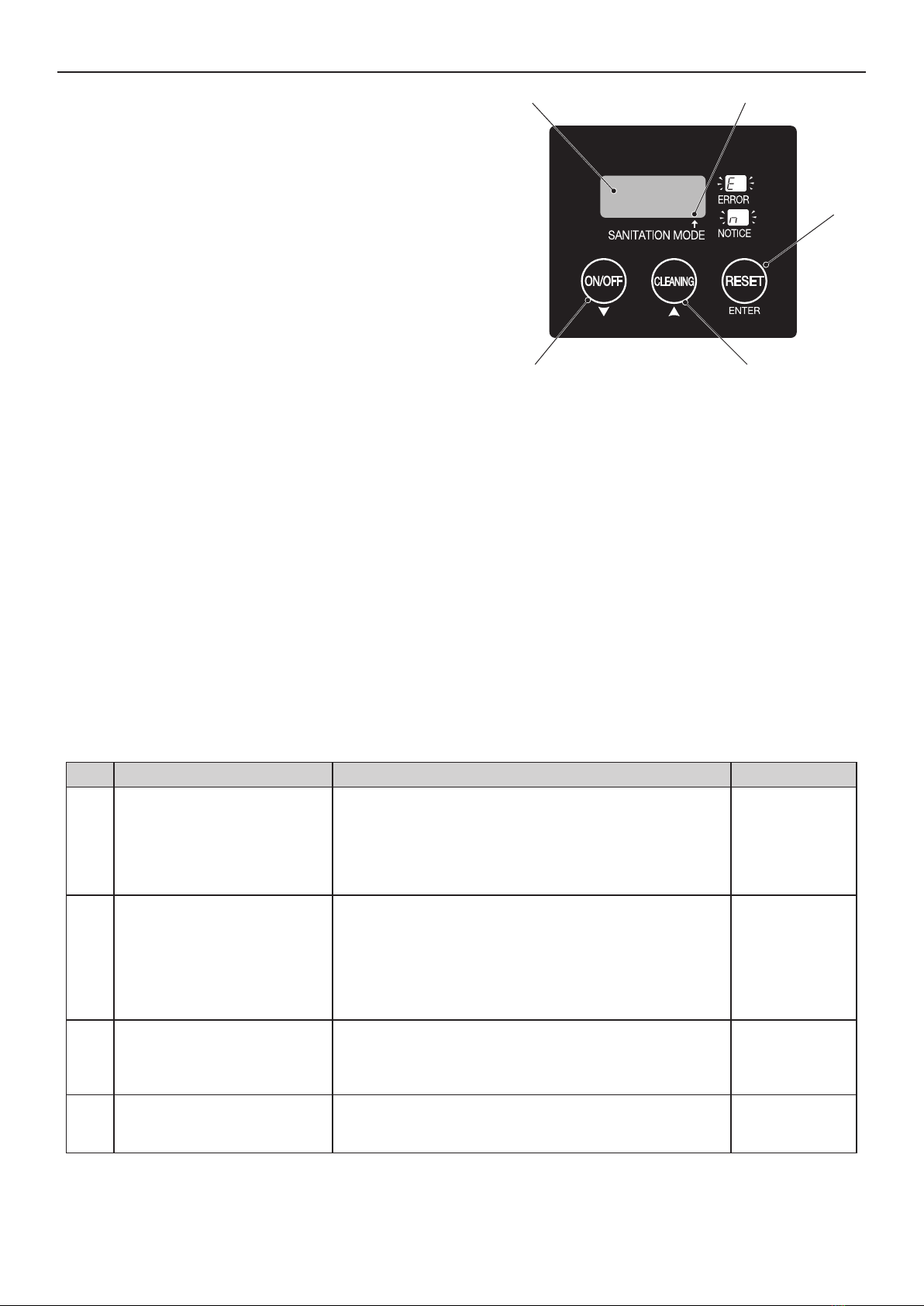

Operation Panel
[1] Display
run: Icemaking
oFF: Shut down
FUL: Bin full
cln: Cleaning
[2] Dot
O󰀨: Normal mode
On: Sanitation mode (*)
* After 4 continued hours of inactivity, the icemaker automatically cleans
and refreshes the water circuit to prevent bacterial proliferation,
keeping it clean and sanitary for longer periods of time.
[3] ON/OFF Button / Down Button
[4] Cleaning Button / Up Button
[5] Reset Button / Enter Button
1. START UP
The installer will normally commission the icemaker to start the automatic icemaking process. To ensure continuous operation,
make sure that:
* The water supply tap is on,
* The icemaker is connected to the power supply, and
* The display shows “run”.
2. USER SETTINGS
The settings listed below are adjustable by the user.
1) Press and hold the reset button for 3 seconds to enter the user setting mode. The display shows one of the setting codes.
2) Use the up or down button until the display shows the desired setting code. Then, press the enter button.
3) Use the up or down button to adjust the setting. Then, press the enter button.
4) After nishing the settings, use the up or down button until the display shows “END”. Then, press the enter button to exit the
user setting mode.
Code Item Description Default
U.04 Drain frequency
0: No drain
1: Every 1 cycle
2: Every 2 cycles
5: Every 5 cycles
10: Every 10 cycles
20: Every 20 cycles
10: Every 10
cycles
U.44 Automatic water cleaning
frequency
0: No automatic water cleaning
5: Every 5 cycles
10: Every 10 cycles
15: Every 15 cycles
20: Every 20 cycles
40: Every 40 cycles
60: Every 60 cycles
20: Every 20
cycles
U.49 Number of chemical doses (*) When chemical doses reach set number of times, notice code
"n93" appears to show no chemical is left.
KM-40: 15 times
KM-60: 13 times
KM-80: 12 times
KM-140: 16 times
U.50 Fully automated chemical
cleaning frequency (*)
Start fully automated chemical cleaning at set frequency.
Adjustable from every 400 to 1000 cycles (in 100-cycle steps)
e.g. 40 = 400 cycles
–
[1]
[3] [4]
[2]
[5]

8
ENGLISH
Code Item Description Default
U.51 UV-LED irradiation time (**) Irradiate UV-LED for set period of time.
None or adjustable from 10 to 30 minutes (in 1-minute steps) –
U.52 UV-LED irradiation frequency (**) Irradiate UV-LED in freeze cycle after set period of time.
Adjustable from 30 to 300 minutes (in 10-minute steps) 120 minutes
U.53 Operation mode
nor: Normal mode
cln: Sanitation mode (After 4 continued hours of inactivity,
water circuit is automatically cleaned and refreshed to prevent
bacterial proliferation.)
nor: Normal mode
U.54 Fully automated chemical
cleaning mode (*)
When "cln" (sanitation mode) is selected, unit runs one cycle
of fully automated chemical cleaning by using fully automated
cleaning kit (option) regardless of frequency set by U.50.
–
U.55 Reset number of chemical doses
(*)
Reset notice code “n93” (no chemical is left) and number of
chemical doses. –
U.56 Reset settings Reset all user settings to default. –
U.58 Forced shut down Shut down unit under any conditions. –
U.59 Forced drain Shut down and drain unit under any conditions. –
U.60 Notice (e.g. maintenance) Notice code “n99” appears after set period of time.
Adjustable from 0 (none) to 6000 hours (in 100-hour steps) 0: None
U.68 Reset notice Reset counting for notice U.60. –
* Applicable only to the fully automated cleaning model (-W) or when the fully automated cleaning kit (option) is used.
** Applicable only when the UV-LED (option) is used.
3. PREPARING THE ICEMAKER FOR LONG STORAGE
NOTICE
This icemaker will not work at subfreezing temperatures. To prevent damage to the water supply line, drain the icemaker when
air temperature is below zero.
HYGIENE
When shutting down the icemaker for two or more days, drain the icemaker to prevent contamination in the water circuit.
1) Chemically clean the water circuit according to “III. 1. [e] Icemaking Water System”.
2) Press the ON/OFF buton. The display shows “oFF”.
3) Press and hold the reset button for 3 seconds to enter the user setting mode.
4) Set the user setting “U.59” to “1” to drain the icemaker.
5) Unplug the icemaker or disconnect the power supply.
6) Close the water supply tap, and remove the inlet hose.
7) Remove all ice from the storage bin, and clean the bin.
8) Before resuming the use of the icemaker, clean the water circuit again with fresh water or a chemical solution according to “III.
1. [e] Icemaking Water System”.

9
ENGLISH
III. MAINTENANCE
1. CLEANING
WARNING
Before carrying out any cleaning or maintenance operations, unplug the icemaker from the electrical supply network.
This appliance must not be cleaned by use of a water jet.
CAUTION
When using a neutral cleaner or sodium hypochlorite, thoroughly read and understand the instructions provided to prevent
potential health problems.
NOTICE
Ask a trained service person to clean and sanitise the icemaker water system at least twice a year and to check and clean the
condenser at least once a year.
To prevent possible damage, do not clean the plastic parts with water above 40°C or in a dishwasher.
Do not use any alcohol for cleaning/sanitisation of the icemaker. It may cause cracks on the plastic parts.
HYGIENE
To ensure their e󰀨ects and hygienic quality, prepare the cleaning and sanitising solutions just before their use.
[a] Machine and Bin Exterior
Wipe the exterior at least once per week with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe o󰀨
grease or dirt.
[b] Scoop and Storage Bin Handle Cleaning/Sanitisation (Daily)
1) Either mix 3 litres of water with 11 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended
Hoshizaki sanitiser as directed.
2) Soak the scoop in the solution for more than 3 minutes. Rinse thoroughly, and shake to remove surplus liquid.
Note: Using a cloth to dry may re-contaminate.
3) Use a neutral cleaner to wash the storage bin handle. Rinse thoroughly.
4) Soak a clean cloth with the sanitising solution, and wipe the handle. Use fresh water and a clean cloth to rinse/dry.
[c] Storage Bin Interior Cleaning/Sanitisation (Weekly)
1) Open the storage bin door, and remove all ice.
2) Remove the scoop holder from the slope.
3) Wash the bin liner and scoop holder with a neutral non-abrasive cleaner. Rinse
thoroughly.
4) Soak a clean cloth with the neutral cleaner, and wipe both sides of the slope and
the door inner surface. Wipe o󰀨 the cleaner with a clean damp cloth.
5) Either mix 3 litres of water with 11 ml of 5.25% sodium hypochlorite solution in a
suitable container, or the recommended Hoshizaki sanitiser as directed.
6) Soak a clean sponge or cloth with the solution, and wipe the bin liner, bin door, slope and scoop holder.
Note: Clean every surface of the door gasket which gets soiled easily. It is readily removable for cleaning.
Scoop Holder
Slope
Handle

10
ENGLISH

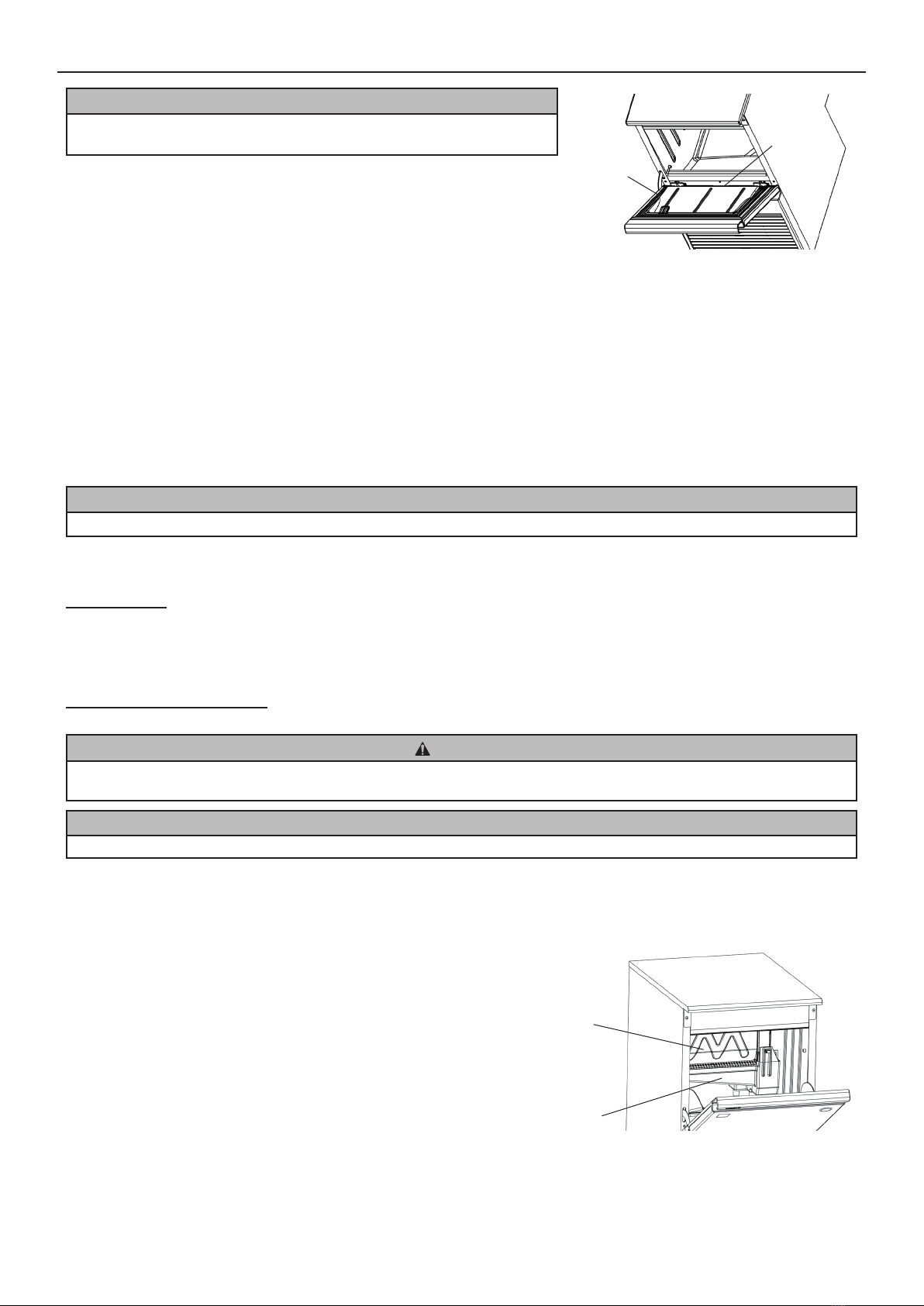

IMPORTANT
The door gasket is provided with a magnet at the top and both sides. To
ensure air tightness of the door, ret the gasket properly in its correct position.
7) The remaining solution can be used to sanitise utensils.
Note: Do not wipe dry or rinse after sanitising, but allow to air dry.
[d] Air Filter
Plastic mesh air lters remove dirt or dust from the air, and keep the condenser from getting clogged. If the lters get clogged,
the icemaker’s performance will be reduced. Remove and clean the air lter(s) at least twice per month:
1) Remove the air lter.
Note: Do not put your hand inside the machine compartment.
2) Clean the air lter by using a vacuum cleaner. When severely clogged, use warm water and a neutral cleaner to wash the air
lter.
3) Rinse and dry the air lter thoroughly.
NOTICE
After cleaning, be sure to place the air lter back in position.
[e] Icemaking Water System
Water Cleaning
Clean the water circuit with fresh water either automatically or manually.
Automatic water cleaning: Set the user setting “U.44” to a desired frequency (see “II. 2. USER SETTINGS”).
Manual water cleaning: Press the cleaning button while the display does not show “oFF”.
The icemaker automatically resumes icemaking operation after cleaning the water circuit.
Automated Chemical Cleaning
E󰀨ectively clean the water circuit by manually feeding a chemical.
CAUTION
Wear protective equipment (e.g. protective glasses) when using the citric acid or sodium hypochlorite solution. The solution may
spout out and splash into your eyes. In that case, wash your eyes with clean water.
NOTICE
If the citric acid solution is found dripping on the sheet metal parts, wipe it o󰀨 thoroughly to prevent rust.
1) Make either of the following solutions to t the intended purpose.
Cleaning (descaling): 3.5 litres of 2% citric acid solution
Sanitising: 3.5 litres of water mixed with 13 ml of 5.25% sodium hypochlorite solution
2) Open the door, and remove all ice from the storage bin. Check that the
separator is attached in its correct position as shown. Otherwise, the
solution may splash onto the ice in the storage bin.
3) Press and hold the cleaning button for 3 seconds. The display ashes
the current mode. For example, the display showing “run” during the
icemaking operation starts to ash “run”.
4) When the display changes to “cln”, pour the following amount of
solution into the water tank carefully not to overow it.
KM-40C-HC: 2.0 litres
KM-60C-HC: 2.5 litres
KM-80C-HC: 3.0 litres
KM-140C-HC: 3.5 litres
Door Gasket
No magnet
at bottom
Water Tank
Separator

11
ENGLISH
5) Rinse the bin liner with clean water to remove any solution spilled in the storage bin. Then, close the door.
6) Press the cleaning button (or wait for 15 minutes) to start the automated chemical cleaning.
7) The unit resumes the original state when the cleaning is over.
WARNING
If the ice made after the automated chemical cleaning tastes wrong, immediately stop using the icemaker and call for service.
Fully Automated Chemical Cleaning (*)
* Available only for the fully automated cleaning model (-W) or when the fully automated cleaning kit (option) is used.
The fully automated cleaning kit automatically feeds a chemical (1250 ml of 40% citric acid solution) and descales the water
circuit at a desired frequency. Make necessary settings according to “II. 2. USER SETTINGS”.
For further details, see the instruction manual of the fully automated cleaning kit ACK.
2. BEFORE CALLING FOR SERVICE
WARNING
Do not damage the refrigerant circuit.
If the icemaker does not work properly or does not work at all, before calling for service, check that:
* The power is supplied to the unit.
* The water is turned on.
* The air lter is clean.
If the problem still exists, turn o󰀨 the power supply, turn it back on, and press the reset button.
If the problem persists, check whether the error code “E” is indicated on the display or the dot at the center is on, and contact
your local Hoshizaki service agent.
If one of the following notice codes appears, follow the instructions below.
Code Description
n92 Abnormal high temperature. Clean air lter. Check for proper installation according to "I. 4. LOCATION".
n93 No chemical is left (when fully automated cleaning kit (option) is used). Replace or rell chemical container, and reset
by user setting “U.55” (see “II. 2. USER SETTINGS”). To change frequency of notice, use user setting “U.49”.
n99 Period of time set by user setting “U.60” (see “II. 2. USER SETTINGS”) has passed and maintenance is required.
When maintenance is done, press reset button.
For further assistance or advice, contact your local Hoshizaki service agent.
3. DISPOSAL
Comply with local regulations regarding disposal of this appliance and its refrigerant gas. Before you scrap the appliance, take
o󰀨 the door to prevent children trapped.
WARNING
The insulation foaming agent used for the unit body contains ammable gas cyclopentane. With this in mind,
dispose of the product properly.
4. WARRANTY
Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or
workmanship for the duration of the “warranty period”. The warranty shall be e󰀨ective for two years from the date of installation.
Hoshizaki’s liability under the terms of the warranty are limited and shall exclude routine servicing, cleaning, essential
maintenance and/or repairs occasioned by misuse and installations not in accordance with Hoshizaki guidelines.
Risk of re

12
ENGLISH
Warranty repairs should be completed by an approved Hoshizaki dealer or service agency using genuine Hoshizaki components.
To obtain full details of your warranty and approved service agency, please contact your dealer/supplier, or the nearest Hoshizaki
Service o󰀩ce:
Hoshizaki Lancer
TEL: [phone]
FAX: [phone]
[email protected]
http://www.hoshizaki.com.au
To register your product for warranty with Hoshizaki,
visit http://www.hoshizaki.com.au/warranty-registration
or scan the QR code.
SPECIFICATIONS
Model KM-40C-HC KM-60C-HC KM-80C-HC KM-140C-HC
Type Air-cooled, crescent ice Air-cooled, crescent ice Air-cooled, crescent ice Air-cooled, crescent ice
Power Supply
1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz
Electric Consumption 209W 242W 299W 564W
Ice Production per 24h 43kg
(ambient 10°C, water
10°C)
60kg
(ambient 10°C, water
10°C)
75kg
(ambient 10°C, water
10°C)
135kg
(ambient 10°C, water
10°C)
Dimensions 452mm(W) x 610mm(D)
x 988mm(H)
605mm(W) x 610mm(D)
x 988mm(H)
605mm(W) x 712mm(D)
x 988mm(H)
630mm(W) x 719mm(D)
x 1333mm(H)
Refrigerant R290, 68g R290, 90g R290, 147g R290, 110g
Insulation Foam
Blowing Agent
HFC-free HFC-free HFC-free HFC-free
Weight Net: 39kg (Gross: 49kg) Net: 45kg (Gross: 57kg) Net: 50kg (Gross: 63kg) Net: 69kg (Gross: 81kg)
Ambient Temp 7 - 38°C 7 - 38°C 7 - 38°C 7 - 38°C
Water Supply Temp 7 - 32°C 7 - 32°C 7 - 32°C 7 - 32°C
Water Supply Pressure
0.07 - 0.8 MPa (0.7 - 8 bar) 0.07 - 0.8 MPa (0.7 - 8 bar) 0.07 - 0.8 MPa (0.7 - 8 bar) 0.07 - 0.8 MPa (0.7 - 8 bar)
Voltage Range Rated voltage ± 6% Rated voltage ± 6% Rated voltage ± 6% Rated voltage ± 6%
Model KM-40C-HC-W KM-60C-HC-W KM-80C-HC-W KM-140C-HC-W
Type Air-cooled, crescent ice,
fully automated cleaning
Air-cooled, crescent ice,
fully automated cleaning
Air-cooled, crescent ice,
fully automated cleaning
Air-cooled, crescent ice,
fully automated cleaning
Power Supply
1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz
Electric Consumption 209W 242W 299W 564W
Ice Production per 24h 43kg
(ambient 10°C, water
10°C)
60kg
(ambient 10°C, water
10°C)
75kg
(ambient 10°C, water
10°C)
135kg
(ambient 10°C, water
10°C)
Dimensions 452mm(W) x 610mm(D)
x 988mm(H)
605mm(W) x 610mm(D)
x 988mm(H)
605mm(W) x 712mm(D)
x 988mm(H)
630mm(W) x 719mm(D)
x 1333mm(H)
Refrigerant R290, 68g R290, 90g R290, 147g R290, 110g
Insulation Foam
Blowing Agent
HFC-free HFC-free HFC-free HFC-free
Weight Net: 41kg (Gross: 51kg) Net: 47kg (Gross: 59kg) Net: 52kg (Gross: 65kg) Net: 71kg (Gross: 83kg)
Ambient Temp 7 - 38°C 7 - 38°C 7 - 38°C 7 - 38°C
Water Supply Temp 7 - 32°C 7 - 32°C 7 - 32°C 7 - 32°C
Water Supply Pressure
0.07 - 0.8 MPa (0.7 - 8 bar) 0.07 - 0.8 MPa (0.7 - 8 bar) 0.07 - 0.8 MPa (0.7 - 8 bar) 0.07 - 0.8 MPa (0.7 - 8 bar)
Voltage Range Rated voltage ± 6% Rated voltage ± 6% Rated voltage ± 6% Rated voltage ± 6%
