Hoshizaki C-100BAF User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
C-100BAF
C-100BAF-DS
C-100BAF-AD
C-100BAF-ADDS
Self-Contained Cubelet
Hoshizaki America, Inc.
Issued: 5-26-2010
Revised: 8-11-2011
INSTRUCTION MANUAL

2
WARNING
Only qualied service technicians should install and service the icemaker. To
obtain the name and phone number of your local Hoshizaki Certied Service
Representative, visit www.hoshizaki.com. No installation or service should be
undertaken until the technician has thoroughly read this Instruction Manual.
Likewise, the owner/manager should not proceed to operate the icemaker until the
installer has instructed them on its proper operation. Failure to install, operate, and
maintain the equipment in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage. Proper installation is the responsibility of the installer. Product failure or
property damage due to improper installation is not covered under warranty.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the icemaker.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, send an e-mail message, or write to the Hoshizaki Technical
Support Department for assistance.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
HOSHIZAKI AMERICA, INC.
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
• Model Number
• Serial Number
• Complete and detailed explanation of the problem.

3
IMPORTANT
This manual should be read carefully before the icemaker is installed and operated.
Read the warnings and guidelines contained in this booklet carefully as they
provide essential information for the continued safe use and maintenance of the
icemaker. Retain this booklet for any further reference that may be necessary.
CONTENTS
Important Safety Information ................................................................................................. 4
I. Specications...................................................................................................................... 6
A. Construction.................................................................................................................. 6
B. Electrical Data ............................................................................................................... 7
C. Dimensions/Connections .............................................................................................. 8
1. C-100BAF ................................................................................................................. 8
2. C-100BAF-DS........................................................................................................... 9
3. C-100BAF-AD......................................................................................................... 10
4. C-100BAF-ADDS.....................................................................................................11
II. Installation Instructions .................................................................................................... 12
A. Checks Before Installation........................................................................................... 12
B. Location....................................................................................................................... 12
1. General ................................................................................................................... 12
2. Built-In Installation Site........................................................................................... 13
C. Door ............................................................................................................................ 14
1. C-100BAF, C-100BAF-AD ....................................................................................... 14
a) Door Reversal .................................................................................................... 14
2. C-100BAF-DS, C-100BAF-ADDS ........................................................................... 16
a) Overlay Panel Fabrication and Attachment........................................................ 16
D. Setup........................................................................................................................... 24
E. Electrical Connection .................................................................................................. 24
F. Water Supply and Drain Connections .......................................................................... 25
G. Final Checklist ............................................................................................................ 26
III. Operating Instructions..................................................................................................... 27
A. Important Notes About Usage..................................................................................... 27
B. Startup ........................................................................................................................ 29
IV. Maintenance ................................................................................................................... 30
A. Maintenance Schedule................................................................................................ 31
B. Cleaning and Sanitizing Instructions ........................................................................... 32
C. Storage Bin Drain........................................................................................................ 35
D. Condenser................................................................................................................... 36
E. Optional Drain Pump................................................................................................... 36
V. Preparing the Icemaker for Periods of Non-Use .............................................................. 38
VI. Disposal.......................................................................................................................... 39

4
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, damage to the unit, or damage to property.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
NOTICE Indicates a situation which could result in damage to the unit or
property.
IMPORTANT Indicates important information about the installation, use, and
care of the unit.
WARNING
This icemaker should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore dangerous. The
manufacturer cannot be held responsible for injury or damage resulting from improper,
incorrect, and unreasonable use. Failure to install, operate, and maintain the equipment
in accordance with this manual will adversely affect safety, performance, component
life, and warranty coverage and may result in costly water damage.
To reduce the risk of death, electric shock, serious injury, or re, follow basic
precautions including the following:
• Only qualied service technicians should install and service the icemaker.
• This icemaker must be installed in accordance with applicable national, state, and local
codes and regulations.
• This unit requires an independent power supply. See the nameplate for proper voltage
and breaker/fuse size. Failure to use a proper breaker or fuse can result in a tripped
breaker, blown fuse, damage to existing wiring, or component failure. This could lead to
heat generation or re.
• THIS UNIT MUST BE GROUNDED: This unit is equipped with a 3-prong grounding
plug to reduce the risk of potential shock hazards. It must be plugged into a properly
grounded, independent 3-prong wall outlet. If the outlet is a 2-prong outlet, it is
your personal responsibility to have a qualied electrician replace it with a properly
grounded, independent 3-prong wall outlet. Do not remove the ground prong from the
power cord and do not use an adapter plug.
• Do not use an extension cord.
• To reduce the risk of electric shock, make sure the power switch is in the "OFF" position
before plugging in or unplugging the unit.
• To reduce the risk of electric shock, do not touch the power switch or plug with damp
hands.
• Do not use a unit with a damaged power cord. The power cord should not be altered,
jerked, bundled, weighed down, pinched, or tangled. Such actions could result in
electric shock or re. To unplug the unit, be sure to pull the plug, not the cord, and do
not jerk the cord.
• Do not make any alterations to the unit. Alterations could result in electric shock, injury,
re, or damage to the unit.
• Do not place ngers or any other objects into the ice discharge opening.

5
WARNING, continued
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Young children should be properly supervised around this appliance.
• Do not climb, stand, or hang on the icemaker or icemaker door or allow children or
animals to do so. Serious injury could occur or the icemaker could be damaged.
• Be careful not to pinch ngers when opening and closing the door. Be careful when
opening and closing the door when children are in the area.
• Do not use combustible spray or place volatile or ammable substances near the unit.
They might catch re.
• Keep the area around the unit clean. Dirt, dust, or insects in the unit could cause harm
to individuals or damage to the equipment.
NOTICE
• Protect the oor when moving the icemaker to prevent damage to the oor.
• Follow the water supply, drain connection, and maintenance instructions carefully to
reduce the risk of costly water damage.
• In areas where water damage is a concern, install in a contained area with a oor drain.
• Install the icemaker in a location that stays above freezing. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C).
• If using the optional drain pump (HS-0248), test its operation every time the icemaker is
cleaned and sanitized. See "IV.E. Optional Drain Pump" for details. If the optional drain
pump is not operating properly, water could back up and overow, leading to costly
water damage.
• To help ensure that the storage bin drain remains clear, follow the instructions in "IV.C.
Storage Bin Drain" once every 3 months or as often as necessary for conditions. If
the storage bin drain becomes clogged, water could build up in the bin and overow,
leading to costly water damage.
• If water collects in the bin and will not drain, turn off the icemaker and close the water
supply line shut-off valve. Call for service.
• To help protect against water issues, this unit features a drip tray and reservoir
emergency overow hose. See Fig. 31. If there is water in the drip tray, coming out of
the reservoir emergency overow hose, or seeping from the base of the unit, turn off
the icemaker and close the water supply line shut-off valve. Call for service. Failure to
do so could lead to costly water damage.
• Do not leave the icemaker on during extended periods of non-use, extended absences,
or in sub-freezing temperatures. To properly prepare the icemaker for these occasions,
follow the instructions in "V. Preparing the Icemaker for Periods of Non-Use."
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
• Do not place objects on top of the icemaker.
• The storage bin is for ice use only. Do not store anything else in the storage bin.

6
I. Specications

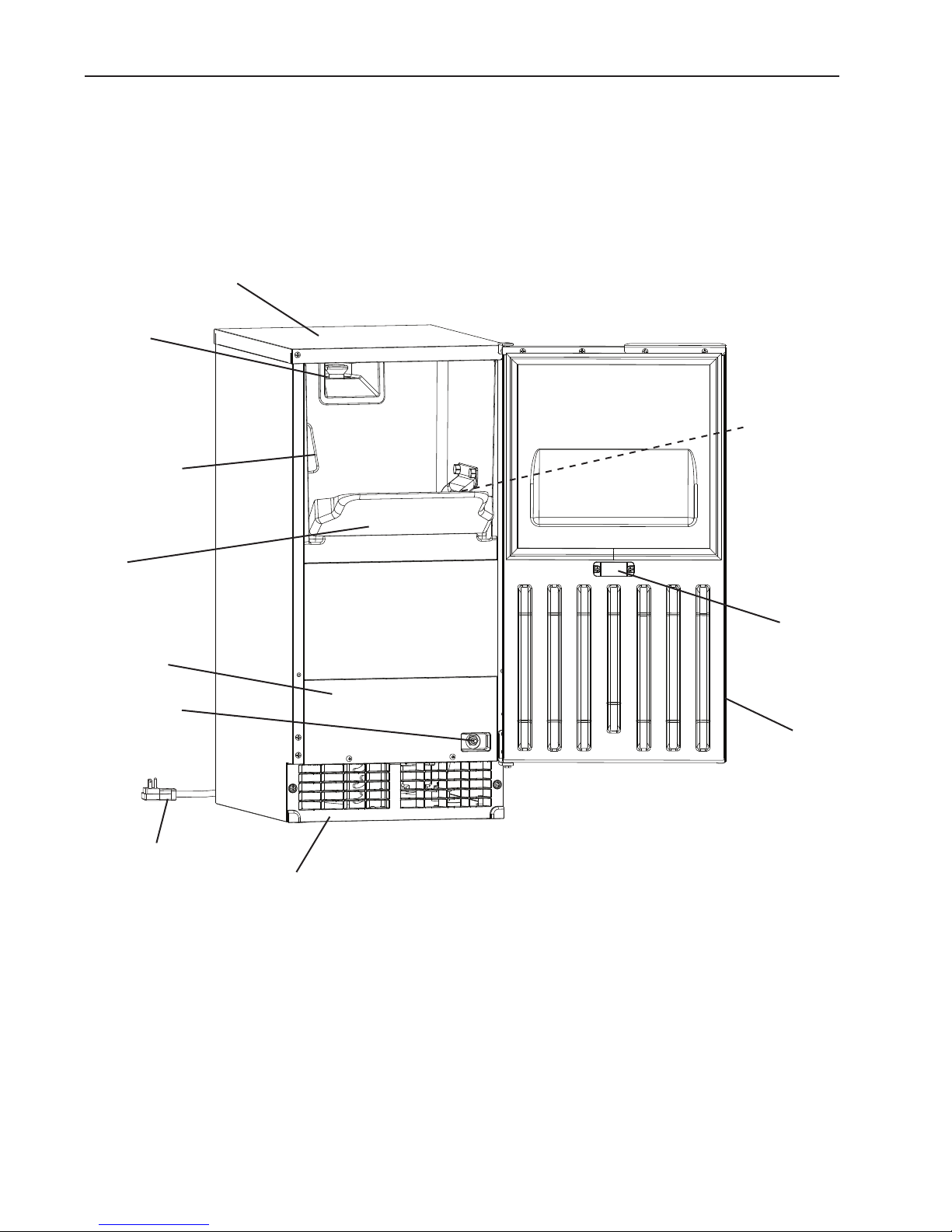

A. Construction
Top Panel
Ice Discharge
Opening
Scoop Holder
Front Panel
Power Switch
Louver
Bin Control
Thermostat
Bulb
Slope
Magnet
Catch
Door
Power Cord

7
MOTOR-COMPRESSOR THERMALLY PROTECTED
APPROVED FOR OUTDOOR USE
Hoshizaki America, Inc.
Peachtree City, GA
www.hoshizaki.com
For certication marks, see the nameplate
inside the storage bin.
B. Electrical Data
HOSHIZAKI ICE MAKER
MODEL NUMBER C-100BAF
SERIAL NUMBER
AC SUPPLY VOLTAGE 115-120/60/1
AMPERES 4.0 AMPS
DESIGN PRESSURE HI-240PSI LO-120PSI
REFRIGERANT 134a 3.17 OZ.
See the nameplate for electrical and refrigeration specications. The nameplate is located
inside the storage bin.
We reserve the right to make changes in specications and design without prior notice.
Note: Only the "MODEL NUMBER" is replaced for C-100BAF-DS, C-100BAF-AD, and
C-100BAF-ADDS.

8
C. Dimensions/Connections
1. C-100BAF
Units: mm [in.]

9
2. C-100BAF-DS
Units: mm [in.]

10
Units: mm [in.]
3. C-100BAF-AD

11
4. C-100BAF-ADDS
Units: mm [in.]

12
II. Installation Instructions
WARNING
• This icemaker must be installed in accordance with applicable national, state, and
local codes and regulations.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into the
storage bin.
A. Checks Before Installation
• Visually inspect the exterior of the shipping container and immediately report any
damage to the carrier. Upon opening the container, any concealed damage should also
be immediately reported to the carrier.
• Remove the shipping carton, tape, and packing material. If any are left in the icemaker,
it will not work properly.
• Remove the package containing the accessories.
• Remove the protective plastic lm from the panels. If the icemaker is exposed to the sun
or to heat, remove the lm after the icemaker cools.
• See the nameplate inside the storage bin, and check that your voltage supplied
corresponds with the voltage specied on the nameplate.
B. Location
1. General
This icemaker is approved for indoor or outdoor use.
NOTICE
• Normal operating ambient temperature must be within 45°F to 100°F (7°C to
38°C); Normal operating water temperature must be within 45°F to 90°F (7°C to
32°C). Operation of the icemaker, for extended periods, outside of these normal
temperature ranges may affect icemaker performance.
• This icemaker will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the icemaker if the air temperature is going to go
below 32°F (0°C). See "V. Preparing the Icemaker for Periods of Non-Use."
• The icemaker should not be located next to ovens, grills, or other high heat producing
equipment.
• The location must provide a rm and level foundation for the icemaker.
• This icemaker requires no side or top clearance. But allow enough space at rear for
water supply and drain connections and at least 15" (38 cm) clearance at front.
• The icemaker must be at oor level on a nished oor even if under a cabinet. In areas
where water damage is a concern, install in a contained area with a oor drain.

13
2. Built-In Installation Site
NOTICE
• Do not let the weight of the counter rest on the icemaker.
• Do not install the icemaker in a corner where the door will interfere with other
equipment or where the icemaker cannot be pulled out for service.
Installation Space
Model Height Width Depth
C-100BAF
C-100BAF-DS 34" (864 mm) minimum
15" (381 mm) minimum 24" (610 mm) minimum
C-100BAF-AD
C-100BAF-ADDS 32" (814 mm) minimum
C-100BAF
C-100BAF-DS
Min. 34"
(864 mm)
C-100BAF-AD
C-100BAF-ADDS
Min. 32"
(814 mm)
Min. 15"
(381 mm)
Between Two Cabinets Between a Cabinet and
the End of a Counter
Support: Do not
let the weight of
the counter rest
on the icemaker
Min. 23"
(584 mm)
Oven Icemaker
Between a Cabinet and
a Wall or Tall Cabinet
In a Corner
Secure: Do not
let the weight of
the counter rest
on the icemaker
Min. 15"
(381 mm)
C-100BAF
C-100BAF-DS
Min. 34"
(864 mm)
C-100BAF-AD
C-100BAF-ADDS
Min. 32"
(814 mm)

14
C. Door
1. C-100BAF, C-100BAF-AD
a) Door Reversal
If you would like to reverse the door swing, follow the steps below. Otherwise, skip to
section "II.D. Setup."
1) While maintaining a hold on the door, remove the hinge stop pin from hinge (B). Pull out
the bottom of the door slightly and gently remove the door from hinge (A). See Fig. 1.
2) Remove the 2 screws securing the top panel, then lift it off. See Fig. 2.
3) Remove hinge (A) and the bracket from the right side of the unit and the top brace from
the left side. Rotate hinge (A) to position the gasket notch to the inside, then fasten
hinge (A) and the bracket to the left side and the top brace to the right side. See Fig. 3.

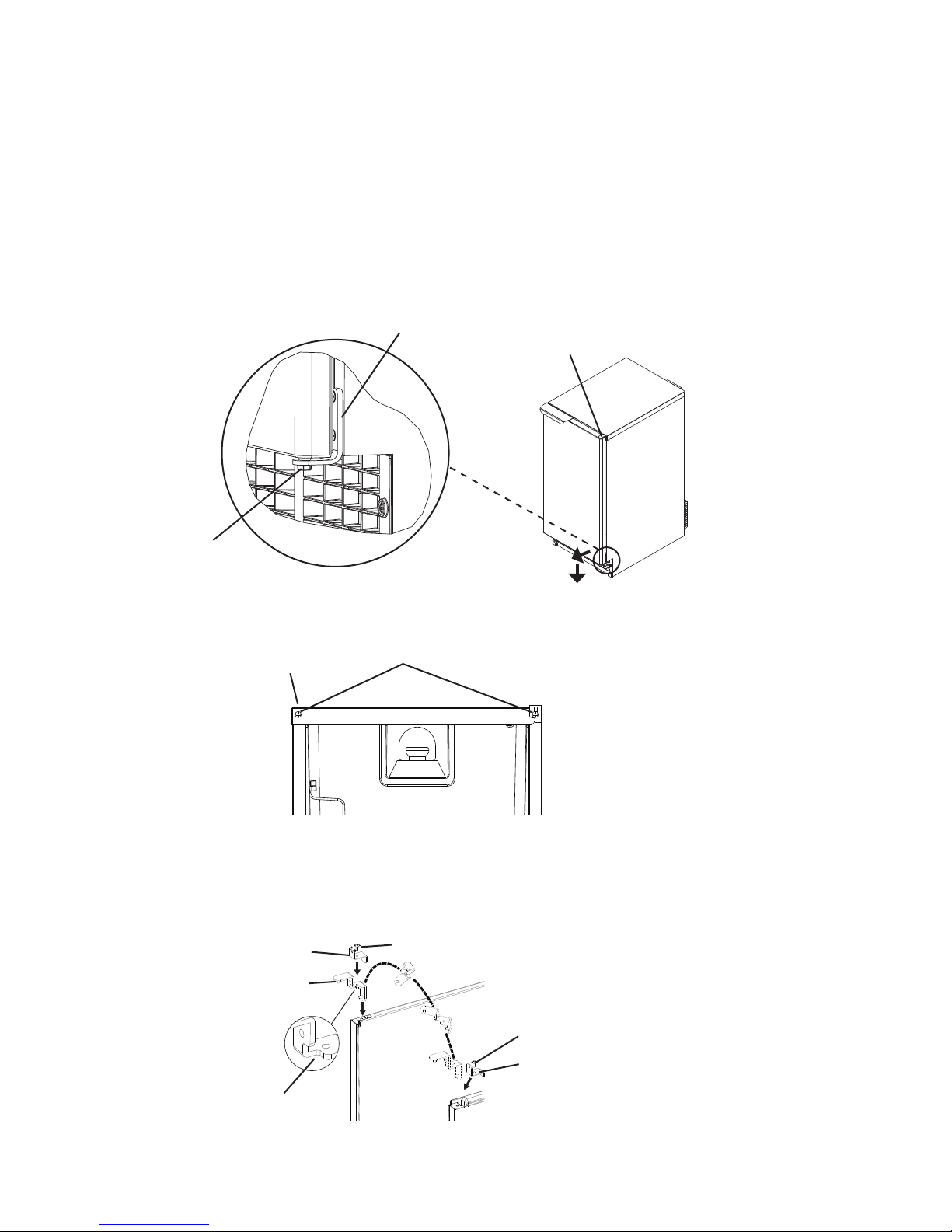

Fig. 1
Hinge (A)
Hinge Stop Pin
Hinge (B)
Fig. 2
Screws
Top Panel
Fig. 3
Hinge (A)
Bracket Screw
Top Brace
Gasket Notch
Screw

15
4) Remove hinge (B) from the right side of the unit and the 2 ller screws from the left side.
Attach the 2 ller screws to the right side and attach hinge (B) to the left side. See Fig. 4.
5) Rotate the top panel 180° from its previous position. This brings the notch that was
previously in the right rear to the left front. See Fig. 5. Hook the rear part of the panel on
the body, then secure the front with the 2 screws removed in step 2.
6) Remove the 2 screws attaching the door handle and also remove the other 2 screws
indicated in the illustration. Use 2 of the screws to attach the handle to the other side of
the door and attach the other 2 screws in the remaining 2 holes. See Fig. 6.
7) Attach the door to hinge (A), then continue to maintain a hold on the door. Screw the
hinge stop pin into hinge (B) until it is tight. See Fig. 7.
Hinge Stop Pin
Hinge (B)
Door Handle
Screws
Fig. 6
Fig. 7
Notch
Top Panel
Fig. 4 Fig. 5
Hinge (B)
Filler
Screws
Screws

16
12 3 4
6
5
2. C-100BAF-DS, C-100BAF-ADDS
a) Overlay Panel Fabrication and Attachment
IMPORTANT
The overlay panel must be crafted by a professional cabinet maker to ensure
quality results.
(1) Parts
Ensure that all parts required for the overlay panel assembly are contained in the
accessories bag.

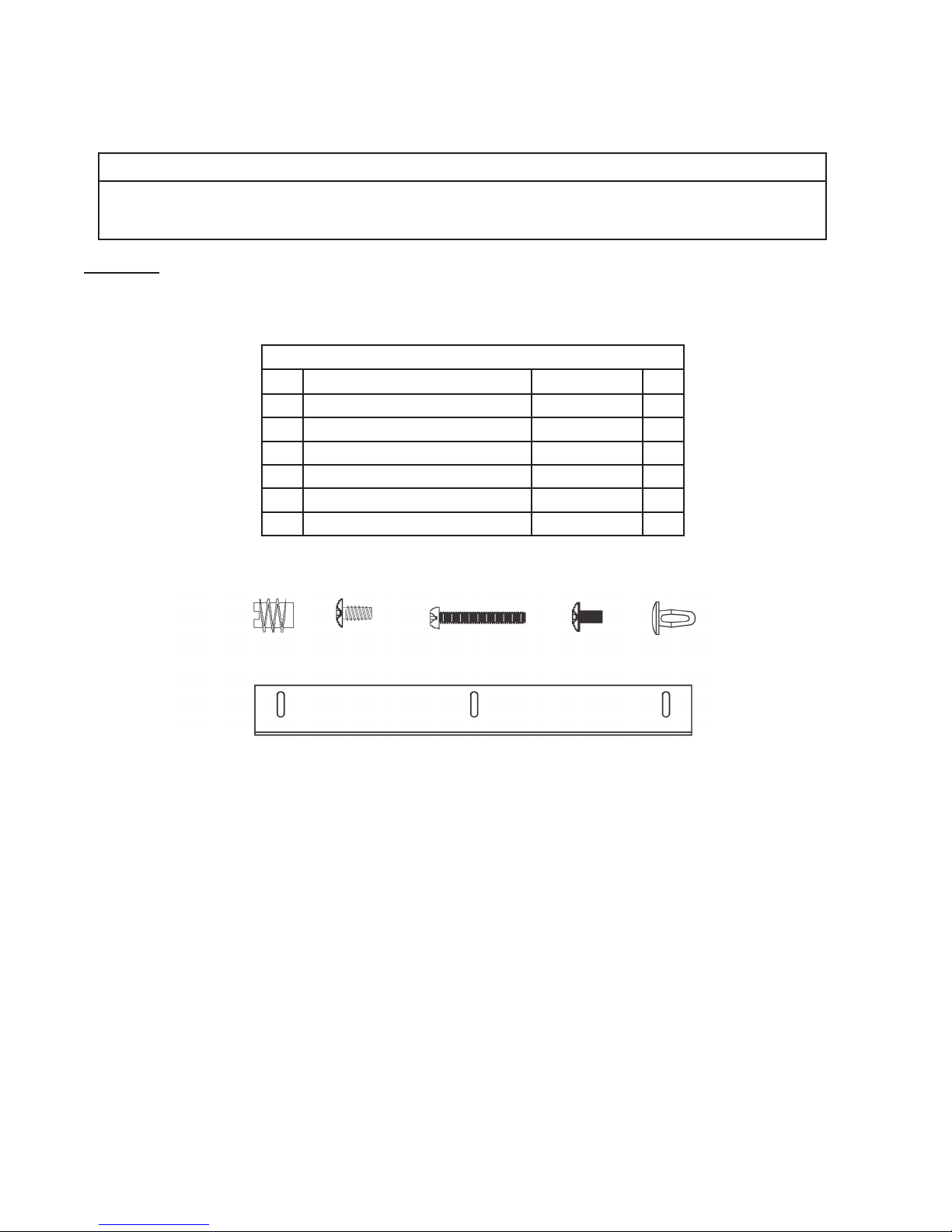

Overlay Panel Parts
No. Description Part Number Qty.
1Threaded Wood Insert 4A4004-01 6
2 T2 Screw 4×8 SS 7P32-0408 3
3 Pan Head Screw M4×25 SS 7C12-0425 4
4 Truss Head Screw M4×8 SS 7C32-0408 2
5 Canoe Clip 4A0629-02 2
6 Sheet Metal Bracket 4A3998-01 1

17
(2) Overlay Panel Specication
Use the specication that applies to your icemaker (C-100BAF-DS or C-100BAF-ADDS)
and the directions that follow to prepare your overlay panel.
(a) C-100BAF-DS
()()
()
()()()
()
()
()
()
C-100BAF-DS Overlay Panel Specication
Overlay Panel Height 29 17/32" (750 mm)
Overlay Panel Width 14 13/16" (376 mm)
Overlay Panel Thickness 5/8" (16 mm) minimum; 3/4" (19 mm) maximum
Overlay Panel and Door Weight (total) 20 lb. (9 kg) maximum

18

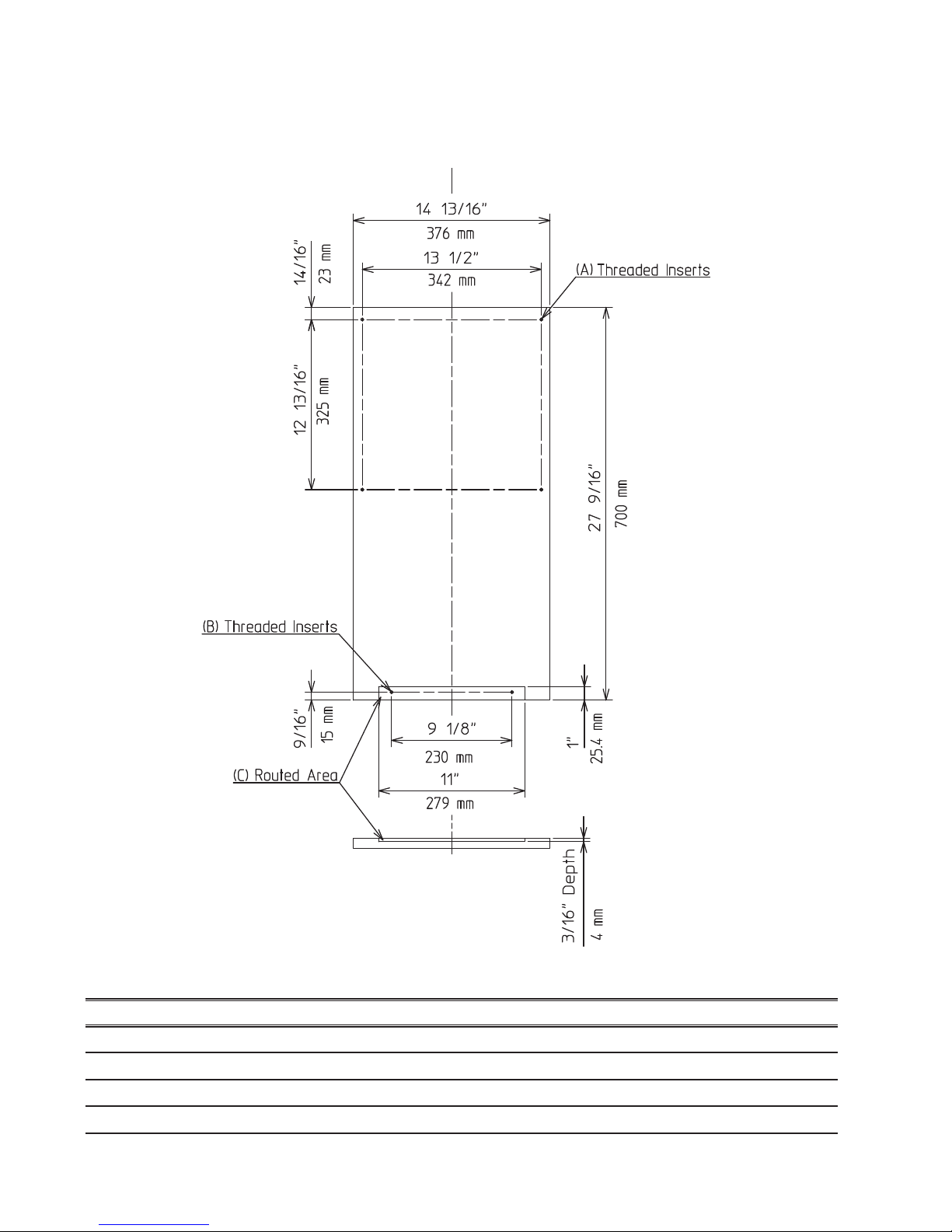

C-100BAF-ADDS Overlay Panel Specication
Overlay Panel Height 27 9/16" (700 mm)
Overlay Panel Width 14 13/16" (376 mm)
Overlay Panel Thickness 5/8" (16 mm) minimum; 3/4" (19 mm) maximum
Overlay Panel and Door Weight (total) 20 lb. (9 kg) maximum
(b) C-100BAF-ADDS
()()
()
()()()
()
()
()
()

19
3) Screw the 6 threaded wood inserts into the 1/4" holes drilled in the previous step. Make
sure that the inserts are threaded straight and that the tops of the inserts are ush to
the overlay panel surface. Otherwise, the overlay panel cannot be properly fastened to
the door.
4) Mount the door handle hardware. Hoshizaki recommends that the door handle hardware
be mounted on the edge opposite of the door hinge side (optional hinge reversal is
covered in step 6). Countersunk screw heads are required to ensure that the hardware
fasteners do not interfere with the overlay panel tting ush with the door.
5) While maintaining a hold on the door, remove the hinge stop pin from hinge (B). Pull out
the bottom of the door slightly and gently remove the door from hinge (A). See Fig. 10. If
you are leaving the door right-hinged, skip to step 7. If you would like to reverse the door
hinges, proceed to step 6.
(3) Fabrication of Overlay Panel
Fabricate the overlay panel as outlined in the specication on the previous page and the
instructions below.
1) Rout a channel at the bottom of the overlay panel to the proper dimensions. See "(C)
Routed Area" in the specication diagram and Fig. 8.
2) Drill six 1/4" diameter (hardwood may require slightly larger diameter) holes 3/8"
(10 mm) deep in the locations designated. NOTICE! Use care when drilling holes for
mounting hardware. All drilled holes must be straight and drilled to the correct
diameter and depth. See "(A) Threaded Inserts" and "(B) Threaded Inserts" in the
specication diagram and Fig. 9.
Routed Channel
Holes Holes
Fig. 8 Fig. 9
Fig. 10
Hinge Stop Pin
Hinge (B)
Hinge (A)

20
Screws
Top Panel
f) Remove hinge (C1) from the top right part of the door, ip it and reattach to the
bottom left. Remove hinge (C2) from the bottom right part of the door, ip it and
reattach to the top left. See Fig. 15. Proceed to step 7.
d) Remove hinge (B) from the right side of the unit and the 2 ller screws from the left
side. Attach the 2 ller screws to the right side and attach hinge (B) to the left side.
See Fig. 13.
e) Rotate the top panel 180° from its previous position. This brings the notch that was
previously in the right rear to the left front. See Fig. 14. Hook the rear part of the
panel on the body, then secure the front with the 2 screws removed in step 6a.
6) If you would like to reverse the door hinges, do the following:
a) Contact your local distributor to purchase Hoshizaki Kit HS-0229. The kit contains
"hinge (A)-left."
b) Remove the 2 screws securing the top panel, then lift it off. See Fig. 11.
c) Remove hinge (A)-right and the bracket from the right side of the unit. Set aside
hinge (A)-right; it is not needed. Remove the top brace from the left side. Fasten
hinge (A)-left and the bracket to the left side and the top brace to the right side. See
Fig. 12.
Note: When on the proper side, the gasket notch for hinge (A) is to the inside.
Fig. 12
Hinge (A)-Left
Bracket Screw
Top Brace
Gasket Notch
Screw
Hinge (A)-Right
Not Needed
Fig. 13
Hinge (B)
Filler
Screws
Notch
Top Panel
Fig. 14
Screws
Hinge (C1)
Hinge (C2)
Fig. 15
Screws
Screws
Fig. 11
