Hoshizaki KM-1300SAF User manual

56
HA
KM-1300SAF
KM-1300SWF
KM-1300SRF
KM-1300SAF3
KM-1300SWF3
KM-1300SRF3
MODEL
HOSHIZAKI
STACKABLE CRESCENT CUBER
(FINAL) PARTS LIST
NO: 71130
ISSUED: OCT. 8, 1998
REVISED: JUNE 14, 2005

2
HA
KM-1300SAF H-0 JAN. 1998
H-1 JUNE 1998
J-0 DEC. 1998
K-0 DEC. 1999
L-0 DEC. 2000
L-1 APRIL 2001
KM-1300SAF3 H-1 JUNE 1998
J-1 FEB. 1999
K-0 JAN. 2000
L-0 FEB. 2001
KM-1300SWF H-0 MAY 1998
H-1 OCT. 1998
J-0 DEC. 1998
K-0 DEC. 1999
L-0 JAN. 2001
KM-1300SWF3 H-1 JUNE 1998
K-0 JAN. 2000
KM-1300SRF H-0 JAN. 1998
H-1 AUG. 1998
J-0 DEC. 1998
K-0 DEC. 1999
L-0 DEC. 2000
KM-1300SRF3 H-0 MARCH 1998
H-1 JULY 1998
J-1 FEB. 1999
K-0 JAN. 2000
L-0 FEB. 2001

3
HA MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PE P = Polyethylene terephthalate = etlon
PP = Polypropylene
PS = Polystyrene
PIFE = Polytetrafluoroethylene = eflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000".
o = New part for "x"
Ex.2 L-0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably,
in a year, this number advances.

4
HA
KM-1300SAF, KM-1300SAF3 A. ICE CUBER ASSEMBLY H-0, H-1, J-0, J-1, K-0, L-0, L-1

5
HA
MODEL: KM-1300SAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-0 K-0 L-0 L-1
B REFRIGERATION
CIRCUIT
- 1A0207A01
1 1 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1 1 1
D CONTROL BOX
ASSEMBLY
(HS-1101) 2A1081A02
1 1 1 1 1 1
T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3 3 3
E LABEL LOCATION - 2A1049A01 1 1 x1
- 2A1049A03 o1 1 1 1
1 EVAP. CASE (HS-1001) 105860G17 1 1 -
- 105860G28 1 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1 1
T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1 1
5 BUSHING SR-34-2 420472-05 1 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1 1
T2 SCREW Zinc, 4X8 7P31-0408 1 1 1 1 1 1
7 BULB HOLDER ABS 328919-01 1 1 1 1 1 1
8 SPACER PE 443545-01 1 1 1 1 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4X12 7C32-0412 2 2 2 2 2 2
10 BUSHING EP RUBBER 425307-01 1 1 1 1 1 1
11 SPACER ABS 439727-01 1 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1 1
T2 SCREW SS, 4X16 7P32-0416 2 2 2 2 2 2
13 FRONT PANEL -
BRACKET
SS 323903-01
1 1 1 1 1 1
T2 SCREW SS 7P32-0412 3 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1

6
HA
MODEL: KM-1300SAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-0 K-0 L-0 L-1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1 1
19 TOP PANEL (324217A01) 213669-01 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4X8 7C32-0408 3 3 3 3 3 3
20 LOUVER (B) ABS 103121-05 2 2 2 2 2 2
21 LOUVER (C) ABS 103122-03 2 2 2 2 2 2
22 TAPPING SCREW -
BLACK
STEEL, 4X8 433954-01 4 4 4 4 4 4
23 AIR FILTER (B) ABS 208283G03 2 2 2 2 2 2
24 AIR FILTER (C) ABS 208284G01 2 2 2 2 2 2
25 FRONT PANEL SS 213708-01 1 1 1 1 1 1
TRUSS HEAD SCREW SS, 4X16 7C32-0416 2 2 2 2 2 2
26 GASKET L=1219 4A0808L02 11

7
HA
MODEL: KM-1300SAF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 J-1 K-0 L-0
B REFRIGERATION
CIRCUIT
- 1A0207A02
1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1
D CONTROL BOX
ASSEMBLY
(HS-1105) 2A1122A03
1 1 1 1
T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3
E LABEL LOCATION - 2A1049A02 1x1
- 2A1049A04 o1 1 1
F TRANSFORMER BOX
ASSEMBLY
HS-0126 3A1102A01
1 1 1 1
HEX HEAD BOLT
W/WASHER
5 X10 7B0130510 4 4 4 4
1 EVAP. CASE (HS-1001) 105860G17 1-
- 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1
T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1
5 BUSHING SR-34-2 420472-05 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1
T2 SCREW Zinc, 4X8 7P31-0408 1 1 1 1
7 BULB HOLDER ABS 328919-01 1 1 1 1
8 SPACER PE 443545-01 1 1 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1
TRUSS HEAD SCREW SS, 4X12 7C32-0412 2 2 2 2
10 BUSHING EP RUBBER 425307-01 1 1 1 1
11 SPACER ABS 439727-01 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1
T2 SCREW SS, 4X16 7P32-0416 2 2 2 2

8
HA
MODEL: KM-1300SAF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 J-1 K-0 L-0
13 FRONT PANEL -
BRACKET
SS 323903-01
1 1 1 1
T2 SCREW SS 7P32-0412 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1
19 TOP PANEL (324217A01) 213669-01 1 1 1 1
TRUSS HEAD SCREW SS, 4X8 7C32-0408 3 3 3 3
20 LOUVER (B) ABS 103121-05 2 2 2 2
21 LOUVER (C) ABS 103122-03 2 2 2 2
22 TAPPING SCREW -
BLACK
STEEL, 4X8 433954-01 4 4 4 4
23 AIR FILTER (B) ABS 208283G03 2 2 2 2
24 AIR FILTER (C) ABS 208284G01 2 2 2 2
25 FRONT PANEL SS 213708-01 1 1 1 1
TRUSS HEAD SCREW SS, 4X16 7C32-0416 2 2 2 2
26 GASKET L=1219 4A0808L02 1

9
HA
KM-1300SWF, KM-1300SWF3 A. ICE CUBER ASSEMBLY H-0, H-1, J-0, K-0, L-0

10
HA
MODEL: KM-1300SWF TITLE:A. ICE CUBER ASSEMBLY
INDE
X
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-0 K-0 L-0
B REFRIGERATION
CIRCUIT
- 1A0259A01
1 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1 1
D CONTROL BOX
ASSEMBLY
HS-1101 2A1081A02
1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
E LABEL LOCATION - 2A1196A01 1-
- 2A1196A03 1 1 1 1
1 EVAP. CASE HS-1006 105860G26 1 1 -
- 105860G37 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1
5 BUSHING SR-30-1 420472-05 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 1 1 1 1 1
7 BULB HOLDER ABS 328919-01 1 1 1 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2
8 SPACER PE 443545-01 1 1 1 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2
10 BUSHING EP RUBBER 425307-01 1 1 1 1 1
11 SPACER ABS 439727-01 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1
13 FRONT PANEL -
BRACKET
SS 323903-01
1 1 1 1 1
T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1

11
HA
MODEL: KM-1300SWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-0 K-0 L-0
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1
19 TOP PANEL SS 213669-01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 3 3 3 3 3
20 FRONT PANEL SS 215104-01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2
21 GASKET L=1219 4A0808L02 1

12
HA
MODEL: KM-1300SWF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 K-0
B REFRIGERATION
CIRCUIT
- 1A0259A02
1 1
C WATER CIRCUIT - 105109A04 1 1
D CONTROL BOX
ASSEMBLY
HS-1105 2A1122A03
1 1
T2 SCREW 4X8 7P31-0408 3 3
E LABEL LOCATION - 2A1196A02 1 x1
- 2A1196A04 o1
F TRANSFORMER BOX
ASSEMBLY
HS-0126 3A1102A01
1 1
HEX HEAD BOLT
W/WASHER
5X10 7B0130510
4 4
1 EVAP. CASE HS-1006 105860G26 1 -
- 105860G37 1
2 CONTROL BOX COVER
GS 3A0174-01
1 1
T2 SCREW 4X8 7P31-0408 3 3
3 SQUARE WASHER BRASS 433537-02 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1
5 BUSHING SR-30-1 420472-05 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1
T2 SCREW 4X8 7P31-0408 1 1
7 BULB HOLDER ABS 328919-01 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2
8 SPACER PE 443545-01 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2
10 BUSHING EP RUBBER 425307-01 1 1
11 SPACER ABS 439727-01 1 1
12 BULB HOLDER (D) GS 328742-01 1 1

13
HA
MODEL: KM-1300SWF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 K-0
13 FRONT PANEL -
BRACKET
SS 323903-01
1 1
T2 SCREW 4X12, SS 7P32-0412 3 3
14 SPACER ABS 324321-01 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1
18 SIDE PANEL (R) SS 213668G01 1 1
19 TOP PANEL SS 213669-01 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 3 3
20 FRONT PANEL SS 215104-01 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2
21 GASKET L=1219 4A0808L02 1

14
HA
KM-1300SRF, KM-1300SRF3 A. ICE CUBER ASSEMBLY H-0, H-1, J-0, J-1, K-0, L-0

15
HA
MODEL: KM-1300SRF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-0 K-0 L-0
B REFRIGERATION
CIRCUIT
- 1A0212A01
1 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1 1
D CONTROL BOX
ASSEMBLY
HS-1101 2A1081A02
1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
E LABEL LOCATION - 2A1050A01 1-
- 2A1050A03 1 1 1 1
1 EVAP. CASE HS-1002 105860G19 11-
- 105860G30 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2
4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2
5 BUSHING SR-30-1 420472-03 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2
T2 SCREW 4X8 7P31-0408 2 2 2 2 2
7 BULB HOLDER ABS 328919-01 1 1 1 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2
8 SPACER PE 443545-01 1 1 1 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2
10 BUSHING EP RUBBER 425307-01 1 1 1 1 1
11 SPACER ABS 439727-01 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1

16
HA
MODEL: KM-1300SRF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-0 K-0 L-0
13 FRONT PANEL -
BRACKET
SS 323903-01
1 1 1 1 1
T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1
19 TOP PANEL SS 213669-01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 3 3 3 3 3
20 FRONT PANEL SS 215104-01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2
21 BUSHING SR-34-2 420472-05 1 1 1 1 1
22 GASKET L=1219 4A0808L02 1

17
HA
MODEL: KM-1300SRF3 TITLE:A. ICE CUBER ASSEMBLY
INDE
X
NO.
DESCRIPTION MATERIA
L OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-1 K-0 L-0
B REFRIGERATION
CIRCUIT
- 1A0212A02
1 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1 1
D CONTROL BOX
ASSEMBLY
HS-1105 2A1122A03
1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
E LABEL LOCATION - 2A1050A02 1-
- 2A1050A04 1 1 1 1
F TRANSFORMER BOX
ASSEMBLY
HS-0126 3A1102A01
1 1 1 1 1
HEX HEAD BOLT
W/WASHER
5X10 7B0130510
4 4 4 4 4
1 EVAP. CASE HS-1002 105860G19 1 1 1 1 1
- 105860G30
2 CONTROL BOX COVER
GS 3A0174-01
1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2
4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2
5 BUSHING SR-30-1 420472-03 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2
T2 SCREW 4X8 7P31-0408 2 2 2 2 2
7 BULB HOLDER ABS 328919-01 1 1 1 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2
8 SPACER PE 443545-01 1 1 1 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2
10 BUSHING EP RUBBER 425307-01 1 1 1 1 1
11 SPACER ABS 439727-01 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1

18
HA
MODEL: KM-1300SRF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 J-1 K-0 L-0
13 FRONT PANEL -
BRACKET
SS 323903-01
1 1 1 1 1
T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1
19 TOP PANEL SS 213669-01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 3 3 3 3 3
20 FRONT PANEL SS 215104-01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2
21 BUSHING SR-34-2 420472-05 1 1 1 1 1
22 GASKET L=1219 4A0808L02 1

19
HA

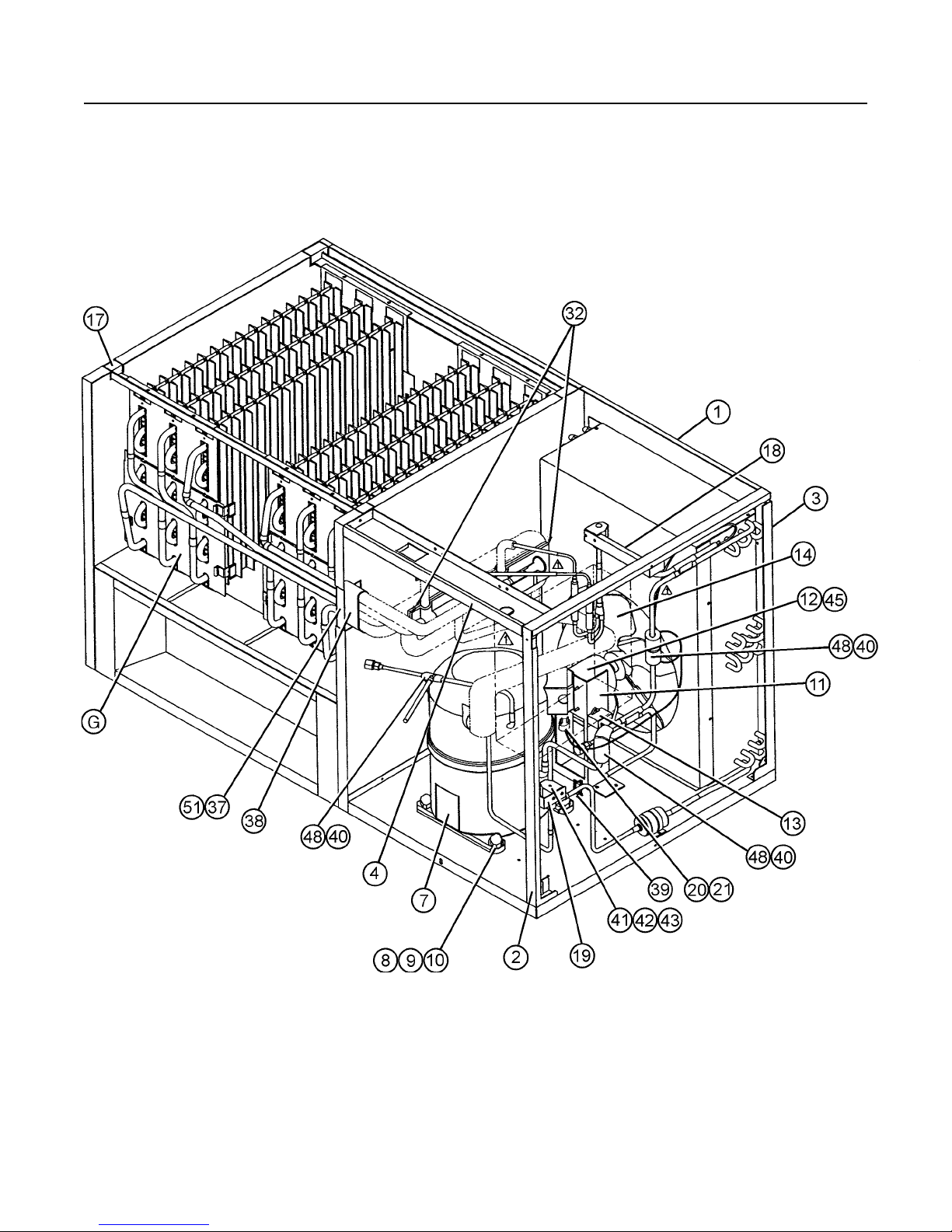

KM-1300SAF, SAF3 B. REFRIGERATION CIRCUIT (1/2) H-0, H-1, J-0, J-1, K-0, L-0, L-1

20
HA

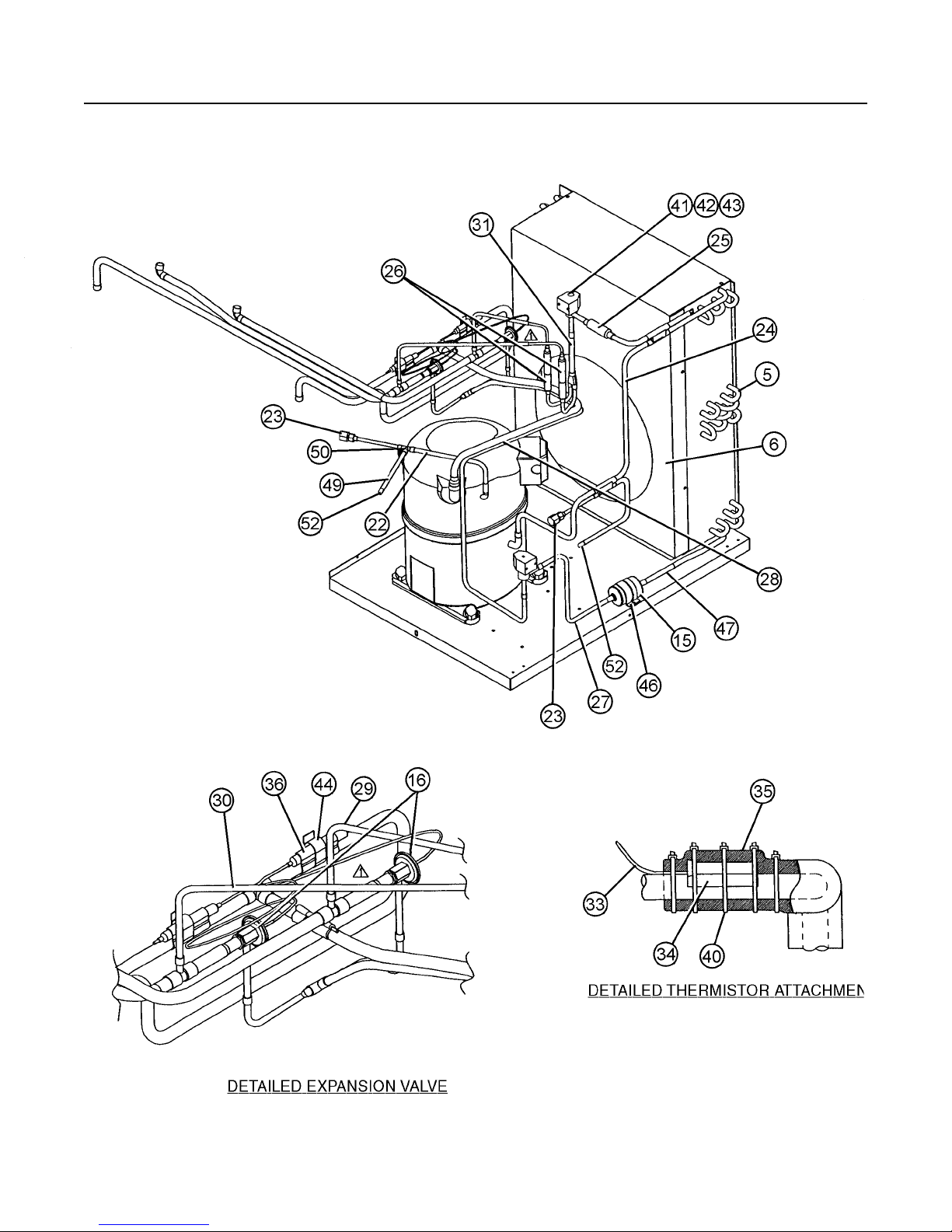

KM-1300SAF, SAF3 B. REFRIGERATION CIRCUIT (2/2) H-0, H-1, J-0, J-1, K-0, L-0, L-1
