Hoshizaki KML-350MAF User manual

NO. MARCH.31,2000
ISSUED: 71159
HOSHIZAKI
MODULAR CRESCENT CUBER
K-0 JAN., 2000
MODEL
KML-350MAF
KML-350MWF
(FINAL) PARTS LIST
JULY 31, 2002
REVISED:

2
HA MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PIFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARYCODE
Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.
year. x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000". o = New part for "x"
Ex.2 L-0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L-1Each time a part is changed non-interchangeably,
in a year, this number advances.

3
HA

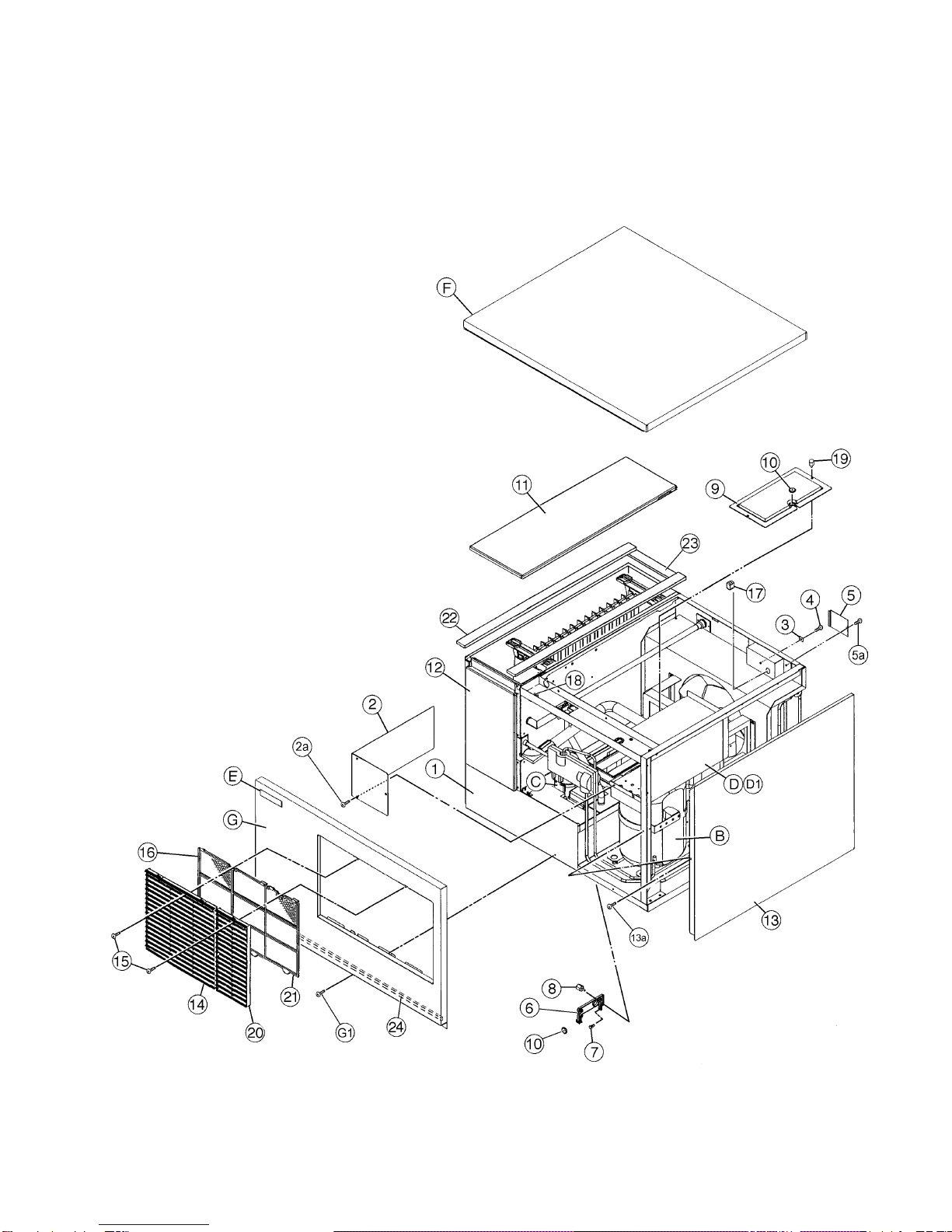

KML-350MAF A. ICE CUBER ASSEMBLY K-0

4
HA
MODEL: KML-350MAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
B REFRIGERATION CIRCUIT - 1A0445A01 1
C WATER CIRCUIT - 1A0438A01 1
D CONT. BOX ASSEMBLY - 2A1519A03 1
D1 T2 SCREW 4X8 7P31-0408 3
E LABEL LOCATION - 3A1320A01 1
F TOP PANEL ASSEMBLY - 3A0674A01 1
G FRONT PANEL - 3A1273A01 1
G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
1 EVAP. CASE HS-1014 2A1449G01 1
2 CONT. BOX COVER GS 3A0594-01 1
2a T2 SCREW 4X8 7P31-0408 3
3 SQUARE WASHER BRASS 433537-02 1
4 SCREW - GROUNDING BRASS 433304-02 1
5 JUNCTION BOX COVER GS 433410-01 1
5a T2 SCREW 4X8 7P31-0408 1
6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1
7 SPACER PE 443545-01 1
8 THUMBSCREW SS, ABS 415949G03 2
9 BIN CONT. COVER GS 3A0664G01 1
10 CAPILLARY RING EP RUBBER 425307-01 2
11 TOP INSULATION PP 215730G01 1
12 FRONT INSULATION PP 2A0664G01 1
13 SIDE PANEL (R) SS 2A1456G01 1
13a T2 SCREW 4X8, SS 7P32-0408 1
14 LOUVER (B) ABS 103121-05 1
15 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 2
16 AIR FILTER (B) ABS 208283G03 1
17 BUSHING SR-34-2 420472-03 1
18 WIRE SADDLE VWS4238-C 4A0338-02 2
19 THUMBSCREW SS, ABS 415949G04 2
20 LOUVER (C) ABS 103122-03 1

5
HA
MODEL: KML-350MAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
21 AIR FILTER (C) ABS 208284G01 1
22 GASKET L=655 4A0808L02 2
23 GASKET L=190 4A0808L02 1
24 GASKET L=762 4A0808L02 1

6
HA
KML-350MWF A. ICE CUBER ASSEMBLY K-0

7
HA
MODEL: KML-350MWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
B REFRIGERATION CIRCUIT - 1A0444A01 1
C WATER CIRCUIT HS-1208 1A0938A01 1
D CONT. BOX ASSEMBLY - 2A1519A04 1
D1 T2 SCREW 4X8 7P31-0408 3
E LABEL LOCATION - 3A1321A01 1
F TOP PANEL ASSY - 3A0674A01 1
G FRONT PANEL - 3A1273A02 1
G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
1 EVAP. CASE HS-1014 2A1449G01 1
2 CONT. BOX COVER GS 3A0594-01 1
2a T2 SCREW 4X8 7C31-0408 3
3 SQUARE WASHER BRASS 433537-02 1
4 SCREW - GROUNDING BRASS 433304-02 1
5 JUNCTION BOX COVER GS 433410-01 1
5a T2 SCREW 4X8 7C31-0408 1
6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1
7 SPACER PE 443545-01 1
8 THUMBSCREW SS, ABS 415949G03 2
9 BIN CONT COVER GS 3A0664G01 1
10 CAPILLARY RING EP RUBBER 425307-01 2
11 TOP INSULATION PP 215730G01 1
12 FRONT INSULATION PP 2A0664G01 1
13 SIDE PANEL (R) SS 2A1456G01 1
13a T2 SCREW 4X8, SS 7P32-0408 1
14 BUSHING SR-30-1 420472-03 1
15 WIRE SADDLE VWS4238-C 4A0338-02 2
16 THUMBSCREW SS, ABS 415949G04 2
17 GASKET L=655 4A0808L02 2
18 GASKET L=190 4A0808L02 1
19 GASKET L=762 4A0808L02 1

8
HA

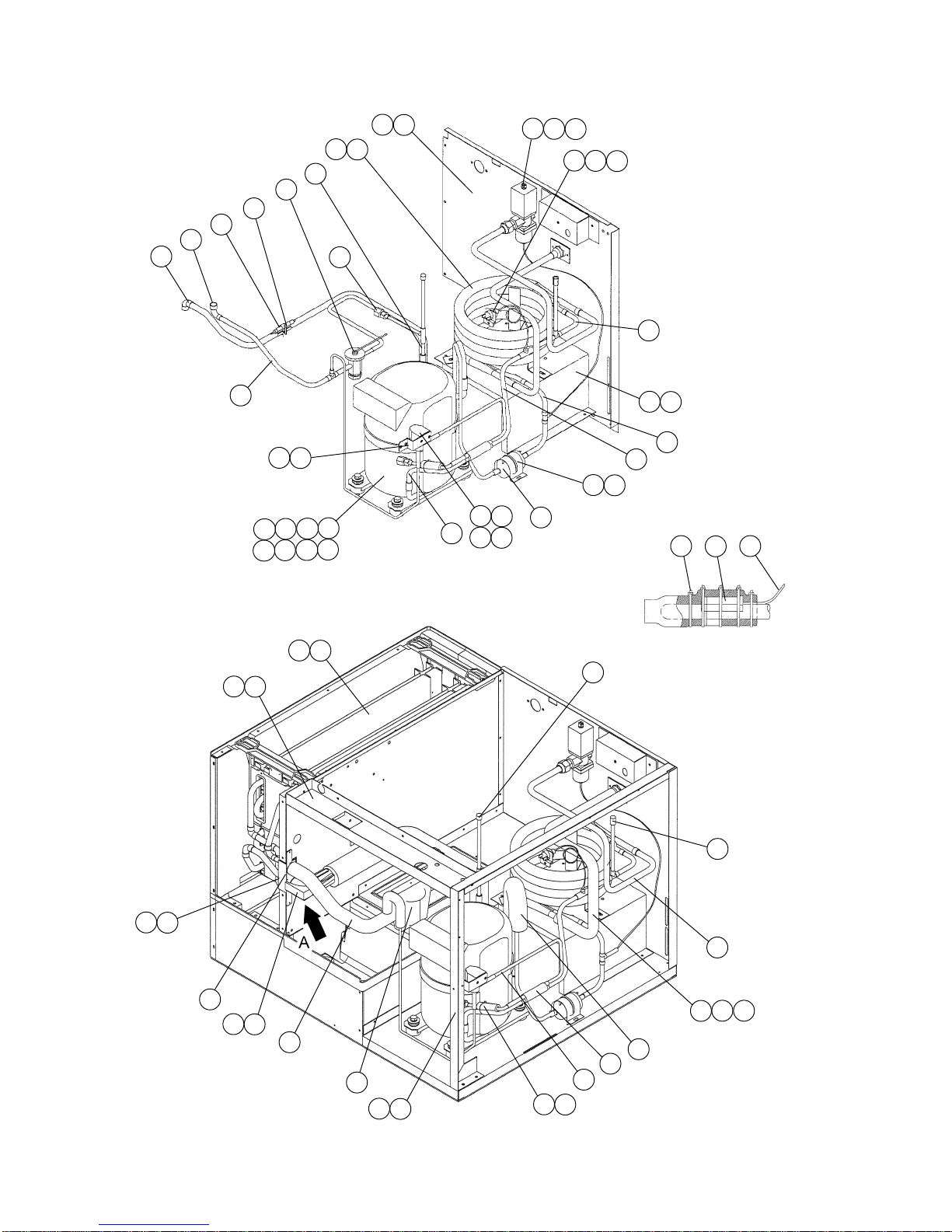

KML-350MAF B. REFRIGERATION CIRCUIT K-0
45 46 32 16 30 29 45 46
37 43 43a
33
40 41
42
48 48a
44 44a
19 19a
45 39 38
DETAIL A
26 20 21
22 22a 31 51 17 17a
27 23 24 24a
28
11a
33a
22a
44a
13 13a
14 14a
15
51
34
25
18
36
35
49
50
5678
910 11 12
47 47a

9
HA
MODEL: KML-350MAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
1 COND. SUPPORT GS 3A0589-01 1
1a T2 SCREW 4X8 7P31-0408 5
2 CONDENSER - 2A0779-01 1
2a T2 SCREW 4X8 7P31-0408 3
3 BARRIER GS 4A0932-01 1
3a T2 SCREW 4X8 7P31-0408 2
4 SHROUD GS 3A0597G01 1
4a T2 SCREW 4X8 7P31-0408 5
5 COMPRESSOR RS43C2E-CAA-219 4A2300-01 1
6 TERMINAL COVER COMP. ACCESSORY 4A2300F01 1
7 SPRING CLIP COMP. ACCESSORY 4A2300F02 1
8 MOTOR PROTECTOR COMP. ACCESSORY 4A1805-01 1
9 PROTECTOR HOLDER COMP. ACCESSORY 437339-01 1
10 BOLT 8X45 437889-01 4
11 SPACER 027-0072-02 434404-01 1
12 GROMMET 527-0039-04 434403-01 4
13 FAN MOTOR BRACKET GS 2A0181-01 1
13a HEX HEAD BOLT W/WASHER (LF) 5X12 7B0130512 4
14 FAN MOTOR U90B1 7190-1031 440911-01 1
14a SELF LOCKING NUT NO. 8-32 7N21I0832 4
15 FAN BLADE AD10CW32 444898-01 1
16 DRIER CW-0325-S 4A1413-01 1
17 DRIER BRACKET GS 4A0807-01 1
17a T2 SCREW 4X8 7P31-0408 2
18 EXP. VALVE AN ½ SW 70 4A1838-02 1
19 EVAPORATOR ASSEMBLY - 2A0717G01 1
19a T2 SCREW 4X16 7P31-0416 4
20 VALVE BODY 70 440352-01 1
21 COIL-VALVE ABS-25-1-HD-2 440353-01 1

10
HA
MODEL: KML-350MAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
22 BOLT - 440353F01 1
22a TRUSS HEAD SCREW 4X8 7C31-0408 2
23 PRESSURE SWITCH ACB-1UB09 433441-07 1
24 PRESSURE SWITCH BRACKET GS 434938-01 1
24a T2 SCREW 4X8 7P31-0408 1
25 ACCESS VALVE TCJ-2F20 NH DU-1 457729-01 2
26 COPPER TUBE (A) - HIGH SIDE COPPER 4A1846-01 1
27 COPPER TUBE (B) - HIGH SIDE COPPER 3A1317-01 1
28 COPPER TUBE (C) - HIGH SIDE COPPER 3A1316G01 1
29 COPPER TUBE (D) - HIGH SIDE COPPER 3A1311G01 1
30 HEAT EXCHANGER COPPER 2A1498G01 1
31 STRAINER - 4A0397-01 1
32 COPPER TUBE (A) - HOT GAS COPPER 4A1878-01 1
33 COPPER TUBE (B) - HOT GAS COPPER 2A1502G01 1
34 COPPER TUBE (A) – ACCESS VALVE COPPER 3A1323G01 1
35 HOLDER / EXP. VALVE – 1/2 SS 3A0112-01 1
36 CLAMP SS 443461-02 1
37 EXPANSION VALVE COVER PE FOAM 4A1168-01 1
38 THERMISTOR - 429006-03 1
39 HOLDER - THERMISTOR COPPER 427430-01 1
40 INSULATION – THERMISTOR (A) PE FOAM 439368-01 1
41 INSULATION – THERMISTOR (B) PE FOAM 439368-02 1
42 INSULATED RUBBER TUBE EPDM 4A1008G01 1
43 FRAME (A) GS 2A0645-01 1
43a T2 SCREW 4X8 7P31-0408 4
44 FRAME (B) GS 3A0595-01 1
44a T2 SCREW 4X8 7P31-0408 4
45 CABLE TIE CV-200 7920-0010 14
46 INSULATION TUBE L=30 7762-1020 2
47 LINE VALVE BRACKET GS 4A1406-01 1

11
HA
MODEL: KML-350MAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
47a T2 SCREW 4X8 7P31-0408 2
48 INSULATION HOLDER SS 3A1084-01 1
48a T2 SCREW 4X8 7P31-0408 2
49 ELBOW COPPER 4A1059-01 1
50 ELBOW COPPER 417395-03 1
51 ENDCAP - 4A1413F01 2

12
HA
KML-350MWF B. REFRIGERATION CIRCUIT K-0
DETAIL A
45 39 38
30
28
37 43 43a
31
40 41
42
48 48a
44 44a
15 15a
33
45 46
34
52
52
33a 51
29
24 16 17
18 18a 12
13 13a
25 27
26
36
35
50
2345
6789
47 47a
11 11a
22 22a 23
19 20 20a
11a
14
10 10a
32
21
49
31

13
HA
MODEL: KML-350MWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
1 REAR PANEL (B) GS 3A0630G03 1
1a T2 SCREW 4X8 7P31-0408 9
2 COMPRESSOR RS43C2E-CAA-219 4A2300-01 1
3 TERMINAL COVER COMP. ACCESSORY 4A2300F01 1
4 SPRING CLIP COMP. ACCESSORY 4A2300F02 1
5 PROTECTOR COMP. ACCESSORY 4A1805-01 1
6 PROTECTOR HOLDER COMP. ACCESSORY 437339-01 1
7 BOLT 8X45 437889-01 4
8 SPACER 027-0072-02 434404-01 4
9 GROMMET 527-0039-04 434403-01 4
10 CONDENSER H-1 ¼-I 2A1429-01 1
10a HEX HEAD BOLT W/WASHER (LF) 4X12 7B0230412 3
11 COND. SUPPORT GS 2A1470-01 1
11a T2 SCREW 4X8 7P31-0408 4
12 DRIER CW-0325-S 4A1413-01 1
13 DRIER BRACKET GS 4A0807-01 1
13a T2 SCREW 4X8 7P31-0408 2
14 EXP. VALVE AN ½ SW 70 4A1838-02 1
15 EVAPORATOR ASSEMBLY - 2A0717G01 1
15a T2 SCREW SS, 4X16 7P32-0416 4
16 VALVE BODY 70 440352-01 1
17 COIL VALVE ABS-25-1-HD-2 440353-01 1
18 BOLT - 440353F01 1
18a TRUSS HEAD SCREW 4X8 7C31-0408 2
19 PRESSURE SWITCH ACB-1UB04 433441-05 1
20 PRESSURE SWITCH BRACKET GS 434938-01 1
20a T2 SCREW 4X8 7P31-0408 1
21 ACCESS VALVE TCJ-2F20NHDU-1 457729-01 2
22 WATER REGULATOR V46DA-3 4A0911-03 1
22a TRUSS HEAD SCREW 4X6 7C31-0406 2

14
HA
MODEL: KML-350MWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
23 MALE CONNECTOR BRASS 4A1087-01 1
24 COPPER TUBE (A)-HIGH SIDE COPPER 4A1846-01 1
25 COPPER TUBE (B)-HIGH SIDE COPPER 4A1859-01 1
26 COPPER TUBE (C)-HIGH SIDE COPPER 3A1282G01 1
27 COPPER TUBE (D)-HIGH SIDE COPPER 3A1288G01 1
28 HEAT EXCHANGER COPPER 2A1498G01 1
29 STRAINER - 4A0397-01 1
30 COPPER TUBE (A)-HOT GAS COPPER 4A1878-01 1
31 COPPER TUBE (B)-HOT GAS COPPER 2A1502G01 1
32 COPPER TUBE (A)-ACCESS VALVE COPPER 3A1323G01 1
33 COPPER TUBE (A) COPPER 3A1519G01 1
33a T2 SCREW 4X8 7P31-0408 2
34 COPPER TUBE (B) COPPER 3A1453G01 1
35 HOLDER/EXP VALVE-1/2 SS 3A0112-01 1
36 CLAMP SS 443461-02 1
37 EXPANSION VALVE COVER PE FOAM 4A1168-01 1
38 THERMISTOR - 429006-03 1
39 HOLDER-THERMISTOR COPPER 427430-01 1
40 INSULATION-THERMISTOR (A) PE FOAM 439368-01 1
41 INSULATION-THERMISTOR (B) PE FOAM 439368-02 1
42 INSULATED RUBBER TUBE EPDM 4A1008G01 1
43 FRAME (A) GS 2A0645-01 1
43a T2 SCREW 4X8 7P31-0408 4
44 FRAME (B) GS 3A0595-01 1
44a T2 SCREW 4X8 7P31-0408 4
45 CABLE TIE CV-200 7920-010 14
46 INSULATION TUBE L=30 7762-1020 2
47 LINE VALVE BRACKET GS 4A1406-01 1
47a T2 SCREW 4X8 7P31-0408 2
48 INSULATION HOLDER SS 3A1084-01 1

15
HA
MODEL: KML-350MWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
48a T2 SCREW 4X8 7P31-0408 2
49 ELBOW COPPER 4A1059-01 1
50 ELBOW COPPER 417395-03 1
51 INSULATION TUBE L=670 7762-1323 1
52 ENDCAP - 4A1413F01 2

16
HA
KML-350MAF, MWF C. WATER CIRCUIT K-0

17
HA
MODEL: KML-350MAF, MWF TITLE:C. WATER CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART NUMBER REQUIRED NUMBER
NUMBER K-0
1 WATER SUPPLY PIPE COPPER 4A0768G04 1
1a T2 SCREW 4X8 7P31-0408 2
2 RUBBER GASKET NR 413854-03 1
3 WATER VALVE BRACKET GS 321443-01 1
3a T2 SCREW 4X8 7P31-0408 1
4 WATER VALVE J248-072 3U0111-04 1
5 SPRAY TUBE PE 1A0260-02 1
6 SPRAY GUIDE (A) PE 208586-01 6
7 WATER SUPPLY TUBE PE 2A0079-01 1
7a T2 SCREW 4X8 7P31-0408 2
8 PLUG EPDM 4A0176-01 2
9 WATER SUPPLY TEE SANTOPRENE 4A1006-01 1
10 FLANGE EPDM 439267-01 1
11 INSULATION (E) PE FOAM 4A0392-01 1
12 ELBOW SANTOPRENE 4A0393-01 1
13 CONNECTING PIPE PE 3A1335-01 1
14 HOSE CLAMP SS, 25 mm 427443-03 3
15 CUBE GUIDE (A) ABS 2A0660-01 1
16 PUMP HOSE EPDM 4A1007-01 1
17 RUBBER RING EPDM 4A1004-01 1
18 BYPASS HOSE SANTOPRENE 4A1005-01 1
19 HOSE CLAMP SS, 18 mm 427443-05 5
20 SOLENOID VALVE 207CB-GS1873 439322-01 2
20a T2 SCREW 4X8 7P31-0408 4
21 ARROW LABEL PES 4A0096-01 1
22 SOLENOID COVER GS 4A0996-01 2
22a T2 SCREW 4X8 7P31-0408 4
23 PUMP - 2A0749-01 1
24 FLOAT SWITCH 163795 4A0886-01 1
24a T2 SCREW 4X8, SS 7P32-0408 2
25 FLOAT SWITCH BRACKET ABS 327757-01 1

18
HA
MODEL: KML-350MAF, MWF TI1TLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
25a T2 SCREW 4X12, SS 7P32-0412 2
26 FLOAT SWITCH COVER ABS 3A0665-01 1
26a T2 SCREW 4X12, SS 7P32-0412 2
27 VINYL HOSE L=150 7716-1216 1
28 VINYL HOSE L=285 7716-1519 1
29 BUSHING OCB-875 428394-04 1
30 WIRE SADDLE VWS4238-C 4A0338-02 8
31 WELL NUT 347011 4A1070-01 2
31a TRUSS HEAD SCREW 4X16, SS 7C32-0416 4
32 INSULATION (A) – PUMP BRACKET PE FOAM 4A1052-01 1
33 TOOTH WASHER ZINC, M4 7R21-0400 1
33a TRUSS HEAD SCREW 4X16 7C31-0416 1
34 INSULATION (B) – PUMP BRACKET PE FOAM 4A1053-01 1
35 HOSE CLAMP SS, 27 mm 427443-08 1
36 HOSE CLAMP SS. 20 mm 427443-06 3
37 INSULATION (A1) – BYPASS HOSE NP 4A1259-01 1
38 INSULATION (A2) – BYPASS HOSE NP 4A1260-01 1
39 DRAIN POLYACETAL 309246-01 1
40 O-RING 1AP15 7611-P015 1

19
HA
KML-350MAF D. CONTROL BOX ASSEMBLY K-0

20
HA
MODEL: KML-350MAF TITLE:D. CONTROL BOX ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER K-0
1 CONTROL BOX GS 3A0602G01 1
2 CAPACITOR 15µf 370 VAC 439943-04 1
3 CAPACITOR - STARTING 243-292µf 115V 3A0076-10 1
4 STRAP GS 434580-10 1
4a T2 SCREW 4X8 7P31-0408 1
5 STARTER - 4A1107-11 1
5a T2 SCREW 4X8 7P31-0408 1
6 RELAY LY2F 120 VAC 406132-07 1
7 TAPPING SCREW 3X8 431415-01 2
8 THERMOSTAT A30-3815-00 4A0824-01 1
8a TRUSS HEAD SCREW 4X8 7C31-0408 2
9 TOGGLE SWITCH 7563K6 443119-01 1
10 TOGGLE SWITCH 8966K211 4A0985-01 1
11 TRANSFORMER 26D285H 3A0172-01 1
11a T2 SCREW 4X8 7P31-0408 2
12 CONTROLLER BOARD HOS001A 2A1410-01 1
13 BOARD SUPPORT CBLS37-M 4A0336-03 4
14 MAGNETIC CONTACTOR VC20 428393-01 1
15 BRACKET BW 9154 428393F01 1
15a T2 SCREW 4X8 7P31-0408 2
16 CAPACITOR 5µf 250 VAC 443192-02 1
16a T2 SCREW 4X8 7P31-0408 1
17 BUSHING OCB-500 428394-02 2
18 BUSHING OCB-625 428394-03 2
19 BUSHING OCB-875 428394-04 1
20 CONTROL LABEL PES FILM 4A1758-01 1
21 WIRE SADDLE VWS4238-C 4A0338-02 2
