Host T7 User manual

Parts Catalog
T7/T71/T73
M40000/M40001/M40003
REPAIR PARTS CATALOG NO. M30202(K)
For machines starting with Serial No. T6183
ISSUED September 2003
ORDERS
Please use part numbers when ordering
and include the serial number of the machine
(stamped on the electrical data plate) to insure
that you will receive the correct parts.
Order from your HOST Distributor.

SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED, INCLUDING THE FOLLOWING:
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and
before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s recommended attachments.
5. Inspect cord for damage before each use. Do not use with damaged cord or plug. If appliance
is not working as it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust,
lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
15. Do not use without filters in place.
16. Connect to a properly grounded outlet only. See Grounding Instructions.
17. Always turn off this appliance before connecting or disconnecting either HOST extractorVAC™
or HOST machine.
18. Accessory receptacle is for HOST extractorVAC or dual machine operation only.
19. This appliance is to be used with HOST®carpet cleaning products only. Use of other cleaning
products may damage this appliance.
20. Do not use for picking up health endangering dust such as asbestos.
21. This is a commercial appliance, not intended for household use.
IMPORTANT SAFETY INSTRUCTIONS 2

This appliance must be grounded.
If it should malfunction or break down,
grounding provides a path of least
resistance for electric current to reduce
the risk of electric shock. This appliance
is equipped with a cord having an equipment-grounding conductor and grounding plug.
The plug must be inserted into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-grounding conductor can result in the risk
of electric shock. Check with a qualified electrician or service person if you are in doubt as to
whether the outlet is properly grounded. Do not modify the plug provided with the appliance.
If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This appliance is for use on a nominal 120 volt circuit, and has a grounded plug that looks
like the plug illustrated in sketch A. A temporary adapter that looks like the adapter illustrated in
sketches B and C may be used to connect this plug to a 2-pole receptacle as shown in sketch B
if a properly grounded outlet is not available. The temporary adapter should be used only until a
properly grounded outlet (sketch A) can be installed by a qualified electrician. The green colored
rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground
outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.
Note: In Canada, the use of a temporary adapter is not permitted by the Canadian
Electrical Code.
Grounding Methods
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]
GROUNDING INSTRUCTIONS 3

Safety Instructions ____________________________________________________ 2
Grounding Instructions ________________________________________________ 3
Section I - T7/T71/T73 Parts ____________________________________________ 5
Operating Handle Assembly - M30481 __________________________________ 6
Secondary Handle Assembly __________________________________________ 8
Lifting Handle Assembly ______________________________________________ 10
Motor Case Assembly ________________________________________________ 12
Outer Gearcase Assembly ____________________________________________ 14
Inner Gearcase Assembly ______________________________________________ 16
Hood Assembly ______________________________________________________ 18
Brush and Tray Assembly ____________________________________________ 20
Wiring Diagram - 100/120V ____________________________________________ 22
Wiring Diagram - 220/240V ____________________________________________ 23
Section II - M40000/M40001/M40003 VAC Parts ____________________________ 25
Vac Assembly ______________________________________________________ 26
Vac Motor Assembly __________________________________________________ 28
Wiring Diagram - 100/120V ____________________________________________ 30
Wiring Diagram - 220/240V ____________________________________________ 31
TABLE OF CONTENTS 4

Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]
SECTION I - T7/T71/T73 PARTS 5

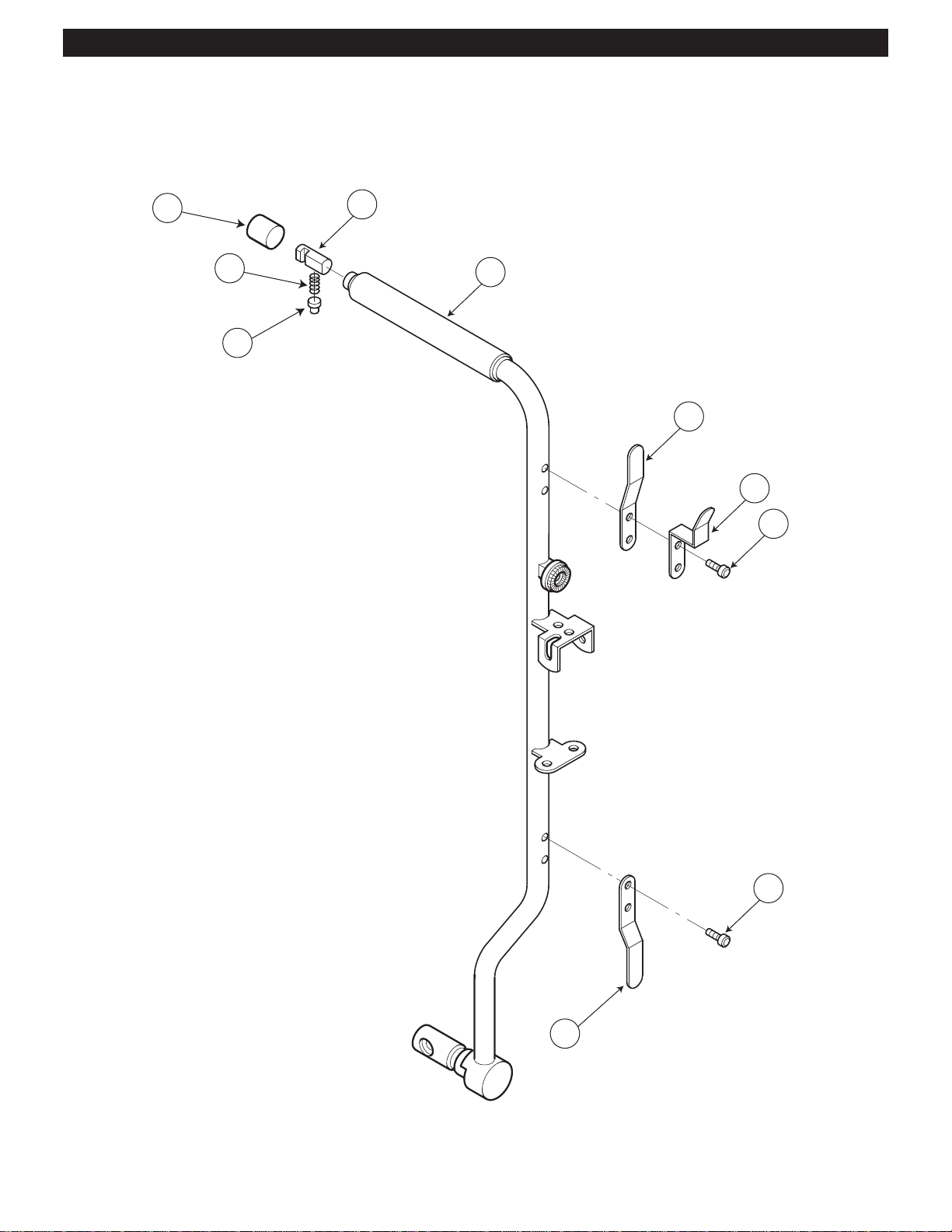

OPERATING HANDLE ASSEMBLY 6
2
3
1
4
5
6
7
7
5
8

OPERATING HANDLE ASSEMBLY (M30481) 7
Code No. Part No. Description
1 V818 Button-Twin Lock
2 M7146 Spring
3 V817 Twin Connector
4 M30551 Handle-Pinned & Welded
5 M7020B Cord Hook (2) Required
6 M7131 Cord Clip
7 M7053B Screw 10-32 x 3⁄8" (4) Required
8 M30385 Vinyl Cap
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]
FOR MACHINES STARTING WITH SERIAL NO. 6183
ISSUED MARCH 7, 2003

SECONDARY HANDLE ASSEMBLY 8
2
1

SECONDARY HANDLE ASSEMBLY 9
Code No. Part No. Description
1 M30476 Accessory Handle
2 M30478 Knob/Shaft Assembly
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]

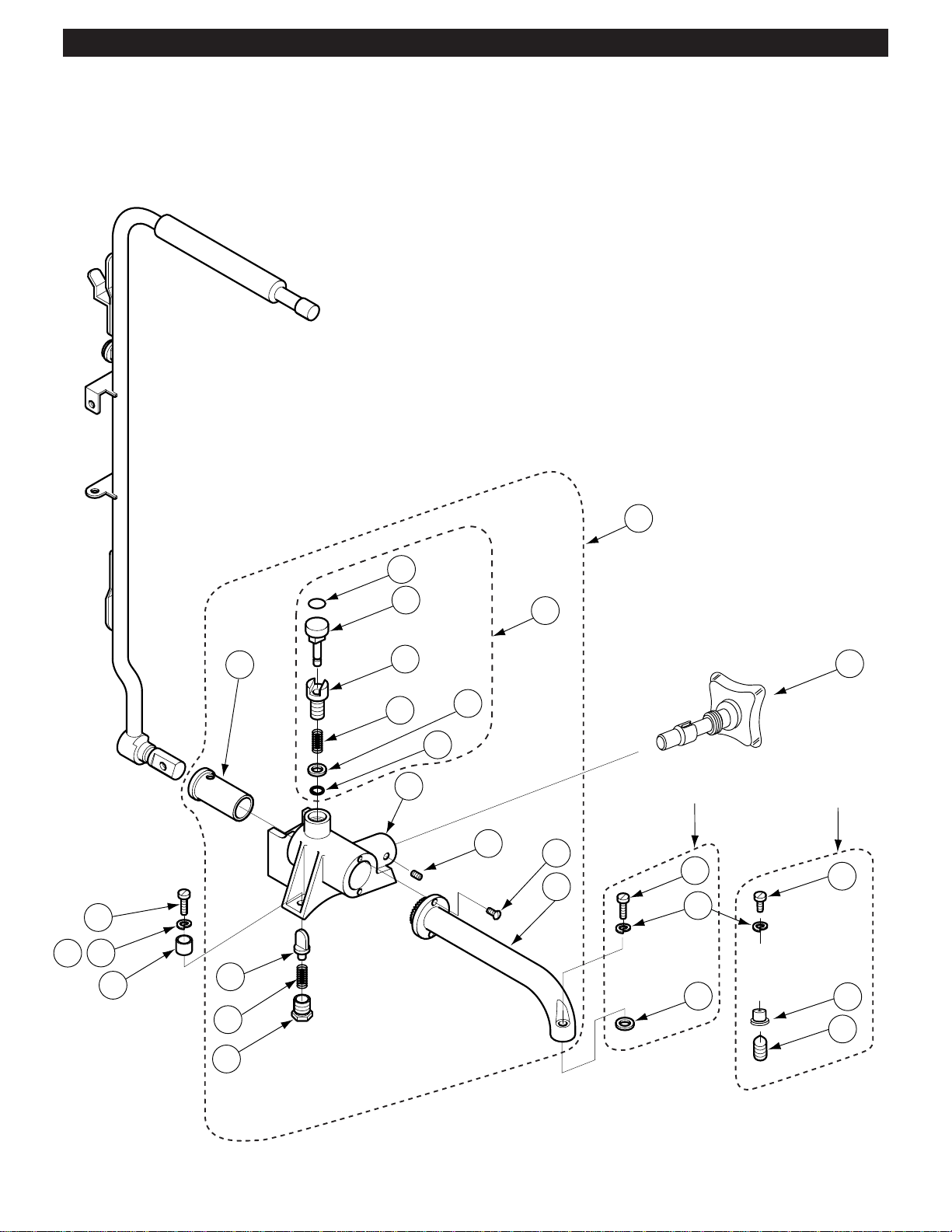

LIFTING HANDLE ASSEMBLY 10
1
2
4
22
5
6
11
8
79
18
10
19
12
13
14
21
15
16
17
26
27
25 
20
23
T7
T71 T73
3

24 
FOR MACHINES STARTING WITH SERIAL NO. 6183
ISSUED MARCH 7, 2003

LIFTING HANDLE ASSEMBLY 11
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]
Code No. Part No. Description
1 M30140 Decal-Handle Release
2 M30101 Plunger-Handle Release
3 M30117 Spring
4 M30104 Retaining Ring 1⁄4" Shaft
5 M30100 Retainer-Handle Release
6 M30553 Handle Support
7 M30456 Lifting Handle Weldment
8 M30281 Screw 10-32 x 1⁄2" (2) Required
9 M6419A Screw 10-32 x 11⁄2" (T7 and T71 Only)
10 D277 Lockwasher #10
11 M30556 Lock Shaft Assembly
12 M30098 Retainer-Temporary Detent
13 M30102 Spring
14 M30182 Temporary Detent
15 603 Lockwasher 1⁄4" (2) Required (T7 and T71 Only)
16 L5002 Screw 1/4-20 x 3⁄4" (2) Required
17 M30452 Flange Bearing
18 M30555 Set Screw 8-32 x 1⁄4"
19 M30525 Washer-Flat (T7 and T71 Only)
20 M30365 Handle Release Assembly
(Includes Code Numbers 1, 2, 3, 4, 5 and 22)
21 M30378 Insulator Tube (2) Required
22 M30201 Washer - Flat
23 M30554 Lifting Handle ASM
(Includes Code Numbers
6-8, 12-14, 17, 18 and 20)
T73 ONLY
24 W529 Flat Nylon Washer (2) Required
25 M7053B Screw 10-32 x 3⁄8"
26 M30377 Insulator
27 75 Set Screw 10-32 x 3⁄4"
FOR MACHINES STARTING WITH SERIAL NO. 6183
ISSUED MARCH 7, 2003

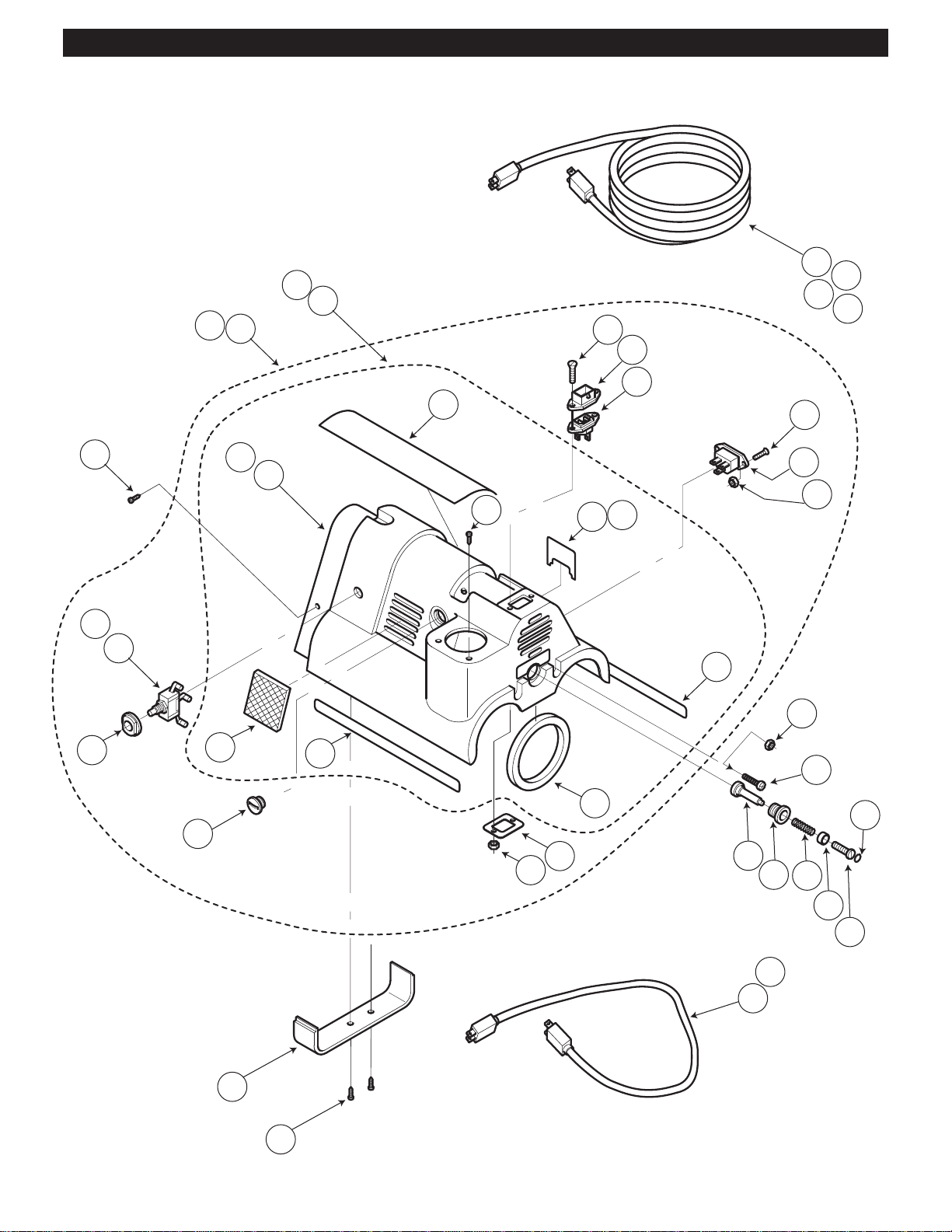

MOTOR CASE ASSEMBLY 12
12
34
10
16
11
12
131415
9
17
25
19
20
21
24
18
8
67
5
22
23

MOTOR CASE ASSEMBLY 13
Code No. Part No. Description
1 H1072 Screw 8-32 x 1⁄2" (2) Required)
2 M30062 Motor Exhaust Duct
3 D365 Set Screw 10-24 x 3⁄16" (4) Required
4 M30122 Motor Case
5 M50325 Tolerance Ring (Included in Code No. 4)
6 M30373 Field 100V (T73)
7 M6100NA Field 120V (T7) Optional Machine Type
8 M30294 Field 220/240V (T71)
9 M6006B Screw 8-32 x 33⁄8" (2) Required
10 M12002A Bearing
11 M30537 Motor Case and Carbon Brush Holder Assembly
(Includes Code # 3, 4, 5, and 18)
12 M30131 Fan-Armature (Included in Code # 13, 14, 15)
13 M30372 Armature 100V (Includes Code # 12)
14 M30132 Armature 120V (Includes Code # 12)
15 M30293 Armature 220/240V (Includes Code # 12)
16 M5005 Washer #8 (2) Required
17 M9008 Grommet (2) Required
18 M6013 Carbon Brush Holder (2) Required
19 M7053B Screw 10-32 x 3⁄8" (2) Required
20 M30094 Support Bracket
21 VM16 Cap-Carbon Brush Holder (2) Required
22 M50232 Carbon Brush Assembly 100V/120V (2) Required
23 M6605 Carbon Brush Assembly 220/240V (2) Required
24 D174B Screw 8-32 x 1⁄4"
25 M4222 RFI Filter (220/240V Only)
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]

GEAR CASE ASSEMBLY 14
1232
26
4
6
8
15
16
1917
16
17
18
21
24
20
22
23
5
25
10
13
12
9
11
27
7
15
14

GEAR CASE ASSEMBLY 15
Code No. Part No. Description
1 M9019 Screw 10-24 x 1" (3) Required
2 D277 Lockwasher #10 (6) Required
3 M30115 Mounting Flange
4 F2771 Screw 10-32 x 1⁄2" (3) Required
5 M30361 Gasket-Outer Gearcase
6 M30157 Gearcase Assembly
7 M30541 Brush Shaft / Collar / Pin Assembly
8 M6003A Bearing (2) Required
9 M30085 Twin Lock Lever
10 M11004 Twin Lock
11 M11007A Spring - Ball-Detent
12 W242 Ball-Detent
13 M11008 Screw 6-32 x 5⁄16"
14 34A Woodruff Key (2) Required
15 M2005 Washer-Nylon (4) Required
16 VM56A Screw 6-32 x 5⁄16" Self-Tapping (8) Required
17 M2009A Pulley Flange (4) Required
18 M2006C Belt Pulley (2) Required
19 M2008 Retaining Ring 1⁄2" Shaft (2) Required
20 D277 Lockwasher #10 (2) Required
21 V115 Screw 10-24 x 5⁄16" (2) Required
22 M30069 Brush Guard Assembly (Includes Code # 23)
23 M30136 Hook Fastener
24 M30142 Decal-Warning
25 *M11109A Needle Bearing (For Brush Shafts) (4) Required
26 M30133 Bearing
27 M30542 Outer Gearcase & Bearing Assembly
(Includes Code # 5, 6, 8, 25 and 26)
* Not Illustrated
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]

INNER GEAR CASE ASSEMBLY 16
1
23
46
78
9
10
11 12
16
17
15
5
20
19
1813
14
22

INNER GEAR CASE ASSEMBLY 17
Code No. Part No. Description
1 M12010 Gasket
2 U1423 Retaining Ring 3⁄8" Shaft (2) Required
3 M12042 Gear-Left Hand
4 U1605A Woodruff Key (2) Required
5 M12043 Gear-Right Hand
6 M12018 Inner Gearcase
7 M9002 Bearing (2) Required
8 M12019 Pulley Flange (2) Required
9 M12044 Pulley Shaft (2) Required
10 M12008A Pulley Cap (2) Required
11 D277 Lockwasher #10 (2) Required
12 F2771 Screw 10-32 x 1⁄2" (2) Required
13 M12015B Belt-Long
14 M12014B Belt-Short
15 M13018 Hairpin Cotter
16 M30178 Clevis Pin 3⁄16" dia. x 11⁄4"
17 M12011A Screw 10-32 x 13⁄16" (9) Required
18 M13015 Screw 6-32 x 11⁄4" (5) Required
19 M30066 Gearcase Cover
20 M12013 Dowel Pin 1⁄8" dia. x 3⁄4" (2) Required
21 *M12012 Grease-Lithium Base
22 M12040 Inner Gearcase Assembly
* Not Illustrated
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]

MOTOR SHROUD ASSEMBLY 18
5C
43
6
8
7
910
23A
22
21
31
43
33
5B
39
30
5A
32
24
25
34
36
35
2912
11
23B
1
32
4
13
15
2019181716
14
41
4038
37

MOTOR SHROUD ASSEMBLY 19
Code No. Part No. Description
1 M30116 Supply Cord-North American
2 M40401 Supply Cord-European
3 M40402 Supply Cord-UK
4 M40403 Supply Cord-Swiss
5 M30145 Screw 8-32 x 1⁄2" Thread Forming (7) Required
5A (2) Required - Motor Shroud to Outer Gearcase
5B (2) Required - Bottom Cover to Outer Gearcase
5C (3) Required - Nozzle Assembly to Motor Shroud
6 U534 Screw 6-32 x 5⁄8" (2) Required
7 M30089 Cord Lock
8 M4256 Cord Inlet Connector
9 M30143 Decal-Accessory Receptacle (T7/T73)
10 M30288 Decal-Twinning Receptacle (T71)
11 F4112 Screw 6-32 x 5⁄8" (2) Required
12 M30090 Accessory Receptacle
13 H1072 Screw 8-32 x 1⁄2" (2) Required (Inner Hood to Motor Shroud)
14 466A Nut 8-32 (2) Required - Hood to Gearcase
15 M30139 Decal-Brush Guard Release
16 M30362 Screw 6-32 x 1⁄2"
17 M30075 Button-Brush Guard Release
18 M30077 Spring
19 M30074 Housing-Brush Guard Release
20 M30076 Shaft-Brush Guard Release
21 M30093 Gasket-Motor Exhaust
22 M30071 Backing Plate
23 F1129 Nut – 6-32 (4) Required
23A (2) Required - Cord Lock to Motor Shroud
23B (2) Required - Accessory Receptacle to Motor Shroud
24 M30124 Dual Machine Twinning Cord-100/120v (T7/T73)
25 M30125 Dual Machine Twinning Cord-220/240v (T71)
26 * MISC Wire Assemblies (See Wiring Diagram)
27 * M30367 Decal - Switch 220/240v (T71)
28 * M30382 Circuit Breaker 220/240v (T71)
29 M30065 Motor Shroud
30 M30369 Motor Shroud (With Hole for Circuit Breaker) (T71)
31 M30105 Bottom Cover
32 M30086 Cap-Carbon Brush Access (2) Required
33 M30083 Intake Air Filter (2) Required
34 M30072 Nut-Switch (2) Required
35 M30092 Switch-On/Off-120v (2) Required (T7/T73)
36 M30088 Switch-On/Off-220/240v (2) Required (T71)
37 M30153 Motor Shroud Assembly 100/120v (T7/T73)
(Includes Code # 9, 14, 21, 29, 33 and 39)
38 M30383 Motor Shroud Assembly 220/240v (T71)
(Includes Code # 10, 14, 21, 27, 30, 33, 39 and 40)
39 M30046 Decal-Host Machine
40 M30533 Motor Shroud Assembly with Switches-100/120v (T7/T73)
(Includes Code # 6, 7, 8, 11, 12, 22, 23A, 23B, 32,34, 35 and 37)
41 M30534 Motor Shroud Assembly with Switches-220/240v (T71)
(Includes Code # 6, 7, 8, 11, 12, 22, 23A, 23B, 27, 28, 32,34, 36 and 38)
42 * M30368 Decal - Circuit Breaker 220/240v (2) Required (T71)
43 M30135 Hook Fastener (2) Required
* Not Illustrated
Racine Industries Inc. 1405 Sixteenth Street P.O. Box 1648 Racine, Wisconsin 53401 1-800-558-9439 1-262-637-4491 FAX [phone]

NOZZLE/INNER HOOD ASSEMBLY 20
3
4
5
6
6
1
11
2
7
10
8
9
