HP Kayak XA-s Series 02 User manual

HP Kayak XA-s 02xx PC Workstation -
Installing Accessories In Your
HP Minitower PC Workstation
Explains in detail how to install accessories, such as extra memory,
accessory boards, and additional disk drives.
M02inst.fm Page 1 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Supported HP Accessories
2English
Supported HP Accessories
Contact your dealer for an up-to-date list of supported accessories.
Up to six accessory boards
can be installed:
- One AGP slot (graphics)
- Three 32-bit PCI slots (one used by SCSI/LAN board)
- One combination PCI or ISA slot
- One 16-bit ISA slot
Front Access Drives, for example:
- 3.5-inch 1.44 MB flexible disk drive
(one third height)
- 5.25-inch DDS tape drive (half height)
Internal Mass
Storage Devices
Pack of five pairs of rails for
Front Access Devices:
- 3.5-inch disk drives (D3566A)
- 5.25-inch disk drives (D2880A)
Main Memory Upgrades
DIMM slots for 100 MHz SDRAM:
- 32 MB Non-ECC (D6501A)
- 64 MB Non-ECC (D6502A)
- 128 MB Non-ECC (D6503A)
- 32 MB ECC (D6521A)
- 64 MB ECC (D6522A)
- 128 MB ECC (D6523A)
- 256 MB ECC (D6524A)
M02inst.fm Page 2 Thursday, February 18, 1999 3:48 PM

English 3
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Removing and Replacing the Cover
Removing and Replacing the Cover
WARNING For your safety, never remove the PC Workstation’s cover without first
removing the power cord from the power outlet, and any connection to
a telecommunications network. Always replace the cover on the
PC Workstation before switching it on again.

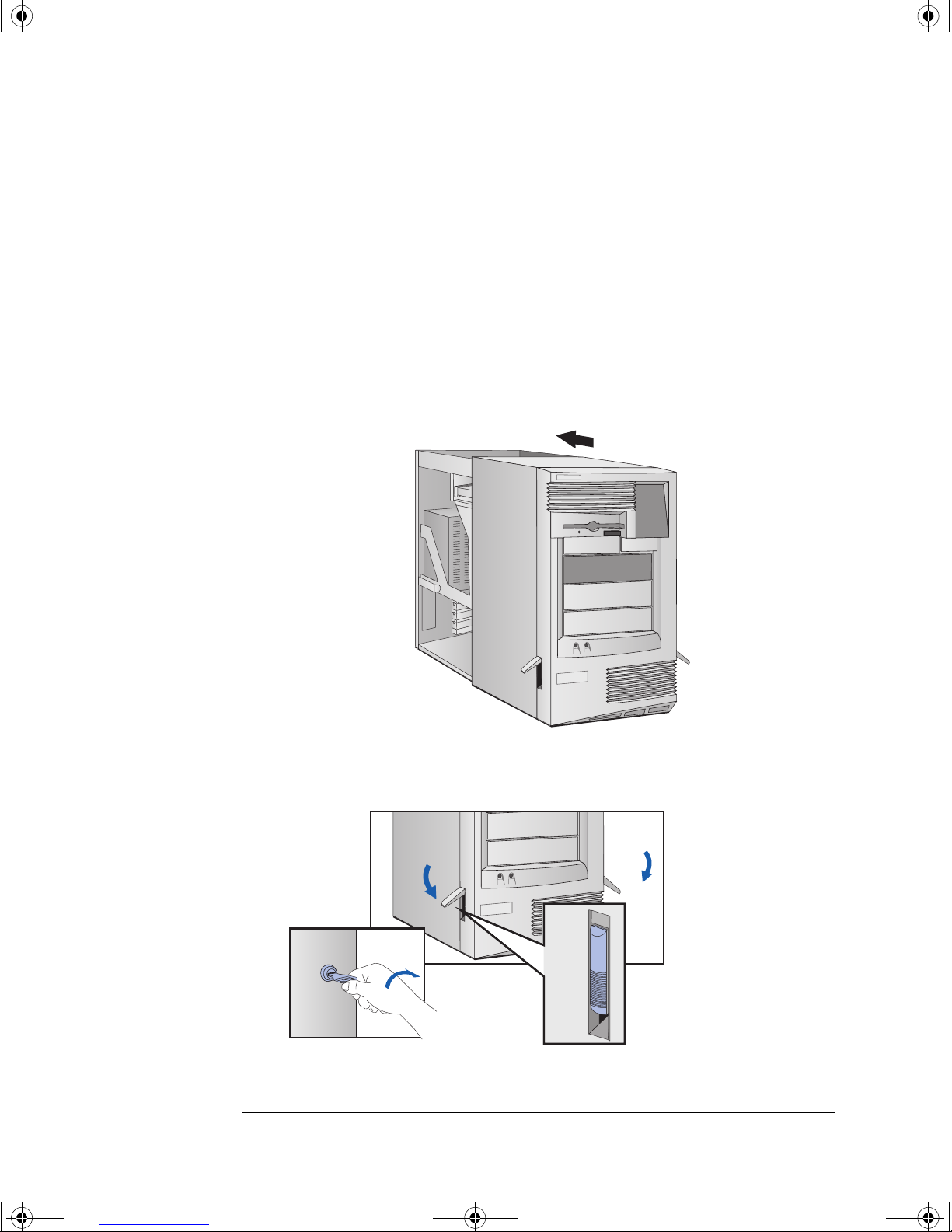

Removing the Cover
1Switch off the display and computer.
2Disconnect all power cables and any telecommunications cables.
3If necessary, unlock the cover using the key on the back panel, and
remove any floppy diskettes from the floppy drive.
4Push the two latches on the sides of the computer upwards.
5Grasp the cover on both sides of the computer, and carefully slide it
forwards and off the computer.
Step 4
Step 4
Step 5
M02inst.fm Page 3 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Removing and Replacing the Cover
4English
Replacing the Cover
1Ensure that you have installed all your accessories and that all
internal cables are properly connected and safely routed.
2Ensure that the two latches on the front sides of the cover are lifted
up, and that the lock is unlocked.
3Slide the cover onto the computer, making sure that the two guides
at the bottom of the case slide into the two rails at the base of the
computer. Firmly slide the cover backwards into position.
4Lower the latches on the front sides of the cover. If required, lock
the cover using the key provided.
5Reconnect all the power cables.
Press here on both sides
of the PC’s cover.
M02inst.fm Page 4 Thursday, February 18, 1999 3:48 PM

English 5
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Removing and Replacing the Cover
Intrusion Monitor Your PC Workstation is equipped with an intrusion monitor, which is
located on the front of the PC Workstation, behind the Hardware
Control Panel. It is designed to detect whether your PC Workstation
has been opened since the last time it was used:
•If your PC Workstation has been opened, it is assumed that the
system configuration has changed and a full start-up check is carried
out.
•If your PC Workstation has not been opened, it is assumed that the
system configuration has not changed and a reduced start-up check
is carried out.
M02inst.fm Page 5 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Moving the Power Supply
6English
Moving the Power Supply
1Disconnect the computer’s power cord and any telecommunications
cable.
2Remove the computer’s cover (see page 3).
3Remove the fan connection to the system board.
4Press the retaining buttons on each side of the HP UltraFlow airflow
guide and lift it out of the PC Workstation’s case.
5Unscrew the four self-retaining screws at the back of the power
supply.
HP UltraFlow
Airflow Guide
Retaining
button
Fan connection to
system board
Unscrew the
self-retaining screws
M02inst.fm Page 6 Thursday, February 18, 1999 3:48 PM

English 7
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Moving the Power Supply
WARNING To avoid electrical shock, do not open the power supply.

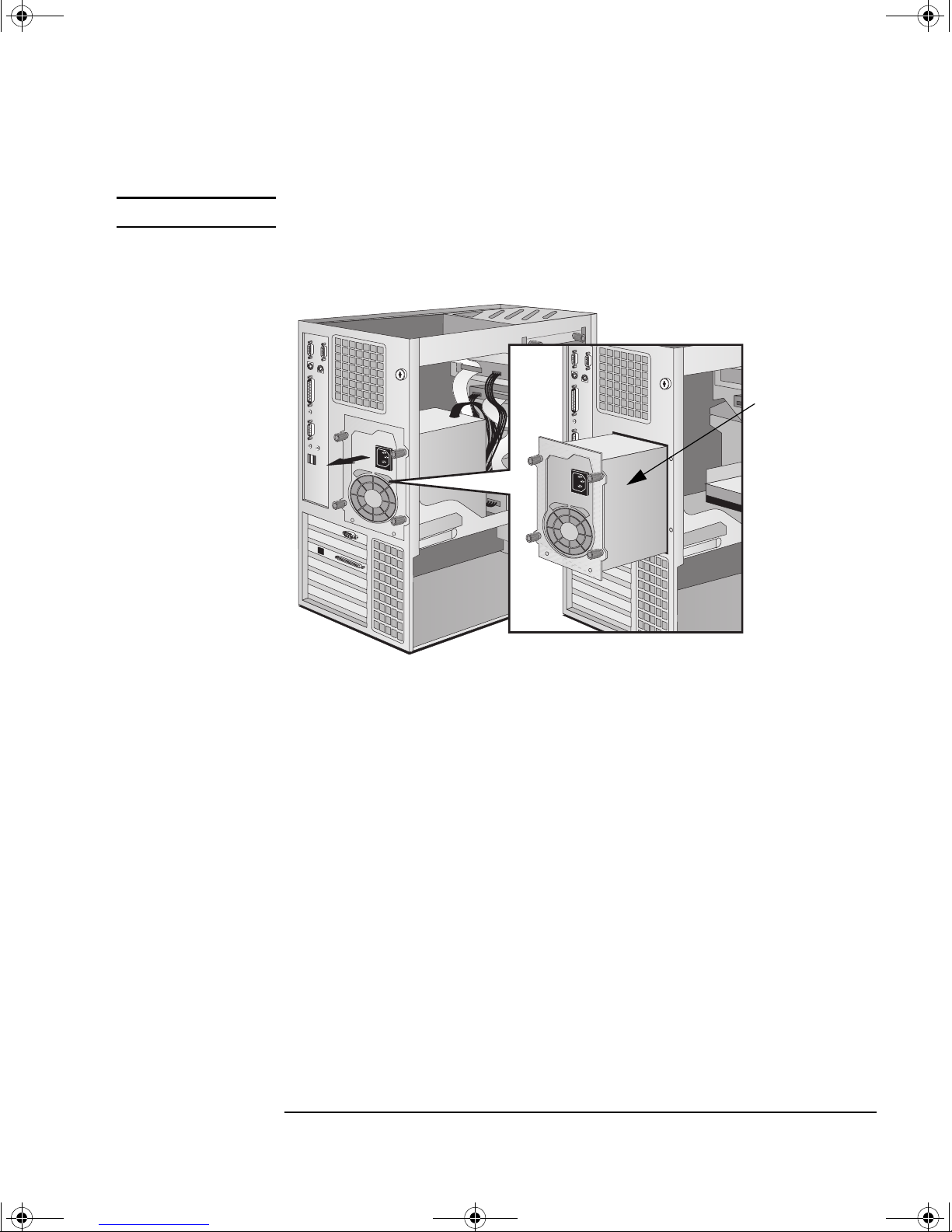

6Slide the power supply out of the computer until it stops—the
power supply unit remains connected to the computer.
Replacing the Power
Supply after Installing
Accessories
1Check that all internal cables are safely routed.
2Slide the power supply back into the computer.
3Tighten the four self-retaining screws.
4Replace the HP UltraFlow airflow guide.
5Reconnect the fan to the system board.
Slide the power
supply unit clear of
the computer
Power Supply
M02inst.fm Page 7 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Installing Memory
8English
Installing Memory
Main Memory Modules
If you need more main memory to run your application software, you
can install up to 768 MB of memory in three DIMM slots.
Main memory upgrades are available in single 32 MB, 64 MB, 128 MB
and 256 MB Non-ECC SDRAM or 64 MB, 128 MB and 256 MB ECC
SDRAM memory modules. You should note that only 100 MHz memory
modules should be used to upgrade your PC Workstation.
CAUTION Static electricity can damage electronic components. Turn off all
equipment. Do not let your clothes touch the accessory.
To equalize the static electricity, rest the accessory bag on top of the
power supply while you are removing the accessory from the bag.
Handle the accessory as little as possible and with care.
To install a main memory module:
1Disconnect the computer’s power cord and any LAN or
telecommunications cable.
2Remove the computer’s cover (see page 3).
3Remove the fan connection to the system board.
NOTE Refer to the illustration on page 8 for steps 3 and 4.
4Press the retaining buttons on each side of the HP UltraFlow airflow
guide and lift it out of the PC Workstation’s case.
5Remove the transparent airflow guide covering the processor
sockets (if needed).
6Remove the floppy disk drive data cable from the system board.

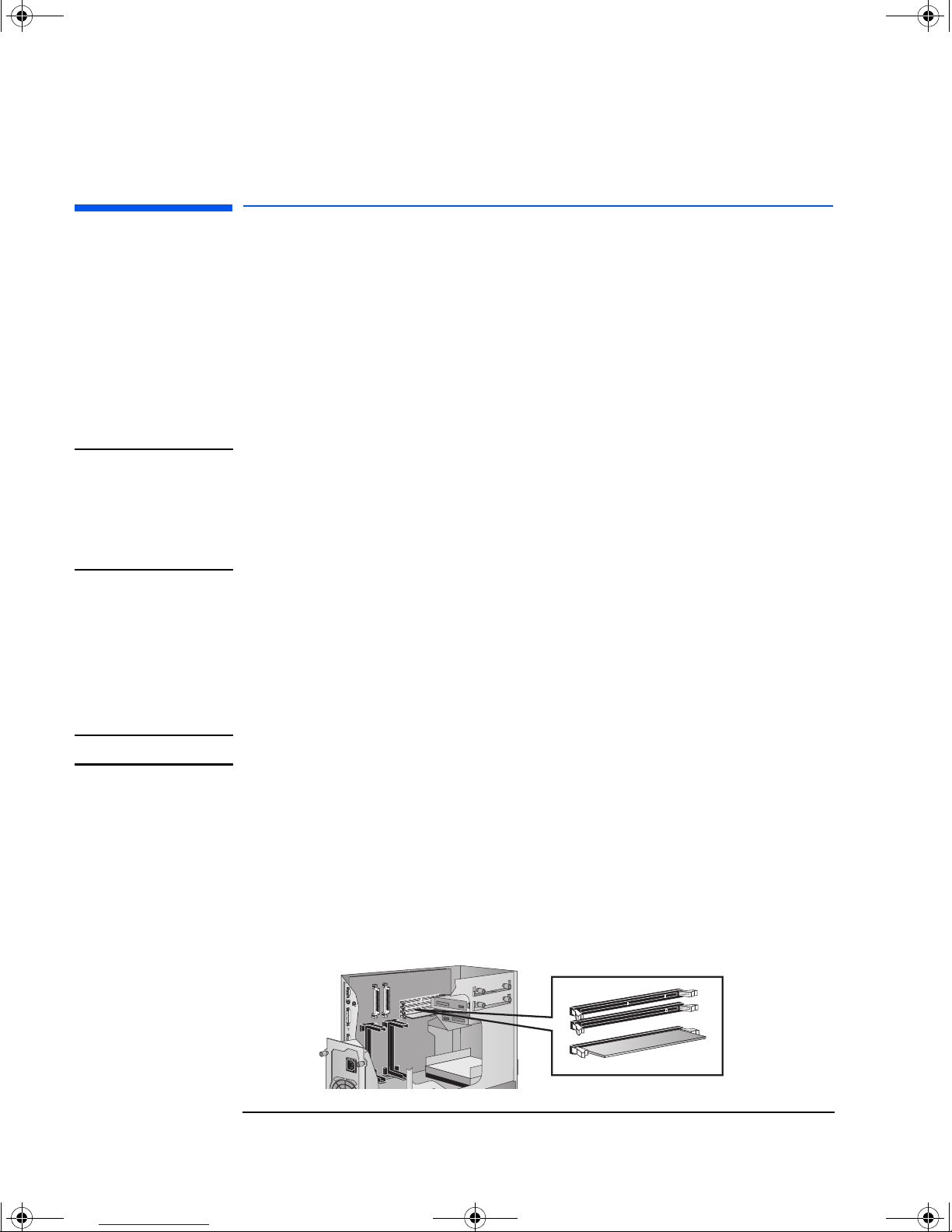

7The location of the memory module slots is shown here.
M02inst.fm Page 8 Thursday, February 18, 1999 3:48 PM

English 9
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Installing Memory

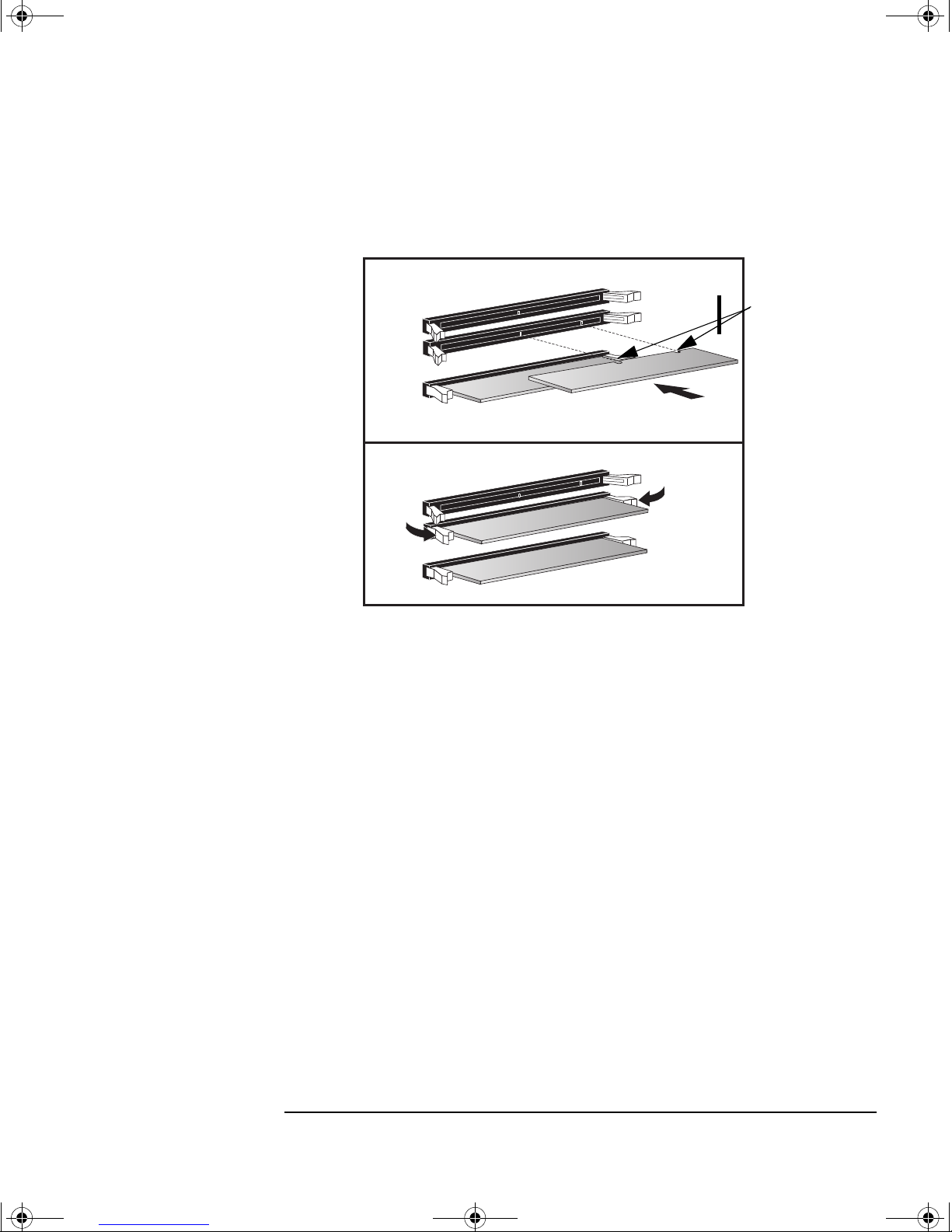

8Slide the memory module into the slot at 90° to the system board
(with the cutouts furthest away from the processor).
9Firmly press the memory module completely into the connector
until the retaining clips click into position.
10 Repeat this procedure for each additional memory module you want
to install.
11 Install any other accessories if necessary, then replace all units and
reconnect all cables and power cords. Replace the cover (refer
to page 3).
12 Check the HP Summary Screen to verify the new configuration.
Video Adapter
Accessories Available
from Other Sources
Additional accessories, including a video MPEG module, are available
for your video adapter. However, these accessories cannot be ordered
from HP. Contact your dealer for more details about these accessories.
Slide the memory module into the slot at 90o
to the system board
Push the module until the retaining clips click
into position
Memory module
cutouts
M02inst.fm Page 9 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Installing Mass Storage Devices
10 English

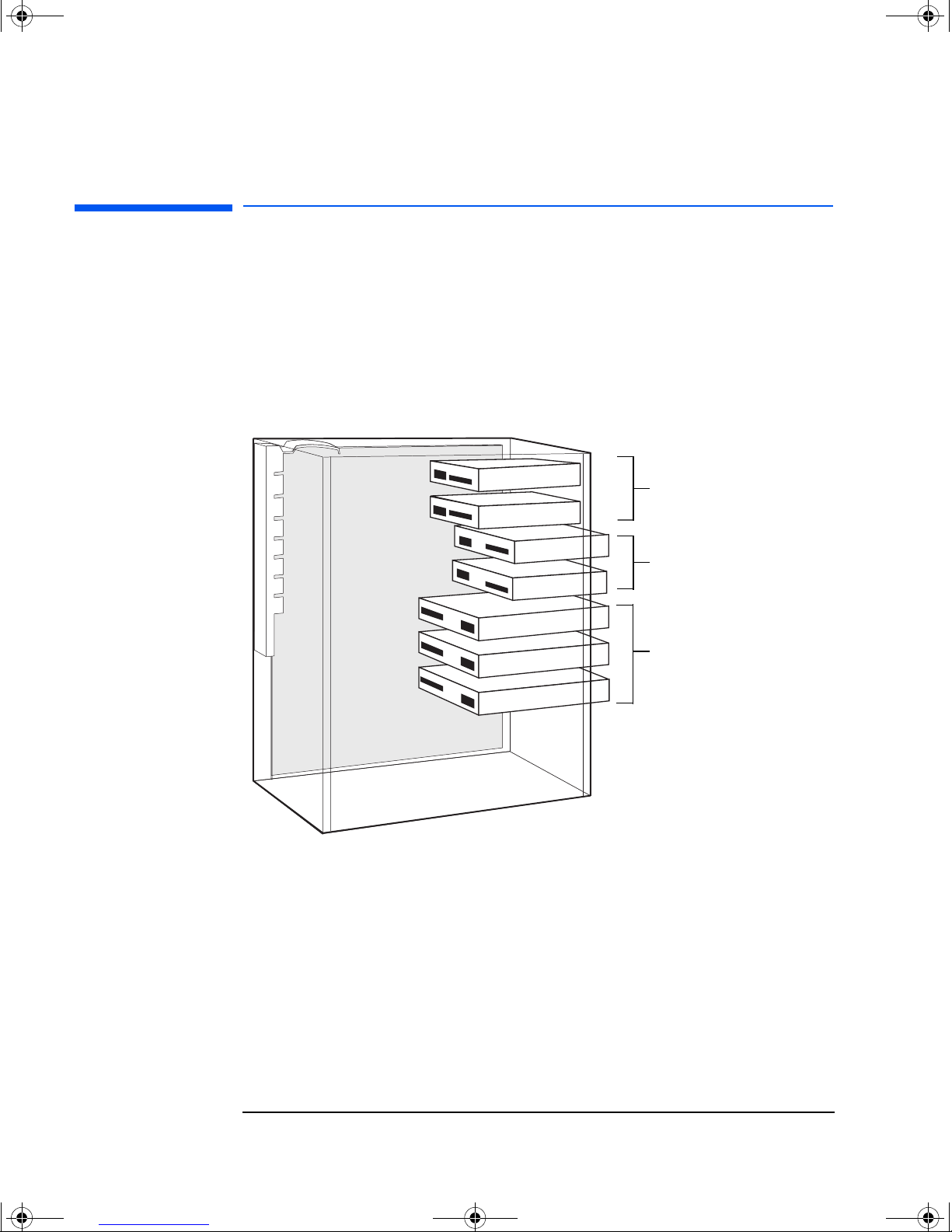

Installing Mass Storage Devices
The computer has two internal shelves (for hard disk drives) and five
front-access drive shelves (for front-access drives and hard disk
drives).
Your computer is supplied with one 3.5-inch flexible disk drive and a
CD-ROM drive. If your computer is supplied with a hard disk, the hard
disk will be installed in the second internal shelf
Two internal shelves
for 3.5-inch disks
Two shelves for 3.5-inch
drives
Three shelves for 5.25-inch
drives
M02inst.fm Page 10 Thursday, February 18, 1999 3:48 PM

English 11
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Installing Mass Storage Devices

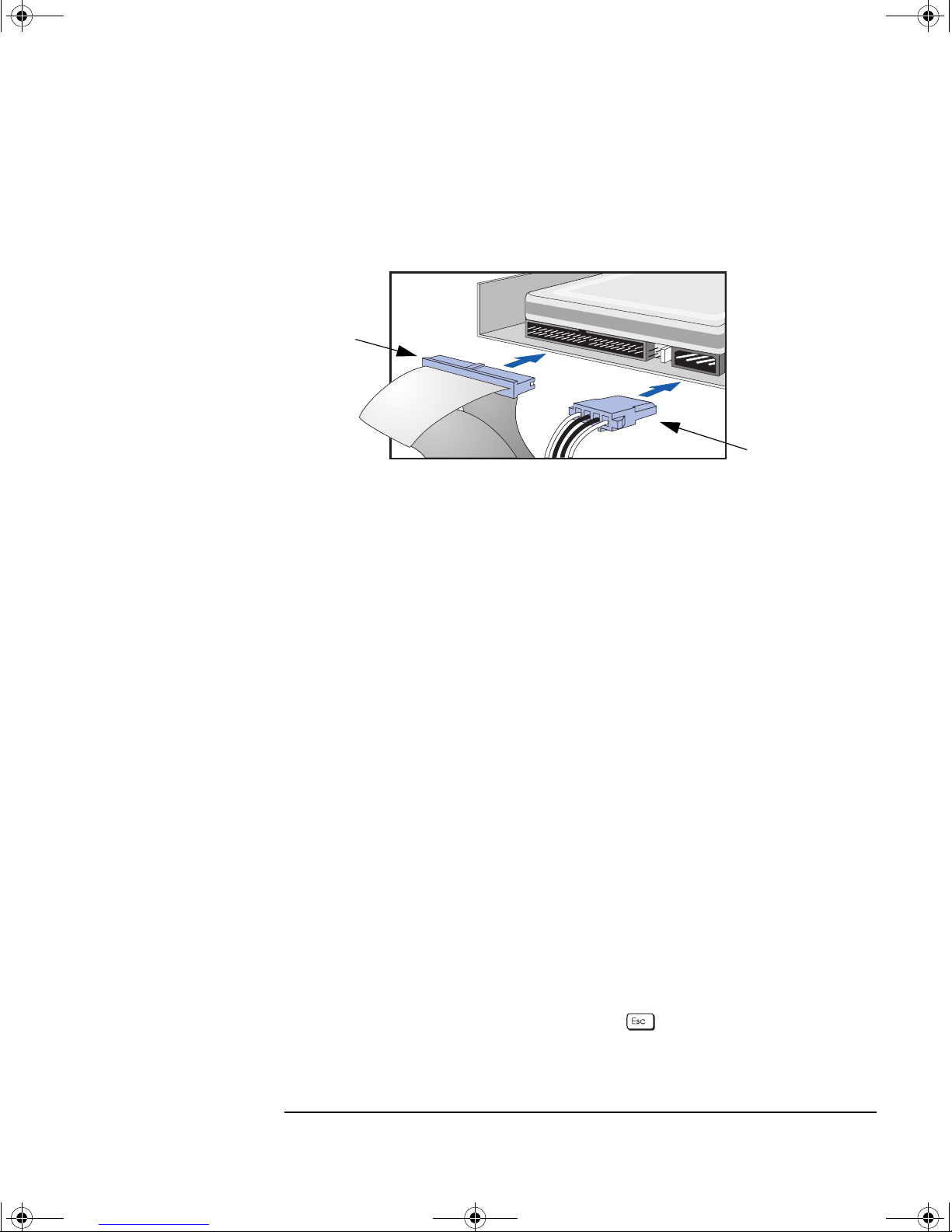

Connecting Devices
If you add an IDE Zip drive, hard disk drive, CD-ROM drive, CD-RW
drive, or tape drive, you need to connect it to power and data cables.
Which Data
Connectors to Use
Your PC Workstation has the following cables and connectors on the
system board which may be used by mass storage devices:
•A flexible disk drive cable with a single connector. This supports a
flexible disk drive (the connector is attached to the flexible disk
drive supplied).
•Two Ultra ATA/33 IDE drive connectors that support four fast IDE
devices. If you install a CD-ROM drive, CD-RW drive, a Zip drive, or
a third hard disk drive, connect it to this cable.
Which Power
Connectors to Use
There are two different types of power connectors—these are shown
below.
Some of the power connectors will already be connected to devices. If
you install a device that requires a different connector, the connector
converter should be supplied with the device.
P
ower
C
a
bl
es
f
or
H
ar
d
Di
s
k
Drives, Zip Drives, Tape Drives,
CD-RW, and CD-ROM Drives
Power Cable for 3.5-inch
Flexible Disk Drive
M02inst.fm Page 11 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Installing Mass Storage Devices
12 English
Installing a Hard
Disk Drive
This PC Workstation has integrated Dual Ultra ATA-33 IDE controllers
and, on selected models, an Ultra SCSI interface board.
•The Dual Ultra ATA-33 IDE controllers, on the PCI bus, support up
to four fast (33 MB per second) IDE devices.
•On selected models, the Ultra SCSI 16-bit interface board, installed
in a PCI slot, supports up to 13 external SCSI devices and
automatically switches to non-Ultra or standard mode.
Before Installing an
IDE Hard Disk
Refer to the drive’s installation guide to see if you must set jumpers or
if there is a special installation procedure to follow.
Before Installing a
SCSI Hard Disk
If you are installing an additional SCSI drive, you should assign an
unused SCSI address to this accessory. SCSI addresses range from 0 to
7 for Ultra narrow 8-bit SCSI and from 0 to 15 for Ultra wide 16-bit SCSI.
SCSI address 0 is used by the first SCSI hard disk drive and SCSI
address 7 is reserved for the integrated SCSI controller (the default for
narrow and wide SCSI devices).
NOTE You do not need to select a SCSI address for Plug and Play SCSI hard
disks (SCSI hard disks that support the SCAM protocol).
You should assign an unused SCSI address to the second SCSI hard
disk drive (for example, SCSI address 1).
The SCSI address is usually configured with jumpers on the SCSI hard
disk drive. Refer to the installation guide supplied with the drive for
information on selecting a SCSI address.
Some internal SCSI disk drives may have termination resistors that
must be removed or disabled before installation in your computer.
Refer to the drive’s installation guide for more details and to see if
there is a special installation procedure to follow.
M02inst.fm Page 12 Thursday, February 18, 1999 3:48 PM

English 13
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Installing Mass Storage Devices
Installing a Hard Disk Drive in an Internal Shelf
CAUTION Hard disk drives larger than one inch (1”) in height can only be housed
in the lower internal shelf.
1Disconnect the computer’s power cord and any telecommunications
cable.
2Remove the computer’s cover (see page 3).
3Remove the fan connection to the system board (see the illustration
on page 8).
4Press the retaining buttons on each side of the HP UltraFlow airflow
guide and lift it out of the PC Workstation’s case.
5Slide the power supply out to improve access to the internal shelf
(see page 6).
6Slide the drive into position in the first internal shelf and align the
screw holes in the drive with the four self-retaining screws in the
drive shelf.
7Secure the drive with the four self-retaining screws.
Screw hole
Self-retaining
screw
Align the hole in the drive
with the hole in the drive shelf
M02inst.fm Page 13 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Installing Mass Storage Devices
14 English
8Locate the appropriate data cable for the hard disk drive.
9Connect the power cable and the data cable to the rear of the drive.
(The connectors are shaped to go in one way only.)
10 Install any other accessories before completing the installation.
11 Turn to page 17 to complete the installation.
IDE drives should be
connected to a free IDE
connector on the IDE cables
(you can add up to four IDE
devices).
Up to 13 external SCSI
devices can be connected to
the external SCSI connector.
Narrow SCSI devices
should be connected
to a free SCSI
connector on the SCSI
cable (you can add up
to internal two SCSI
devices).
Data Cable Power Cable
M02inst.fm Page 14 Thursday, February 18, 1999 3:48 PM

English 15
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Installing Mass Storage Devices
Installing a Hard Disk Drive in a Front-Access Shelf
1Disconnect the computer’s power cord and any telecommunications
cable.
2Remove the computer’s cover (see page 3).
3Remove the fan connection to the system board (see the illustration
on page 8).
4Press the retaining buttons on each side of the HP UltraFlow airflow
guide and lift it out of the PC Workstation’s case.
5Slide out the power supply to provide better access to the disk drive
cables (see page 6).
6Unscrew and remove an unused drive tray.
7Mount the drive on the tray as shown below.
Remove the
drive tray
Set the drive on
the tray
Fix the drive to
the tray
M02inst.fm Page 15 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Installing Mass Storage Devices
16 English
8Slide the drive tray into the drive shelf and secure it.
9Locate the appropriate data cable for the disk drive.
Slide the drive tray
into the drive shelf
IDE drives should be connected
to a free IDE connector on the
IDE cables (you can add up to
four IDE devices).
Narrow SCSI devices should be connected
to a free SCSI connector on the SCSI cable
(you can add up to two SCSI devices).
Up to 13 external SCSI devices can be
connected to the external SCSI
connector.
M02inst.fm Page 16 Thursday, February 18, 1999 3:48 PM

English 17
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Installing Mass Storage Devices
10 Connect the data and power cables to the rear of the device. (The
connectors are shaped to go in one way only.)
11 Slide the power supply back into position, and tighten the four self-
retaining screws.
12 Replace the HP UltraFlow airflow guide and reconnect the fan to the
system board (see the illustration on page 6).
13 Install any other accessories before replacing the cover and
completing the installation.
14 Follow the instructions below to complete the installation.
Completing the Installation of a Hard Disk Drive
When a SCSI Hard
Disk Drive Is Installed
1Switch on the computer.
2To ensure compatibility, use the FDISK utility to delete any
partitions on the new hard disk.
3Re-boot the computer.
Refer to the operating system documentation for information on
formatting a drive.
When an IDE Drive
Is Installed
1Switch on the computer.
2To display the device in POST, press while the PC Workstation
re-starts.
Power Cable
Data Cable
M02inst.fm Page 17 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Installing Mass Storage Devices
18 English
3If an error message appears, follow the instructions provided by the
Error Message Utility. When prompted, press to run the Setup
program.
4Select the Advanced menu, and the IDE Devices submenu. In the
Primary Master item, check that the details for the device have been
correctly detected by the Setup program.
5Press to save and exit Setup.
Refer to the operating system documentation for information on
formatting a drive.
NOTE If an IDE drive is removed, switch on the computer. The system BIOS
will detect that the device is missing. Press to confirm that you want
to remove the device. The system configuration will be updated
automatically.
Installing a Drive in a Front-Access Shelf
These instructions explain how to install a drive (such as a flexible
disk drive, a CD-ROM drive, CD-RW drive, or a tape drive) in one of
the front-access drive shelves. You should also refer to the manual
supplied with the drive for any additional installation instructions.
Before Installing an
IDE Device
Refer to the drive’s installation guide to see if you must set jumpers or
if there is a special installation procedure to follow.
Before Installing a
SCSI Device
If you are installing a SCSI device, refer to the section “Before Installing
a SCSI Hard Disk” on page 12 before using the following instructions.
1Disconnect the computer’s power cord and any telecommunications
cable.
2Remove the computer’s cover (see page 3).
3Slide out the power supply to provide better access to the disk drive
cables (see page 6).
M02inst.fm Page 18 Thursday, February 18, 1999 3:48 PM

English 19
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC Workstation
Installing Mass Storage Devices
4If installing a drive in a 5.25-inch wide shelf, remove the drive tray
and put it in a safe place.
5Slide the drive into the shelf.
6Secure the drive in position using the screws provided with the
drive.
7Locate the appropriate data cable for the device.
8Connect the data and power cables to the rear of the device. (The
connectors are shaped to go in one way only.)
Remove the
drive tray if
installing a
5.25-inch
drive
Slide the drive
into position
Mounting Rails
Secure the drive
in position
Power Cable
Data Cable
M02inst.fm Page 19 Thursday, February 18, 1999 3:48 PM

HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Minitower PC
Workstation
Installing Mass Storage Devices
20 English
9Slide the power supply back into position, and tighten the four self-
retaining screws.

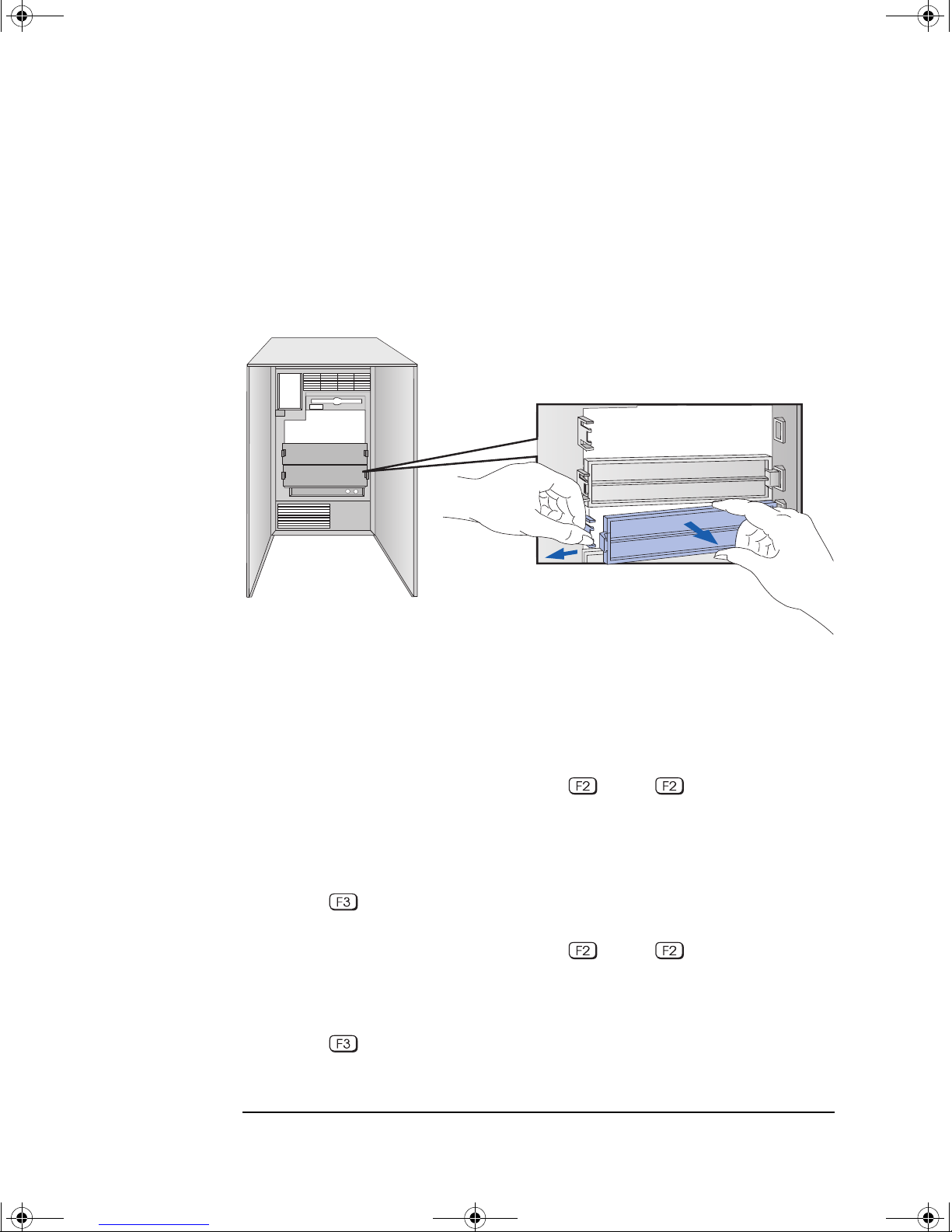

10 Remove the plastic panel from the cover by pulling the panel from
the left and unhinging its right-hand side. Store the panel in a safe
place.
11 Install any other accessories before replacing the cover and
completing the installation.
Completing the Installation of a Drive
When an IDE CD-ROM
Drive Is Installed
1Switch on the computer and press when Setup appears.
2In the Setup program, select the Advanced menu, the IDE Devices
submenu. Check that the CD-ROM drive has been detected on the
IDE channel.
3Press to save and exit the program.
When a Flexible Disk
Drive Is Installed
1Switch on the computer and press when Setup appears.
2In the Setup program, select the Advanced menu, the Flexible Disk
Drives submenu, and check that the drive has been detected.
3Press to save and exit the program.
Unclip and lift out
the plastic panel
M02inst.fm Page 20 Thursday, February 18, 1999 3:48 PM
