Contents
About this Guide ........................................................................... 3
FCC Statement .............................................................................. 3
WEEE Notice .................................................................................. 4
CE egulatory Notice .................................................................... 4
Battery warning ............................................................................ 4
Notes on Installation .................................................................... 5
Caution ......................................................................................... 5
1 Introduction ................................................................... 6
1.1 Features ............................................................................ 6
1.2 Package Contents ............................................................. 6
1.3 Product Overview .............................................................. 7
2 Getting Started .............................................................. 8
2.1 Inserting the Memory Card ............................................... 8
2.2 Installing in Vehicles ......................................................... 9
2.2.1 Mount to Windshield ............................................. 9
2.2.2 Adjust the camcorder position ............................10
2.3 Connecting to Power .......................................................11
2.4 Powering the Camcorder On / Off ...................................13
2.4.1 Power On/Off ......................................................13
2.4.1.1 Power On .............................................................13
2.4.1.2 Power Off ............................................................13
2.4.1.3 eset the camcorder ...........................................13
2.5 Initial Settings .................................................................14
2.5.1 Set the Date and Time .........................................14
3 Using the Camcorder ..................................................... 15
3.1 ecording Videos ............................................................15
3.1.1 ecord videos while driving ................................15
130.ua — all for cars!
130.ua

2
3.1.2 Emergency ecording .........................................15
3.1.3 The ecording Screen..........................................16
3.2 Playback Videos and Photos ...........................................17
3.2.1 The Playback Screen ...........................................18
3.2.2 Deleting Files ......................................................19
4 Adjusting the Settings .................................................. 20
4.1 Using the Menu ...............................................................20
4.2 Menu Tree .......................................................................21
5 S ecifications .............................................................. 23
130.ua — all for cars!
130.ua

3
About this Guide
The content in this document is for information purpose and is subject to change
without prior notice. We made every effort to ensure that this User Guide is
accurate and complete.
However, no liability is assumed for any errors and omissions that may have
occurred.
The manufacturer reserves the right to change the technical specifications without
prior notice.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital camcorder, pursuant to Part 15 of the FCC ules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•eorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This camcorder complies with Part 15 of the FCC ules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this camcorder must accept any interference received, including interference
that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
130.ua — all for cars!
130.ua

4
WEEE Notice
Dis osal of Waste Electrical and Electronic Equi ment and/or Battery by users in
rivate households in the Euro ean Union
This symbol on the product or on the packaging indicates that this cannot be
disposed of as a household waste. You must dispose of your waste equipment
and/or battery by handling it over to the applicable take-back scheme for the
recycling of electrical and electronic equipment and/or battery. For more
information about recycling of this equipment and/or battery, please contact
your city office, the shop where you purchased the equipment or your
household waste disposal service. The recycling of materials will help to
conserve natural resources and ensure that it is recycled in a manner that
protects human health and environment.
CE Regulatory Notice
The product herewith complies with the requirements of the Low Voltage
Directive 2014/35/EU, the EMC Directive 2014/30/EU, the Battery
directive 2006/66/EC and the oHS Directive 2011/65/EC.
Battery warning
Never dismantle, crush, or pierce the battery, or allow the battery
to short-circuit. Do not expose battery being placed in high
temperature environment, if battery leaks or bulges, stop continue
to use.
Always charge using the system. isk of explosion if battery is
replaced by an incorrect type.
Keep the battery out of reach of children.
Batteries may explode if exposed to open fire. Never dispose of
batteries in a fire.
Never re lace the battery on your own; have the dealer do it for
you.
Disposed of used batteries observing local regulations.
130.ua — all for cars!
130.ua

5
Notes on Installation
1. Install the camcorder near the rear-view mirror to obtain the best
open-field view. Do NOT install the camcorder in a location that will
obstruct your required driving view.
2. Make sure that the lens is within the wiping range of the windscreen
wiper to ensure a clear view even when it rains.
3. Do not touch the lens with your fingers. Finger grease may be left on the
lens and will result in unclear videos or snapshots. Clean the lens on a
regular basis.
4. Do not install the camcorder on a tinted window. Doing so may damage
the tint film.
5. Make sure that the installation position is not hindered by the tinted
window.
Caution
Use the authorized charger only.
Never disassemble or attempt repair of this product. Doing so may
damage the camcorder, cause electric shock and void your product
warranty.
Never short-circuit the battery.
Set up time and date accurately before you use this camcorder.
Exposing the camcorder to open flames can cause explosion.
Due to local laws and vehicles safety considerations, do not manually
operate the camcorder while driving.
The values displayed in this system, such as speed, position, and the
distance warning to the speed camera set points, may be inaccurate
due to the influence of surrounding environment. They are for your
reference only.
HP Inc. Company is NOT responsible for the loss of any
data/content during operation.
Befo
re you start using the
Car Camcorder it is
assumed that you agree to the above statements.
130.ua — all for cars!
130.ua

6
1Introduction
Thank you for purchasing this advanced camcorder. This camcorder is
specifically designed for real time video and audio recording when
driving.
1.1 Features
•Full HD camera (1920x1080 @ 30fps)
•2.4” LCD color screen
•Up to 140 ﾟWide angle lens
•Motion detection
•Automatic Emergency recording for collision detection
•Supports micro-SDHC up to 32GB (Class 6 or greater speed required
for HD video recording)
1.2 Package Contents
The package contains the following items. If there are any missing or
damaged items, contact your dealer immediately.
Camcorder Bracket CD- OM
Quick start guide Car adapter
130.ua — all for cars!
130.ua

7
1.3 Product Overview
No. Item No. Item
1 Bracket Socket 8 Up Button ( )
2 Power Button 9 Down Button ( )
3 Memory Card Slot 10 Enter Button ( )
4 USB Connector 11 Speaker
5 Back Button ( ) 12 Wide Angle Lens
6 LED Indicator 13 Microphone
7 LCD Panel 14 HD(Mini HDMI)
Connector
Note:
To operate the camcorder, press the corresponding buttons (5, 8, 9, 10) according to
guide icons shown the screen.
130.ua — all for cars!
130.ua

8
2Getting Started
2.1 Inserting the Memory Card
Insert the memory card with the gold contacts facing the back of the
camcorder. Push the memory card until it clicks into place. (Use class 6 or
above the micro SD cards for this camcorder; It is recommended to
format the micro SD cards before the initial use.)
To remove the memory card
Push to eject the memory card out of the slot.
Note:
1. Do not remove or insert the memory card when the camcorder is powered on. This
may damage the memory card.
2. It is recommended to use a 32 GB, Class 6 speed or above micro SD card.
3. It is recommended to format the micro SD cards before the initial use.
130.ua — all for cars!
130.ua

9
2.2 Installing in Vehicles
2.2.1 Mount to Windshield
1. Attach the bracket to the camcorder.
Slide it into the bracket holder until you hear
a click.
2. Before installing the bracket, please use
alcohol to clean the windshield and suction cup of the bracket. Wait
for dry and press suction-cup on the
windshield.
3. Hold the base firmly on the windshield
and press down the clamp to mount
the car holder to the windshield. Make
sure the base is securely locked in
place.
Warning: Do not install the camcorder on a tinted window. Doing so may
damage the tint film.
130.ua — all for cars!
130.ua

10
2.2.2 Adjust the camcorder osition
1. Loose the knob to swivel the
device vertically or
horizontally.
2. Then tighten the knob to make sure the camcorder is securely
locked in place.
Knob
130.ua — all for cars!
130.ua

11
2.3 Connecting to Power
Use only the supplied car adapter to power up the camcorder and charge
the built-in battery.
1. Connect one end of the car adapter to the USB connector of the
camcorder. USB port input: DC 5V / 1A.
2. Plug the other end of the car charger to the cigarette lighter socket
of your vehicle. Once the vehicle engine is started, the camcorder
automatically turns on. Car charger input: DC 12 / 24V.
Note:
1. To use the products of the attached power charger only, please do not use other
brand power charger, in order to avoid equipment burn or cause the battery explosion.
2. When first use this camcorder, please charging to battery full
3. Please take note if the environment temperature reaches 45°C or above, the car
adapter still can supply power to camcorder, but it may not charge the battery. This
is characteristic of Lithium polymer battery and is not a malfunction.
130.ua — all for cars!
130.ua

12

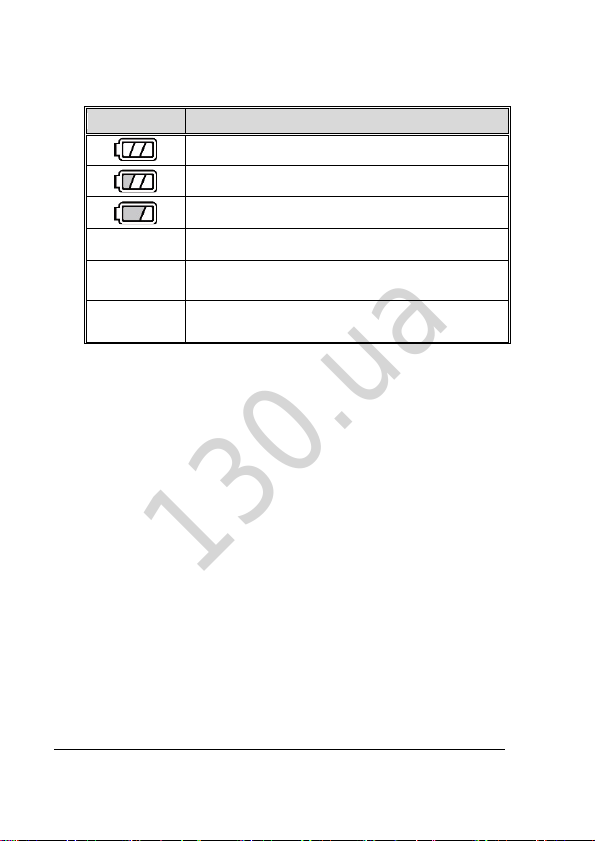

Battery Status Indicator:
Icon Descri tion
Full battery power.
2/3 battery power.
1/3 battery power.
Out of battery power.
Battery is charging.
Connect the car adapter to charge the battery, battery
is full charged.
130.ua — all for cars!
130.ua

13
2.4 Powering the Camcorder On / Off
2.4.1 Power On/Off
2.4.1.1 Power On
Slide the Power Switch down to the ON position.
This action will cover part of the memory card
slot.
2.4.1.2 Power Off
Slide the Power Switch up to the OFF position. Before taking out memory
card, please wait until power-off sequence completed and the screen
turn off. Do not take out memory card during
power-off sequence to prevent recorded video
loss or corruption.
2.4.1.3 Reset the camcorder
In rare occasions, the camcorder may experience an error for unknown
reasons. In this case, please press OK button for at least 8 seconds to
turn off the camcorder.
130.ua — all for cars!
130.ua

14
2.5 Initial Settings
Before using the device, we recommend you to enable the Automatic
ecord function and set up the correct Date and Time.
2.5.1 Set the Date and Time
To set the correct date and time, do the following:
1. Press the button to enter the OSD
menu.
2. Press the / button to select Date
/ Time and press the button.
3. Press the / button to adjust the
value and press the button to
move to another field.
4. epeat step 3 until the date and time setting is complete.
Note:
To ensure the accuracy of the video file time, please reset the date and time when the
battery power runs out or when not in use over 7 days.
130.ua — all for cars!
130.ua

15
3Using the Camcorder
3.1 Recording Videos
3.1.1 Record videos while driving
When the vehicle engine starts up, the camcorder automatically turns on
and starts recording.
ecording will automatically stop when the engine is switched off.
Note:
On some cars, the recording will continue when the engine is switched off. If this
happens, please manually turn off the cigarette lighter or remove the car adapter
from the cigarette lighter.
3.1.2 Emergency Recording
During normal video recording, press the
button to begin emergency recording mode.
The “Emergency” message will be
displayed immediately on the upper left
corner of the screen, and the recorded file
will be continuous and protected from being
overwritten.
After complete the emergency recording, it will be back to normal
recording mode.
Note:
1. If the Collision Detection function is enabled and a collision is detected, the
camcorder will automatically trigger the emergency recording feature.
2. The emergency recording file is created as a new file, which will be protected to
avoid being overwritten by normal loop recording. 8 GB (or above) memory card can
save up to 10 emergency video files. The alert message of “Emergency files are full”
will pop up on the screen when the emergency recording files are full, and the oldest
emergency file will be automatically deleted when a new emergency recording file is
created.
130.ua — all for cars!
130.ua

16
3.1.3 The Recording Screen
9
7
8
3
4
2
6
5
1
No.
Item
Descri tion
1 Voice ecord Indicates turn off voice record
2 Duration Indicates the recording duration of the current
video file.
3 Date and time Indicates the current recording date and time.
4 Guide icon
(Menu) Press the button to enter the OSD menu.
5 Guide icon
(Playback)
Press the button to switch to Playback
mode.
6 esolution FHD - 1080p (1920 x 1080)
HD - 720p (1280 x 720)
7 Battery Indicates the remaining battery power.
8 Guide icon
(Snapshot)
Press the button to take a snapshot during
recording
9 Guide icon
(Emergency)
Press the button to enter and initiate
emergency recording, and the recorded file will be
protected.
130.ua — all for cars!
130.ua

17
3.2 Playback Videos and Photos
1. During recording, press button to browse for the desired video
and photo file.
2. Press the / button to select
the file that you want to browse and
press the button.
3. Press the / button to view the
next or the previous file and press
the button to view the file in full
screen.
4. When user want to playback the emergency video file, they could
check on file name as EME .
130.ua — all for cars!
130.ua

18
3.2.1 The Playback Screen
Video Playback Screen Photo Playback Screen
1
6
2
3
4
1
6
2
3
5
7
7
No.
Item Descri tion
1 Guide icon
(Back)
Press the button to return to file selection
display.
2 Guide icon
(Previous)
Press the button to view the previous
video/photo.
3 Guide icon
(Next) Press the button to view the next video/photo.
4 Guide icon
(Pause) Press the button to pause the video playback.
5 Duration Indicates the elapse time / total recording time.
6 Battery Indicates the estimated remaining battery power.
7 File name Indicates video / photo file name.
130.ua — all for cars!
130.ua
