HP mp3135 digital projector series
mp3135 • mp3135W
h
p
Project a professional image with this wireless-capable,
microportable digital projector from HP.
Portable partners
•Experience flexibility, enhanced quality, and boundless
mobility. The HP mp3135 digital projector series offers
wireless connectivity as well as storage capability with
CompactFlash or USB Flash memory.1
•Deliver professional presentations that are light, bright,
and just right. Experience industry-leading brightness
with 1800 ANSI (max.) lumens.2The HP mp3135
digital projector series has a razor-sharp contrast ratio
of 2000:1 for clarity you’ll have to see to believe.
•Dazzle your audience with colors that jump off the
screen. DLP™ technology leads the pack when it comes
to quality and consistency on the screen. This proven
digital technology provides crisp, grain-free images
and consistent color year after year with no fading or
loss of color fidelity.
•See yellow as never before thanks to new color
technology. Industry-leading color science from HP uses
a five-segment wheel versus the industry standard of
four segments, making pastels purer, reds richer, and
yellows brighter.
•Leave your PC behind. With the HP mp3135W digital
projector, you can go from your office to the airport to
a conference room with your projector in one hand
and your presentation (stored on a USB Flash device or
a CompactFlash memory card) in your pocket. Why
weigh yourself down with extra equipment?
Rugged, reliable, and wireless
•Display Microsoft PowerPoint®files without the desktop
application. With direct PowerPoint, the projector
directly renders PowerPoint files, bypassing conversion
processes.
•Travel light. Save packing and presentation space with
the HP mp3135 digital projector series. Starting at just
3.8 lbs, you’ll even have room left in your briefcase for
a newspaper and bagel.
Sleek and easy
•Make an immediate impression with this sleek, chic
projector. The projector’s vertical design saves space
and rises above obstructing coffee cups and table
clutter, ensuring a stress-free setup.
•Enjoy a seamless presentation. Now there’s no
stopping to make awkward equipment corrections
when you’re in the middle of an important point.
Before you begin, set the horizontal picture and you’re
done! The HP mp3135 digital projector series
automatically adjusts the vertical for you. With
automatic keystone correction, ensure that projected
images are perfectly square and undistorted for
flawless presentations audiences will remember.
•Select the optimal setting with one button. Whether
you’re giving a PowerPoint presentation with charts
and graphs or running video, you need a clear, bright,
crisp picture. The HP mp3135 digital projector series
puts the choice at your fingertips. Image optimization
lets you select the best quality, regardless of the type of
presentation. If you prefer the flexibility of manually
adjusting your projector, press either the theater button
to optimize the picture for video input or the business
graphics button to optimize the picture for data input.
1Wireless capability with the HP mp3135W digital projector or purchase of optional SAM (not included, sold separately).
2The ANSI (max.) lumens rating is based on ANSI/NAP IT7 .228-1997 tests of 26 units in August 2004 with a projector mean ANSI
lumens of 1777and maximum ANSI lumens of 2012. The ANSI (max.) lumens specifications are provided to enable customers to
accurately compare HP digital projector’s lumens with the lumen ratings of other vendors. Lamp brightness will decline with use.
Replacing the used lamp with a new factory lamp will restore the projector’s output to its original brightness range.

HP mp3135 digital projector series
HP mp3135W digital projector
1. 180-watt lamp
2. Elevator foot with digital
keystone correction
3. Automatic extendable
feet—left and right of
projector
4. Smart Attachment Module
(SAM), available with
mp3135W
5. Infrared (IR) receiver
windows on both sides of
projector
6. 2-watt speaker
7. Kensington lock slot
8. M1 input
9. LAN port, available with
mp3135W
10 2 35-pin VESA M1-AD for
analog RGB/digital/
component
video/HDTV/USB mouse,
available with mp3135W
11. S-video connector (mini-
DIN 4-pin connector)
12. Audio output port,
available with mp3135W
13. Composite input (RCA
jack)
14. Audio RCA jack (3.5 mm
mini-jack)
15. Main power (power in)
16. CompactFlash card slot,
available with mp3135W
17. Source button
18. Image optimization
selectors for business
graphics and theater
presentations
19. Power on/off
20. Menu directional controls
21. Autosync button
22. LED indicators
23. Zoom lens adjustment
24. Focus ring
•Transform your communications with vibrant visual
content. The HP mp3135 digital projector series
provides XGA native resolution that scales to accept
data from VGA through SXGA+, ensuring crisp, sharp
detail, whether you’re projecting for a small,
impromptu meeting or a large business conference.
•Employ the industry standard in color accuracy.
Standard red-green-blue (sRGB) is an industry color
standard originally developed by HP and Microsoft®
as a common color language for monitors, input
devices (scanners, digital cameras), and output devices
(printers, plotters). Using a product developed by an
industry leader in color innovation ensures consistent
and accurate quality with other devices.
•Benefit from HP’s legendary quality and reliability. The
HP mp3135 digital projector is available with a
standard one-year warranty (180 days for accessories,
90 days for lamp module). This exceptional warranty
includes next-day express exchange and lifetime free
phone support and 24 x 7 phone, e-mail, and HP Web
support. We know you work late, and we will be there
when you need us.
Product highlights
•Focus on your ideas, not your equipment. With the
HP mp3135 digital projector and optional SAM,
lighten your load by utilizing CompactFlash or a USB
Flash memory device. Leave your notebook computer
back at the office.
•Survive the toughest business trip. The projector is
armored with a superior magnesium casing, and
additional protection comes from the high-quality, form-
fitting, and heavily padded carrying case.
•Simplify your on-the-go lifestyle. With the projector’s
easy setup, you’ll be operating moments after entering
any room, and with its 15-second shutdown, you’ll be
able to pack up in record time.
•Get all the AV inputs you’ll ever need. With the
projector’s multiple inputs, you can create powerful,
lively, and memorable presentations from a variety of
source material. Connect computers, DVD players,
video games, and more to the projector with VGA,
composite, S-video, USB, and audio inputs.

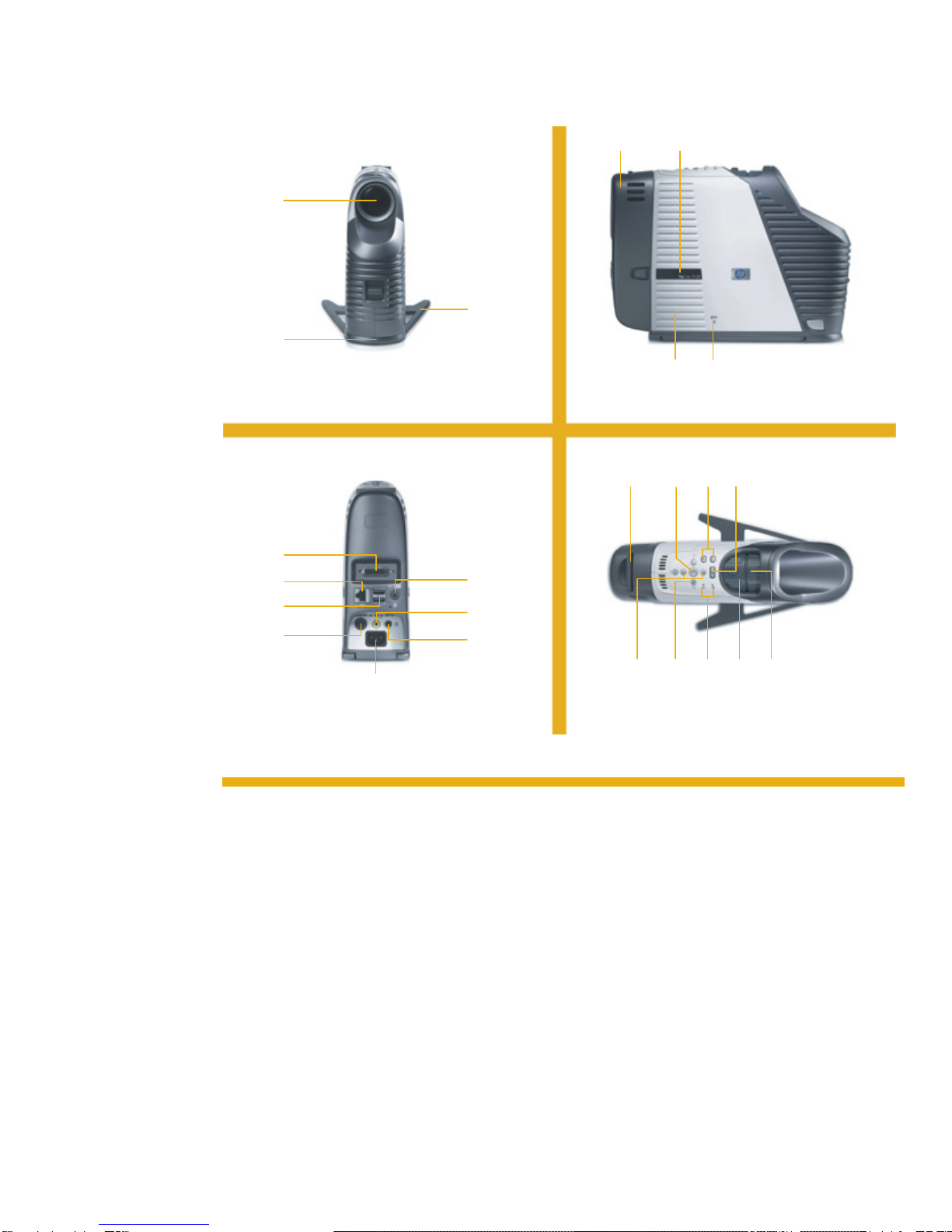

4 5
1
3
2
6 7
Front view Side view
18
17 19 16
11
10 13
14
2220
8
9 12
21 23 24
15
Rear view Top view

Experience unlimited opportunities with a high-
quality digital projector that goes wherever you
do. This mobile projector and optional SAM
combine to give you freedom, flexibility, and
superior image quality.

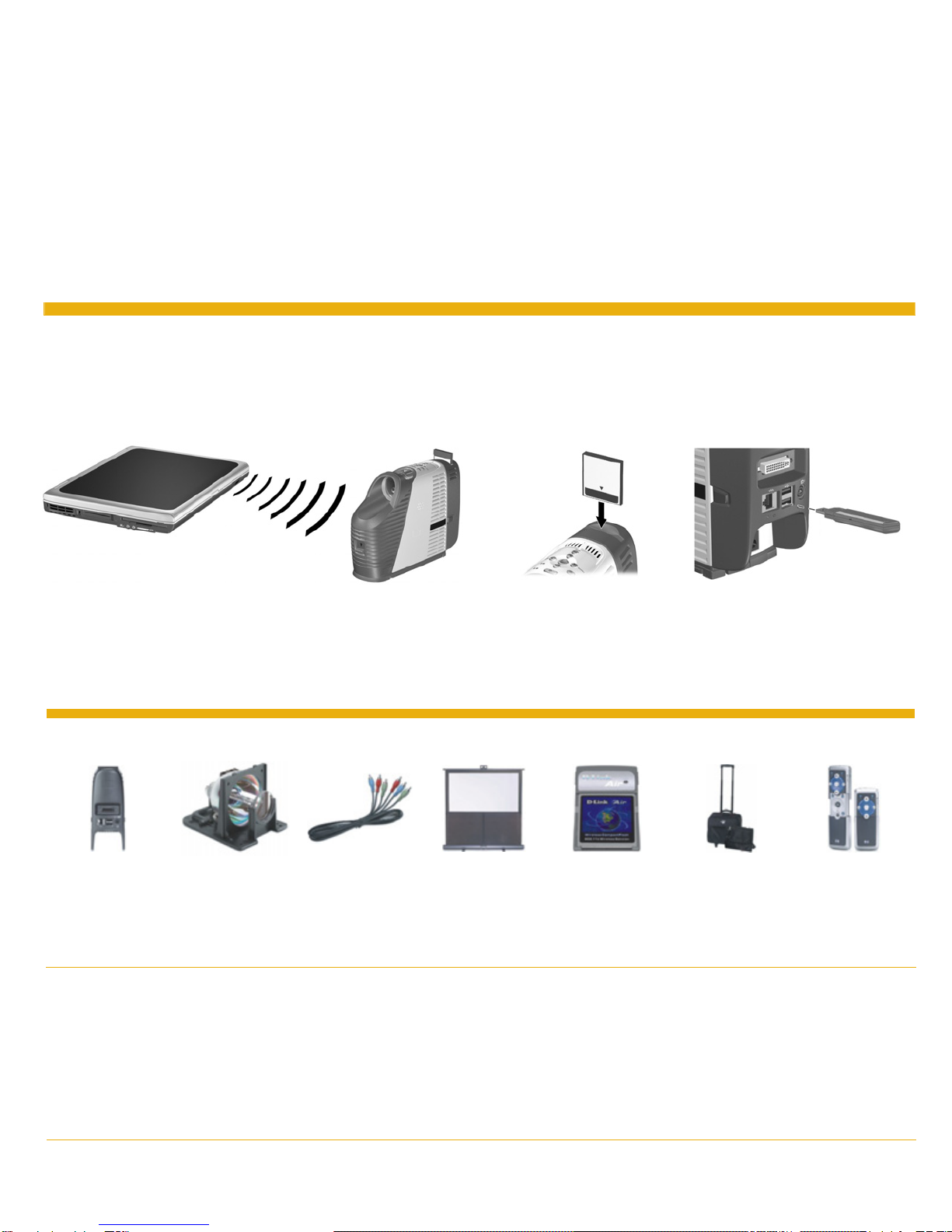

Maximize your presentations with versatile accessories from HP
HP Smart
Attachment Module
(included with
mp3135W)
L1619A
Lamp module
L1621A
HDTV component
cable (RGB)
L1634A
60-inch mobile
screen
L1633A
802.11b
CompactFlash
wireless card
(included with
mp3135W)
L1640A
Combination travel
case
L1622A
Wireless remote
control with USB
(included)
L1631A
Present from
memory, the
network, a wireless
deivce, or
additional wired
connections.
Always have a
backup module for
your presentations.
Easily connect your
HP projector to
your DVD player or
VCR for the
ultimate home
theater experience.
Lightweight and
easy to carry with
a built-in handle,
this mobile screen
sets up anywhere
you need it.
Provides wireless
connectivity. An economic and sturdy design
allows you to take
a notebook
computer,
projector, and
even a mobile
printer, wherever
you need to
present.
Effortlessly control
every detail of your
presentation with a
laser pointer and
enhanced
navigation
controls.
A
ccess your presentation without a PCNetwork your projector without wires
CompactFlash wireless card CompactFlash memory card
Leave your PC at the office
(HP mp3135W shown)
USB Flash device

HP mp3135 digital projector series
Technical specifications HP mp3135 digital projector (L1797A) HP mp3135W digital projector (L1805A)
Brightness 1,800 ANSI (max) lumens3
Resolution 1024 x 768 True XGA
Image contrast 2,000:1 full on/full off
Lamp life 2,000 hours/4,000 hours in economy mode
Weight 3.8 lbs 4.0 lbs
Projected image
Size Adjustable from 25 to 295 inches diagonal
Throw distance Approximately 3.3 to 29.4 ft
Display technology Single-panel 0.7 in 12 inches DDR DMD XGA projection system (TI DLP™)
Scalable resolution SXGA+/SXGA/XGA/SVGA/VGA
Projector lens Optical intelligent zoom lens with manual focus and 1.2x manual zoom (F/2.44~269, f=28.8~34.5 mm)
Keystone correction Digital automatic vertical keystone correction ±30°; horizontal keystone correction ±12°
Light source 180-watt compact P-VIP projector bulb
Audio Mono sound via 2-watt internal speaker
Video composite input 2.55 mm phone jack
Signal interface One 35-pin VESA M1-AD for analog RGB/digital/component video/HDTV/USB; 1 RCA jack for composite video input;
1 mini-DIN 4-pin for S-video input; one 3.5 mm phone jack for audio input
Resizing of images to full screen SXGA+/SXGA/XGA/SVGA/VGA/Mac compatible with one M1-AD terminal; auto-image resizing to 1024 x 768 full screen
Detection of computer signal
input Automatic
Image synchronization Automatic
Remote control Wireless remote control with USB mouse function and laser pointer
Mounting capability Ceiling or tripod (with optional accessories)
Dimensions (w x d x h) 2.9 x 9 x 7.8 inches
What’s in the box HP digital projector; lens cap; 10-ft power cable; M1-AD to USB/VGA cable; S-video cable; component cable; audio cable; remote control;
remote control battery; carry case; documentation kit, including Quick Setup Card, CD-ROM with User’s Guide, Important Safety Information
booklet, Worldwide Limited Warranty and Technical Support booklet, Worldwide Telephone Numbers booklet and Program License Agreement.
(HP mp3135W digital projector includes the SAM and an 802.11b CompactFlash wireless card.)
3The ANSI (max.) lumens rating is based on ANSI/NAP IT7 .228-1997 tests of 26 units in August 2004 with a projector mean ANSI lumens of 1777 and maximum ANSI lumens of 2012. The ANSI (max.) lumens
specifications are provided to enable customers to accurately compare HP digital projector’s lumens with the lumen ratings of other vendors. Lamp brightness will decline with use. Replacing the used lamp with a
new factory lamp will restore the projector’s output to its original brightness range.
Ordering information
HP Product Number
HP mp3135 digital projector L1797A
HP mp3135W digital projector – wireless
bundle includes SAM (L1619A) and 802.11b
CompactFlash wireless card (L1640A)
L1805A
Accessories and supplies
HP Smart Attachment Module L1619A
Screen, 60-inch L1633A
Combination Travel Case L1622A
Carrying Case (included) L1678A
Ceiling Mount Connector L1620A
Premium Wireless Remote Control with USB
(included) L1631A
Lamp Module L1621A
802.11b CompactFlash wireless card –
Channel 1-11 L1640A
Cables
Cable, M1-AD to SCART, 6-ft L1588A
Cable, RCA (composite, 3 head w/y/r) L1626A
Cable, Audio (included) L1627A
Cable, S-video, 6-ft (included) L1635A
Cable, VGA/USB to M1-AD, 6-ft (included) L1514A
Cable, M1-AD to component/USB cable, 6-ft L1523A
Cable, M1-AD to DVI/USB cable, 6-ft L1529A
HDTV component cable (RGB) (included) L1634A
Service and support
Web support www.hp.com
Phone support
1-800 HP Invent (1-800-474-6836)
Environmental ranges
Operating 50 to 104° F
Storage -22 to 149° F
Relative humidity 20 - 80% RH
Acoustics Normal mode: 37 dB(A); Economy mode: 35 dB(A)
Power
Requirements Universal 100 to 240 VAC, 50/60 Hz with PFC input
Consumption 220 watts maximum
Certifications
Safety cULus, TUV-GS, CCC, EN60950, PDB, NOM, B-mark, GOST, FDA,
DHHS, SHOAN
Electromagnetic compatibility FCC Part 15 Class B, EN55022:1998, EN55024:1998, VCCI, MIC,
C-Tick
Warranty 1-year limited hardware warranty (180 days for accessories, 90
days for lamp module); next-day express exchange; 24-hour, 7-day
phone, e-mail, and HP Web support support
HP recommends Microsoft® Windows® XP Professional for mobile computing.
Digital Light Processing, DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments. Microsoft and
Windows are U.S. registered trademarks of Microsoft Corporation.
HP and the invent signature are trademarks of the Hewlett-Packard Company.
© 2005 Copyright Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are
set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed
as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
5983-0763ENUC, 3/2005, Rev. 2
