Errata
Title & Document Type:
Manual Part Number:
Revision Date:
HP References in this Manual
This manual may contain references to HP or Hewlett-Packard. Please note that Hewlett-
Packard's former test and measurement, semiconductor products and chemical analysis
businesses are now part of Agilent Technologies. We have made no changes to this
manual copy. The HP XXXX referred to in this document is now the Agilent XXXX.
For example, model number HP8648A is now model number Agilent 8648A.
About this Manual
We’ve added this manual to the Agilent website in an effort to help you support your
product. This manual provides the best information we could find. It may be incomplete
or contain dated information, and the scan quality may not be ideal. If we find a better
copy in the future, we will add it to the Agilent website.
Support for Your Product
Agilent no longer sells or supports this product. You will find any other available
product information on the Agilent Test & Measurement website:
www.tm.agilent.com
Search for the model number of this product, and the resulting product page will guide
you to any available information. Our service centers may be able to perform calibration
if no repair parts are needed, but no other support from Agilent is available.
E1426A Service Manual
E1426-97003
January 1999

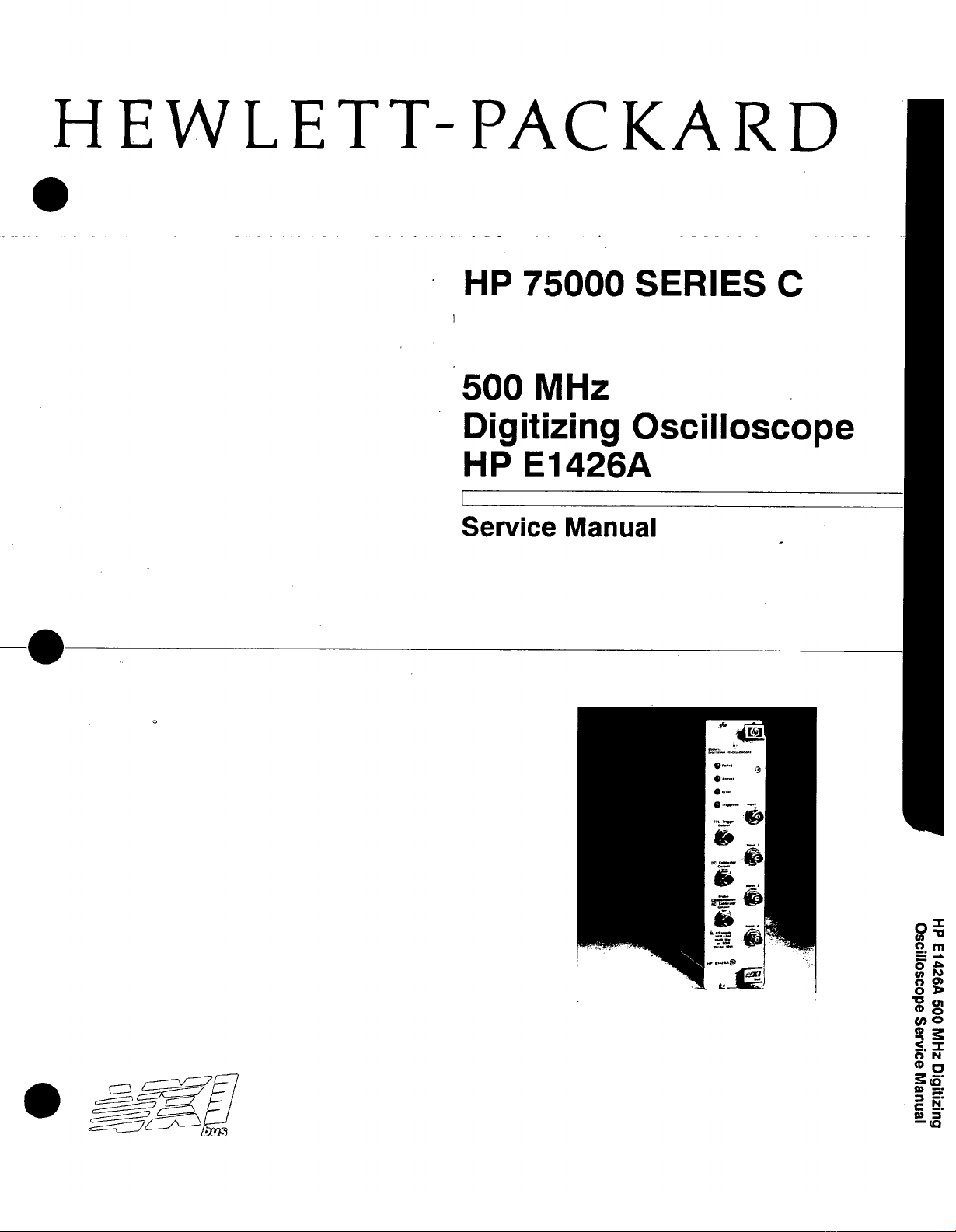

HEWLETT-PACKARD
HP 75000 SERIES C
500 MHz
Digitizing Oscilloscope
Service Manual

*

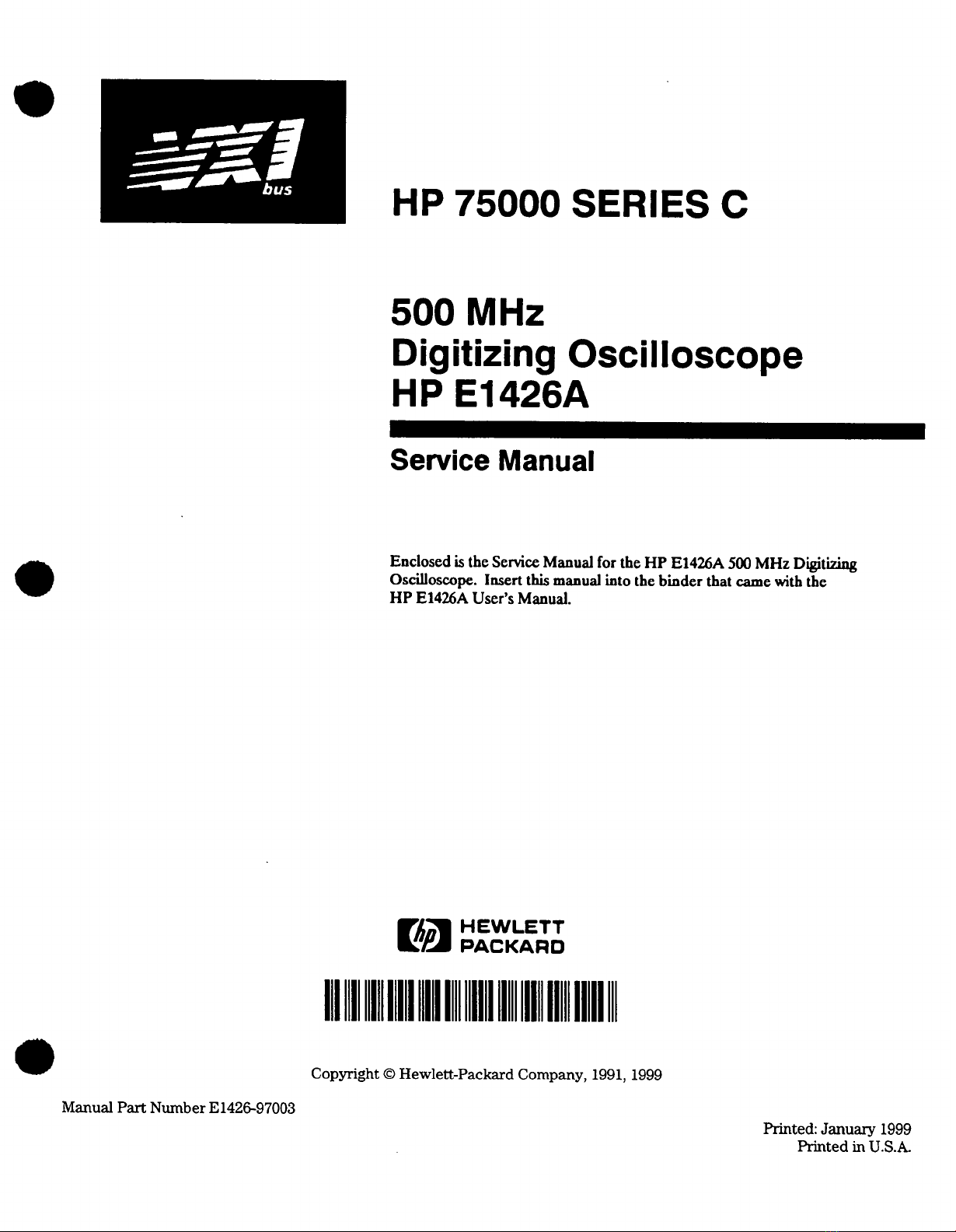

HP 75000 SERIES C
500 MHz
DigitizingOscilloscope
HP E1426A
Service Manual
Enclosed is the Service Manual for the HP E1426A 500 MHz Digitizing
Oscilloscope. Insert this
manual into the binder that came with the
HP E1426A User's Manual.
Ed
HEWLETT
PACKARD
Copyright O Hewlett-Packard Company, 1991, 1999
Manual Part Number E1426-97003 Printed:
January 1999
Printed
in U.S.A.

Service Manual
SerialNumbers
Attachedtothebackplaneconnectorof theinstrument is a
serial number plate.
The serial number is in the form:
0000AD0000. Thefirst four digits and the letter are the
serial number prefur. The last fivedigits are the suffm.
The prefut
is the same for identical instruments; it
changesonly whena configurationchange
is madetothe
instrument. The suffii, however, is assignedsequentially
and
is differentforeachinstrument.
This manualappliesdirectlytoinstrumentswithserial
numbersprefured3028Aand above.
Fa
HEWLETT
PACKARD
Copyright O Hewlett-Packard Company, 1991,1999
Manual
Part Number E1426-97003
HP 75000 SERIES C
500 MHz
DigitizingOscilloscope
HP
E1426A
Printed: January 1999
Printed in U.S.A.

CERTIFICATION
Hewlett-Packard Company certifies that this product met its published specifications at the time of shipmed from the factory.
Hewleft-Packardfurther certifies that its calibrationmemurements are traceable to the Unired States National Institute of Standards
and Technology (formerlyNational Bureau of Standards), to the erfent allowed by that orgMizationS calibrationfacility, and to the
calibrationfacilities of other International Standards Organizationmembers.
WARRANTY
This Hewlett-Packard product is warranted against defects in materials and workmanship for a period of three years from date of
shipment. Duration and conditions of warranty for this product may
be superseded when the product is integrated into (becomes a part
of) other HP products. During the warranty period. Hewlett-Packard Company will. at its option. either repair or replace products
which prove to
be defective.
For warranty service or repair. this product must
be returned to a service facility designated by Hewlett-Packard (HP). Buyer shall
prepay shipping charges to HP and HP shall pay shipping charges
to return the product to Buyer. However. Buyer shall pay all
shipping charges. duties. and taxes for products returned
to HP from another counhy.
HP warrants that its software and fiwaredesignated by HP for use with a product will execute its programming instructions when
properly installed on that product. HP does not warrant that the operation of the product. or software. or fiware will be
uninterruptedor error
free.
LIMITATION OF WARRANTY
The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by Buyer. Buyer-supplied
products or interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product.
or improper site preparation or maintenance.
The design and implementation of any circuit on this product is the sole responsibility of the Buyer. HP does not warrant the Buyer's
circuitry or malfunctions of HP products that result from the Buyer's circuitry.
In addition, HP does not wmant any damage that
occurs as a result of the Buyer's circuit
or any defects that result from Buyer-suppliedproducts.
NO OTHER WARRANTY IS EXPRESSEDOR IMPLIED. HP SPECIFICALLYDISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILlTY
AND FKTESSFOR A PARTICULAR PURPOSE.
EXCLUSIVE REMEDIES
THE REMEDIES PROVIDED HEREIN ARE BUYER'S SOLE AND EXCLUSIVEREMEDIES. HP SHALL NUT BE LIABLE FOR ANY
DIRECT. INDIRECT. SPECIAL,INCIDENTAL. OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT. TORT. OR
ANY OTHER LEGAL THEORY.
NOTICE
The information contained in this document is subject to change without notice. HEWLEIT-PACKARD (HP) MAKES NO
WARRANTY OF
ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING. BUT NOT LIMITED TO, THE IMPLIED
WARRANTIESOFMERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. HP shallnot be liablefor errorscontained
herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material. This
document contains proprietary information which is protected by copyright All rights are reserved. No part of this document may
be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company. HP
assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.
Restricted Rights Legend
Use. duplication. or disclosure by the Government is subject to restrictions as set forth in subdivision (b)(3)(ii) of the Rights in
Technical Data and Computer Software clause at 52.227-7013. Hewlett-Packard Company. 3000 Hanover Street; Palo Alto.
California 94304
Herstellerbeschelnlgung
Hiermit wird beschei.+gt. dass dieses Gerat/System
HP E1426A in Ubereinstimmung mit den
Bestimmungen von Postverfiigung 1046184
funkentst~rtkt. Der Deutschen Bundespost wurde
das Inverkehrbringen dieses Geriites/Systems
angezeigt und die Berechtigung zur Ub-fung der
Serie auf Einhaltung der Bestimrnungen eingeiiumt.
Zusatzlnformatlon fiir Mess-und Testgerite:
Werden Mess- und Testgerate mit ungeschirmten
Kabeln undloder in offenen Messaufbauten
verwendet, so ist vom Betreiber sicherzustellen, dass
die
Funk-Entstorbestimmungen unter
Betriebsbedingungen an seiner Grundsiucksgrenze
eingehalten werden.
Manufacturer's Declaration
This is to certify that the equipment HP E1426AJE
meets the radio frequency interferencerequirements of
Directive
FlZ 1046/&1. The German Bundespost has
been notified that this equipment was put into
circulation and has been granted the right to check
the product type for compliance with these
requirements.
Addltlonrl lnformatlon for Test and
Measurement Equipment:
If test and measurement equipment is operated with
unscreened cables and/or used for measurements on
open set-ups. the user has to assure that under
operating conditions the Radio Interference Limits
are still met at the border of the user's premises.

DECLARATIONOF CONFORMITY
according to ISOllECGuide 22 and EN 45014
Manufacturer's Name: Hewlett-Packard Co.
Manufacturer's Address: Colorado Springs Division
1900Gardenof the Gods Rd.
Colorado Springs, CO 80907 USA
declares that the product
Product Name: Digitizing OscilloscopeModule
Model Number@): HP E1426A
Product Option(s): All
conformsto thefollowing Product Specifications:
Safety: IEC 1010-1:1990+A11EN61010-1
:I 993
UL3111
CSA-C22.2 NO.1010.1
11 993
EMC: ClSPR 11
:I 9901EN55011 :I 991 Group 1, Class A
IEC801-2:1991 1EN50082-1
11 992 4 kV CD, 8 kV AD
IEC801-3:l9841EN50082-1
:I 992 3 Vlm, {IkHz80% AM, 27-1000 MHz}
IEC8OI-4:1988 1EN50082-1
:I 992 0.5 kV Sig. Lines, 1 kV PowerLines
SupplementaryInformation:
The product herewithcomplieswith the requirementsof the Low Voltage Directive
73123lEECandthe EMC Directive891336/EEC, and carries the CE-marking
accordingly.
This productwas tested in
a typical configurationwith Hewlett-Packardtest systems.
Colorado Springs, 11117198
KenWyatt
I ~rodVuctRegulationsManager
EuropeanContact: Your local HewlettPackardSales and Service Office or Hewlett-Packard GmbH, DepartmentZQ I Standards
Europe,HerrenbergerStrasse 130,D-71034 Boeblingen, Germany
(FAX [phone])
EMC-DOC.doc Rev. Date 10/27/98

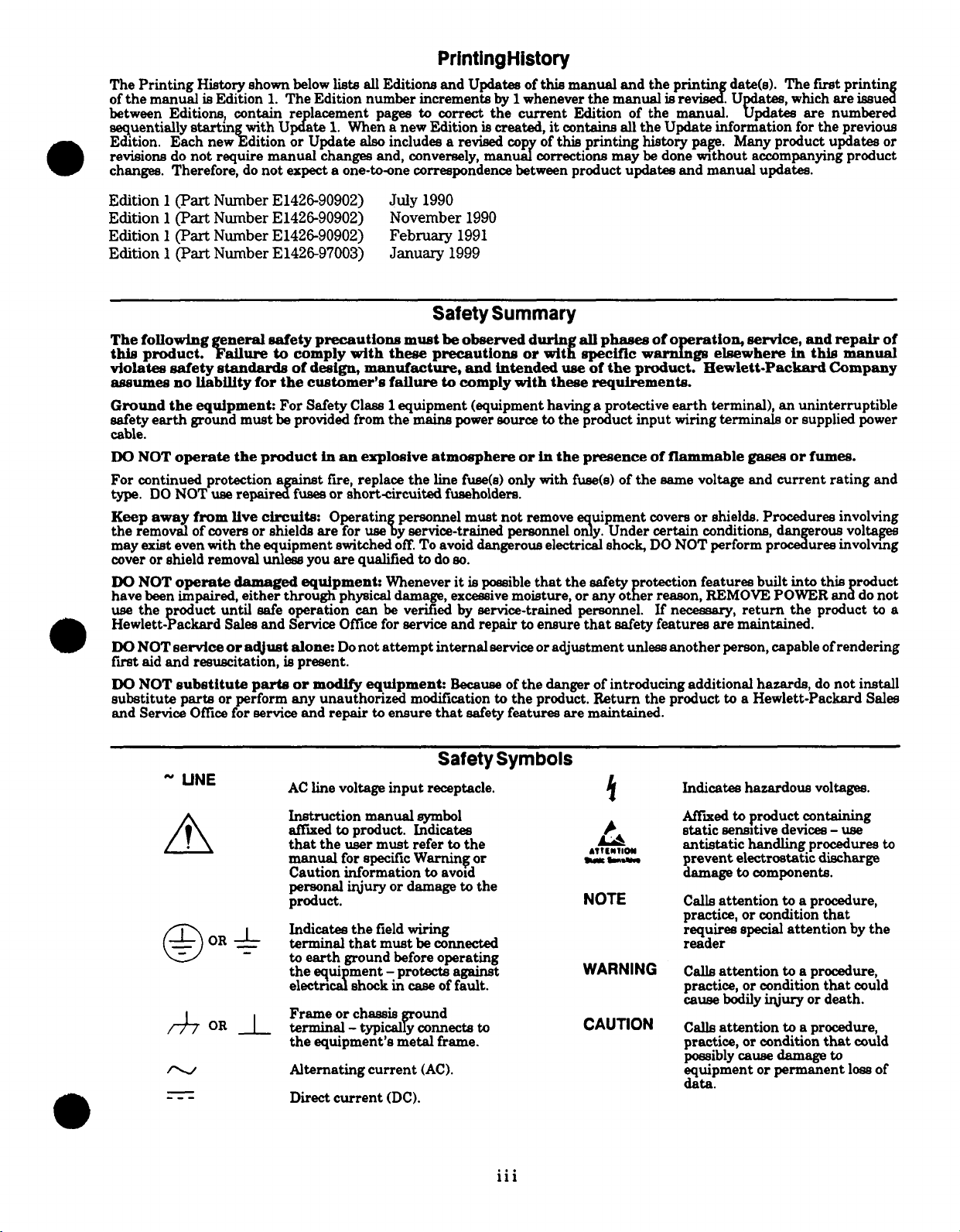

Printing History
ThePrintingHistory shown below lists all Editions and Updatea of thismanual and theprintin dateb). The first printin
of themanual
is Edition 1. TheEdition number increments by 1 wheneverthemanual is red U
tes, which areism e%
between Editions! contain re lacement pages to codthe current Edition of the manual. Ppdates are numbered
sequentially startm with upXate
1. When a new Edition is created, itmntaina all theUpdate information for theprevious
Edition. Each newgdition or Update
ako includes a revised cop of this printing history pap. Many product update. or
revisions do not require manual changes and, convereely,
man d' corrections may be done mthout accompanyingproduct
changes. Therefore, do not expecta one-to-onecorrespondencebetween product update. and manual updates.
Edition 1 (Part Number E1426-90902)
July 1990
Edition 1
(Part Number E1426-90902) November 1990
Edition 1
(Part Number E1426-90902) February 1991
Edition 1
(Part Number E1426-97003) January 1999
SafetySummary
Thefollowing eneralaafetyprecautionsmust be observeddurin all phaseeofo ration,service,
and repairof
thia product.
%tilure to comply with these precautions or wit%apecificwar&& elsewhere in thls manual
violates detystand& of design,manufacture,and
intended use of theproduct. Eewlett-PackardCompany
aeeumeenoliabilityfor the customer'sfailure
to complywith these requirements.
Groundthe equipment:
For Safety Class 1 equipment (equipment havinga protective earth terminal),anuninterruptible
aafetyearth ground must
be provided from the maim power sourcetothe product input wiringterminals or suppliedpower
cable.
DO NOT operatetheproduct in an exploeiveatmotsphere or in thepreeenceof flammable gasea orfumes.
For continued protection a ' t fue, replace the line fuse(s)only with fuse(e)of the aame voltage and current rating and
type. DO NOT use repairs or short-circuited fuseholdem.
Keep awayfromlive circuite: Operatin personnel must not remove uipment aversor shields.Proceduresinvolving
theremoval of covere or shields are for
use& service-trained pemnnel ay. Under certain conditions, dm rowvoltages
mayexistevenwith theequipmentswitchedoff To avoiddangemelectricalshock,
DO NOT perform proce%res involving
cover or shield removal unless you arequalifiedtodo eo.
DO NOT operatedamagedequipment: Whenever it is possible thatthesafety rotection featuresbuilt into this roduct
have been impaired,either throughphysical dama
, ex-ive moisture, oranyotterreason, REMOVE POWER anidonot
uae the roduct until safe operation can be ve& by service-trained personnel. If necessary, return the product to a
~ewlett-FackardSalesand Service
Ofice for serviceandrepair to ensure thatsafety features are maintained.
DO NOTserviceoradjustalone: Donotattemptinternalserviceoradjustment unlesaanotherperson,capableof rendering
fmt aid and resuecitation, is present.
DO NOT eubetituteparta ormodifyequipment: Becauee of thedanger of introducingadditionalhazards, do not install
substitute parts or perform any unauthorized modification to the product. Return the product to a Hewlett-Packard Sales
and ServiceOfficefor aerviceand repair to ensure thateafetyfeatures aremaintained.
SafetySymbols
" UNE
AC line voltageinput receptacle.
5
Indicateshazardous voltages.
Instruction manual symbol
afi1xed to product. Indicates
that the user must refer to the
manual for specific
Warning or
Caution information toavo~d
personal injuryor damage to the
product.
Indicate. thefield wiring
@ OR & terminal that must be connected
-
toearth ground beforeoperating
theequi ment
- protects against
electncaf
shock in case of fault.
Frame orchawis ound
OR 1 terminal-typi&connectsto
theequipment's metal frame.
W Alternating current (AC).
4
M~edtoproduct containing
staticsensitive device0
- use
u
NI~IIOY antistatic handling procedures to
rr -U prevent electrostaticdiecharge
damage tocomponents.
NOTE
Callsattention to a procedure,
practice, or condition that
requires specialattention by the
reader
WARNING
C& attention to a procedure,
practice, or condition thatcould
causebodily injury or death.
CAUTION
C& attention toa procedure,
practice, or condition thatcould
possibly cause
damage to
equipment or permanent loge of
data.
-
---
Direct current (DC).
iii

HP 75000 Series C Documentation
0
Suggested Sequence for Using the Available Manuals
1 installation and]
Gettixu Started
I Guide - I
Instrument Applications Using the Mainframefront panel or pacer
I
Plug-in Module
User's Manuals
Plug-in Module
ServiceManuals
Mainframe
User's Manual
Mainframe
ServiceManual
Manual Descriptions
Installation and Getting Started Guide. Contains step-by-stepinstructions for all aspects of plug-in
module and mainframe installation. This guide also contains introductory programming
information and examples.
HP El405 Command Module User's Guide. Contains programming information for the Control
Module, operation information (for the
HP E1400B mainframe), and general programming
information for instruments installed in the mainframe.
Plug-In Module User's Manuals.
Contains plug-in module programming and configuration
information. These manuals contain examples for the most-used module functions, and
a complete
SCPI command reference for the plug-in module.
HP E1400B Mainframe Service Manual.
Contains service information for the mainframe. This
manual contains information for ordering replaceable parts and exchanging assemblies. Also
contains information and procedures for performance verification, adjustment, preventive
maintenance, troubleshooting, and repair.
Plug-In Module Service Manuals. Contains plug-in module service information. These manuals
contain information for exchanging the module or ordering replaceable parts. Dependent on the
module, information and procedures for performance verification, adjustment, preventive
maintenance, troubleshooting, and repair are also provided.

How to Use this Manual
Manual Overview
This manual shows how to service the HP E1426A 500 MHz Digitizing
Oscilloscope. Oscilloscope operation, installation, and configuration
information is not discussed in this manual. Refer
to the "HP 75000
Series C HP E1426A User's Manual" for installation, configuration,
and operating information.
Manual Content This manual has eight chapters and one appendix.
Chapter 1 General Information: provides a basic description,
and lists available options and accessories. Also lists the tools
and test equipment required for service.
Chapter 2 Installation: contains information and procedures
required to install the oscilloscope into the mainframe, perform
initial inspection, prepare for use, and storing and shipping
instructions.
Chapter 3 Operating Instructions: contains information and
procedures required to operate the oscilloscope, perform scheduled
preventive maintenance, and perform the operator's check.
Chapter 4 Verification Tests: contains information and
procedures required
to test the oscilloscope. Three levels are
provided for functional verification, operation verification, and
performance verification.
Chapter 5 Adjustments: contains information and procedures
required to readjust the oscilloscope to within its rated
specifications.
Chapter 6 Replaceable Parts: lists the part numbers for all
user replaceable parts in the oscilloscope. Also provides
information on ordering spare parts and module/assembly
exchange.
Chapter 7 Manual Changes: contains information required to
adapt this manual
to instruments whose serial numbers are lower
than those listed on the title page.
Chapter
8 Service: contains information and procedures to aid
in fault isolation and repair of the oscilloscope.
Appendix A References: contains a list of all reference
documentation required when servicing the oscilloscope.

Chapter 1 page
.....................................................................
GENERAL INFORMATION 1-1
......................................................................................... 1-1 Introduction 1-1
1-2 Specifications Considerations
............................................................ 1-1
.........................................................................
13 Safety Considerations 1-1
.................................................................................. 14 Manual Updates 1-1
..........................................................................................
15 Description 1-1
...............................................
1-6 Instruments Covered by This Manual 13
................................................................................................ 1-7 Options 13
...........................................................................
18 Accessories Supplied 13
..........................................................................
1-9 Equipment Available 13
..........................................................
1-10 Recommended Test Equipment 13
Chapter
2 Page
INSTALLATION ......................................................................................... 21
21 Introduction
......................................................................................... 21
22 Initial Inspection
................................................................................ 21
23 Preparation for Use ............................................................................. 21
24 Operating Environment .................................................................... 22
25 Storage and Shipment .......................................................................... 22
.......................................................................................
2-6 Environment 22
27 Packaging .......................................................................................... 22
Chapter
3 page
OPERATING INSTRUCTIONS ................................................................. 3-1
3-1 Introduction
......................................................................................... 3-1
.........................................................................
$2 Safety Considerations 3-1
33 Preventive Maintenance .................................................................... 3-2
34 RequiredEquipment ........................................................................... 3-2
3-5 Cleaning Procedures .......................................................................... 34
.............................................................................................
3-6 Operation 34
$7 Operator's Checks ............................................................................. 34
Contents . 1

Chapter 4 page
VERIFICATION TESTS ............................................................................. 41
Chapter 5
......................................................................................... Introduction
Equipment Required
...........................................................................
......................................................................................... Test Record
Calibration Cycle
................................................................................
Test Procedures ...................................................................................
Functional Verification .......................................................................
Self-Test Procedure .............................................................................
Operation Verification ........................................................................
Performance Verification ..................................................................
DC Calibrator Test Procedure .............................................................
Input Resistance Test Procedure ........................................................
............................... Voltage Measurement Accuracy Test Procedure
Offset Accuracy Test Procedure
.........................................................
Bandwidth Test Procedure ..................................................................
................................... Time Measurement Accuracy Test Procedure
Trigger Sensitivity Test Procedure
....................................................
Oscillator Output Test Procedure ........................................................
ADJUSTMENTS ....................................................................................... 51
51 Introduction ......................................................................................... 51
52 Equipment Required ........................................................................... 31
53 Vertical Calibration Procedure .......................................................... 52
54 Delay Cal Calibration Procedure ....................................................... 54
55 Time Null Calibration Procedure ...................................................... 56
56
Logic Trigger Calibration Procedure ................................................. 5-8
57 High Frequency Pulse Response Adjustment Procedure ................... 510
Chapter 6 Page
REPLACEABLE PARTS ............................................................................ 61
61
Introduction ......................................................................................... 61
62 Ordering Information ..................................................................... 61
K3 Exchange Assemblies ........................................................................ 61
&I Abbreviations .................................................................................... 61
645 Replaceable Parts List ........................................................................ 61
Chapter 7 page
MANUAL CHANGES ................................................................................ 7-1
7-1
Introduction ......................................................................................... 7-1
Chapter 8 page
SERVICE .................................................................................................... 81
81 Introduction ......................................................................................... 81
82 Safety Considerations ......................................................................... 81
83 Equipment Required ........................................................................... 82
84 Troubleshooting .................................................................................. 82
8-5 General ............................................................................................... 82
86 Service Aids ....................................................................................... 83
87 Visual Inspection ................................................................................ 83
88 Troubleshooting Test .......................................................................... 84
89 Repair and Replacement .................................................................... 86
810 Disassembly and Reassembly ............................................................ 8-6
811 Repair .................................................................................................. 810
Contents . 2

Appendias page
.................................................................... A References A-1
LlST OF TABLES
No . Title
m
1.1 . Recommended Test Equipment ........................................ 1-4
.....................................
. 3- 1 Preventive Maintenance Equipment 3-2
...................................................
4.1 . Verification Test Record 4-26
.................................
6.1 . Part Numbers for Exchange Assemblies 6-2
...............................
6.2 . Reference Designators and Abbreviations 6-3
6.3 . Replaceable Parts ............................................................ 6-5
6.4 . Code List of Manufacturers .................................................. 6-8
LlST OF ILLUSTRATIONS
Title pas
HP E1426AlE Accessories Supplied ........................................ 1-0
.....................................
Oscilloscope Module Block Diagram 1-2
DC CalibratorTestSet-up ................................................... 44
Input Resistance Test Set-up ......................................... 4-6
.............................
Voltage Measurement AccuracyTest Set-up
4-8
................................................
msetAccuracyTest Set-up 411
......................................................
Bandwidth TestSet-up 414
................................ Time Measurement Accuracy Test Set-up
4-18
............................................
Trigger Sensitivity Test Set-up 4-21
...............................................
Oscillator OutputTestSet-up 4-24
.....................................
Example: Vertical Calibration Setup 5-2
Example: Delay Calibration Setup ........................................
5-4
..................................
Example: Time Null Calibration Setup
5-6
..............................
Example: Logic Trigger Calibration Setup
5-8
High Frequency Pulse Response Adjustment Setup ..................... 5-11
............................................
Oscilloscope Replaceable Parts 6-6
............................................
A1CPU PCA Replaceable Parts
6-7
...................................
A2 Acquisition PCA Replaceable Parts
6-7
Contents . 3

Figure 1-1. HP E1426AlE Accessories Supplied
1-0 General Information

General Information
1-1. Introduction
The HP E1426A Service Manual contains all the information
required
to test, adjust, troubleshoot, and repair the Hewlett-Packard
Model E1426A C Size
VXI 500 MHz Digitizing Oscilloscope. Figure 1-
1 shows the HP E1426A Oscilloscope, along with all of the externally
supplied accessories. Additional copies of the HP E1426A User's
Manual and Service Manual can
be ordered separately through your
nearest Hewlett-Packard ofice.
1-2. Specifications
Instrument specifications are listed in Appendix A of the HP
Considerations
E1426A User's Manual. These specifications are the performance
standards or limits against which the instrument may be tested.
1-3. Safety
This product is a Safety Class I instrument, that is, one provided with
Considerations
a protective earth terminal when installed in the mainframe. The
mainframe, oscilloscope, and all related documentation should be
reviewed for familiarization with safety markings and instructions
before operation or service. Refer to the Safety Considerations page
found atthe beginning of this manual for a summary of the safety
information. Safety information for preventive maintenance,
testing, adjusting, or service is found in appropriate places throughout
this manual.
1-4. Manual Updates Manual Updates provide information necessary to update the manual.
The Manual Update is identified by the manual print date and part
number, both of which appear on the manual title page.
1-5. Description The Oscilloscope module is a general purpose, four channel, 500 MHz
(repetitive bandwidth) oscilloscope, which provides all the versatility
and capability of digitizing oscilloscopes. The Oscilloscope module is
a VXIbus C-Size message-based product, and can operate in a C-Size
VXIbus mainframe using an HP El405 Command Module.
The Oscilloscope module is comprised of a CPU Printed Circuit
Assembly (PCA) (HP P/N E1426-69501) and an Acquisition PCA (HP
P/N E1426-69502).
General Information 1-1

The Acquisition PCA attenuatedamplifies each of the four inputs.
The conditioned input signal is then routed
to a track and hold
circuit. The signal is then multiplexed
to an A/D Converter where it
is changed into a digital word. This digital information is stored for
use
by the CPU PCA. A replica of the conditioned input signal is also
used for triggering. Additional functions include:
Time base circuit provides the timing signals necessary for
data acquisition.
AC calibrator circuit provides signals for probe compensation,
trigger event, and calibration.
DC calibrator circuit provides a calibration signal.
The CPU PCA contains the control and interface circuits necessary to
direct oscilloscope operations. Control information (COMP or
SCPI)
is received from the mainframe controller, and the necessary
instructions are sent
to the Acquisition PCA to perform the specific
task. When the digital waveform information is received from the
Acquisition PCA, all the user requested parameters are measured and
routed to the mainframe. Additional functions include:
n'L and ECL trigger signals from the mainframe are routed
to the Acquisition PCA to perform "external trigger"
functions.
'M'L and ECL trigger signals from the oscilloscope are routed
to the mainframe over the backplane trigger bus lines.
Trigger circuit provides a ITLTrigger output signal on the
front panel.
Refer to the HP E1426A User's Manual for additional information on
the HPE1426A Oscilloscope.
TOIFROM
MAINFRAME
.
I
I
I JI I
1
I
I 1 1 I
I I I ! ! I INTERNAL I I
I
. - TRIGGER
11 -
I TIIMCCLI
cALq AC CAL 1
lmpuT I I
Figure 1-2. Oscilloscope Module Block Diagram
1-2 General Information

1-6. Instruments
Covered by this
Manual
Instruments covered by this manual are identified by a serial
number prefix listed on the title page. Hewlett-Packard uses
a two
part serial number in the form X)(XXAYYYYY,where
XMM is the
serial prefix, A is the country of origin (A=USA) and
YYYYY is the
serial suffix. The serial number prefix identifies
a series of
identical instruments. The serial number suffix is assigned
sequentially and is unique
to each instrument. If the serial number
prefix of your instrument is greater than the one listed on the title
page, a yellow Manual Update supplement will explain how to adapt
this manual
to your instrument. If the serial number prefix of your
instrument is lower than the one listed on the title page, information
contained in Chapter
7 (Manual Changes) will explain how to adapt
this manual
to your instrument.
1-7. Options
There are no options currently available for the HP E1426A
Oscilloscope Module.
1-8. Accessories
There are no accessories currently available for the HP E1426A
Supplied Oscilloscope Module.
1-9. Equipment A number of oscilloscope accessories are available for use with
Available the HP E1426A Oscilloscope, and include:
The HP 10400A Miniature Probe Family
The HP 10002A 50:l Voltage Divider Probe
The HP 10020AResistive Divider Probe Kit
The HP 1124A Active Divider Probe Kit
For a complete list of oscilloscope accessories currently available,
contact your nearest Hewlett-Packard sales office.
1-1 0. Recommended Table 1-1 lists the test equipment recommended for testing, adjusting
Test Equipment
and servicing the oscilloscope. Essential requirements for each piece
of test equipment are described in the Critical Specifications column.
Other equipment can be substituted if it meets or exceeds the critical
specifications.
General Information 1-3

Table 1-1. Recommended Test Equipment
Instrument
Controller. HP-IB
Mainframe
Slot 0 Command Module
Digital Multirneter
Fast-rise Pulse Generator
Crltlcal Speclflcatlons
HP-IB compalibility as defied by IEEE Standard
488-1978 and the identical
ANSI Standard MCl.1:
SHl. AHl.
7'2. TEO, L2. LEO. SRO. RM. PPO. DCO.
DTO. and C1, 2, 3.4, 5.
Compatible with the oscilloscope
VXI "C" sizew/HPIB
5 1/2 digit resolution
dc voltage accuracy 8
ppm/yr
4-wire resistance accuracy f0.25%
Rise Time
< 175ps (faster is better)
Recommended
Model
HP Series 200/300
PPL 1110B driver (note)
PPL 1107Bhead (note)
Oscilloscope
Power MetaPower Sensor
Power Splitter
Power Supply
Signal Generator
*
M = Preventative Maintenance. F = Functional Verification Check. C = Operational Verification Tests. P = Perforrnanct
Verification Tests.
A = Adjustments, T = Troubleshooting
Cables and Adapters
Adapter (2)
Adapta (3)
Adapter
Adapter
Adaprer
Adapter
Adapter
Cable (2)
Cable (4)
Cable
1-4 General Information
General-purpose
1-500MHz. -70dBm
to 0 dBm. 3% accuracy
50
fl type N. outputsdiffer by 4.15 dB
7 mV -35 V dc. 0.1 mV resolution
1-500MHz sine wave
amplitude 3-170 mVrrns
time base accuracy f0.001%
BNC to dual banana
BNC tee (mXf)(f)
BNC
(f)(f)
N (m) to BNC (f)
N (m) to BNC (m)
Type N
(f) to BNC (rn)
Type N
(f) to SMA(4
BNC-3 foot
BNC-9 inch
Type N-3 foot (m) (rn)
HP 54501A
HP 436A18482A
HP 11667A
HP 6114A
HP 8656B Opt 001
Note PPL
= Picosecond Pulse Labs

Installation
2-1. Introduction
This chapter provides the information needed to install the HP
E1426A Oscilloscope. Included is information pertinent to initial
inspection, preparation for use, environment, storage and shipment.
2-2. Initial Inspection
Warning To avoid hazardous electrical shock, do not perform electrical
tests when there
are signs of shipping damage to any portion
of the outer enclosure (covers, panels, etch
Inspect the shipping container for damage. If the shipping container
or cushioning material is damaged, it should be kept until the
contents of the shipment have been checked for completeness and the
instrument has been checked mechanically and electrically. The
contents of the shipment should be as shown in Figure
1-1. Procedures
for checking electrical performance are given in Chapter 4. If the
contents are incomplete, if there is mechanical damage or defect, or if
the instrument does not pass the electrical performance test, notify the
nearest Hewlett-Packard ofice. If the shipping container is damaged
or the cushioning material shows signs of stress, notify the carrier as
well asthe Hewlett-Packard ofice. Keep the shipping materials for
the carrier's inspection.
2-3. Preparation Complete instructions for preparing the HP E1426A Oscilloscope for
for Use
use are provided in the HP E1426A User's Manual, the HP E1400B
Mainframe User's Manual, and the HP El405 Command Module
User's Manual. Procedures include:
HP E1426A User's Manual (Chapter 2)
Logical Address Switch Selection
Bus Request/Grant Level Switch Selection
Servant Area Switch Selection
Connecting User Inputs
Mainframe Installation
HP E1405A Command Module User's Manual (or applicable
command module manual)
Interface Cable Connection
Addressing the Plug-In Modules
System Configuration
Installation 2-1

2-4. Operating
Environment
HP E1400B Mainframe User's Manual (or applicable mainframe
manual)
AC Power Selection and Connection
Module Installation
The operating environment should be within the following
:
limitations
Temperature
........................................... 0 to +55"C
......................... Humidity
65% relative (0to +40°C)
2-5. Storage and
Shipment
2-6. Environment The instrument should be stored in a clean, dry environment. The
following environmental limitations apply to both storage and
shipment:
........................................ Temperature 40to +75OC
......................
Humidity <65%relative (0to +40°C)
2-7. Packaging Preparation for Packaging. Remove any adapters or connectors
before packaging instrument for shipping.
Tagging for Service. If the instrument is being returned to Hewlett-
Packard for service, please complete one of the blue repair tags
located atthe back of this manual and attach it to the instrument.
Original Packaging. Containers and materials identical to those
used in factory packaging are available through Hewlett-Packard
offices. Mark the container "FRAGILE to assure careful handling.
In any correspondence refer to the instrument by model number and
full serial number.
Other Packaging. The following general instructions should be used
for re-packaging with commercially available materials:
a. Wrap the instrument in heavy paper or plastic. (If shipping to
a Hewlett-Packard ofice or service center, complete one of the
blue tags mentioned above and attach it to the instrument.)
b. Use a strong shipping container.
A double-wall carton made
of 2.4 MPa (350 psi) test material is adequate.
c. Use enough shock-absorbing material (75to 100mm layer;
3 to
4 inches) around all sides of the instrument to provide firm
cushion and prevent movement in the container. Protect the
front panel with cardboard.
d. Seal the shipping container securely.
e. Mark the shipping container
"FRAGILE to assure careful
handling.
2-2 lnstallatlon
