HP 85033D Service manual

Operating and
Service Manual
HP 85033D
3.5 mm Calibration Kit

COPYRIGHT AND DISCLAIMER NOTICE
Copyright - Agilent Technologies, Inc. Reproduced with the permission of Agilent
Technologies Inc. Agilent Technologies, Inc. makes no warranty of any kind with regard
to this material including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. Agilent Technologies, Inc. is not liable for errors
contained herein or for incidental or consequential damages in connection with the
furnishing, performance, or use of this material or data.

Operating and Service Manual
HP 8503313 3.5 mm Calibration Kit
SERIAL NUMBERS
This manual applies directly to HP 85033D calibration kits with serial number prefix 3423A.
The calibration devices in this kit are individually serialized. Record the device serial
numbers in the table provided in this manual. (See “Device Serial Numbers” in Chapter 1.)
-
Eli3
HEWLETT
PACKARD
HP Part No. 85033.90027
Printed in USA May 1998 Supersedes June 1994

CERTIFICATION
Yewlett-Packard Company certifies that this product met its published specifications at the
ime of shipment from the factory. Hewlett-Packard further certifies that its calibration
neasurements are traceable to the United States National Institute of Standards and
Technology (NIST, f
ormerly NBS), to the extent allowed by the institute’s calibration
‘acility, and to the calibration facilities of other International Standards Organization
nembers.
WARRANTY
Ihis Hewlett-Packard instrument product is warranted against defects in material and
workmanship for a period of one year from date of delivery. During the warranty period,
Hewlett-Packard Company will, at its option, either repair or replace products which
3rove to be defective.
For warranty service or repair, this product must be returned to a service facility
lesignated by HP. Buyer shall prepay shipping charges to HP and HP shall pay shipping
charges to return the product to Buyer. However, Buyer shall pay all shipping charges,
duties, and taxes for products returned to HP from another country.
HP warrants that its software and firmware designated by HP for use with an instrument
will execute its programming instructions when properly installed on that instrument. HP
does not warrant that the operation of the instrument, or software, or firmware will be
uninterrupted or error free.
LIMITATION OF WARRANTY
The foregoing warranty shall not apply to defects resulting from improper maintenance
,y Buyer, Buyer-supplied software or interfacing, unauthorized modification or misuse,
operation outside of the environmental specifications for the product, or improper site
preparation or maintenance.
NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. HP SPECIFICALLY
DISCLAIMS THE IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
EXCLUSIVE REMEDIES
THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND EXCLUSIVE
REMEDIES. HP SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON
CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.
ASSISTANCE
Product maintenance agreements and other customer assistance agreements are available
for Hewlett-Packard Products.
For any assistance, contact your nearest Hewlett-Packard Sales and Service Ofice.
Addresses are provided in Table 6-l.

Contents
1. General Information
Calibration Kit Overview .......................
Equipment Required but Not Supplied ..................
Serial Numbers ............................
Calibration kits documented in this manual ..............

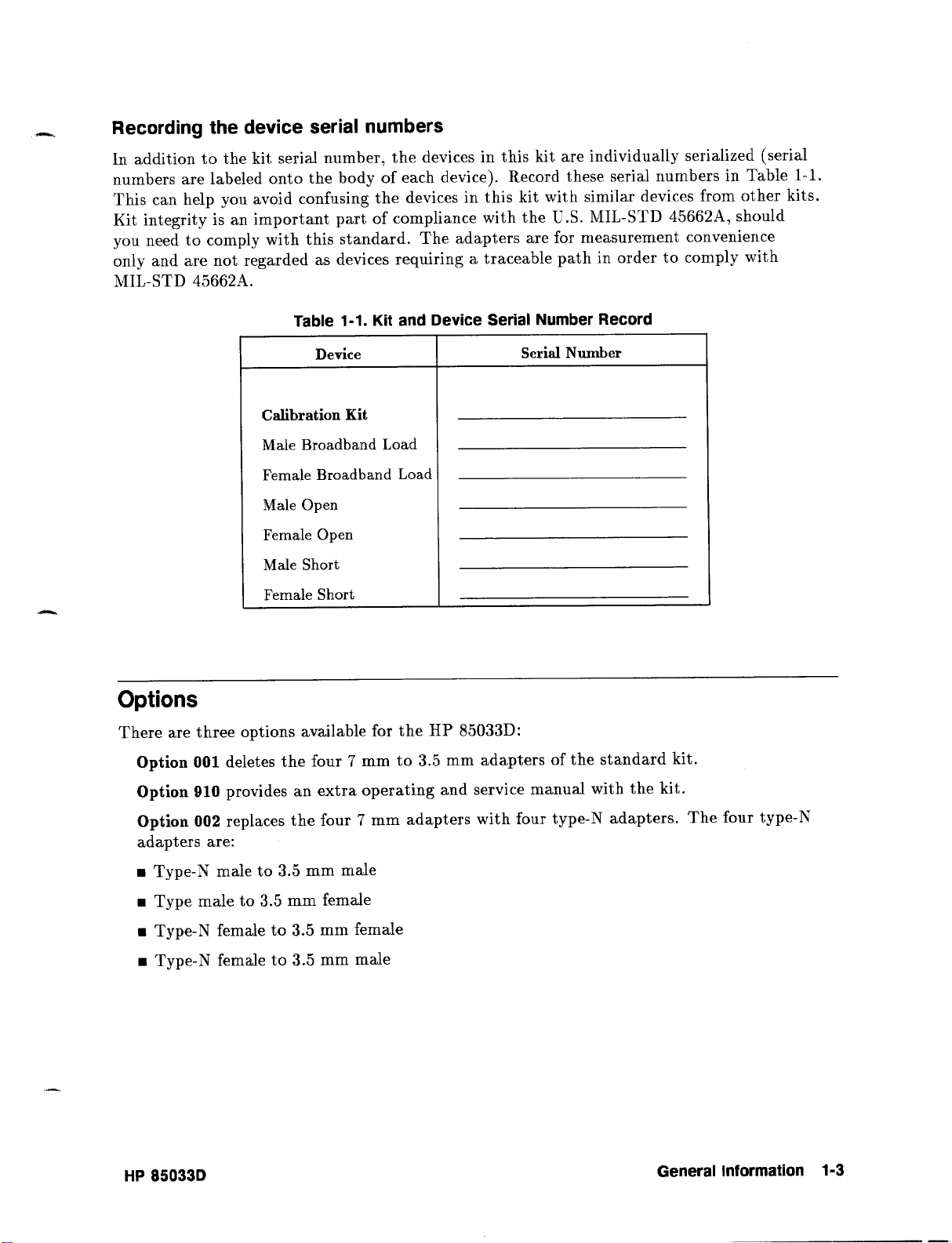

Recording the device serial numbers ..................
Options ...............................
Incoming Inspection ..........................

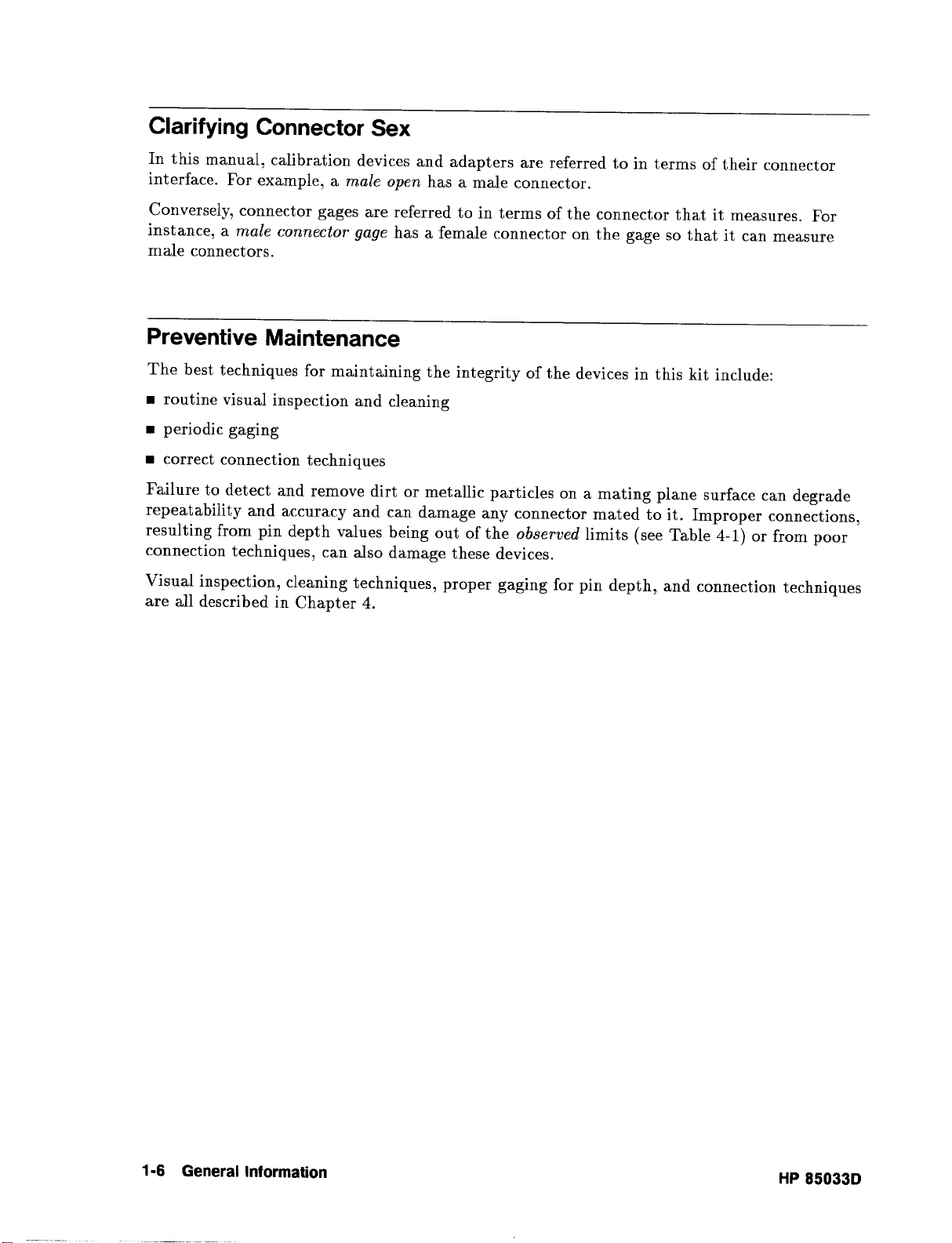

Clarifying Connector Sex .......................
Preventive Maintenance ........................
2. Specifications

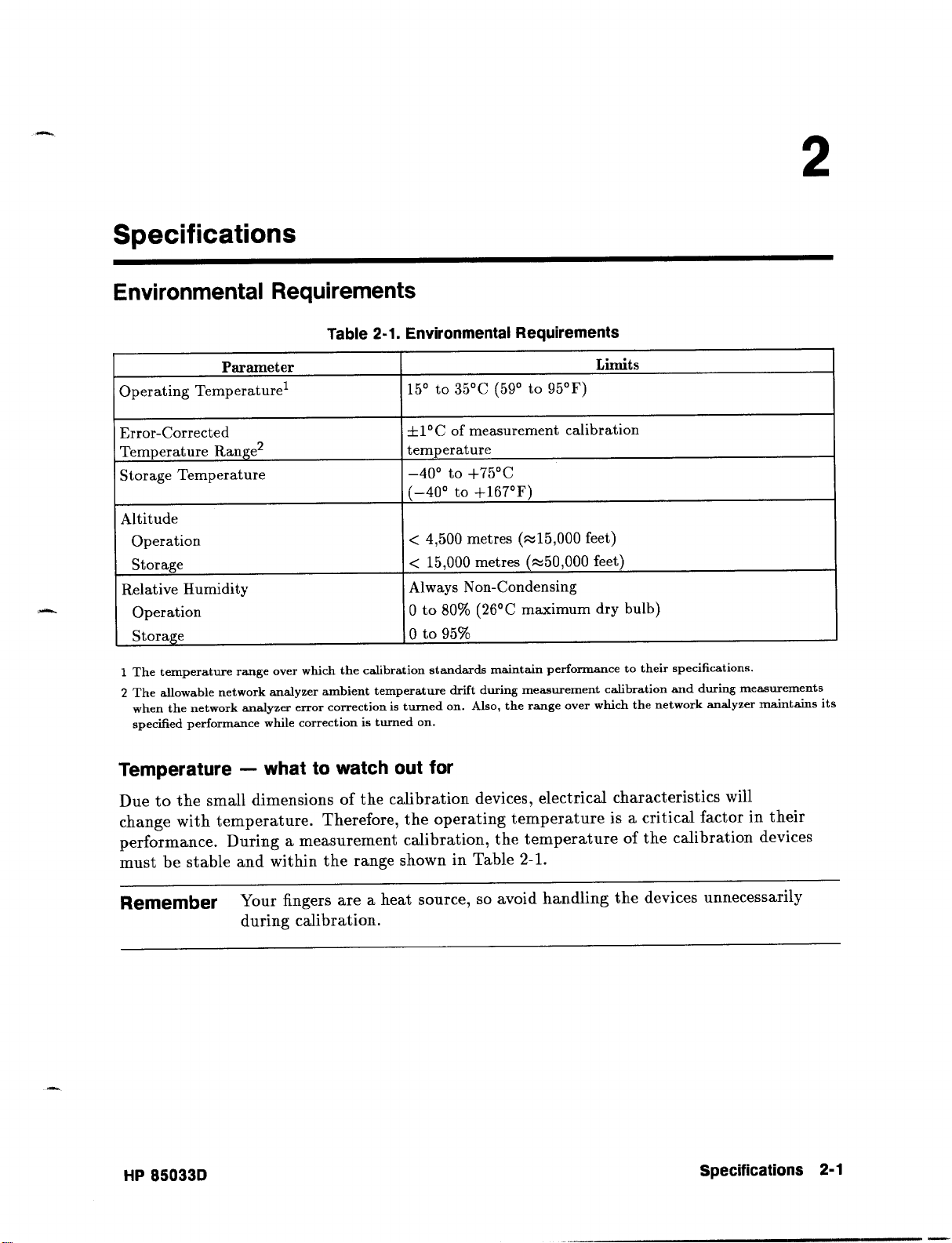

Environmental Requirements ......................
Temperature - what to watch out for .................
Mechanical Characteristics .......................
The relevance of center conductor protrusion and pin depth .......
Electrical Specifications ........................
Supplemental electrical characteristics .................
3. User Information
The Design of the Calibration Devices ..................
Broadband loads ..........................
Offset opens and shorts .......................
Adapters ..............................
Loading the Calibration Constants ...................
For the HP 8752C, HP 8753D/E, and HP 8711C/12C/13C/14C
.....
For the HP 8752A/B and HP 8753B/C
................
Loading from a disk ........................
For the HP 8753A .........................
Using the front panel to examine or modify calibration constants .....
Using the Open-Short-Load Holders ...................
4. Gaging and Making Connections
Electrostatic Discharge .........................
Visual Inspection ...........................
Look for obvious defects and damage first ...............
Inspecting the mating plane surfaces .................
Inspecting precision slotless connectors ................
What causes connector wear .....................
Cleaning Connectors .........................
Pin Depth ..............................
Gaging Connectors ..........................
HP 85033D
Contents- 1
l-l
l-2
l-2
l-2
l-3
l-3
1-4
l-6
l-6
2-l
2-l
2-2
2-2
2-3
2-3
3-l
3-l
3-l
3-l
3-2
3-2
3-2
3-2
3-2
3-3
3-4
4-l
4-l
4-2
4-2
4-3
4-3
4-4
4-5
4-6

What is the intent of the connector gages ...............
How accurate are the connector gages .................
When to gage connectors ......................
How to zero the gage ........................
How to measure the connectors ....................
Measuring male 3.5 mm connectors .................
Measuring female 3.5 mm connectors ................
Connections .............................
How to make a connection ......................
How to use a torque wrench .....................
How to make a disconnection .....................
Handling and Storage .........................
4-6
4-6
4-7
4-8
4-10
4-10
4-12
4-14
4-14
4-15
4-17
4-17
5. Performance Verification
What Recertification Provides .....................
How Often to Recertify ........................
Where to Send a Kit for Recertification .................
How Hewlett-Packard Verifies the Devices in this Kit ...........
5-l *
5-2
5-2
5-2
6. Troubleshooting
Returning a Kit or Device to HP . . . . . . . . . . . . . . . . . . . .6-l
More Information . . . . . . . . . . . . . . . . . . . . . . . . . . .6-l
7. Replaceable Parts
A. Standard Definitions
Electrical Characteristics ........................
Standard class assignments ......................
Blank form ............................
Nominal standard definitions .....................
Setting the system impedance ...................
Blank form ............................
A-l
A-l
A-2
A-3
A-3
A-4
Index
Contents-2 HP 85033D

Figures
l-l. Typical Kit Serial Number Label ...................

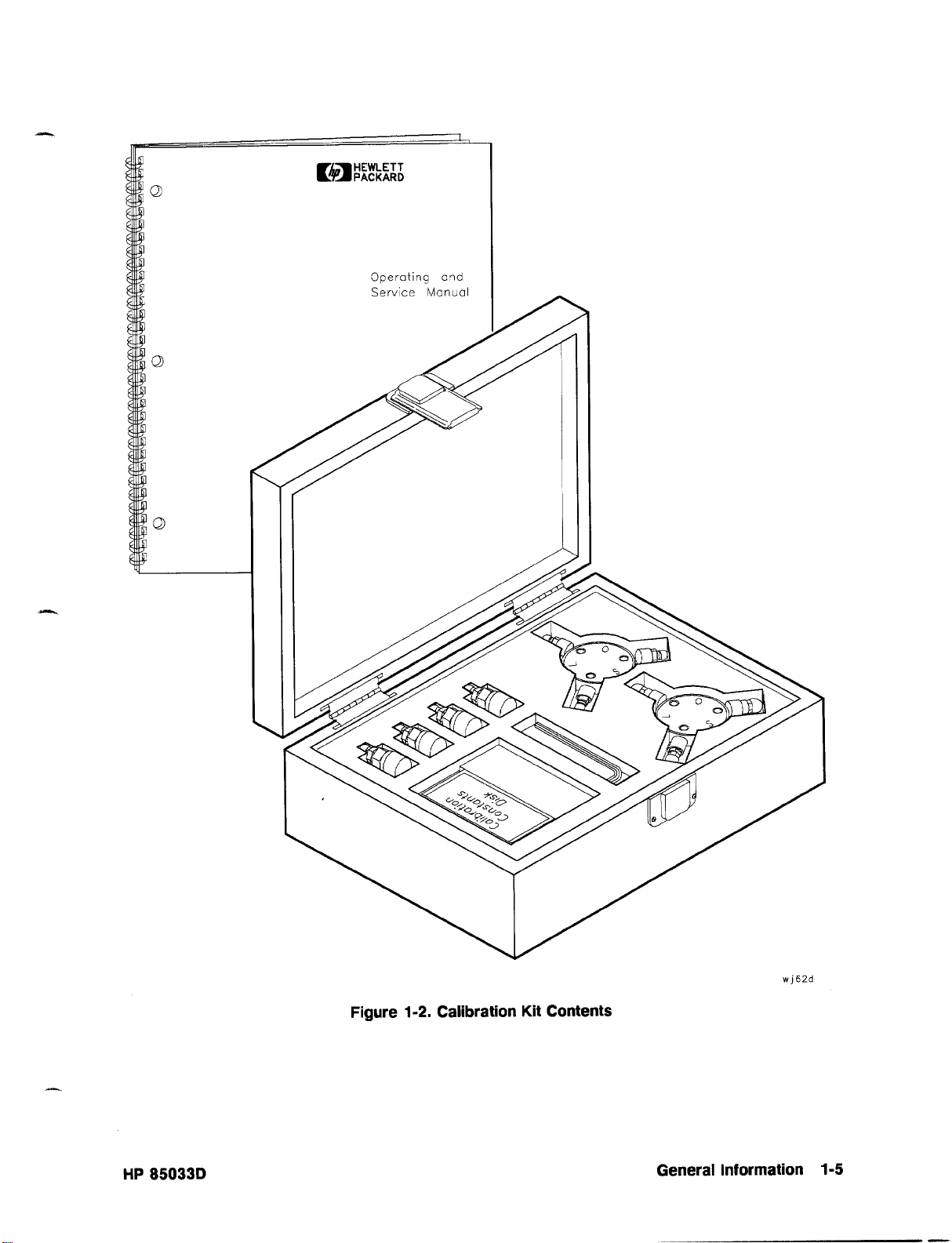

l-2. Calibration Kit Contents .......................
3-l. Open-Short-Load Holder .......................
4-l. Mating Plane Surfaces ........................
4-2. Examples of Good, Bent, and Broken Inner Contacts on a Slotless Connector
4-3. Connector Pin Depth ........................
4-4. Zeroing a Connector Gage ......................
4-5. Gaging a 3.5 mm Male Connector ...................
4-6. Gaging a 3.5 mm Female Connector
..................
4-7. Correct Wrench Position .......................
4-8. Incorrect Wrench Position ......................
4-9. Using the Torque Wrench
......................
6- 1. Troubleshooting Flowchart
......................
7- 1. Replaceable Parts ..........................
Tables
1-2
l-5
3-4
4-2
4-3
4-5
4-9
4-11
4-13
4-15
4-15
4-16
6-2
7-3
l-l. Kit and Device Serial Number Record ................. l-3
2-l. Environmental Requirements
..................... 2-l
2-2. Electrical Specifications for 3.5 mm Devices ..............
2-3
2-3. Electrical Characteristics for Adapters .................
2-3
4-l. Pin Depth Limits ..........................
4-7
4-2. Torque Wrench Information
.....................
4-15
6-1. Hewlett-Packard Sales and Service Offices
............... 6-3
7-l. Replaceable Parts for the HP 85033D .................
7-2
A-l. Standard Class Assignments ..................... A-l
A-2. Standard Class Assignments Blank Form
................
A-2
A-3. Standard Definitions
........................ A-3
A-4. Standard Definitions Blank Form
...................
A-4
HP 85033D Contents-3

-
General Information
Calibration Kit Overview
The HP 85033D 3.5 mm calibration kit is used to calibrate the following HP network
analyzers for measurements of components with 3.5 mm connectors up to 6 GHz. Where
“pre-installed” is noted, the calibration constants for this kit are permanently stored in the
analyzer’s firmware. “User-defined” means the calibration constants must be loaded into the
analyzer from a disk supplied with the calibration kit or entered from the analyzer’s front
panel.
This calibration kit applies to the following HP network analyzers:
n HP 8711C pre-installed
n HP 8712C pre-installed
n HP 8713C pre-installed
n HP 8714C pre-installed
n HP 8752C pre-installed
n HP 8753D/E pre-installed
n HP 8752A/B user-defined
n HP 8753A/B/C user-defined
The calibration kit consists of the following:
n offset opens and shorts, and broadband load terminations
n four 7 mm to 3.5 mm adapters for converting 7 mm test port connectors to 3.5 mm
n a disk that contains the nominal calibration constants of the devices in the calibration kit
for installing into the HP 8752A/B and HP 8753B/C
n two open-short-load (OSL) holders
n a 2.5 mm hex key for use with the OSL holder
This manual provides information for the following topics:
n specifications
n user-related procedures and information
n maintenance and care of the devices
n how to verify performance
n troubleshooting information
n replacement part numbers
HP 85033D General information l-l
