HUANUO HASSK5 User manual

Model: HASSK5
Thank you for choosing this product! We strive to provide you with
the best quality products and services in the industry. Should you
have any issues, please don't hesitate to contact us at
[email protected] (US/CA/DE/UK/FR/IT/ES/AU)

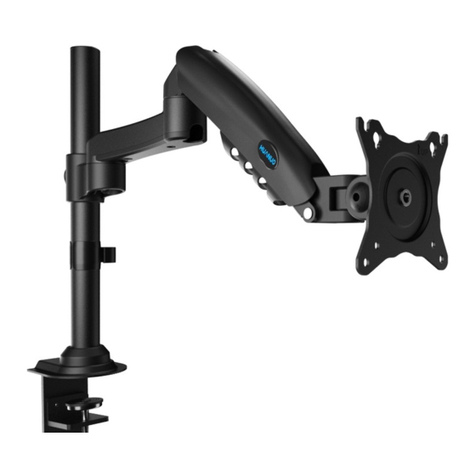

Single Arm Monitor Desk Mount
Instruction Manual V2.0

01

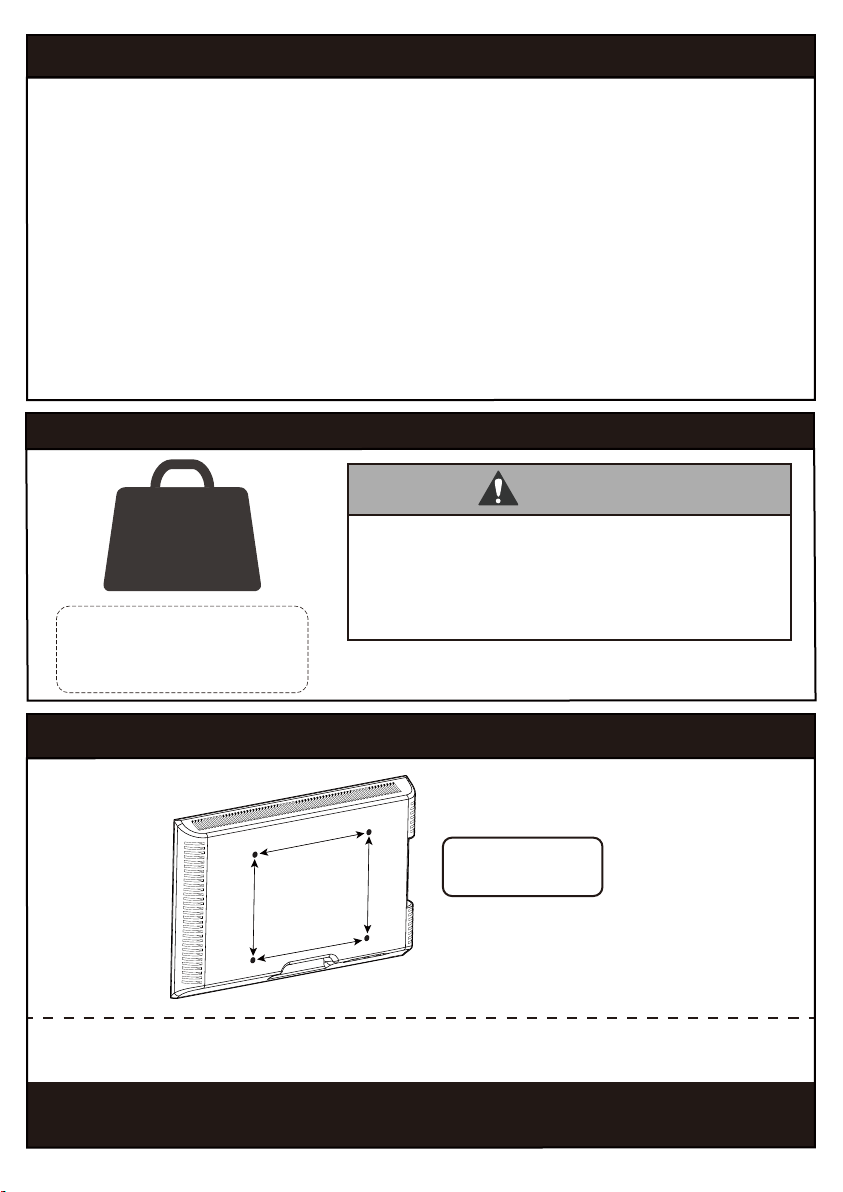

Check the VESA Pattern of Your Monitor beforeYouBegin the Installation
Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns or questions, please contact our
customer service at [email protected].
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this manual. Do
not exceed weight capacity. We are not liable for damage or injury caused by improper
mounting, incorrect assembly or inappropriate use.
• This product contains a high pressure gas spring, fire and percussion prohibited. Also it
is strictly prohibited to dismantle without professionals. Please return to the manufacturer
or hand over to professional agencies if the product is abandoned.
• The desk must be capable of supporting three times the weight of the total load (the
mount, the monitor and all accessories weight). Don't use the product on particle board.
IMPORTANT SAFTY INFORMATION
If this desk mount is NOT compatible, please contact customer service
at [email protected] to find a compatible product.
If your Monitor VESA is greater than 100x100 mm/4x4 in. or less than
VESA 75x75mm/3x3in., this mount is NOT compatible.
Weight Restrictions
18 lbs.(8 kg)
DO NOT exceed the maximum weight indicated.
This mounting system is intended for use only within
the maximum weights indicated. Use with products
heavier than the maximum weights indicated may
result in failure of the mount and its accessories,
causing possible damage and or injury.
WARNING
If your monitor weighs more, this mount is NOT
compatible.
Your monitor (including
accessories) CANNOT EXCEED
18 lbs (8 kg)
MAX:100
mm/4 in.
MAX:100
mm/4 in.
MAX:100
mm/4 in.
100 mm ≈ 4 in.
75 mm ≈ 3 in.
Minimum VESA pattern:
75mm/3 in.(W)x75mm/3 in.(H)

Product Features
C-Clamp Mounting
Grommet Mounting
02

Warning!
Do not adjust tension without monitor.
1. Ensure monitor has been attached to the mount.
2. Read your monitor box or manual to find out monitor net weight.
3. Ensure the net weight of monitor (including accessories) is within
17.6 Ibs (8 kg).
Clockwise to reduce
tension(carry less weight)
Counter-clockwise to increase
tension(carry more weight)
TENSION ADJUSTMENT SHOULD BE DONE ONLY
AFTER MOUNT INSTALLATION
Adjustment Sign
03

Step 1A For Clamp Mounting
1A-1 Connect Connecting Plate [B] to Arm [A]
L
E
04
Supplied Parts and Hardware List
Bx1
Gx1 Hx1 Ix1
Cx1 Dx2 Ex3
Connecting
Plate Desk Clamp M6x10mm
Bolt
M6x12mm
Bolt
Fx1
Bottom
Plate
Butterfly Nut Bolt Grommet
Plate
Lx1
4mm
Allen Key
Mx1
5mm
Allen Key
Ax1
Arm
M4x12mm
Bolt
M-A x4
M6x12mm
Bolt
M-B x4
D6 Washer
M-C x4
Jx1
Bolt
Kx1
Monitor Plate

1A-2 Secure Desk Clamp [C] to C-Clamp Connector [B] According to the
Thickness of the Desktop
1A-3 Secure the Mount Assembly to Desktop
1B-1 Secure Bottom Plate [F] and Bolt [H] to Arm [A]
Step 1B For Grommet Mounting
L
B
L
1.97in.-3.35in. 50-85mm
0.39in.-2.16in. 10-55mm
or
05
L
B
D
A

1B-2 Secure the Mount Assembly to the Desktop
Max:
2.36in.(60mm)
06
M6M4
Only one bolt size fits your monitor.
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We
recommend thread engagement by at least 5 turns.
-Too short will not hold the monitor.
-Too long will damage the monitor.
Select Monitor Bolts
Attach the Monitor Plates [K] to the Monitors
STEP 2
M-A/M-B
M-C
(If Needed)
FLAT BACK MONITOR
(UNIVERSAL MONITOR PLATE)
K
(If Needed)
M-A/M-B
M-C
ROUND BACK MONITOR
(UNIVERSAL MONITOR PLATE)
K

07
Step 4 Adjust the Gas Spring Tension
Step 3 Secure the Monitors to Arm Assembly
The tension is preset at 4-5kg.
After hanging the monitor to the
mount, please release the monitor
slowly to prevent it from falling
suddenly
J
Be sure to keep the arm in
horizontal position during
adjustment. Or else, it would be
difficult to adjust the mount or
damage the mount.
1. If the monitor can stay at the desired height by
itself, no adjustment needed.
2. If the monitor rises up, press the arm to keep it
in horizontal position and then use the 5mm Alley
key [M] to turn the bolt clockwise(“-” direction)
to reduce tension of the arm only until the
monitor can stay at the desired height by itself.
3. If the monitor falls down, lift the arm to keep it
in horizontal position and then use the 5mm Alley
key [M] to turn the bolt counter-clockwise(“+”
direction) to increase tension of the arm only
until the monitor can stay at the desired height
by itself.
M

Step 5 Adjustments
“+” Clockwise: Tighten
“-” Counter-clockwise: Loosen
Situation 1: If the monitor can stay at the desired tilt angle by itself,
no adjustment needed.
Situation 2: If the monitor can not stay at the desired tilt angle by
itself, turn the bolt clockwise or counter-clockwise as shown until
the monitor can stay at the desired tilt angle by itself.
Level and Rotation Adjustments
If needed, the TV can be levelled
and rotated 360 degree
08
Tilt Adjustment

M
M
Step 5-2 Route the cables along the arm and secure the cable covers to the
arm [A]
Step 6 Route the Cables Along the Arm [A]
Step 5-1 Detach the cable covers from the arm [A]
M
Note: Loosen the preassembled bolts from the covers,
then pinch the both sides of the bottom end of the
cable covers to make it detach from the arm
09
Note: Pinch the both side of the bottom end of the
cable cover to make it attach to the arm, then fasten
the bolt to secure the cover to the arm.
M

Thank you again for
choosing this product!
All of us do appreciate your product purchase. We hope that you are
as happy with your product as we are designing and manufacturing it
for you. We strive to provide you with the best quality products and
services in the industry. Should you have any issues, please don't
hesitate to contact us at
[email protected](US/CA/DE/UK/FR/IT/ES/AU)
