Huawei HG658d User manual

HG658d Home Gateway
User Guide
HUAWEI TECHNOLOGIES CO., LTD.

HG658d Home Gateway
V100R001
User Guide
Issue 01
Date 2013- 07-23
Part Number 202633
Huawei Technologies Co., Ltd. provides customers with comprehensive
technical support and service. Please feel free to contact our local office
or company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: [e-mail]

Copyright © Huawei Technologies Co., Ltd. 2013. All
rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd. and its affiliates
("Huawei").
The product described in this manual may include copyrighted software of Huawei and
possible licensors. Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense
the said software, unless such restrictions are prohibited by applicable laws or such
actions are approved by respective copyright holders.
Trademarks and Permissions
, , and
are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned may be the property
of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and therefore may not be activated or
may be limited by local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which
you purchase.
Huawei reserves the right to change or modify any information or specifications
contained in this manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT
SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE,
DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF
WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR
PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT
DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY
CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.

Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be
responsible to obtain all necessary governmental permits and licenses in order to export,
re-export or import the product mentioned in this manual including the software and
technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy
policy at http://consumer.huawei.com/en/privacy-policy/index.htm.

i
Contents
Contents ........................................................................................ i
1 Connecting Cables and Getting Started.................................. 1
1.1 Connecting Cables Using the WAN Port ...................................1
1.2 Connecting Cables Using the DSL Port.....................................2
2 Setting Network Access Parameters....................................... 4
2.1 Logging in to the Web-based Configuration Utility.....................4
2.2 Configuring Internet Access Parameters ...................................4
3 Setting Up a Wireless Connection........................................... 5
3.1 Setting up a Wireless Connection Using the WPS Button.........5
3.2 Setting up a Wireless Connection Manually ..............................6
4 Voice Services ........................................................................... 7
5 Configuring the HG658d........................................................... 7
5.1 Accessing Mobile Storage Devices Using the FTP Client..........7
5.2 Changing the User Name and Password for the Web-based
Configuration Utility ..........................................................................8
5.3 Changing the Login IP Address .................................................9
5.4 Enabling or Disabling the Wireless Network Function.............10
5.5 Changing the Wireless Network Name and Password............10
5.6 Configuring the Firewall ...........................................................11
5.7 Restoring Default Settings .......................................................12
5.8 Restarting the HG658d ............................................................12
6 FAQs......................................................................................... 13
7 Technical Specifications......................................................... 19
7.1 Indicators..................................................................................19
7.2 Ports and Buttons.....................................................................22

ii
7.3 Default Settings........................................................................24
7.4 Product Specifications..............................................................24

1
1 Connecting Cables and Getting Started
Thank you for purchasing the HG658d (HG658d for short).
You can go online using the Ethernet and DSL modem services. However, you
can only use one type of service at one time.
1.1 Connecting Cables Using the WAN Port

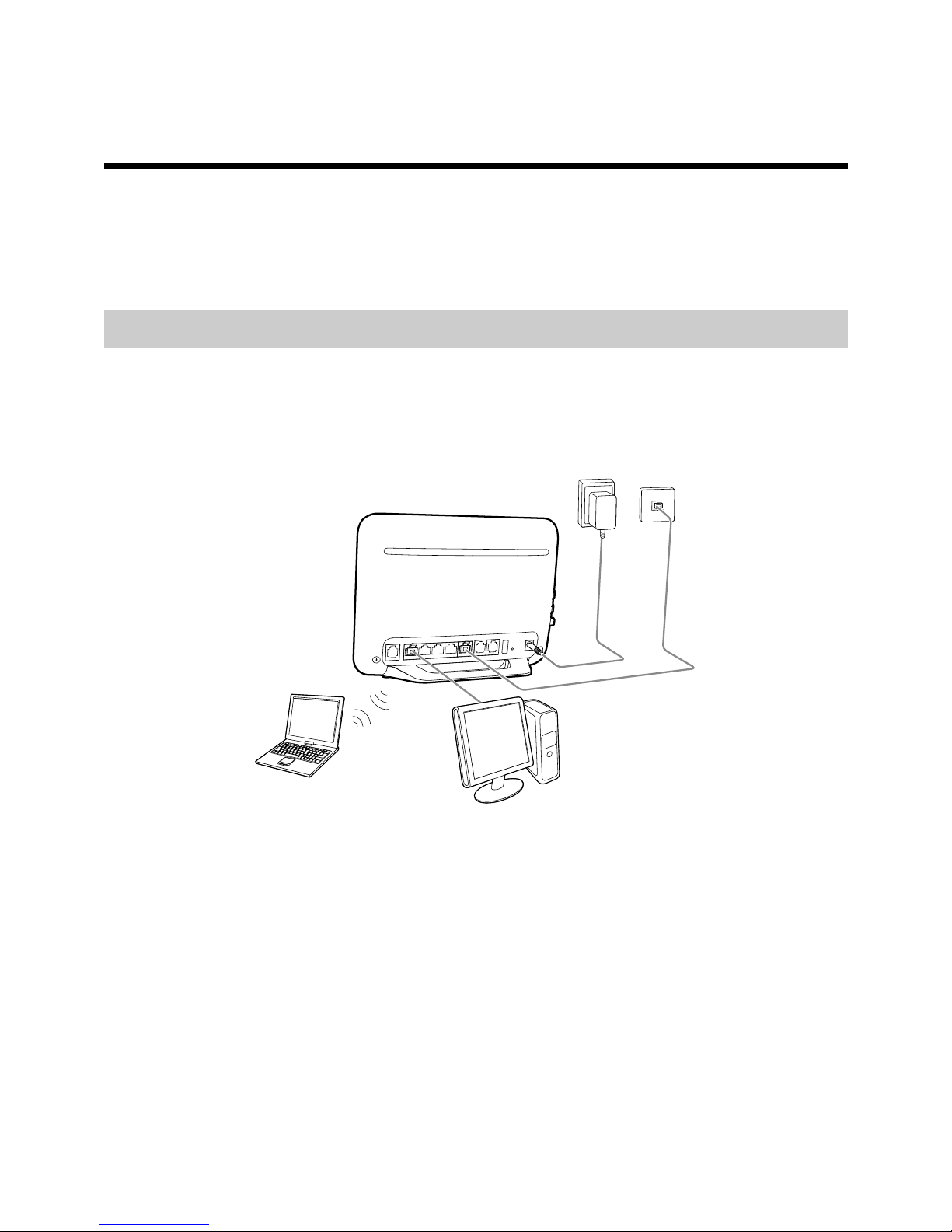

Connecting Cables
If there is at least one Ethernet wall jack available in your home, you can access
the Internet using the Ethernet.
12
3
5
4
DSL USB
Reset
Power
LAN4 LAN3 LAN2 LAN1 WAN PHONE2 PHONE1
1 Power adapter 2
Ethernet wall jack 3 Desktop computer
4 Laptop computer 5
HG658d
Getting Started
After connecting the cables, press the On/Off button on the side panel to power
on the HG658d.
After you power on the HG658d, the Power indicator turns on, the INTERNET
indicator turns on. This indicates that the HG658d is working properly. When the

2
INTERNET indicator starts blinking, data is being transmitted between the
HG658d and the connected device.
1.2 Connecting Cables Using the DSL Port
Connecting Cables
If there is at least one telephone jack available in your home, you can access
the Internet using digital subscriber line (DSL) services.

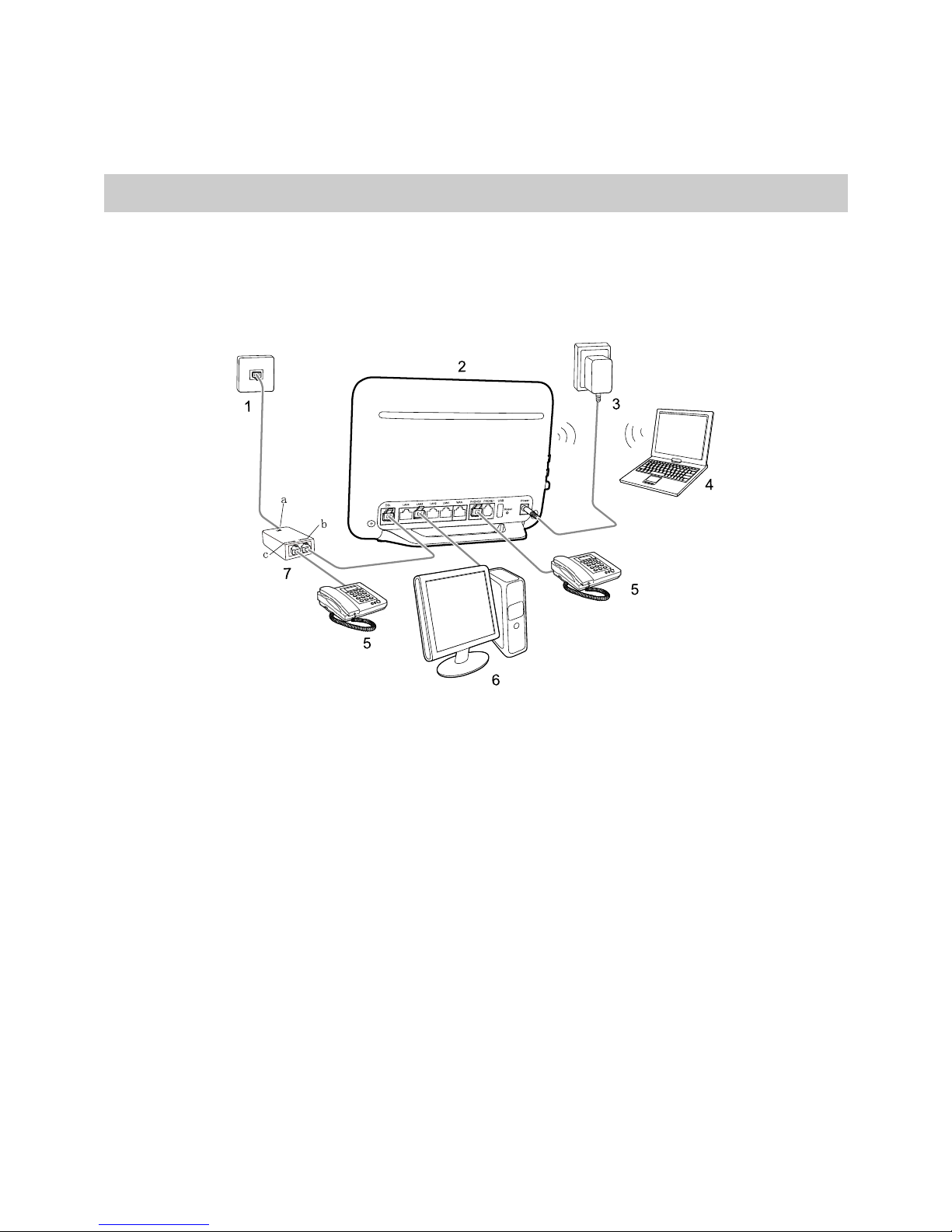

1 Telephone wall jack 2 HG658d 3 Power adapter
4 Laptop computer 5 Telephone 6 Desktop computer
7 Splitter
a LINE port b MODEM port c PHONE port
Getting Started
After connecting the cables, press the On/Off button on the side panel to power
on the HG658d.
After you power on the HG658d, the Power indicator turns on. The WAN
indicator lights up and starts blinking. This indicates that the DSL port activation
is in progress. The blinking may last less than 3 minutes. When the WAN
indicator stops blinking and remains on, the HG658d is working properly.

3
To power off the HG658d, press the On/Off button on the side
panel, and then unplug the power adapter.

4
2 Setting Network Access Parameters
2.1 Logging in to the Web-based Configuration
Utility
Most parameters of the HG658d are pre-set before delivery to meet common
home application scenarios. To check the HG658d's working status or configure
certain advanced network functions, use the web-based configuration utility.
To log in to the web-based configuration utility:
1. Open a browser on your computer. Enter http://192.168.1.1 in the address
box, and then press Enter.
2. On the login page, enter your user name (user by default) and password
(HuaweiUser by default).Click Login.
After the system verifies your account information, the web-based
configuration utility is displayed.
2.2 Configuring Internet Access Parameters
After logging in to the web-based configuration utility, you can use the
setup wizard to quickly configure the HG658d.
1. Log in to the web-based configuration utility.
2. Click Setup Wizard.
3. Click Next.
4. In User name and Password, enter the user name and password that are
provided by your service provider, and then click Next.
5. Set WLAN parameters by choosing Basic > WLAN. You can configure the
SSID and WPA pre-shared key. The default wireless network name
(SSID) are printed on the label of the HG658d's rear panel are preset before
delivery. And then click Next.
6. Check that the wireless name you set is correct, and then click Submit.

5
3 Setting Up a Wireless Connection
If a wireless network adapter is installed on your computer, you can connect
your computer to the HG658d over a wireless connection.
The method for installing the wireless adapter and its driver varies
by vendor. For details, see the installation guide provided by the
vendor of your wireless adapter.
There are two methods for setting up a wireless connection between the
HG658d and your computer.
3.1 Setting up a Wireless Connection Using the
WPS Button
The HG658d supports the Wi-Fi Protected Setup (WPS) function in Push
Button Configuration (PBC) mode. If your wireless network adapter also
supports the WPS function, do the following to connect your computer to the
HG658d over a wireless connection:
1. Press and hold the WPS button (on the HG658d side panel) more than 1
second.
2. The WLAN indicator light on the HG658d starts blinking, indicating that the
HG658d is in the WPS negotiation state.
3. Enable the WPS negotiation function on the computer within 2 minutes of
the previous step.
4. Wait until the HG658d WLAN indicator light stops blinking and remains
steady on. This indicates that a wireless connection is set up between the
HG658d and the computer.
The WPS function can be used only when the security mode of the
WLAN is set to WPA2-PSK or WPA-PSK/WPA2-PSK.

6
3.2 Setting up a Wireless Connection Manually
Besides using the WPS button, you can also set up a wireless connection
manually.
The following example uses a computer running the Windows XP operating
system to describe how to set up a wireless connection using the
default wireless network name and password:
1. Find the wireless network name (SSID) and its password (WLAN Key)
printed on the label of the HG658d's rear panel.
2. Start the wireless configuration service of the Windows XP operating
system as follows:
1) Right-click My Computer to display a short-cut menu, and then choose
Manage.
2) In the Computer Management window, choose Computer
Management (Local) > Services and Applications > Services.
3) Right-click Wireless Zero Configuration to display a shortcut menu,
and then choose Properties.
4) Check that Service status is Started. If Service status is not Started,
click Start.
5) Click OK to close the dialog box, and the close the Computer
Management window.
3. Configure the wireless network connection on the computer as follows:
1) Choose Start > All Programs > Accessories > Communications >
Network Connections.
2) In the Network Connections window, right-click Wireless Network
Connection to display a shortcut menu, and choose Properties.
3) In the Wireless Network Connection Properties dialog box, click the
Wireless Networks tab.
4) Select Use Windows to configure my wireless network settings.
5) Click View Wireless Networks.

7
6) In the Wireless Network Connection dialog box, select the wireless
network whose name is the same as the one you recorded in 1, and click
Connect.
7) In the dialog box, enter the password you recorded in 1, and then click
Connect.
After the system verifies the password, Connected appears on
the wireless network icon in the wireless network list, indicating that your
computer has established a wireless connection to the HG658d.
8) Close the Wireless Network Connection dialog box.
You need to set up a wireless connection only once. You can
access the wireless network anytime you want as long as
the wireless network name and password are not changed. When
the HG658d is working properly, your computer connects to the
HG658d automatically after its wireless function is enabled.
4 Voice Services
The HG656c supports voice over IP (VoIP) services based on Session Initiation
Protocol (SIP).SIP is an application layer protocol used to create, modify, and
end multimedia sessions.
The HG658d's Voice over Internet Protocol (VoIP) parameters are set before
delivery. Generally, these parameters do not need to be modified. You can use
the VoIP services directly.
5 Configuring the HG658d
5.1 Accessing Mobile Storage Devices Using
the FTP Client
The HG658d supports a home storage function. Mobile storage devices, such
as a USB flash drive, can be connected to the USB port on the HG658d. You

8
can then access the mobile storage devices from the Local Area Network (LAN)
or Internet.
To access a mobile storage device:
1. Connect the mobile storage device to the HG658d's USB port.
2. Enable the FTP server, and then configure the FTP server settings.
1) Log in to the web-based configuration utility.
2) Choose Advanced > USB Port.
3) Select Enable FTP Server.
4) In User name and Password, enter the user name and password of the
FTP server (both default values are ftp). Keep the default settings of
other parameters.
5) Enter a server port number (default is 21) in the Port text box.
6) Click Submit to save the settings.
3. Start the FTP client, and access the HG658d's LAN IP address through the
FTP server.
1) On your computer, open a web browser.
2) Enter FTP://192.168.1.1in the address box, and then press Enter.
3) In the Login dialog box, enter the user name and password for the FTP
server (values that you set in 2), and then click Login.
After the system verifies the user name and password, you can read data from
or write data to the mobile storage device connected to the HG658d.
5.2 Changing the User Name and Password for
the Web-based Configuration Utility
For safety or convenience reasons, you can change the user name and
password for the web-based configuration utility.
To change the login user name and password:
1. Log in to the web-based configuration utility.

9
2. Choose Maintenance >Account to display the user information
management page.
3. Enter a new user name, your current password, and new password in the
corresponding text boxes. Re-enter the new password to confirm it.
4. Click Submit.
After the user name and password are changed, the login page is displayed
again. Enter your new user name and password to log in.
If you cannot remember the user name and password that you
have set, you can restore them to their default settings by pressing
and holding the Reset button for over 6 seconds. Once complete,
the login information of the web-based configuration utility is
restored to default settings. When the default settings are restored,
your custom data is lost. Therefore, exercise caution when using
the Reset button.
5.3 Changing the Login IP Address
You can change the login IP address of the web-based configuration utility
according to your individual requirements.
To change the login IP address:
1. Log in to the web-based configuration utility.
2. Choose Basic > LAN.
3. Enter a new IP address in the IP address text box, and then enter a subnet
mask in Subnet mask text box.
4. Click Submit to save the settings.
To log in to the web-based configuration utility after you change the
login IP address, enter the new IP address into the web browser's
address box. Ensure that the IP address of the computer is in the
same network segment as that of the HG658d to enable the
computer to access the web-based configuration utility.

10
5.4 Enabling or Disabling the Wireless Network
Function
There are two methods for enabling or disabling the wireless network function.
Using the WLAN Button
To enable or disable the wireless network function, press the WLAN button
more than 1 second. The WLAN indicator light indicates the status of
the wireless network function.
Using the Web-based Configuration Utility
To enable or disable the wireless network function from the web-based
configuration utility:
1. Log in to the web-based configuration utility.
2. Choose Basic > WLAN.
3. Select Enable WLAN.
Select Enable WLAN to enable the wireless network function.
Clear Enable WLAN to disable the wireless network function.
5.5 Changing the Wireless Network Name and
Password
The default wireless network encryption mode is WPA-PSK/WPA2-PSK. You
can find the default wireless network name (SSID) and password (WLAN Key)
printed on the label of the HG658d's rear panel.
To change the wireless network name and password:
(This example uses WPA-PSK/WPA2-PSK encryption mode.)
1. Log in to the web-based configuration utility.
2. Choose Basic > WLAN.
3. Select Enable WLAN.
4. Enter a wireless network name in SSID text box.

11
5. For Security Mode, select WPA-PSK/WPA2-PSK. Enter a password in
WPA Pre-Shared Key text box. Use default settings for other parameters.
6. Click Submit.
You will be prompted to enter this password when connecting wireless devices,
such as a computer, to the HG658d's wireless network. You cannot connect to
the HG658d's wireless network if you enter an incorrect password.
If you cannot remember the wireless network name and password,
log in to the web-based configuration utility to set a new name and
password. Alternatively, you can restore the HG658d to its default
settings. The name and password are then restored to the values
printed on the label of the HG658d's rear panel.
5.6 Configuring the Firewall
The firewall can protect the terminal against malicious access on the WAN port
and is used when the HG658d works in routing mode. To configure the firewall,
do as follows:
1. Log in to the HG658d's web-based configuration utility.
2. Choose Advanced >Firewall to display the firewall page.
3. Select a firewall level for Firewall level.
4. Click Submit.

12
5.7 Restoring Default Settings
If you restore the HG658d to default settings, all customized user
data will be lost. Therefore, exercise caution when using this
function.
To restore the HG658d to default settings, power on the HG658d, press and
hold the Reset button more than 6 seconds, and then release.
You can also restore the HG658d to default settings from the web-based
configuration utility:
1. Log in to the web-based configuration utility.
2. Choose Maintenance > Device.
3. Click Restore Default Settings.
4. In the displayed dialog box, click OK.
After the preceding steps are complete, the login page is displayed. You can
then enter the default user name (user) and password (HuaweiUser) to log in.
5.8 Restarting the HG658d
1. Log in to the web-based configuration utility.
2. Choose Maintenance > Device.
3. Click Reboot.

13
6 FAQs
How can I quickly enable or disable the wireless network function?
Press and hold the WLAN button more than 1 second, and then release. The
WLAN indicator light indicates the status of the wireless network function.
How can I quickly restore the HG658d to its default settings?
To restore the HG658d to default settings, press and hold the Reset button
for over 6 or more seconds when the HG658d is powered on, and then
release.
What can I do if I cannot access the Internet?
1. Check that the Power indicator on the HG658d is steady on.
If the Power indicator is off, perform further checks as follows:
1) Check that the HG658d is turned on.
2) Check that electricity comes from the socket and that the power input
from the socket meets the requirements described on the label of the
HG658d's power adapter. If the voltage is unstable, for example, if the
voltage is too high or too low, do not use the HG658d. Wait until the
voltage recovers, and then use the HG658d.
3) Check that the HG658d is securely connected to the socket using its
power adapter.
If the Power indicator is still off, contact an authorized maintenance
center.
2. After powering on the HG658d, wait for about 3 minutes. Then
check whether the WAN indicator turns steady on.
If the WAN indicator is off, perform further checks as follows:
1) Check that the telephone line is correctly and securely connected,
especially the connection between the telephone line and the splitter.
2) Check that the HG658d and telephone line are located far from any
electric appliances that generate strong magnetic or electric fields.
Replace the telephone line when necessary.

14
If the WAN indicator is still off, contact your network service provider.
3. Check that you have entered the correct user name and password.
4. The user name and password are provided by your network service
provider. To check the user name and password, see section 0“
Configuring Internet Access Parameters”.
5. Check whether the LAN indicator is on.
If the LAN indicator is off, perform further checks as follows:
1) Check that the network adapter on your computer is enabled.
2) Check that the network cable between the HG658d and the computer
is securely connected. Remove and then insert the network cable or
replace the network cable when necessary.
If the LAN indicator is still off, contact an authorized maintenance
center.
6. Check that the driver for the network adapter is correctly installed. The
following example uses a computer running the Windows XP operating
system to check whether the driver for the network adapter is installed:
1) Right-click My Computer, and choose Manage from the displayed
shortcut menu.
2) In the Computer Management window, click Device Manager.
3) In the right pane of the Computer Management window, click
Network adapters.
If no network adapter is found or if a question mark (?) or an
exclamation mark (!) is displayed next to the network adapter icon, the
driver for the network adapter is not correctly installed. Re-install the
driver.
7. Check that the proxy server of the browser is correctly configured. The
following example uses Internet Explorer on the Windows XP operating
system to check whether the proxy server of the browser is correctly
configured:
1) Launch Internet Explorer.
2) Choose Tools > Internet Options.
