Huawei SUN2000-(3KTL-12KTL)-M0 User manual

SUN2000-(3KTL-12KTL)-M0
Quick Guide
HUAWEI TECHNOLOGIES CO., LTD.
Issue: 02
Part Number: 31509649
Date: 2018-12-30

1
(1) LED
(2) Front panel
(3) Hanging kit
(4) Heat sink
(5) Ventilation valve
(6) Ground screw
(7) AC output port (AC)
(8) Communication port (COM)
(9) Smart Dongle port (GPRS/4G/WLAN)
(10) Battery terminals (BAT+/BAT
–) (reserved)
(11) DC input terminals (PV2+/PV2
–)
(12)
DC input terminals (PV1+/PV1–)
(13) DC switch (DC SWITCH)
1Overview
Copyright © Huawei Technologies Co., Ltd. 2018.
All rights reserved.
1. The information in this document is subject to change due to version upgrades or other reasons.
Every effort has been made in the preparation of this document to ensure accuracy of the
contents, but all statements, information, and recommendations in this document do not
constitute a warranty of any kind, express or implied.
2. Before installing the device, read the user manual carefully to get familiar with product
information and safety precautions.
3. Only qualified and trained electrical technicians are allowed to operate the device. Operation
personnel should understand the composition and working principles of the grid-tied PV power
system and local regulations.
4. Before installing the device, check that the package contents are intact and complete against
the packing list. If any damage is found or any component is missing, contact your dealer.
5. Use insulating tools when installing the device. For personal safety, wear proper personal
protective equipment (PPE).
6. Huawei shall not be liable for any consequences caused by the violation of the storage,
transportation, installation, and operation regulations specified in this document and the user
manual.

2

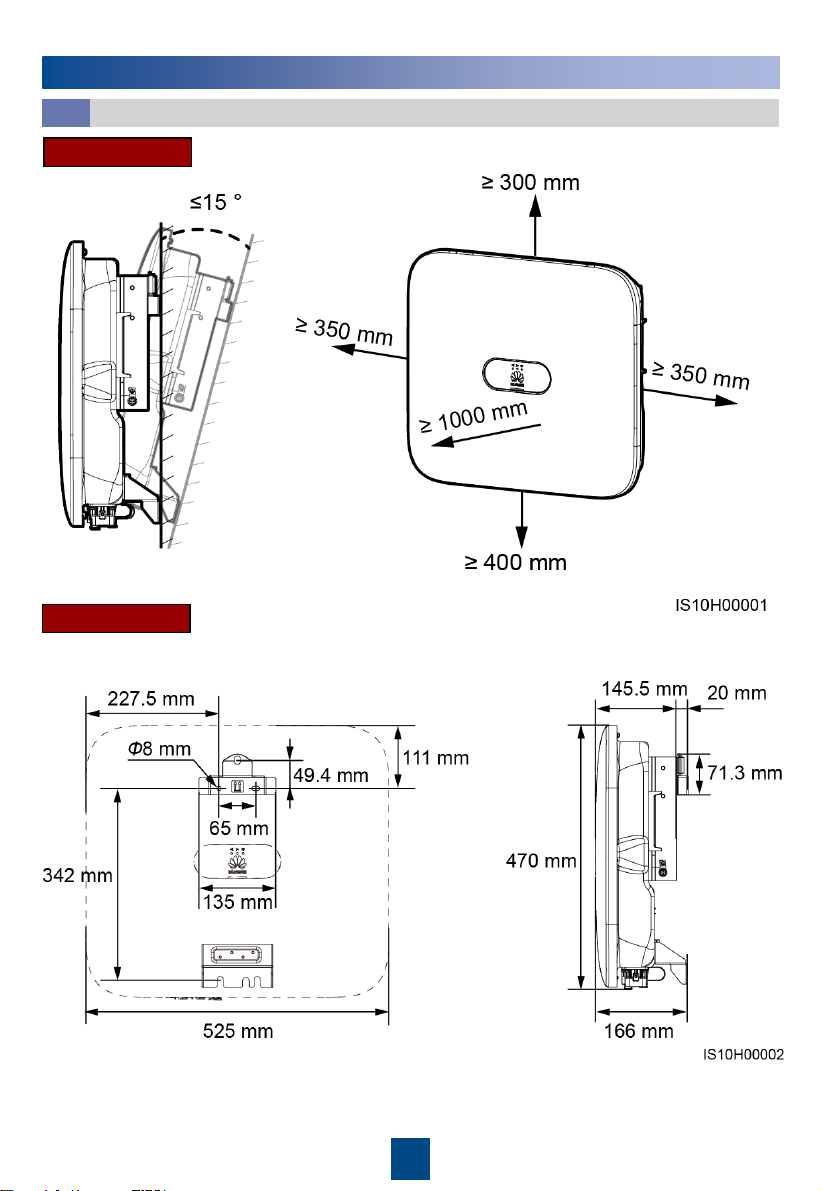

Dimensions
Tilt and Space
2Installing the Device
Installation Requirements
2.1

3
Installing the SUN2000
2.2
Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) by yourself. An outdoor
waterproof lock is recommended.
NOTE
2. Install the SUN2000 on the mounting bracket. 3. (Optional) Install an anti-
theft lock.
•M6x60 expansion bolts are delivered with the SUN2000. If the length and amount of the bolts
do not meet installation requirements, prepare M6 stainless steel expansion bolts by yourself.
•Loosen the nuts, flat washers, and spring washers of the two expansion bolts below.
NOTE
1. Install the mounting bracket.
When drilling holes, avoid the water pipes and power cables buried in the wall.

4
•Connect cables in accordance with the local installation laws and regulations .
•Before connecting cables, ensure that the DC switch on the SUN2000 and all the switches
connecting to the SUN2000 are set to OFF position. Otherwise, the high voltage of the
SUN2000 may result in electric shocks.
Preparing for Installation
3.1
•The PE point at the AC output port is used only as a PE equipotential point, not a substitute for
the PE point on the enclosure.
•It is recommended that silica gel or paint be used around the ground terminal after the PE cable
is connected.
NOTE
Installing the PE Cable
3.2
3Electrical Connections
Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may occur.
No.
Item
Type
Specifications
1
PE cable
Single
-core outdoor copper
cable
Conductor cross
-sectional area ≥ 4
mm
2
2
AC output power cable
O
utdoor copper cable
•
Conductor cross-sectional area:
4–6 mm2
•
Cable outer diameter: 10–21 mm
3
DC input power cable
Standard outdoor PV cable in
the industry (recommended
model: PV1
-F)
•
Conductor cross-sectional area:
4–6 mm2
•
Cable outer diameter: 4.5–
7.8 mm
4
(Optional) RS485
communications cable
Two
-core outdoor shielded
twisted pair cable
•
Conductor cross-sectional area:
0.2–1 mm2(0.5 mm2
recommended)
•
Cable outer diameter: 4–11 mm
5
(Optional) RS485
power
meter signal cable
Two
-core outdoor shielded
twisted pair cable
6
(Optional) Grid
scheduling signal cable
Five
-core outdoor cable

5
Ensure that the protection layer of the AC output power cable is inside the connector, the core
wires are totally inserted into the cable hole, and the cable is connected securely. Failing to do so
may cause device malfunction or damage.
1. Connect the AC output power cable to the AC connector.
Four-core cable (L1, L2, L3, and PE)
Three-core cable (L1, L2, and L3)
Installing the AC Output Power Cable
3.3
Click
Click

6
Five-core cable (L1, L2, L3, N and PE)
AC output port (AC)
Four-core cable (L1, L2, L3, and N)
2. Connect the AC connector to the AC output port.
Click
Click

7
Installing DC Input Power Cables
3.4
3. Check the route of the AC output power cable.
1. Use the Amphenol Helios H4 PV connectors supplied with the SUN2000. If the PV connectors
are lost or damaged, purchase the connectors of the same model. The device damage caused
by incompatible PV connectors is not covered under any warranty.
2. Ensure that the PV module output is well insulated to ground.
3. The DC input voltage of the SUN2000 shall not exceed 1100 V DC under any circumstance.
4. Before installing the DC input power cable, label the cable polarities to ensure correct cable
connections.
5. Use the positive and negative metal contacts and black DC connectors supplied with the
SUN2000. Using incompatible positive and negative metal terminals and DC connectors may
result in serious consequences. The caused device damage is not covered under any warranty.
6. If the DC input power cable is reversely connected, do not operate the DC switch as well as
positive and negative connectors immediately. Failing to do so may cause device damage, which
is not covered under any warranty. Wait until the night when solar irradiance declines and the PV
string current drops to below 0.5 A. Then set the DC switch to the OFF position, remove the
positive and negative connectors, and correct the polarities of the DC input power cable.

8
Ensure that the locking
nut is secured.
Ensure that the cables are
correctly connected.
(The DC voltage of a multimeter
should not be less than 1100 V).
Click
Positive metal contact
Negative metal contact Ensure that the cable
cannot be pulled out
after being crimped.
Negative
connector
Positive connector
Pull back the DC input power cable to
ensure that it is in position.
Click
DC input terminals

(Optional) Installing the WLAN Smart Dongle
3.5
Smart Dongle port (GPRS/4G/WLAN)
9
NOTE
The WLAN Smart Dongle is delivered with the SUN2000.
LED indicator
Operation
LED Indicator
Remarks
Description
Color
Status
Installing
the Dongle
N/A
Off
Normal
The Dongle is not secured or is
not powered on.
Yellow (blinking
green and red
simultaneously)
Steady on
The Dongle is secured and
powered on.
Red
Blinking at short
intervals (on for
0.2s and off for
0.2s)
The parameters for connecting to
the router are to be set.
Red
Steady on
Abnormal
The Dongle is faulty. Replace the
Dongle.
Blinking red and
green
alternatively
Blinking at long
intervals (on for
1s and off for 1s)
No communication with the
inverter
•Remove and insert the Dongle.
•
Check
whether inverters match
the Dongle.
•
Connect the Dongle to other
inverters. Check whether the
Dongle or the USB port of the
inverter is faulty.

9
(Optional) Installing the Signal Cable
3.6
•Not all SUN2000 models are delivered with
the signal cable connector.
•When laying out the signal cable, separate it
from the power cable and keep it away from
strong interference sources to avoid strong
communication interference.
•Ensure that the protection layer of the cable is
inside the connector, surplus core wires are
cut off from the protection layer, the exposed
core wire is totally inserted into the cable hole,
and that the cable is connected securely.
•If the Smart Dongle is configured, you are
advised to install the Smart Dongle before
connecting the signal cable.
Pin
Definition
Function
Description
Pin
Definition
Function
Description
1
485A1
-1
RS485A
,
RS485
differential
signal+
Used to
connect to
the RS485
signal port
on the
SUN2000 or
SmartLogger
2
485A1
-2
RS485A, RS485
differential
signal+
Used to
connect to
the RS485
signal port
on the
SUN2000 or
SmartLogger
3
485B1
-1
RS485B, RS485
differential
signal
–
4
485B1
-2
RS485B, RS485
differential
signal
–
5
PE
Shielding
ground
N/A
6
PE
Shielding ground
N/A
7
485A2
RS485A, RS485
differential
signal+
Used to
connect to
an RS485
signal port
on a device
such as a
Smart Power
Sensor or an
energy
storage
8
DIN1
Dry contact for
grid scheduling
N/A
9
485B2
RS485B, RS485
differential
signal
–
10
DIN2
11
EN
Enabling signal
Reserved.
Used to
connect to
the enable
signal port
on an energy
storage
device
12
DIN3
13
GND
GND
N/A
14
DIN4
15
DIN5
Rapid shutdown
Reserved.
16
GND
Communication Port Pin Definition

11
NOTE
•The Smart Power Sensor is optional. The recommended Smart Power Sensor model is
DTSU666-H (purchased from Huawei).
•A maximum of five SUN2000-(3KTL-12KTL)-M0 inverters can be cascaded. Whencascading
the inverters, the RS485 cable can only be connected to 485A1 and 485B1.
•The Smart Dongle can be connected to any inverter on the link. When a Smart Power Sensor is
required, it must be connected to the same inverter as the Smart Dongle, and the signal cable
of the Smart Power Sensor must be connected to 485A2 and 485B2.
•Only one device can be connected to the GPRS Smart Dongle.
•Two types of 4G Smart Dongles are available, connecting a maximum of two and ten devices
respectively.
•A maximum of ten devices can be connected to the WLAN Smart Dongle.
•If a grid scheduling device needs to be connected to the link, it must be connected to the same
inverter as the Smart Dongle.

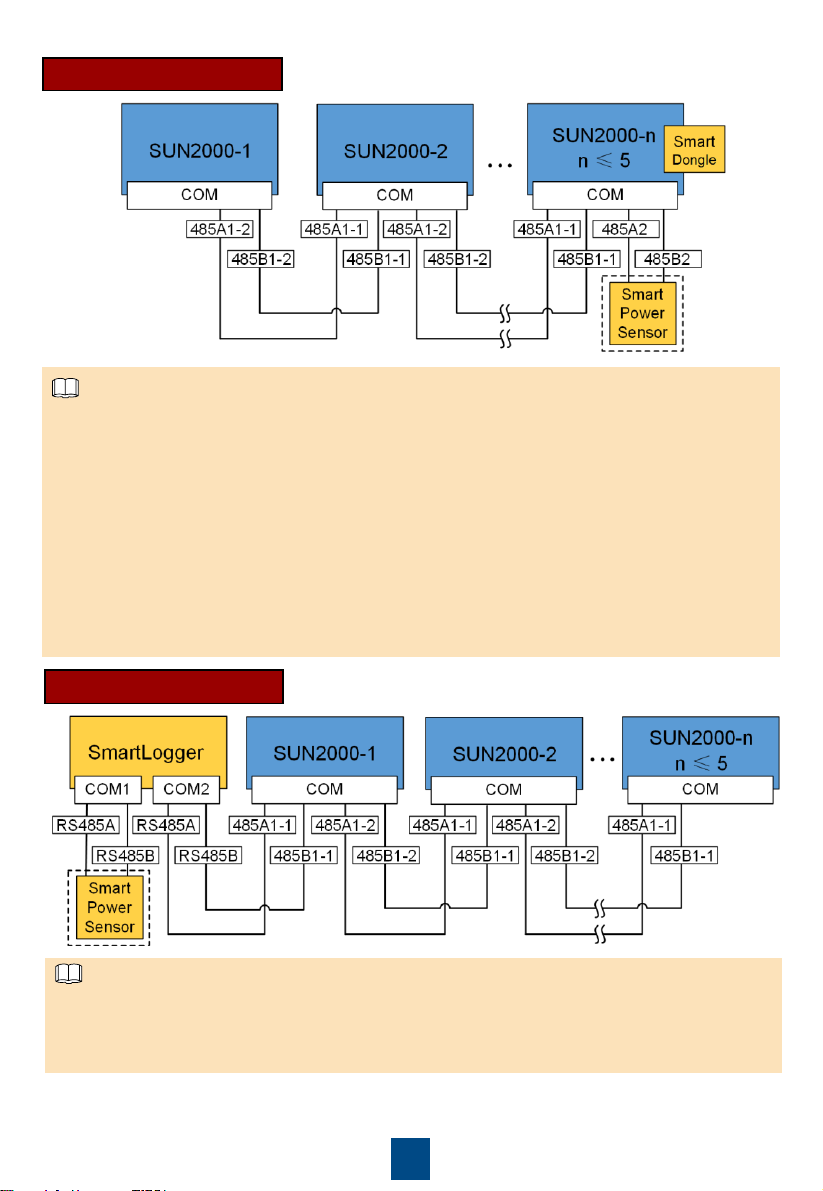

Smart Dongle Networking
SmartLogger Networking
NOTE
•The Smart Power Sensor is optional. The recommended Smart Power Sensor model is
DTSU666-H (purchased from Huawei). To ensure the system response speed, the Smart
Power Sensor is recommended to be connected to a COM port separately.
•A maximum of five SUN2000-(3KTL-12KTL)-M0 inverters can be cascaded.

12
Communication port (COM)
If two or more SUN2000s are cascaded, install RS485 communications cables.

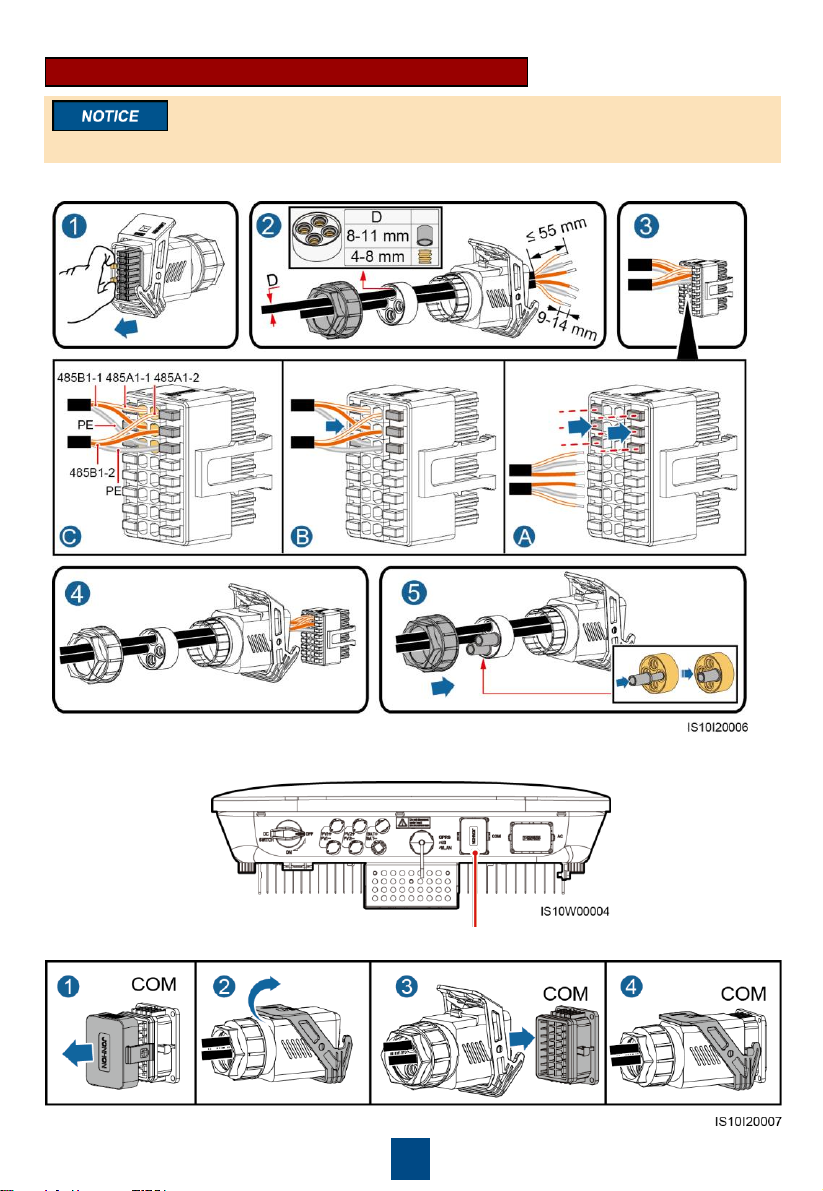

(Optional) Installing the RS485 Communications Cable
1. Connect the signal cable to the signal cable connector.
2. Connect the signal cable connector to the Communication port.

13

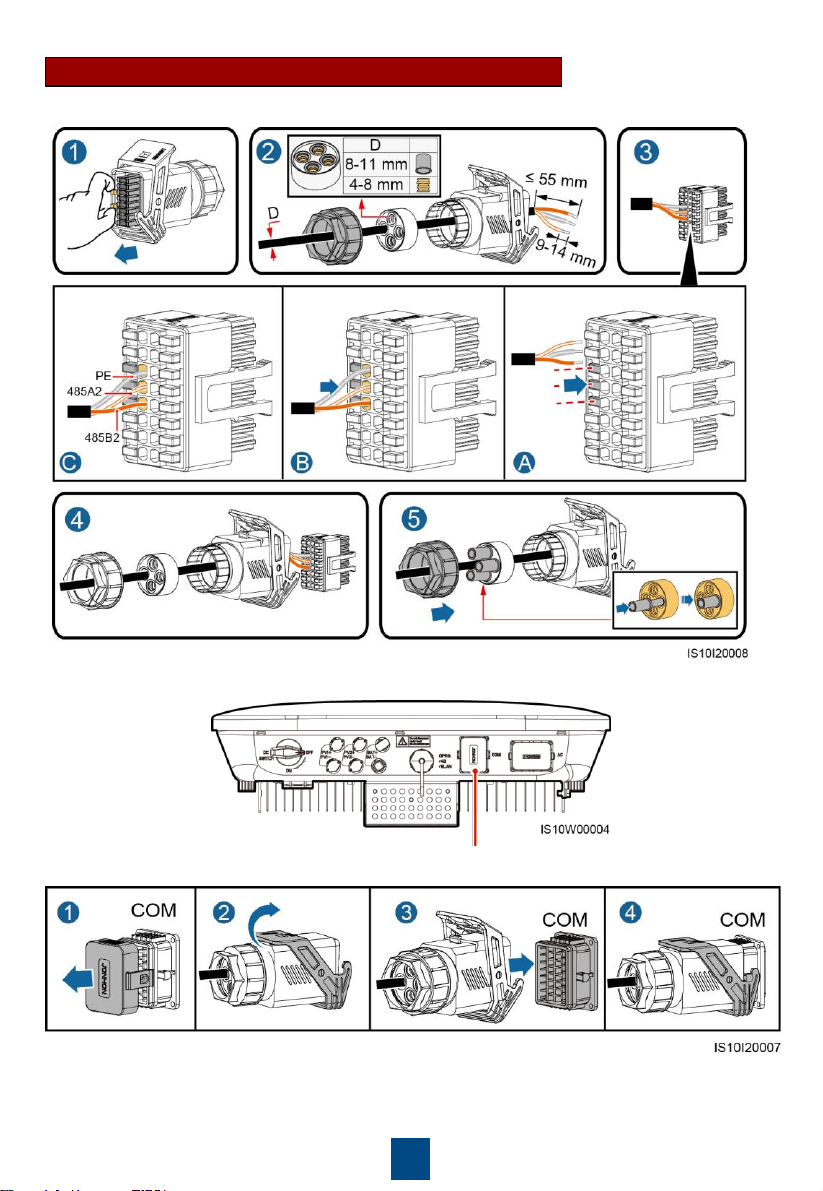

(Optional) Installing the Smart Power Sensor Signal Cable
1. Connect the signal cable to the signal cable connector.
2. Connect the signal cable connector to the Communication port.
Communication port (COM)

14
1. Connect the signal cable to the signal cable connector.
2. Connect the signal cable connector to the Communication port.
(Optional) Installing the Grid Scheduling Dry Contact Signal Cable
Communication port (COM)

15
1. Turn on the AC switch between the SUN2000 and the power grid.
2. Turn on the DC switch between the PV string and the SUN2000 if there is any.
3. Turn on the DC switch at the bottom of the SUN2000.
No.
Acceptance Criteria
1
The SUN2000 is installed correctly and securely.
2
Cables are routed properly as required by the customer.
3
The communications expansion module is installed correctly and securely.
4
Cable ties are evenly distributed and no burr exists.
5
The PE cable is connected correctly, securely, and reliably.
6
The DC switch and all the switches connected to the SUN2000 are set to the OFF position.
7
The AC output power cable, DC input power cable, and signal cable are connected
correctly, securely, and reliably.
8
Unused terminals and ports are locked by watertight caps.
9
The installation space is proper, and the installation environment is clean and tidy.
Before turning on the AC switch between the SUN2000 and the power grid, check that the AC
voltage is within the specified range using a multimeter.
4Verifying Installation
5Powering On the System

16
Category
Status (Blinking at Long
Intervals: On for 1s and then Off
for 1s; Blinking at Short
Intervals: On for 0.2s and then
Off for 0.2s)
Meaning
Running
indicator
N/A
Steady green
Steady green
The SUN2000 is operating in grid
-tied
mode.
Blinking green at
long intervals
Off
The DC is on and the AC is off.
Blinking green at
long intervals
Blinking green
at long intervals
The DC is on, the AC is on, and the
SUN2000 is not exporting power to the
power grid.
Off
Blinking green
at long intervals
DC is off and AC is on (only for non
-
China versions).
Off
Off
•
China version: DC is off, and AC
may be energized (Ensure that the
external AC switch is OFF).
•
Non-China versions: DC is off and
AC is on.
Blinking red at
short intervals
N/A
DC environmental alarm
N/A
Blinking red at
short intervals
AC environmental alarm
Steady red
Steady red
Faulty
Communication
indicator
N/A
Blinking green at short intervals
Communication is in progress. (When
a mobile phone is connected to the
SUN2000, the indicator first indicates
that the phone is connected to the
SUN2000): blinks green at long
intervals.)
Blinking green at long intervals
The mobile phone is connected to the
SUN2000.
Off
There is no communication.
4. Observe the LED indicators to check the SUN2000 operating status.

17

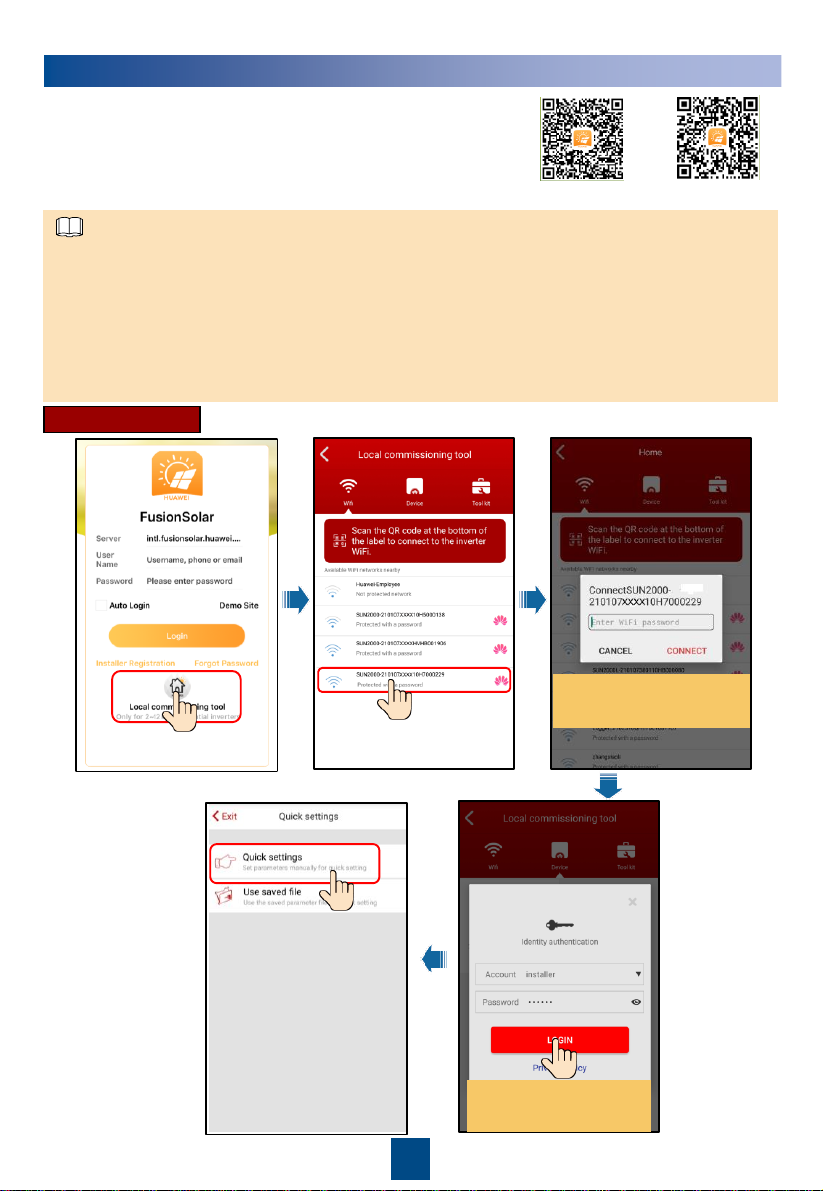

6Quick Setting
Search for "FusionSolar" from the following app stores or scan the
corresponding QR code on the right, download the installation
package, and install the FusionSoalr app by following the
instructions.
•Google Play (Android)
•App Store (iOS) Android iOS
Android
•The figures are for reference only.
•The name of the connected SUN2000 WiFi network is represented by SUN2000-Serial number
(SN). The SN is available on the label attached to the side of the SUN2000.
•Use the initial password Changeme upon first login. To ensure account security, change the
password immediately after login.
•If you log in for the first time and the initial SUN2000 WiFi password is not changed, you can
scan the WiFi login QR code on the side of the SUN2000 to connect to the SUN2000 WiFi
network. If connecting through the app does not work, try to connect from your mobile phone.
NOTE
The initial password is
Changeme.
The initial password
is 00000a.

18

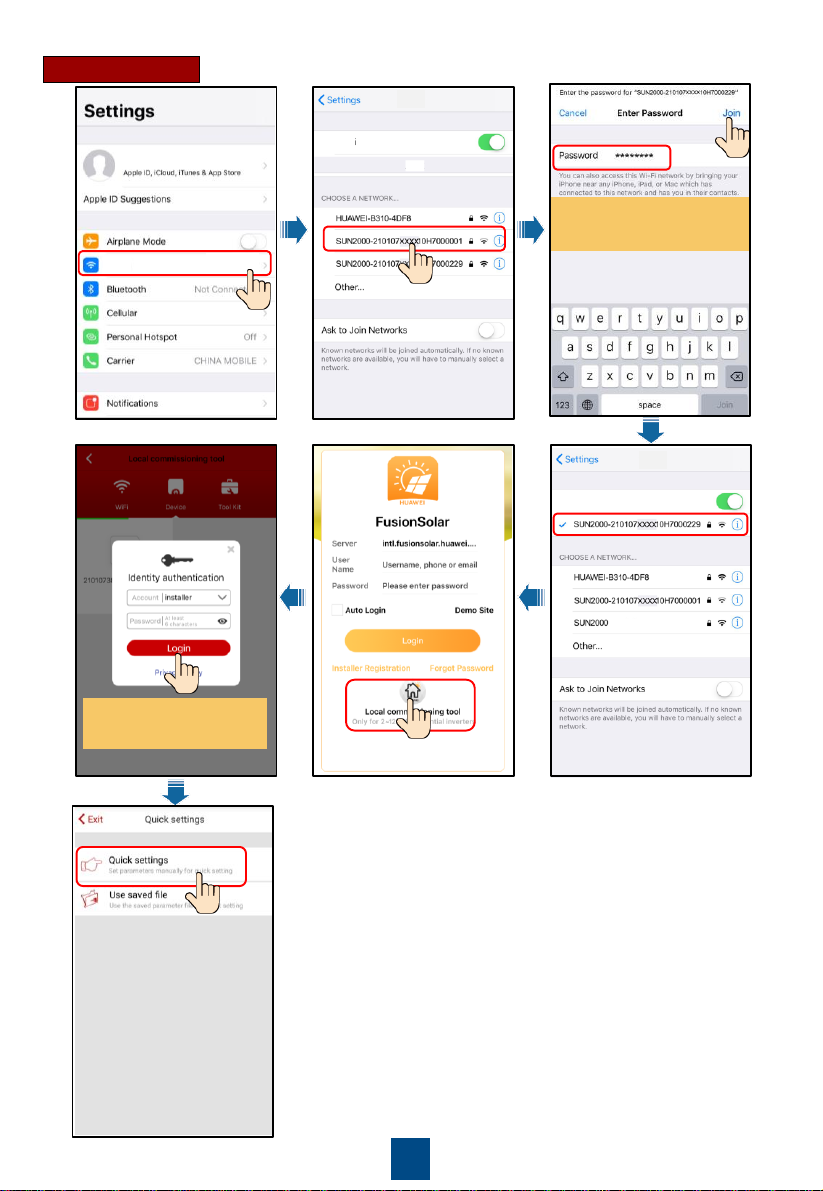

iOS
WLAN
WLAN
WLAN
WLAN
The initial password is
Changeme.
The initial password
is 00000a.
WLAN

19
7Creating a New PV Plant
(Optional) Installer Account Registration
WLAN
WLAN
•If there is an available WLAN
network, use it. •If there is not, disable WLAN and use Mobile
Data.
WLAN
WLAN
NOTE
Skip this step if you already have an installer account.
Connecting the Phone to the Internet (iOS is used as an example.)
