Huawei SUN2000-5KTL-L0 User manual

0
HUAWEI TECHNOLOGIES CO., LTD.
SUN2000-(2KTL-5KTL)-L0
Quick Guide
Issue: 02
Part Number: 31509986
Date: 2019-04-27

1
1Packing List
1. The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all
statements, information, and recommendations in this document do not constitute a warranty
of any kind, express or implied.
2. Before installing the device, closely read the user manual to get familiar with product
information and safety precautions.
3. Only certified electricians are allowed to operate the device. Operation personnel must wear
proper personal protective equipment (PPE) all the time.
4. Before installing the device, check that the package contents are intact and complete against
the packing list. If any damage is found or any component is missing, contact your dealer.
5. Huawei shall not be liable for any device damage caused by the violation of instructions in this
document.
6. The cable colors involved in this document are for reference only. Select cables in accordance
with local cable specifications.

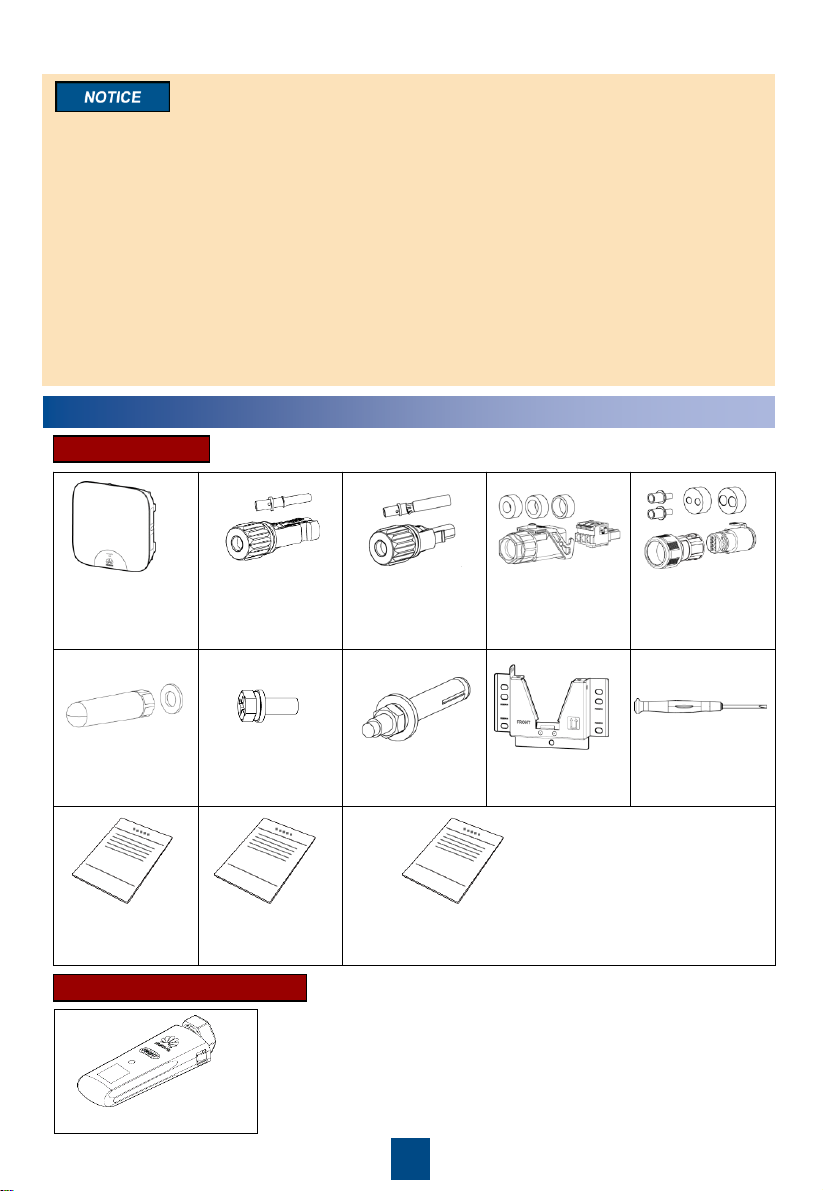

Solar inverter
(1 PCS) PV negative connector
(black, 2 set)
PV positive
connector
(black, 2 set)
AC connector
(1 set) Signal cable connector
(1 set)
Antenna
(1 set) Screw (3 set) Expansion bolt (3 PCS) Mounting bracket
(1 PCS) Screwdriver
(1 PCS)
Quick Guide
(1 PCS) Certificate (1 PCS) Solar Inverter Delivery Inspection
Report and Packing List (1 PCS)
SDongleA-03 (1 PCS)
SUN2000
(Optional) 4G Smart Dongle
Copyright © Huawei Technologies Co., Ltd. 2019.
All rights reserved.

2
2Overview

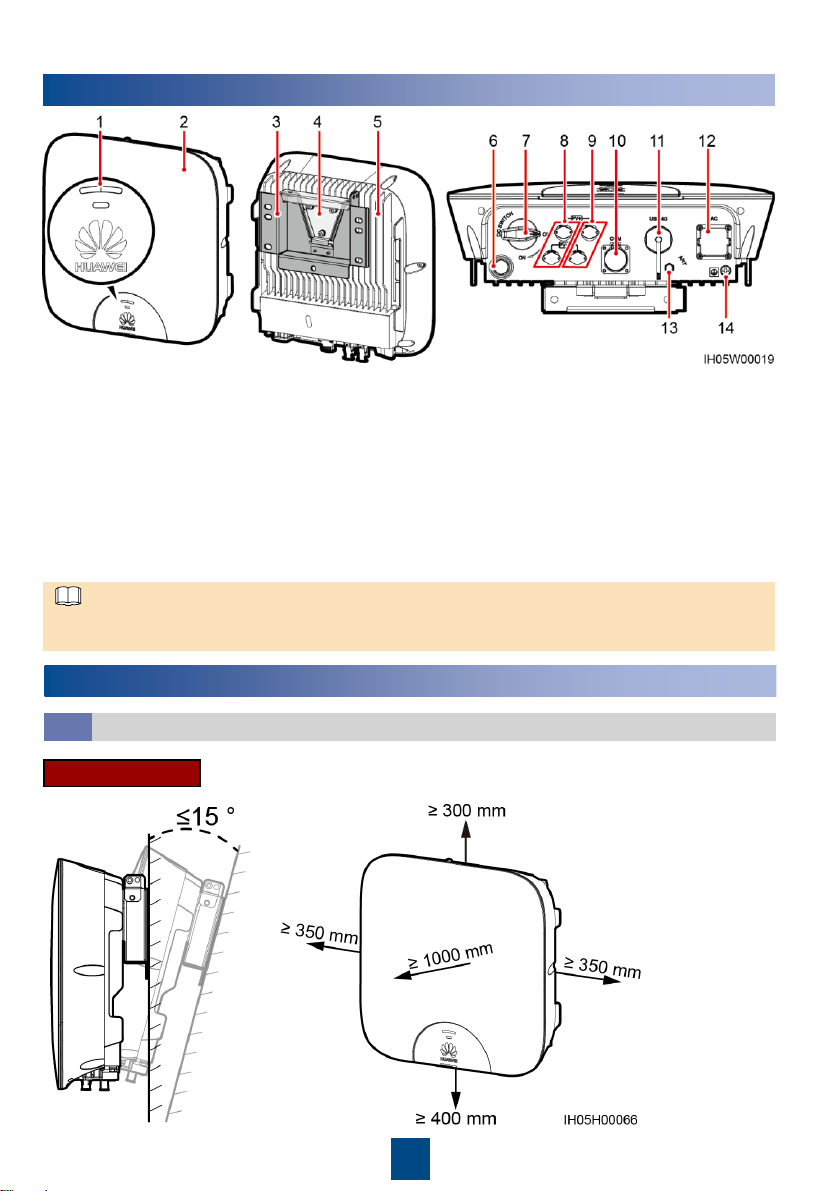

(1)
LED
(2)
Front panel
(3)
Mounting bracket
(4)
Mounting plate
(5)
Heat sink
(6)
Ventilation valve
(7)
DC switch (DC SWITCH)
(8)
DC input terminals
(PV1+/PV1–)
(9)
DC input terminals
(PV2+/PV2–)
(10)
COM port (COM)
(11)
USB-4G port cover (USB-4G)
(12)
AC output port (AC)
(13)
Antenna port (ANT)
(14)
Ground point
For the model without an external WiFi antenna, the antenna port (ANT) is actually a cover and
there is no port inside.
NOTE
Installation Requirements
3.1
Tilt and Space
3Installing the Device

3

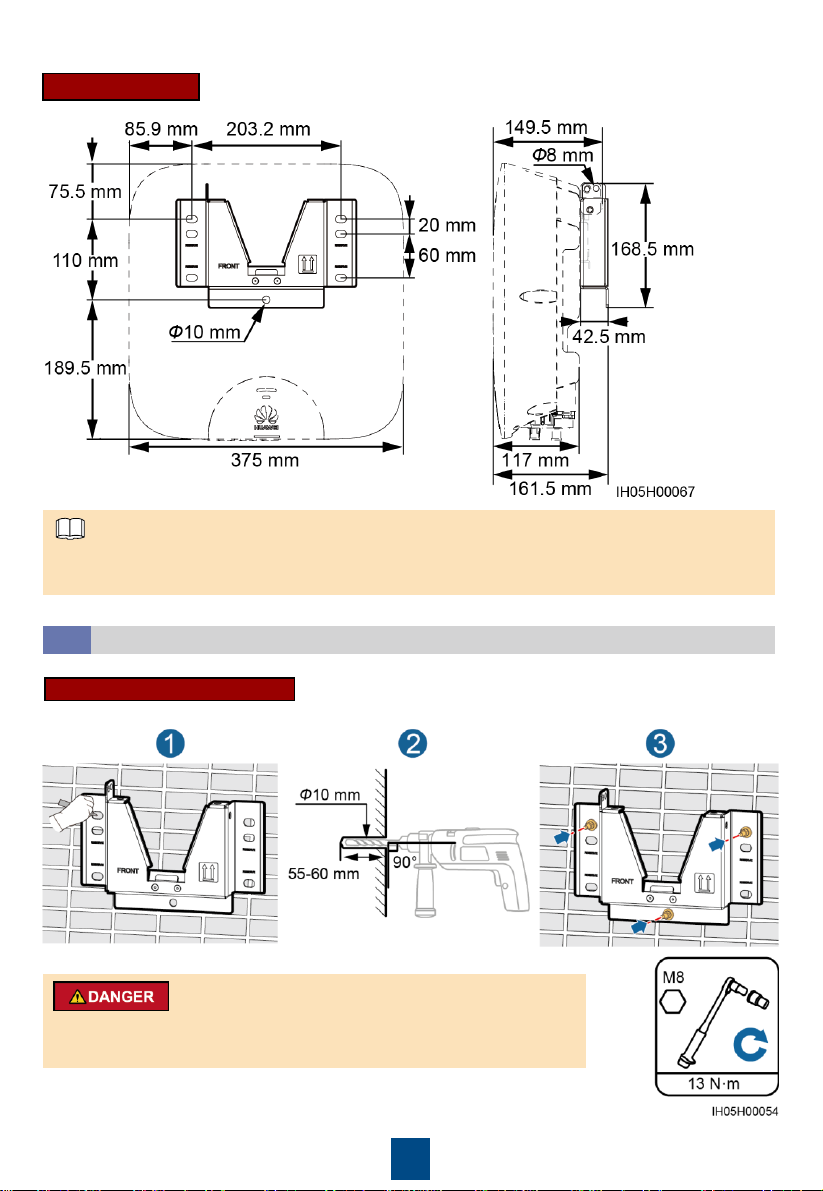

Dimensions
NOTE
If multiple inverters need to be installed, see SUN2000-(2KTL-5KTL)-L0 User Manual for the
installation dimensions.
Wall-mounted Installation
Installing the Mounting Bracket
3.2
Avoid drilling holes in the utility pipes and/or cables attached to the
back of the wall.

4
Prepare M8 stainless bolt assemblies (including flat washers, spring washers, and M8 bolts) with
appropriate lengths as well as matched flat washers and nuts based on the support specifications.

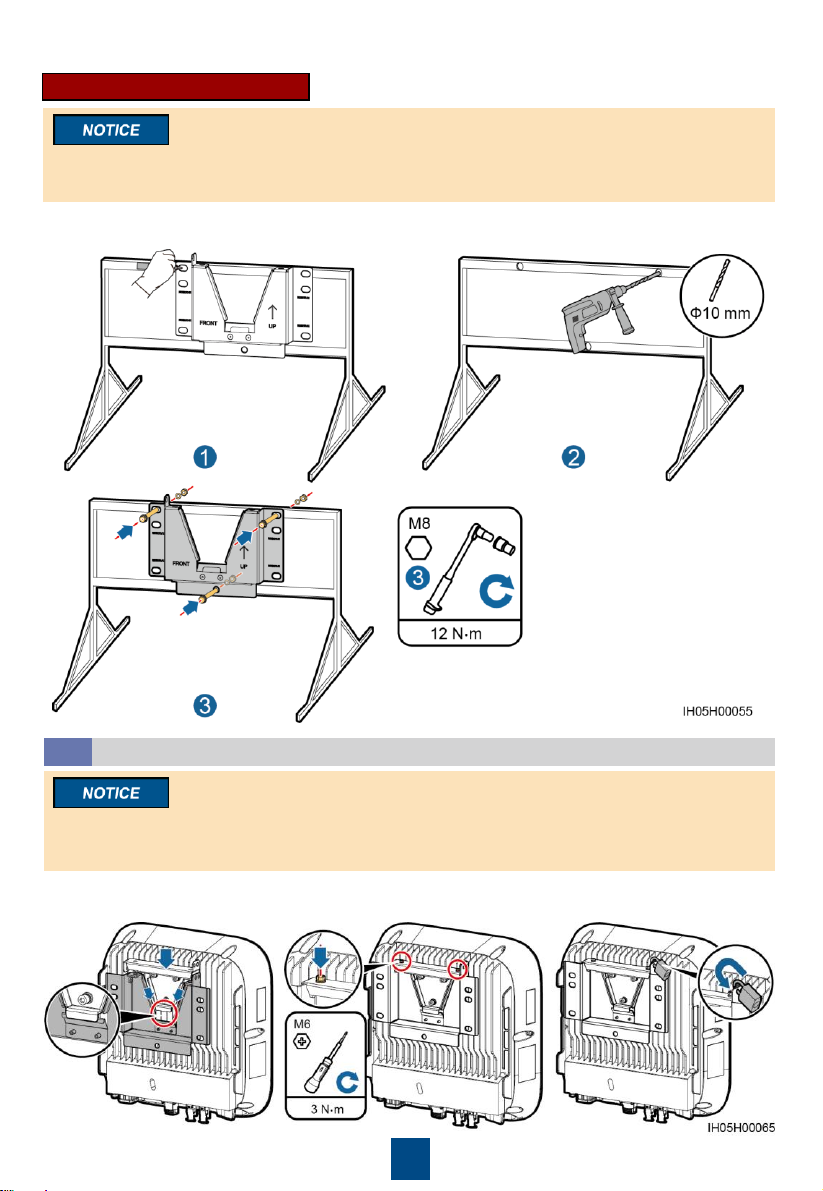

Support-mounted Installation
You are advised to apply anti-rust paint
on the hole positions for protection.
Installing the SUN2000
3.3
If the bottom of the mounting plate does not snap into place, push the SUN2000 from the front
until the bottom of the mounting plate snaps into the mounting bracket.
The anti-theft lock needs to be prepared by the customer.
1. Install the SUN2000 on the
mounting bracket. 2. Tighten screw assemblies. 3. (Optional) Install an anti-theft lock.

5

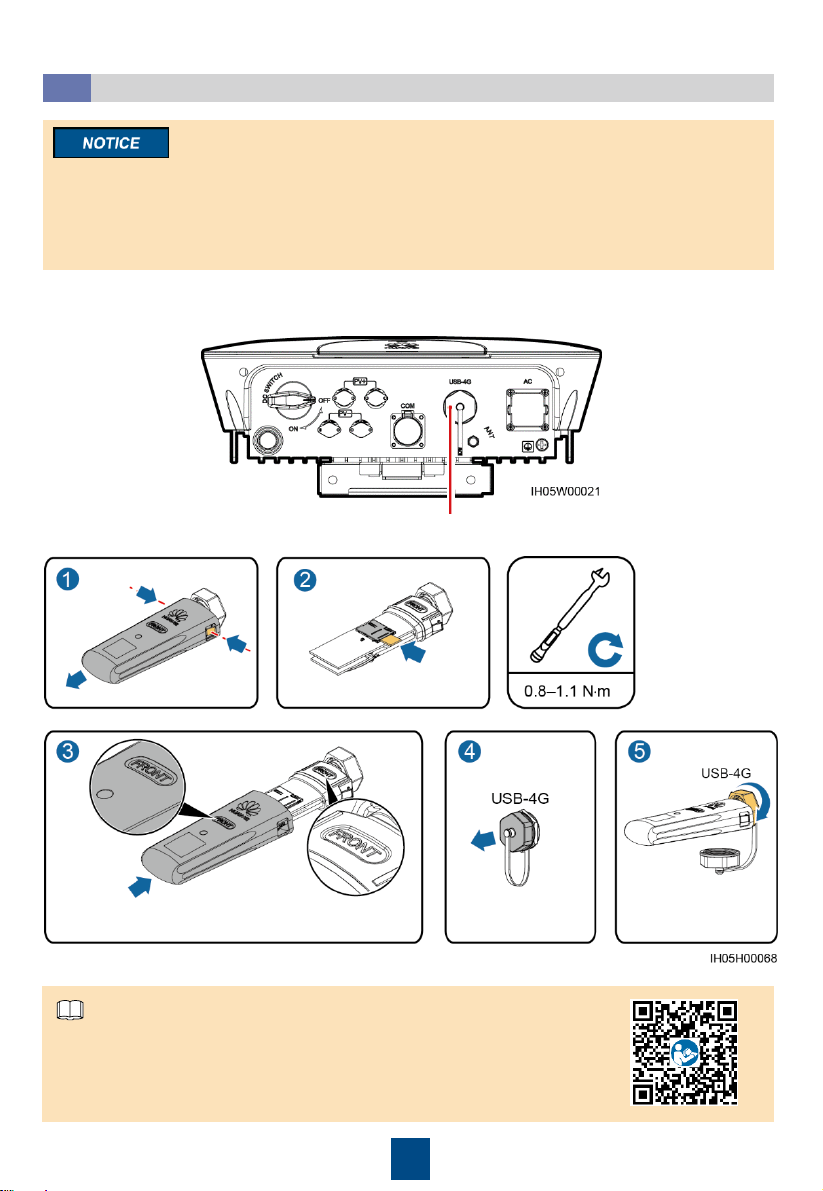

(Optional) Installing the Smart Dongle
3.4
USB-4G port cover (USB-4G)
Reinstalling the Smart Dongle enclosure, ensure
that the buckle springs back to the original position.
2.4
The USB-4G port is available only for a Smart Dongle, rather than a USB data cable.
Install the SIM card in the direction shown by the silk screen and arrow on the slot.
Press the SIM card until it snaps into place and locked, which means that the SIM card is
installed correctly.
To remove the SIM card, push it inwards. The SIM card will spring out automatically.
The 4G Smart Dongle model is SDongleA-03. For details, see the quick
guide that is delivered with the Smart Dongle.
You can also scan the QR code to obtain it.
NOTE

6
(Optional) Installing the WiFi Antenna
3.5
Antenna port (ANT)
The Smart Dongle and WiFi antenna cannot be used at the same time.
Ensure that the WiFi antenna is installed
securely.
Prepare cables based on site requirements.
4Connecting Cables
Preparing Cables
4.1
No.
Cable
Type
Conductor Cross
-
sectional Area Range
Outer
Diameter
1
PE cable
Single
-core outdoor copper cable
4
–10 mm2
N/A
2
AC output power
cable
Two
-core (L and N) outdoor copper
cable or three
-core (L, N, and PE)
outdoor copper cable
4
–6 mm2
10
–21 mm
3
DC input power
cable
Standard outdoor PV cable in the
industry (recommended model: PV1
-F)
4
–6 mm2
4.5
–7.8 mm
4
Signal cable
(optional)
Outdoor shielded twisted pair
0.25
–1 mm2
4
–11 mm
Connect cables in accordance with the installation laws and regulations of the country or
region where the SUN2000 is located.
Before connecting cables, ensure that the DC switch on the SUN2000 and all the switches
connecting to the SUN2000 are OFF. Otherwise, the voltage of theSUN2000 may result in
electric shocks.

7
Installing the PE Cable
4.2
Ground
point
Click
Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks will be
caused.
Recommended: Apply silica gel or paint around a ground terminal after connecting the ground
cable.
The PE point at the AC output port is used only as a PE equipotential point, and cannot substitute
for the PE point on the enclosure.
NOTE

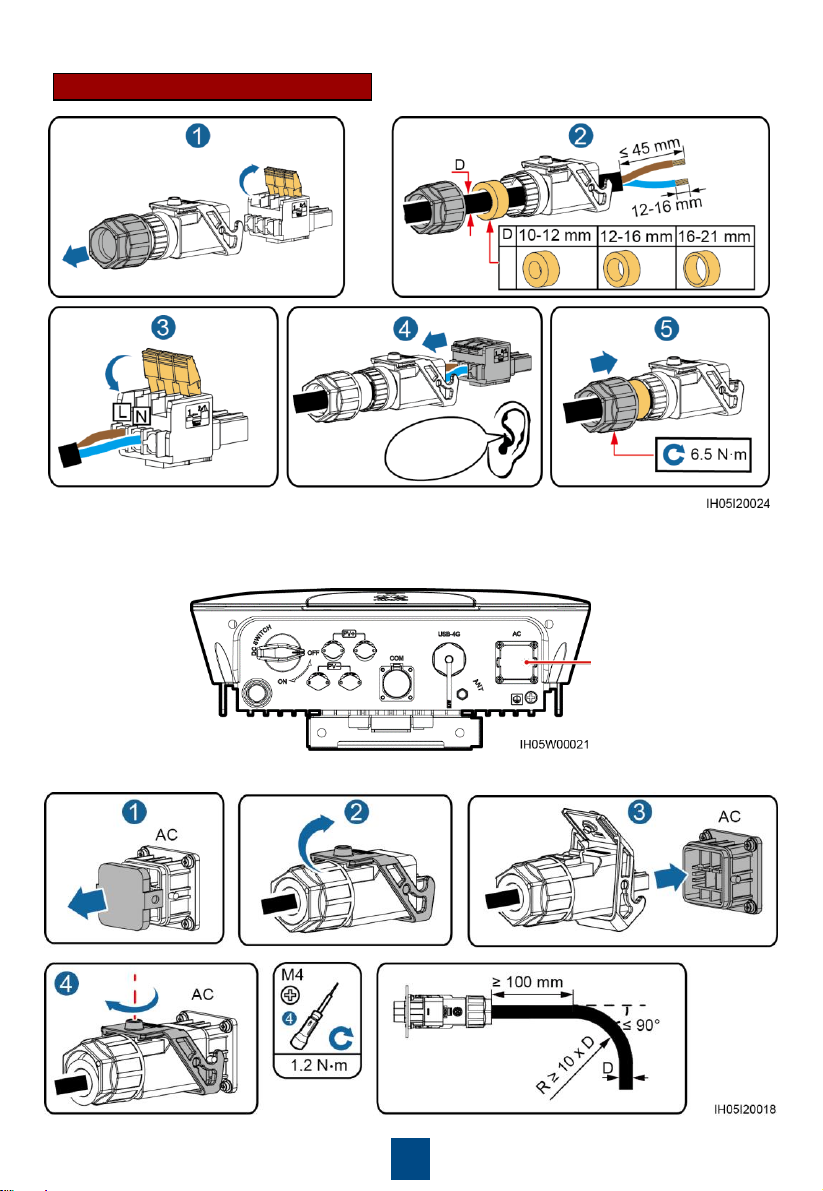

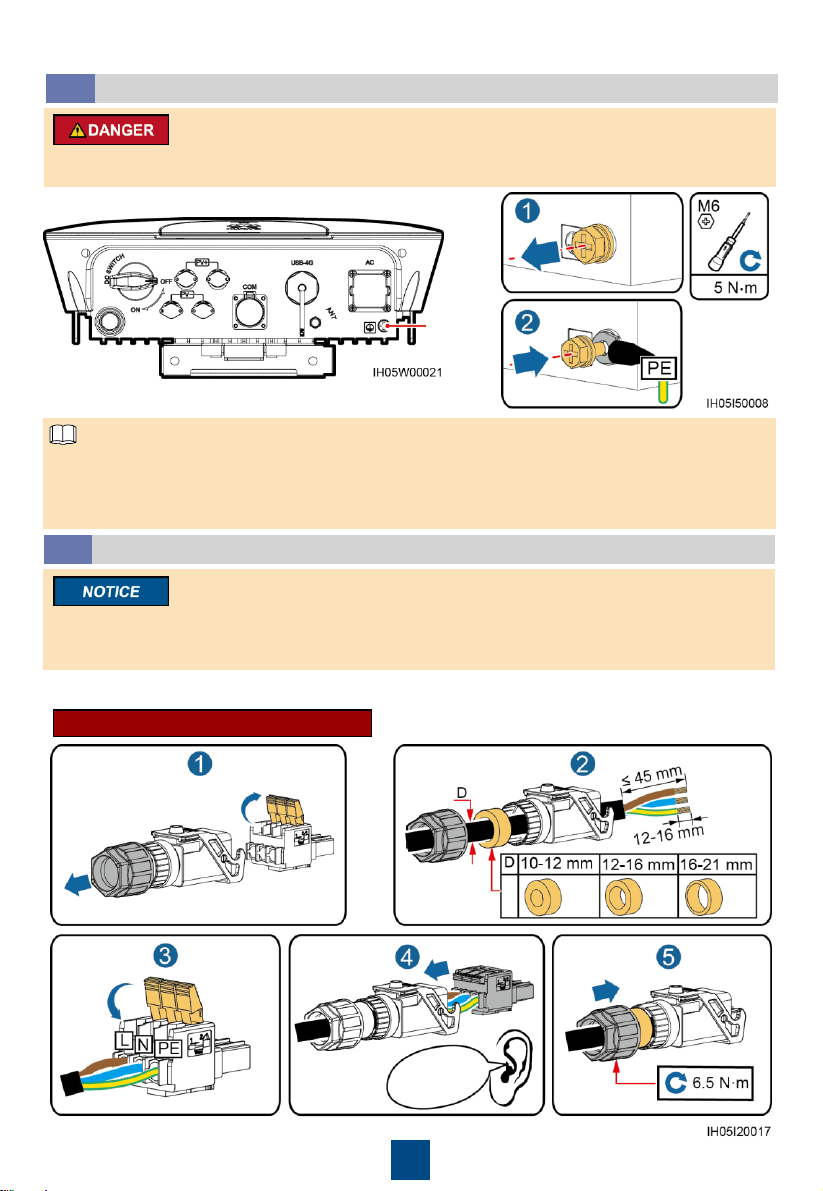

1. Connect the AC output power cable to the AC connector.
Installing the AC Output Power Cable
4.3
Ensure that the protection layer of the AC output power cable is in the connector, and that the
exposed core wire is totally inserted into the cable hole and connected securely. Failing to do so
may cause SUN2000 malfunction or damage.
Three-Core Cable (L, N, and PE)

8
Click
AC output port (AC)
Two-Core Cable (L and N)
2. Connect the AC connector to the AC output port, and then Check the route of the AC output
power cable.

9
To remove the AC connector, follow the
steps of its installation in reverse order.
Then remove the plug insert as shown
in the right figure.
NOTE
Plug insert
using metal cold forming contacts
Installing the DC Input Power Cable
4.4
1. Ensure that the PV string is well insulated to ground.
2. The metal contacts supplied with the DC connectors are either cold forming contacts or
stamping forming contacts. Crimp the metal cold forming contacts using crimping tool
UTXTC0005 (Amphenol) or H4TC0001 (Amphenol). Crimp the metal stamping forming contacts
using crimping tool H4TC0003 (Amphenol, recommended) or H4TC0002 (Amphenol).
3. Choose the crimping tools that fit the metal contact types. Do not mix up the tools.
4. The SUN2000 open circuit voltage must always be lower than or equal to 600 V DC.
5. Before installing the DC input power cable, label the cable polarities correctly to ensure correct
cable connections.
6. Use the positive and negative metal terminals and black DC connectors supplied with the
inverter. Using incompatible positive and negative metal terminals and DC connectors may
result in serious consequences. The caused device damage is not covered under any warranty.
7. If polarity of the DC input power cable is reversed and the DC switch is ON, do not turn off the
DC switch immediately or unplug positive and negative connectors. The device may be
damaged if you do not follow the instruction. This damage is not covered under any warranty or
service agreement. Wait until the solar irradiance declines at night and the PV string current
reduces to below 0.5 A, and then turn off the DC switch and remove the positive and negative
connectors. Correct the string polarity before reconnecting the string to the SUN2000.
1. Assembling the DC Connector
Ensure that the cable will
not be extracted after
crimped.
Positive metal terminal
Negative metal terminal
Positive connector
Negative
connector
Ensure that the locking
nut is secured.
Ensure that the cables are
correctly connected.
Pull the DC input power
cable back to ensure that
it is connected securely.
Click

10
DC input terminals
using metal stamping forming contacts
2. Connecting the DC Input Power Cable
Click
Pull the DC input power cable back to ensure that it is
connected securely.
Ensure that the cable will
not be extracted after
crimped.
Positive metal terminal
Negative metal terminal
Positive connector
Negative
connector
Ensure that the locking
nut is secured.
Ensure that the cables are
correctly connected.
Pull the DC input power
cable back to ensure that
it is connected securely.
Click

11

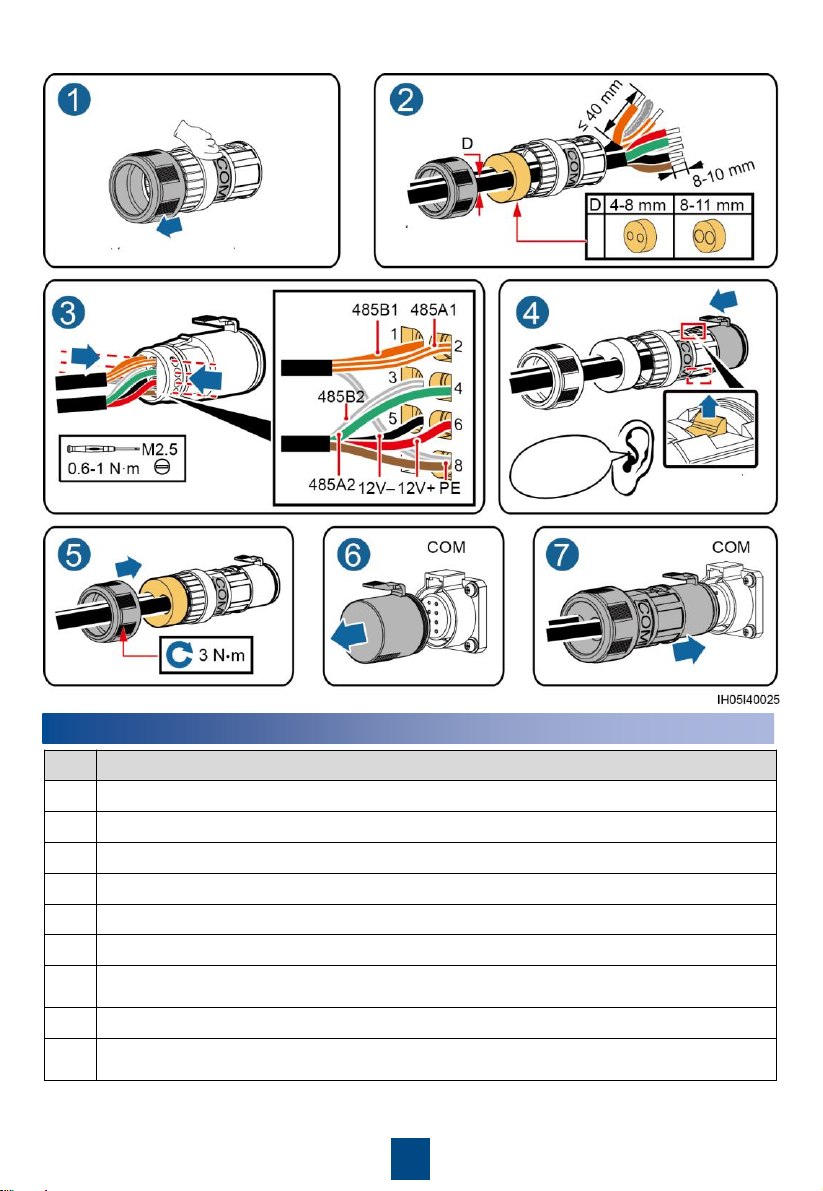

(Optional) Installing the RS485 Communications Cable
4.5
COM port (COM)
When laying out communications cables, separate them from power cables to avoid strong
signal interference sources.
Ensure that the exposed core wire is totally inserted into the cable hole and connected securely.
If only one signal cable needs to be connected, block the unused cable hole on the seal using
a cap and tighten the cable gland.
If two signal cables are required, ensure that they have the same outer diameter.
No.
Label
Definition
Description
1
485B1
RS485B, RS485 differential signal
–
Reserved, can connect to the RS485 signal
port on the energy meter.
2
485A1
RS485A, RS485 differential signal+
3
485B2
RS485B, RS485 differential signal
–
Reserved, can connect to the RS485 signal
port on SmartPSB2000L smart PV safety
box.
4
485A2
RS485A, RS485 differential signal+
5
12
V–
Negative of the 12 V power supply
6
12V+
Positive of the 12 V power supply
7
N/A
N/A
N/A
8
PE
Grounding the shield layer
Connects to the shield layer of the cable.

12
Click
5Verifying the Installation
No.
Acceptance Criteria
1
The
SUN2000 is installed correctly and securely.
2
The WiFi antenna
or Smart Dongle is installed correctly and securely.
3
Cables are routed properly as required by the customer.
4
Cable ties are secured evenly and no burr exists.
5
The ground cable is connected
correctly and securely.
6
The DC switch and all the switches connecting to the
SUN2000 are OFF.
7
The AC output power cable, DC input power
cable and signal cable are connected correctly
and
securely.
8
Unused terminals and ports are locked by watertight caps.
9
The installation space is proper, and the installation environment is clean and
tidy.

13
6Powering On the System
Before turning on the AC switch between the SUN2000 and the power grid, check whether the
AC voltage is within the specified range.
After turning on the AC switch, turn on the DC switch within 1 minute. Otherwise, the SUN2000
will start to export power to the power grid. If you turn on the DC switch in this case, the
SUN2000 will shut down first, and then restart to export power to the power grid.
1. Turn on the AC switch between the SUN2000 and the power grid.
2. Turn on the DC switch between the PV string and the SUN2000 if there is any.
3. Turn on the DC switch at the bottom of the SUN2000.

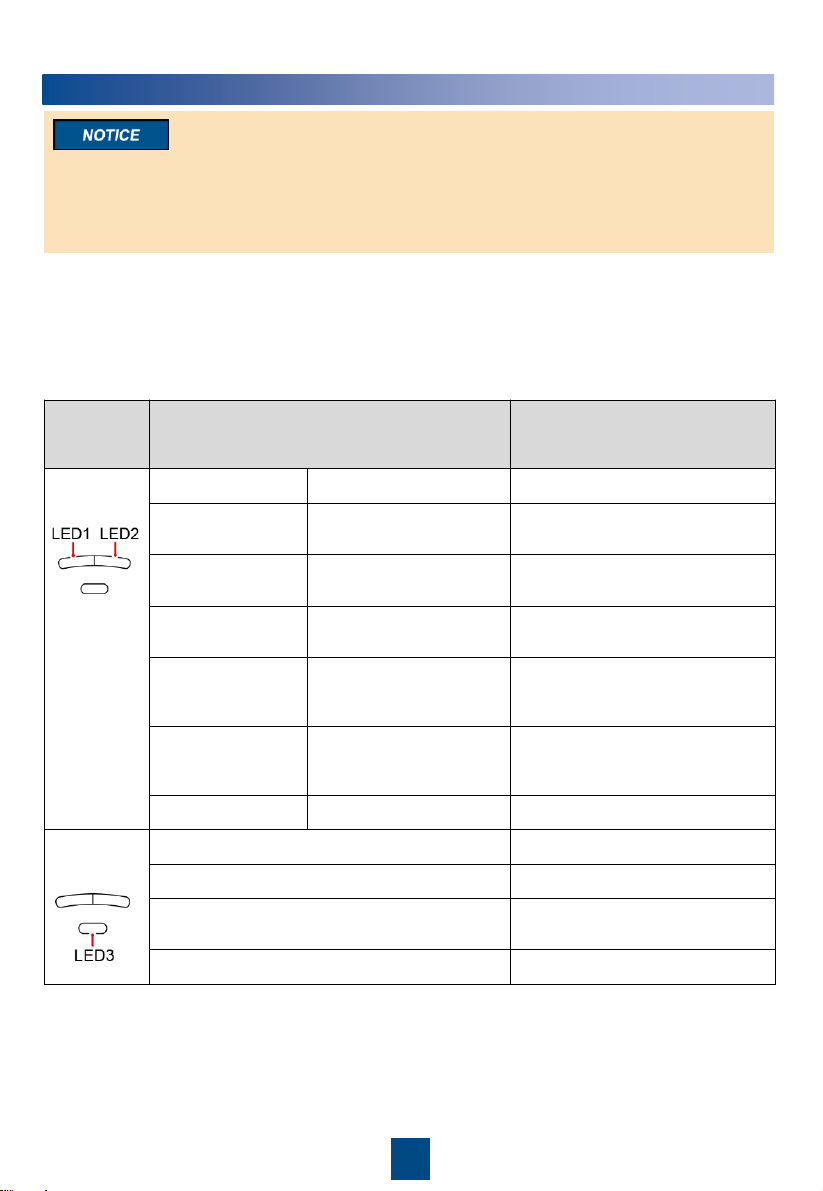

4. Observe the LEDs to check the SUN2000 operating status. All status labels are available on
the left side of the SUN2000.
Type
Status (Blinking at Long Intervals: On for 1s
and then Off for 1s; Blinking at Short
Intervals: On for 0.2s and then Off for 0.2s)
Meaning
Running
indication
LED1
LED2
N/A
Steady green
Steady green
The
SUN2000 is
exporting
power to the power grid.
Blinking green at
long intervals
Off
The DC is on and the AC is off.
Off
Blinking green at long
intervals
The DC is off and the AC is on.
Blinking green at
long intervals
Blinking green at long
intervals
Both t
he DC and AC are on, and
the
SUN2000 is not exporting
power to the power grid.
Off
Off
Both
the DC and AC are off,
or the
SUN2000
is in low power
consumption mode.
Steady red
Steady red
The
SUN2000 is faulty.
Communicati
on indication
LED3
N/A
Blinking green at short intervals
The
SUN2000
is in communication.
Blinking green at long intervals
The
SUN2000
has connected to the
mobile phone.
Off
No communication

14
7Commissioning
The screenshots shown in the quick guide are from FusionSolar 2.3.0. Data in the screenshots is
for reference only. The actual screens prevail.
NOTE
Search for "FusionSolar" from the
following app stores or scan the
corresponding QR code, download the
installation package, and install the
FusionSolar app by following the
instructions.
•Google Play (Android)
•App Store (iOS) Android iOS
1. Downloading the App
LED
Description
Color
Status
Yellow (blinking
green and red
simultaneously)
Steady on
The Dongle is secured and powered
on.
Green
Blinking in a 2
-second cycle (on
for 0.1s and then off for 1.9s)
Dialing (duration < 1 min)
Blinking at long intervals (on for 1s
and then off for 1s)
The dial
-up connection is set up
successfully (duration < 30s).
Steady on
Successfully connected to the
management system.
Blinking at short intervals (on for
0.2s and then off for 0.2s)
The inverter is communicating with
the management system through the
Dongle.

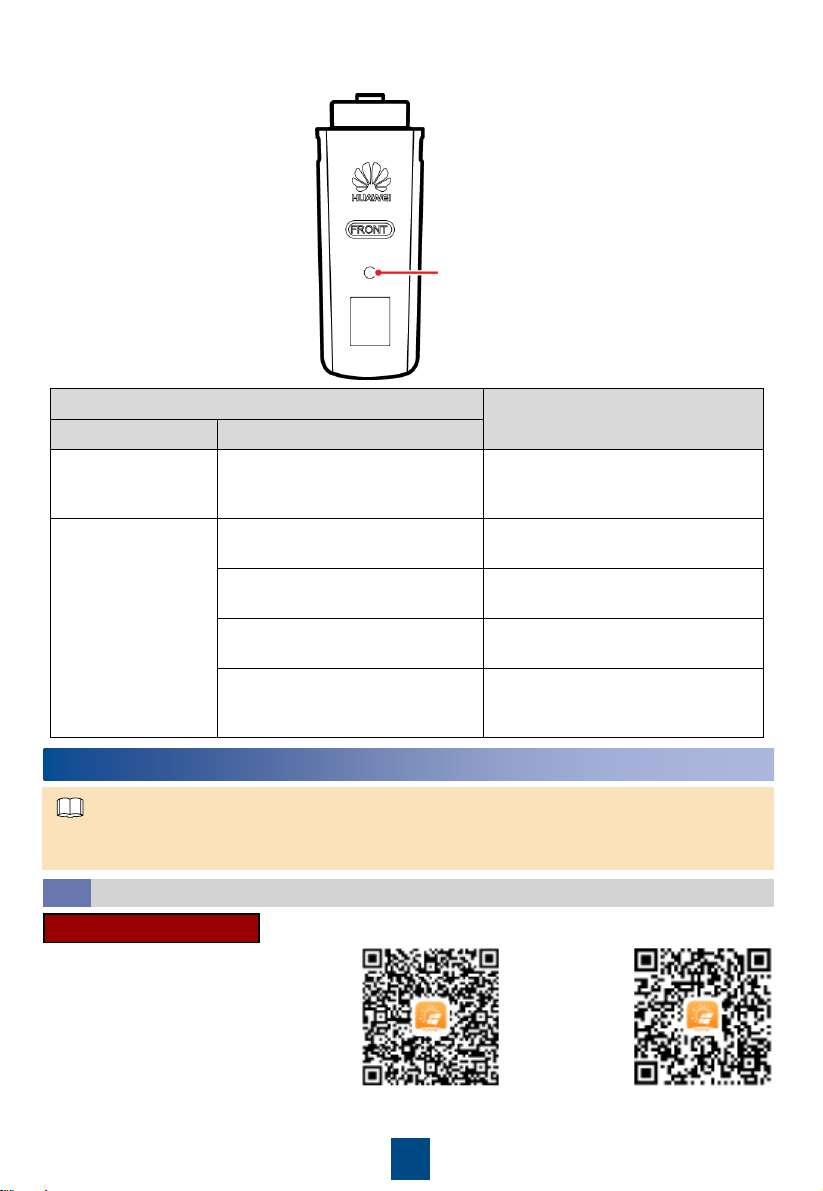

5. (Optional) Observe the LED to check the operating status of the Smart Dongle.
LED
Commissioning Through Setup Wizard
7.1

15
2.（Optional）Installer Account Registration
If you have an installer account, skip this step.
NOTE
Creating the first installer account will generate a domain named after the company.
To create multiple installer accounts for the same company, log in to the FusionSolar and tap New
User.

16
NOTE
For details, see the FusionSolar
App Quick Guide. You can
scan the QR code to obtain it.
3. Creating a PV Plant and an Account for User
Inverter commissioning
7.2

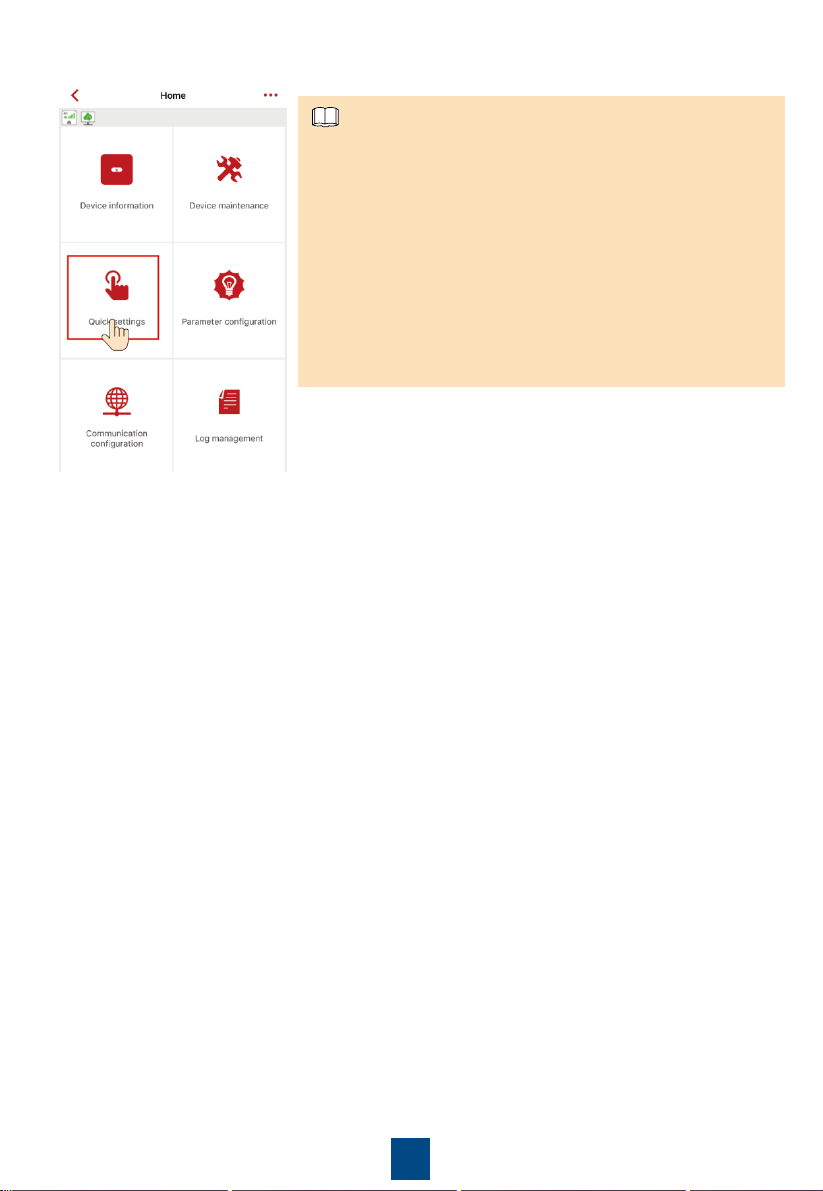

1. Access Inverter commissioning.
Method 1: before login Method 2: after login

17
NOTE
2. Connect to the inverter WiFi. Log in as installer, and perform Quick settings.
•The initial password for connecting the inverter WiFi is
Changeme
•The initial password of the installer is 00000a
•Use the initial password upon first power-on and change it
immediately after login. To ensure account security, change
the password periodically and keep the new password in
mind. Not changing the initial password may cause password
disclosure. A password left unchanged for a long period of
time may be stolen or cracked. If a password is lost, devices
cannot be accessed. In these cases, the user is liable for any
loss caused to the PV plant.
•To set more parameters, tap Parameter configuration.

18
Customer Service Contact
Region
Country
Service Support Email
Phone
Europe
France
eu_inverter[email protected]
0080033888888
Germany
Spain
Italy
UK
Netherlands
Other countries
For details, see
solar.huawei.com.
Asia
Pacific
Australia
au_inverter[email protected]
1800046639
Turkey
[e-mail]
-
Malaysia
[e-mail]
0080021686868
/1800220036
Thailand
([phone] (charged by
local call)
1800290055 (free in Thailand)
Other countries
[e-mail]
0060
-3-21686868
Japan
Japan
[email protected]ei.com
0120258367
India
India
[e-mail]
1800 103 8009
South
Korea
South Korea
[email protected]
-
North
America
USA
na_inverter[email protected]
1
-877-948-2934
Canada
na_inverter[email protected]
1
-855-482-9343
Latin
America
Mexico
la_inverter_[email protected]
018007703456
/0052
-442-4288288
Argentina
0
-8009993456
Brazil
0
-8005953456
Chile
800201866 (only for fixed)
Other countries
0052
-442-4288288
Middle
East and
Africa
Egypt
mea_inverter_suppor[email protected]
08002229000
/0020235353900
UAE
08002229000
South Africa
0800222900
Saudi Arabia
8001161177
Pakistan
0092512800019
Morocco
0800009900
Other countries
0020235353900
8Customer Service Contact

Huawei Technologies Co., Ltd.
Huawei Industrial Base, Bantian, Longgang
Shenzhen 518129 People's Republic of China
solar.huawei.com
