Huawei UPS2000-G-15KRTL User manual

1
Issue: 08
Part Number: 31507443
Date: 2021-07-16
UPS2000-G-(15 kVA–20 kVA) Quick Guide
Overview
UPS Model Represented By Weight Dimensions (H x W x D)
UPS2000
-G-15KRTL
15 kVA
32 kg 430 mm x 130 mm x 757 mm
UPS2000
-G-15KRTL-01
UPS2000
-G-20KRTL
20 kVA
UPS2000
-G-20KRTL-01

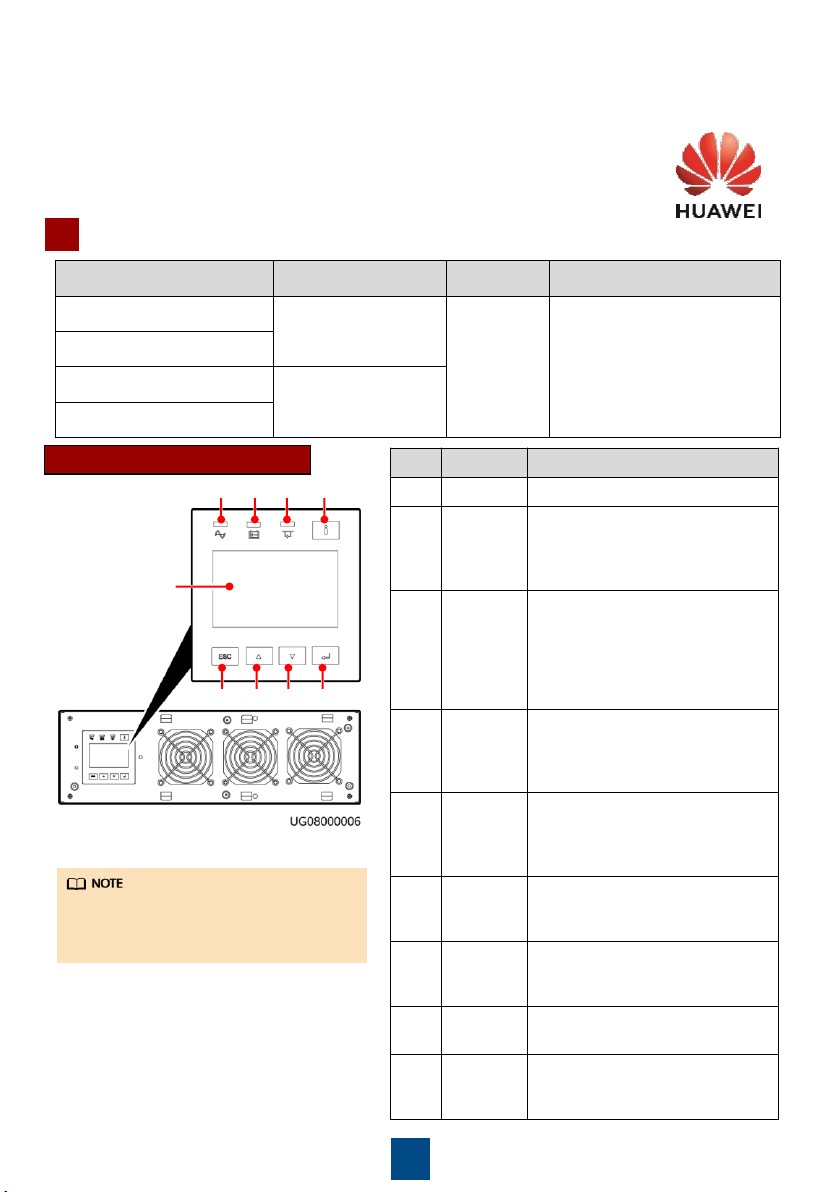

Front View (15 kVA/20 kVA)
1
2 3 4 5
9 8 7 6
No.
Name
Description
1
LCD
-
2
Mains
indicator
•On: The UPS is working in
normal mode.
•
Off: The UPS is not working in
normal mode.
3
Battery
indicator
•On: The UPS is working in
battery mode.
•
Off: The UPS is not working in
battery mode.
•Blinking: The battery capacity
is less than 25%.
4
Bypass
indicator
•On: The UPS is working in
bypass mode.
•
Off: The UPS is not working in
bypass mode.
5
Fault
indicator/
INFO
button
•Steady red: The UPS is faulty.
•Blinking red: The UPS has
generated an alarm.
•Green: The UPS is normal.
6
Confirm/
Start
button
Confirms settings, starts the UPS,
mutes the buzzer, or performs a
battery self
-check.
7
Page
Down
button
-
8
Page Up
button
-
9
ESC/Shut
down
button
Returns to an upper
-level menu,
or shuts down the UPS.
The UPS is working in ECO mode only
if the mains indicator and bypass
indicator are both on.
Copyright © Huawei Technologies Co., Ltd. 2021.
All rights reserved.

1 2 3 4 5 6 7 8
9

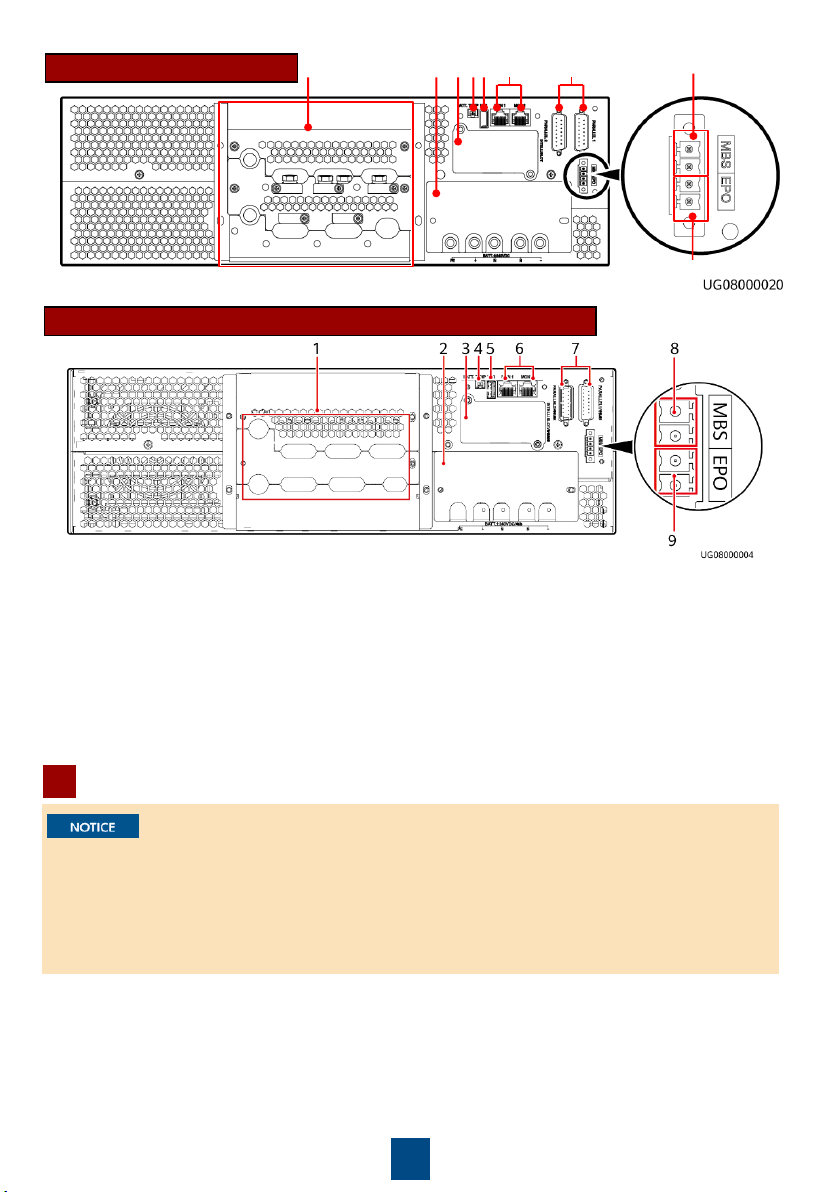

Rear View (15 kVA/20 kVA)
2
Rear View (UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01)
(1) Cover for AC input
and AC output
wiring terminals
(2) Battery terminal
cover
(3) Cover for the
optional card slot
(4) Battery temperature
sensor port
(5) USB port (protected
by a security
mechanism)
(6) CAN
communications
ports
(7) Parallel ports
(8) Maintenance bypass
port
(9)
EPO port
1. Carefully read the UPS2000-G-(6 kVA–20 kVA) User Manual prior to installation to get familiar
with product information and safety precautions.
2. Use insulated tools during installation.
3. Only engineers certified by the manufacturer or its agent are allowed to install, commission, and
maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the resulting
UPS faults are beyond the warranty scope of Huawei.
Installing a Single UPS

3
1Installing Devices
1. Determine the
installation dimensions.

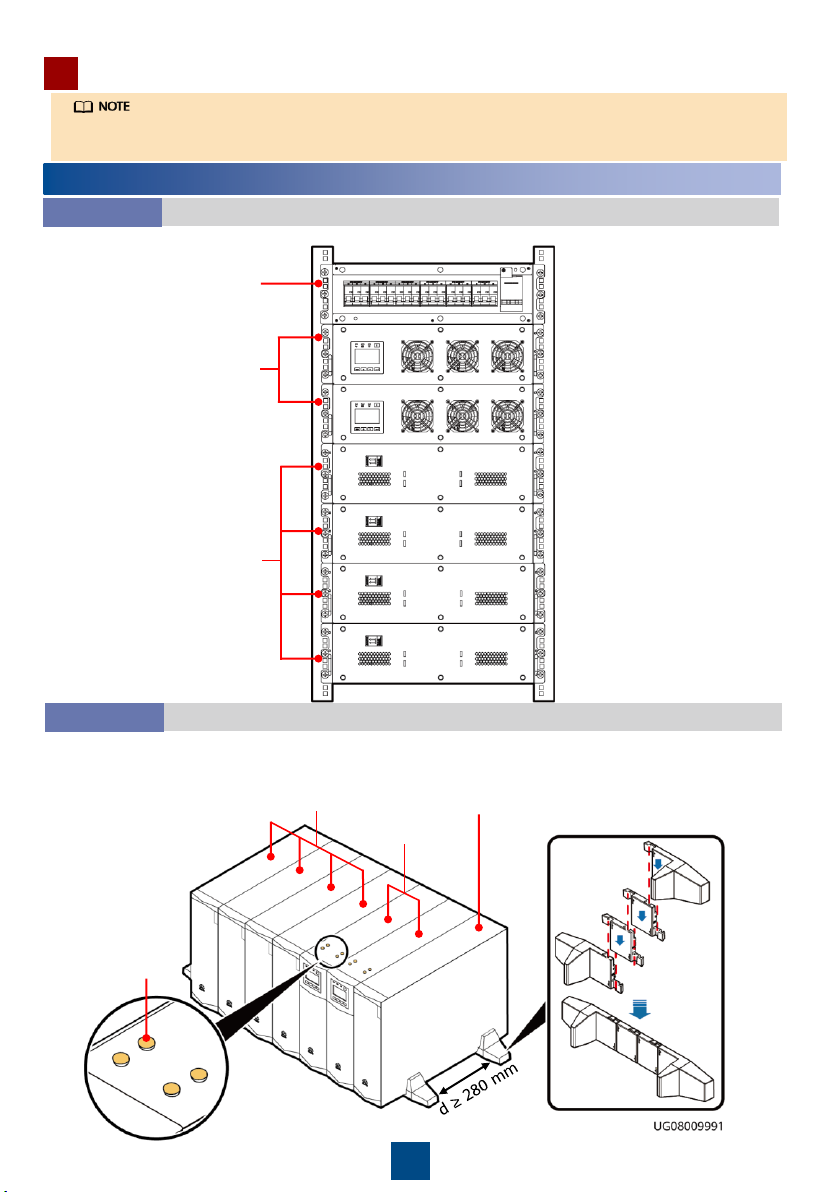

UPS (3U)
Battery pack
(optional, 3U)
Rack-Mounted Installation
Scena
rio 1
Install devices from
bottom to top, as
shown in the figure.
2. Install mounting ears. M4x8 (8 PCS)
1.2 N•m

Method 2: If there are adjustable guide
rails, install two adjustable guide rails and
two floating nuts.
Method 1: If there are no adjustable
guide rails, install six floating nuts.
3. Install guide rails using either of the methods.
Adjustable guide rails
Avoid pushing guide rails out of the rack
when placing the battery pack, power
distribution unit (PDU), and UPS on the
rack because the front ends of the guide
rails are not screwed. The length of guide
rails ranges from 592.37 mm to 807.37
mm, the width is 30 mm, and the height
is 87 mm. The guide rails are scalable and
support Huawei M-type cabinets.
Floating nut
Front
Rear
M6x16 (4 PCS)
3 N•m
UPS (3 U)
4. Secure the devices.
Battery pack
(optional, 3 U)
M6x16 (6 PCS)
3 N•m
4

5
UPS (3 U)
Battery pack
(optional, 3 U)
Rubber plug
When you tower-
mount the UPS, place
devices including the
UPS horizontally to
facilitate cable
installation. Stand the
devices upright after
cable installation.
Tower-Mounted Installation
Scenario 2
2Installing AC Input and Output Power Cables
1. bL indicates the bypass input, and mL indicates the mains input.
2. Connect UPS AC input and output power cables in the same phase sequence. Connect
battery terminals correctly.
3. Before connecting cables to the UPS, ensure that the input circuit breaker, output circuit
breaker, and battery circuit breaker are OFF to prevent operations with power on.
4. If the input or output wiring has to be changed, contact Huawei technical support if you are
not familiar with the operation. Do not power on the UPS directly.
5. If the input or output system is changed, ensure that the short-circuit copper bar status and
cable connections at input and output ports are correct.
6. The copper bar and ground screws are M6. Tighten them to 4.8 N·m. The chassis screws are
M5. Tighten them to 2.8 N·m.
7. In a single UPS system, connect loads to AC OUTPUT sL and pL terminals. Connect primary
loads to the sL terminal and secondary loads to the pL terminal. For a parallel system,
connect loads to the AC OUTPUT pL terminal, instead of the sL terminal.
8. The UPS can generate large leakage currents. A circuit breaker equipped with a residual
current device (RCD) is not recommended. If leakage protection is required, select a
recommended circuit breaker.
9. When installing short-circuit bars, install the AC INPUT short-circuit bar and cables, and then
install the AC OUTPUT short-circuit bar and cables.
10.The cable colors in the figures are for reference only.
1. If the AC input of the 15 kVA/20 kVA UPS uses two live wires, connect bypass and mains
inputs bL1, bL2, bL3, mL1, mL2, and mL3 that are short-circuited with a short-circuit bar to
live wire L1, and connect the input N and N with a short-circuit bar to live wire L2.
2. If the AC input and AC output uses two live wires, the input and output must be connected
to two-pole circuit breakers provided by the customer.

6

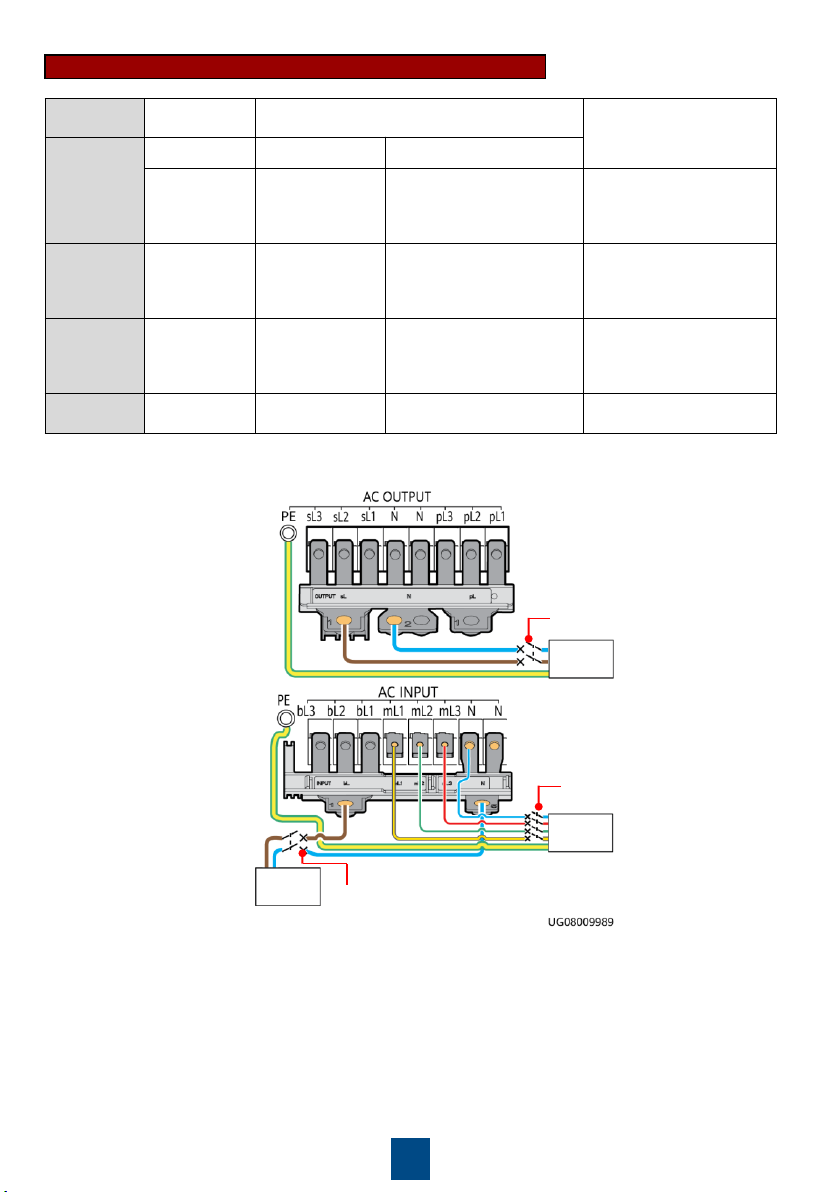

Three-Phase Input, Three-Phase Output, One Power Source (Factory Settings)
Connect cables based on the actual situation.
Wiring
Terminal
AC
OUTPUT
AC
INPUT
PE
External
Circuit
Breaker
Q1
K1
-
15 kVA:
50 A (D
feature);
20 kVA:
63 A (D
feature)
15 kVA:
50 A (D
feature);
20 kVA:
63 A (D
feature)
Residual
Current
Circuit
Breaker
-
300 mA
-
Cable
Cross
-
Sectional
Area
10 mm
2
10
mm2
25
mm2
Terminal
Type
OT
-10
mm
2-
M6
terminal
OT
-10
mm
2-
M6
terminal
OT
-25
mm
2-
M6
-90°
terminal
AC
input
AC
load
K1
Q1
If the customer uses 10 mm2 five-core cables for AC
input and output, the PE cable is 10 mm2. In this
case, connect the cable using an OT-16 mm2-M6-
90°terminal delivered with the UPS or an OT-10
mm2-M6-90°terminal prepared by the customer.
Mains
input
Bypass
input
AC
load
Km1
Q1
Kb1
If the customer uses 10 mm2five-core
cables for AC input and output, the PE
cable is 10 mm2. In this case, connect
the cable using an OT-16 mm2-M6-90°
terminal delivered with the UPS or an
OT-10 mm2-M6-90°terminal prepared
by the customer.
Wiring Terminal
AC OUTPUT
AC INPUT
PE
External Circuit
Breaker
Q1
Mains K
m1
Bypass K
b1
-
15 kVA: 50 A (D feature);
20 kVA: 63 A (D feature)
15 kVA: 50 A (D feature);
20 kVA: 63 A (D feature)
Residual Current
Circuit Breaker
-
300 mA
-
Cable
Cross-Sectional
Area
10 mm
2
10 mm
2
25 mm
2
Terminal Type
OT
-10 mm2-M6 terminal
OT
-10 mm2-M6 terminal
OT
-25 mm2-M6-90
°
terminal
Three-Phase Input, Three-Phase Output, Two Power Sources

7
Three-Phase Input, Single-Phase Output, One Power Source
AC
load
AC
input
Km1
Kb1
Q1
z
Wiring
Terminal
AC OUTPUT
AC INPUT
PE
External
Circuit
Breaker
Q1
Mains K
m1
Bypass K
b1
15 kVA: 100 A
(D feature);
20 kVA: 125 A
(D feature)
15 kVA: 50 A (D
feature); 20 kVA:
63 A (D feature)
15 kVA:
100 A (D
feature); 20 kVA:
125 A
(D feature)
-
Residual
Current
Circuit
Breaker
-
15 kVA: 300 mA;
20 kVA: 300 mA
15 kVA: 300 mA; 20 kVA:
adjustable from 500 mA
to 1000 mA
-
Cable
Cross
-
Sectional
Area
25 mm
2
10 mm
2
25 mm
2
25 mm
2
Terminal
Type
OT
-25 mm2-
M6 terminal
OT
-10 mm2-M6
terminal
OT
-25 mm2-M6 terminal
OT
-25 mm2-M6-90°
terminal

Mains
input
Bypass
input
AC
load
Km1
Q1
Kb1
8
Wiring
Terminal
AC OUTPUT
AC INPUT
PE
External
Circuit
Breaker
Q1
Mains K
m1
Bypass K
b1
15 kVA: 100 A
(D feature);
20 kVA: 125 A
(D feature)
15 kVA:
50 A
(D
feature); 20 kVA:
63 A
(D feature)
15 kVA: 100 A (D feature);
20 kVA: 125 A (D feature)
-
Residual
Current
Circuit
Breaker
-
15 kVA: 300 mA;
20 kVA: 300 mA
15 kVA: 300 mA; 20 kVA:
adjustable from 500 mA
to 1000 mA
-
Cable
Cross
-
Sectional
Area
25 mm
2
10 mm
2
25 mm
2
25 mm
2
Terminal
Type
OT
-25 mm2-
M6 terminal
OT
-10 mm2-M6
terminal
OT
-25 mm2-M6 terminal
OT
-25 mm2-M6-90°
terminal
Three-Phase Input, Single-Phase Output, Two Power Sources

9
Single-Phase Input, Single-Phase
Output, One Power Source
Wiring
Terminal
AC
OUTPUT
AC INPUT
PE
External
Circuit
Breaker
Q1
K1
-
15 kVA:
100 A (D
feature);
20 kVA:
125 A (D
feature)
15 kVA:
100 A (D
feature);
20 kVA:
125 A (D
feature)
Residual
Current
Circuit
Breaker
-
300 mA
-
Cable
Cross
-
Sectional
Area
25 mm
2
25 mm
2
25 mm
2
Terminal
Type
OT
-25
mm
2-
M6
terminal
OT
-25
mm
2-
M6
terminal
OT
-25
mm
2-M6
-
90
°
terminal
AC
input
AC
load
Q1
K1
Q1
K1
L1 L2
PE
L1
L2
PE
Wiring
Terminal
AC
OUTPUT
AC INPUT
PE
External
Circuit
Breaker
Q1
K1
-
15 kVA:
100 A (D
feature);
20 kVA:
125 A (D
feature)
15 kVA:
100 A (D
feature);
20 kVA:
125 A (D
feature)
Residual
Current
Circuit
Breaker
-
300 mA
-
Cable
Cross
-
Sectional
Area
25 mm
2
25 mm
2
25 mm
2
Terminal
Type
OT
-25
mm
2-
M6
terminal
OT
-25
mm
2-
M6
terminal
OT
-25
mm
2-M6
-
90
°
terminal
Dual-Live-Wire Input, Dual-Live-Wire
Output, One Power Source
AC
input
AC
output

10
1. The UPS2000-G-15KRTL/20KRTL can connect to an external battery string (40 batteries
in the standard configuration, and an even number of 32 to 40 batteries are supported).
The neutral wire is connected to the middle point of the battery string. For example, if
there are 40 batteries, the neutral wire is connected to the negative terminal of the
twentieth battery.
2. When an external battery string is connected, install a DC circuit breaker (63 A, 600 V
DC) between the battery string and the UPS.
3. When an external battery string is connected, connect positive terminals in series by
using the two poles of the DC circuit breaker.
3Installing Battery Cables
Ground
point
External
battery string
Battery 1
Battery 20
Battery 40
Wiring
Terminal
BATT
. ±240 V
DC
External
Circuit
Breaker
63 A
Cable
Cross
-
Sectional
Area
16 mm
2
Terminal
Type
OT
-16 mm2-
M6
-90°
terminal
External Battery Strings
Scenario 1
External Battery Packs
Scenario 2
1. A 15 kVA/20 kVA UPS with long backup time requires serial connection of two battery packs
in each group. A maximum of four groups with eight battery packs can be connected in
parallel. If more than two battery packs need to be connected to the 15 kVA/20 kVA UPS
with long backup time, the battery packs should be connected in parallel and then
connected to the battery input ports of the UPS, as shown in the following figure. Connect
battery packs 1 and 2 in series, battery packs 3 and 4 in series, battery packs 5 and 6 in
series, and battery packs 7 and 8 in series. Connect battery packs 1, 3, 5, and 7 in parallel
and battery packs 2, 4, 6, and 8 in parallel.
2. For more information, see the ESS-240V12-(9AhBPVBA, 7AhBPVBA) Quick Installation Guide .
M6 (5 PCS)
4.8 N•m

11
Battery pack 1 Battery pack 2
Battery pack 3 Battery pack 4
Battery pack 5 Battery pack 6
Battery pack 7 Battery pack 8
4(Optional) Connecting Cables to Optional Cards
SNMP Card
For details about how to install the SNMP card, dry contact card, and Modbus card, see the
RMS-SNMP01A V100R001 Installation Guide , RMS-MODBUS01A User Manual , and RMS-
RELAY01A User Manual .
Dry Contact Card
Temperature
and humidity
sensor
Ethernet Customer
equipment

12
Modbus Card
In the figure, the two
UPSs represent two
standalone UPS
systems.
5(Optional) Connecting an EPO Switch
1. For UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-
01, choose Settings > System Parameters >
Other Settings and set EPO Enable to Enable.
2. Connect an external switch to the EPO ports of
the UPS. After you turn on the switch in the case
of emergency, the inverter stops and the UPS
does not transfer to bypass mode. In this way,
the UPS stops supplying power immediately.
3. The customer provides the external switch (it can
be a common switch) that connects to the EPO
ports.
6Verifying the Installation
No.
Item Result
1
If the input or output system is changed, ensure that the short
-circuit
copper bar status and cable connections at input and output ports are
correct.
□
Passed □Failed
2
The phase sequence of the input power is correct. Use a
multimeter
to
check that the input and output are not short
-circuited.
□
Passed □Failed
3
Cables and terminals are securely connected.
□
Passed □Failed
4
Battery cables and terminals are connected correctly, and voltages
comply with industry standards.
□
Passed □Failed
5
The UPS is properly connected to battery strings.
□
Passed □Failed
6
Input circuit breakers and load circuit breakers are OFF.
□
Passed □Failed
7
Power cables and signal cables are correctly identified.
□
Passed □Failed
8
The ground cable is reliably connected. The voltage difference
between the neutral wire and the ground cable is less than 5 V AC.
□
Passed □Failed
9
The mains input voltage is 120
–280 V AC during power-on (80–
280 V
AC after power
-on).
□
Passed □Failed
10
The positive and negative battery voltages range from 200 V DC to
280 V DC (measured using a
multimeter).
□
Passed □Failed
Modbus card
cascading
UPS 1 UPS 2
RS232-RS485
adapter
RS232 port
on the PC

13
User interface (UI) snapshots shown in this document correspond to V100R001C10SPC700 and
are for reference only. If
any UI changes are made, contact Huawei technical support to obtain the latest snapshots.
Symbol Description Remarks
Press A. A and B indicate the operation
symbols on the UPS control panel.
Press A and then B.
Indicates omitted screens. -
A
A B
7Powering On and Starting the UPS
Powering On the UPS
7.1
Check that the UPS has passed all check items described in
chapter 6 "Verifying the Installation."
Switch on the external battery circuit breaker if any.
Switch on the upstream UPS mains and bypass circuit
breakers (K1, Km1, and Kb1) based on site requirements.
Start the UPS in normal
or bypass mode?
No: Cold-start the UPS
using batteries.
Yes
The initialization screen is displayed.
Press
Switch on the output circuit breakers (Q, Q1, and Q2).

14
When a single 15 kVA/20 kVA UPS contains two battery strings, the maximum charge current
must be less than or equal to 2.0 A.
Setting Key Parameters and Starting Inverters
7.2
1. Incorrectly setting battery parameters compromises battery safety and battery backup time.
For details about parameter settings, see the UPS2000-G-(6 kVA–20 kVA) User Manual .
2. Set system parameters with caution because the settings determine whether the UPS can
operate normally.
Parameter
Description
Language
You can select Chinese, English (default), Spanish, French, or Russian. Set it
based on site requirements.
Output mode
The values include
Single-phase and Three-phase (default). Set it based on
site requirements. If the system uses three
-phase input three-phase output, set
Output mode
to Three-phase. If the system uses three-phase input single-
phase output or single
-phase input single-phase output, set Output mode to
Single
-phase.
Voltage level
The values include
208 V, 220 V (default), 230 V, and 240 V for single-phase
output, or
380 V (default), 400 V, and 415 V for three-phase output. Set it
based on site requirements.
Frequency level
The values include
50 Hz (default), 60 Hz, and Automatic. Set it based on site
requirements. If the value is
Automatic, the power-
on bypass frequency ranges
from 45 Hz to 55 Hz (excluding 55 Hz), and the system output frequency is 50
Hz; if the power
-on bypass frequency ranges from 55 Hz to 65 Hz, the system
output frequency is 60 Hz.
Positive
batteries
The value ranges from
16 to 20. The default value is 0.
Negative
batteries
The value ranges from
16 to 20. The default value is 0.
Battery capacity
Battery capacity is the sum of all battery capacities, set the parameters based
on the actual battery capacity. The value ranges from
7 Ah to 1000 Ah. The
default value is
65 Ah.

15
Set Language
Start Set Output mode.
Set Positive
batteries.
Set Negative
batteries.
Set Battery
capacity.
End

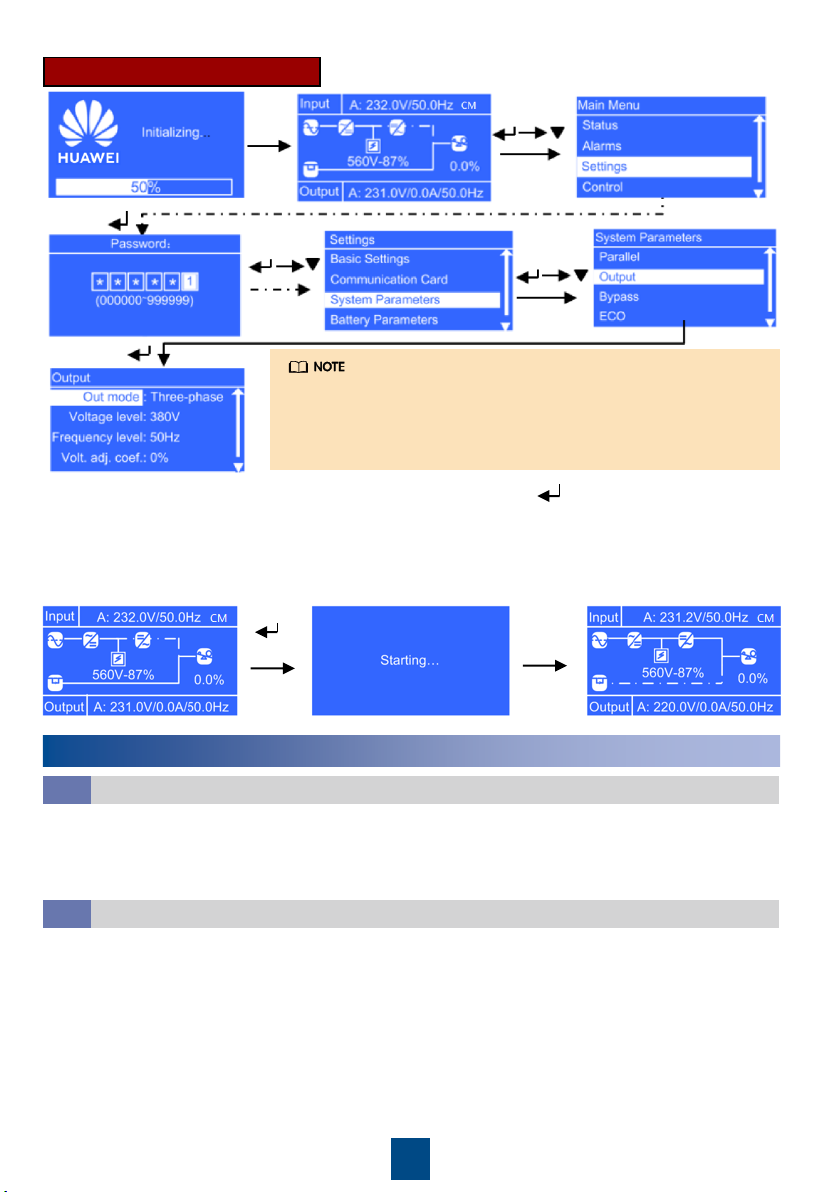

On the default screen, hold down for more than 5 seconds. Release the
button when you hear a beep sound. The inverters are started.
Set Frequency
level.
Set Voltage level.
The following uses three-phase input and three-phase output of the UPS in normal mode as
an example.
The parameter setting screens are shown as follows.
Set Language (default: English), System Parameters, and Battery Parameters.
Incorrectly setting battery parameters compromises battery
safety and battery backup time.
For details about parameter settings, see the UPS2000-G-(6
kVA–20 kVA) User Manual .
Scenario 1: Initial Startup

16
1. The preset password is 000001, used to enter the Settings
menu.
2. The preset feature code is 999999, used to restore the
preset password.
Scenario 2: Non-initial Startup
Perform "startup operations": On the standby screen, hold down for more than 5 seconds.
Release the button when you hear a beep sound. The startup screen is displayed. After the UPS
starts successfully, it enters normal mode. After you ensure that the UPS runs properly, switch on
the AC output circuit breaker Q1 of the UPS to start loads.
More than
5 seconds
Perform "shutdown operations" to shut down the UPS: On the default screen, hold down ESC
for more than 5 seconds. Release the button when you hear a beep sound. The inverter shuts
down. If the bypass voltage is within the configured range, the UPS transfers to bypass mode.
If the bypass voltage is beyond the configured range, the UPS has no output.
8Shutdown
1. Shut down loads.
2. Perform "shutdown operations" on the UPS. The inverter shuts down, and the UPS transfers to
bypass mode. If the bypass voltage is beyond the configured range, the UPS has no output.
3. Switch off the AC input circuit breakers (K1, Km1, and Kb1) and output circuit breaker Q1 of the
UPS based on site requirements.
4. Switch off the external battery circuit breaker (if any), or disconnect battery cables (if there is
no battery circuit breaker). After all indicators turn off and fans stop, the UPS shuts down and
stops supplying power to loads.
1
2
Shutting Down the Inverter to Transfer a Single UPS to Bypass Mode
8.1
Powering Off a Single UPS
8.2

17
1Installing Devices
Parallel System
Install devices from bottom to top, as shown in the figure. For details, see the method for
installing a single UPS.
•This section describes how to install a 1+1 parallel system.
•Only UPSs of the same model can be connected in parallel.
UPS (3 U)
Battery pack
(optional, 3 U)
PDU (optional, 3 U)
Rack-Mounted Installation
Scenario 1
When you tower-mount the UPS, place devices including the UPS horizontally to facilitate cable
installation. Stand the devices upright after cable installation.
UPS (3 U)
Battery pack (optional, 3 U)
Rubber plug
Tower-Mounted Installation
Scenario 2
PDU (optional, 3 U)

18
2Installing AC Input and Output Power Cables
1. Ensure that the AC input and output power cables on each UPS are connected in the same
phase sequence, battery terminals are connected correctly, and the bypass power cables are
connected in the same phase sequence.
2. Before cable connection, switch off all circuit breakers in the parallel system.
3. If the input or output wiring has to be changed, contact Huawei technical support if you are
not familiar with the operation. Do not power on the UPS directly.
1. When installing short-circuit bars, install the AC INPUT short-circuit bar and cables, and then
install the AC OUTPUT short-circuit bar and cables.
2. If the input or output system is changed, ensure that the short-circuit copper bar status and
cable connections at input and output ports are correct.
3. The UPS can generate large leakage currents. A circuit breaker equipped with a residual
current device (RCD) is not recommended. If leakage protection is required, select a
recommended circuit breaker.
4. Circuit breakers used for cable connection need to be provided by the customer.
5. When UPSs are connected in parallel, the output parallel power cables of each UPS must be
at least 1 m long and the length deviation must be less than ±10%. The four cables must be
connected at the remote end.
6. If the parallel system uses the TN-C power distribution system, install magnetic rings around
the PE cables on each UPS, bind the magnetic rings together using cable ties, and secure the
magnetic rings nearby. Magnetic rings are optional. For details about the model and usage,
see the UPS2000-G-(6 kVA-20 kVA) User Manual .
1. bL indicates the bypass input, and mL indicates the mains input.
2. K indicates the general AC input circuit breaker, Kmindicates the general mains input circuit
breaker, and Kbindicates the general bypass input circuit breaker. K1, Km1, and Kb1 indicate
UPS 1 input circuit breakers. K2, Km2, and Kb2 indicate UPS 2 input circuit breakers. Q
indicates the general AC output circuit breaker. Q1 indicates the UPS 1 output circuit breaker.
Q2 indicates the UPS 2 output circuit breaker.

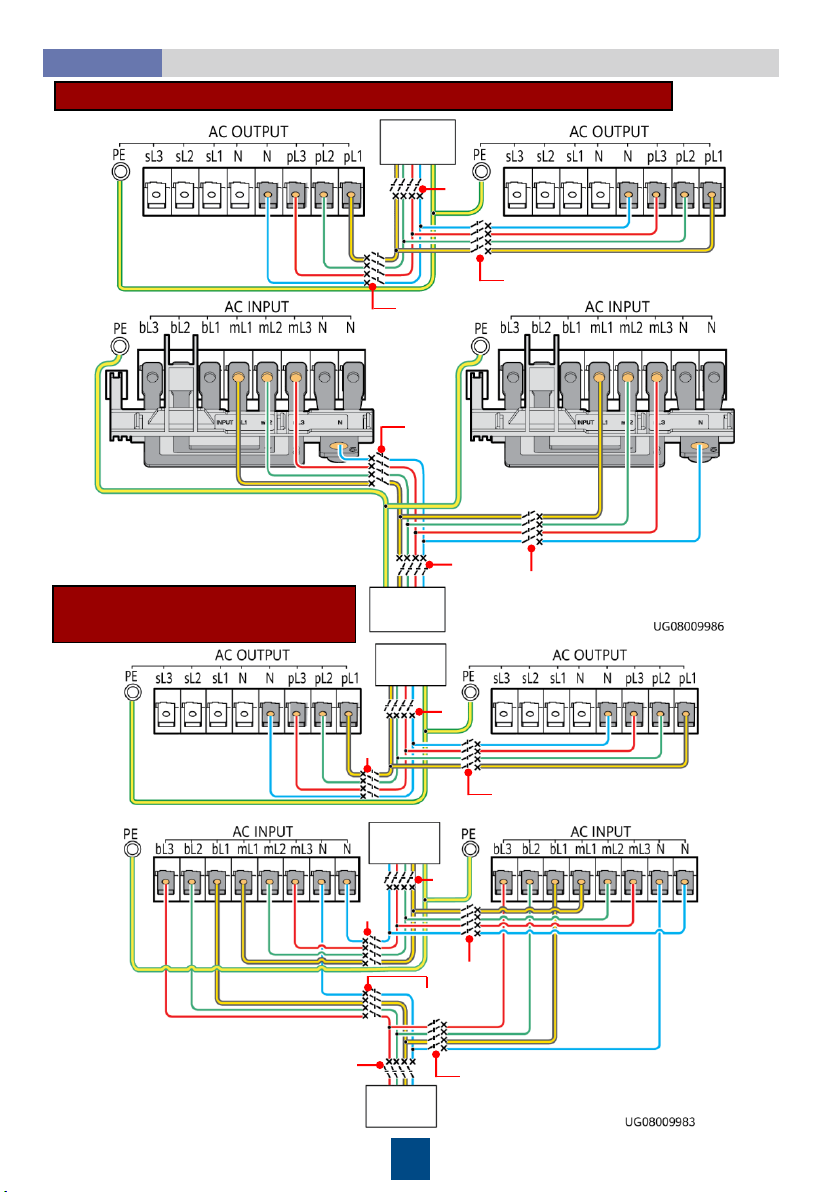

Connect cables based on site requirements. For details about the wiring terminals, external circuit
breakers, leakage current breakers, distribution cross-sectional areas, and terminal types, see the
method for a single UPS system.

19
Equipped with No PDU
Scenario 1
Three-Phase Input, Three-Phase Output, One Power Source (Factory Settings)
AC
input
Q1
Q2
Q
KK1
K2
AC
load
Three-Phase Input, Three-Phase
Output, Two Power Sources
AC
load
Mains
input
Bypass
input
Q1
Q2
Q
Kb
Km
Km2
Km1
Kb2
Kb1

20
Three-Phase Input, Single-Phase Output, One Power Source
AC
load
AC
input
Q1
Q2
Q
Km1
Km2
Kb1
Kb2
Km
Kb
