Huawei SUN2000-4.95KTL-JPL0 User manual

SUN2000L-(4.125KTL–4.95KTL)-JP and SUN2000-
4.95KTL-JPL0 Replacement
Quick Guide
Issue: 01
Part Number: 31500GLE
Date: 2021-12-25
HUAWEI DIGITAL POWER TECHNOLOGIES CO., LTD.

1
1. The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all
statements, information, and recommendations in this document do not constitute a
warranty of any kind, express or implied.
2. Before replacing the device, carefully read the SUN2000-4.95KTL-NHL2 User Manual to get
familiar with product information and precautions.
3. Before replacing the device, check whether the configurations of SUN2000L-(4.125KTL–
4.95KTL)-JP and SUN2000-4.95KTL-JPL0 can be viewed. If they can be viewed, record the
parameter settings for setting or checking parameters after the replacement.
4. Before replacing the device, check whether the cables are long enough. If not, prepare
appropriate cables.
1SUN2000L-(4.125KTL–4.95KTL)-JP Replacement Scenarios
•Before removing the original SUN2000, ensure that the DC switch on the SUN2000 and all
the switches connected to the SUN2000 are set to OFF. Otherwise, the high voltage of the
SUN2000 may result in electric shocks.
•After the SUN2000 is powered off, the remaining electricity and heat may still cause electric
shocks and body burns. Therefore, put on protective gloves and dielectric boots and begin
operating the SUN2000 with specialized insulation tools five minutes after the power-off.
1. Power off the SUN2000 to be replaced.
2. Remove the AC connector and remove the AC output power cable
from the mating socket for future use.
Removing SUN2000L-(4.125KTL–4.95KTL)-JP
1.1
Removing Cables from SUN2000L-(4.125KTL–4.95KTL)-JP for Future Use

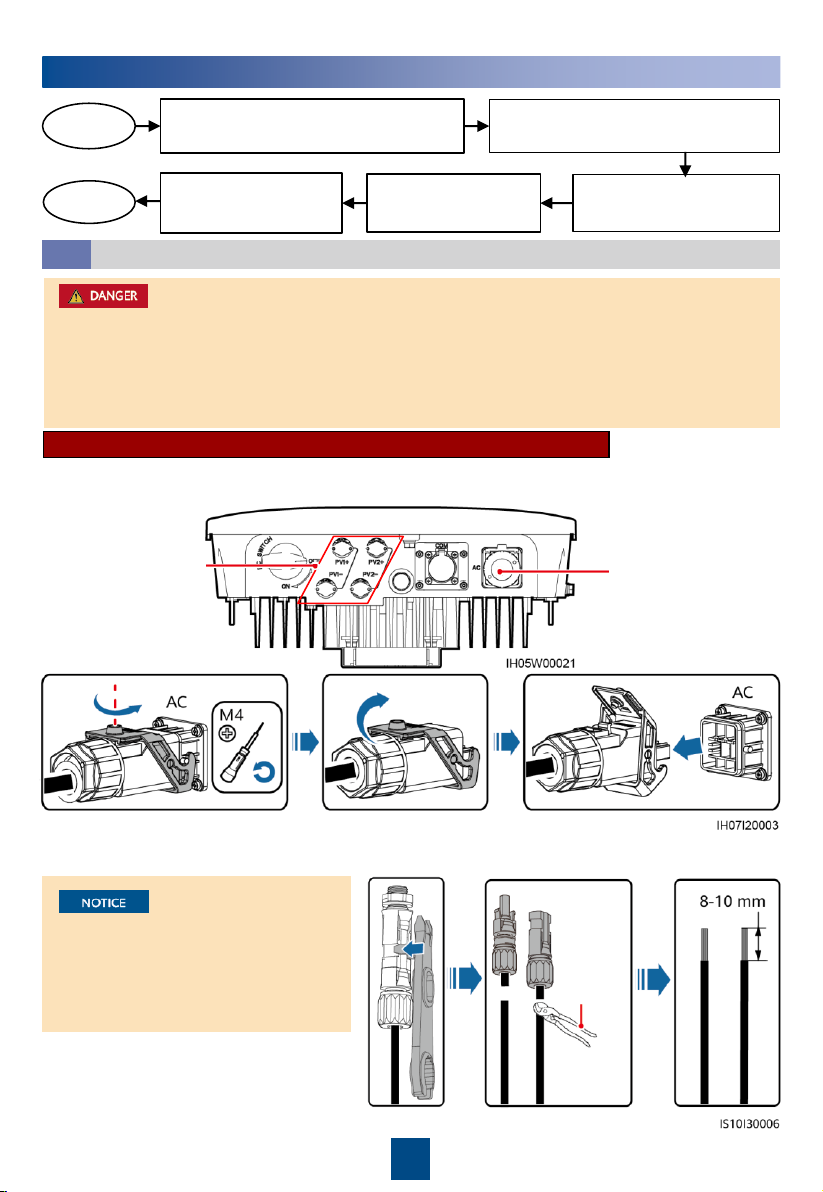

AC output port (AC)
Start Remove SUN2000L-(4.125KTL–
4.95KTL)-JP. Install SUN2000-4.95KTL-NHL2.
Complete electrical
connections of SUN2000-
4.95KTL-NHL2.
End
Check the installation
and power on the
SUN2000.
Commission
SUN2000-4.95KTL-
NHL2.
Copyright © Huawei Digital Power Technologies Co., Ltd. 2021.
All rights reserved.

2
3. Remove the DC connectors and use a cable cutter to cut off the terminals of DC input power
cables. Set the cables aside for future use.
The DC terminals of SUN2000L-(4.125KTL–4.95KTL)-JP must be cut off. If the DC connectors of
SUN2000L-(4.125KTL–4.95KTL)-JP are directly connected to SUN2000-4.95KTL-NHL2, the
SUN2000 may be burnt.
Cable
cutter
DC input terminals
5. Disconnect the PE cable and remove the crimped OT terminal. Set the cable aside for future use.
4. Remove the signal cable connector from the COM port for future use.
COM port (COM)

3
1. (Optional) Open the anti-theft lock. 2. Remove the two hex screws.
3. Remove the SUN2000 from the rear panel.
Installing SUN2000-4.95KTL-NHL2
1.2
1. (Optional) Install the locking screw for the DC switch.
Removing SUN2000L-(4.125KTL–4.95KTL)-JP

4
2. Remove the native hanging kit from
SUN2000-4.95KTL-NHL2.
3. Install the hanging kit delivered with SUN2000-
4.95KTL-NHL2.
•The marking-off template, mounting bracket, and M6x60 expansion bolts delivered with
SUN2000-4.95KTL-NHL2 are not used during replacement.
•Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) and ensure that the
lock can be installed successfully. An outdoor waterproof lock is recommended.
4. Install the SUN2000 on the
mounting bracket. (Optional) Install an
anti-theft lock.
5. Tighten screw assemblies.
Not used

5
•It is recommended that silica gel or paint be used around the ground terminal after the PE
cable is connected.
•It is recommended that you connect the PE cable to the right ground point and reserve the
other ground point.
Completing Electrical Connections of SUN2000-4.95KTL-NHL2
1.3
Before connecting cables, ensure that the DC switch on the SUN2000 and all the switches
connected to the SUN2000 are set to OFF. Otherwise, the high voltage of the SUN2000 may
result in electric shocks.
Ground
point
AC output port (AC)
Ensure that the
WLAN antenna is
installed securely.
Antenna port (ANT)
1. Install the PE cable for SUN2000-4.95KTL-NHL2.
2. Install the WLAN antenna.
3. Install the AC output power cable for SUN2000-4.95KTL-NHL2.

6
Click
Positive metal
terminal
Negative metal
terminal
Ensure that the cables
cannot be pulled out
after being crimped.
Positive connector
Negative
connector
Use the wrench
shown in the figure
to tighten the locking
nut. When the
wrench slips during
the tightening, the
locking nut has been
tightened.
Ensure that cable
polarities are
correct.
PV-CZM-19100 (Staubli)
PV-MS-HZ
open-end
wrench (Staubli)
•Ensure that the PV module output is well insulated to ground.
•Use the positive and negative Staubli MC4 metal terminals and DC connectors supplied with
the SUN2000. Using incompatible positive and negative metal terminals and DC connectors
may result in serious consequences. The caused device damage is not covered under warranty.
•The DC input voltage of the SUN2000 cannot exceed the maximum input voltage under any
condition.
•Before installing DC input power cables, label the cable polarities to ensure correct cable
connections.
•If the polarities of the DC input power cables are reversed, do not operate the DC switch or
the positive/negative connector immediately. Failing to do so may cause device damage,
which is not covered under warranty. Wait until the night when solar irradiance declines and
the PV string current drops to below 0.5 A. Then set the DC switch to OFF, remove the
positive and negative connectors, and correct the polarities of the DC input power cables.
DC input terminals

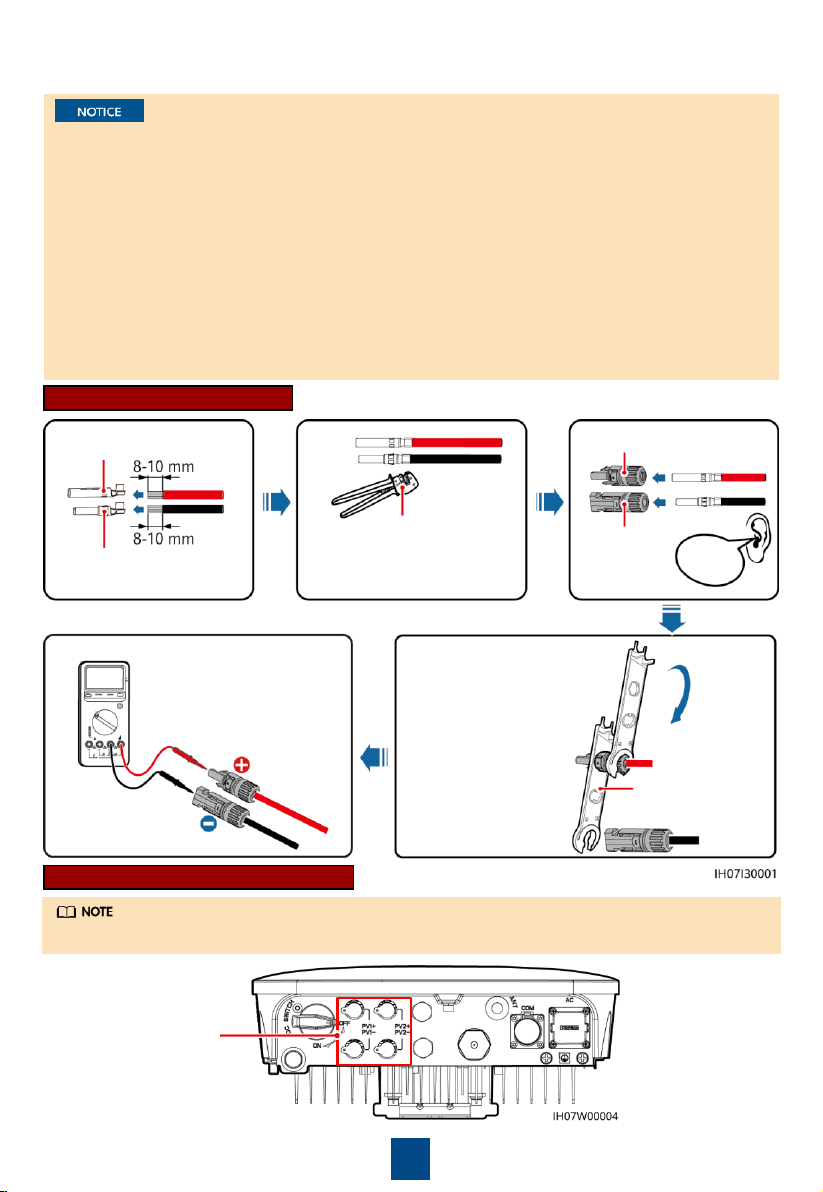

If the original DC input power cables are not long enough, add DC input extension cables.
4. Install DC input power cables for SUN2000-4.95KTL-NHL2.
Assembling DC connectors
Installing DC Input Power Cables

7
Click
Pull the DC input power cables back to
ensure that they are connected securely.
Extension cables for DC terminals
5. Install signal cables for SUN2000-4.95KTL-NHL2.
COM port (COM)
Checking the Installation of SUN2000-4.95KTL-NHL2 and
Powering On the SUN2000
1.4
Post-Installation Check
No.
Acceptance Criteria
1
The SUN2000 is installed correctly and securely.
2
The
WLAN antenna is installed correctly and securely.
3
Cables are routed properly as required by the customer.
4
Cable ties are evenly distributed and no burr exists.
5
The PE cable is connected correctly and securely
6
The DC switch and all the switches connected to the inverter are set to OFF.
7
The AC output power cable, DC input power cables, and signal cables are connected
correctly and securely.
8
Unused terminals and ports are covered by watertight caps.
9
The installation space is proper, and the installation environment is clean and tidy.

8
Powering On the SUN2000
Before turning on the AC switch between the SUN2000 and the power grid, check that the AC
voltage is within the specified range using a multimeter.
1. Turn on the AC switch between the SUN2000 and the power grid.
2. (Optional) Remove the locking screw beside the DC switch.
3. Turn on the DC switch (if any) between the PV string and the SUN2000.
4. Turn on the DC switch at the bottom of the SUN2000.
Commissioning SUN2000-4.95KTL-NHL2
1.5
1. Download and install the latest installation package of the app.
Method 1: Search for FusionSolar in Huawei AppGallery.
Method 2: Visit https://solar.huawei.com using your mobile phone browser.
Method 3: Scan the QR code.
FusionSolar

9
3. Connect to the solar inverter WLAN and log in as installer to access the device
commissioning screen.
2. Access Device commissioning.
Scenario 1: Your phone is not
connected to the Internet.
Scenario 2: Your phone is
connected to the Internet.
When your phone is
connected to the
Internet, Device
commissioning is not
displayed after you tap
....
At the first login, the Quick
settings screen is displayed
by default. Exit the quick
settings.

10
4. Choose Maintenance > Device replacement, select the type of the original device, and
complete the replacement.
5. (Optional) If you need to set other parameters, tap Settings.
Select a model for device
replacement, set the grid
code, time zone, and time,
and complete the protocol
replacement.
In this scenario, you do not
need to manually set the
communication address. The
SmartLogger automatically
allocates the address.
Restore the device to its
factory settings before
replacement.

11
Connect the new
SUN2000 to the system.
Choose Maintenance, log in to the SmartLogger1000 as Advanced User or Special User, and
choose Device Mgmt. to connect the new SUN2000 to the system.
SmartLogger1000 Networking
6. Connect the SUN2000 to the management system.
Connect the new
SUN2000 to the system.
Connect to the SmartLogger WLAN. Log in to the app as Advanced User or Special User for the
SmartLogger1000A, or as installer for the SmartLogger3000. Choose Maintenance > Device
Mgmt. to connect the new SUN2000 to the system.
SmartLogger1000A/SmartLogger3000 Networking

12
7. Log in to the SmartPVMS and navigate to the Device Management page to replace the SN
of the old SUN2000 with the SN of the new SUN2000. The historical data of the old
SUN2000 will be inherited.
Connect the new
SUN2000 to the system.

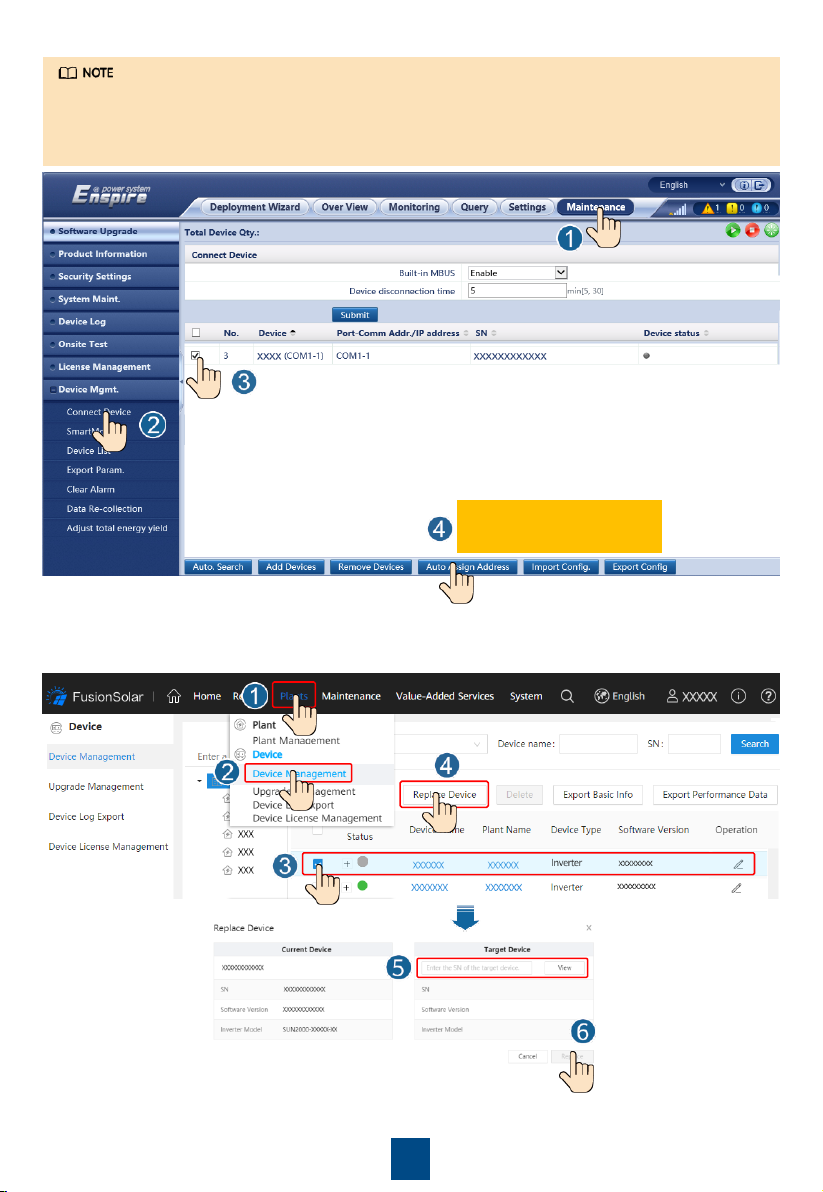

You can also manage devices on the SmartLogger WebUI. Log in to the SmartLogger WebUI as
Advanced User or Special User for the SmartLogger1000 or 1000A, or as an admin user for the
SmartLogger3000. Choose Maintenance > Connect Device to connect the new SUN2000 to the
system.

13
You can also complete historical data inheritance in the FusionSolar app. Log in to the app and
choose Device management > Device Replacement to replace the SN of the old SUN2000
with the SN of the new SUN2000. The historical data of the old SUN2000 will be inherited.

14
3. Remove the DC connectors and use a cable cutter to cut off the terminals of DC input power
cables. Set the cables aside for future use.
Cable
cutter
Start Remove SUN2000-4.95KTL-JPL0. Install SUN2000-4.95KTL-NHL2.
Complete electrical
connections of SUN2000-
4.95KTL-NHL2.
End
Check the installation
and power on the
SUN2000.
Commission SUN2000-
4.95KTL-NHL2.
Removing SUN2000-4.95KTL-JPL0
2.1
Removing Cables from SUN2000-4.95KTL-JPL0 for Future Use
1. Power off the SUN2000 to be replaced.
2. Remove the AC connector and remove the AC output power cable from the mating socket
for future use.
•Before removing the original SUN2000, ensure that the DC switch on the SUN2000 and all
the switches connected to the SUN2000 are set to OFF. Otherwise, the high voltage of the
SUN2000 may result in electric shocks.
•After the SUN2000 is powered off, the remaining electricity and heat may still cause electric
shocks and body burns. Therefore, put on protective gloves and dielectric boots and begin
operating the SUN2000 with specialized insulation tools five minutes after the power-off.
AC output port (AC)
DC input terminals
2SUN2000-4.95KTL-JPL0 Replacement Scenario
The DC terminals of SUN2000-
4.95KTL-JPL0 must be cut off. If the
DC connectors of the SUN2000-
4.95KTL-JPL0 are directly connected
to SUN2000-4.95KTL-NHL2, the
inverter may be burnt.

15
5. Disconnect the PE cable and remove the crimped OT terminal. Set the cable aside for future use.
Installing SUN2000-4.95KTL-NHL2
2.2
4. (Optional) Remove the signal cable connector from the COM port for future use.
COM port (COM)
Removing SUN2000-4.95KTL-JPL0
1. (Optional) Open the anti-theft lock. 3. Remove the SUN2000 from the mounting bracket.
1. (Optional) Install the locking screw for the DC switch.

16
2. Install the SUN2000. 3. (Optional) Install an anti-
theft lock.
•The marking-off template, mounting bracket, and M6x60 expansion bolts delivered with
SUN2000-4.95KTL-NHL2 are not used during replacement.
•Prepare an anti-theft lock suitable for the lock hole diameter (Ф10 mm) and ensure that the
lock can be installed successfully. An outdoor waterproof lock is recommended.
Completing Electrical Connections of SUN2000-4.95KTL-NHL2
2.3
See section 1.3 ''Completing Electrical Connections of SUN2000-4.95KTL-NHL2''.
1. Install the PE cable, WLAN antenna, AC output power cable, signal cables, and DC input
power cables.
Checking the Installation of SUN2000-4.95KTL-NHL2
and Powering On the SUN2000
2.4
See section 1.4 "Checking the Installation of SUN2000-4.95KTL-NHL2 and Powering On the
SUN2000".
Commissioning SUN2000-4.95KTL-NHL2
2.5
See section 1.5 "Commissioning SUN2000-4.95KTL-NHL2".

Huawei Digital Power Technologies Co., Ltd.
Huawei Digital Power Antuoshan Headquarters
Futian, Shenzhen 518043
People's Republic of China
solar.huawei.com
