Huawei UPS5000-E Series User manual

1
Issue: 04
Part Number: 31508115
Date: 2019-06-20
UPS5000-E-(25 kVA–125 kVA)-FM
Quick Guide
Copyright © Huawei Technologies Co., Ltd. 2019. All rights reserved.

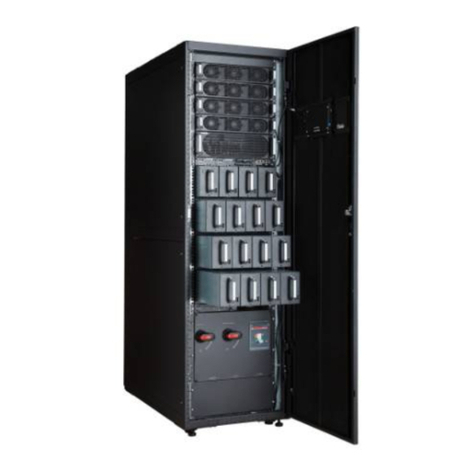

1Overview
UPS Model Capacity Configuration Weight (Full
Configuration) Dimensions (H x W
x D)
UPS5000-E-125K-FM 25 kVA, 50 kVA, 75 kVA,
100 kVA, 125 kVA 330 kg 2000 mm x 600 mm x 850 mm
(1) Mains input switch
(2) Bypass input switch
(3) Surge protective
module (optional)
(4) Control module
(5) Bypass module
(6) Power modules
(7) Monitor display
module (MDU)
(8) Output switch
(9) Maintenance
bypass switch
1. Before installation, read the user manual carefully to get familiar with product information and
safety precautions.
2. Use insulated tools when installing the equipment.
3. Only engineers certified by Huawei or its agent are allowed to install, commission, and maintain
the UPS. Otherwise, personal injury or equipment damage may occur, and the resulting UPS
faults are beyond the warranty scope of Huawei.

2
Installation Process
2(Optional) Installing the Top Outlet Kit
1. Remove the top cover from the UPS cabinet, and secure the top outlet kit using four M5 x 10
tapping screws.
2. Remove the rear cover from the UPS cabinet.
3. Connect the power cable and signal cable to the top outlet kit.
Connect the signal cable to the J33 terminal on the parallel board, and connect the power cable
to the W and N bars.

3
4. After cables have been connected, turn the fan switch to ON, and install the fan cover
on the top of the cabinet using four M5x10 tapping screws.
5. Install the rear baffle plate on the rear cover of the cabinet, and then install the rear cover on the
cabinet.

4
3Installing the UPS
1. Determine the mounting holes based on
the marking-off template, drill holes, and
install expansion sleeves.
3. Remove the rear cover from the cabinet,
open the cabinet front door, and remove
the four rubber plugs from the bottom of
the cabinet.
5. Reinstall the rear cover for the cabinet.
2. Adjust the anchor bolts and ensure that the
anchor bolts touch the floor. Then level the
UPS.
4. Secure the UPS.

5
4Connecting Cables
•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may
ignite and cause personal injury or device damage.
•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and
surrounding environment clean and tidy.
•You need to prepare terminals onsite. The stripped length of the copper wire should be the
same as that of the part of the terminal that covers the conductor.
UPS Cable Connection Reference
4.1
The cabling route is for reference only. Connect cables based on site requirements.
NOTE
Installing Cables
4.2
Scenario 1: Routing Cables from the Top
1. Remove filler panels from the power
distribution subrack, and remove covers
from the top of the cabinet based on the site
requirements.
2. (Skip this step if the mains input and bypass
input share a power source.) Remove the
copper bars between the mains input and
bypass input.

6
3. Connect the ground cable, power cable, and signal cable. There is no need to connect the
bypass input power cable if the mains input and bypass input share a power source.
Signal cable
Port
Description Bolt Specifications Torque
Mains input M10x30 26 N•m
Bypass input M10x30 26 N•m
Battery input M12x35 46 N•m
Output M10x30 26 N•m
PE M10x30 26 N•m
NOTE
The wire routed from the middle point of positive
and negative battery strings is the neutral wire.
Take a battery string consisting of 40 batteries for
example. The battery neutral wire is routed from
the middle between positive and negative battery
strings, each consisting of 20 batteries.

7
Scenario 2: Routing Cables from the Bottom
1. Remove filler panels from the
front of the cabinet. 2. Switch the top covers and beam with the bottom covers.
In bottom cable routing scenarios, a cable entry cabinet is required only if the cross-sectional
area of cables is greater than 150 mm2.
NOTE

8
3. Remove cable covers based on site requirements.
4. (Skip this step if the mains input and bypass input share a power source.) Remove the copper
bars between the mains input and bypass input.
5. Connect the ground cable, power cable, and signal cable. There is no need to connect the
bypass input power cable if the mains input and bypass input share a power source.
Signal cable

9
5Verifying the Installation
1. Check that there is no foreign matter at the top and bottom of the cabinet, copper bars, switches,
and the rear of modules.
2. After verifying the installation, reinstall all
the covers.
3. (Remove the paper protective film from the
sealing putty.) After routing cables and
verifying cable connections, seal the gap
between cables and the cabinet using
sealing putty.
Dustproof cover
4. Do not remove the dustproof cover before
power-on to prevent dust inside the UPS.
Sealing putty
Sealing putty must be used as a whole and
the gap can be sealed only from the top.
Paper
protective film

10
6Powering On and Starting the UPS
1. Before powering on the UPS, ensure that the UPS has passed all check items in the UPS5000
Commissioning and Acceptance Report and Chapter 5.
2. Measure the voltage and frequency of the UPS upstream input switch. The line voltage range is
138–485 V AC, and the frequency range is 40–70 Hz.
Powering On the UPS
6.1
Close the upstream input switch.
Close the UPS bypass input switch, output switch, and mains input switch.
After the UPS is powered on, initialization begins. The MDU displays the Huawei logo and an
initialization progress bar.
Battery
Specifications
Number of
Batteries
Connected in
Series
Number of Battery
Strings Connected
in Parallel to the
UPS
Number of
Cells
Battery Capacity
100 Ah/12 V
32
2
32 x 6 = 192
100 Ah + 100 Ah = 200
Ah
100 Ah/2 V
192
2
192 x 1 = 192
100 Ah + 100 Ah = 200
Ah
100 Ah/12 V
40
3
40 x 6 = 240
100 Ah + 100 Ah + 100
Ah = 300 Ah
100 Ah/2 V
240
4
240 x 1 = 240
100 Ah + 100 Ah + 100
Ah + 100 Ah = 400 Ah
•
Number of cells indicates the number of 2 V DC batteries in a battery string connected to the
UPS.
•If multiple UPSs share battery strings, the battery capacity of each UPS is the total capacity of the
battery strings.
Setting Key Parameters
6.2

11
•Single/Parallel, Output frequency, Battery
capacity, and Number of cells must be
correctly set. Otherwise, the UPS running will
be affected.
•Output voltage level refers to the line voltage.
a) Set parameters on the Settings Wizard screen. During setting, the Bypass mode and No
battery alarms do not need handling if they are triggered.
b) View the system running status diagram on the MDU to check that the UPS is working in
bypass mode.
c) Start the inverter on the app.
•If you do not need to use the app to start the inverter, choose System Info > Maintenance >
Inv. ON on the MDU.
•The Service Expert app can be downloaded from Google Play and can run on Android.
•The port number is 443 by default and can be modified. If the UPS is managed using the app,
the port number must be set to 443.
NOTE
Initial Startup

12
Prepare the mobile phone app (Service Expert).
On the app home screen, tap StartUp to
access the Set Startup screen. Set the Site
and Device Type as required, and connect
the device. Enter the UPS IP and Port (443
by default) as well as the user name and
password of the WebUI account, and tap
Login.
Enable the mobile phone WLAN, search for
the UPS WiFi signal, and connect to the WiFi
signal. The default value of WiFi SSID is
UPS_WiFi. The initial WiFi password is
Changeme by default.
Insert the WiFi module into the USB port on
the MDU.
After login, tap Power-on password
activation on the screen. In the displayed
dialog box, tap OK to start the UPS.
Enter Bar code and Verification code
obtained from the MDU on the Offline
Activation screen. Tap Generate PWD to
generate a startup password. Note: If the
entered startup password is incorrect, you
need to tap Inv. ON again on the MDU to
obtain a new verification code, and then
generate a password on the app.
On the MDU, choose System Info >
Maintenance > Inv. ON and obtain the Bar
code and Verification code.
Enter the generated password in the
password textbox on the MDU to start the
inverter.
Use the app to
start the inverter
online?
Yes
No, start
the inverter
offline
Open the Service Expert app on the mobile
phone.
Open the Service Expert app on the
mobile phone.
On the home screen of the app, tap
StartUp to access the Set Startup screen.
Set Site and Device Type as required, and
tap Offline Activation.
Non-initial Startup
a) On the main menu, choose Common Functions and tap Inv. ON.
b) In the displayed dialog box, tap Yes to start the inverter.
System User LCD Preset Password WebUI Preset Password
admin (system administrator) 000001 Changeme
operator (common user) 000001 Changeme

13
Powering On Loads
6.3
1. After the inverter starts, the UPS works in normal mode. The Bypass mode alarm disappears.
2. Close the battery string circuit breaker. (If there are multiple battery strings, close the circuit
breaker for each battery string and then the general circuit breaker between battery strings and
the UPS.) The No battery alarm disappears.
3. Close the UPS downstream output switch to supply power to the loads.
4. If a BCB box is installed, set parameters related to dry contacts, as shown in the figure.
7Shutting Down the UPS
After you shut down the inverter, the UPS transfers to bypass mode if the bypass is normal; the
UPS supplies no power if the bypass is abnormal. Before shutting down the UPS, ensure that all
loads have been shut down.
1. On the main menu of the LCD, choose Common Functions and tap Inv. OFF.
2. In the displayed dialog box, tap Yes to shut down the inverter.
Shutting Down the Inverter to Transfer the UPS to Bypass Mode
7.1
Powering Off a Single UPS
7.2
Open the downstream output switch and battery string switch.
Open the UPS mains input switch, bypass input switch, and output switch.
Open the upstream input switch.

14
2. Place the cable entry cabinet on the left or right of the UPS (right in the example), remove the
right and rear covers from the UPS and the front and rear covers from the cable entry cabinet,
and save the covers for later use.
3. Adjust the anchor bolts of the cable entry cabinet to make it flush with the UPS cabinet.
4. Install the front and rear connecting kits.
1. (Optional) Determine the installation position, and mark mounting holes in the installation
position based on the marking-off template of the cable entry cabinet.
8(Optional) Installing a Cable Entry Cabinet

15
(1) Signal cable
(2) Ground cables and power cables
5. (Optional) Secure the cable entry cabinet to the
floor.
6. Remove a certain number of the front row of small
covers from the bottom of the cable entry cabinet
based on the actual cable conditions.
7. (Skip this step if the mains input and bypass input
share a power source.) Remove the copper bars
between the mains input and bypass input.
8. Connect the ground cable, power cable, and signal
cable. There is no need to connect the bypass
input power cable if the mains input and bypass
input share a power source.
9. Install the right cover of the UPS cabinet on the
right of the cable entry cabinet, and install other
covers in the original positions.

16
