Huayu HY-MDL User manual

Installation and Operation Manual
HY-MDL/HY-MDL-3
For our home energy independence.
Huayu(Ningbo)New Energy Technologies Co., Ltd.

1. Introduction 


01
Company Profile  01
01
Contents
1.1 Prefix
1.2 How to Use This Manual


4. User Interface 03
 034.1 Main Interface
 034.2 Interface Overview
 044.3 Energy Functions
 064.4 Setting


074.5 Backup/Clear Data
 084.6 Status Bar
02
2. FCC Compliance
3. Installation 02
 01
01
1.3 Safety Instruction
5. Web Interface  08
6. Specification  09

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
This indicates a situation where failure to follow instructions may be a safety hazard or cause equipment
malfunction. Use extreme caution and follow instructions carefully.
PLEASE READ THIS MANUAL BEFORE INSTALLATION. ANY DAMAGE TO THE PRODUCT DUE TO NOT
FOLLOWING THIS MANUAL IS NOT COVERED BY THE WARRANTEE.
BESIDES THE CABLE CONNECTORS, NOTHING INSIDE THE MONITORING DATA LOGGER SHOULD
BE MODIFIED.
ALL INSTALLATION SHOULD FOLLOW THE LOCAL ELECTRIC CODES.
HY-MDL/HY-MDL-3 DOES NOT INCLUDE COMPONENTS THAT CAN BE SERVED BY CUSTOMERS.
PLEASE CONTACT AUTHORIZED SERVICE AGENTS FOR ANY SERVICE WORK.
1. Introduction
01
1.1 Prefix
1.2 How to Use this Manual
1.3 Safety Instruction
Company Profile
Huayu New Energy is dedicated to be a world’s leading “Safe & Smart Solar Energy” supplier for homeowners.
“For our home energy independence” is a vision deserved for all people who truly trust clean energy is the future for
our children, whatever you’re from rich families or low-income families.
Since the establishment of Huayu New Energy, we specialize in R&D of Safe Module-Level Solar Solution and Smart
Energy Storage Solution which are controlled by Huayu Portal Management Platform with over 10 languages, these
innovative technologies are developed to configure a Smart Distributed Solar System with bidirectional flow of energy
which no doubt is the basic infrastructure of our future Energy Internet.
Featured with “Renewable, Distributed, Interconnected, Open & Intelligent”, Energy Internet is a must for human
beings in 21st century to realize a de-monopolistic & de-centralized sustainable power supply system across the
globe. Huayu New Energy was born to be the leader of “Safe & Smart” distributed energy solution and play an
irreplaceable role for the most exciting renewable energy revolution in human history.
Till today, we have delivered thousands of Huayu microinverters(300-2000W)and Huayu storage inverters(3-12kW)for
global families and small businesses in Europe, North America, LATAM, South East Asia, Middle East and Africa.
Together with us, to be a part of game changer for “Safe & Smart Energy” via “Honesty, Trust, Teamwork & Sharing”.
Dear customer, thank you for choosing the HY-MDL/HY-MDL-3 communication monitoring data logger for Huayu
micro inverters. We hope you will find our products meet your need for renewable energy. Meantime, we appreciate
your feedback regarding our products.
This manual provides detailed product information and installation instructions for the HY-MDL/HY-MDL-3 monitoring
data logger. Please read through this manual before installation and operation.

North America
Australia
HY-MDL-PC-NA
HY-MDL-PC-AU
Accessory Part Number
Europe HY-MDL-PC-EU
Region
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
HY-MDL/HY-MDL-3 Communications Monitoring Data Logger
AC Power Cord
HY-MDL/HY-MDL-3 Installation and Operation Manual
Ethernet cable
USB devices, such as USB disk, USB keyboard, USB mouse, USB scanner, etc
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for compliance may void the user’s
authority to operate the equipment.
2. FCC Compliance
3. Installation
02
Check the HY-MDL/HY-MDL-3 shipping box for the following items:
Other Parts and Tools
For HY-MDL-3, the wires are connected following the marks on the data logger.
US Australia Europe
For HY-MDL, there are three types of AC power code for three major regions of the world.
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
Ethernet cable is used to connect the HY-MDL/HY-MDL-3 to an Ethernet router or hub. There is a web server built
inside HY-MDL/HY-MDL-3, which can be visited by type in the HY-MDL/HY-MDL-3 IP address on a web browser.
If the HY-MDL/HY-MDL-3 is connected to the internet directly or through a router, users may also visit the
HY-MDL/HY-MDL-3 through a website.
USB devices can be connected to the HY-MDL/HY-MDL-3 through the USB connector. Multiple types of USB
devices are supported by HY-MDL/HY-MDL-3, including USB disk, USB keyboard, USB mouse, USB scanner, etc.
HY-MDL/HY-MDL-3 takes approximately 1-2 minutes to start up after power has been turned on. After start-up,
the system will enter the main interface as shown in Figure 3 (all three numbers will read “0” at start-up for the
first time).
Figure 3 shows the HY-MDL/HY-MDL-3 main interface. The main interface is arranged in three horizontal rows,
which consist of the tool bar at the top, the display area in the middle, and the status bar at the lower part of
the screen. The tool bar contains 7 buttons: Save/Clear (Backup/Restore Factory Defaults), Summary Display
(Summary Display Interface), Today's Energy (Current Day Power Generation), 7-Day's Energy (Power Generation
Over the Past 7 Days), Monthly Energy (Power Generation Over Each Month), Yearly Energy (Power Generation
Over Each Year), and Settings. These buttons are used to display their respective content in the middle display
area. The display area shows the power-time curve for the current day as well as a power generation bar chart.
The status bar shows the device status, IP address, and current date.
If the main interface is idle for 2~3 sec., it will switch to a numeric summary interface, which is described as below:
The screen is divided into three parts. The upper part shows Today's Energy (Current Day Power Generation), the
lower right corner shows Lifetime (Total Power Generation Since Device Started Recording), and the lower left corner
shows CO2 reduction (Reduction In Carbon Dioxide Emissions). Touching any part of the screen will bring up the
main interface.
Figure 3 HY-MDL/HY-MDL-3 Main Display
4. User Interface
03
4.1 Main Interface
4.2 Interface Overview

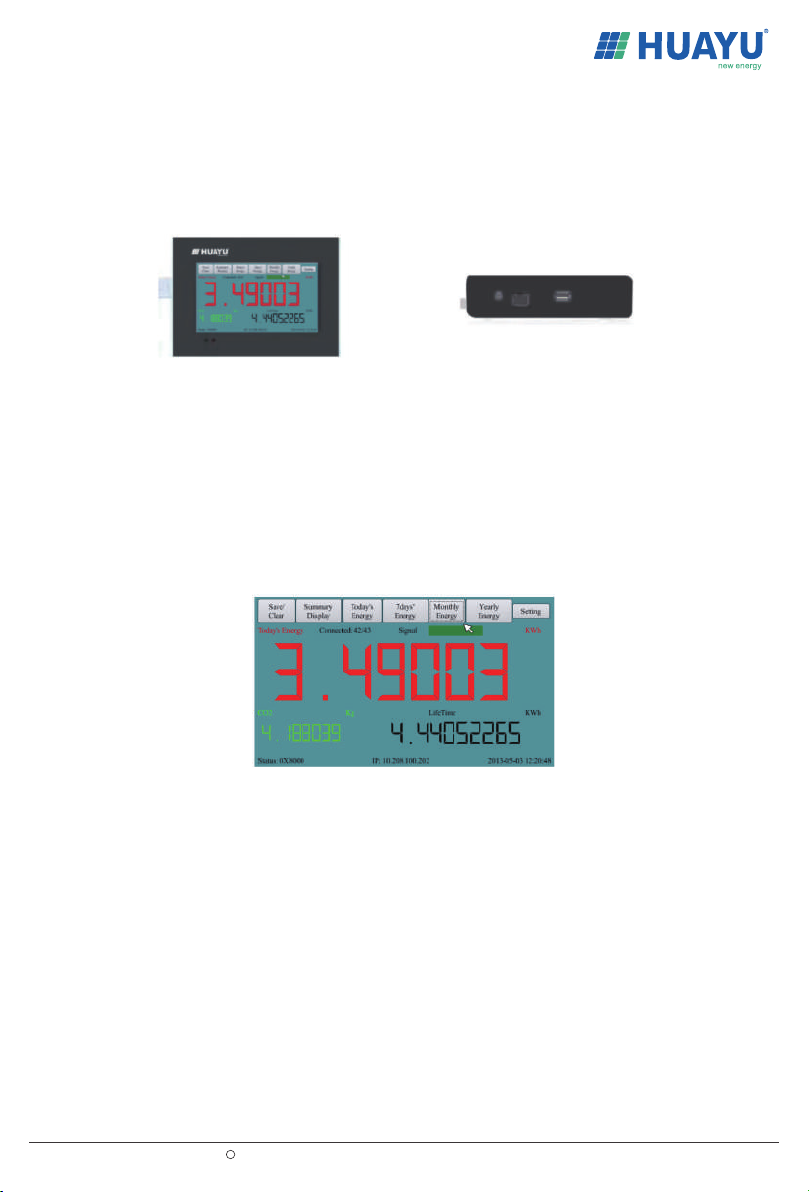

Figure 1 HY-MDL/HY-MDL-3 Front View Figure 2 HY-MDL/HY-MDL-3 Side View

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
4.3.1 Today’s Energy
4.3 Energy Functions
A menu bar locates on the top of the screen. Different screen pages on energy and power can be called by
pressing on these menu buttons.
Pressing this button will display the power-time curve screen (see Figure 5). The x-axis represents the time
(4:00-20:00), and the y-axis represents Huayu micro inverters output power (kW). The total output energy (kWh)
is displayed on the upper left corner. The real-time output power (kW) and today's total energy generated (kWh)
are displayed on the upper right corner. Part of the curve can be magnified by drawing a box on the curve using
finger or touch pen. Pressing the Today's Energy button again cancels the enlarged display and restores the
original display.
Figure 4 HY-MDL/HY-MDL-3 System Summary Display
Figure 5 Today’s Power
Figure 6 Drawing a Box on Today’s Power
04

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c

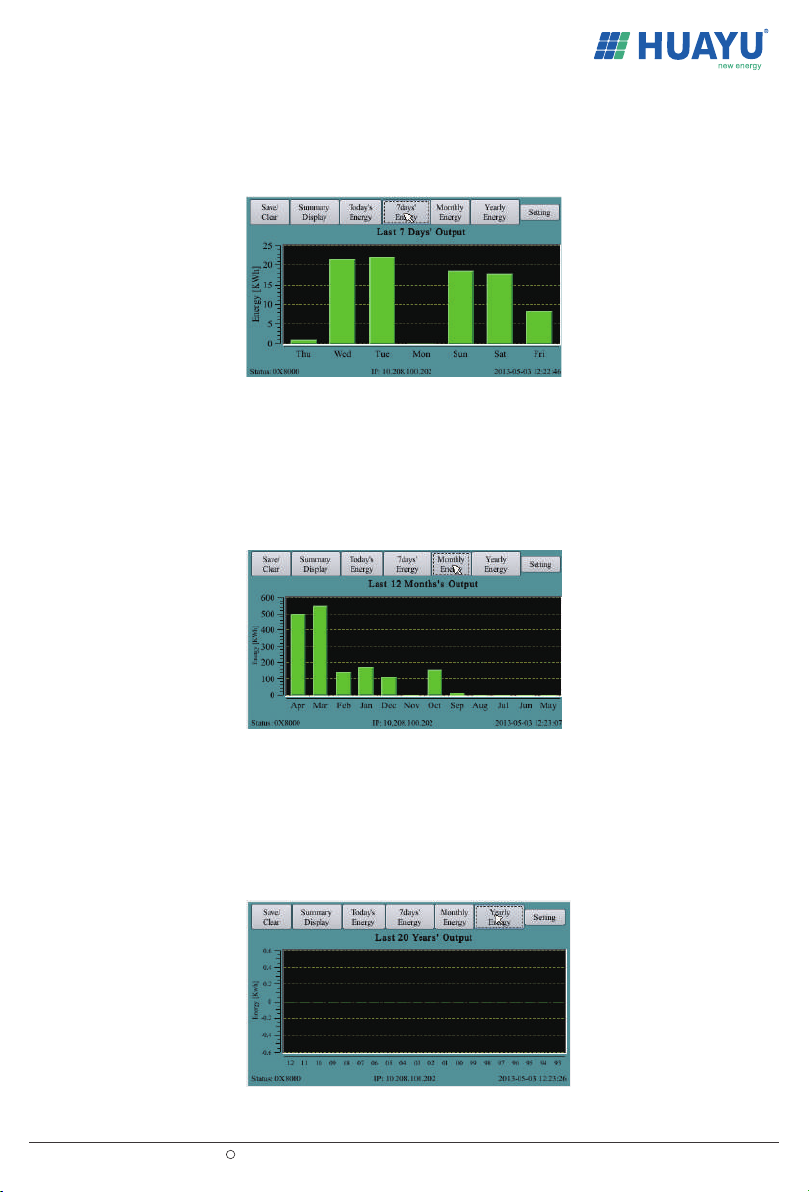

4.3.2 Last 7 Days’ Energy
Pressing this button will bring up a bar chart showing power generation over the past 7 days (see Figure 7). The
x-axis represents the date and the last one corresponds to today. The y-axis represents the amount of energy
generated (kWh) during the day.
4.3.3 Monthly Energy
Pressing this button will bring up a bar chart showing power generation over each month for the last 12 months
(see Figure 8). This display is similar to the Last 7 Days' Energy display. The x-axis represents months and the
current month is in the last. The y-axis represents the amount of energy generated (kWh) in the month.
4.3.4 Yearly Energy
Pressing this button brings up a bar chart showing power generation over each year for the past 20 years (see
Figure 9). This display is also similar to the Last 7 Days' Energy display. The x-axis represents the years and the
current year locates in the last. The y-axis represents the amount of energy generated (kWh) in the year.
Figure 7 Last 7 Days’ Energy
Figure 8 Monthly Energy
Figure 9 Yearly Energy
05

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
Pressing the Setting button will bring up the settings dialog.
HY-MDL/HY-MDL-3's IP address may be manually set in the Ethernet settings tab (Figure 10). They may also be
obtained through DHCP (requires a system restart after setting). If the IP address must be changed, double click
on the address box to bring up a small keypad on the screen.
4.4 Setting
4.4.1 IP Setting
The Date & Time settings tab (Figure 11) is used to set the date, time, and time zone. HY-MDL/HY-MDL-3 support
all the five time zone of North America. For other parts of the world, the time zone “World” may be chosen.
The communications address settings tab (Figure 12) is used to set the power line communication address of the
micro inverters linked to the device. One HY-MDL/HY-MDL-3 monitoring data logger can monitor up to 255 micro
inverters. Inverter-0 on the address list corresponds to the total output of all inverters connected to the monitoring
data logger.
Address settings can be input using either the small input panel on the touch-screen or an external USB keyboard.
The communication address of a micro inverter consists of the 8 hex characters (0~F) on the Huayu micro inverter
bar code before the last letter for country. Another way to input the micro inverter communication address is through
an internal web portal (see Section 5).
4.4.2 Date & Time Setting
4.4.3 Communication Address Setting
Figure 10 IP Setting
Figure 11 Date & Time Setting
Microinverter Address
06

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
4.5 Backup/Clear Data
4.6 Status Bar
Figure 12 Communication Address Setting
Figure 13 Backup/Clear Data
When a USB flash disk is inserted, press the Save/Clear button to call up the following dialog box (see Figure 13).
Press the Save button, and press “Yes” on the confirmation window that appears to compress and backup all
collected data to the USB flash disk. The document will automatically use the backup date for its name.
Press the Reset button, and press “Yes” on the confirmation window that appears to clear all collected data.
The device settings will not be changed.
The bottom field on all display pages consists of the status bar, which displays the device's operating status,
the current IP address, and the current date and time. “OK” means that the device is operating normally.
A 16-bit error code will be displayed in the form of a hex number if there happens to be a malfunction. The
meaning of the error code is listed as the following table.
07
Error code
Bit-0
Bit-1
Bit-2
Bit-3
Bit-4
Bit-5
Bit-6
Bit-7
Error
DC over voltage
DC under voltage
hardware error
Inverter over voltage
Frequency over
Frequency under
AC voltage RMS over
AC voltage RMS under

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
The HY-MDL/HY-MDL-3 information can be accessed through two web pages. The first one is a web server
inside the HY-MDL/HY-MDL-3 monitoring data logger. The second one is a web server provided by Huayu,
which access requires internet service.
The local web portal built inside HY-MDL/HY-MDL-3 can be accessed through home network without internet
service. If there is internet service, however, remote monitoring can be accessed through Huayu Portal from
anywhere at anytime.
To access the web portal inside HY-MDL/HY-MDL-3, user only needs to type in the IP address of HY-MDL/HY-
MDL-3 on a web browser (please see Section 4.4.1 for configuring the IP address of HY-MDL/HY-MDL-3).
The administration page for inverter address can be accessed by http:/…/module.cgi (for example http://10.
208.100.202/module.cgi)
MICROVIEWER monitoring w/ built-in HY-MDL/HY-MDL-3
5. Web Interface
Figure 14 MICROVIEWER Monitoring
08
Bit-8
Bit-9
Bit-10
Bit-11
Bit-12
Bit-13
Bit-14
Bit-15
Peak AC voltage over
AC current RMS over
Peak AC current over
Temperature over
ADC error
GFDI fault indicator
Relay error (for some model)
PLC Communication Error

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
6. Specification
Figure 15 Inputting Inverter S/N through A Webpage
09
Communications Interface
Communication with Microinverter
Ethernet
USB
Monitoring Capacity
Human Interface
Display
Power Requirements
Mechanical Data
Features
Standard Warranty Term
Compliance
Power Consumption
AC Inlet
HY-MDL HY-MDL-3
Power Line Communication
10/100 auto-sensing, auto-negotiation
USB 2.0 interface, auto-sensing, auto-negotiation
-40˚C to +55˚C (-40˚ to 131˚F)
Natural convection – no fans
Indoor - NEMA 1
1 year
UL 60950-1 2nd Edition Rev Dec 19, 2011
CSA C22.2 2nd Edition Rev Dec 19, 2011
FCC Part 15 Class B
AS/NZS 60950.1:2011 Inc A1
AS/NZS CISPR 22: 2009+A1:2010
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EN 55022:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 55024:2010
EMC Directive 2004/108/EC
255 micro inverters
5-in LCD touch screen 7-in LCD touch screen
Dimensions (WxHxD)
Weight
Ambient Temperature Range
Cooling
Enclosure Environmental
6.69” x 4.33” x 1.46”
150g 720g
7.83” x 6.34” x 1.81”
5 watts maximum 8 watts maximum
100 - 240 Vac, 50/60 Hz

Huayu Portal - Mobile App
Tel: [phone]
Add: No.456 Xingning Road, Ningbo 315100, P.R.China
E-mail: [e-mail]
Website: www.huayu-energy.com
