Huffy 360 Battery Ride-on User manual
[ In the US and Canada]
PLEASE - BEFORE RETURNING TO STORE:
Contact Huy Customer Service. We
are glad to assist you with any parts or
assembly problems you might have!
~
VEUILLEZ NOTER : AVANT DE
RETOURNER AU MAGASIN :
Communiquez Avec Le Service À La
Clientèle De Huy. Nous Vous Aiderons
Volontiers Avec Tout Problème Concernant
Les Pièces Ou Le Montage!
For Fast Customer Service, go to:
Pour un Service à la clientèle rapide, allez sur le site :
http://www.huybikes.com/contact
To Order Parts (US), go to:
Pour obtenir des pièces (CANADA), allez à:
http://www.huybikes.com/parts
OR TEL: 1 800 872 2453 (US only)
OU appelez le 1 800 872 2453 (CANADA seulement)
For email, go to http://www.huybikes.com/contact
Pour communiquer par courriel huycanada@huy.com
[ MÉXICO ]
ANTES DE DEVOLVER EL
PRODUCTO A LA TIENDA:
Comuníquese Con Servicio Al
Cliente De Huy. Nos Complace
Ayudarlo Con Cualquier Parte
O Problema De Ensamblado
Que Pudiera Tener.
Para obtener Servicio al cliente
rápido, visite:
http://www.huybikes.com/
O LLAME AL TEL: 01800 1483 391
(Mexico only)
Para comunicarse por correo electrónico:
servicio@huymex.com
H-Tri_STOP-Global_010318_i0388
For Assembly Help:
Ayuda de la Asamblea:
Aide à l’assemblage :
http://www.huybikes.com/home/globalcontact
for current contact information
para obtener la información de contacto actual
pour les informations de contact actuelles
See back page for Customer Service Information
Consulte el reverso para Servicio de Información al Cliente
Voir pages verso pour des renseignements le service à la Clientèle
© Copyright Huffy Corporation 2018
H-GM360 EN 021418 m0456
Date Code Label
Here
360 Battery Ride-on
Owner’s Manual
BC
EN
This manual contains important safety, assembly,
operation and maintenance information.
Please read and fully understand this manual before
operation.
Save this manual for future reference.
Always wear approved helmet and safety equipment when
using this product.
2
Owner’sManualIndex
Safety and Warnings....................................................................................................2-5
Assembly...............................................................................................................................6-13
Operation and Charging....................................................................................... 14-17
Maintenance Repair and Service................................................................... 18-20
Troubleshooting........................................................................................................... 21-22
Warranty..................................................................................................................................23
Contact Information...................................................................................................... Back Cover
WARNING:CHOKING HAZARD:
• Small parts, adult assembly required.
• To reduce the risk of injury, adult supervision is required.
• Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming
pools or other bodies of water; always wear shoes, and never allow more than one rider.
• The user must be 3 to 5 years, and weigh no more than 50 lbs (23kgs).
• The toy is to be assembled by an adult
• Non-rechargeable batteries are not to be recharged
• Batteries are to be inserted with the correct polarity
• The supply terminals are not to be short-circuited
• Batteries are only to be charged by adults or by children at least 8 years old
• The battery chargers used with the toy are to be regularly examined for damage to the
cord, plug, enclosure and other parts, and in the event of such damage, they must not be
used until the damage has been repaired.
IMPORTANT! Before using the unit for the rst time the battery needs to
be charged for at least 8to 12 hours - no more than 20 hours. Only an adult
who has read and understands the safety warnings should handle, charge
or recharge of the battery (see Operation section). 23
Limited Warranty
General:
• Part or model specications are subject to
change without notice.
• This Limited Warranty is the only warranty
for the product. There are no other express
warranties.
• The only uses for this product are described
in this manual.
• Warranty registration is not required.
• The Limited Warranty extends only to the
original consumer and is not transferable to
anyone else.
What does this Limited Warranty cover?
This Limited Warranty covers all parts of the
product except those indicated below as not
warranted.
What must you do to keep the Limited
Warranty in eect?
This Limited Warranty is eective only if:
• Product is completely and correctly
assembled.
• Product is used under normal conditions
for its intended purpose (see the following
section for excluded activities).
• Product receives all necessary maintenance
and adjustments.
• Product is used for general transportation
and recreational use only.
What is not covered by this Limited
Warranty?
This product is designed for recreational use only.
This Limited Warranty does not cover normal
wear and tear, normal maintenance items, or any
damage, failure, or loss that is caused by improper
assembly, maintenance, adjustment, storage, or
use of the product.
This Limited Warranty will be void if the
product is ever:
• Used in any competitive sport
• Used for stunt riding, jumping, aerobatics or
similar activity
• Modied in any way
• Modied with the addition of a motor
• Ridden by more than one person at a time
• Rented, sold, or given away
• Used in a manner contrary to the instructions
and warnings in this Owner’s Manual
Huy will not be liable for incidental or
consequential loss or damage due directly or
indirectly from use of this product. Some States do
not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation
may not apply to you.
What will Huy do?
Huy will replace, without charge to you, any part,
or component found to be defective by Huy.
How do you get service?
Contact the Customer Service Department.
• See included list for Customer Contact
information or visit www.huybikes.com/
contact.
What rights do you have?
This warranty gives you specic legal rights. You
may also have other rights which vary from State
to State.
This product meets ASTM F963 and CPSIA
requirements for electric vehicles.
How long does this Limited Warranty Last?
• Drive Battery - 30 days
• Electronics - 90 days
• All other Components - 6 months
• All parts are subject to the Conditions of
Warranty below.
Warranty
22
Troubleshooting
Troubleshooting Guide - continued
Battery will not
recharge
Battery connector or
adapter connector is loose
Check that the battery connectors are
rmly plugged into each other.
Charger not plugged in
Charger is not working Check that the battery charger is plugged
into a working wall outlet.
Battery is dead Replace battery.
Charger feels warm
when recharging
This is normal and not a
cause for concern
If excessively hot, unplug and replace.
Problem Possible Cause Solution
BEFORE YOU CALL SUPPORT:
1. What is the model and date code?
2. When was the product purchased?
3. Has the product ever worked for a time or has never worked at all since purchase?
• Yes, When did the product last operate correctly?
• No, were the battery wires connected?
4. How long was the battery charged?
5. Is the charger plugged into the unit when you try to operate the product?
• (The unit will not operate with charger plugged in)
6. Do any lights or sounds come on when you power the product on?
• Yes, Does the lights and sounds go away when you press the drive switch?
7. When you press the drive switch, does an electric motor start?
• Yes, Did you check that the correct drive wheel was installed?
• Yes, Does the insert in the gearbox rotate?
3
• An adult must always supervise a child that is
using the vehicle.
• Before using the vehicle the user must
understand the controls and safety issues.
They must also demonstrate the capability to
handle the vehicle and operate its controls.
• Seat Models: Always sit in the seat when using
the vehicle. Do not stand on side boards.
• This product contains small parts that are
for adult assembly only. Keep small children
away when assembling. Remove and dispose
of all protective material and poly bags before
assembly. Be sure to remove all packaging
materials and parts from underneath the
vehicle body.
• Always use the vehicle in a safe, secure
environment with continuous adult
supervision.
• Body parts such as hands, legs, hair and
clothing can get caught in moving parts.
Never place a body part near a moving part or
wear loose clothing while using the vehicle.
Always wear shoes when using vehicle.
• Use on at, smooth paved surfaces only.
• Using the vehicle on or near streets, motor
vehicle, drop-os such as: steps, water
(swimming pools), sloped surfaces, hills, wet
areas, ammable vapors, in alleys, at night or
in the dark could result in an accident.
• Do not use the vehicle in unsafe conditions
such as snow, rain, loose dirt, mud sand or
ne gravel. This may result in unexpected
action such as tip over and skidding.
• Models with no brakes: Motor friction will
gradually stop the unit.
• Do not use the vehicle in an unsafe manner.
Examples include but are not limited to:
• Pulling the vehicle with another vehicle
or similar device.
• Allowing more than one rider.
• Pushing the vehicle.
• Traveling at an unsafe speed.
• There are additional hazards of using the
vehicle in areas other than private grounds.
• Not to be used in trac.
• The vehicle shall be used with caution since
skill is required to avoid falls or collisions.
• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive up steep slopes.
• Do not drive into xed objects, which may
cause the wheels to spin, causing the motor
to overheat.
• Do not drive in very hot weather, components
may overheat.
• Do not allow water or other liquids to come
in contact with the battery or other electric
components.
• Do not tamper with the electrical system.
Doing so may create a short, causing the fuse
to trip or other damage including re.
• Do not stand on or in vehicle while moving.
• Child should always wear an approved helmet
when using this product.
• If equipped, child should always use properly
and securely attached Seat Belt.
• Only use authorised replacement parts.
• Operators shall adhere to all recommenda-
tions and instructions as well as comply with
all laws and ordinances.
WARNINGS
Here are basic, common sense safe riding practices you should read aloud to your child
and anyone who may use the vehicle.
It is the responsibility of the adult to educate the child, determine if they are t to
operate the vehicle, and supervise use.
Safety & Warnings
4
Safety & Warnings
WARNING:
ALWAYS WEAR YOUR
HELMET WHEN RIDING
THIS PRODUCT!
• Helmet should sit level on your head and low on your fore-
head. Exposed forehead can result in serious injury.
• Adjust the strap sliders below the ear on both sides.
• Buckle the chin strap. Adjust strap until it is snug.
• No more than two ngers should t between the strap and
your chin.
• A proper tting helmet should be comfortable and not rock
forward/backward or side to side.
Helmet Warning Information
CAUTION: Changes or modications
to this unit not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
This device (charger/adapter) complies with
Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment o and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Radio Frequency Information (charger/adapter)
21
Troubleshooting Guide
Problem Possible Cause Solution
Vehicle does not run Battery wires not connected
or are loose
Connect battery wires according to
assembly instructions,
Check that the battery connectors are rmly
plugged into each other. If wires are loose
around the motor call Customer Service.
Battery low on power Recharge battery (see Battery: Recharge
interval and time)
Battery Charger still plugged
in
Unplug Battery Charger from unit and wall
Thermal fuse has tripped Let Fuse reset
Battery is dead Replace battery (see Battery: Replacement
and Disposal)
Electrical system or motor is
damaged
Call Customer Service.
“Dead Spot” on motor A dead spot means the electric power is not
being delivered to the terminal connection
and the vehicle needs repair. Call Customer
Service.
Vehicle does not run
very long or runs slug-
gishly
Battery is undercharged. Check that the battery connectors are rmly
plugged into each other when recharging
(see Battery: Recharge interval and Time)
Battery is old and cannot be
fully charged
Replace battery (see Battery: Replacement
and Disposal)
Battery low on power Recharge battery (see Battery: Replacement
and Disposal)
Battery is old and cannot be
fully charged
Replace battery (see Battery: Replacement
and Disposal)
Vehicle is overloaded Reduce weight on vehicle (see user require-
ments and Safety Warnings)
Vehicle is being used in
harsh conditions
Avoid using vehicle in harsh conditions (see
User Requirements and Safety Warnings)
Vehicle makes loud
noise when in use
Chain is dry (on chain drive
models)
Lubricate chain with light oil.
Loud grinding or
clicking noises coming
from motor or gear
box
Motor or gears are damaged Call Customer Service.
Drive Wheel is partially
engaged
Check drive wheel - to motor engagement.
The following are examples of potential problems. Completely read through this manual and
the troubleshooting guide table before calling. If you still need help resolving the problem
please contact Customer Service.
NOTE: Vehicle should be turned o and fully changed before doing troubleshooting.
Troubleshooting
20
Maintenance
Battery Fuse
Drive Motor Battery
Only an adult who has read and understands the safety warnings should handle, charge or
recharge the battery. Failure to comply with all safety warnings may result in serious injury
or death.
The drive motor circuit features a thermal fuse that will automatically trip and cut all power
to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and
power will be restored after a short time. If the thermal fuse trips repeatedly during normal
use, the vehicle may need repair.
WARNING:DO NOT BYPASS THE FUSE - RISK OF FIRE. This may overload
and damage the electrical system.
Battery Storage and Disposal
The drive battery should be charged when
depleted, or if not used regularly, once a
month. Failure to charge the battery as
directed will cause permanent damage to the
battery and will void the warranty.
Follow these guidelines if the battery is
removed:
• Do not store battery in extreme hot or cold
temperatures.
• Wipe the battery clean with a dry cloth
prior to storage. Wash cloth separate from
other clothes.
BATTERY DISPOSAL:
• The sealed lead-acid battery must be re-
cycled or disposed of in an environmentally
sound manner.
• Do not dispose of battery in a re. The bat-
tery may explode or leak acid.
• Do not dispose of the battery in house-
hold trash. The incineration, land lling or
mixing of sealed lead-acid batteries with
household trash is prohibited by law.
• Return an exhausted battery to a federal or
state approved lead-acid battery recycler,
such as a local seller of automotive bat-
teries (check local battery disposal regula-
tions).
5
WARNING - Charging the Drive Motor Battery
The following safety hazards may result in serious injury or death to the user of the vehicle:
• Use of a battery or charger other than the supplied rechargeable
battery and charger may cause a re or explosion. Only use the supplied
rechargeable battery (or suitable replacement) and charger with the
vehicle.
• Using the rechargeable battery and charger for any other product may
result in overheating, re or explosion. Never use the rechargeable
battery and charger with another product.
• Explosion. Gases are created during charging. Charge the battery in a
well ventilated area. Do not charge the battery near heat or ammable
materials.
• Contact between the positive and negative terminals may result in re
or explosion. Avoid direct contact between the terminals. Picking up the
battery by the wires or charger can cause damage to the battery and
may result in a re. Always pick up the battery by its case or handles.
• Battery must be handled by adults only. Liquids on the battery may
cause re or electric shock. Always keep all liquids away from the
battery and keep the battery dry.
• Contact or exposure to battery leakage (lead acid) may cause serious
injury. If contact or exposure occurs immediately call your physician. If
the chemical is on the skin or in the eyes, ush with cool water for 15
minutes. If the chemical was swallowed, immediately give the person
water or milk. Do not give water or milk if the patient is vomiting or has
a decreased level of alertness. Do not induce vomiting.
• Battery Posts, terminals and related accessories contain lead and lead
compounds (acid), chemicals known to cause cancer, reproductive harm
and are toxic and corrosive. Never open the battery.
• Tampering or modifying the electric circuit system may case a shock,
re or explosion and permanently damage the system. Exposed wiring
and circuitry in the charger may cause electric shock. Always keep the
charger housing closed.
Important! Before using the unit for the rst time the battery needs to be charged for 8 to
12 hours - never longer than 20 hours, Only an adult who has read and understands the
safety warnings should handle, charge or recharge of the battery (see Maintenance).
NOTE: It is not necessary to remove the battery from the vehicle for charging.
Safety & Warnings
6
Parts View
Parts View
10
9
8
7
1
2
3
4
56
11 12
13
19

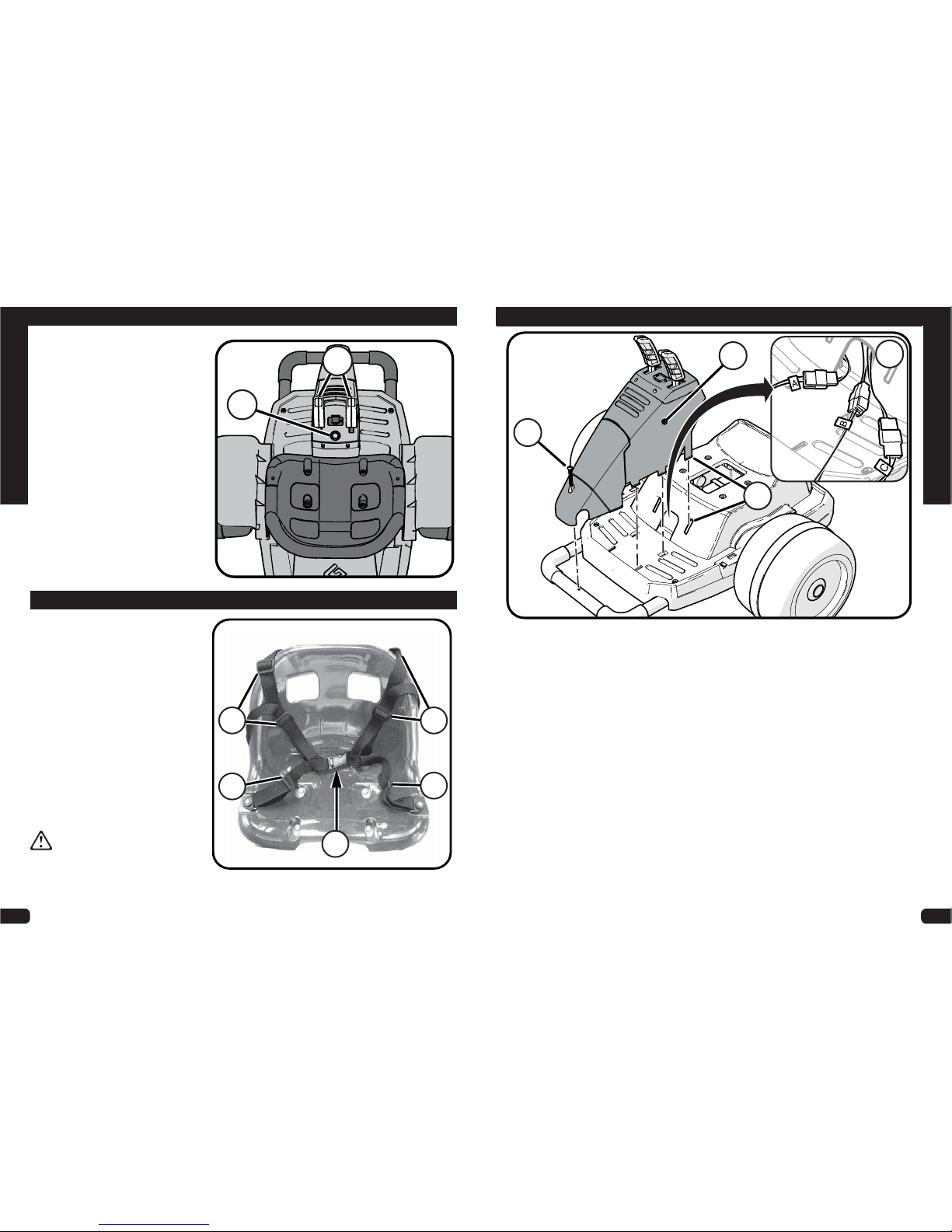

Replace Drive Battery:
Maintenance
STEPS:
1. Remove Seat.
2. Disconnect the Red Band Black CBattery Terminals.
3. Remove the battery bracket and screws A.
4. Carefully remove the battery.
5. Place the old battery in a plastic bag.
6. Install a replacement battery (same as original equipment)
7. Reconnect the Battery Terminals - Red to Red, Black to Black.
8. Replace the battery bracket and screws A.
9. Reinstall Seat.
10. Wipe the battery with a dry cloth prior to storage. Wash cloth separately from other
clothes.
A
B
C
18
Maintenance
Maintenance Repair and Service
General: The vehicle should be checked for
damage, missing or badly worn parts before
each use. If any part of the product does not
operate properly – discontinue use.
• Check the tightness of the fasteners before
each use. Replace any fasteners that are dam-
aged.
• Inspect the product frequently. Failure to in-
spect the product and to make repairs or ad-
justments, as necessary, can result in injury to
the rider or to others. Make sure all parts are
correctly assembled and adjusted as written
in this manual and any“Special Instructions”.
• Immediately replace any damaged, missing,
or badly worn parts.
• Make sure all fasteners are correctly tightened
as written in this manual and any“Special
Instructions”. Parts that are not tight enough
can be lost or operate poorly. Over tight-
ened parts can be damaged. Make sure any
replacement fasteners are the correct size and
type.
• Check the tightness of the wheels:
Note: If the drive wheel is not tight, it will not
engage the gears and the vehicle will not run.
• Ensure the battery bracket is securely in place
before use.
• Store the vehicle indoors. Keep it away from
sources of heat, such as stoves and heaters.
• Keep the product clean and free of dirt, dust
and water. This will prolong the useful life of
the product.
• Clean the vehicle with a soft, dry cloth. To
restore shine to plastic parts, use a non-wax
furniture polish. Do not use automotive wax,
abrasive cleaners or wash the vehicle with
soap and water.
WARNING:Water will damage
the motor, electrical system and battery.
NOTE: If the instructions in this manual or any
“Special Instructions” are not sucient for
you, please contact customer service.
7
Parts List
Parts List
# Description
1 Body
2 Right Fender
3 Left Fender
4 Seat and mounting screws (x4)
5 Rear Axle
6 Drive Wheel (x2)
7 Drive Motor (x2)
8 Caster Wheels (x2) and mounting screws (4 each caster)
9 Bumper and mounting screws (x2)
10 Front Cowling and Front Mounting Screw
11 Controller Assembly
12 Grips (pair)
13 Battery Charger
8
Assembly
Introduction Notes:
This Owner’s Manual may be made for several dierent style products.
• Some illustrations may vary slightly from the actual product.
• Follow instructions completely.
• If the product has any parts that are not described in this manual, look for separate
“Special Instructions” that are supplied with the unit.
• All features, components and accessories are not included on all models.
• Use the Index page to locate specic sections of this manual.
• Please read through this entire manual before beginning assembly or maintenance.
• If you are not condent with assembling this unit, contact customer service.
WARNING: Keep small parts away from children during assembly.
NOTE: All of the directions (right, left, front, rear, etc.) in this manual are as seen by the
rider while seated.
Do not dispose of the carton and packaging until you complete the assembly of the
product. This can prevent accidentally discarding parts of the unit.

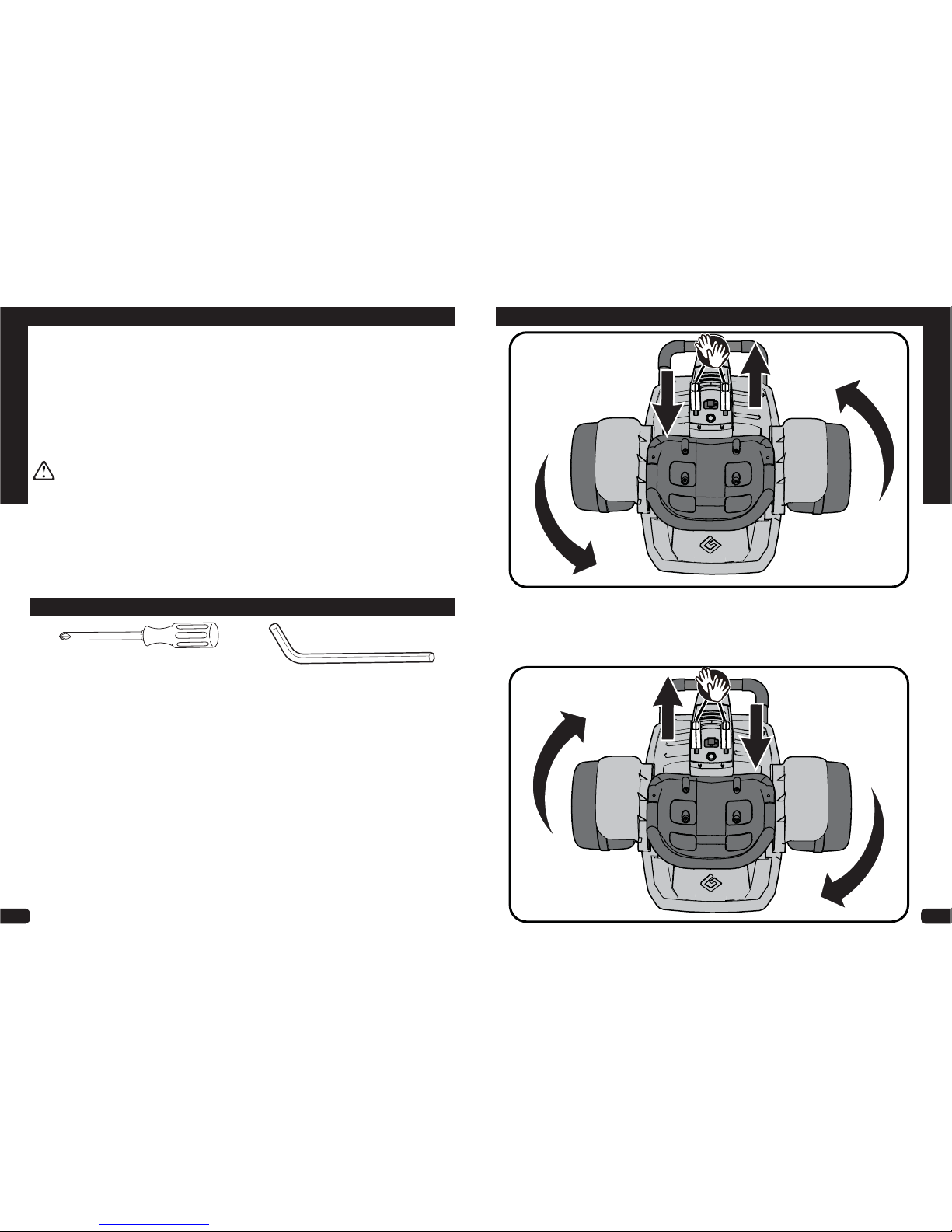

Tools Needed
Phillips Screw Driver Allen Wrench (supplied)
17
Operation
Steering the Unit Turning:
Move Left Control Grip Back and Right Control Grip Forward to turn LEFT
Move Left Control Grip Forward and Right Control Grip Back to turn RIGHT
16
Operation

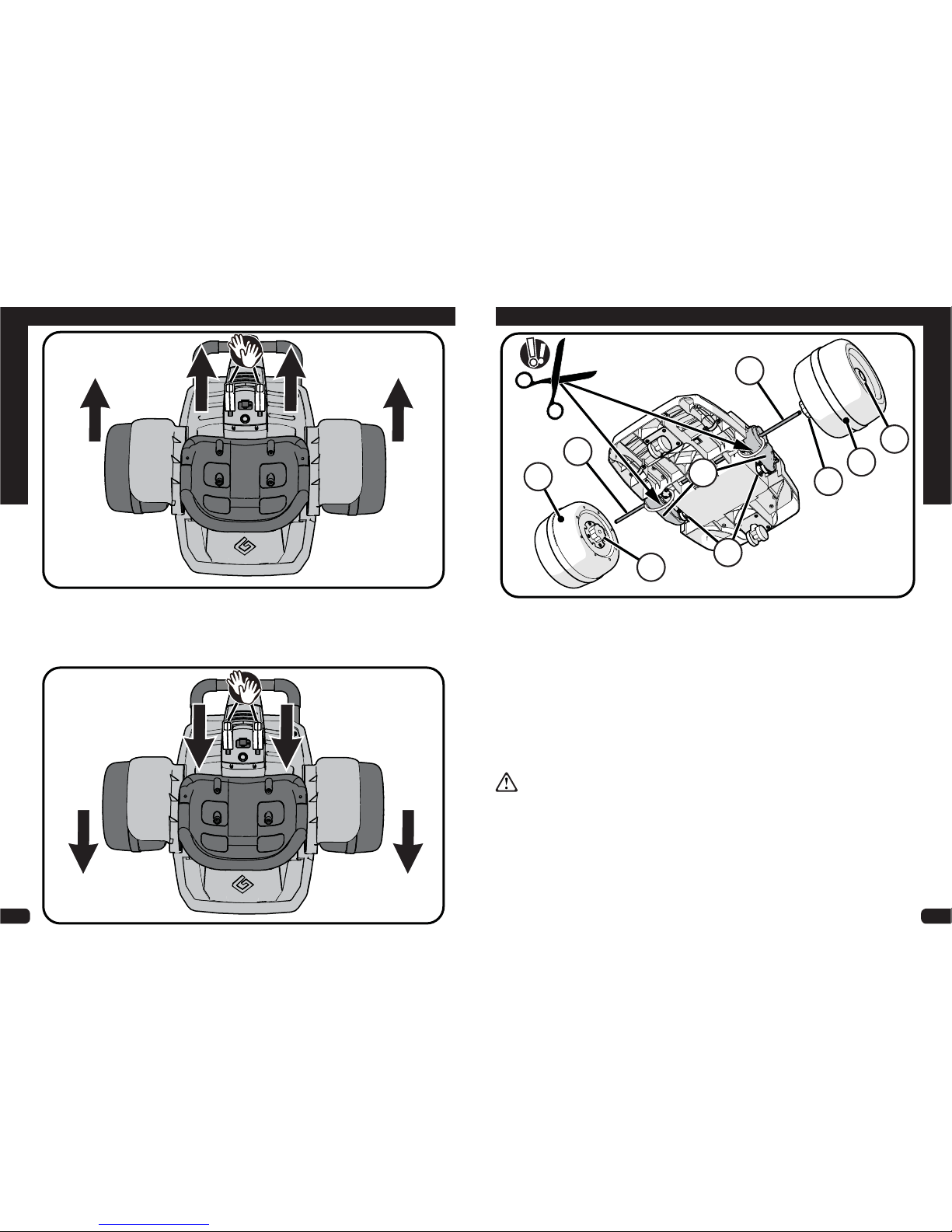

Steering the Unit - Forward and Reverse:
Move both Control Grips FORWARD to move FORWARD
Move both Control Grips BACKWARDS to move BACKWARDS
9
Assembly
Installing Drive Wheels:
B
C
C
E
F
D
B
F
A
STEPS:
NOTE: BEFORE STARTING, CUT PLASTIC TIES AT EACH MOTOR.
1. Insert Motor Ends so wires and Motor are inside Body Holes Aand Axle holes line up.
2. With one end of Axle Con ground, insert one Drive Wheel Bfully onto Axle and push
center Lock Button Duntil Wheel SNAPS into locked position.
3. Slide this Wheel/Axle assembly through one Drive Motor E, body and other Drive
Motor making sure Wheel Gears Ffully seat in Drive Motor Sprockets.
4. Install other Drive Wheel Bfully onto axle and push center Lock Button Duntil Wheel
SNAPS into locked position.
WARNING: Check that wheels are fully snapped in place by gently pulling
outward.
NOTE: To remove Wheels, press Center Button Dwhile pulling Wheel OUTWARDS.
10
Assembly
Installing Front Bumper:
STEPS:
1. Insert Bumper
Ainto front of body as shown so that mounting holes line up.
2. Install 2 Screws Bthrough body and Bumper.
3. Tighten Screws
Bsecurely.
A
B
15
IMPORTANT! Before using the unit for the first time the battery
needs to be charged for at least 8to 12 hours - no more than 20 hours.
Once battery is depleted, recharge for 8to 12 hours - no more than 20
hours.
Charging the Drive Battery:
IMPORTANT!
Check the drive battery and charger (supply cord,
connector) for wear and damage before charging.
Do not charge the battery if damage has occurred.
Only replace with the same type and voltage
rechargeable battery and charger supplied by the
manufacturer.
• Only use the rechargeable battery (or equivalent
replacement) and charger supplied with your
vehicle.
• Do not short circuit the battery: Do NOT connect
red and black wires together or connect positive
and negative terminals on the battery together.
• Always turn power o and charge battery after
riding.
STEPS:
1. Turn power switch OFF.
2. Locate Charging Port A.
3. Plug Charger plug into unit Charging Port.
4. Plug Charger into Wall outlet.
5. When battery is fully charged, un-plug charger from the wall outlet and disconnect from
charger port.
The drive battery should be charged when depleted, or if not used regularly, once a month.
Failure to charge the battery as directed will cause permanent damage to the battery and
will void the warranty.
Operation
A
14
Operation
Operation - General:
Seat Belts:
Turning Unit On:
1. Toggle Power Switch AON to
turn power on.
2. Turn Power Switch OFF to turn
power o.
Steering Unit:
• Use Control Grips Bto move
unit Forward, Backward and
Left and Right.
• See Steering section for
detailed instructions.
Adjustment:
• Adjust Strap Buckles Aand
Bto securely and safely fit
child.
• CAUTION: Ensure Straps B
are OVER child’s shoulders.
• With Seat belt properly
adjusted, connect Seat belt
Buckle Cuntil it SNAPS
locked.
• Squeeze top and bottom of
Seat belt Buckle Cto release.
WARNING: Do not
operate unit without securely
attached Seat belt.
B
A
C
B
A
B
A
11
Assembly
Installing Control Cowling:
STEPS:
1. Position Control Cowling Aover body and attach THREE Connectors Brmly and
completely.
2. Insert all Tabs
Cevenly and press until they SNAP into position. - SOME FORCE WILL
BE NECESSARY.
3. Ensure wires and plugs are not pinched or bound up.
4. Install forward bumper Screw Dsecurely.
A
C
D
B
12
Assembly
Connecting Drive Battery:
STEPS:
NOTE: Battery is located under Seat.
1. With seat removed, rmly attach Red Connecter Ato Red Battery Terminal as shown.
2. NOTE: Black Connector Bis attached by factory.
A
B
13
Assembly
Installing the Fenders:
Installing the Seat:
STEPS:
1. Tilt Seat so that front edge Tab Cts
under edge of control Cowling.
2. Position Seat in place as shown so that
mounting holes Aline up.
3. Install 4 Screws Bevenly and securely. -
Do Not Overtighten.
STEPS - Note - Fenders are marked (R) (right) and (L) (left):
1. Position each Fender so that Tabs line up with mounting Slots A.
2. Press rmly and evenly until all Tabs snap into place.
A
B
C
AL
R
Table of contents
Other Huffy Motorized Toy Car manuals
