Owner’s Manual
for
6V BMW Ride On
Please read and fully understand this manual
before operation.
Save this manual for future reference.
This manual contains important safety, assembly, operation
and maintenance information.
HBMW Rideon EN 092613 m0132
Copyright Huffy Corporation 2013
BC

2
Owner’s Manual Index
Safety
• Warnings...............................................................................................3-4
• User Requirements................................................................................5
Assembly
• Parts Assembly View.............................................................................6
• Parts Assembly List...............................................................................7
• Drive Motor and Rear Wheel Installation...............................................8
• Front Wheel Installation.........................................................................9
• Steering Rod Installation ......................................................................10
• Drive Battery Installation....................................................................... 11
• Motor Cover Installation........................................................................12
• Seat Installation....................................................................................13

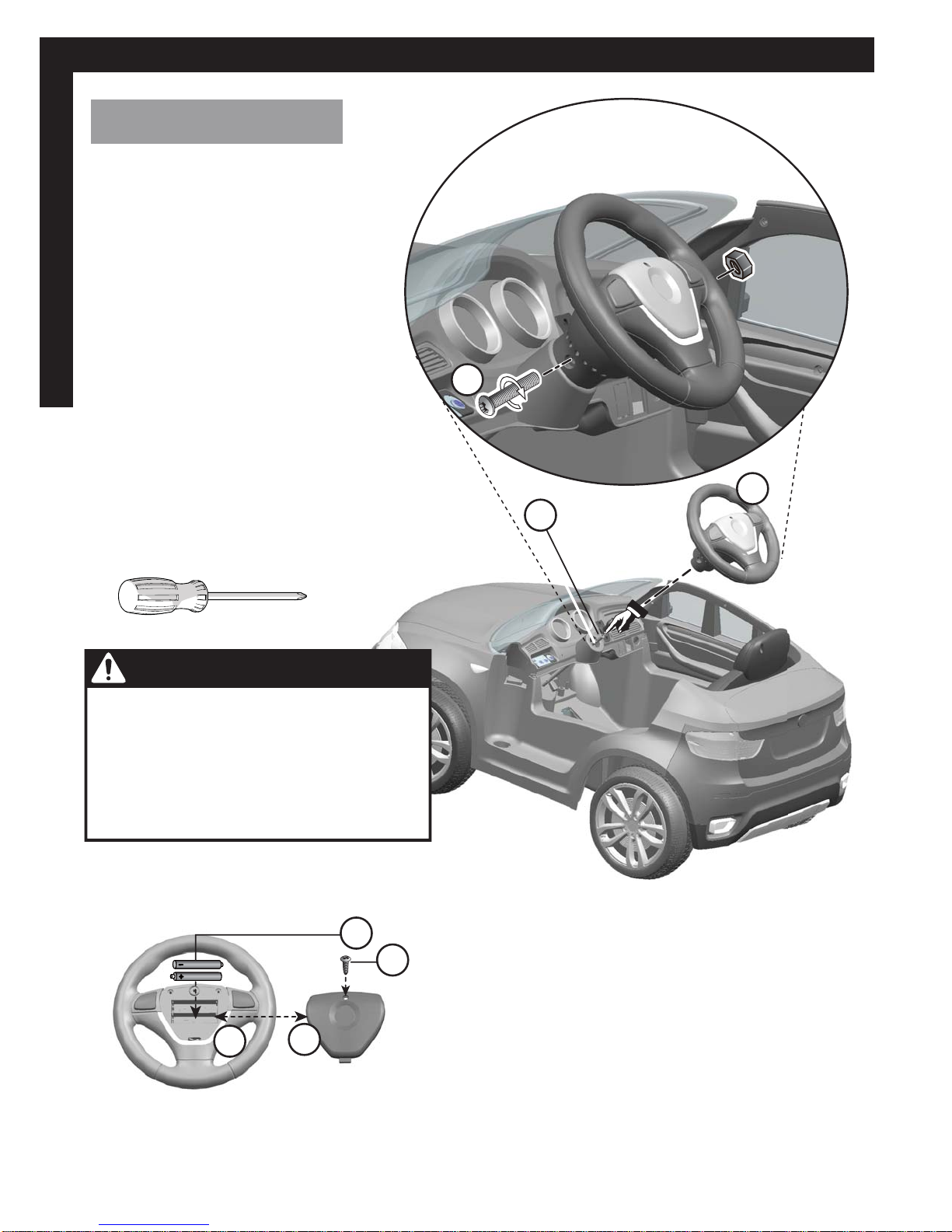

• Steering Wheel and Sound Effect Batteries.........................................14
• Side Mirror Installation..........................................................................15
Operation
• Operation and Features........................................................................16
Maintenance and Service
• General.................................................................................................17
• Battery Re-charge Interval and Time....................................................17
• Charging the Drive Battery...................................................................18
• Battery Fuse.........................................................................................19
• Battery Storage.....................................................................................19
• Battery replacement and disposal........................................................20
• Troubleshooting Guide .......................................................................21/22
Huffy Warranty
• Huffy Corporation Limited Warranty .....................................................23

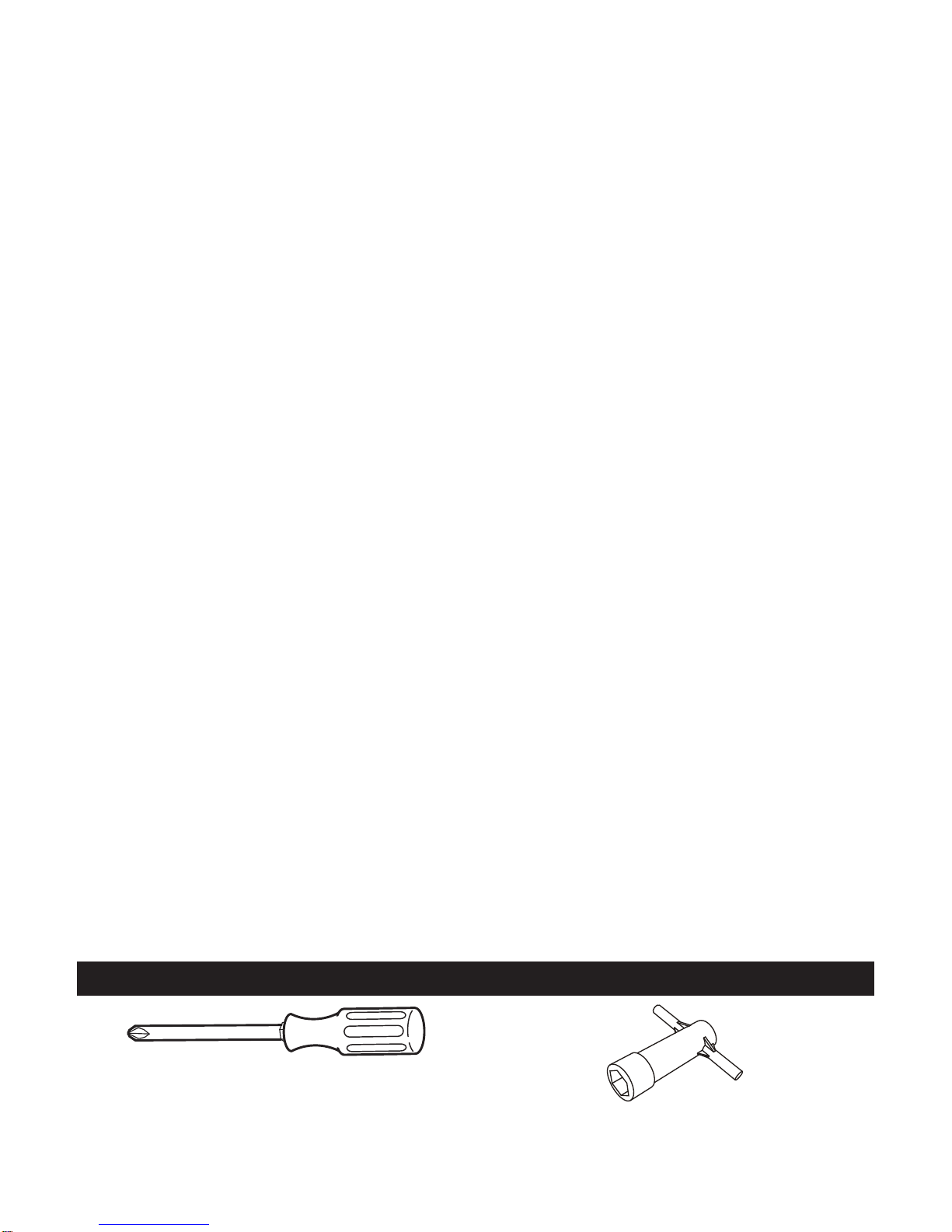

Tools Needed for Assembly:
Small Phillips Screwdriver Spanner Socket (supplied)

3
WARNING
The user must follow all safety rules and guidelines below or serious injury or death
may occur to the user.
• Always use common sense and safe practices when using the vehicle. This ve-
hicle is unsuitable for children under 3 years. The user must be 3 to 5 years, and
weigh no more than 65 lbs (30kgs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and poly bags before assembly. Be sure to remove all packaging materials and
parts from underneath the vehicle body.
• Always use the vehicle in a safe, secure environment with continuous adult
supervision.
• Body parts such as hands, legs, hair and clothing can get caught in moving
parts. Never place a body part near a moving part or wear loose clothing while
using the vehicle. Always wear shoes when using vehicle.
• Use on flat, smooth paved surfaces only.
• Using the vehicle on or near streets, motor vehicle, drop-offs such as: steps,
water (swimming pools), sloped surfaces, hills, wet areas, flammable vapors, in
alleys, at night or in the dark could result in an accident.
• Do not use the vehicle in unsafe conditions such as snow, rain, loose dirt, mud
sand or fine gravel. This may result in unexpected action such as tip over and
skidding.
• This vehicle has no brakes. Motor friction will gradually stop the unit.
• Do not use the vehicle in an unsafe manner. Examples include but are not limited
to:
• Pulling the vehicle with another vehicle or similar device.
• Allowing more than one rider.
• Pushing the vehicle.
• Traveling at an unsafe speed.
• There are additional hazards of using the vehicle in areas other than private
grounds.
• Not to be used in traffic.
• The vehicle shall be used with caution since skill is required to avoid falls or colli-
sions.
• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive up steep slopes.
• Do not drive into fixed objects, which may cause the wheels to spin, causing the
motor to overheat.
• Do not drive in very hot weather, components may overheat.
• Do not allow water or other liquids to come in contact with the battery or other
electric components.
• Do not tamper with the electrical system. Doing so may create a short, causing
the fuse to trip or other damage including fire.
• Child should always wear an approved helmet when using this product.
Safety

4
Safety
WARNING - Charging the Drive Motor Battery
The following safety hazards may result in serious injury or death to the user of the
vehicle:
• Use of a battery or charger other than the supplied rechargeable
battery and charger may cause a fire or explosion. Only use the
supplied rechargeable battery (or suitable replacement) and char-
ger with the vehicle.
• Using the rechargeable battery and charger for any other product
may result in overheating, fire or explosion. Never use the re-
chargeable battery and charger with another product.
• Explosion. Gases are created during charging. Charge the battery
in a well ventilated area. Do not charge the battery near heat or
flammable materials.
• Contact between the positive and negative terminals may result in
fire or explosion. Avoid direct contact between the terminals. Pick-
ing up the battery by the wires or charger can cause damage to the
battery and may result in a fire. Always pick up the battery by its
case or handles.
• Battery must be handled by adults only. Liquids on the battery may
cause fire or electric shock. Always keep all liquids away from the
battery and keep the battery dry.
• Contact or exposure to battery leakage (lead acid) may cause
serious injury. If contact or exposure occurs immediately call your
physician. If the chemical is on the skin or in the eyes, flush with
cool water for 15 minutes. If the chemical was swallowed, immedi-
ately give the person water or milk. Do not give water or milk if the
patient is vomiting or has a decreased level of alertness. Do not
induce vomiting.
• Battery Posts, terminals and related accessories contain lead and
lead compounds (acid), chemicals known to cause cancer, repro-
ductive harm and are toxic and corrosive. Never open the battery.
• Tampering or modifying the electric circuit system may case a
shock, fire or explosion and permanently damage the system. Ex-
posed wiring and circuitry in the charger may cause electric shock.
Always keep the charger housing closed.
Important! Before using the unit for the first time the battery needs to be charged
for 15 to 18 hours, Only an adult who has read and understands the safety warnings
should handle, charge or recharge of the battery (see Maintenance).
Note: It is not necessary to remove the battery from the vehicle for charging. How-
ever, if the adapter cord will not safely reach a 110-120 volt wall outlet, the battery
can be removed for charging.

5
Safety
User Requirements
The suitable age range for a child using the vehicle is 3 to 5 years. The maximum
weight of the child is 65 lbs (30 kg).
Before using the vehicle the child must understand the controls and safety issues.
They must also demonstrate the capability to handle the vehicle and operate its
controls.
It is the responsibility of the adult to educate the child, determine if they are fit
to operate the vehicle, and supervise use.
Here are basic safe riding rules you should read aloud to your child and anyone who
may use the vehicle:
• An adult must always supervise a child that is using the vehicle.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts. Always wear shoes
when using in the vehicle.
• Do not use the vehicle on streets or near cars.
• Children under three years old should not be allowed use the vehicle.
• Only drive on level ground. Don’t go near water, drop-offs or up and down steep
slopes.
• Don’t drive the vehicle in loose dirt, mud, sand or fine gravel. Using the vehicle
in loose dirt, mud, sand, or fine gravel may damage the electronics and gear box
inside the vehicle.
Caution: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for the
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are de-
signed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radio Frequency Information

6
Parts View
Parts View
15
16
17
14
11
18
15
19
20
5
1
4
7
6
3
13
8
21
22
12
10
9
15
18
12
11
15
16
2
15
1
16
LEFT
RIGHT
REAR AXLE
STACK-UP

7
No. Description
1 Body
2 Door, Left
3 Door, Right
4 Steering Wheel Assembly
5 Windshield
6 Mirror, Left
7 Mirror, Right
Mirror Screws (x2)
8 Seat
9 Drive Motor
10 Drive Wheel
11 Wheel (x3)
12 Axle
13 Motor Cover
Motor Cover Screws (x4)
14 Wheel Cover (x4)
Wheel Cover Screws (x3 per wheel)
15 Axle Washers (x8)
16 Locknut (x4)
17 Hubcaps (x4)
18 Wheel Bushing (x7 - total for vehicle)
19 Steering Rod
20 Cotter Pin
21 Battery Charger
22 Spanner Socket (x2)
23 Steering Rod Washers (x2)
Parts List
Parts List
NOTE: Loose parts are packaged in plastic bag.

8

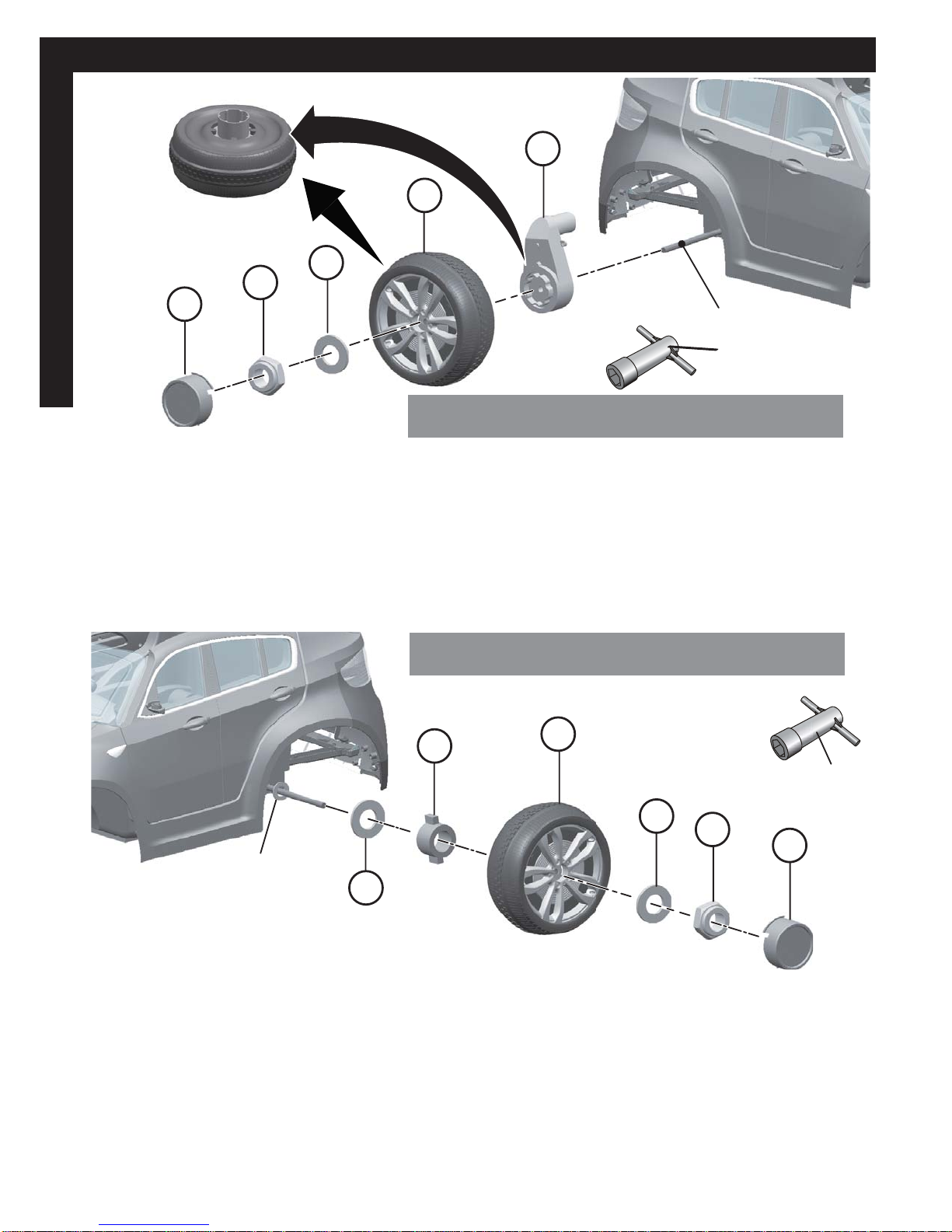

Installing the Drive Motor and Rear Wheels
Assembly
Spanner
Rear axle
Spanner
Washer assembled
already
17
16
16 17
15
11
18
10
15
9
15
1. Slide the Motor (9) onto the rear axle (right side).
2. Feed the Plug and Wires through motor hole.
3. Slide the Drive Wheel (10) onto the rear axle. Ensure the Drive Wheel Gear
matches with the Motor Gear Inset.
4. Slide Washer (15) onto the rear axle.
5. Install Locknut (16) securely on the end of the rear axle with Spanner Wrench.
1. Slide Washer (15) onto the rear axle.
2. Slide the Bushing (18) into the indent in the back of the Wheel (11) (it will sit even
with the back of the wheel).
3. Slide the Wheel onto the rear axle. Ensure Bushing stays in place in Wheel.
4. Slide Washer (15) onto the rear axle.
5. Install Locknut (16) securely on the end of the rear axle with Spanner Wrench.
Hint: An extra Spanner has been provided to hold the locknut on one side of the
rear axle while tightening the locknut on the other side.
6. Align the two tabs of the Hubcap (17) with the slots of the wheel cover, and press
the Hubcap firmly into place. Repeat this step for the other side.
Attach the Left Rear Wheel
Attach the Drive Wheel
NOTE: Begin by turning the vehicle upside down.

9
Installing the Front Wheels
Assembly
Spanner
Front axle
16
17
15
11
18
15
1. Slide Washer (15) onto the Front Axle.
2. Slide the Bushing (18) into the indent in the back of the Wheel (11) (it will sit even
with the back of the wheel).
3. Slide the Wheel onto the Front Axle. Ensure Bushing stays in place in Wheel.
4. Slide Washer (15) onto the Front Axle.
5. Install Locknut (16) securely on the end of the Front Axle with Spanner Wrench.
6. Align the two tabs of the Hubcap (17) with the slots of the wheel cover, and press
the Hubcap firmly into place.
Repeat the above steps for the other front wheel.
Installation

10
Assembly
Installing the Steering Rod
B
B
19
C
C
19
B
A
23
23
23
19
20
1. Locate the Steering Rod Hole (A) and Steering Slot (B).
2. Place a Washer (23) over the long end of the Steering Rod (19) and slide up to
rod Dimple (C).
3. Insert the long end of the Steering Rod (19) through Hole (A).
4. Insert the short end of the Steering Rod into slotted Hole (B) as shown.
5. Push the Steering Rod through the hole until the rod Dimple (C) is against the
body.
6. Place washer (23) over end of Steering Rod as shown.
7. Insert Cotter Pin (20) through Steering Rod and bend ends around as shown.
Installation

11
Assembly
Connecting the Drive Battery to Drive Motor after Charging
Fuse box
white
Connector
white
motor connector
red
connector
red battery
connector
1. Plug the white motor connector into the white
Drive Switch connector as shown above.
2. Plug the red battery connector into the red
Drive Switch connector as shown above.
2
1
WARNING: Connect the red to red connectors, and white to
white connectors. Connecting incorrectly can damage the battery and/
or motor.

12
Assembly
Installing the Motor Cover
1. Fit the Motor Cover (13) on the motor.
2. Install four Screws (A) securely.
Screw Driver
x4 A
13
Installation

13
Tabs
2
11
2
2
1
1
1
1
B
A
Lock
Assembly
Installing the Seat
1. Align the Tabs (A) on the back of the seat with the slots in the back of the main
body.
2. Align the Lock on the front of the seat with the hole in the middle of the main
body hole. Be sure the lock is oriented so it will fit into the slot.
3. Rotate and lower the seat onto the main body, Ensure the seat tabs stay in the
slots and the Lock (B) into the main body hole.
4. Using a coin or large screwdriver turn the Lock on the front of the seat to secure
the seat to the main body.
CAUTION: Ensure no wires or connectors are pinched under the seat.
Installation

14
Assembly
Installing the Steering Wheel and Batteries
43
1
3
1
8
7
6
A
2
5
Screw Driver
1. Remove the screw from the
steering wheel.
2. Place the steering wheel
over the steering column
(A).
3. Align the holes on each side
of steering wheel with the
holes at the end of the steer-
ing column.
4. Insert the screw (1) through
the steering wheel and steer-
ing column, into the nut.
Tighten securely.
If you wish to use the sound effects, install twoAAbat-
teries (non provided) using the following steps:
5. With a small screwdriver remove the screw
on the battery cover located in the center of
the steering wheel.
6. Remove the battery cover from the top of the
battery compartment.
7. Insert two AA batteries oriented as shown in
the battery tray.
8. Place the battery cover over the battery
compartment and fasten with the screw
removed above.
WARNING!
• Batteries must be installed by Adult.
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon-
zinc) or rechargeable batteries.
• DO NOT charge non-rechargeable batter-
ies. Always have adult supervision when
charging rechargeable batteries.
Installation

15
Installing the Side Mirrors
1
2
3
3
2
1
Screw Driver
1. Insert the Right Mirror into the slots of the
mirror bracket located on the door.
2. Insert a screw through the top of the hole
in the mirror and mirror bracket (the nut
is captive inside the mirror bracket). Tighten
securely. Do not over-tighten.
3. Repeat the above steps for the opposite
side.
WARNING!
Side Mirrors are not reflective and
do not provide rear visibility.
Installation
Assembly

16
Operation
Operation and Features
Steering wheel
2
Sound buttons
3
Shift lever
4Power switch
1
Foot pedal
5
5
4
3
2
1
To Operate the vehicle:
1. Power Switch: Turns the vehicle on and off. Rock the switch to “ON” position to
turn the vehicle on, - “OFF” position to turn it off. Leave OFF when not in use.
2. Steering wheel: Use to steer the vehicle in the direction you want to move.
3. Sound Effects: Press the buttons on the sides of the steering wheel. Each button
will make a different sound.
4. Shift Lever: Changes the direction the vehicle moves from forward to reverse.
• To move the car forward, shift the lever up.
• To move the car backward, shift the lever down.
• Shift the lever in the middle, the car will stop and not run.
CAUTION: To avoid damaging the motors and gears, DO NOT shift the lever when the
car is moving.
5. Foot pedal: Applies power (speed) to the vehicle.
• To move the car, press the pedal down.
• To brake or slow down, release pressure from the pedal.
WARNING: Use on level ground ONLY. Motor friction will gradually stop the unit.
Vehicle will roll down a steep incline, even when turned off.

17
Maintenance
The vehicle should be checked for damage, missing or badly worn parts before each
use.
• Check the tightness of the fasteners before each use.
• Check the tightness of the wheels:
• Note: If the drive wheel is not tight, it will not engage the gears and the vehicle
will not run.
• Use a flat head screwdriver to remove the hubcaps.
• Ensure the axle is fully engaged in the lock nut.
• Replace the hubcaps.
• Ensure the battery bracket is securely in place before use.
• Store the vehicle indoors. Keep it away from sources of heat, such as stoves and
heaters.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-
wax furniture polish. Do not use automotive wax, abrasive cleaners or wash the
vehicle with soap and water.
WARNING: Water will damage the motor, electrical system and battery.
Drive Battery
Only an adult who has read and understands the safety warnings should handle,
charge or recharge the battery. Failure to comply with all safety warnings may result
in serious injury or death.
Maintenance
Re-charge Interval and Time
Important!
Check the drive battery and charger (supply cord, connector) for wear and damage
before charging. Do not charge the battery if damage has occurred. Only replace with
the same type 6V rechargeable battery and charger supplied by the manufacturer.
• Only use the rechargeable battery (or equivalent replacement) and charger sup-
plied with your vehicle.
• Before first use, charge battery 15 to 18 hours - never longer than 18 hours.
• Once battery is depleted, recharge for 8 to 12 hours - never longer than 12 hours.
• Do not short circuit the battery: Do NOT connect red and black wires together or
connect positive and negative terminals on the battery together.
• When battery is fully charged, un-plug charger from the wall outlet and disconnect
from charger port.
The drive battery should be charged when depleted, or if not used regularly, once a
month. Failure to charge the battery as directed will cause permanent damage to the
battery and will void the warranty.

18
Maintenance
Charging the Drive Battery
gg y
Red
connector
Red battery
Connector
Charger
Connector
Red battery
connector
1
2
3
3
2
1
1. Ensure power switch is OFF. Remove the seat (Refer to Seat Section) - use a
coin or screwdriver to unlock the lock in front middle of the seat.
2. Unplug the red battery connector: Push the connectors fully together, then press
in the locking clip. Then pull connectors apart.
3. Plug the charger connector into the red battery connector (Only use the 6V
charger included with the vehicle, input: AC 120V, 60Hz output: DC 6V), Plug the
charger into a standard 110V wall outlet.
4. After charging is complete (at least 8 hours, but not more than 12 hours)
5. Unplug the charger from the wall outlet.
6. Unplug the charger connector from the red battery connector.
7. Reconnect red connectors.
8. Replace Seat (see Seat section).
CAUTION: Ensure no wires or connectors are pinched under the seat when reinstall-
ing.
NOTE: The charger may feel warm during the charging. This is normal and not a cause
for concern. If excessively hot, unplug and replace.
NOTE: Before first use, charge battery 15 to 18 hours.

19
Maintenance
Battery storage
Do not leave the battery connected in the vehicle for long period of times while not
being used. This may drain the battery completely and cause permanent damage.
Disconnect the battery connectors from the battery when the vehicle is not going to
be used for a long period of time. Follow these guidelines if the battery is removed:
• Do not store battery in extreme hot or cold temperatures.
• Do not place the battery on cement floors for extended periods. This will result in
battery discharge. Store the battery on a wood surface.
• Wipe the battery clean with a dry cloth prior to storage. Wash cloth separate from
other clothes.
Battery Fuse
The drive motor circuit features a thermal fuse that will automatically trip and cut all
power to the vehicle if the motor, electric system or battery is overloaded. The fuse
will reset and power will be restored after the unit is turned OFF for approximately
five minutes. If the thermal fuse trips repeatedly during normal use, the vehicle may
need repair.
To avoid losing power, follow these guidelines:
• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive up steep slopes.
• Do not drive into fixed objects, which may cause the wheels to spin, causing the
motor to overheat.
• Do not drive in very hot weather, components may overheat.
• Do not allow water or other liquids to come in contact with the battery or other
electric components.
• Do not tamper with the electrical system. Doing so may create a short, causing
the fuse to trip.

20
Maintenance
Drive Battery Replacement and Disposal
The 6V battery will eventually lose the ability to hold a charge. Depending on the
amount of use, and varying conditions, the battery should operate for one to three
years. Follow these steps to replace and dispose the battery:
1. Remove the seat.
2. Disconnect the battery connectors.
3. Remove the metal battery bracket.
4. Carefully lift the battery.
• Depending on the condition of the battery (i.e.: leakage) you may want to wear
protective rubber gloves before removal.
• Do not lift the battery by its connectors or cables.
5. Place the dead battery in a plastic bag.
Important!
• The sealed lead-acid battery must be recycled or disposed of in an environmen-
tally sound manner.
• Do not dispose of battery in a fire. The battery may explode or leak acid.
• Do not dispose of the battery in household trash. The incineration, land filling or
mixing of sealed lead-acid batteries with household trash is prohibited by law.
• Return an exhausted battery to a federal or state approved lead-acid battery re-
cycler, such as a local seller of automotive batteries (check local battery disposal
regulations).
NOTE: Replacement batteries are available at most battery supply stores. Document
battery size and type (found on battery).
6. Install replacement battery and reconnect the connectors.
7. Replace the metal battery bracket.
8. Replace the seat.
