HUR PULLEY User manual

HUR PULLEY
USER MANUAL

1
ver. 1/2017
READ THIS FIRST
Prior to the use of HUR products, we recommend that you familiarize yourself with these instructions con-
cerning the HUR products at your disposal.
This HUR Manual is a guide for users for the operation and maintenance of HUR products. Proper use and
maintenance actions will ensure a safe, enjoyable and effective workout, also extending the product life
cycle. The manual also helps you to get your customers familiarized with the use of HUR products.
We recommend that HUR authorized personnel carry out the installation, maintenance and repair actions.
Your local HUR dealer is happy to help you if you need technical support or have HUR product-related ques-
tions.
It is recommended that the instructions below are followed for avoiding any injuries and damages.
Never move or tilt the equipment alone. If you need to tilt it for e.g. vacuuming, ensure the use
of adequate support so that the machine cannot tip over.
Do not connect the HUR equipment with any other power sources or other parts or compo-
nents than those supplied and approved by HUR.
If you discover a defect, please, contact HUR service. Do not attempt to repair it yourself.
Read the compressor manual and follow the instructions regarding the compressor operation
and maintenance procedures.
Read carefully the enclosed instruction how to attach HUR Pulley to the floor.
This manual portrays the general HUR Warranty Terms. Check the possible regional or customer-specific
special terms from your HUR dealer. In case of a defect in your HUR product during the warranty period,
the warranty covers the repair parts and components needed, as well as the repair work (excluding travel
expenses). Note that the warranty does not cover any damages caused by transportation or damages
caused by failure to comply with this HUR Pulley User Manual. HUR is not responsible for damages or costs
caused for devices by use of any components or parts that are not manufactured by HUR. Defective equip-
ment is to be taken out of service until it is properly repaired. HUR is not responsible for consequential
damages caused by device failure during the time when the device is out of order.
Due to continuous product development, HUR reserves the right to conduct product changes without prior
notice. The content of this manual can change without prior notice.
Ab HUR OY
Patamäentie 4
67100 Kokkola
FINLAND
Tel. [phone]
Email: [email protected], [e-mail]
www.hur.fi

2
ver. 1/2017
INTRODUCTION
Congratulations and welcome to HUR user-family!
HUR products are designed to serve You and your customers for a long and enjoyable time. In this User
Manual You will find information of basic actions to put into practice for maximizing the life cycle of the
products. Information covers everyday routines as well as scheduled maintenance procedures.
HUR products are high-quality Finnish work. We have centralized all our operations un-
der one roof and manage them according to the ISO certified quality system. Our busi-
ness meets ISO 9001 quality certification requirements. Each HUR product, be it HUR
fitness equipment or HUR software, has been designed, manufactured and tested at our
factory in Kokkola.
Your HUR dealer will be happy to answer any questions You might have concerning
HUR products. You can also give them feedback of our products.
HUR products are CE marked.
ORIGINAL INSTRUCTIONS
This HUR Pulley User Manual includes the original instructions that are revised 10.11.2016.

3
ver. 1/2017
CONTENT
READ THIS FIRST ................................................................................................................................................ 1
INTRODUCTION ................................................................................................................................................. 2
ORIGINAL INSTRUCTIONS .................................................................................................................................. 2
CONTENT ........................................................................................................................................................... 3
1 HUR NATURAL TRANSMISSION ...................................................................................................................... 4
2 HUR PULLEY –FUNCTIONAL TRAINER ............................................................................................................ 5
2.1 General .................................................................................................................................................... 5
2.2 Technical data.......................................................................................................................................... 5
2.3 Compositions and important information of using HUR Pulley .............................................................. 6
2.4 Installation............................................................................................................................................... 9
2.5 Adjusting Pulley ....................................................................................................................................... 9
2.6 Exercising with Pulley ............................................................................................................................ 10
2.6.1 Adjusting the resistance and exercising ......................................................................................... 11
3 MAINTENANCE AND SERVICE ....................................................................................................................... 12
4 SAFETY PRECAUTIONS AND WARNINGS....................................................................................................... 14
4.1 Safety precautions and warnings for users of HUR devices.................................................................. 14
4.2 Safety precautions and warnings for owners of HUR devices............................................................... 14
5 HUR PULLEY ACCESSORIES ........................................................................................................................... 16
6 WARRANTY TERMS OF HUR OY.................................................................................................................... 18
1 GENERALLY ABOUT THE PRODUCTS......................................................................................................... 18
2 WARRANTY ............................................................................................................................................... 18
3 WARRANTY PERIOD.................................................................................................................................. 18
4 REMEDY .................................................................................................................................................... 18
5 RESTRICTIONS........................................................................................................................................... 18
6 NOTIFICATIONS OF A DEFECT UNDER THIS WARRANTY .......................................................................... 19
7 CONSUMER’S RIGHTS ............................................................................................................................... 19
8 REVISIONS OF THE WARRANTY ................................................................................................................ 19
9 APPLICABLE LAW ...................................................................................................................................... 19

4
ver. 1/2017

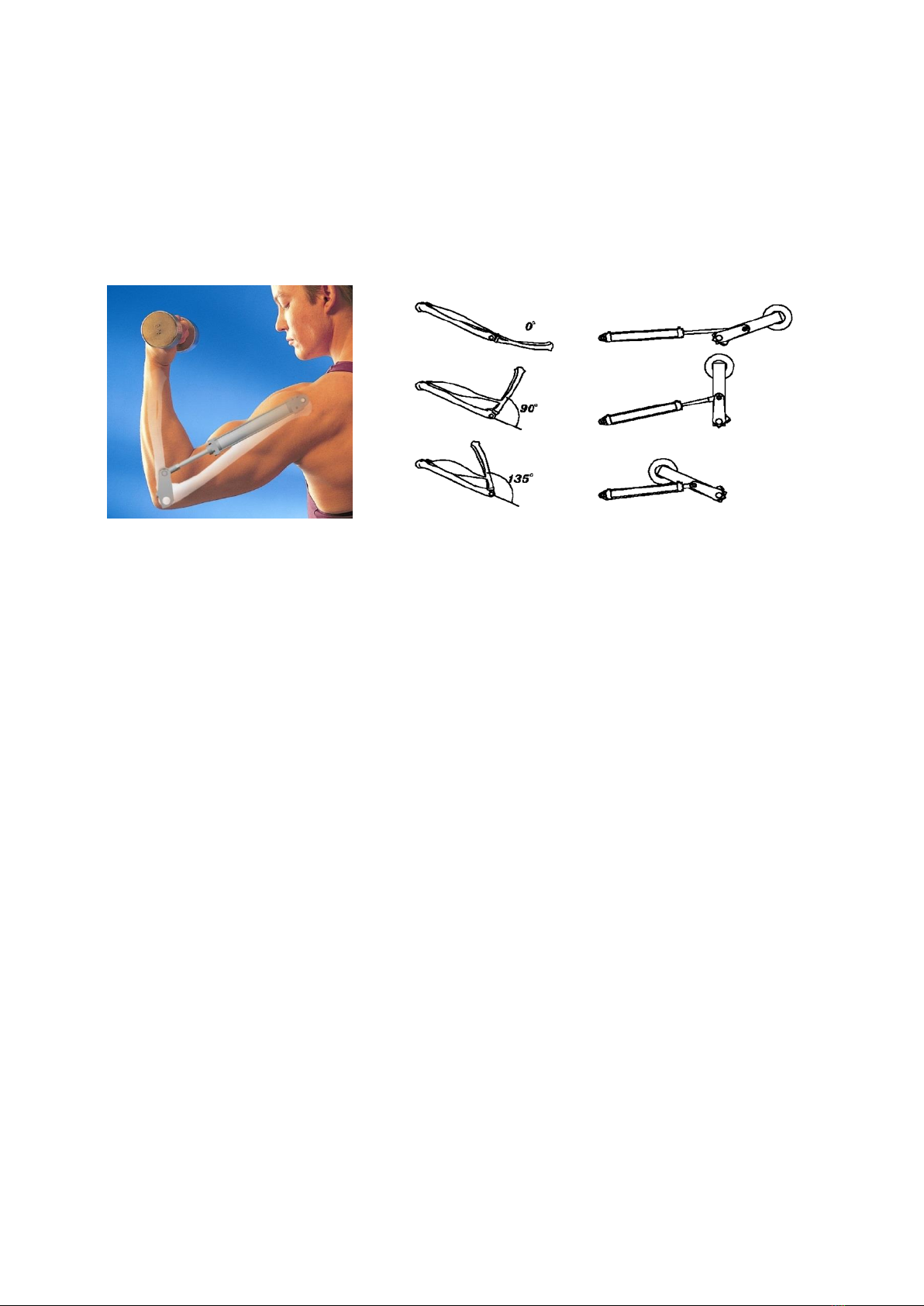

1 HUR NATURAL TRANSMISSION
HUR equipment is designed for natural muscle exercise and for establishment and improvement of muscle
tone. HUR has developed a mechanism where the load changes with the trajectory, mimicking the human
body’s own biomechanics.
During exercise, muscle strength is at its highest mid-movement and lowest at the beginning and at the end
of the movement. Incorrect or excessive exercise can cause muscle injury. This is taken into account in the
HUR exercise equipment design. Thanks to use of compressed air, the resistance changes smoothly, accu-
rately and safely. This allows the equipment to function in an optimal way for the muscles, during both slow
and fast movements.
The equipment cylinders and lever arms’ resistance is at its greatest when the muscle is aiming for maxi-
mum power. With HUR exercise equipment your muscles do the work, reducing the wear and tear on joints
and connective tissue. This mechanism optimizes the use of muscle power and reduces the possibility of
exercising in a wrong way.
The biggest problem with traditional weight stack machines is the weight stack’s inertia. At the beginning of
the exercise movement, extra power is required to move a weight stack. At the end of the movement, the
resistance lightens as the weight stack continues to move before it changes direction. This can cause undue
stress on the joints and connective tissues, especially for people who are not used to this kind of muscles.
The human body is composed of muscles that work in pairs. When the flexor muscle flexes, the opposite
extensor extends. HUR has designed dual function equipment, so that all muscle groups are exercised. All
of these factors combined ensure a safe, relaxed and comfortable workout.
A natural way to exercise!

5
ver. 1/2017
2 HUR PULLEY –FUNCTIONAL TRAINER
2.1 General
For variety of lower, mid and upper body exercises
Adjustable height cable column
Dual handles for unilateral movement on all exercises
Features:
Instead of using weight stacks, HUR machines use pneumatic technology meaning perfect balance
between exercise load and muscle’s output force, regardless of the speed of motion.
Welded steel frame with similar engineering as on automotive industry gives rigid, yet lightweight
construction.
Aluminum side rails.
Dark lexan panels cover all the internal parts –a safety feature that also looks good.
Frame is powder coated for smooth finish and very good wear resistance.
Design of the machines gives a luxurious look to your facility.
Steplessly adjustable exercise load enables just the right resistance to each user.
Standard features are leg strap, two hand grips and adjustable support handles on both sides.
The frame design also enables exercising of wheelchair users.
Dual handles and an adjustable height cable column enable performing numerous exercises.
With a wide range of accessories HUR Pulley is suitable for exercising of entire body.
Control panel options:
color touch screen:
oshows the resistance, repetitions and heart rate value (requires a Polar-compatible heart
rate belt)
analog display with push buttons:
othe resistance is shown analogically on the range 0–20 kg or 0–30 kg.
2.2 Technical data

6
ver. 1/2017
Load range:
Stepless adjustment
8820: 2–20 kg (per rope)
8830:4–30 kg (per rope)
Number of cylin-
ders:
1
Max. input pres-
sure:
9,9 bar
Frame:
Welded steel construction with aluminum side rails. Stainless steel fasteners. Powder coated. Contact your
local HUR distributor for standard and optional color specifications.
Controls and
displays:
COLOR TOUCH SCREEN: The resistance is adjusted by touching the buttons in the touch screen. The re-
sistance, repetitions, instructions and heart rate value (requires a Polar-compatible heart rate belt) are
shown on the touch screen.
ANALOG DISPLAY: The resistance is adjusted by push buttons and is shown analogically.
Dimensions
(W/L/H):
8820/8830: 798 x 901 x 2185 mm (wall mounted) 43 kg
8821/8831: 1368 x 1363 x 2195 mm (floor mounted) 66 kg
ST8820/ST8830: 798 x 901 x 2185 cm (wall mounted) 46 kg
ST8821/ST8831: 1368 x 1363 x 2195 cm (floor mounted) 69 kg
Weight:
Pulley. 43 - 69 kg
Noise:
≤ 50 dB
Standards:
ISO 9001, SFS-EN ISO 20957-1, SFS-EN 957-2
Warranty:
10 years for the frame; 3 years for other parts excluding electronics; 1 year for electronics
2.3 Compositions and important information of using HUR Pulley
HUR Pulley is available with two different cylinder sizes: the maximum load of 8830/8831 Pulley is 30 kg
per rope, and of 8820/8821 Pulley Light 20 kg per rope. There is no difference in the looks of the two Pul-
leys.
HUR Pulleys are available either with Pulley wall mount (8820/8830), when the machine is fastened to the
wall by bolts; or with Pulley floor mount legs (8821/8831), when it is possible to attach and place the ma-
chine even in the center of the floor. (NOTE! 8821 / 8831 pulleys shall be fixed to floor to ensure stability.)
Other HUR Pulley compositions and accessories are introduced in the chapter 5.
Depending on the composition the dimensions (see Technical data) may vary. That should be taken into
account in placing the machine and determining the zones of usage and safety.

7
ver. 1/2017

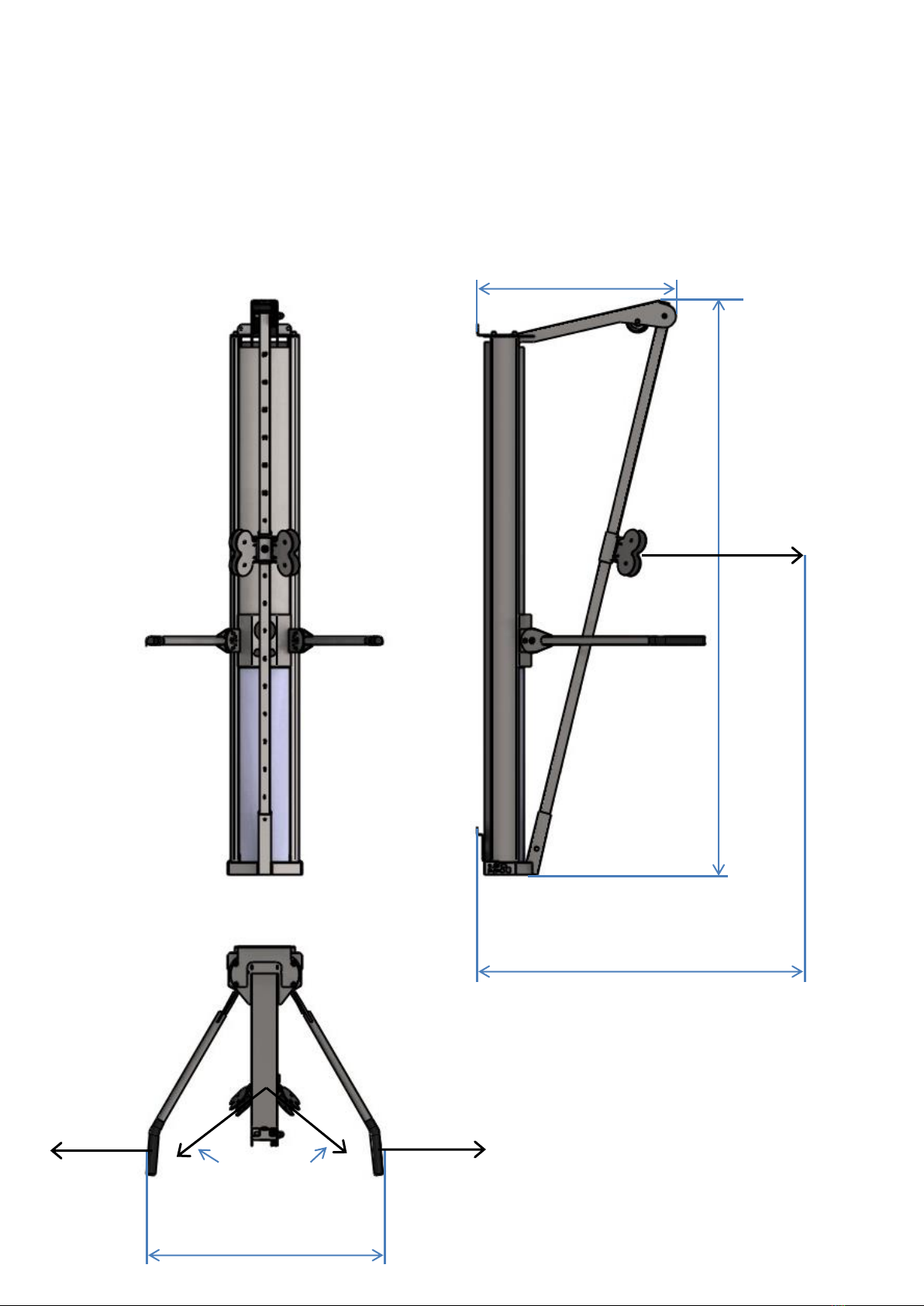

Pulley wall mount (8820/8830)
-Dimensions are expressed in millimeters (mm) and inches (in)
-The usage zone is the area within the support handles (see the lowest picture) and it means how
much the rope is allowed to be pulled in lateral (45°/90°)
-The safety zone is 500 mm (20 in) on the both sides of the machine.
-Depending on the exercise the safety zone varies in front of the machine (the rope length + the
space that user needs + safety zone of 500 mm).
-To avoid damages, stop exercising immediately if other person enters the safety zone.
2185m
m
(86in)
4090mm
(161,0 in)
Max 901mm
(35,5in)
+500mm (20in)
+500mm (20in)
Max 90
(45/45)
798mm
(31,4in)

8
ver. 1/2017
Pulley floor mount (8821/8831)
-Dimensions are expressed in millimeters (mm) and inches (in)
-The usage zone is the area within the legs (see the lowest picture) and it means how much the rope
is allowed to be pulled in lateral (45°/90°)
-The safety zone is 500 mm (20 in) on the both sides of the machine.
-Depending on the exercise the safety zone varies in front of the machine (the rope length + the
space that user needs + safety zone of 500 mm).
-To avoid damages, stop exercising immediately if other person enters the safety zone.
-
1363mm
(53,7 in)
2195
mm
(86,4
in)
4230mm
(166,7 in)
1368
mm
(53,9
in)
Max 90
(45/45)
+500mm (20 in)
+500mm (20 in)

9
ver. 1/2017
2.4 Installation
HUR recommends that the installation of HUR Pulleys is performed by authorized HUR technician.
In that case the reliability of the installation will be reached. HUR technician has all needed tools and in-
structions for installation and also has knowledge of all special characteristics of each machine.
HUR devices are designed only for inside use. Devices must not get wet and it’s recommendable to avoid
moisture. All models with electronic components should be left to acclimate to room temperature for
about an hour before installing or operating, if the transportation or storage has been in a cold place.
Equipment should be placed on a hard, flat and straight surface. To avoid malfunction, keep the unit in a
dry place and at constant temperature protected from dust.
WARNING! Floor mounted equipment shall be installed on a stable and levelled base.
Hur Pulley floor mounted models 8831, ST8831 MUST BE ATTACHED TO FLOOR.

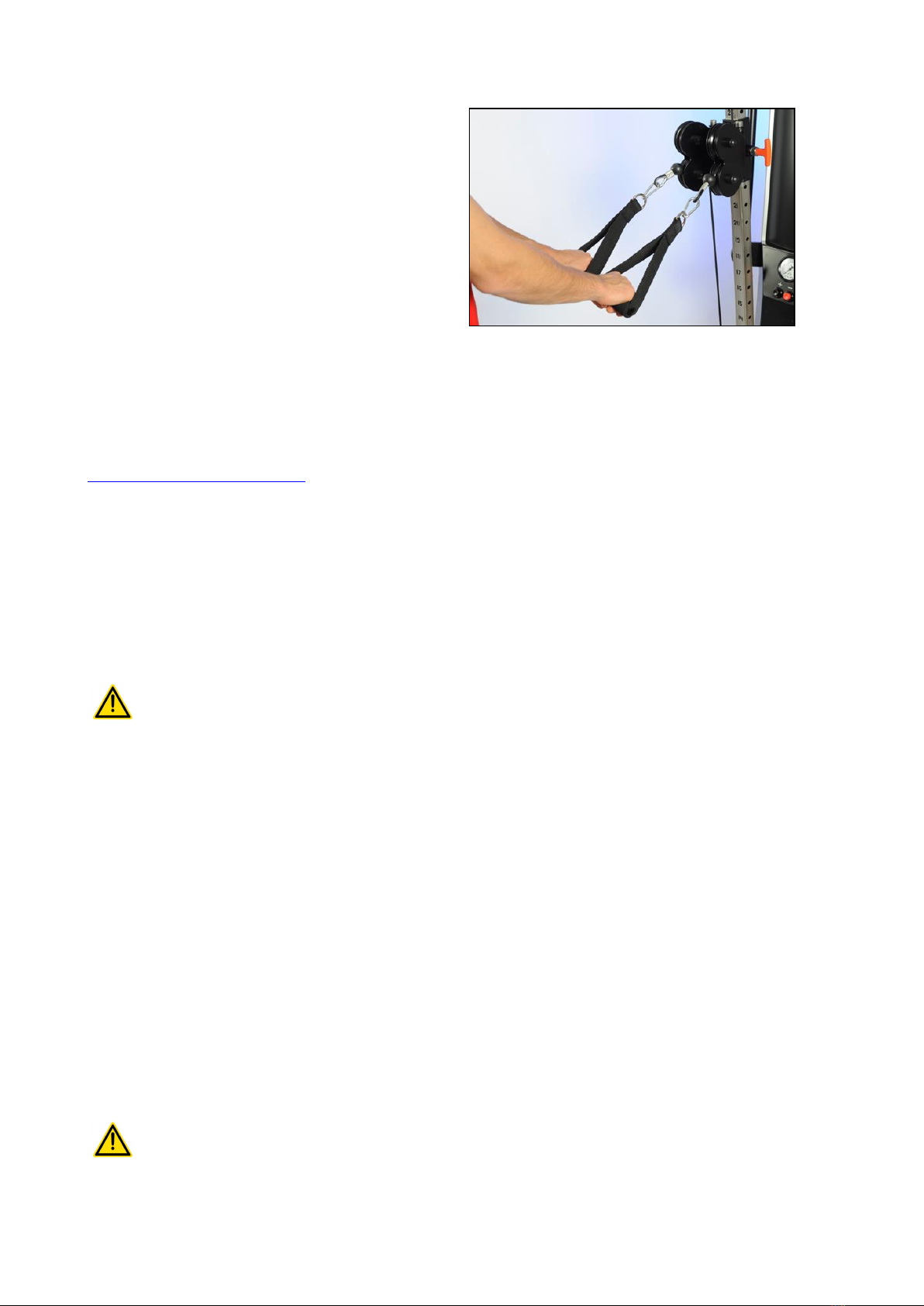

2.5 Adjusting Pulley
Pull the orange handle located on the side of the cable
column and adjust the height by moving the cable
column up or down. Make sure that the cable column
is properly locked.
WARNING! Make sure that the rod of the
handle slides properly back inside to its slot
after adjusting the cable column. Otherwise, the cable
column may move and cause a dangerous situation.
If you need the support handles, pull the orange han-
dle next to the frame and adjust the handles to desired
level. Make sure that the rod of the handle slides back
to its slot.
