Husky 230-00-00-000 User manual

Date Purchased ______________________________ Machine Serial No.___________________________
Size of Pump ______________________ Options _____________________________________________
The key number system in this parts book is arranged as follows:
- Key numbers with two circles denotes main assemblies.
- Key numbers with one circle are individual parts
Please order parts by number
3” ELECTRIC TRANSFER PUMP
ELECTRIC PUMP – 4ft ƒ230-00-00-000
ELECTRIC PUMP – 5ft ƒ232-00-00-000
ELECTRIC PUMP – 6ft ƒ234-00-00-000
ELECTRIC PUMP – 8ft ƒ236-00-00-000
ELECTRIC PUMP – 10ft ƒ238-00-00-000
ELECTRIC PUMP – 12ft ƒ239-00-00-000
OPERATING INSTRUCTIONS:
1. Pump must turn counter-clockwise when looking down from top.
2. Fasten pump solid so it will not move when operating.
3. Make sure all moving parts are shielded.
4. Keep children and livestock away from pump.
5. Have an Electrician check amp draw when operating to make sure the motor has enough
electricity.
6. Check bottom bearing for wear occasionally.
7. Keep belts snug but not overly tight.
8. EXTREME DANGER – Never enter a dirty manure spreader or storage tank – one breath of
hydrogen sulphide gas is enough to kill. Have a ladder in your pit, so that if by accident you
should fall in, you can get out.
02/18/2009

DETAIL A
DETAIL B
A
B
1.2.7
1.2.5
1.2.4
1.2.10
1.2.8
1.2.1
1.2.6
1.2.9
15
1.2
221611.1
112211.211.111.411.3
33
1.1.2
1.1.3
1.1.1
1.1.5
4.1.1
4.1.2
22 4.1 4
5.5
5
5.4
5.3
5.2
5.1
25 24
22
35
12.2
20
36
37
32
12 12.1
2.3
2.4
2.2
2.1
34
39
38
3.6
21
28
29
3.2
3.1
26
27
6.2
6
6.1
3.3 3.4
3
40
14
13
28
29
17
10.1
10
10.2
31
8
32 23
8.1
8.2
7
7.1
7.3 32 23
7.2
2
1.1.4
1.2.3
1.2.2
30
9.1
9.2
9
3.5
19
18
A
42

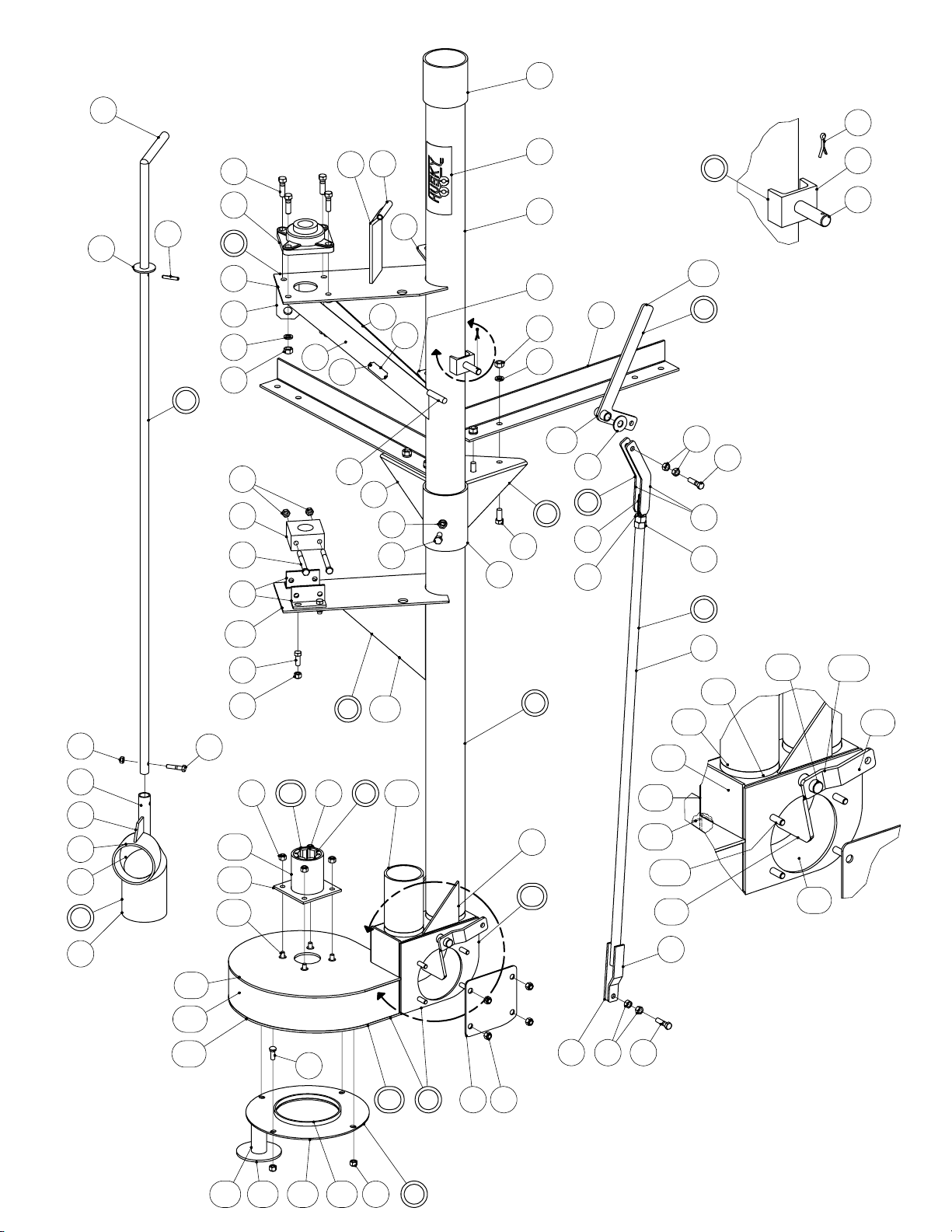

3" ELECTRIC MAIN FRAME
4.2
7.4
41
1.2.11
Page 1

Parts List
ITEM PART NUMBER DESCRIPTION QTY
A 239-01-00-000 PUMP HOUSING & STANDPIPE ASSY - 12 FT 1
238-01-00-000 PUMP HOUSING & STANDPIPE ASSY - 10 FT 1
236-01-00-000 PUMP HOUSING & STANDPIPE ASSY - 8 FT 1
234-01-00-000 PUMP HOUSING & STANDPIPE ASSY - 6 FT 1
232-01-00-000 PUMP HOUSING & STANDPIPE ASSY - 5 FT 1
230-01-00-000 PUMP HOUSING & STANDPIPE ASSY - 4 FT 1
1 230-32-00-000 CHANGE BOX & HOUSING ASSY 1
1.1 230-34-00-000 FAN HOUSING ASSY 1
1.1.1 230-34-00-130 FAN HOUSING TOP PLATE 1
1.1.2 230-22-00-106 FAN HOUSING BOTTOM PLATE 1
1.1.3 230-01-01-003 HOUSING BAND 1
1.1.4 230-22-00-107 FILLER PLATE 1
1.1.5 R08244 3/8 x 3/4 FLAT HEAD SLOT S.S. 4
1.2 230-01-02-000 CHANGE BOX ASSY 1
1.2.1 230-01-02-006 INSPECTION SIDE PLATE 1
1.2.2 230-01-02-007 SIDE PLATE 1
1.2.3 230-01-02-008 CHANGE BOX BAND 1
1.2.4 230-01-02-009 TOP PLATE 1
1.2.5 230-01-02-010 END PLATE 1
1.2.6 230-01-02-011 FLAPPER SEAT 2
1.2.7 230-01-02-012 FLAPPER 1
1.2.8 230-01-02-013 FLAPPER SHAFT 1
1.2.9 230-01-02-118 FLAPPER SEAT LONG 1
1.2.10 230-01-02-005 FLAPPER ARM 1
1.2.11 R08323 3/8 x 1 SS WELD STUD 4
2 230-11-00-000 FLOOR BRKT ASSY 1
2.1 230-11-00-072 SLIDE TUBE 1
2.2 230-11-00-140 FLOOR BRKT BASE 1
2.3 R07628 7/16 x 1 HEX BOLT 1
2.4 R07879 7/16 FLANGE NUT 1
3 230-01-04-000 UPPER BRG PLATE ASSY 1
3.1 230-01-04-022 BEARING PLATE 1
3.2 230-01-04-024 TENSION ROD BRKT 1
3.3 230-01-04-026 GUARD HINGE PLATE 1
3.4 230-01-04-027 GUARD SLEEVE 1
3.5 230-01-04-023 RH BRG PLATE BRACE 1
3.6 230-01-04-025 LH BRG PLATE BRACE 1
4 230-33-00-000 BEARING & HOLDER ASSY 1
4.1 230-33-09-000 BEARING HOLDER ASSY 1
4.1.1 230-33-09-128 BEARING HOLDER BACK PLATE 1
4.1.2 230-33-09-129 BRG HOLDER 1
4.2 R20223 URETHANE 1
5 230-24-00-000 AGITATING ELBOW ASSY 1
5.1 230-01-03-020 TURN SOCKET 1
5.2 230-01-03-021 TURN SOCKET GUSSET 1
5.3 230-01-03-017 AGITATING ELBOW BASE 1
5.4 230-01-03-018 AGITATING ELBOW CENTER PIECE 1
5.5 230-24-00-117 AGITATING ELBOW TOP PIECE 1
(6) 239-30-00-000 AGITATOR TURN LEVER ASSY - 12 FT MODEL 1
238-29-00-000 AGITATOR TURN LEVER ASSY - 10 FT MODEL 1
236-28-00-000 AGITATOR TURN LEVER ASSY - 8 FT MODEL 1
234-27-00-000 AGITATOR TURN LEVER ASSY - 6 FT MODEL 1
232-26-00-000 AGITATOR TURN LEVER ASSY - 5 FT MODEL 1
6 230-25-00-000 AGITATOR TURN LEVER ASSY - 4 FT MODEL 1
239-30-00-124 AGITATOR TURN LEVER - 12 FT MODEL 1
238-29-00-123 AGITATOR TURN LEVER - 10 FT MODEL 1
236-28-00-122 AGITATOR TURN LEVER - 8 FT MODEL 1
234-27-00-121 AGITATOR TURN LEVER - 6 FT MODEL 1
232-26-00-120 AGITATOR TURN LEVER - 5 FT MODEL 1
6.1 230-25-00-119 AGITATOR TURN LEVER - 4 FT MODEL 1
6.2 R07827 3/4" FLAT WASHER 1
(7) 239-05-00-000 CONTROL ROD ASSY - 12 FT MODEL 1
238-05-00-000 CONTROL ROD ASSY - 10 FT MODEL 1
236-05-00-000 CONTROL ROD ASSY - 8 FT MODEL 1
Parts List
ITEM PART NUMBER DESCRIPTION QTY
234-05-00-000 CONTROL ROD ASSY - 6 FT MODEL 1
232-05-00-000 CONTROL ROD ASSY - 5 FT MODEL 1
7 230-05-00-000 CONTROL ROD ASSY - 4 FT MODEL 1
(7.1) 239-05-00-055 CONTROL PIPE - 12 FT MODEL 1
238-05-00-054 CONTROL PIPE - 10 FT MODEL 1
236-05-00-053 CONTROL PIPE - 8 FT MODEL 1
234-05-00-052 CONTROL PIPE - 6 FT MODEL 1
232-05-00-051 CONTROL PIPE - 5 FT MODEL 1
7.1 230-05-00-050 CONTROL PIPE - 4 FT MODEL 1
7.2 230-05-00-056 CONTROL ROD BRKT 1
7.3 230-05-00-057 CONTROL ROD BAR 1
7.4 R07786 5/8 HEX NUT 1
8 230-13-00-000 OVER CENTER ARM ASSY 1
8.1 230-13-00-076 ADJUSTING ROD 1
8.2 230-13-00-075 OVER CENTER ARM 2
9 230-01-07-000 PIVOT PIN ASSY 1
9.1 230-01-07-031 PIVOT PIN BRKT 1
9.2 230-01-07-030 PIVOT PIN 1
10 230-04-00-000 AGITATOR HANDLE ASSY 1
10.1 230-04-01-131 HANDLE 1
10.2 230-04-00-047 HANDLE PIVOT 1
11 230-21-00-000 COVER PLATE ASSY 1
11.1 230-21-00-104 HOUSING COVER PLATE 1
11.2 230-21-00-105 INLET RING 1
11.3 230-06-00-059 FOOT SPACER 1
11.4 230-06-00-060 FOOT 1
12 234-01-08-000 INTERMEDIATE BRG PLATE ASSY 1
12.1 234-01-08-116 INTERMEDIATE BRG GUSSET 1
12.2 234-01-08-041 INTERMEDIATE BRG PLATE 1
(13) 239-01-00-038 STANDPIPE - 12 FT MODEL 1
238-01-00-037 STANDPIPE - 10 FT MODEL 1
236-01-00-036 STANDPIPE - 8 FT MODEL 1
234-01-00-035 STANDPIPE - 6 FT MODEL 1
232-01-00-034 STANDPIPE - 5 FT MODEL 1
13 230-01-00-033 STANDPIPE - 4 FT MODEL 1
14 230-12-00-074 ADAPTER PIPE 1
15 230-01-00-040 STANDPIPE GUSSET 2
16 230-00-00-084 INSPECTION PLATE 1
17 230-00-00-077 FLOOR BRKT LEGS 2
18 230-01-00-139 LOWER MOTOR MOUNT ASSY 1
19 230-01-00-138 UPPER MOTOR MOUNT ASSY 1
20 234-00-00-144 BRG HOLDER 2
21 230-01-00-039 STOP ROD 1
22 R08247 3/8 NYLOCK NUT 16
23 R07620 3/8 x 1 1/2 HEX BOLT 2
24 R07612 5/16 x 1 1/2 HEX BOLT 1
25 R07782 5/16 HEX NUT 1
26 R20185 1 3/8 FLANGE BRG 1
27 R07629 7/16 x 1 1/2 HEX BOLT 4
28 R07784 7/16 HEX NUT 8
29 R07804 7/16 LOCK WASHER 8
30 R08021 1/8 x 1 S.S. COTTER PIN 1
31 R07852 9/16 FLAT WASHER 1
32 R07783 3/8 HEX NUT 6
33 R07721 3/8 x 1 CARRIAGE BOLT 4
34 R07628 7/16 x 1 HEX BOLT 4
35 R07619 3/8 x 1 HEX BOLT 4
36 R07625 3/8 x 4 HEX BOLT 2
37 R20229 1 3/8 WOOD BRG 1
38 R09071 SERIAL NUMBER PLATE 1
39 R08152 6 x 1/4 PAN HD SOCKET SCREW 2
40 R09671 "HUSKY" DECAL 1
41 R07786 5/8 HEX NUT 1
42 R07962 1/4 x 1 1/2 ROLL PIN 1
3" ELECTRIC MAIN FRAME
Page 2

IMPELLER & SHAFT
9
8
5.1
2.1
1.1
7
3.33.4
2.2
2
5
1.2
3
15
16
13
14
11
12
10
1.4
1.3
6.1
6.2
6
1
20
23 22 21
17
4.2
4.1 4
18
3.2
3.1 26
24
25
19
5.2
Page 3

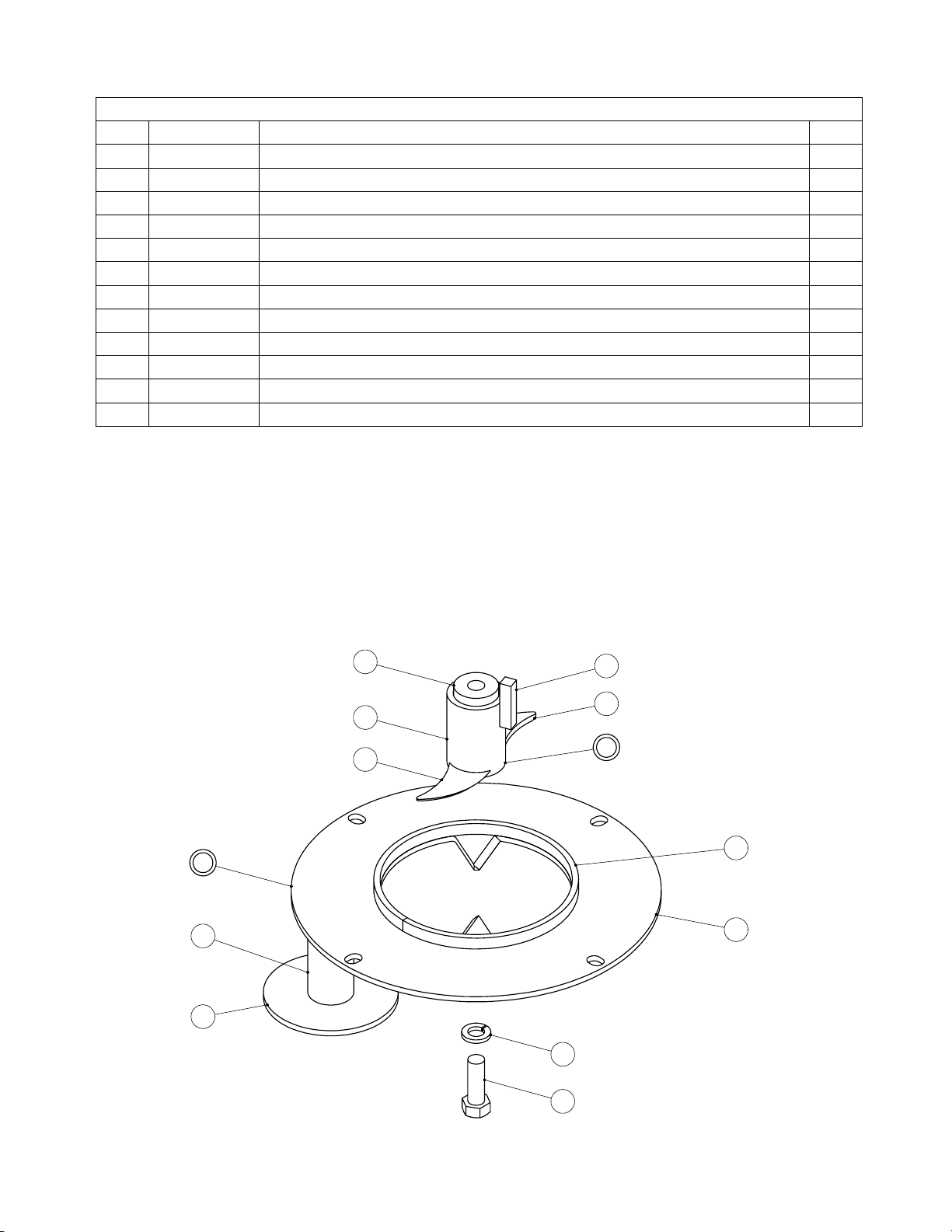

PARTS LIST
QTYDESCRIPTION
PART NUMBERITEM
1
IMPELLER ASSY - CHT
230-31-00-0001
1SHAFT SLEEVE230-31-00-0991.1
2
SHAFT SLEEVE PIN
230-31-00-1031.2
1
IMPELLER BACK PLATE
230-31-00-1271.3
3IMPELLER BLADE - CHT230-31-00-1261.4
1
MOTOR MOUNT ASSY
230-07-00-0002
1
MOTOR MOUNT
230-07-00-0622.1
1MOTOR MOUNT SLEEVE230-07-00-0612.2
1BELT GUARD ASSY230-10-00-0003
1
GUARD TOP
230-10-00-0663.1
1GUARD BAND230-10-00-0683.2
1GUARD SUPPORT CHANNEL230-10-00-1413.3
1
GUARD BRACE
230-10-00-1423.4
1TENSION BOLT ASSY230-09-00-0004
1TENSION ROD230-09-00-0654.1
1
5/8 HEX NUT
R077864.2
1MOTOR MOUNT PIN ASSY230-08-00-000
5
1MOTOR MOUNT PIN230-08-00-0645.1
1
1/4 X 1 1/2" RING
250-00-00-3545.2
1SPLASH GUARD ASSY230-23-00-0006
11 3/8" LOCK COLLARR095546.1
1
1 3/8 FLAT WASHER
R078486.2
1DRIVE SHAFT - 12 FT MODEL239-00-00-114(7)
1DRIVE SHAFT - 10 FT MODEL238-00-00-113
1
DRIVE SHAFT - 8 FT MODEL
236-00-00-112
1DRIVE SHAFT - 6 FT MODEL234-00-00-111
1DRIVE SHAFT - 5 FT MODEL232-00-00-110
1
DRIVE SHAFT - 4 FT MODEL
230-00-00-1097
14" FLEX HOSE230-00-00-0938
2SHAFT GUARD - 12 FT MODEL239-00-00-137(9)
1
SHAFT GUARD - 10 FT MODEL
238-00-00-136
1SHAFT GUARD - 8 FT MODEL236-00-00-135
1SHAFT GUARD - 6 FT MODEL234-00-00-134
1
SHAFT GUARD - 5 FT MODEL
232-00-00-133
1SHAFT GUARD - 4 FT MODEL230-00-00-1329
11/2 x 1 1/4 SS HEX BOLTR0821710
1
1/2 FLAT WASHER
R0782511
11/2 LOCK WASHERR0780512
12 HB x 6.4 SHEEVE w/ BUSHING - 1 3/8 BORER2106213
1
PULLEY BUSHING - 1 3/8
R2105214
238B - V BELTSR2093215
12 HB x 3.5 x 1 1/8 BORE PULLEYR2106416
2
5/8 HEX NUT
R0778617
2H-5 72 GEAR CLAMP 4 1/2"R0223718
21/4 x 4 COTTER PINR0801719
1
5/32 HAIR PIN
R0794820
13/8 x 1 HEX BOLTR0761921
13/8 LOCK WASHERR0780322
1
3/8 HEX NUT
R0778323
1"CAUTION" - "ROTATING CCW" DECALR0969224
1"MADE IN CANADA" DECAL - LARGER0950825
1
"ROTATING DRIVE LINE" DECAL
R2152126
IMPELLER & SHAFT
Page 4

PARTS LIST
QTYDESCRIPTION
PART NUMBERITEM
1
CHT HOUSING & CHANGE BOX ASSY
230-35-04-0001
1CHT CHANGE BOX ASSY230-35-01-0001.1
1
INSPECTION SIDE PLATE
230-01-02-0061.1.1
1
SIDE PLATE
230-01-02-0071.1.2
1CHANGE BOX BAND230-35-01-1451.1.3
1
TOP PLATE
230-01-02-0091.1.4
2
FLAPPER SEAT
230-01-02-0111.1.5
1FLAPPER230-35-01-1461.1.6
1
FLAPPER SHAFT
230-01-02-0131.1.7
1
FLAPPER SEAT LONG
230-01-02-1181.1.8
1FLAPPER ARM230-01-02-0051.1.9
4
3/8 x 1 SS WELD STUD
R083231.1.10
1
CHT FAN HOUSING ASSY-3"
230-35-02-0001.2
1CHT HOUSING BAND230-35-02-1491.2.1
43/8 x 3/4 FLAT HEAD SLOT S.S.R082441.2.2
1
FAN HOUSING BOTTOM PLATE
230-35-02-1481.2.3
1CHT FAN HOUSING TOP PLATE230-35-02-1471.2.4
1END PLATE230-01-02-0101.3
1
CHT COVER PLATE ASSY
230-35-03-0002
1CHT COVER PLATE230-35-03-1512.1
1CHT INLET RING230-35-03-1522.2
1
FOOT SPACER
230-06-00-0592.3
1FOOT230-06-00-0602.4
43/8 FLANGE NUTR077943
4
3/8 x 1 CARRIAGE BOLT
R077214
3" CHT HOUSING & COVERPLATE KIT
2.4
2.3
3
2.1
2.2
2
1.2.3
1.2.1
1.2.41.2.2
1.2
1.1.3
1.1.1
1.1.7
1.1.9
1.1.4
1.1.5
1.1.8
1.1.2
1.1
1.1.6
1
1.1.10
4
3" CHT HOUSING & COVERPLATE KIT
230-35-00-000
1.3
Page 5

PARTS LIST
QTYDESCRIPTION
PART NUMBERITEM
1CUTTER BLADE ASSY260-13-08-0001
1CUTTER BLADE TUBE260-13-08-0371.1
2CUTTER BLADE260-13-08-0361.2
1
STOP BAR
260-13-08-0401.3
1
PLUG WASHER
260-13-08-0381.4
1COVER PLATE ASSY W/LEDGER550-19-00-0002
1FOOT SPACER230-06-00-0592.1
1COVER PLATE W/LEDGER PLATE550-19-00-0612.2
1
COVER PLATE RING
550-19-00-0832.3
1
FOOT
230-06-00-0602.4
1
1/2 x 1 1/2 S.S. HEX BOLT
R084163
11/2 LOCK WASHERR078054
ELECTRIC CUTTER BLADE KIT
3
4
2.2
1.1
1.4 1.3
1.2
1.2
2.3
2.1
2.4
2
1
ELECTRIC CUTTER BLADE KIT
260-13-00-000
Page 6

GUARANTEE
All Husky Farm Equipment manufactured by Husky Farm
Equipment Limited is guaranteed. Guarantee covers all the
replacement cost or repair of all parts said to be defective from
manufacture. Guarantee also covers labour installing said parts, if
installed at Husky Manufacturing plant. Time and use is the
essence of the guarantee. If equipment is used on a private
property for an individual’s use, guarantee will be in effect for
twelve months from date of invoice. If equipment is used for
commercial use to do custom work for money then guarantee
will be in effect for three months only from date of invoice.
EXEMPTIONS FROM GUARANTEE
Cost of transportation of equipment to or from Husky Farm
Equipment Limited either by customer or by Husky’s service
staff or cost of mail or public transportation is not covered. Tires
and electric or hydraulic motors are covered by manufacturer’s
warranty and although Husky may assist to get warranty, Husky
will not be responsible other than that allowed by manufacturer’s
warranty. Items subject to normal wear from use not covered by
guarantee if faulty part is simply worn.
