Hydra ECHO Quick guide

ECHO
AC Wall-Mounted EV charger
ELECTRIC VEHICLE CHARGER
INSTALLATION AND INSTRUCTION MANUAL
ECHO-V0001-31.03.2022

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
2
CONTENTS
SAFETY ...................................................................................................................................................................................3
Safety Identication .......................................................................................................................................................3
INTRODUCTION.....................................................................................................................................................................6
Serial Number Identication.........................................................................................................................................6
Appearance .....................................................................................................................................................................7
Technical Specications................................................................................................................................................8
Product Features...........................................................................................................................................................10
SYSTEM ARCHITECTURE ..................................................................................................................................................11
Electric............................................................................................................................................................................11
System Communications .............................................................................................................................................11
INSTALLATION ....................................................................................................................................................................12
Procedure.......................................................................................................................................................................12
Network connectivity requirements ..........................................................................................................................13
Tool preparation ............................................................................................................................................................14
Internal structure ..........................................................................................................................................................15
Site Space Requirements ............................................................................................................................................16
Installation Instructions ...............................................................................................................................................17
Electrical Requirements...............................................................................................................................................18
Connect the Power Cable............................................................................................................................................19
COMMISSIONING ..............................................................................................................................................................20
Power on standby owchart.......................................................................................................................................21
Charging Operation.......................................................................................................................................................22
Charging Operation Flowchart....................................................................................................................................22
Non-Operational mode owchart ..............................................................................................................................23
Emergency Operation...................................................................................................................................................24
Setup ...............................................................................................................................................................................25
Ethernet Mode...............................................................................................................................................................26
Using a Static IP address ............................................................................................................................................26
Wi Mode.......................................................................................................................................................................26
WIFI mode ......................................................................................................................................................................27
Set DNS ..........................................................................................................................................................................27
Change the URL.............................................................................................................................................................27
PLATFORM CONECTIVITY .................................................................................................................................................28
Connect to the CHargecore Platform ........................................................................................................................28
AFTERSALES........................................................................................................................................................................29
Aftersales Service ........................................................................................................................................................29
Disclaimer ......................................................................................................................................................................29
Maintenance..................................................................................................................................................................29
Procedures.....................................................................................................................................................................31
During Installation.........................................................................................................................................................31
After Installation............................................................................................................................................................31
APPENDIX............................................................................................................................................................................32
Screen Icon Key............................................................................................................................................................32
Fault Diagnosis ..............................................................................................................................................................33
Electrical Diagram ........................................................................................................................................................34
Restriction of Hazardous substances........................................................................................................................35
Authentication ...............................................................................................................................................................36

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
3
SAFETY
SAFETY ANNOUNCEMENTS
Before operating the EV charger, read the instructions and precautions carefully to reduce the risk of accidents.
The “caution, warning, hazard” notices in the product and product manual do not represent all safety concerns
to be observed and are only intended to supplement the various operational safety precautions.
In carrying out the company’s product and equipment operations, you must comply with relevant industry safety
norms and strictly abide by these instructions to provide the appropriate equipment precautions and special
safety instructions
IDENTIFICATION DESCRIPTION
Indicates that care must be taken with the operation or condition of hazardous voltage
Important security information must be followed very carefully
Indicates risk of burns from high-temperature areas or areas with high
component temperatures
Ground protected connection point
DC electricity
AC electricity
Indicates that the said action must be performed using clothing and/or personal
protective equipment provided by the employer
Type A Residual Current Devices (RCD)
Type B Residual Current Devices (RCD)

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
4
SAFETY
ELECTRICAL SAFETY
HIGH VOLTAGE
Some components of the power system operate with high voltage. Direct or indirect
contact with these components through non-insulated protective material poses a fatal
hazard.
The installation of AC power supply equipment must comply with safety regulations, and personnel carrying out
the installation of AC equipment must be qualied in high voltage AC-power operation.
It is strictly prohibited to wear watches, bracelets, rings or other conductive objects on your wrist or hand.
Turn off the power immediately if you nd water or moisture in the electric cabinet. When operating in humid
conditions, water should be strictly prevented from entering the equipment.
A “Do not operate” sign must be hung on switches and buttons that are not to be used during installation.
Construction of high-voltage lines can cause re or electric shock accidents.
The racking and wiring of AC cables through the area must comply with the local
regulations and specications. Only personnel qualied for high-voltage and AC
operations can carry out various high-voltage operations.
TOOLS
Special tools must be used for all high AC voltage operations.
THUNDERSTORMS
High AC voltage operations during thunderstorms are strictly prohibited.
Strong electromagnetic elds are produced in the atmosphere during thunderstorms. To avoid lightning
damage to equipment and personnel, do not carry out any operations during thunderstorms.
ELECTROSTATICS
Static electricity generated by the human body can damage electrostatic-sensitive
components on boards such as large-scale integrated circuits (ICs). To prevent static
damage to sensitive components, personnel must wear an anti-static bracelet when in
contact with equipment (hand-held boards, circuit boards, IC chips, etc.). The anti-
static bracelet must be well-grounded on the other end.

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
5
SAFETY
SHORT CIRCUITS
It is strictly prohibited to short-circuit the power supply system to the positive and
negative poles or to short the non-ground pole to ground during operation. Short
circuits can cause equipment to burn and pose a personal safety hazard.
In addition, the polarity of the cables and interface terminals must be strictly checked when carrying out live
work.
Power distribution operation space is limited. Before any operation, close attention must be paid to the choice
of operating space.
An insulation tool must be used during operation.
When working with electricity, care must be taken to keep your hands, wrists and arms steady, to prevent
accidents from a tool slipping, or from too much movement of a tool or your body.
SHARP CORNERS
When moving equipment by hand, wear protective gloves to prevent cuts.
POWER CABLE
Make sure that the cable label is correct before connecting the cable.
SIGNAL LINE
The signal cable should be tied separately from the power cable and at
least 15mm away.

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
6
INTRODUCTION
SERIAL NUMBER DESCRIPTION
AC003 09 T1 A01 No ROU0120030002
1 2 3 4 5 6
6PILE ID NUMBER ROU01 2003 0002 - ROMANIA CUSTOMER LIST
1,2 MARCH 20, PILE 0002
5 FOUNDRY
4 BOM VERSION
3
STANDARD:
T2: TYPE2 AC
T1: TYPE1 AC
GA: GB/T AC
C2: CCS2
C1: CCS1 J
CHADEMO
GD: GB/T DC
2
CHARGING POWER:
TYPE2 AC PILE RATED POWER 22KW
CCS2 PILE RATED POWER 40KW
CHADEMO PILE RATED POWER 20KW
1
PRODUCT MODEL:
AC001- PLASTIC HOUSING 1 AC PILE
AC002- METAL COLUMN AC PILE
AC003- ALUMINUM AC PILE
AC004- PLASTIC HOUSING 2 AC PILE
AC005- METAL SHELL AC PILE
AC006- POLYCARBONATE REINFORCED ABS AC PILE
PAC- ADVERTISING AC PILE
The HYDRA ECHO wall-mounted AC charger can be congured with Type 1 J1772, Type 2 cable (tethered) or
socket (untethered). The system can be installed outdoors (but for safety reasons, if the water level reaches the
charger connector, it should not be used in rainy or snowy conditions).

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
7
INTRODUCTION
APPEARANCE
Use Car Parks / Public Charging Station
Material Metal housing
Installation type Wall Mounted
Cable layout Bottom
Weight 5-10kg
Cable length 4m
Charging socket Type1 or Type2
1 Touch Screen
2 Emergency Stop Button
3 Door Lock
4 RFID Card reader
5 LED status lights
6 Power input
7 RJ45 input
8 Charger Output
(tethered)
Not shown:
Charger cable socket
(untethered model)
➊➊
➋➋
➌➌
➍➍
➏➏
➎➎
➐➐➑➑

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
8
INTRODUCTION
TECHNICAL SPECIFICATIONS
COMPONENT
SPECIFICATIONS
Dimensions 211(L)x138(W)x320(H)mm
Weight 5kg (no cable) -10kg (with cable)
Cable length ≥4.2m/SOCKET
Shell material Aluminium Alloy
Screen 5” LCD touch screen
POWER
CHARACTERISTICS
Input voltage TN-S 240V AC (single phase)
400V AC (three phase) ±10%
Input frequency 50hz/60hz
Rated power 7kW (single phase)
22kW (three phase)
Measurement accuracy ≤±0.5%
Output voltage Same as input voltage
Output current 7kW/22kW-32A
Efciency ≥94%
Factor ≥0.99
DESIGN FEATURES
UI RFID Card Reader, LCD touch screen, Emergency
Stop Button
Standard GB/T, TYPE1 J1772, TYPE2 and IEC61851-1/2017
COMMUNICATION
Web interface Wired Ethernet, Wi-Fi, 3G/4G
OCPP OCPP 1.6J

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
9
INTRODUCTION
WORKING
ENVIRONMENT
Use Indoor/Outdoor
Operating temperature -30°C ~ +55°C
Operating humidity 5% to 95%
Elevation <2000m
Protection level IP55
Cooling method Ambient air cooling
Ground detection 30mA
Sound level ≤50db (normal input/output power at ambient 25°C)
RoHS Meets the R5 requirements of the RoHS directive
TECHNICAL SPECIFICATIONS (CONTINUED)

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
10
INTRODUCTION
PRODUCT FEATURES
The HYDRA ECHO AC Charger has a modern design and user-friendly interface, designed for domestic and
workplace use.
SAFETY FEATURES
Hardware protection features:
Overcurrent protection
Overvoltage protection
Over-temperature protection
Emergency stop protection
Lightning protection
Type B RCD
Comprehensive software protection features, providing multiple protections
Meets IEC61851-22 requirements
All components have CE certicates
The SECC controller has gone through the TÜV test
SMART
The terminal charger is connected to the Open Charge Point Protocol platform online
Remote diagnostics, remote upgrades
Compatible with GB/T, Type1-SAEJ1772, Type 2 and IEC61851-1/2017
Internal high-precision MID AC meter
Supports simultaneous charging of multiple connectors
The OCPP platform sets the maximum output power according to the time period
Support for credit card Point Of Sale payment (optional)
Support for OCPP1.6-J (later direct upgrade to 2.0)
CONVENIENT
Wireless or wired communication, exible networking
Open communication protocol for sweep charge, swipe charging and API services
Several settings to end the charge
Time limit
Amount of electricity
Auto lled
OPTIONAL FEATURES
Plug&Charge (optional)

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
11
SYSTEM
ARCHITECTURE
ELECTRIC

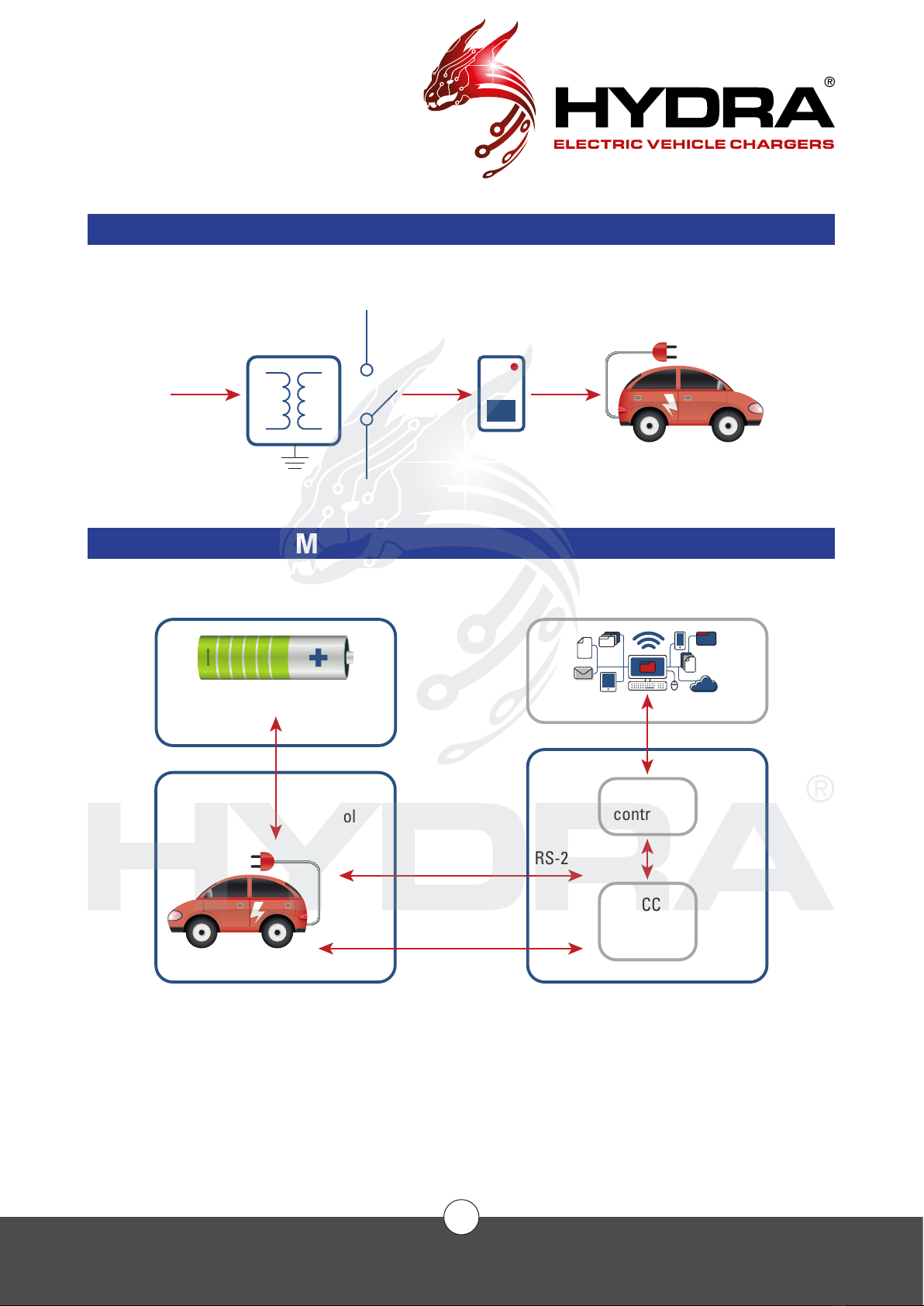

INTERNAL SYSTEM COMMUNICATIONS
BMS
EVCC
PLC
ISO15118
RS-232
CAN
CHAdeMO/GBT
CP
PP
proprietary
protocol
Internet OCPP
CAN
OCPP
cloud
OCPP
controller
SECC&
EVSE
controller
CANH
CANL
ACTNS10kV
TN-C-S
10kV/400V
Transformer - Switch - Charger - Car

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
12
INSTALLATION
PROCEDURE
SAFETY INSTRUCTIONS
The operating voltage and current inside the charging system are high, and the following regulations should be
observed at all times to ensure personal safety:
1.Chargingsystemsmustonlybe installed by personnelwho have been trainedin, and have sufcientknowledge
of, the charging system. Always follow safety precautions and local safety regulations during installation.
2. To operate inside the charging system, make sure that the charging system is not live. The power input to the
charging system must be disconnected.
3. Distribution cable wiring should be reasonable and protective to avoid accidental contact when operating
power supplies.
VISUAL INSPECTION
Upon product delivery, check that the package is not damaged and that the label is complete and correct. If
there is an issue, immediately inform the carrier and take photos as evidence. At the same time, immediately
contact the manufacturer to discuss the issue.
Only after the goods arrive at the installation site can they be opened and the boxes opened for inspection.
Start by opening the box with the packing slip, taking out the packing list and checking it against each item.
Next, check the serial number of the box, the equipment packaging, the number and type of accessories and
the integrity of all items.
Following the packing list, check that accessories and accompanying documents are complete (refer to the
shipping list) and store the accessories and documents properly.
Carry out a visual inspection to ensure that the product is free of abnormal marks showing collisions, and of
scratches, cracks, dents, rust, breakage, or peeling of paint.
Sign receipt documents, make a record of the situation, keep documents and scan them for archives, or give
them to relevant parties.
ACCESSORY LIST
The packing list comes with the shipping documents.

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
13
INSTALLATION
NETWORK CONNECTIVITY REQUIREMENTS
The recommended way to connect to the network is to access 4G wireless communication or a Wi-Fi module
integrated in the charger. A SIM card meeting local networking requirements is required. Make sure the local
signal strength is strong and stable; otherwise a signal amplier must be installed.
If there is no local 3G/4G communication signal, a standard wired internet connection is available. Wired
connections must meet the following requirements:
RJ45 Ethernet
Network cable type: 5e class or greater, 8P plus PE, shielding wire.
It is recommended that the line length is less than 75m. Greater than 75m length requires a customised
engineering solution.
Minimum bandwidth required:
Upstream: 128 kbps
Downstream: 4 Mbps
Demand connection reliability: 99.9%.
For special congurations, please contact us.

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
14
INSTALLATION
NAME DESCRIPTION QTY
Multimeter Checking the electrical connections and electrical parameters 1
Electric impact drill Drilling 1
Impact drill bit (Ø 14mm) Drilling 2
Tape measure (5m) Measurement 1
Level ruler Measurement 1
Crosshead screwdriver Unpacking 1
Pliers Unpacking 1
Wire Stripper Removing the insulation sheath / jacket 1
Terminal pressure line pliers Pressing the terminals 1
Bevel cutting pliers Cutting the cable 1
Light hammer Unpacking, tapping, adjustment 1
Carrying equipment Moving and hoisting charger 1
PVC tape and sheath Insulation tape and insulation cladding connection 1
Personal protection tools Ensuring the health and safety of operators 1
TOOL PREPARATION
STANDARD TOOLS

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
15
INSTALLATION
INTERNAL STRUCTURE
1 Touch screen
2 OCPP client controller
3 LED status indicator
4 ANT
5 Contactor
6 Power Supply
7 Relay
8 RCD
9 Meter
10 Door Lock
11 L1
12 N
13 PE
14 CP
15 PD
16 Electronic lock (untethered only)
17 Charging Lead Socket (untethered only)
18 Emergency Stop

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
16
INSTALLATION
SITE SPACE REQUIREMENTS
Adequate installation space should be reserved to ensure safe and reliable operation, ventilation and
maintenance of the equipment.
Installation requires 550 x 720 mm of space, calculated as follows:
Product size: 211mm(L) X 138mm(W) x 320(H)mm, excluding cable hangers and accessories.
Front reserved spacing ≥400mm to ensure the front door open/close operation is normal and all related
operations are unhindered.
Left reserved spacing ≥ 200mm to ensure operating space.
Right-hand reserved spacing ≥ 500mm to ensure operating space.
Rear reserved spacing ≥ 100mm to ensure operating space.
Dimensions (from above)
320mm
211mm 138mm

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
17
INSTALLATION
140mm
280mm
➊➊
➋➋➌➌
1 Charging Power Cable (tethered version)
2 RJ45
3 Power inlet
INSTALLATION INSTRUCTIONS
TRANSFER LOADING AND UNLOADING
Do not drop or hit the device.
INSTALLATION
Secure the base to the wall.
NB: To avoid the back plate distorting when being screwed onto the wall, it is recommended that you x
each screw loosely one at a time and then tighten slowly once all screws are in place.
Carefully and slowly lower the charger into place.
Make sure that the cable has been passed into the cabinet along the seal sleeve.
Ensure that the cabinet holes and bolts are aligned.
Lock the nuts to 95.5 Nm.
Keep the device upright – do not tilt more than ±15°
Mount the charging pile on the hanger and lock the charging pile

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
18
INSTALLATION
ELECTRICAL REQUIREMENTS
Cable type: Three-phase, ve-wire (TN-C-S/TN-S) conrming the need for shielding as required by local laws
or norms
If there is a shield, both ends of the shield are connected to the PE secure ground.
Cable diameter requirements are determined by the contractor or electrical engineer, based on power,
distance and industry standards, or the following recommendations:
ZR-YJV-multi-core-sheath power cable.
The voltage level is 450/750V or higher.
A temperature of at least 90°C should be achieved.
PE Safety ground wire requires the same size model as the N wire, or uses the following recommended
requirements:
When the phase line is greater than 35 mm2, the ground line should be no less than half of the
phase line section.
When the phase line is greater than 16 mm2 and less than or equal to 35mm2, the ground line
should be consistent with the phase section.
The section of the ground line must not be less than 16 mm2.
The recommended power distribution input wire diameter of the charger should not be less than the following
recommended values and should have a separate circuit breaker and leakage (the following table is at 25℃
environment, YJV22 (armoured) cable in the soil directly applying ow as a reference, according to the
actual cable material and laying method to determine the specic wire diameter).
Charger power(kW) 7 22 43
Input voltage(V) 230V 400V
Input current(A) 32 32 63
Recommended line
diameter (mm2) 6 6 10

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
19
INSTALLATION
CONNECT THE POWER CABLE
Note: Turn off switches and pull out all fuses before connecting electrically
CONNECT THE GROUND CABLE
The charging system uses a common grounding method, using a ground cable to connect the ground copper
row of the charging cabinet with the main ground row.
CONNECT THE AC INPUT
1. The AC input cable is routed from the user’s power distribution switch and is connected to the output
terminal of the user switch when power is ready to be turned on. The user distribution switch should
have overcurrent, short circuit, lightning strike and other protective devices. The capacity of the power
distribution switch is recommended as not less than 1.5 times the actual load capacity.
2. The L1-phase, L2-phase, L3-phase and N-zero cables of the AC input cable should use brown, black, grey
and blue cables (standard reference below). If the cable has only one colour, the line number identication
is pasted or marked with different colour insulation at both ends of the cable.
3. Cables should not have severed heads, broken heads or scratches.
Colour Brown Blue Yellow & Green
Phase order L N PE
The AC input can be introduced from the bottom of the cabinet through a trench and connected sequentially to
the corresponding terminal.
PHASE LINE / ZERO STUD / IDENTIFICATION CHART
N
PE
L

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
20
COMMISSIONING
CHECK BEFORE COMMISSIONING
Before starting commissioning work, the following conditions need to be prepared and validated:
All preparation, installation, connections, etc. have been completed.
The charger input power supply has been connected and the charger power-up capacity is already available.
If there is no 3G/4G signal, the network needs to be connected via a wired network.
The site must be staffed by a full-time security ofcer for safety supervision.
Arrange the operation representative and accept the on-site guidance of the charging operation.
POWER-ON CHECK
Once the charger is connected to AC power, check for fault alarms on the LED display and check the
charging module is working properly. Congure the network information, check the network connection
status and signal strength.
CHARGING OPERATION
Connect an electric car or test device. The charger must show that the electric vehicle is connected.
Swipe the RFID card or use the App to start charging and check the charger starts normally.
Check the charger’s alarm light is green and the module is working.
POWER-ON PROCESS
After ensuring that the charger installation is complete, the wiring is accurate, and the overall commissioning
is complete, the charger can be powered on.
Conrm that AC circuit breakers and contactors are disconnected and switch on the AC feed. The charger
should not emit an alarm or show an abnormal state signal.
The closed AC circuit breaker, other switching devices and the charger screen and indicators should be
illuminated. The interface shows the door alarm, fault indicator on, indicating that the access control system
is working normally.
Check that the components are working properly and close the doors. The fault indicator should turn off.
