Hydra GENESIS Quick guide

GENESIS
Dual AC EV charger
ELECTRIC VEHICLE CHARGER
INSTALLATION AND INSTRUCTION MANUAL
GENESIS-V0002-25.04.2022

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
2
CONTENTS
SAFETY ...........................................................................3
Symbol identication and description..................3
Electrical safety........................................................4
PRODUCT INTRODUCTION ..........................................6
Serial number description ......................................6
Dimensions................................................................7
Technical Specication...........................................8
Product features ....................................................10
SYSTEM ARCHITECTURE ...........................................11
INSTALLATION .............................................................12
Internal Structure...................................................13
Site Space Requirements .....................................14
Foundation Requirements.....................................15
Electrical Requirements........................................16
Network Connectivity Requirements..................17
Tool Preparation.....................................................18
Cabinet Installation Instructions .........................19
Connecting the power cable................................20
Installation instructions ........................................13
COMMISSIONING .......................................................21
Operation instructions...........................................21
Power On.................................................................22
Charging Operation................................................23
Non-Operational Flowchart..................................24
Change Password..................................................25
Setup ........................................................................22
Commissioning check ...........................................25
Switch to Ethernet Mode......................................26
Using static IP address .........................................26
WiFi Mode ...............................................................26
4G Mode ..................................................................27
Set DNS ...................................................................27
Change URL (OCPP URL) ......................................27
PLATFORM CONNECTIVITY .......................................28
Connect to the chargecore platform ..................28
AFTER-SALES MAINTENANCE .................................29
After-sales service.................................................29
Disclaimer ...............................................................29
Maintenance...........................................................29
PROCEDURES ...............................................................31
During Installation..................................................31
After Installation.....................................................31
APPENDIX.....................................................................32
Screen icon identication ....................................32
Fault diagnostics (cause and resolution)...........33
Genesis electrical diagram ..................................34
Restriction of Hazardous Substances ................35
AUTHENTICATION.......................................................36

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
3
SAFETY
SAFETY ANNOUNCEMENTS
Before operating the EV charger, read the instructions and precautions carefully to reduce the risk of accidents.
The “caution, warning, hazard” notices in the product and product manual do not represent all safety concerns
to be observed and are only intended to supplement the various operational safety precautions.
In carrying out the company’s product and equipment operations, you must comply with relevant industry safety
norms and strictly abide by these instructions to provide the appropriate equipment precautions and special
safety instructions

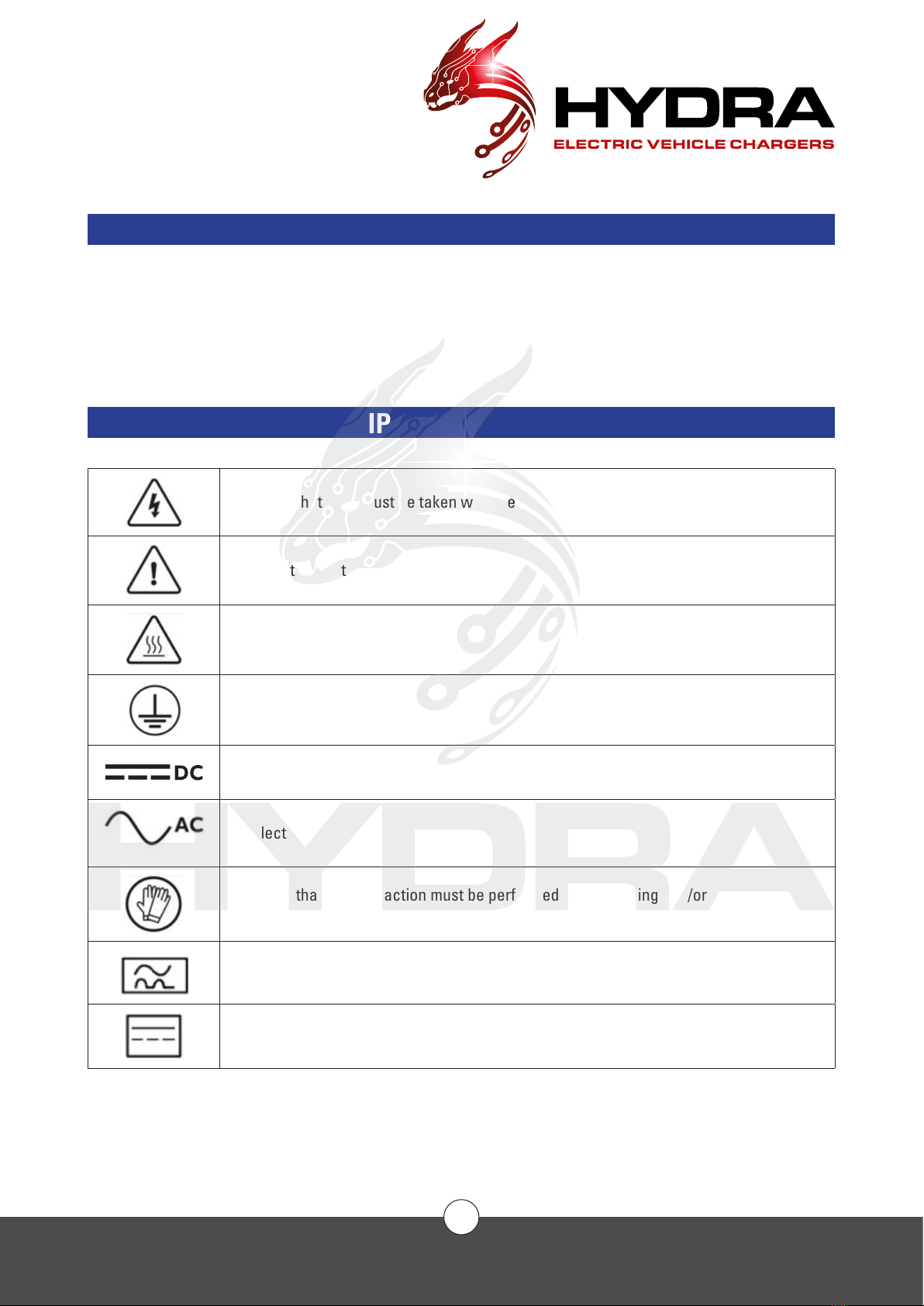

IDENTIFICATION DESCRIPTION
Indicates that care must be taken with the operation or condition of hazardous voltage
Important security information must be followed very carefully
Indicates risk of burns from high-temperature areas or areas with high
component temperatures
Ground protected connection point
DC electricity
AC electricity
Indicates that the said action must be performed using clothing and/or personal
protective equipment provided by the employer
Type A Residual Current Devices (RCD)
Type B Residual Current Devices (RCD)

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
4
SAFETY
ELECTRICAL SAFETY
HIGH VOLTAGE
Some components of the power system operate with high voltage. Direct or indirect
contact with these components through non-insulated protective material poses a fatal
hazard.
The installation of AC power supply equipment must comply with safety regulations, and personnel carrying out
the installation of AC equipment must be qualied in high voltage AC-power operation.
It is strictly prohibited to wear watches, bracelets, rings or other conductive objects on your wrist or hand.
Turn off the power immediately if you nd water or moisture in the electric cabinet. When operating in humid
conditions, water should be strictly prevented from entering the equipment.
A “Do not operate” sign must be hung on switches and buttons that are not to be used during installation.
Construction of high-voltage lines can cause re or electric shock accidents.
The racking and wiring of AC cables through the area must comply with the local
regulations and specications. Only personnel qualied for high-voltage and AC
operations can carry out various high-voltage operations.
TOOLS
Special tools must be used for all high AC voltage operations.
THUNDERSTORMS
High AC voltage operations during thunderstorms are strictly prohibited.
Strong electromagnetic elds are produced in the atmosphere during thunderstorms. To avoid lightning
damage to equipment and personnel, do not carry out any operations during thunderstorms.
ELECTROSTATICS
Static electricity generated by the human body can damage electrostatic-sensitive
components on boards such as large-scale integrated circuits (ICs). To prevent static
damage to sensitive components, personnel must wear an anti-static bracelet when in
contact with equipment (hand-held boards, circuit boards, IC chips, etc.). The anti-
static bracelet must be well-grounded on the other end.

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
5
CONTENTS
SHORT CIRCUITS
It is strictly prohibited to short-circuit the power supply system to the positive and
negative poles or to short the non-ground pole to ground during operation. Short
circuits can cause equipment to burn and pose a personal safety hazard.
In addition, the polarity of the cables and interface terminals must be strictly checked when carrying out live
work.
Power distribution operation space is limited. Before any operation, close attention must be paid to the choice
of operating space.
An insulation tool must be used during operation.
When working with electricity, care must be taken to keep your hands, wrists and arms steady, to prevent
accidents from a tool slipping, or from too much movement of a tool or your body.
SHARP CORNERS
When moving equipment by hand, wear protective gloves to prevent cuts.
POWER CABLE
Make sure that the cable label is correct before connecting the cable.
SIGNAL LINE
The signal cable should be tied separately from the power cable and at
least 15mm away.

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
6
INTRODUCTION
SERIAL NUMBER DESCRIPTION
AC002 0722 T1T2 A01 No ROU0120030002
1 2 3 4 5 6
6PILE ID NUMBER ROU01 2003 0002 - ROMANIA CUSTOMER LIST
1,2 MARCH 20, PILE 0002
5 FOUNDRY
4 BOM VERSION
3
STANDARD:
T2: TYPE2 AC
T1: TYPE1 AC
GA: GB/T AC
C2: CCS2 C1
CCS1 J
CHADEMO
GD: GB/T DC
2
CHARGING POWER:
TYPE2 AC PILE RATED POWER 22KW
CCS2 PILE RATED POWER 40KW
CHADEMO PILE RATED POWER 20KW
1
PRODUCT MODEL:
AC001- PLASTIC HOUSING 1 AC PILE
AC002- METAL COLUMN AC PILE
AC003- ALUMINUM AC PILE
AC004- PLASTIC HOUSING 2 AC PILE
AC005- METAL SHELL AC PILE
AC006- POLYCARBONATE REINFORCED ABS AC PILE
PAC- ADVERTISING AC PILE
The Genesis has a dual connector output of 2x7/22/43kW function. Dual outlets can be congured at the same
time or in combination with Type 1 J1772, Type 2 and Mennekes connectors. The system can be installed
outdoors (but for safety reasons, if the water level reaches the charger connector, it should not be used in rainy
or snowy conditions).

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
7
INTRODUCTION

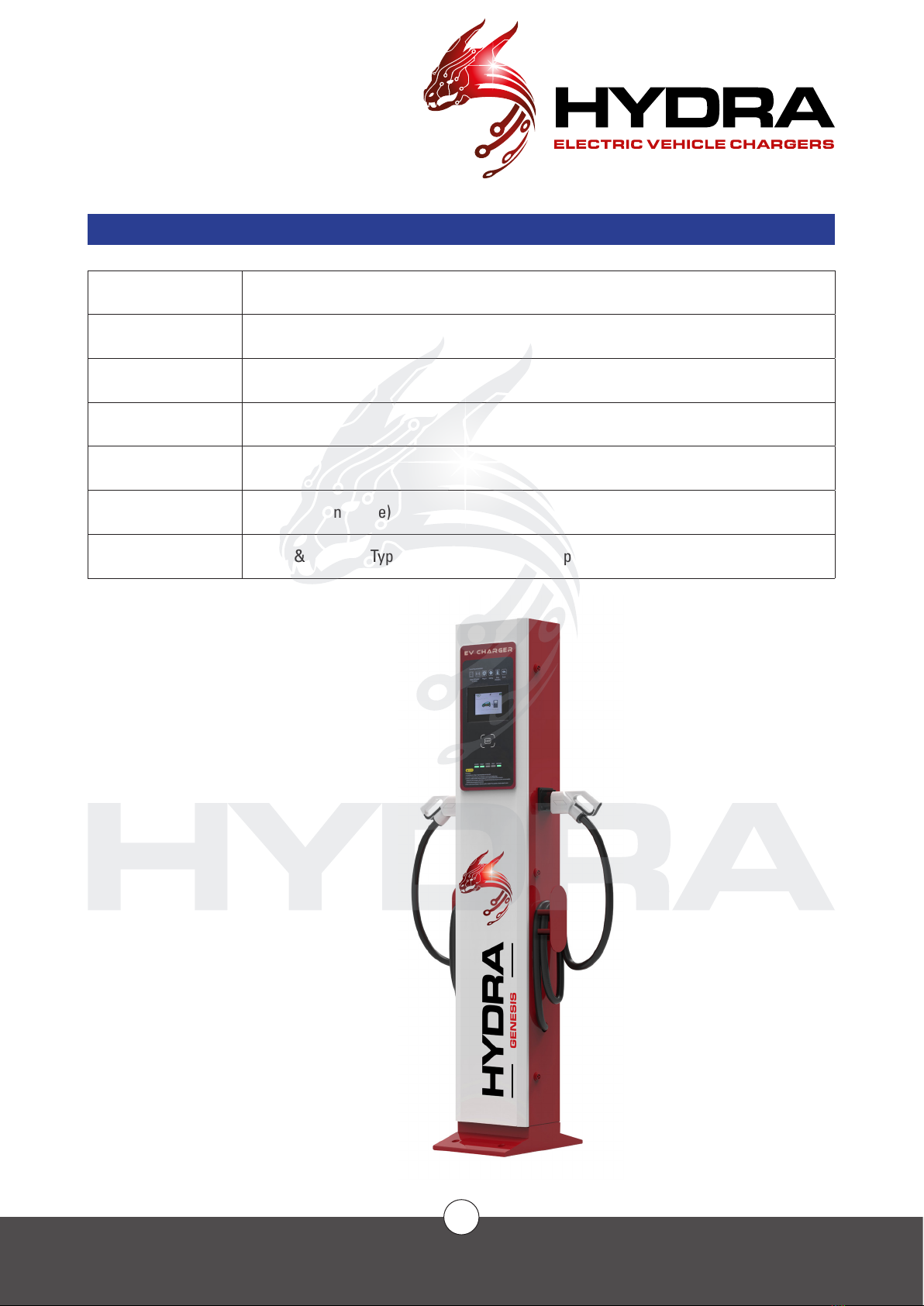

APPEARANCE & DIMENSIONS
Use Car Parks / Public Charging Station
Material Metal housing
Installation type Floor Stand
Cable layout Bottom
Weight 53kg
Cable length ≥4.2m (External Line)
Charging socket Type1 & Type1 or Type2 & Type2 or Type1 & Type2
1 Touch Screen
2 LED Indicators
3 RFID Card Reader
4 Charging Cable Dock (x 2)
5 Charging Cable Holder
➊➊
➋➋
➌➌
➍➍
➎➎

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
8
INTRODUCTION
TECHNICAL SPECIFICATIONS
COMPONENT
SPECIFICATIONS
Dimensions 280(W) x 190(L) x 1500(H)* mm *TBC
Weight 53kg (including cable)
Cable length ≥4.2m/SOCKET
Shell material Sheet metal
Screen 5” LCD touch screen
POWER
CHARACTERISTICS
Input voltage TN-S 240V AC (single phase)
400V AC (three phase) ±10%
Input frequency 50hz/60hz
Rated power 7kW (single phase)
22kW/43kW (three phase)
Measurement accuracy ≤±0.5%
Output voltage Same as input voltage
Output current 7kW/22kW-32A, 43kW-63A
Efciency ≥94%
Factor ≥0.99
DESIGN FEATURES
UI RFID Card Reader, LCD touch screen
Standard GB/T, TYPE1 J1772, TYPE2 and IEC61851-1/2017
COMMUNICATION
Web interface Wired Ethernet, Wi-Fi, 3G/4G
OCPP OCPP 1.6J

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
9
INTRODUCTION
WORKING
ENVIRONMENT
Use Indoor/Outdoor
Operating temperature -30°C ~ +55°C
Operating humidity 5% to 95%
Elevation <2000m
Protection level IP55
Cooling method Ambient air cooling
Ground detection 30mA AC, 6mA DC
Sound level ≤50db (normal input/output power at ambient 25°C)
RoHS Meets the R5 requirements of the RoHS directive
TECHNICAL SPECIFICATIONS (CONTINUED)

✆ 01268 205 121 | www.hydraev.co.uk | [e-mail]
10
CONTENTS
PRODUCT FEATURES
The HYDRA GENESIS Dual AC Charger has a modern design and user-friendly interface, designed for
domestic and workplace use.
SAFETY FEATURES
Hardware protection features:
Overcurrent protection
Overvoltage protection
Over-temperature protection
Lightning protection
Type B RCD
Comprehensive software protection features, providing multiple protections
Meets IEC61851-22 requirements
All components have CE certicates
The SECC controller has gone through the TÜV test
SMART
The terminal charger is connected to the Open Charge Point Protocol platform online
Remote diagnostics, remote upgrades
Compatible with GB/T, Type1-SAEJ1772, Type 2 and IEC61851-1/2017
Internal high-precision MID AC meter
Supports simultaneous charging of multiple connectors
The OCPP platform sets the maximum output power according to the time period
Support for credit card Point Of Sale payment (optional)
Support for OCPP1.6-J (later direct upgrade to 2.0)
CONVENIENT
Wireless or wired communication, exible networking
Open communication protocol for sweep charge, swipe charging and API services
Several settings to end the charge
Time limit
Amount of electricity
OPTIONAL FEATURES
Plug&Charge (optional)
