Hydro-Force SX-12 User manual

1
Revised: 01/10/2020

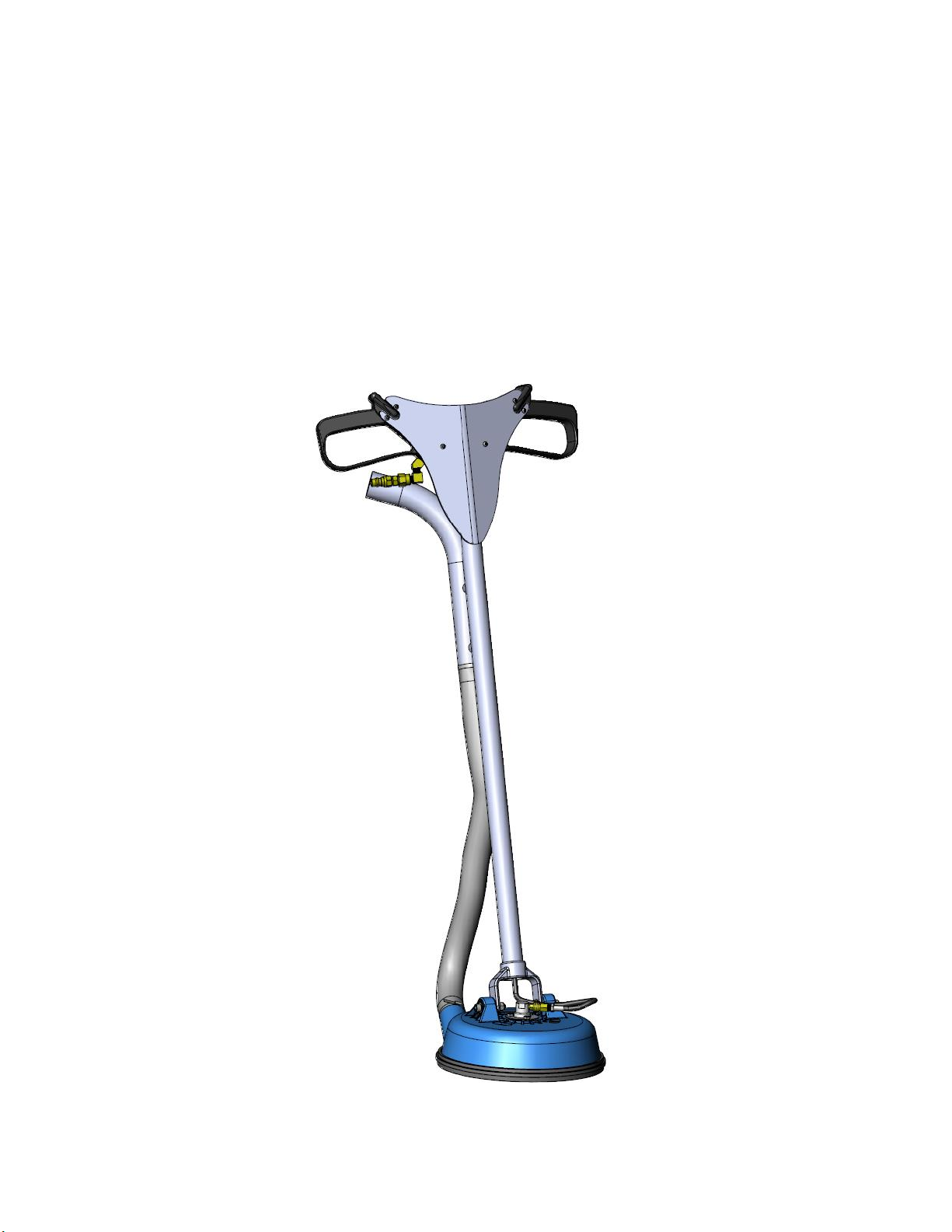

SX-12
Hard Surface Cleaning Tool
1610-8235
Hydro-ForceManufacturing
4282South590West
SaltLakeCity,UT84123
801-268-2673
801-268-3856FAX

2
INTRODUCTION
Congratulations on your purchase of the SX-12 hard surface cleaning tool.
Years of experience, engineering, and planning have gone into the design and manufacturing of
the SX-12. We take a great deal of pride in the SX-12; our goal is no less than your complete
satisfaction.
The SX-12 can be used with portable or truck mounted extractors to clean tile, concrete and
stone floors. The superior water recovery of the SX-12 will make your tile cleaning faster and
more efficient.
This manual will provide users with the knowledge to operate and maintain the SX-12.
Any questions pertaining to the operating or servicing of this unit should be directed to your
nearest Hydro-Force distributor.
This manual is written specifically for the SX-12 tile cleaning tool manufactured by:
Hydro-Force Manufacturing
4282 South 590 West
Salt Lake City, UT 84123
801-268-2673
801-268-3856 FAX
Information in this manual is subject to change without notice and does not represent a
commitment on the part of Hydro-Force, its parent or affiliated companies.
SPECIFICATIONS
Model 1610-8235, SX-12 Tile Cleaning Tool:
Cleaning Head: Width: 12 inches
Cleaning Head: Height: 3.5”
Total Height with Handle: 51 inches
Weight: 14.4 lbs.
Recommended Solution Pressure: 700-1500 psi
Maximum Solution Temperature: 200º F

3
USING THE SX-12
Set-up Procedure
1. Connect the vacuum hose from your extractor to the vacuum pipe on the SX-12 handle.
2” vacuum hose and cuff is recommended.
2. Connect the solution hose from the extractor to the quick connect on the SX-12 valve
assembly.
3. Turn the extractor ON. Adjust the water pressure to the desired setting. Recommended
Pressure: 700 –1500 psi. Maximum water temperature for the SX-12 is 200º F
4. Adjust the Vacuum Relief Slide for best recovery & ease of movement.

4
Basic Cleaning Procedure
1. Remove all furniture from the area you are going to clean.
2. Protect surfaces not being cleaned with plastic sheeting or drop cloths. Cabinets,
carpets, walls or other painted surfaces should be covered. Place Corner Guards when
moving your hoses about and use furniture skidders or floor guards for moving heavy
appliances.
3. Select the appropriate pre-spray chemical and apply to the floor using any preferred
method. Let the pre–spray set for the amount of time recommended on the product
label.
4. Spray the floor and extract waste water with the SX-12. Recommended pressure is 700
to 1500 psi, maximum water temperature for the SX-12 is 200º F. Running the unit at
higher temperatures will cause pre-mature ware on the tool and also can negatively
affect the cleaning capability of the tool.
After Use
1. Disconnect solution and vacuum hoses.
2. Wipe down unit with damp cloth.
3. Store in clean and dry place, above freezing temperature.
4. Do not store unit sitting directly on brush.

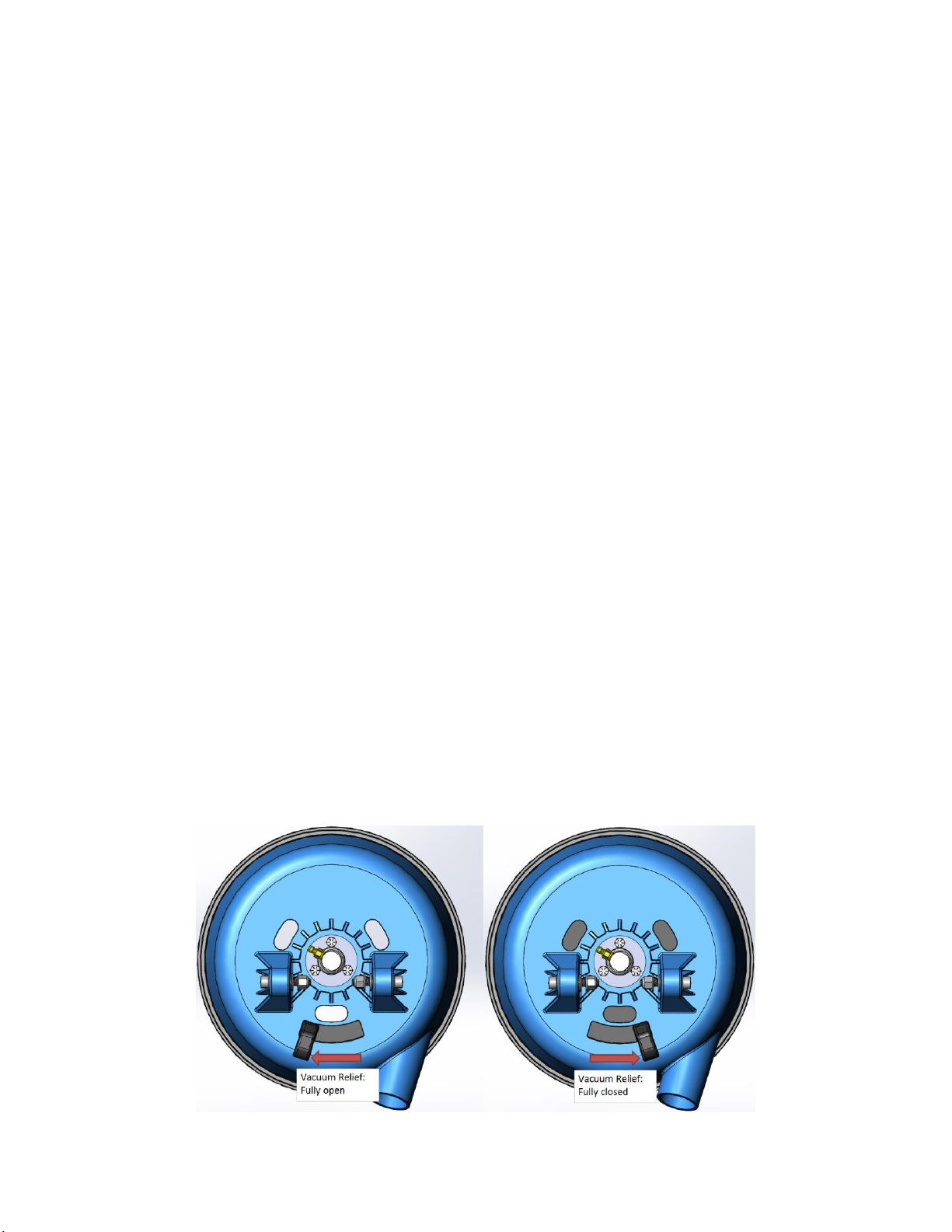

Vacuum Relief Vent Adjustment
The SX-12 has vacuum relief vents on top of the head assembly. To increase the water recovery,
move the vacuum relief slide to the right to close the three vents. To prevent the SX-12 from
sticking to the floor and to make the SX-12 easier to move, push the vacuum relief slide to the
left to open the vents. Try different slide position settings to get the best movement and
recovery for your equipment and the type of floor being cleaned.

5
Using the SX-12 with extractors with higher air flow will generally require the vacuum relief
vents to be opened more.
Using the SX-12 with smaller portable extractors may require the vacuum relief vents to be
closed for the best water recovery.
Extraction Equipment Solution Pump
The SX-12 will work with portable or truck mounted extractors. The extractor solution pump
used with the SX-12 must provide the following minimum flow rates.
Solution Pump
Pressure
Required Flow Rate,
GPM (gallons per
minute)
700 psi
1.5 gpm
1000 psi
2.0 gpm
1500 psi
3.0 gpm
SX-12 MAINTENANCE
Your SX-12 requires very little maintenance. To keep your SX-12 looking and working its best
follow these maintenance steps after every use:
Daily Maintenance
1. Rinse tool and wipe down with soft damp cloth.
2. Rinse brush clean. Examine brush for excessively ware and missing bristles.
3. Clean and inspect hoses.
Weekly Maintenance
1. Inspect spray jets. Check the spray pattern of the jets. Clean or replace the jets as
needed to assure an even cleaning pattern when using the tool.
2. Check and clean the stainless steel mesh solution line filter to prevent a reduction in
water flow and tool efficiency. See item NA0803 in the parts diagram, between the
quick connect and valve.

6
Head Disassembly
1. Disconnect the Solution hose from the swivel using the quick connect.
2. Remove the three assembly bolts at the base of the swivel

7
3. Separate inner and outer shells.

8

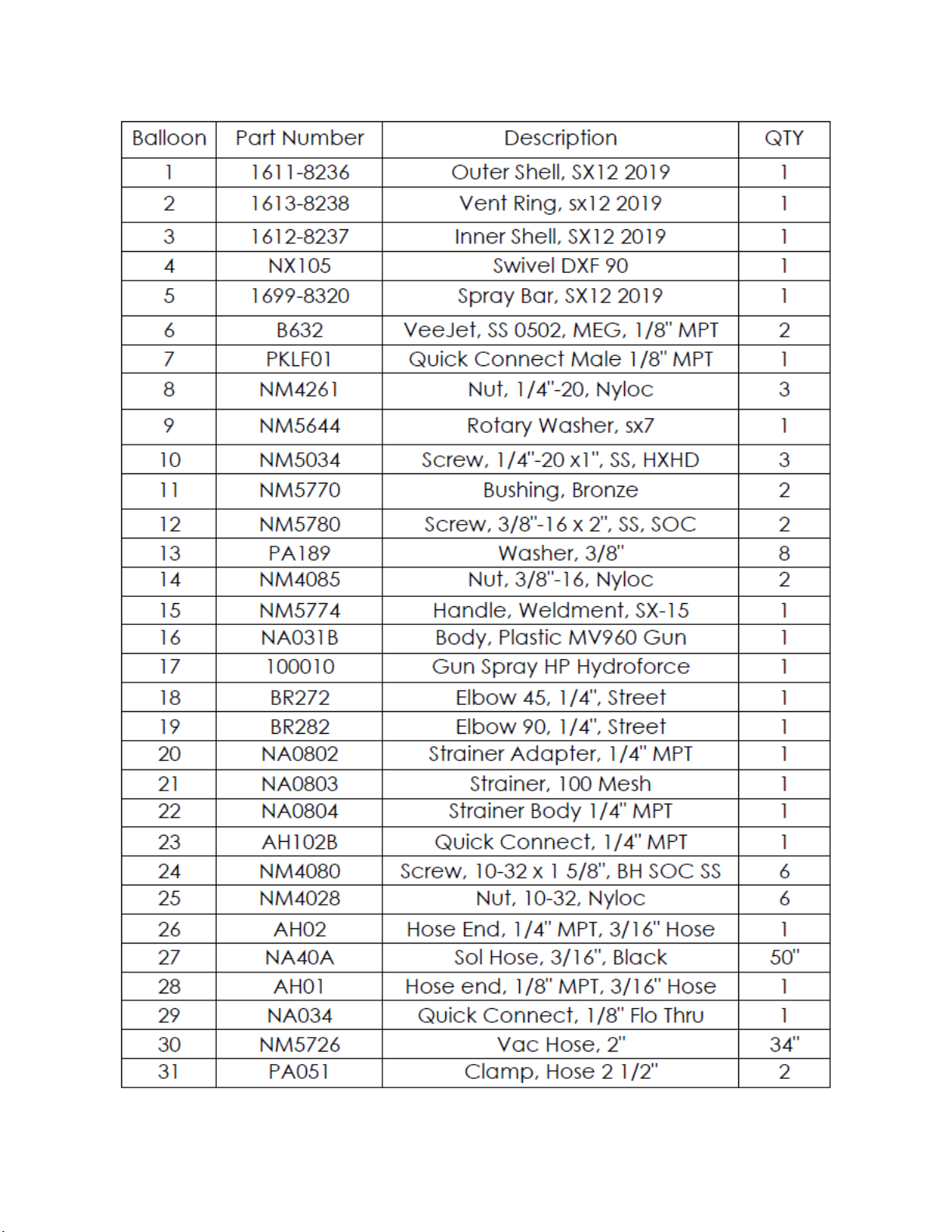

1610-8235, SX-12 Component List

9

10
LIMITED WARRANTY
Your SX-12 tile cleaning tool is designed to give you years of reliable service. If a problem
should arise contact your distributor or Hydro Force for assistance.
Hydro-Force warrants the SX-12 tile cleaning tool to be free from defects in material or
workmanship for one year for the deck and handle and 90 days for all other items excluding
normal wear and tear items such as, but not limited to Inner Shell brush, quick connects,
strainer screens, spray jets, swivel seals and valve seals.
During the warranty period, Hydro Force will, at its option repair or replace components which
prove to be defective. This warranty does not provide for replacement of complete units due to
defective components. Any costs for transportation or related service labor are not covered in
this warranty. Replacement parts are warranted only for the remainder of the original warranty
period.
This warranty shall not apply to defects resulting from improper operation, lack of
maintenance, unauthorized modification, chemical incompatibility, misuse, abuse or exposure
to freezing temperature conditions.
To obtain warranty service for the SX-12, contact your distributor or Hydro Force. If the tool
must be returned to Hydro Force or an authorized service center, the purchaser shall prepay
shipping charges for products returned for warranty service. No returned items will be accepted
by Hydro Force without prior authorization. All returns must have a return authorization
number, issued by Hydro Force, clearly marked on the exterior of the package.
Hydro Force makes no other warranty either expressed or implied with respect to this product.
The remedies provided herein are the purchaser’s sole and exclusive remedies. In no event shall
Hydro Force be liable for any direct, indirect, special, incidental or consequential damages.
This warranty gives you specific legal rights. You may also have other rights which vary from
jurisdiction to jurisdiction.
