HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 1 -
Model #: 2678-0647
HYDRO-FORCE BPS9 PROFESSIONAL
HEAVY DUTY WHEELED CART BATTERY SPRAYER – 9 GI
9-GALLON TANK CAPACITY
OPERATION GUIDE

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 2 -
!ATTENTION Please read the following information carefully. User must read and understand the entire manual
before operating the sprayer. Failure to follow instructions or improper use could lead to sprayer failure
and possible serious injuries.
This product contains chemicals, including lead, known to the state of California
to cause birth defects and other reproductive harm.
When using chemicals, always wear protective clothing, including
respiratory protection masks, gloves, eye protection, etc.
Do not dispose of Lithium-ion batteries with household waste; recycle
where facilities exist.
• Never spray ammable, caustic,
acidic, heat, pressure, or gas
producing chemicals.
• Always read and follow chemical
manufacturer’sinstructions before
use with this sprayer as some
chemicals may be hazardous when
used with this sprayer.
• Never leave chemicals or solutions
sitting in your sprayer after using.
• After using sprayer with
chemicals, it is important to spray
with fresh water for 3-5 minutes to
ensure residual chemicals in the
gun, wand, tank, pump, and hose
are cleaned out.
• Read and follow all instructions
and cautions on the label of
products used in this sprayer.
• Do not store your sprayer in
extremely high temperatures.
Heat can lead to the build-up
of pressure within the sprayer,
resulting in a possible explosion.
• Do not try to make modications
to the sprayer. Always use Hydro-
Force®branded replacement parts
from the manufacturer.
• Do not use batteries that are wet
or have been damaged.
• Inspect sprayer hose, power knob,
wand, and gun for damage or loose
connections before each use.
• Do not lift or carry the sprayer by
the hose, or wand. Carry by the
handle only.
• Only spray when the air is calm (no
wind or air movement) to prevent
chemical spray from drifting into
unintended areas.
• Keep sprayer and all chemicals out
of the reach of children.
• Remove chemicals and thoroughly
clean the sprayer after each
use. Failure to clean the sprayer
may cause contamination of
subsequent applications, will
cause premature spray wear,
and void the sprayer warranty.
NOTES
• The sprayer may have residual
water in it when rst opened.
This is due to quality testing every
sprayer undergoes before leaving
our factory.
• Some parts may be located under
the tank lid when rst assembling
the sprayer.
• THIS SPRAYER IS DESIGNED TO
OPERATE WITH ONLY Hydro-
Force®BRANDED BATTERIES.
ANY OTHER BATTERIES COULD
CAUSE SERIOUS HARM OR INJURY
TO THE OPERATOR AND SERIOUS
DAMAGE TO THE SPRAYER.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 3 -
OPERATING
• Do not allow familiarity with
products to make you careless.
Remember that a single moment
of carelessness is sucient to
cause serious injury.
• Always wear eye protection with
side shields when handling or
operating this sprayer. Failure
to do so could result in serious
injury from chemical contact or
ying dirt or debris.
• The Lithium-ion battery pack can
be used in temperatures down
to 32ºF. When operating in cold
temperatures, put the battery
pack in the battery compartment
and use the sprayer in a light duty
application. After about a minute
the battery pack will warm up and
begin operating normally.
• Always use the correct power
setting for your application.
Using the correct PSI and ow
rate will result in a safer and
more thorough treatment. For
calibration resources please
contact Hydro-Force® technical
support. (Note: Always refer to
local, state, and federal laws
and regulations regarding your
application.)
• Do not use the sprayer if the
power switch is not functioning
correctly. Any power tool that
cannot be controlled with the
switch is dangerous and must be
repaired.
• Remove battery before making
any adjustments, changing
accessories, or storing the
sprayer. Disconnect the sprayer
from the power source by
removing the battery pack.
These preventative safety
measures reduce the risk of
starting the sprayer accidentally.
STORING
• Store sprayer out of reach of
children and do not allow persons
unfamiliar with the power tool
or these instructions to operate
the sprayer. Power tools are
dangerous in the hands of
untrained users.
• Maintain sprayers and
accessories. Check for
misalignment or binding of
moving parts, breakage of parts
and any other condition that may
affect the sprayers operation.
SAFETY
• Use the sprayer and accessories
in accordance with these
instructions, taking into
consideration the working
conditions and the work to be
performed. Use of this sprayer
for applications that it was not
intended for could result in a
hazardous situation.
• Keep handles and lift points
dry, clean and free from oil and
grease. Slippery handles and
lift points do not allow for safe
handling and control of the
sprayer.
• Risk of re or explosion: Never
use this sprayer with liquids such
as gasoline, ethanol, methanol,
or any other ammable or gas
producing chemicals. Do not use
sprayer around sparks, ame, or
smoke. Failure to adhere to these
instructions may cause ignition,
resulting in potential injury and
damage to property.
• To reduce the risk of re,
personal injury, and product
damage from a short circuit,
never immerse the sprayer,
battery, or charger in uids. Do
not place or store sprayer where
it could fall or be pulled into a tub
or sink. Corrosive or conductive
uids, such as seawater, certain
industrial chemicals, and bleach
or bleach containing products,
etc., can cause a short circuit.
• Electric shock hazard: Never
spray toward electrical outlets.
• Spray area must be well ventilated
to avoid hazardous fume build-
up. Always refer to the product
label of the chemical being used
for safety instructions and proper
use practices.
• Avoid spraying on windy days.
Spraying in windy conditions
could cause chemicals to be
blown onto persons, plants, or
objects that are not intended to
be sprayed.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 4 -
CONTACT INFO!
Please read and follow this manual carefully to ensure
that you get the most out of your new sprayer. If you
need assistance with the assembly or operation of
your sprayer, please don’t hesitate to contact your
place of purchase for sales and service questions or
contact us via the support methods below:
[e-mail]
+1 800.637.3789
SAFETY CONT.
• Do not store chemicals in the
tank. Chemicals can degrade
seals and hoses. Drain and
clean sprayer after each use.
Failure to do so may void the
sprayer warranty.
• Remove gloves before handling
battery pack. Chemicals may
be damaging to plastics.
• Thoroughly inspect the
interior, exterior, and all
components of the sprayer
before each use. Check for
cracked and deteriorated
hoses, leaks, clogged nozzles
and missing or damaged parts.
If damaged, ensure the sprayer
is repaired before use. Many
accidents are caused by poor
maintenance.
• Always remove the battery
pack from the sprayer before
performing any maintenance,
storing or draining of the
sprayer.
• Do not eat or smoke while
handling or operating the
sprayer. Refer to the product
label of the chemical being
used for user safety practices.
• Do not use the battery
compartment for storage.
• Always use common sense
and be cautious when
using the sprayer. It is not
possible to anticipate every
situation that could result in a
dangerous outcome. Do not
use this sprayer if you do not
understand these operating
instructions or if you feel the
work is beyond your capability.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 5 -
TABLE OF CONTENTS
ABOUT
1.1 specications...............................................................................................page 6
1.2 what’s in the box............................................................................................page 7
page 6-7
SET UP
2.1 sprayer assembly........................................................................................page 8
2.2 how to spray................................................................................................page 9
2.3 aftercare.....................................................................................................page 11
page 8-11
TROUBLESHOOT page 12-19
3.1 common solutions.......................................................................................page 12
3.2 replacement parts.......................................................................................page 14
3.3 warranty......................................................................................................page 18

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 6 -
WHAT IS YOUR SPRAYER
CAPABLE OF?
This Hydro-Force® sprayer is a highly ecient sprayer that is
suitable for spraying many kinds of chemicals and solutions.
Powered by a 18V Lithium-ion battery, this sprayer results in more eciency than
a manual sprayer. This sprayer can be operated continuously for up to 3 hours!
Hydro-Force® BPS9 SPRAYER Specications
Model Number 2678-0647 Pump Type Heavy-duty
diaphragm
Battery Type Lithium-ion Spray Time Up to 3 hours
Battery Voltage 18V Pressure Up to 115 psi
Battery Capacity 5.2Ah Tank Capacity 9 gallon
Battery Charging Time 1 hour Flow Rate 0.12-1.12 gal/min
Battery Cycle Life 1,000 cycles Pump Life 1,000 hours
Battery Charger 21V/2.5A

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 7 -
Part Name Part Name Part Name
1Tank Lid Blue BPS9 Pro 7Battery 18V 5.2Ah Li-Ion BPS9 Pro 13 Fan Jet 60 degree BPS9 Pro
29-Gallon Tank 8Battery Charger 2.5A BPS9 Pro 14 Cone Jet 120µm BPS9 Pro
3Tank Strainer BPS9 Pro 9Spray Wand Anti-drip BPS9 Pro 15 Fan Jet 110 degree BPS9 Pro
4Clip Wand Blue BPS9 Pro 10 Gun Jet BPS9 Pro 16 Adapter QC to 110 degree Fan Jet
BPS9 Pro
5Holster Wand Blue BPS9 Pro 11 Hose Hanger BPS9 Pro 17 Wheel Replacement BPS9 Pro
6Nuts & Bolts Kit BPS9 Pro (one set) 12 Hose Recoil BPS9 Pro 18 Handle Replacement BPS9 Pro
1
2
3
4
5
6
7
8
9
10 11
12
14
15
13
WHAT’S
INSIDE
For part numbers
and replacement
parts please see
page 14-16.
16
18
17

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 8 -
GETTING STARTED
Setting up your sprayer
1. Remove the nuts and bolts,
holsters, nozzles, and pins from
the tank strainer (3). Set aside.
2. Insert the trolley handle (18) to
desired height into the tank (2).
Tighten the two black knobs until
the handle is secured. Place the
hose brackets (11) at the back of
the tank and attach with screws.
3. Place the top wand holster (4)
at the protruding holster mount
on the tank. While holding the
top holster, place a nut (6) on
the side with the hexagonal slot
and screw the bolt through the
other side until it fastens into
the nut. Repeat for the other
slot and the bottom holster (5).
4. Place the trolley wheels (17) on
either side of the sprayer. Slide
a pin through each side of the
center axle and widen to keep
the wheels in place. You may
have to bend the pin to secure it.
5. Take the spray gun (10) and attach
it to the threaded tting on the
end of the hose (12). Tighten
the tting to ensure the gasket
properly seals the connection.
6. If spraying with the stainless-
steel spray wand (9), pull back on
the collar of the quick-connect
tting on the spray gun. Insert
the male wand quick-connect
into the female spray gun tting
and push the collar back into its
original position. Nozzles can be
attached with the same process.
7. Snap the spray wand into the wand
holster and place any unused
nozzles into storage slots until
ready to spray.
2 3
4
5

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 9 -
GETTING STARTED
Preparing to spray
1. Fully charge the battery prior to
the rst operation.
Note: the indicator lights will ash green
while charging. Solid green lights mean
the battery is fully charged.
2. In a separate container, prepare
the solution you wish to spray
according to the manufacturer’s
instructions. Open the tank lid
and carefully pour the solution
through the tank strainer.
Securely tighten the tank lid.
3. Determine the nozzle you want to
use (see right) and insert it into the
spray wand or spray gun by pulling
back on the collar of the quick-
connect tting. Remember to
push the collar back into position.
a)120µm cone Nozzle .
b) Grey fan nozzle: at 60˚ fan
c) 110˚ fan nozzle: need to
connect with the adapter.
4. Begin spraying by squeezing the
spray trigger.
a) 120µm cone nozzle .
b) Grey fan nozzle: at 60˚ fan
c) 110˚ fan nozzle: Need to connect
with the adapter.
a. b. c.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 10 -
!THE BATTERY
These batteries have been designed
to provide maximum trouble-free life.
However, like all batteries, they will
eventually wear out. Do not disassemble
battery pack and attempt to replace the
batteries. Handling of these batteries
especially when wearing rings or jewelry
could result in serious burns.
• Recharge only with the charger
specied by Hydro-Force®.A charger
that is suitable for one type of
battery pack may create a risk of re
when used with another batter pack.
• Only use sprayers specically
designated with their designated
battery packs. Use of any other
battery packs may create a risk of
injury and re.
• When battery pack is not in use, keep
it away from other metal objects,
like paper clips, coins, keys, nails,
screws or other small metal objects,
that can make a connection from
one terminal to another. Shorting
the battery terminals together may
cause burns or res.
• Under abusive conditions, liquid can
be ejected from the battery; avoid
contact. If contact accidentally
occurs, ush with water. If liquid
contacts eyes, additionally seek
medical help.
• Liquid ejected from the battery may
cause irritation or burns.
• Do not use a battery pack or sprayer
that is damaged or modied.
Damaged or modied batteries
may exhibit unpredictable behavior
resulting in re, explosion or risk of
injury.
• Do not expose a battery pack
or sprayer to re or excessive
temperature. Exposure to re or
temperature above 265˚F (130˚C)
may cause explosion.
• Follow all charging instructions
and do not charge the battery
pack outside the temperature
range specied in the instructions.
Charging improperly or at a
temperature outside the specied
range may damage the battery and
increase the risk of re.
STORING BATTERY PACK
LONGER THAN 30 DAYS
• Store the battery pack where the
temperature is below 80˚F and
away from moisture.
• For long-term storage, regular
charging of the battery is required
to maximize battery life. Check the
battery level using the indicator
lights every 4 weeks. Recharge the
battery if it falls below 3 bars.
• Do not allow the battery to fully
discharge.
BATTERY RECYCLING
PREPARATION
• To preserve natural resources,
please recycle or dispose of the
batteries properly.
• This product contains Lithium-ion
batteries. Local, state or federal
laws may prohibit disposal of
lithium-ion batteries in ordinary
trash. Consult your local waste
authority for information regarding
available recycling and/or
disposal options.
LITHIUM-ION BATTERY
PACKS
• Lithium-ion batteries deliver
fade free power for their entire
run time. Lithium-ion batteries
will not gradually lose power due
to decreasing battery charge.
Instead, power from the battery
pack will drop from full to zero
once the full charge has been
drained from the battery. Once this
happens, recharging of the battery
is required.
BATTERY PACK
PROTECTION FEATURES
• Lithium-ion battery packs are
designed with features that protect
the lithium-ion cells and maximize
battery life. If the sprayer stops
during use, release the trigger to
reset and resume operation. If
the sprayer still doesn’t work, the
battery needs to be recharged.
If after 2 hours during the charging
process, none of the LEDs are lit,
remove the battery pack from the
charger to avoid damaging the
product. DO NOT insert another
battery. Contact Customer Support
for instructions on replacing
the battery.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 11 -
For long-term storage, regular charging of the battery is required to
maximize battery life. Check the battery level using the indicator lights
every 4 weeks. Recharge the battery if it falls below 3 bars.
Do not allow the battery to fully discharge.
NOTE
SPRAYER MAINTENANCE
Aftercare
1. Dispose of extra product
based on the manufacturer’s
instructions. Rinse out any
residual solution in the spray
tank with warm, soapy water.
Then, spray fresh water through
the sprayer for 3 to 5 minutes
to clear the tank of chemicals.
2. Disconnect the spray gun from
the hose and allow the hose to
hang down towards the ground;
draining the hose of liquid.
3. Thoroughly dry the sprayer tank
and clear nozzles of any buildup.
4. Store the sprayer in a dry, clean,
and shaded place to protect
it from extreme heat or frost.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 12 -
TROUBLESHOOTING
If your sprayer is not turning on, please contact your place of purchase for sales and service questions
or email us at [e-mail] or call [phone].
Problem Possible Cause(s) Solution
Sprayer does not turn on.
Dead battery Charge the battery. If the battery will not charge, test the charger or
contact Support for a replacement if applicable.
Defective or damaged part Contact your place of purchase for sales and service questions or email
us at [e-mail] or call [phone].
Leaks from tank. Loose hose connection Remove the plastic back plate and locate the hose
connection to the pump. Tighten the hose lock nut.
Leaks from gun/nozzle.
Loose hose connection Ensure the spray gun is fully tightened onto the threaded end of the
hose.
Missing or worn gasket Locate the necessary part from page 15 and contact Support.
Clogged pump / hose / gun /
wand / nozzle
Not rinsing parts with water
after use.
Take apart and thoroughly clean the parts. Rinse the sprayer with warm,
soapy water after each use. Clean the pump inlet lter inside tank.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 13 -
Problem Possible Cause(s) Solution
Dead battery.
Defective charger If the LED indicator lights do not turn on or only one red LED is on after
being on the charger for over 2 hours, test the charger with a
multimeter. Replace if necessary.
Damaged Lithium-Ion cells If the battery receives no reading from a multimeter, a replacement
battery is needed.
Pump makes a sound when
sprayer is on, but output is
limited.
Clog in lter or nozzle Check parts for a clog. Using warm water, thoroughly clean the
components; including pump inlet lter inside the tank.
Clog in the pump Remove the plastic cover plate and locate the pump. Remove then open
the pump and clean out debris. Contact Support for assistance.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 14 -

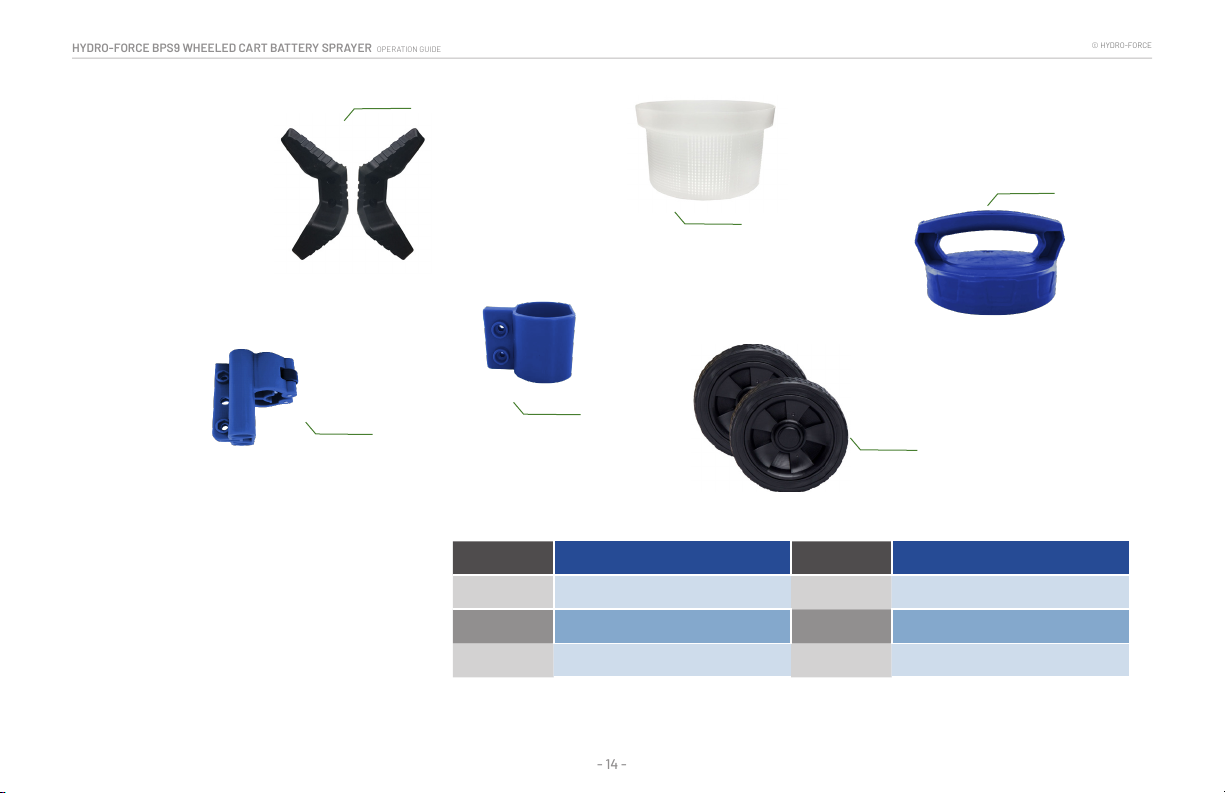

SKU Name SKU Name
2694-3100 Hose Hanger BPS9 Pro 2698-3205 Tank Strainer BPS9 Pro
2690-3308 Clip Wand Blue BPS9 Pro 2690-3106 Tank Lid Blue BPS9 Pro
2691-3309 Holster Wand Blue BPS9 Pro 2690-3207 Wheel Replacement BPS9 Pro
ACCESSORY &
REPLACEMENT
PARTS
2694-3100
2690-3308
2691-3309
2698-3205
2690-3106
Please contact your place of purchase for sales
and service questions or email us at
[e-mail] or call [phone].
2690-3207

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 15 -
2692-3300
2693-3301
2693-3109
2691-3208
SKU Name SKU Name SKU Name
2691-3208 Tank Lid Gasket Viton™ BPS9 Pro 2693-3301 Battery Charger 2.5A BPS9 Pro 2695-3202 Viton™ Pump Inlet Gasket BPS9 Pro
2692-3300 Battery 18V 5.2AH Li-Ion BPS9 Pro 2693-3109 Gun Jet BPS9 Pro
2695-3202

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 16 -
SKU Name SKU Name SKU Name
2692-3108 Spray Wand Anti Drip BPS9 Pro 2695-3101 Hose Recoil BPS9 Pro 2698-3104 Adapter QC to 110 degree Fan Jet BPS9 Pro
2699-3105 Cone Jet 120 µm BPS9 Pro 2697-3103 Fan Jet 110 degree BPS9 Pro 2696-3102 Fan Jet 60 degree BPS9 Pro
2697-3103
2696-3102
2699-3105
2695-3101
2692-3108
2698-3104

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 17 -
SKU Name SKU Name SKU Name
2697-3204 Nut & Bolt Kit BPS9 Pro
(one set)
2694-3302 Pump BPS9 Pro - (recirculating
diaphragm pump)
2691-3107 Circuit Board BPS9 Pro
- (waterproof variable speed)
2699-3206 Tank Drain Plug Cap BPS9 Pro 2694-3201 Handle Replacement BPS9 Pro 2693-3200 Cotter Pin Wheel Mount BPS9 Pro
2699-3206
2697-3204
2694-3302
2691-3107
2693-3200
2694-3201

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 18 -
WARRANTY
Hydro-force warrants to the original purchaser that the Hydro-force® product will function as
intended under normal use and consistent maintenance, subject to certain limitations and exclusions.
At the discretion of Hydro-force, we will repair or replace any parts found to be defective in material
or workmanship without charge, apart from shipping and handling costs, during the covered warranty
period.
WARRANTY COVERAGE
WARRANTY PERIOD
The warranty period will begin from the date of retail purchase and exist for one (1) year, regardless of
when the unit is placed in service. The warranty period is not extended if we opt to repair or replace
the product in question.
WARRANTY CLAIMS
Hydro-force reserves the right to require the return of the defective product, proof of purchase to le
a claim under this warranty.

HYDRO-FORCE BPS9 WHEELED CART BATTERY SPRAYER OPERATION GUIDE
© HYDRO-FORCE
- 19 -
Hydro-force only warrants products purchased from authorized distributors. Products purchased from unauthorized
resellers or distributors are not subject to warranty services.
The limited warranty does not cover damages, loss, or injury resulting from transportation, storage, accident, improper use,
neglect, modications, normal wear, or operation not in accordance with the instruction manual. Hydro-force reserves the
right to change the design or specications of any product without obligation to modify previously produced units.
ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR CONSUMER
USE, ARE LIMITED TO THE DURATION SPECIFIED ABOVE. HYDRO-FORCE’S LIABILITY IS LIMITED SOLELY TO THE REPAIR
OR REPLACEMENT OF THE NON-FUNCTIONING PRODUCT OR PART. HYDRO-FORCE EXCLUDES LIABILITY UNDER THIS
WARRANTY FOR ANY AND ALL INCIDENTAL AND CONSEQUENTIAL LOSS OR DAMAGE.
In no event shall Hydro-force be liable for any incidental, special, consequential or punitive damages, or for any costs,
attorney fees, expenses, losses or delays alleged to be as a consequence of any damage to, failure of, or defect in any
product including, but not limited to, any claims for loss of prots.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so these limitations or exclusions may not apply to you. This warranty gives you specic legal
rights and you may have other rights which vary from state to state.
EXCLUSIONS AND LIMITATIONS

www.hydroforce.com
[phone]
[e-mail]
