ASSEMBLY INSTRUCTIONS
IZON ROLLING BENCH (KIT AAB42002 / AAB52002)
AAB42002 – 4' width
AAB52002 – 5' width
Instructions en Français disponibles sur Hydrofarm.com
Instrucciones en Español disponibles en Hydrofarm.com

2

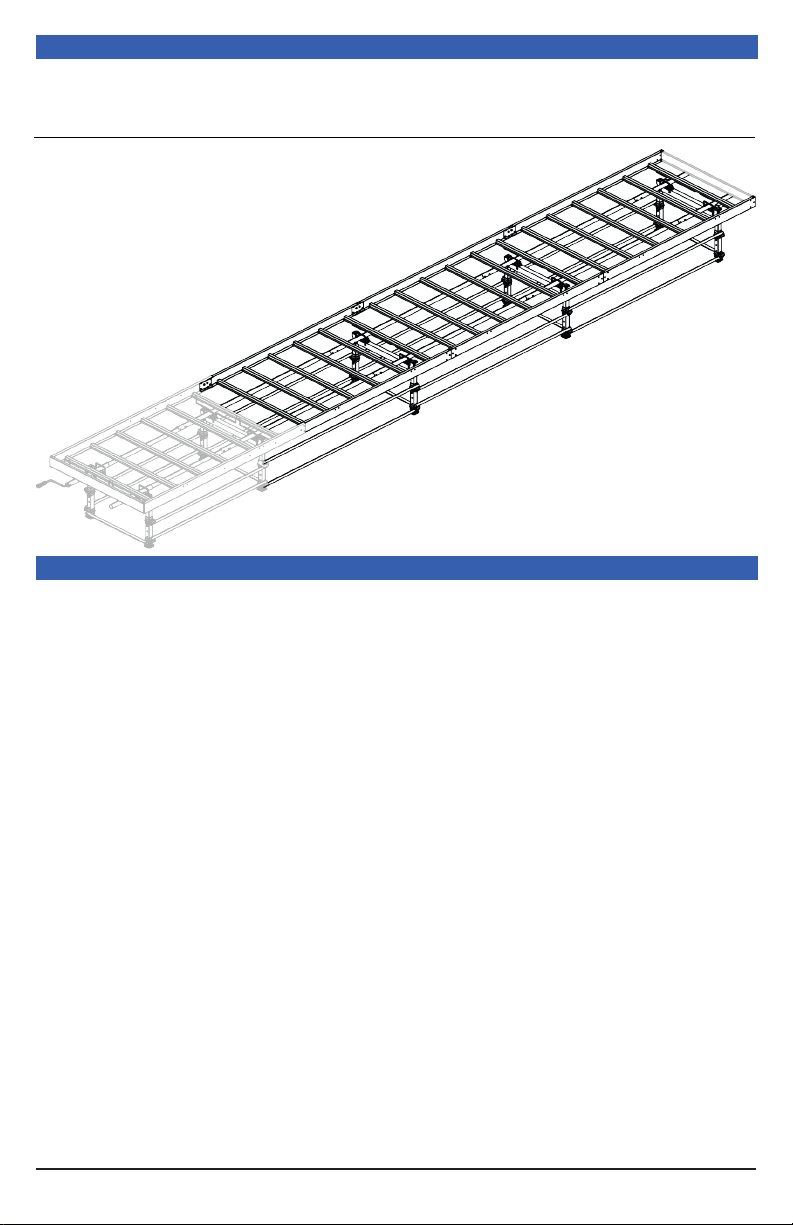

OVERVIEW
WARNING
START: It’s important to always start with Kit AAB42002/AAB52002 when you start building
a new table.
The Active Aqua Rolling Bench (AAB41001/AAB51001 and AAB42002/AAB52002) must
always be placed on and anchored to a concrete surface that is level and void of any areas
needing repair (cracked). Failure to properly secure the bench to the ground could result in the
bench over-tipping unexpectedly.
• Only use approved anchors
• Do not load the Bench with more than 20 pounds per square foot when properly installed
and bearing evenly distributed weight.
• Do not climb on or in the Bench or Trays.
• Keep ngers and hands away from the moving parts. The table sliders can cause injury.
• Keep ngers and hands away from the anti-tip brackets. Do not use the brackets to move
the bench. Fingers or hands can be caught between the bracket and the frame causing
injury.
• Do not extend threaded shafts more than the maximum spacing dened.
• Do not move the bench without making sure all people and animals are in a safe location.
IMPORTANT: Before you screw the table into the oor you MUST:
• Level the entire table
• Adjust the water dripping slope
• Adjust the length of the Kit AAB41001/AAB51001
• Make sure that the top of the table is in straight line
AAB42002
AAB52002

3
PARTS LIST
PART QTY DESCRIPTION PART QTY DESCRIPTION
#1 x44 Bolt (M6*10L) #21 x2 Roling Tube B
#2 x14 Bolt (M6*20L) #23 x2 Side Panel A
#3 x8 Bolt (M6*50L) #24 x2 Side Panel B
#4 x4 Bolt (M6*80L) #25 x4 Tray Beam A
#5 x2 Bolt (M6*90L) #26 x1 Tray Beam B
#6 x14 Nut (M6) #27 x2 Connector
#7 x16 Washer (M6)
ALSO INCLUDES ASSEMBLY TOOLS:
#8 x2 Bolt (M8*65L) HexWrench 4mm (x2)
#9 x2 Nut (M8) Open-Ended Wrench 10mm (x2)
#10 x2 Washer (M8) HexWrench 7mm (x2)
#11 x2 Leg Open-Ended Wrench 14mm (x2)
#12 x2 Tube Roller
#13 x1 Bridge
#14 x2 Small U-Rod
#15 x2 Leveler
#16 x2 Foot
#17 x1 Short Beam
#19 x4 Long
Beam

4
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#2 x14 Bolt (M6*20L) #11 x2 Leg
#3 x4 Bolt (M6*50L) #12 x2 Tube Roller
#4 x4 Bolt (M6*80L) #13 x1 Bridge
#5 x2 Bolt (M6*90L) #14 x2 Small U-Rod
#6 x10 Nut (M6) #15 x2 Leveler
#7 x12 Washer (M6) #16 x2 Foot
#8 x2 Bolt (M8*65L) #17 x1 Short Beam
#9 x2 Nut (M8)#20 x2 Rolling Tube A
#10 x2 Washer (M8)
STEP 1: GET THE EXTRA SET OF LEGS from the AAB41001/AAB51001 box
First of all, open the kit AAB41001/AAB51001 box and remove all of the components shown
highlighted in blue below. The blue highlighted components need to be used for the rst
section assembly of AAB42002/AAB52002. After selecting these components, you can move
the AAB41001/AAB51001 box to the side until you complete the assembly for all center
sections that will be used for each row.
Blue highlight = Remaining parts from the Kit AAG41001/ AAG51001 that will be used in
this assembly guide.

5
ASSEMBLY
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#8 x2 Bolt (M8*65L) #10 x2 Washer (M8)
#9 x2 Nut (M8) #11 x2 Leg
x2
STEP 2: ADJUST THE LEGS
Adjust leg to
desired height
The bench height can be
adjusted to be 24.5" (fully
extended as shown),
22.2" (middle position),
or 19.9" (bottom
position)

6
ASSEMBLY
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#2 x14 Bolt (M6*20L) #13 x1 Bridge
#7 x2 Washer (M6) #14 x2 Small U-Rod
#12 x2 Tube Roller #15 x2 Leveler
STEP 3: ASSEMBLE THE BRIDGE

7
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#11 x4 Leg x2 Bridge
Assembly
STEP 4: ASSEMBLE THE LEGS

8
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#5 x4 Bolt (M6*90L) #17 x2 Short Beam
#6 x4 Nut (M6) x2 Leg Assembly
#7 x4 Washer (M6)
#16 x4 Foot
STEP 5: INSTALL THE SHORT BEAM

9
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#3 x4 Bolt (M6*50L) #18 x4 Long Beam
#4 x4 Bolt (M6*80L) x2
Leg Assembly
w/Short
Beam
#6 x4 Nut (M6)
#7 x4 Washer (M6)
STEP 6: INSTALL THE LONG BEAMS

10
ASSEMBLY
STEP 7: INSTALL THE ROLLING TUBES
PART QTY DESCRIPTION PART QTY DESCRIPTION
#3 x4 Bolt *M6*50L) #20 x2 Rolling Tube A
#6 x4 Nut (M6) #21 x2 Rolling Tube B
#7 x4 Washer (M6)

11
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#1 x24 Bolt (M6*10L) #25 x1 Tray Beam A
#23 x1 Side Panel A #26 x5 Tray Beam B
#24 x1 Side Panel B
STEP 8: ASSEMBLE THE TABLE

12
ASSEMBLY
PART QTY DESCRIPTION
#1 Table top
assembly
STEP 9: INSTALL THE TABLE

13
ASSEMBLY
PART QTY DESCRIPTION
#1 First table
STEP 10: SET THE FIRST TABLE IN PLACE

14
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#1 x20 Bolt (M6*10L) #7 x4 Washer (M6)
#3 x4 Bolt (M6*50L) #27 x2 Connector
#6 x4 Nut (M6)
STEP 11: CONNECT TWO TABLES
Repeat STEPS 1–9 (except for the blue components in those steps)
to install more Kit AAB42002/AAB52002.

15
ASSEMBLY
STEP 12: CONNECT MULTIPLE TABLES
You can install multiple sections (AAB42002/AAB52002), up to 47' total length, by repeating
STEPS 2–9 and STEP 11.

16
ASSEMBLY
STEP 13: INSTALL KIT AAB41001
Install the Kit AAB41001/AAB51001 after you installed the correct amount of Kit
AAB42002/AAB52002. The installing of Kit AAB41001/AAB51001 is the same as the other
except the Side Panels of the Kit AAB41001/AAB51001 are on top of the Side Panels of the
Kit AAB42002/AAB52002. To see how the Kit AAB41001/AAB51001 is assembled, refer to
Kit AAB41001/AAB51001 Instructions. This would be the time to adjust the length of the Kit
AAB41001/AAB51001 before locking it in place.

17
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#1 x4 Bolt (M6*10L) #31 x1 Start Plate
STEP 14: INSTALL THE START PLATE

18
ASSEMBLY
STEP 15: INSTALL THE GUIDE WHEELS
The Guide Wheels need to be in the rst Tray Beam.
PART QTY DESCRIPTION PART QTY DESCRIPTION
#2 x8 Bolt (M6*20L) #B-A x1 Guide Wheel A
#7 x8 Washer (M6) #B-B x1 Guide Wheel B

19
ASSEMBLY
STEP 16: INSTALL THE U-RODS
PART QTY DESCRIPTION PART QTY DESCRIPTION
#2 x4 Bolt (M6*20L) #30 x2 U-Rod

20
ASSEMBLY
PART QTY DESCRIPTION PART QTY DESCRIPTION
#1 x1 Bolt (M6*10L) #32 x1 Rod Retainer
#3 x1 Bolt (M6*50L) #33 x1 Handle Rod
#6 x1 Nut (M6) #34 x1 Handle
#7 x2 Washer (M6) #35 x3 Round Cap
STEP 17: INSTALL THE HANDLE
