Hydromatic HPGR200 Manual

Submersible Grinder Pump
HPGR200
NOTE! To the installer: Please make sure you provide
this manual to the owner of the pumping equipment or to
the responsible party who maintains the system.
Pump Installation and Service Manual

2
Thank you for purchasing your
Hydromatic®pump. To help
ensure years of trouble-free
operation, please read the following
manual carefully.
Before Operation:
Read the following instructions
carefully. Reasonable care and
safe methods should be practiced.
Check local codes and
requirements before installation.
Attention:
This manual contains important
information for the safe use of
this product. Read this manual
completely before using this
product and refer to it often for
continued safe product use.
DO NOT THROW AWAY OR
LOSE THIS MANUAL. Keep it
in a safe place so that you may
refer to it often.
WARNING: Before handling
these pumps and controls,
always disconnect the power
first. Do not smoke or use
sparkable electrical devices or
flames in a septic (gaseous) or
possible septic sump.
To reduce risk of electrical shock:
1. Risk of Electrical Shock:
This pump has not been
investigated for use in
swimming pool areas.
2. Risk of Electrical Shock:
Connect only to a properly
grounded receptacle.
Septic tank to be vented
in accordance with local
plumbing codes.
Do not smoke or use sparkable
electrical devices or flame in a
septic (gaseous) or possible
septic sump.
If a septic sump condition may
exist and if entry into sump is
necessary, then (1) provide
proper safety precautions per
OSHA requirements and (2)
do not enter sump until
these precautions are strictly
adhered to.
Do not install pump in location
classified as hazardous
per N.E.C., ANSI/NFPA
70 - 2000.
Failure to heed above
cautions could result in
injury or death.
1. CAUTION - To reduce risk of
electrical shock, pull plug
before servicing this pump.
2. WARNING - Risk of electrical
shock - this pump has not
been investigated for use in a
swimming pool.
3. WARNING - SEE installation
and service manual for
proper installation.
4. WARNING - To reduce risk
of electrical shock pump is
provided with grounding wire.
Be certain that it is connected
to ground.
5. WARNING - Hazardous moving
parts. To reduce the risk of
injury, disconnect power
before servicing pump.
6. CAUTION - To reduce the risk
of electrical shock, DO NOT
remove cord or strain relief.
General
Information
Installing Pump in Sump:
Before installing pump in sump,
lay it on its side and rotate
impeller. Impeller may be
slightly stuck due to factory test
water so it must be broken loose
with a small bar or screwdriver in
edge of vanes. The impeller
should turn freely. Do not connect
the power until after this test.
Clean all trash and sticks from
sump and connect pump to piping.
Pump Cautions
And Warnings
DO NOT connect conduit to
pump. Electrical installations
shall be in accordance with
the National Electrical Code
and all applicable local codes
and ordinances. This marking
is required on 3 phase
models only.
7. CAUTION - For use with
maximum 140°F water.
8. CAUTION - Tank should be
vented in accordance with
local plumbing codes and
should not be installed
in locations classified as
hazardous, in accordance with
the National Electrical Code,
ANSI/NFPA 70-1999.
9. CAUTION - Risk of electrical
shock. Do not remove cord and
strain relief. Do not connect
conduit to pump.
10.WARNING - Severe injury
may result from accidental
contact with moving cutters.
Keep clothing, hands and feet
away from cutters any time
power is connected to the pump.
11.CAUTION - Never work on
pump with power on. Make
sure that the ground wire is
securely connected and that the
unit is properly grounded in
accordance with local codes.
Pump
Installation

3
A check valve must be installed
on each pump.
Location:
If pumps are installed in an
existing basin or concrete sump,
the piping can either be connected
permanently or rails and brackets
can be furnished for mounting to
walls of basin. In either case, be
sure that the Hydromatic nonclog
check valve is used and that the
pumps are submerged in a
vertical position. The complete
factory-built packaged system is
recommended for the most
satisfactory installation and
generally for the lowest cost
where expensive installation labor
is involved.
Making Electrical Connections:
All electrical wiring must be in
accordance with local code, and
only qualified electricians should
make the installations. Complete
wiring diagrams are included for
use in making the installation. All
wires should be checked for shorts
to ground with an ohmmeter or
Megger after the connections are
made. This is important, as one
grounded wire can cause
considerable trouble.
1. Grinder pump is single phase;
no rotation check is necessary.
2. Run water into sump until
motor is covered.
3. Open gate valve in discharge
line.
4. Turn pump on. If pump runs
and sump liquid does not pump
down, stop pump and close
discharge gate valve. Then lift
pump until sealing flange is open
to vent off trapped air. Lower
pump, open discharge valve,
and start the pump again.
5. Level control should be set so
that pump turns off when level
is about 2 inches above inlet
of pump suction and turns on
when level is about 2 inches
above motor.
6. If problems occur check power
source. Make sure a separate
supply line is available. Verify
voltage supply.
7. Check resistance of windings.
(See Chart, page 5.) If not
within guidelines, return pump
to authorized Hydromatic
service or repair center.
As the motors are oil filled, no
lubrication or other maintenance
is required. Pump should be
checked every quarter for
corrosion and wear.
Starting the Pump:
WARNING: Severe injury may
result from accidental contact
with moving cutters. Keep
clothing, hands and feet away
from cutters any time power is
connected to the pump.
To start the pump, perform the
following steps in order:
Pump
Servicing
connected and that the unit
is properly grounded in
accordance with local codes.
CAUTION: Severe injury may
result from accidental contact
with moving cutters. Keep
clothing, hands and feet away
from cutters any time power is
connected to the pump.
Replacing Grinder Parts:
If necessary to replace grinder
parts because of wear or to inspect
for clogging:
1. Close gate valve at pump
discharge.
2. Turn off circuit breaker.
CAUTION: Never work on
pump with power on. Be sure
ground wire from pump is
connected to a good ground
such as a water pipe.
3. Remove pump from sump.
4. Unscrew screws (17) and
remove cutter ring retainer
(16). Stationary cutter (15)
cannot be removed from volute
(20).
5. Unscrew hex head cap screws
(12) and remove volute
case (20).
6. Radial cutter (13) and axial
cutter (14) are now exposed. If
checking for clogging, these
parts can now be cleaned
without removing them from
the shaft.
7. If necessary to replace
cutters, remove screw (19),
washer (18), and radial cutter
(13) from shaft. Radial cutter
(13) and impeller (9) are
screwed onto shaft. The thread
is right-hand. Tap radial cutter
(13) with plastic hammer if
necessary to loosen. Axial
Pump
Operation
Read the following instructions
carefully before replacing any
parts. Reasonable care and safe
methods should be practiced.
Check local codes and
requirements before installation.
Only a competent electrician
should make the installations.
CAUTION: Never work on
pump with power on. Make sure
that the ground wire is securely

4
cutter (14) lifts off impeller (9)
and is held from rotation by
pin. Unscrew impeller (9) from
shaft in same manner as
radial cutter (13).
8. Clean all parts thoroughly
before proceeding with
assembly. Replace case (20),
but do not replace cutter ring
(15) at this point.
9. Replace cutter ring (15) and
cutter ring retainer (16). Screw
down with screws (17).
10.Plug pump into power and
operate for a few seconds only
to ensure parts are not rubbing.
Replacing Seal:
1. Drain the oil from the pump by
removing the fill plug (5)
located on the side of the
motor housing (7).
2. Remove the volute and cutters
per the instructions listed
under the replacing grinder
parts section in this manual.
3. To remove the impeller (9),
secure the shaft by a flat
bladed screwdriver into slot on
end of the shaft. Hold a wood
block against the impeller vane
and tap it with a hammer until
it spins off.
4. Remove the seal (24) rotating
elements by sliding the spring
bellows off the shaft, then
using two screwdrivers, slide
the carbon seal assembly off
by prying on the retaining ring.
5. Using a screwdriver, break the
old stationary portion of the
seal (24) to allow for removal.
6. Take the stationary portion of
the new seal (24), and lube the
rubber material with good
quality dielectric oil. Press
the stationary portion of the
new seal into the seal/bearing
plate (21).
CAUTION: Do not reuse old
seal parts. Replace all parts
with new. Mixing old and new
parts could cause immediate
seal failure.
7. Using a good quality dielectric
oil, lube the rubber material on
the carbon seal assembly (24)
and press it on the shaft. Place
the spring bellows on the shaft
as removed.
8. Using a pressure gauge with a
fill stem, pressurize the motor
housing no more than 7 psig
with dried air and check for
leaks. If after several minutes
the gauge reads the same,
the seal is good and you can
continue with assembly.
NOTE: It is normal to observe
some air bubbles in the seal
area initially as the seal seats. If
bubbles do not stop within a few
seconds, the seal is either not
properly installed or is damaged.
9. Reassemble the cutter and
volute as outlined in the
replacing grinder parts section
of this manual.
10.Refill motor housing with
a good quality paraffinic
oil (25). Fill the motor housing
so that the tops of the motor
windings have been covered,
but leave an air gap to allow
for expansion of the oil.
NOTE: When applying power,
be sure the pump is restrained
from turning by holding the
pump at the motor housing, or
by clamping it in a holding
fixture.
WARNING: Severe injury may
result from accidental contact
with moving cutters. Keep
clothing, hands and feet away
from cutters any time power
is connected to the pump.
U.S. GPM
M /HR
3
HEAD (FEET)
HEAD (METERS)
0
15
30
45
60
75
90
105
120
10
15
20
25
30
35
40
7.50 15 22.5 30 37.5 45 52.5 60
2.5 5 7.5 10 12.5 15
5-3/8" DIA.
0
5
4-1/4" DIA.

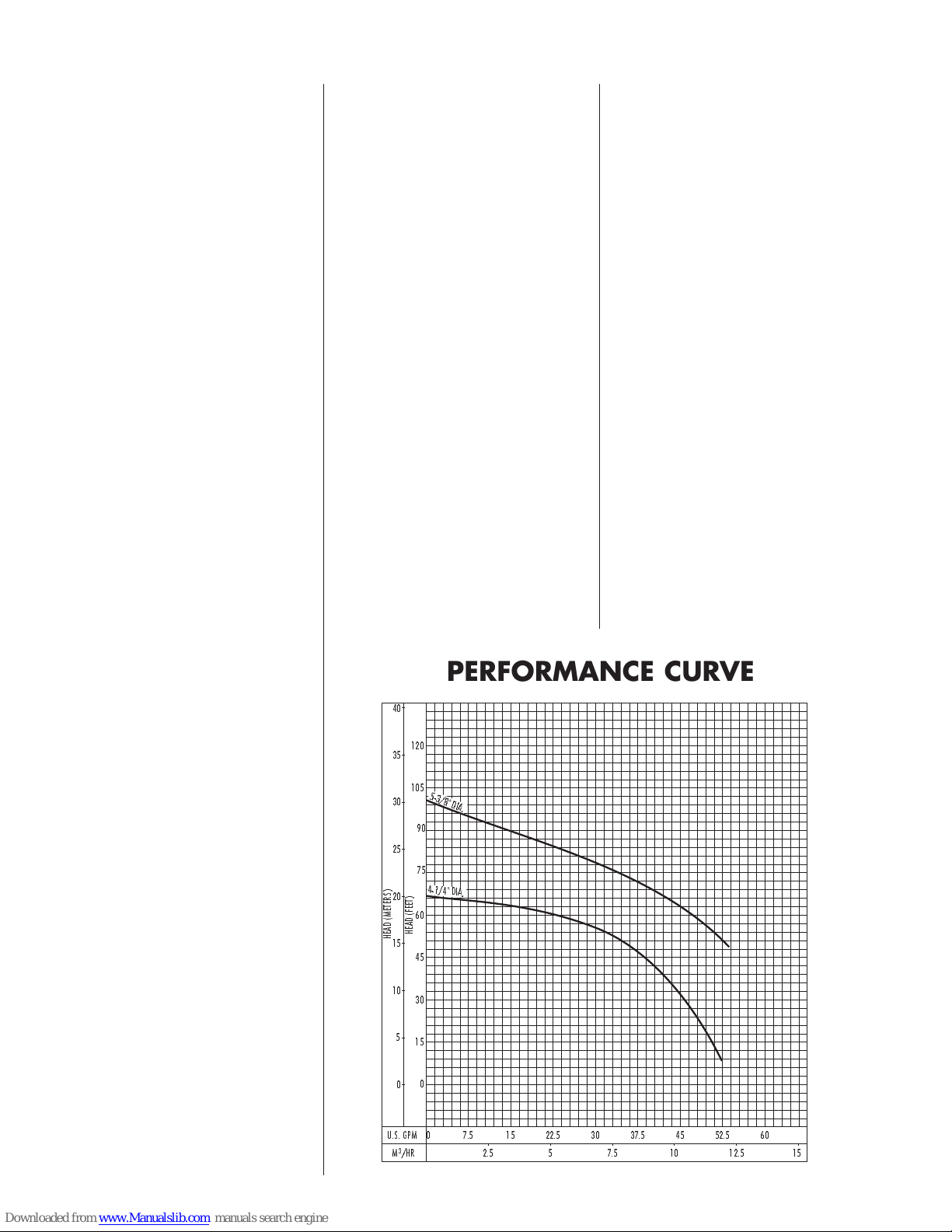

PERFORMANCE CURVE

5
1
2
3
4
5
25
6
7
8
24
22 21
20
23
14
1518, 1913171612
9
11
Pump
Troubleshooting
Below is a list of troubles and
their probable causes:
No liquid delivered
1. Pump airbound
2. Discharge head too high
3. Pump or piping plugged
4. Speed too low
Insufficient liquid delivered
1. Discharge head too high
2. Impeller or cutters partially
plugged or damaged
3. Incorrect impeller diameter
4. Speed too low
Insufficient discharge pressure
1. Air or gases in liquid
2. Impeller damaged
3. Incorrect impeller diameter
4. Speed too low
Pump overloads motor
1. Specific gravity or viscosity of
liquid too high
2. Speed too high
3. Head lower than rating,
pumping too much liquid
4. Pump clogged
5. Defective bearings
6. Defective impeller
Pump is noisy
1. Defective bearings
2. No axial clearance between
impeller and volute
3. No diametral clearance
between radial cutter and
cutter ring
If the cause of the trouble
cannot be determined and
corrected as outlined above,
contact your nearest factory
representative.
Start Windings 7.53
Run Windings 1.56

6
HPGR200

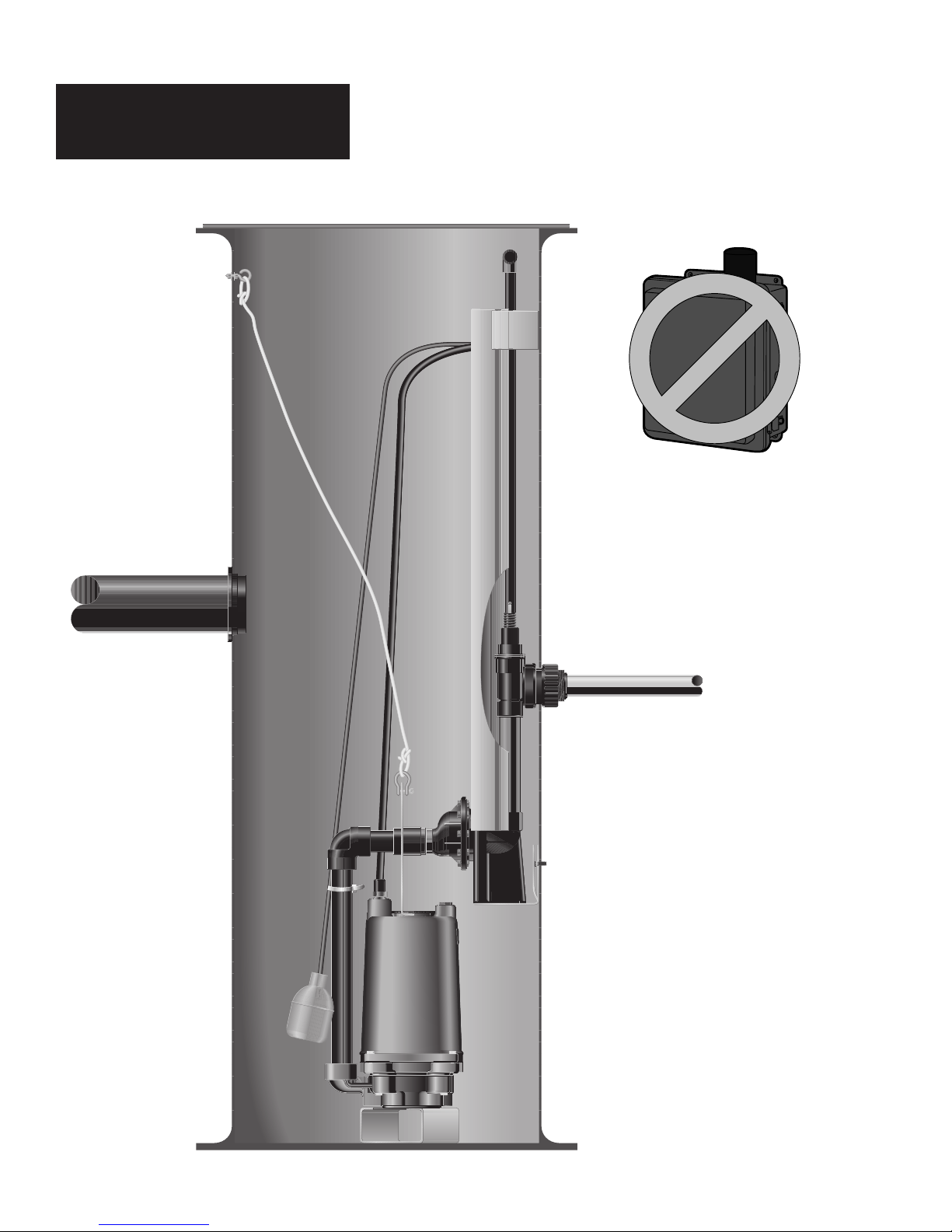

Typical Installation
NO PANEL REQUIRED

7
HPGR200
Parts List
Ref. No. Part No. Description Qty.
5 14981-001-1 Oil Fill Plug 1
6 25338B001 Power Cord 1
7 14589-002-2 Motor Housing 1
8 14570-000-1 Motor 1
9 07033-020-3 Impeller
10
11 00101-008-1 Screw 4
12 00101-011-1 Screw 4
13 05405-001-2 Radial Cutter 1
14 05506-002-2 Axial Cutter 1
15 05505-000-2 Stationary Cutter 1
16 07763-000-1 Cutter Retainer 1
17 00030-004-1 Screw 3
18 05570-005-1 Impeller Washer 1
19 14885-000-1 Impeller Screw 1
20 10957-000-2 Volute 1
21 14569-000-1 Bearing Housing 1
22 00077-011-1 O-ring 1
23 00834-023-1 O-ring 1
24 14573-000-1 Shaft Seal 1
25 24709110000 Paraffinic Oil 0.90
NOT 00589-002-1 Eye Bolt 2
SHOWN 01032-002-1 Hex Nut 2
For Automatic Operation
NOT 14595-020-1 Wide Angle Switch 20'
SHOWN
Ref. No. Part No. Description Qty.
5
25
6
7
8
24
22 21
20
23
14
1518, 1913171612
9
11

Item # W-03-401 Rev. 9/17/09Part # 5625-401-1
– Your Authorized Local Distributor –
USA
740 East 9th Street, Ashland, Ohio 44805
Tel: [phone] Fax: [phone] www.hydromatic.com
CANADA
269 Trillium Drive, Kitchener, Ontario, Canada N2G 4W5
Tel: [phone] Fax: [phone]
© 2007 Hydromatic®Ashland, Ohio. All Rights Reserved.
LIMITED WARRANTY
HYDROMATIC warrants to the original consumer purchaser (“Purchaser” or “You”) of HYDROMATIC Sump
Pumps, Effluent Pumps, Sewage Pumps (other than 2-1/2"), and Package Systems, that they will be free from
defects in material and workmanship for the Warranty Period of 36 months from date of manufacture.
Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence,
misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a
three phase motor with single phase power through a phase converter will void the warranty. Note also that
three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of
the recommended size or the warranty is void.
Your only remedy, and HYDROMATIC’s only duty, is that HYDROMATIC repair or replace defective products
(at HYDROMATIC’s choice). You must pay all labor and shipping charges associated with this warranty and
must request warranty service through the installing dealer as soon as a problem is discovered. No request
for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.
EXCEPTIONS: Hydromatic Special Application Pumps, Battery Back-Up Sump Pumps, Filtered Effluent
Pumps, Grinder Pumps, and 2-1/2" Sewage Pumps are warranted for a period of 12 months from date of
purchase or 18 months from date of manufacture, whichever comes first.
HYDROMATIC SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT
DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTIES
SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on
the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty
gives You specific legal rights and You may also have other rights which vary from state to state.
This warranty supersedes and replaces all previous warranty publications.
HYDROMATIC
740 East 9th Street, Ashland, OH 44805
Phone: [phone] • Fax: [phone] • Web Site: http://www.hydromatic.com
