PREFACE
Thank you for purchasing the HYGENIQ CLEAN AIR FOGGER1.0. The powerful
easy to use system can remove the dangerous particles from the air in
seconds. It also makes disinfecting surfaces much more effective when
combined with the approved HYGENIQ CLEAN AIR Mist. Due to the 24V Li-ion
battery and refillable tank, you can keep disinfecting for as long as you wish.
Please read the user manual carefully and become familiar with the
operation and maintenance procedures. Store the manual in a safe place.

HYGENIQ CLEAN AIR FOGGER
3
Content
PREFACE ..................................................................................................................... 2
Packing List ................................................................................................................ 4
Safety Instructions..................................................................................................... 5
Product Description................................................................................................... 6
Setup ........................................................................................................................... 9
Operation ..................................................................................................................11
Maintenance.......................................................................................................... 133

HYGENIQ CLEAN AIR FOGGER
4

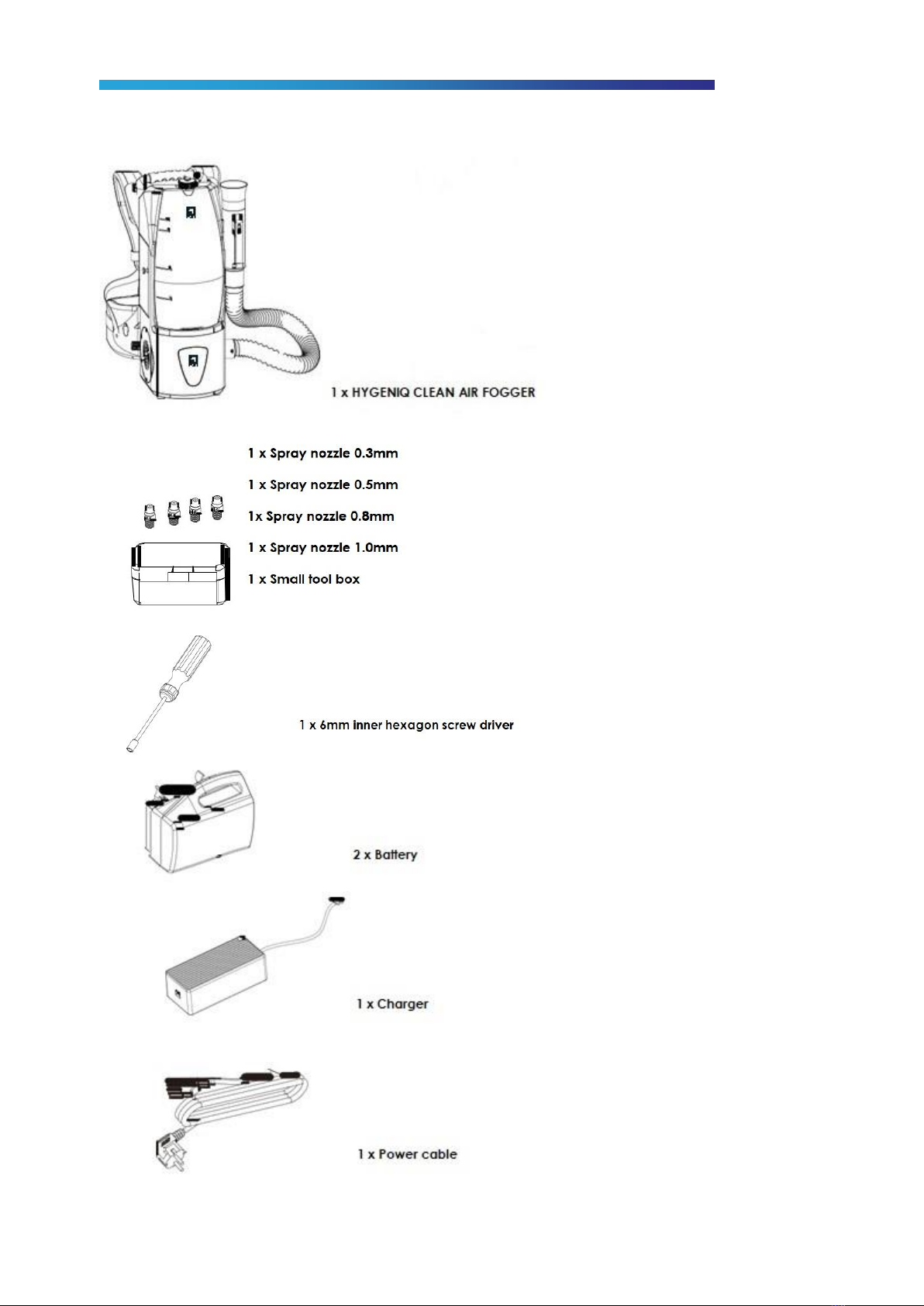

Packing List

HYGENIQ CLEAN AIR FOGGER
5
Safety Instructions
The following symbols and terms are used throughout this manual and on the machine to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety instructions are
not followed, can lead to injuries of the operator or bystanders, light
and/or moderate damage to the product or the environment.
STRONG MAGNET
Indicates the machine contains strong magnets. These can cause
pacemakers to stop as well as cause damage to electronic data, for
instance on information stored on access passes.
PACEMAKER
Indicates operators and maintenance crew wearing pacemakers
should keep a minimal distance of 6 inch/ 15 cm. In this specific
case operators may not use the machine as a backpack.
BATTERIES
Indicates a battery operated machine. Batteries must be disposed of
according to your local laws and regulations. It is advisable to fully
charge the battery before use.
Read all instructions before using HYGENIQ CLEAN AIR FOGGER
Cautions when using the machine:
Do not operate the machine without reading and fully understanding the instructions. If the machine is
operated incorrectly it can pose a danger to the operator and others and will invalidate the manufactures
warranty.
Before use please read and understand the following:
•A risk assessment for the works to be undertaken;
•MSDS Chemical Data sheet;
•Risk assessment for chemical use.
Keep the HYGENIQ CLEAN AIR FOGGER upright and securely fastened at all times while in use and during
preparation and transportation.
Only use approved HYGENIQ CLEAN AIR Mist and batteries for safe use of this machine. Using other
consumable items in the fogger invalidates the warranty and could lead to damage of the internal parts and
could possibly pose a risk to the operator.
Maintenance/service people and operators with pacemakers need to keep a distance from the integrated
magnets in the HYGENIQ CLEAN AIR FOGGER of 6 inch/15 cm whilst maintaining and operating the fogger.
Make sure the operator has been fully trained before using the machine.
Avoid fogging directly on humans and animals.
Ensure the machine is used in a dry environment, and do not allow water or any other liquid around the
motor air inlet.

HYGENIQ CLEAN AIR FOGGER
6
Product Description

HYGENIQ CLEAN AIR FOGGER
7
Item
Specification
Product weight
(W/O battery)
7.9KG
Product dimension
Main body: 200x595x225mm
Included harness: 300x600x315mm
Tank capacity
3.5L
Battery weight
1.3KG
Battery voltage
DC24V
Duration of battery
1 Hour
Charger input voltage
AC100~250 Voltage
Charging time
1 Hours 50 minutes
Speed of spray
175~100ml/minutes
Hose length
1.2 meters
Droplet size
20~150µm
Spray nozzles
0.3x3mm, 0.5mm, 0.8mm, 1.0mm
Theoretical capacity per
tank
12000m3
Machine power
450W
Spray distance
5~6 meters
Pump
DC24V, 5W, 100ml/minute
Main body material
LDPE
Spray handle material
Aluminum

HYGENIQ CLEAN AIR FOGGER
8

HYGENIQ CLEAN AIR FOGGER
9
Setup

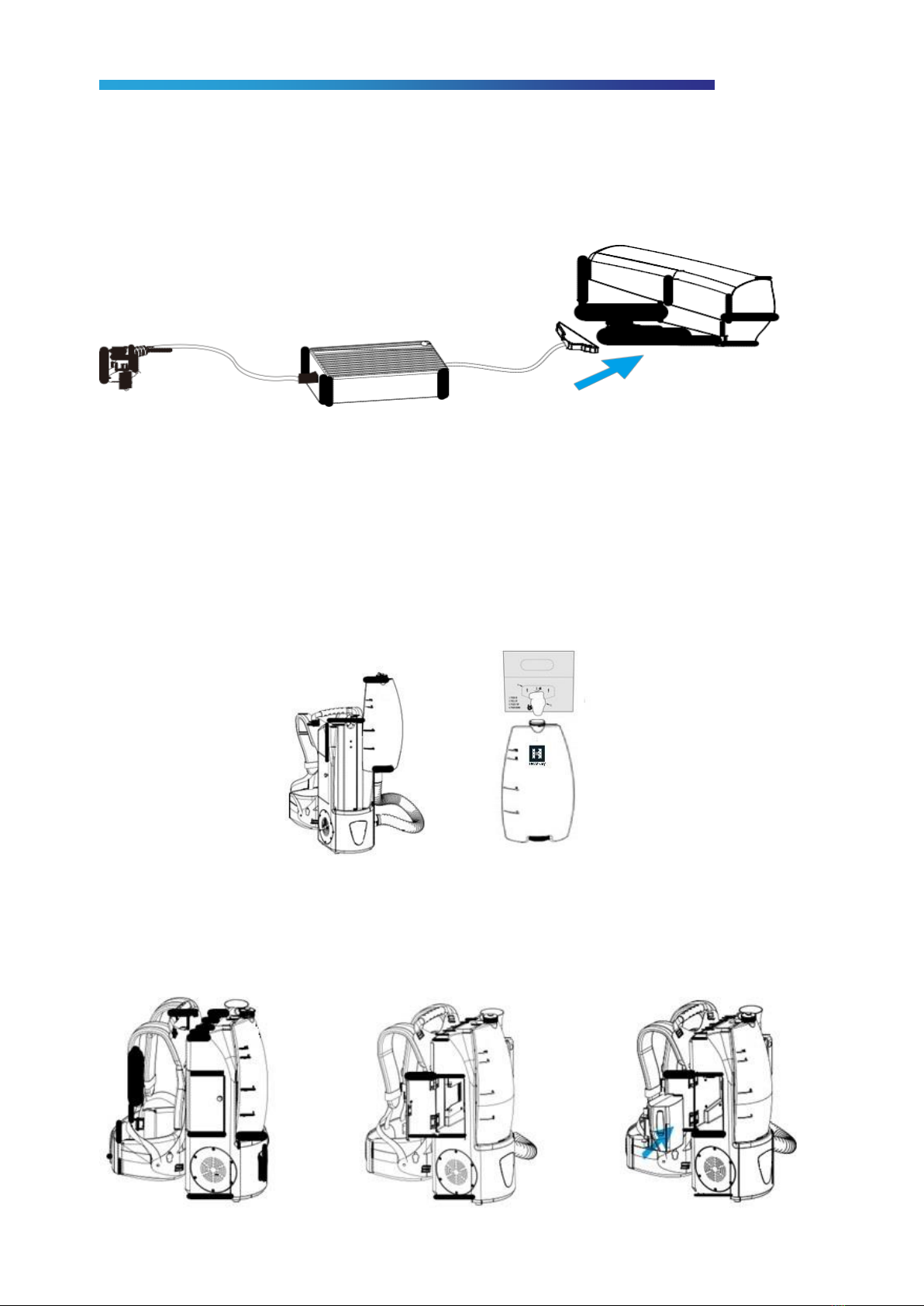

1. Charging the battery
For first time charge, please remove the yellow protector from the battery. Ensure that the battery has been
fully charged before each operation.
2. Fill the liquid tank
Place and secure the machine body upright. Unscrew the cap of the liquid tank, and pour the approved
HYGENIQ CLEAN AIR Mist into the tank.
Or
Take the liquid tank from the machine, and secure it in a upright position. Unscrew the cap of the liquid tank,
and pour the required amount of the approved HYGENIQ CLEAN AIR Mist into the tank. Insert the liquid tank
back to the machine which should also be placed in an upright position. Note: 1L of HYGENIQ CLEAN AIR Mist
covers approximately 3650 m3.

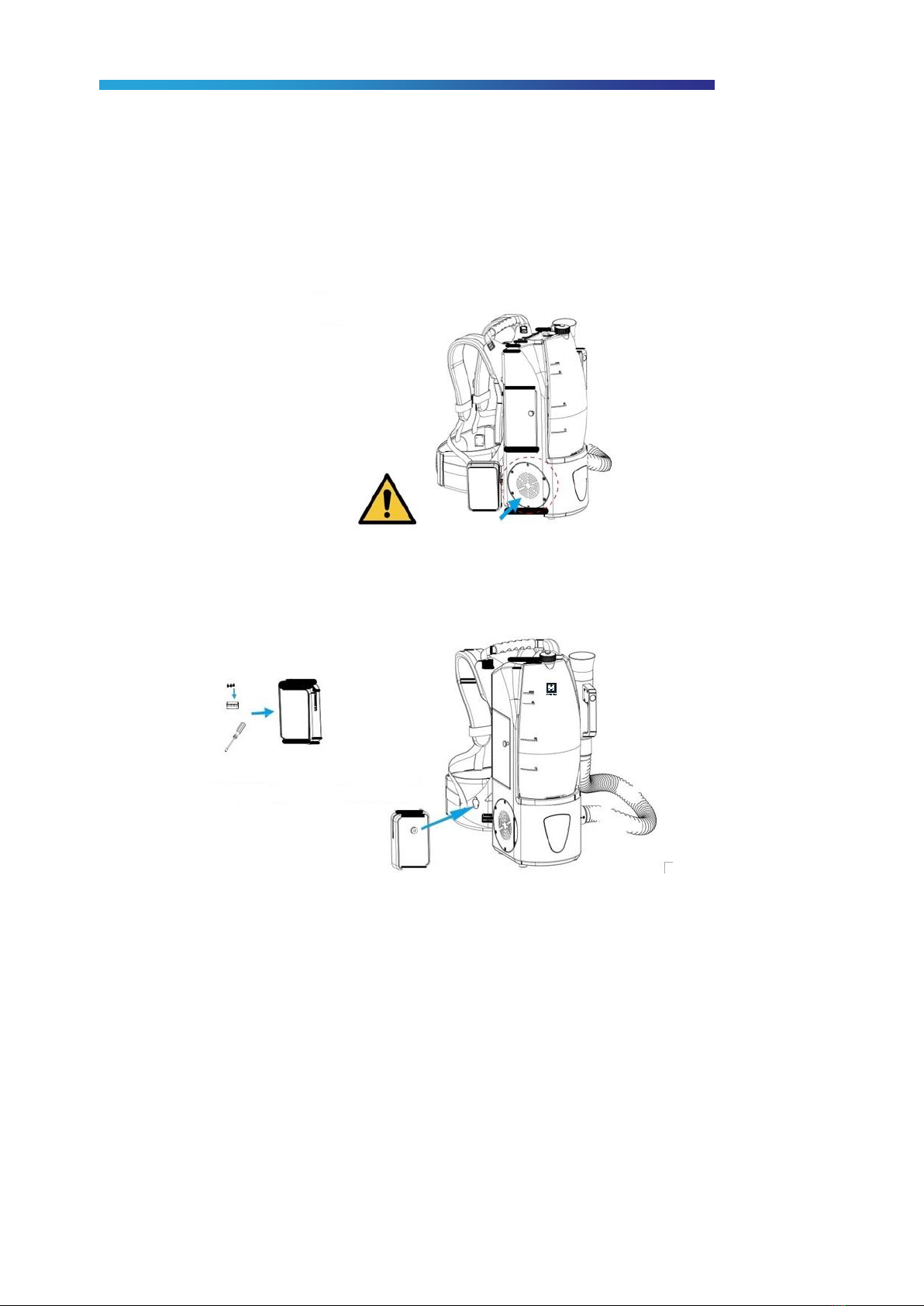

3. Insert the battery to the machine
Open the battery housing door, and slide the fully charged battery into the battery housing, until you hear a
“click” sound. Make sure the battery is installed correctly and then close the door. To remove the battery, use
the clamps on the sides of the battery to release.

HYGENIQ CLEAN AIR FOGGER
10

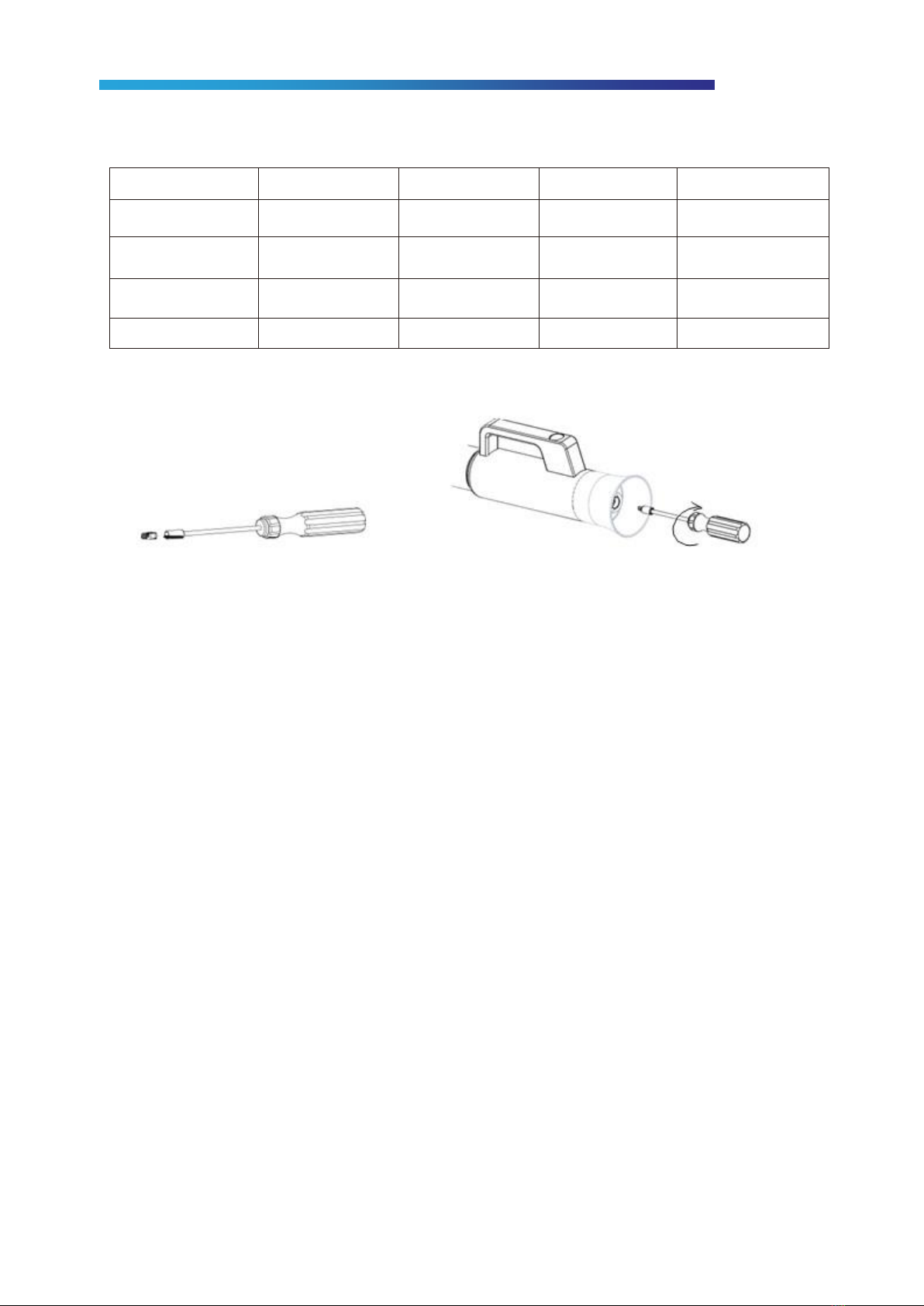

4. Installation of the nozzle in spray handle
Select the appropriate nozzle for the application.
Nozzle size
Droplet size
Spray distance
Duration (3.5L)
Appliccation
0.3mm(3x)
~20µm
5~6m
35minutes
indoor
0.5mm
~30µm
5~6m
30minutes
indoor
0.8mm
~40µm
5~6m
25~30minutes
indoor
1.0mm
~60µm
5~6m
20~25minutes
outdoor

HYGENIQ CLEAN AIR FOGGER
11
Operation

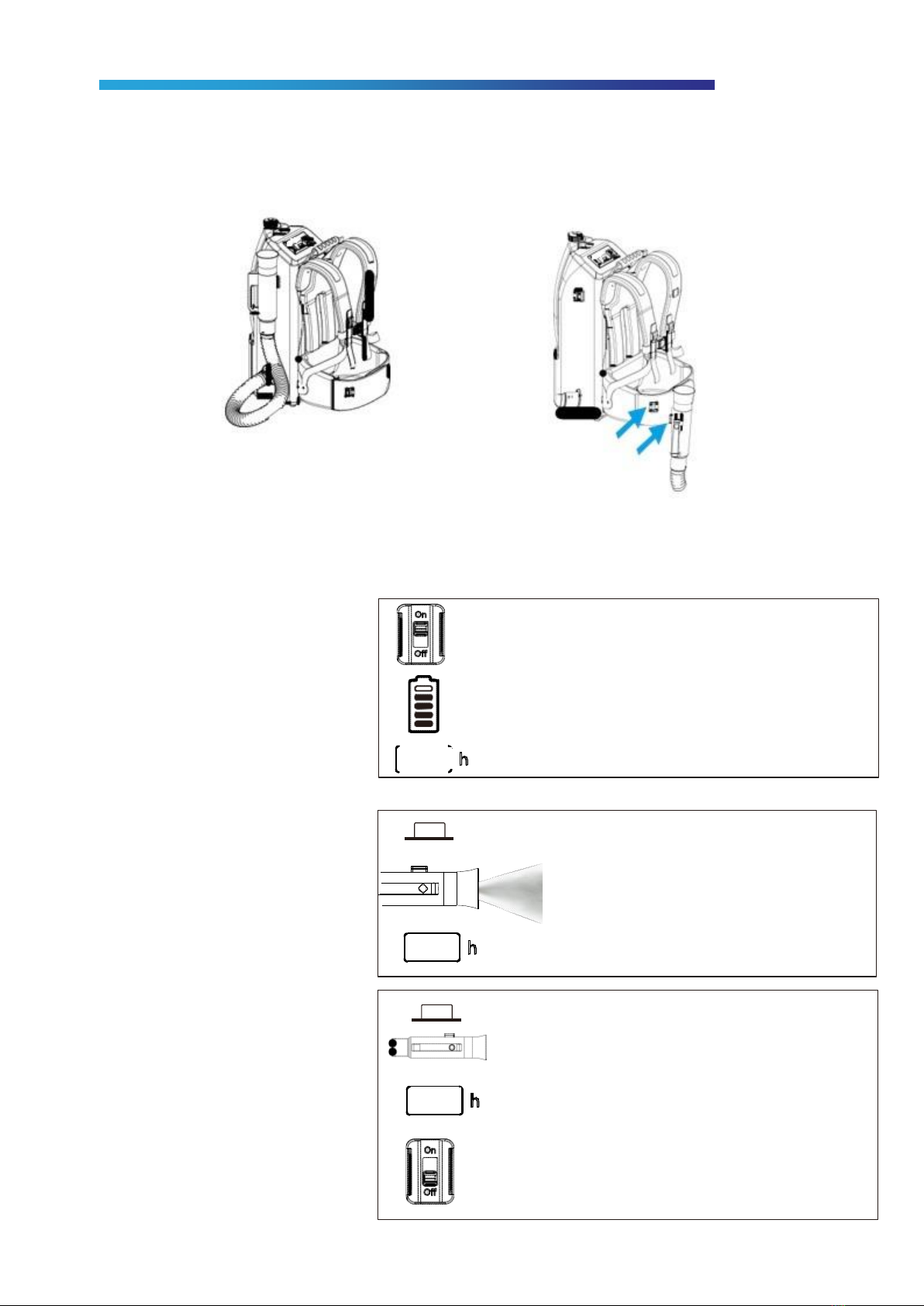

1. Place the machine body with filled tank on the table, and then place the spray nozzle on the lower
hook.
2. Turn the main switch to “on” before placing the fogger on your back and adjust the straps and the
belt to the most optimal/comfortable operating position.
3. Spraying steps
Step 1 –Turning on the machine
Step 2 –Press the button,
and start fogging
Step 3 –Turning off the machine
234
1
Press the button once.
The nozzle starts to fog.
The cumulative timer starts.
Power switch –slide to “On” position.
The power indicator will be illuminated.
The cumulative timer displays the hours of operation up
to the last usage.
234.
Press the button again, the pray nozzle will stop
fogging.
The cumulative timer stops and the cumulative
hours will be registered.
Power Switch –slide to “Off” position, the battery
power turns off.
235

HYGENIQ CLEAN AIR FOGGER
12
4. Additional information:
For larger spaces / rooms one should fog the higher part of the room. The HYGENIQ CLEAN AIR Mist will
agglomerate with the particles present where the antimicrobial effect will do its job. Secondary effect is that
the particles get heavier and via laws of gravity descend. This way the descending layer of mist works as a
membrane filtering all other unwanted particles (such as microdust) out. This results in a completely
antibacterial filtered and purified air composition in the room.
Specific ‘risk-points’ like door handles, light switches and other manual touch points can be targeted directly
to ensure a sanitized surface.

HYGENIQ CLEAN AIR FOGGER
13
Maintenance
The fogger needs to be maintained during normal use:
1. Empty the liquid tank after each use, and rinse the tank and the hose with clean water;
2. Charge the battery fully after each use;
3. It is best not to exceed 4 hours of continuous use;
4. Ensure the machine is always used upright and in a dry environment, and do not allow water or any
other liquid around the motor air inlet.
5. Spray nozzles need to be stored in the small tool box, together with the screw driver. The tool box
can be hooked on to the backpack harness spring hook (3 nozzles in the tool box and 1 in the spray
handle).
6. If there is any issue with your fogger please contact HYGENIQ.
