I-Data 60 User manual

Contents
1 Introduction...................................................................................................................................1
1.1 Overview.................................................................................................................................................... 1
1.2 Installing the Battery................................................................................................................................ 2
1.3 Removing the Battery.............................................................................................................................. 3
1.4 Installing a SIM Card ............................................................................................................................... 3
1.5 Inserting a TF Card.................................................................................................................................. 4
1.6 Charging.................................................................................................................................................... 5
2 Instructions on iData 60.............................................................................................................6
2.1 Powering On/Off the iData 60 ................................................................................................................ 6
2.2 Locking and Unlocking the iData 60...................................................................................................... 6
2.3 Keys of the iData 60................................................................................................................................. 6
2.4 Home Screen............................................................................................................................................ 7
2.5 Status Icons and Indicators..................................................................................................................... 8
2.6 Basic Settings........................................................................................................................................... 9
3 Call Function...............................................................................................................................14
3.1 Making a Call.......................................................................................................................................... 14
3.2 Contacts................................................................................................................................................... 14
3.3 SMS and MMS........................................................................................................................................ 15
3.4 Email ........................................................................................................................................................ 16
4. Network Connection and Connection Synchronization.................................................18
4.1 GPRS Data Connection........................................................................................................................ 18
4.2 Wi-Fi Network Connection.................................................................................................................... 19
4.3 Bluetooth.................................................................................................................................................. 19
4.4 GPS.......................................................................................................................................................... 21
4.5 Connecting the iData 60 to a PC Using USB Data Cable................................................................ 21
4.6 Synchronization...................................................................................................................................... 22
5. Enabling Barcode Scanning..................................................................................................23
6. Enabling the NFC Function....................................................................................................24
7 Managing iData 60.....................................................................................................................25
7.1 Installing Applications............................................................................................................................ 25
7.2 Uninstalling Applications ....................................................................................................................... 25
7.3 Managing Applications .......................................................................................................................... 25
8 Precautions and Troubleshooting.........................................................................................26
8.1 Precautions............................................................................................................................................. 26
8.2 Troubleshooting...................................................................................................................................... 27
Appendix .........................................................................................................................................30

iData 60 User manual
1
1 Introduction
1.1 Overview
Figure 1-1 Front view of iData 60
Figure 1-2 Rear view of iData 60

iData 60 User manual
2
1.2 Installing the Battery
To install the battery, do as follows:
1. Disassemble the battery cover and move the dialing buttons of the battery cover on the
left and right along the OPEN direction to pull up the battery cover.
Figure 1-3 Disassembling the battery cover
2. Push the battery to the battery compartment and press it downwards.
Figure 1-4 Installing the battery
3. Move the dialing buttons of the battery cover on the left and right along the LOCK
direction to lock the battery cover.
Figure 1-5 Installing the battery cover

iData 60 User manual
3
1.3 Removing the Battery
To remove the battery, do as follows:
1. Move the dialing buttons of the battery cover on the left and right along the OPEN
direction to pull up the battery cover.
Figure 1-6 Disassembling the battery cover
2. Pull up the battery from the battery compartment.
Figure 1-7 Removing the battery
1.4 Installing a SIM Card
1. Insert a SIM card by following the direction in the figure below.
Figure 1-8 Inserting a SIM card

iData 60 User manual
4
1.5 Inserting a TF Card
(Note: TF cards, namely Micro SD cards, are applicable to the iData 60.)
1. Open the card cover by following the OPEN direction marked on the card cover. When a
click is heard, the card cover is completely opened.
Figure 1-9 Opening the TF card cover
2. Open the card cover upwards and insert a TF card, as shown in the figure below.
Figure 1-10 Inserting an TF card
3. Close the card cover, as shown in the figure below.
Figure 1-11 Closing the TF card cover

iData 60 User manual
5
4. Pull back the card cover by following the LOCK direction marked on the card cover.
When a click is heard, the card cover is completely pulled back.
Figure 1-12 Pulling back the TF card cover
1.6 Charging
You can charge a battery by using:
1. Data cable at the bottom
2. Desktop stand (to be purchased separately)
Figure 1-13 Charging data cable at the bottom Figure 1-14 Desktop stand
Description of charging indicator:
When the battery is in the charging status, the charging indicator is in red.
When the battery is fully charged, the charging indicator is in green.
When the battery volume is low, (1) a message indicating that the battery volume is less
than 20% is displayed on the screen.
(2) the iData 60 gives out a low battery prompt tone.
(3) the charging indicator blinks in red.

iData 60 User manual
6
2 Instructions on iData 60
2.1 Powering On/Off the iData 60
After installing a SIM card and a battery and charging the iData 60 completely, you can use
the iData 60.
1. To power on the iData 60, press the On/Off key in the lower right part of the keypad
for some time. The iData 60 vibrates, displays the startup screen and enters Android OS
after the guide progress is complete. It takes some time for the iData 60 to initialize.
Please wait patiently.
2. To power off the iData 60, press the On/Off key in the lower right part of the keypad
for some time. A dialog box that provides shutdown options is displayed. Click Power
Off.
2.2 Locking and Unlocking the iData 60
Locking the iData 60
Press the On/Off key to lock the iData 60. If you do not perform any operation for the
iData 60 within the default locking time, the iData 60 is automatically locked.
Unlocking the iData 60
Press the On/Off key and slide the unlock key to the
right on the screen.
2.3 Keys of the iData 60
The iData 60 provides a physical keypad that consists of 31 keys, as shown in the figure
below. On the physical keypad of the iData 60:
Home key: go back to the home screen.
Menu key: used to show menus.
Scanning key: used to scan.
Back key: used to return to the previous operation screen.
Direction keys (4)
OK key
Digit input keys

iData 60 User manual
7
User-defined function keys: F1, F2 and F3 (Note: F1 is the uppercase or lowercase
switching key.)
Volume keys: +, -
2.4 Home Screen
By default, the iData 60 has one home screen. You can add home screens by placing
applications to the home screen and slide to the left or right to switch to another home
screen. On the home screen, click the icon of any application to open the application.
★Tips
You can freely add or delete the icon of an application in the blank of the home screen.
If you click the application tray, all applications can be viewed.
Application tray

iData 60 User manual
8
2.5 Status Icons and Indicators
Status icons and indicators are in the status bar at the upper part of the screen and show
device status and notifications.
Table 2-1 Status icons
Icon
Description
Icon
Description
WLAN
Signal strength
Bluetooth
Flight mode
USB connection
Network access restricted
Missed calls
USB debugging
New messages
Charging
Modem logs
Battery full
Silent mode
Multiple notification icons,
which are beyond the scope
of display
Application permission
EDGE
Connection between USB
and PC pea pod
★Note
As software is upgraded continuously, status indicators may be different from those
displayed on the iData 60. The actual status indicators prevail.

iData 60 User manual
9
2.6 Basic Settings
2.6.1 Date and Time Settings
To change the date and time in the iData 60, do as follows:
1. Find the following icon.
2. Select Settings > Date & time > Set date or Set time.
2.6.2 Display Setting
1. Find the following icon.
2. Select Settings > Display > Lock screen
notification/Wallpaper/Brightness/Auto-rotate/Sleep/Interactive screensaver/Font
size/Cast screen.

iData 60 User manual
10
2.6.3 Ringtone Setting
1. Find the following icon.
2. Select Settings > Audio profiles > General/Silent/Meeting/Outdoor. Click different
modes and set the ringtone in the modes.

iData 60 User manual
11
2.6.4 Security Setting
1. Find the following icon.
2. Select Settings > Backup & reset > Factory data reset.
The iData 60 starts to restore factory settings.
★Caution
If you perform the preceding operation, the following data will be cleared:
Account
Data and settings of the system and applications
Downloaded applications
The following data will not be cleared:
Current system software and bound applications
Files in the SD card, for example, music and photos
2.6.5 Language and Input Method Setting
1. Find the following icon.

iData 60 User manual
12
2. Select Settings > Language & input, click Language, select a language, click Default,
and select an input method.
2.6.6 Shortcuts
You can add shortcut icons on the home screen of the iData 60.
On the home screen, click the icon of application tray, press and hold an icon and drag it to
the home screen.

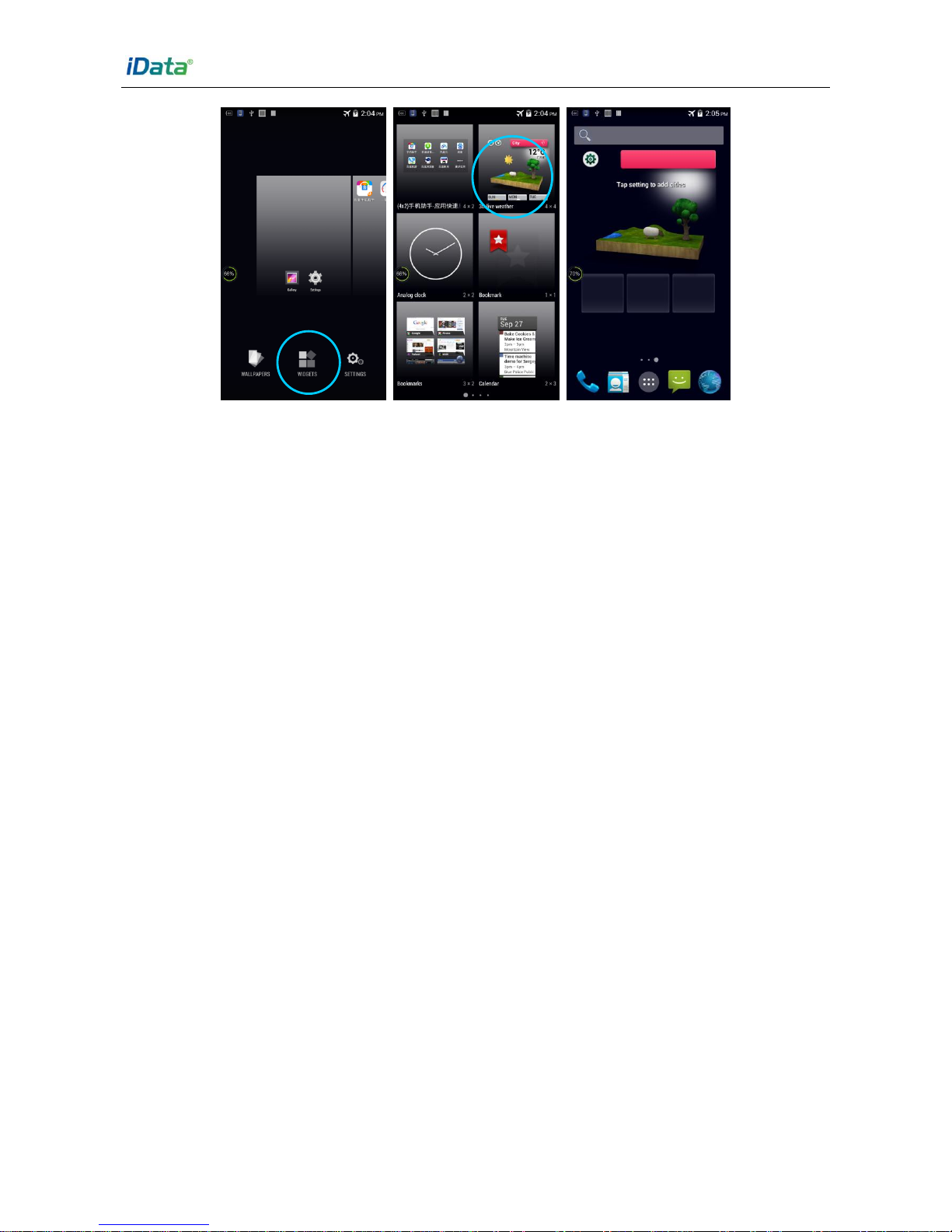

2.6.7 Widgets
You can add widgets such as clock, music player, and calendar on the home screen of the
iData 60.
On the home screen, press and hold a blank space. The entry for setting wallpaper and
widgets is displayed. Click a widget and drag it to a blank space.
Click the icon of a widget to open the widget.

iData 60 User manual
13

iData 60 User manual
14
3 Call Function
3.1 Making a Call
1. 1. Find the following icon.
2. Enter a phone number.
3. Click to make a call.
4. Click to terminate the call.
3.2 Contacts
1. 1. Find the following icon.
2. Click Contacts to open the list of contacts.
3. To add a contact, click .
4. To import or export contacts, press the menu key and click Import/Export.
Call records
Contacts
Voice call

iData 60 User manual
15
5. To edit or delete a contact, select the contact, press the menu key and click Edit/Delete.
6.
3.3 SMS and MMS
1. 1. Find the following icon.
2. Click enter a receiver and text to be sent.
3. Click to send the message.
4. On the message editing page, press the menu key, click Add subject to convert the
message into a multimedia message. After editing the message, click to send the
message.
★Tips
Click to add attachments such as photo, video and audio.

iData 60 User manual
16
3.4 Email
You can send or receive emails.
★Note
To create an email account on the iData 60, first set the account on a PC. Take a QQ email
account as an example. Log in to the QQ email account, click Setup in the upper right
corner of the email account page, find and select the server option and inbox option and
then save. The email account is set.
To set an email account on the iData 60, do as follows:
1. 1. Find the following icon.
2. Enter an email address and password and click Next.
3. Set Inbox checking frequency and click Next.
4. Create a name for the account and click Next. The email receiving page is displayed.

iData 60 User manual
17
To synchronize or delete an account, do as follows:
1. On the home screen, click Settings.
2. Under the Account option, click POP3 to open added accounts and click the name of
an account to be synchronized or deleted. On the synchronization page, click in the
upper right corner and select Immediately Synchronize or Delete Account.

iData 60 User manual
18
4. Network Connection and Connection
Synchronization
4.1 GPRS Data Connection
After a GPRS data connection is established, you can access the Internet. To establish a
GPRS data connection, ensure that a SIM card is installed in the iData 60. In general, the
Internet access configuration is set on the iData 60. If you delete the default configuration
by accident, you can set the network by performing the following steps (take the network of
China Unicom as the example):
1. Find the following icon.
2. Select Settings > More > Mobile network > APN > China Unicom 3G Network.
Then set the following items:
Name: China Unicom 3G network
APN: 3gnet
APN type: default, supl, net
Proxy: not set
Port: not set
Username: not set
Password: not set
Server: null
MMSC: null
MMSC: not set
MMS port: not set
MCC: 460
MNC: 01
Authentication type: null
APN protocol: IPv4
Enable/disable APN: APN enabled
Bearer system: null
